Published: 2021-04-26

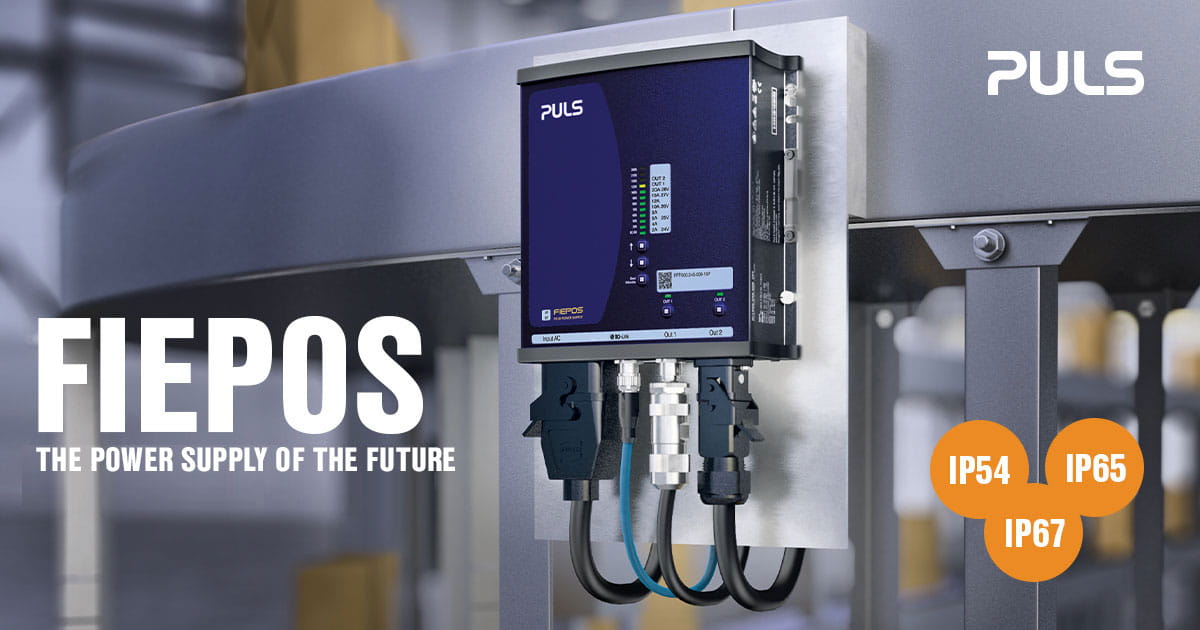

Fiepos — The power supply of the future

Product news

The decentralized FIEPOS power supplies with high protection classes IP54, IP65 or IP67 were developed for flexible use directly in the field.





Decentralization

Field power supplies.
The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success. It speeds up system planning, simplifies maintenance and enables an easy expansion of the system. In addition, control cabinets can be replaced by smaller versions or even completely dismantled.

With FIEPOS, short for FIEld POwer Supply, PULS presents a new type of power supply that was developed precisely for this environment: A decentralized field power supply with protection class IP54, IP65 or IP67 that is available ex stock, is easy to install and flexible enough to meet the diverse requirements of modular factory automation.

In short, PULS' field power supplies are the alternative to a power supply in the centralized control cabinet, decentralized on-site control box or a customer-specific solution.

Traditional system design with central IP20 power supply

The centralized supply of peripheral devices in the field requires long cable runs with a large cross-section. Due to the power losses caused by the long cables, the power supply must be over-sized.

Modular system design with IP54, IP65 or IP67 power supplies

FIEPOS field power supplies are perfect for supplying spacious applications with energy in a decentralized, efficient and flexible way. This enables a modular system structure as well as an effective expansion, maintenance and retrofitting of individual components of the system.



Field power supply series

The right solution for every application.

Basic series

1 high-power DC output

The FIEPOS Basic series offers one DC output and is available with a power of 300W or 500W. The IP54, IP65 and IP67 field power supplies are perfect for the decentralized supply of 1-phase or 3-phase systems and machines. The field power supplies can be easily connected in parallel, e.g. to increase total performance or realize a reliable redundant system.
  • Available input voltage ranges
    1-phase 85 - 264V
    1-phase 170 - 264V
    3-phase 320 - 550V
  • Output voltage
    24 - 28V
  • Power [nominal]
    300W or 500W
  • Power [continuous (< 45 ° C)]
    360W or 600W
    Power [5s]
    600W or 1,000W
  • Efficiency
    > 95%
    Available connectors
    7/8 “, M12, HAN-Q series and Quickon.
    Further connector configurations on request.
  • Communication
    IO-Link or DC-OK
  • Redundancy
    Integrated decoupling MOSFET (Oring)
  • Load sharing
    Soft output regulation characteristic (droop)

eFused series

Up to 4 current-limited DC outputs

The field power supplies of the FIEPOS eFused series have up to four current-limited outputs. These devices make it easy to implement selective power distribution, protection and monitoring directly in the field. The eFused series is therefore a space-saving, fused power supply system. It is a real alternative to a power supply unit with an external, electronic protection module.

  • Available input voltage ranges
    1-phase 85 - 264V
    1-phase 170 - 264V
    3-phase 320 - 550V
  • Output voltage
    24 - 28V
  • Power [nominal]
    300W or 500W
  • Power [continuous (< 45 ° C)]
    360W or 600W
  • Power [5s]
    600W or 1,000W
  • Efficiency
    95%
  • Available connectors
    7/8 “, M12, HAN-Q series and Quickon.
    Further connector configurations on request.
  • Communication
    IO-Link or Output OK (both via M12-connector)
  • Up to 4 current limited outputs
    Selective shutdown in the event of a fault
  • Selectivity function
    Protection of sensitive loads through prioritized outputs
  • Staggered output activation
    According to priority in 100ms increments



Flexibility

The compact housing with a high degree of ingress protection (IP54, IP65 or IP67) and various connector options enables the FIEPOS power supply to be installed flexibly outside of the control cabinet and directly on the machine.

Ease of use

The output voltage and the current-limited outputs (eFused series) can be monitored and set directly via the LED interface and the push buttons on the front of the device or remotely via IO-Link.

Cost savings

FIEPOS field power supplies make it possible to use shorter cables and smaller cable cross-sections. This not only saves on the costs of copper, but also on the installation work for the cabling. In addition, an all-in-one device can be used instead of several components. This means less effort in managing part numbers and less time effort in installation.

Space savings

Thanks to the integrated, current-limited outputs in the FIEPOS eFused series, no additional protection module is required. This saves space in the system. In addition, centralized control cabinets and decentralized on-site control boxes can be reduced and the space can be used to expand the system. Fewer components also mean more free space in the warehouse.



Field power supplies.

The alternative to a cabinet.

The FIEPOS eFused power supply is also available with a current-limited high-power channel (20 A) and an additional fused low-power channel (2–12 A). The compact field power supply can be attached directly to the machine and replaces decentralized on-site cabinets such as those comprising a 24 V 20 A power supply and an electronic fuse for creating an electric circuit compliant with NEC class 2 standards.

With the eFused version, it is no problem to supply decentralized loads with a high energy consumption and set up a NEC Class 2 circuit at the same time.

This means that the compact IP54, IP65 or IP67 power supplies can replace on-machine control boxes that consist of a 24V 20A power supply and an electronic fuse.

The graphic shows how you can save material costs, working hours and space by using FIEPOS field power supplies.



IO-Link

Which information is available via the IO-Link interface?
Via IO-Link, the FIEPOS power supply provides information about important parameters such as service life, temperature, voltage, current, etc. and alarms of overload, a faulty DC voltage or even if channels are triggered. Remote access is also possible via IO-Link. This enables the device to be switched on and off remotely, the voltage and tripping currents to be set and tripped channels to be reset.



More information

Contact us

Please contact us for more information.
