Published: 2019-04-12

The recognized Puls quality for an attractive price

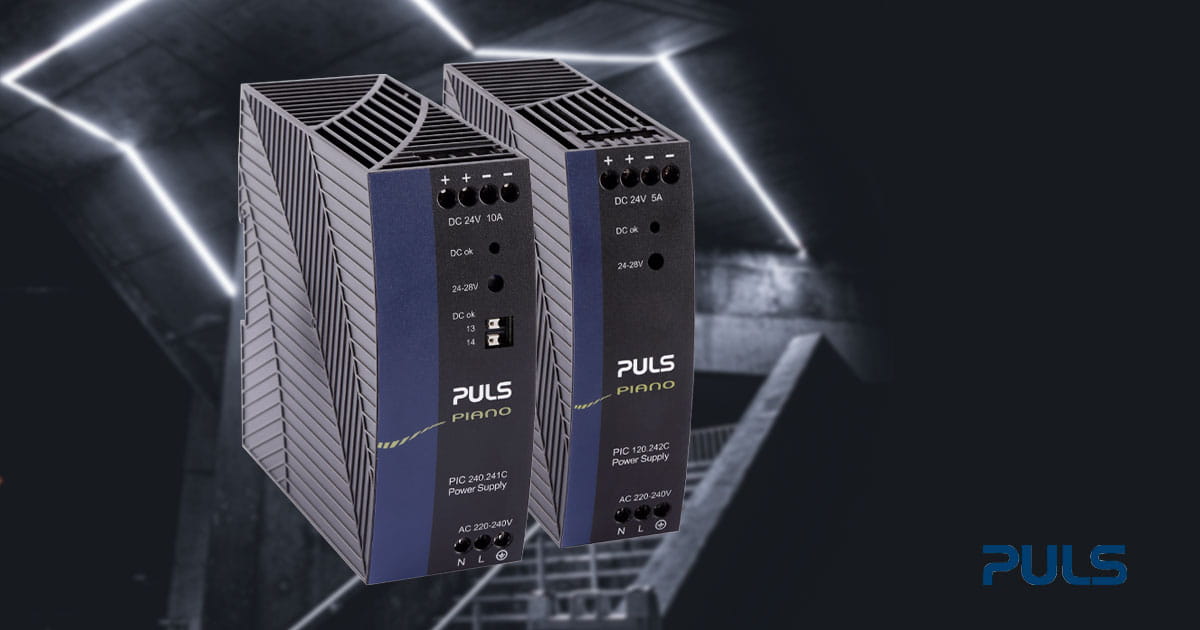

The PIANO PIC series is designed for applications that require reliable DIN rail power supplies, which are focused to deliver the most widely required customer functionalities. Our PIC units offer this simplicity without making compromises on PULS’ renowned qualities; efficiency, service lifetime, reliability and size. The PIC portfolio is composed of accurately designed and application-oriented 24V power supplies. This specifically developed line card is unique in the industry 24V class. The benefit for our customers: They will get exactly what they need for their application – no cost intensive extra features but still manufactured to the highest quality in these essential functions. The PIC series represents PULS’ perfect blend of essential functionality with the highest quality.

Reduced system costs

The PIC series is a future-proof and cost-effective investment for your system. With the PIC series you will permanently reduce your system costs. The high efficiencies (90.5 to 95.7% at full load) lower the heat losses and reduce your energy costs for the cooling of the system.

Increased process uptime

The high MTBF values (Mean Time Between Failures) of up to 1.72 million hours prove the absolute reliability of the PIC series. The power supplies are equipped with a DC-OK LED and they can also report the DC-OK signal via a floating relay contact (except PIC120.242C).

Flexible choice

The PIC portfolio allows you a high flexibility. The units differ in very subtle details which gives you the opportunity to choose only what you really need. For example: If you operate your systems exclusively in Europe or China you do not have to pay for a wide range input.

Mechanical robustness

The clean board design and high-grade housing make the PIC series resistant to mechanical shock and vibration. The light-weight design of 350-810g also reduces the static strain on the DIN rail. All units also comply with the V0 class of inflammability.

Product news

Output voltage: 24-28 V DC
Output current: 5 A
Power: 120 W
Input voltage: 180-264 V AC
or 90-132 V AC / 180-264 V AC
Dimensions: 39x124x124 mm


Output voltage: 24-28 V DC
Output current: 10 A
Power: 240 W
Input voltage: 180-264 V AC or 90-264 V AC
Dimensions: 49x124x124 mm


Output voltage: 24-28 V DC
Output current: 20 A
Power: 480 W
Input voltage: 180-264 V AC
Dimensions: 49x124x124 mm
