CASTELL

Motion sensing interlock MSI

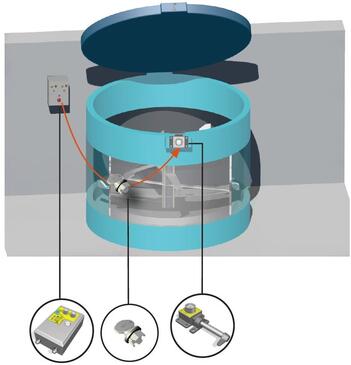

The MSI is designed to control access to rotating machinery that has a run-down time. The MSI relies on the detection of motion via two sensors. Only when both sensors detect zero movement can the key be released. The MSI has been designed to provide the highest level of safety when installed as part of an access control system for dangerous machinery.



Read more
  • Motion sensing interlock
  • 2 NO relay output

Selected variant

Locking systems

Art:

Selected variant

Specifications

Approvals CE
Conforming To EMC, LVD, MD
Consumption 18 W
Contact Current Max 6 A
Contact Voltage Max 250 V
IP Class IP65
Material Protection Painted steel
Materials Locks Brass
Temperature ambient from -5 °C
Temperature ambient to 55 °C
Weight 5 kg

Measurements and connections

Product description

The MSI is designed to control access to rotating machinery that has a run-down time. The MSI relies on the detection of motion via two sensors. Only when both sensors detect zero movement can the key be released. The MSI has been designed to provide the highest level of safety when installed as part of an access control system for dangerous machinery.



Accessories

Related products

Contact us

Please contact us for more information.
