CASTELL
Castell K-lock for mechanical isolation

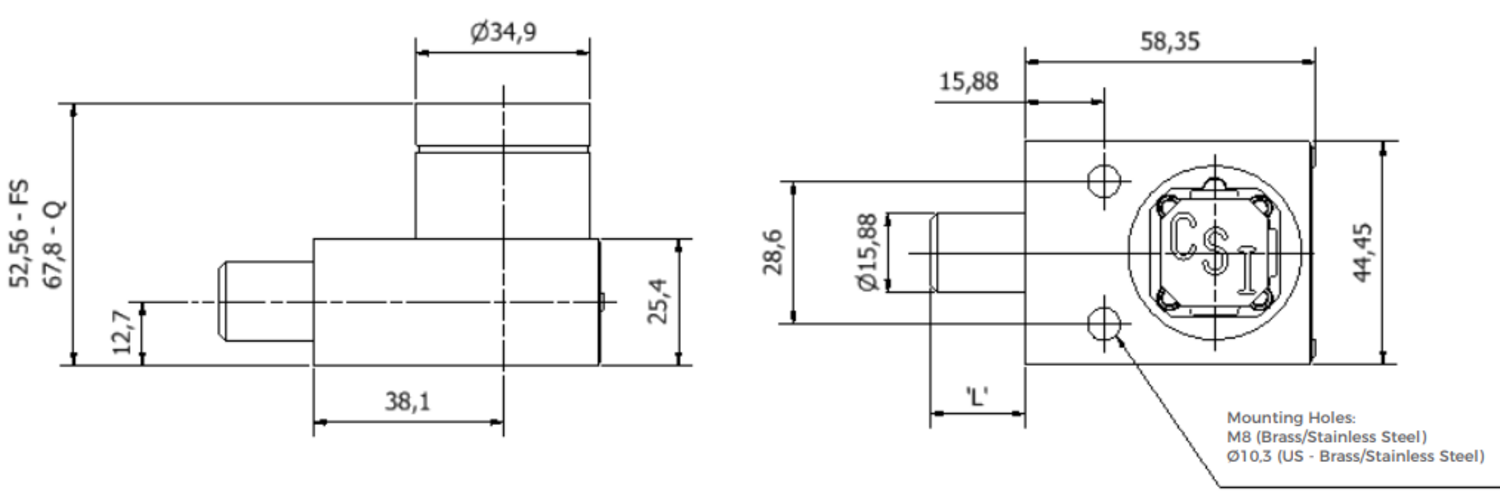

The K Lock is a key operated mechanical bolt interlock that is suitable for the control of electrical switchgear. The standard unit comes with a 15.88 mm diameter bolt available in various lengths, that is used to control the rotation or movement of operating handles or toggles of electrical switchgear. Many suppliers of switchgear equipment have mounting kits available for Castell interlocks. The lock is manufactured in brass or stainless steel making it ideal for use in harsh or corrosive environments.
- Extremely durable
- Mechanical lock, no electricity needed
- Made of brass / stainless steel
Selected variant
Specifications
| Approvals | CE |
|---|---|
| Conforming To | MD |
| Material | Brass |
| Materials Locks | Brass |
| Piston Diameter | 16 mm |
| Piston Motion | 19 mm |
| Temperature ambient from | -40 °C |
| Temperature ambient to | 140 °C |
| Weight | 0.7 kg |
Product description
The K Lock is a key operated mechanical bolt interlock that is suitable for the control of electrical switchgear. The standard unit comes with a 15.88 mm diameter bolt available in various lengths, that is used to control the rotation or movement of operating handles or toggles of electrical switchgear. Many suppliers of switchgear equipment have mounting kits available for Castell interlocks. The lock is manufactured in brass or stainless steel making it ideal for use in harsh or corrosive environments.
