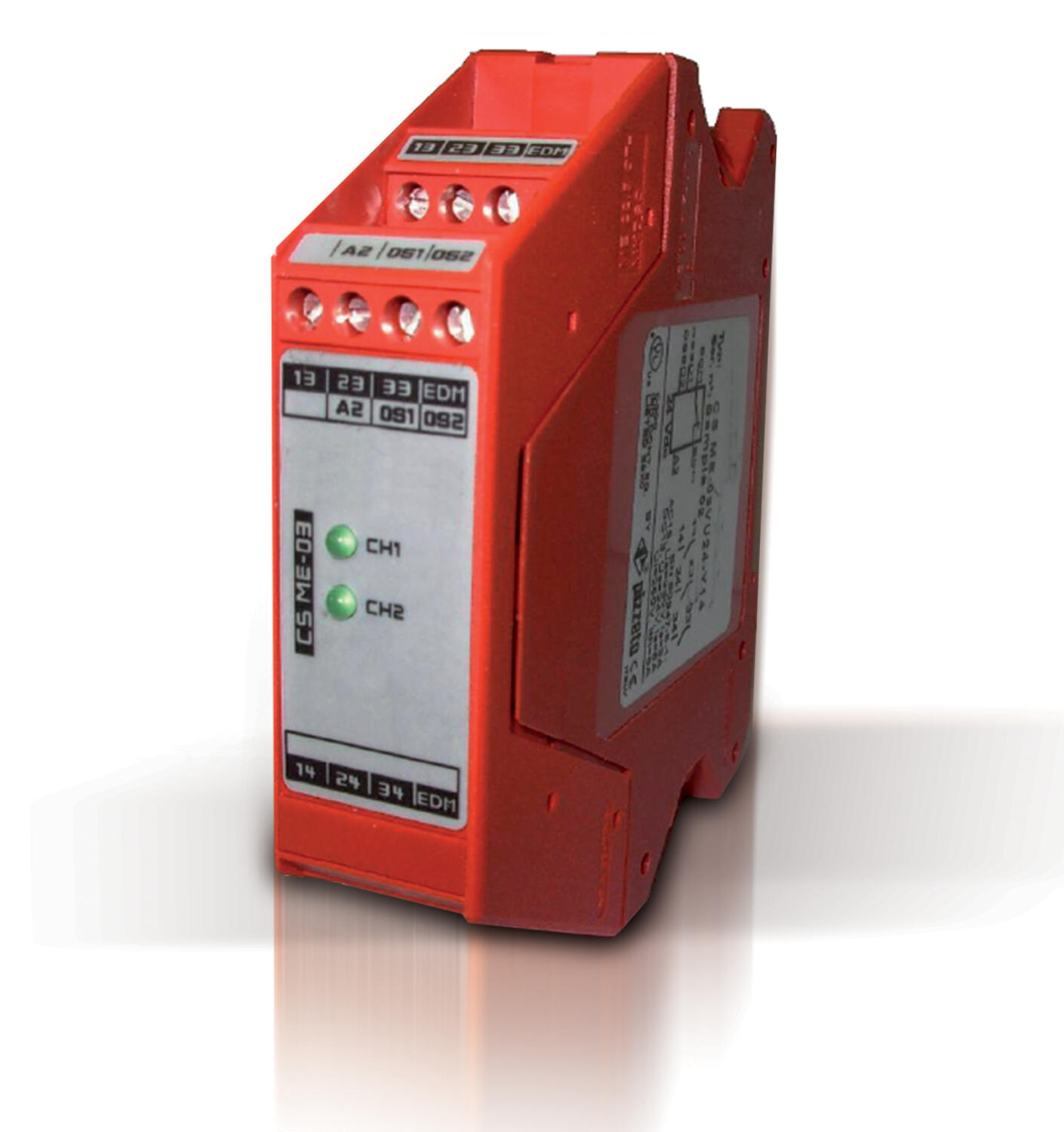

Datalogic - Safety relay CSME
Datalogic safety relay CSME is a low cost safety relay who can be used together with all SG and SE series light curtains that have EDM function (External Device Monitoring). CSME relay does not have internal monitoring so EDM control is compulsory.
By CSME safety relay the OSSD´s from safety light curtain can be changed to potential free relay contacts.

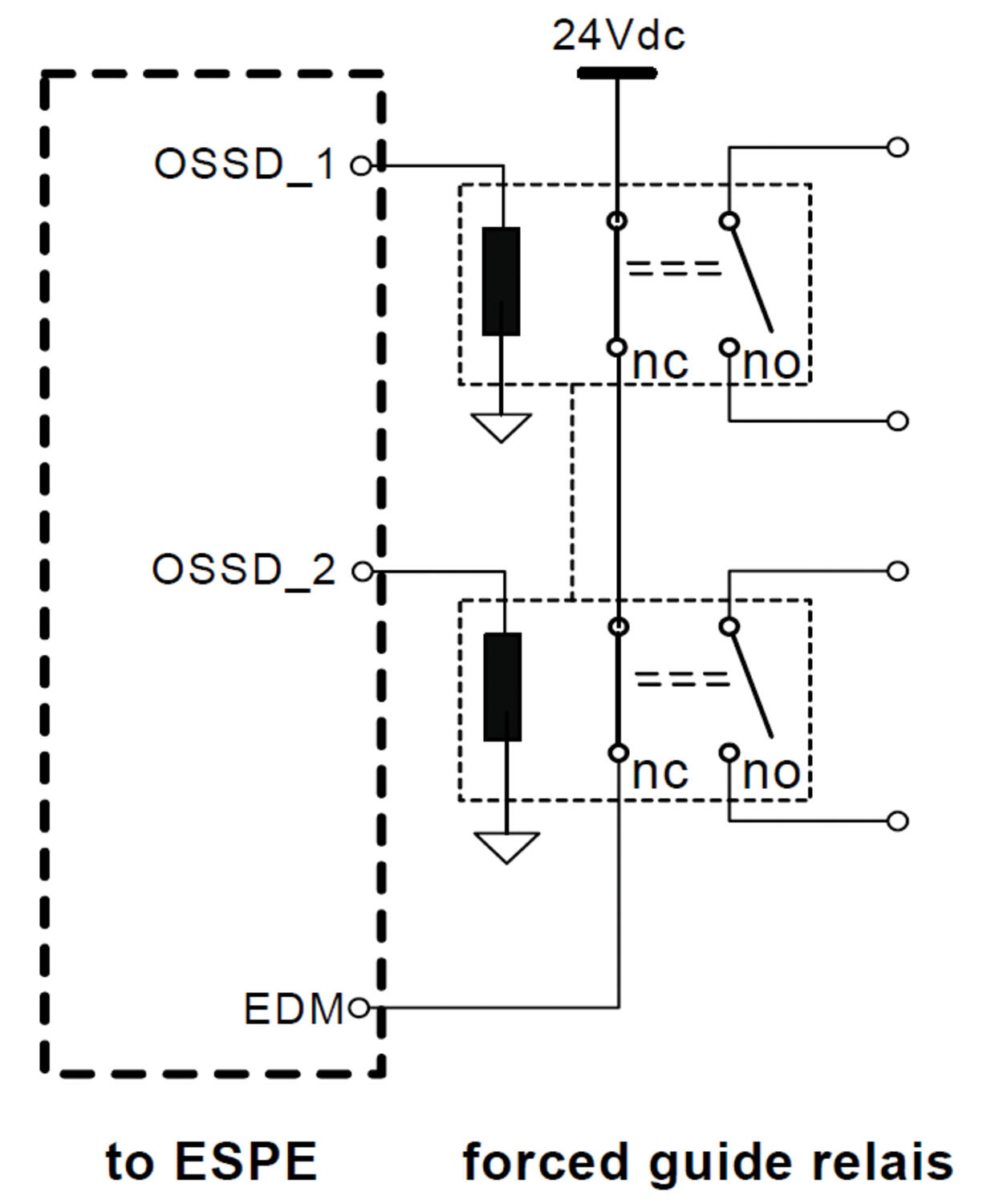

With proper EDM connection it maintain the same safety level as safety light curtain who is connected to CSME relay.

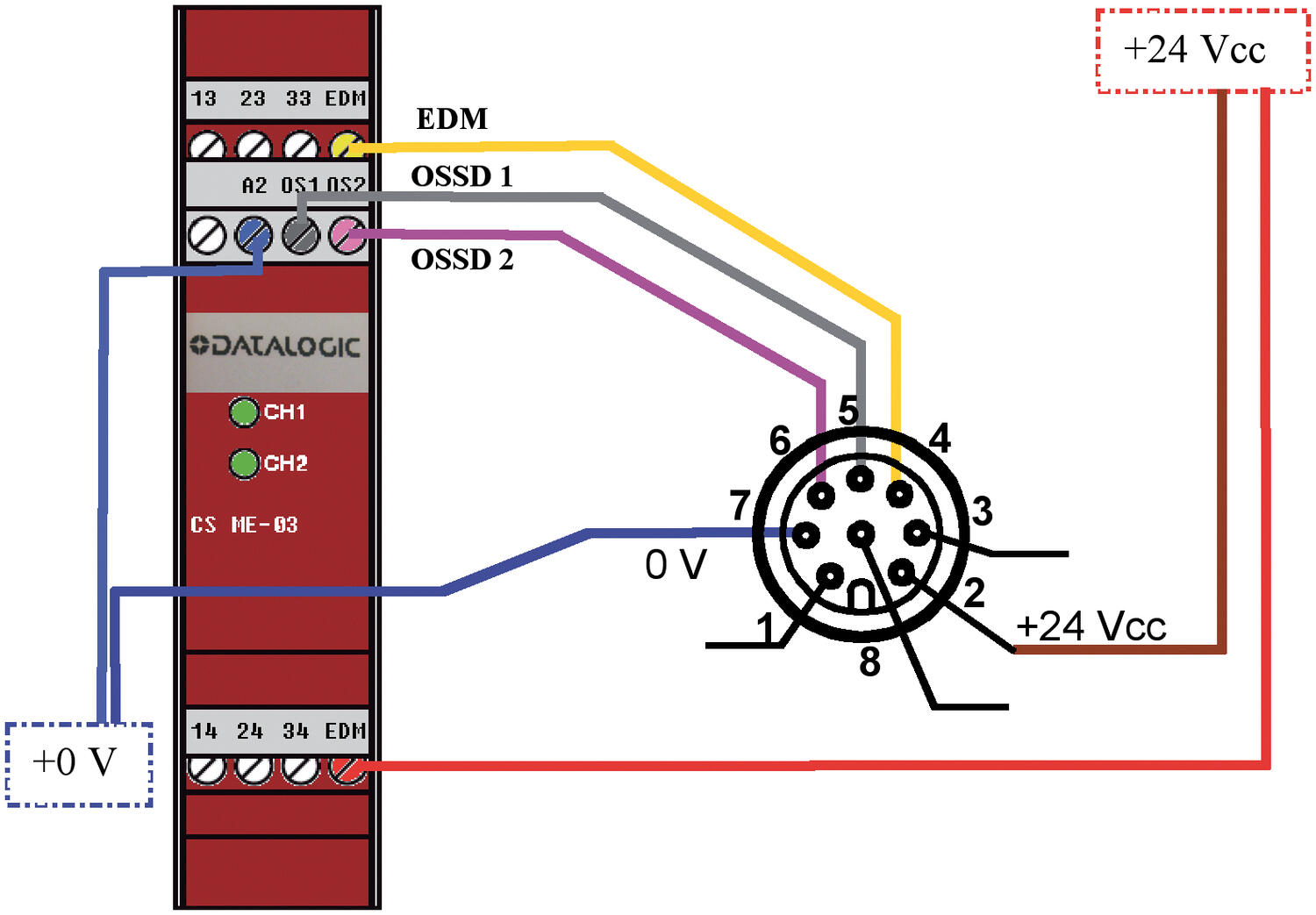

Connection example
Connection to SG4 safety light curtain | |
|
|
Technical Data
Supply voltage | 24 V DC |
Tolerance | +- 20 % |
Rated power consumption | < 2 W max |
Start power consumption | < 3 W max |
Safe outputs | 3 NO force quided relay contact + 1 NC contact for EDM |
Max. switching current | 6 A |
Max. switching voltage | 230/240 VAC, 300 VDC |
Disconnection time | 40 ms |
Status indication | 2 x LED |
Ingress protection class: | IP40 (housing), IP20 (terminal block) |
Operating temperature | -25 °C to +55 °C |
Material | Housing: Polyamid PA 6.6 class V0 (UL94) |
Weight | 200 g |
Dimensions (L x H x D) | 111,5 x 99,0 x 22,5 mm |
Mechanical endurance | > 10 millions operations |
Electrical endurance | > 100.000 operations |
Standard conformity | EN 60204-1, EN 954, EN 999, EN 1037, EN ISO 12100-1, |
Directory conformity | 2006/95/EC, 2006/42/EC, 2004/108/EC |
Approval |
|
Dimensions
Dimensions (L x H x D) | 111.5 x 99.0 x 22.5 mm |

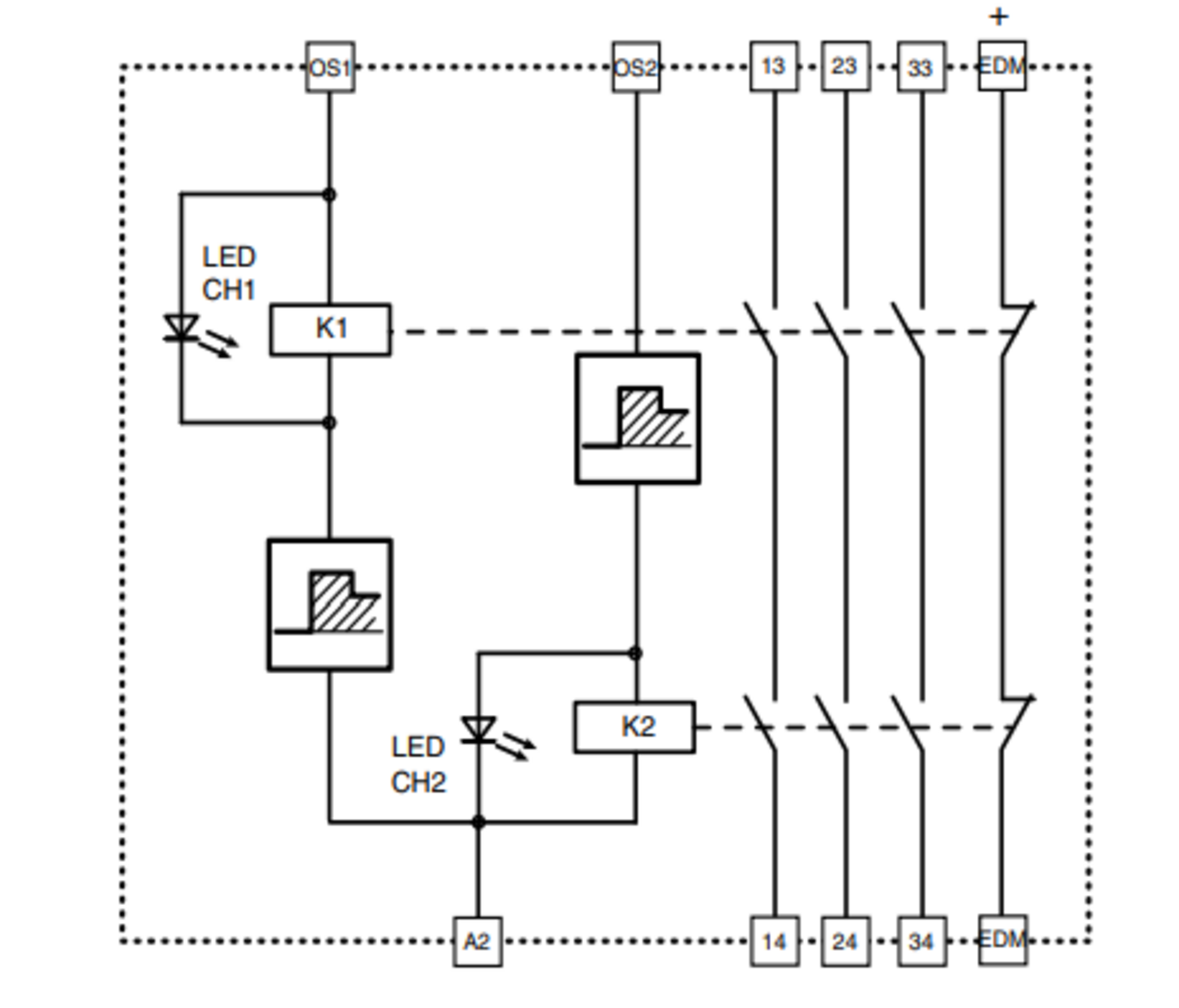

Connection
Terminals
Terminal | Connection |
EDM: (red) | 24 VDC (power supply) |
EDM: (yellow) | to EDM input (light curtain) |
A2: | 0 VDC (power supply) |
OS1: | OSSD1 (from light curtain) |
OS2: | OSSD2 (from light curtain) |
13-14 | NO safety relay output |
23-24 | NO safety relay output |
33-34 | NO safety relay output |

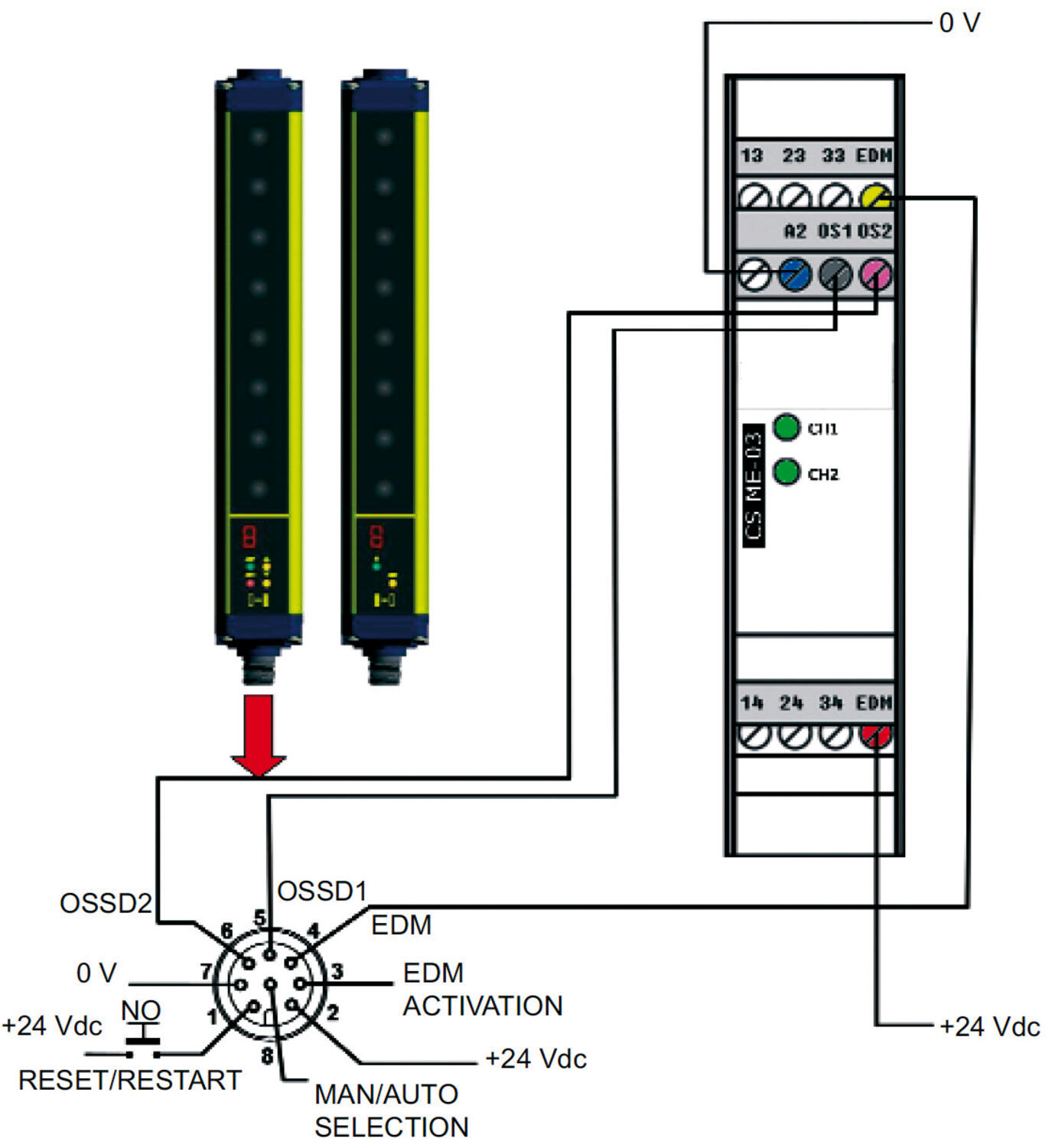

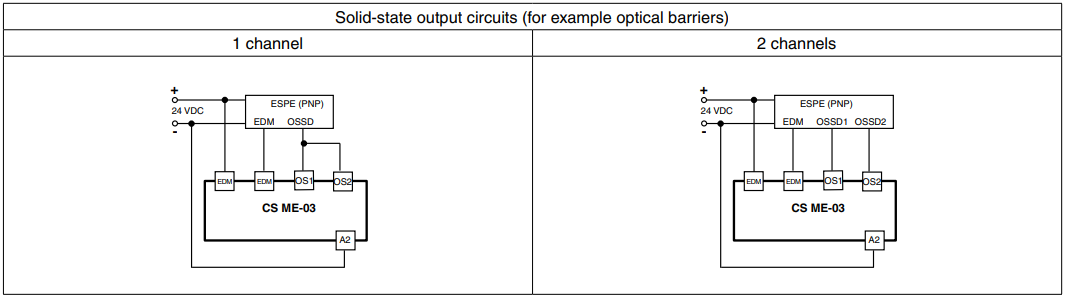

Connection examples
Connection to SG4 safety light curtain | |
|
|
| |
|
|
Order Numbers
Order no. | Description | Output |
CSME-03VU24-Y14 | Safety relay Datalogic CSME, 3 NO, 24 V DC | 3 NO relay |
- Cost effective safety relay
- 3 NO safety relay outputs, need EDM control
- 2 inputs for OSSD´s
Selected variant
Specifications
| Contact Current Max | 6 A |
|---|---|
| Contact Voltage Max | 230/240 V AC, 300 VDC |
| Dimension (mm) | 91 x 99 x 22.5 mm |
| IP Class Connection | IP20 |
| IP Class Housing | IP40 |
| Material Protection | Polyamide 6.6 |
| Mounting | DIN rail |
| Power Consumption | <2 W max. |
|---|---|
| Response time | 40 ms |
| Supply voltage | 24 V DC |
| Tolerance | ± 15 % |
| Weight | 200 g |
Product description
Datalogic safety relay CSME is a low cost safety relay who can be used together with all SG and SE series light curtains that have EDM function (External Device Monitoring). CSME relay does not have internal monitoring so EDM control is compulsory.
By CSME safety relay the OSSD´s from safety light curtain can be changed to potential free relay contacts.
With proper EDM connection it maintain the same safety level as safety light curtain who is connected to CSME relay.
Connection example
Connection to SG4 safety light curtain | |
|
|
Technical Data
Supply voltage | 24 V DC |
Tolerance | +- 20 % |
Rated power consumption | < 2 W max |
Start power consumption | < 3 W max |
Safe outputs | 3 NO force quided relay contact + 1 NC contact for EDM |
Max. switching current | 6 A |
Max. switching voltage | 230/240 VAC, 300 VDC |
Disconnection time | 40 ms |
Status indication | 2 x LED |
Ingress protection class: | IP40 (housing), IP20 (terminal block) |
Operating temperature | -25 °C to +55 °C |
Material | Housing: Polyamid PA 6.6 class V0 (UL94) |
Weight | 200 g |
Dimensions (L x H x D) | 111,5 x 99,0 x 22,5 mm |
Mechanical endurance | > 10 millions operations |
Electrical endurance | > 100.000 operations |
Standard conformity | EN 60204-1, EN 954, EN 999, EN 1037, EN ISO 12100-1, |
Directory conformity | 2006/95/EC, 2006/42/EC, 2004/108/EC |
Approval |
|
Dimensions
Dimensions (L x H x D) | 111.5 x 99.0 x 22.5 mm |
Connection
Terminals
Terminal | Connection |
EDM: (red) | 24 VDC (power supply) |
EDM: (yellow) | to EDM input (light curtain) |
A2: | 0 VDC (power supply) |
OS1: | OSSD1 (from light curtain) |
OS2: | OSSD2 (from light curtain) |
13-14 | NO safety relay output |
23-24 | NO safety relay output |
33-34 | NO safety relay output |
Connection examples
Connection to SG4 safety light curtain | |
|
|
| |
|
|
Order Numbers
Order no. | Description | Output |
CSME-03VU24-Y14 | Safety relay Datalogic CSME, 3 NO, 24 V DC | 3 NO relay |
