DUELCO
Duelco - NST-2004 Safety Relay

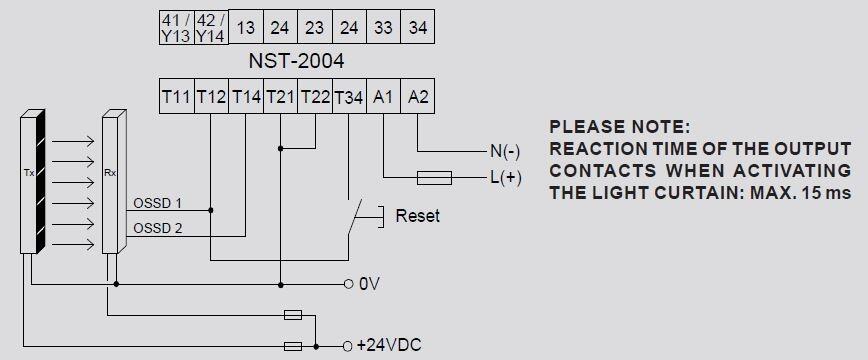

One of the most common relays in our safety relay range. Suitable for most applications including switches, light curtains and non contact switches. Transistor output for PLC monitoring.
- Safety Category 4 (PLe)
- 3 NO safety outputs
- 1 transistor output or 1 NC contact
- Status/fault indication via LEDs
- Short circuit monitoring
Selected variant
Specifications
| Supply voltage | 24 V DC |
|---|---|
| Tolerance | ±10% |

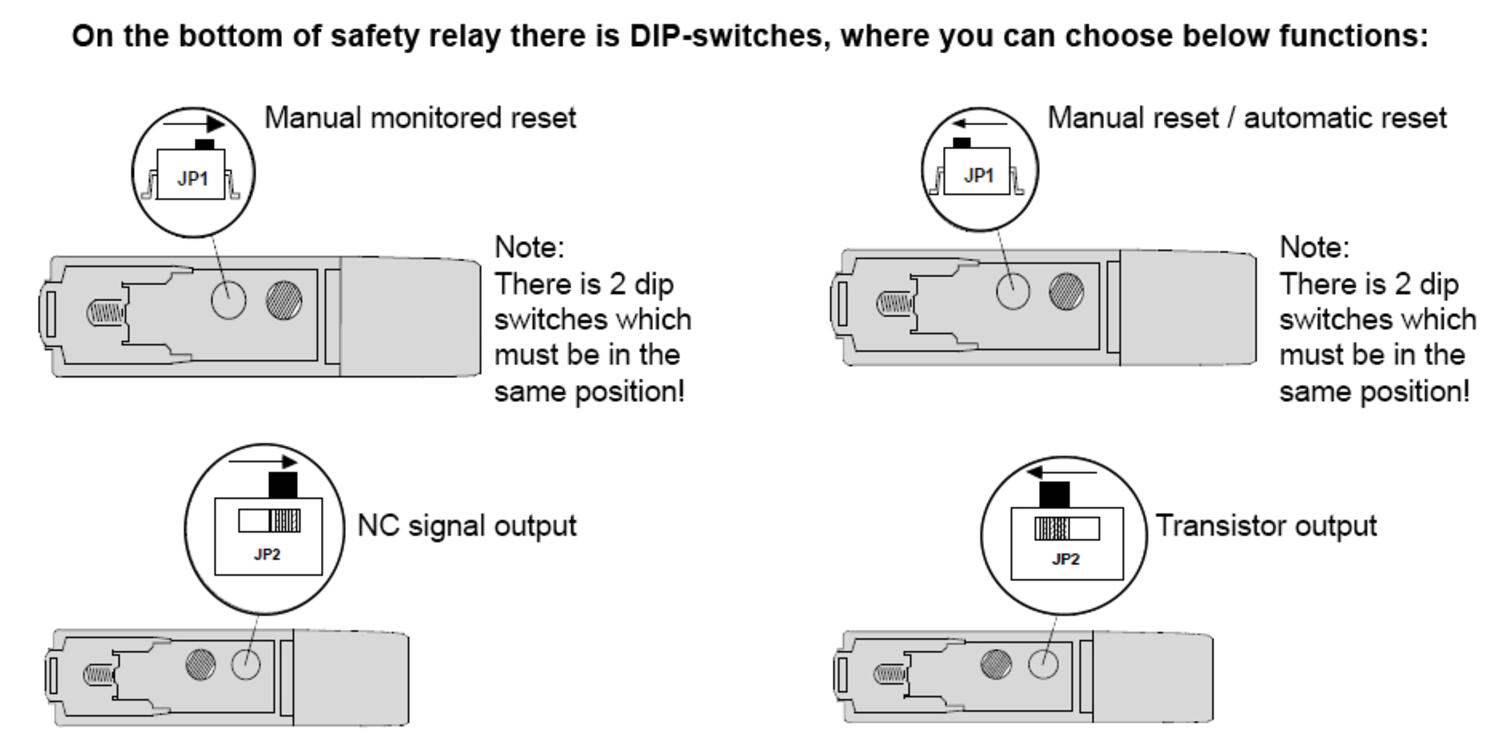

| Reset type | Automatic/Manual, Manual monitored |
| Safety outputs NO | 3 |
| Signal output NC | 1 |

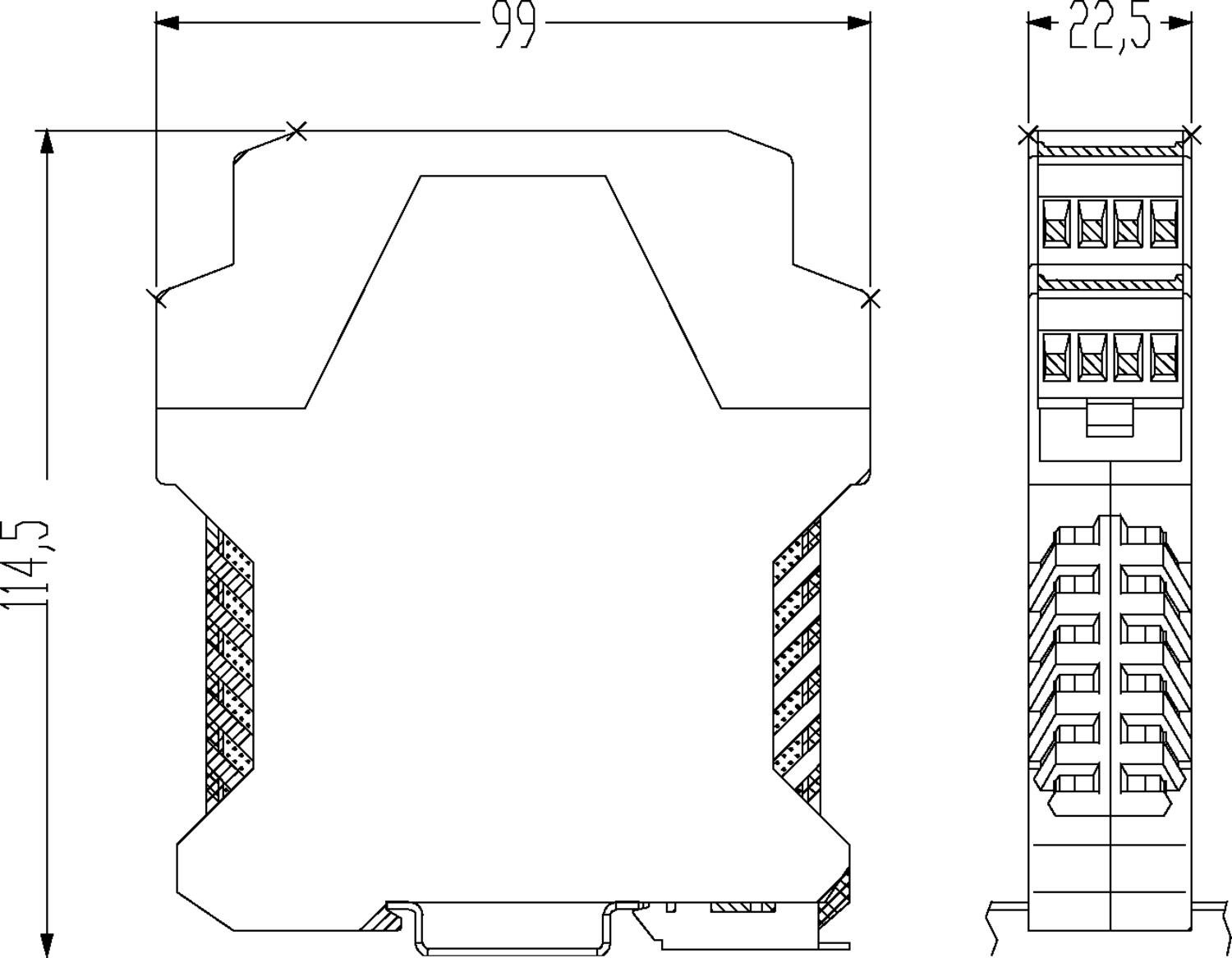

| Width | 22.5 mm |
| IP Class Housing | IP40 |
| IP Class Connection | IP20 |
|---|---|
| Temperature range from | -25 °C |
| Temperature range to | 60 °C |
| Safety category | 4 |
| PL | e (EN ISO 13849-1) |
| Approvals | CE |
Product description
One of the most common relays in our safety relay range. Suitable for most applications including switches, light curtains and non contact switches. Transistor output for PLC monitoring.
