Selected variant
Specifications
| Approvals | CE, cULus, TÜV |
|---|---|
| Cable Length Max | 70 m |
| Conforming To | EMC, LVD, MD |
| Contact Current Max | 0.5 A |
| Distance Max | 60 m |

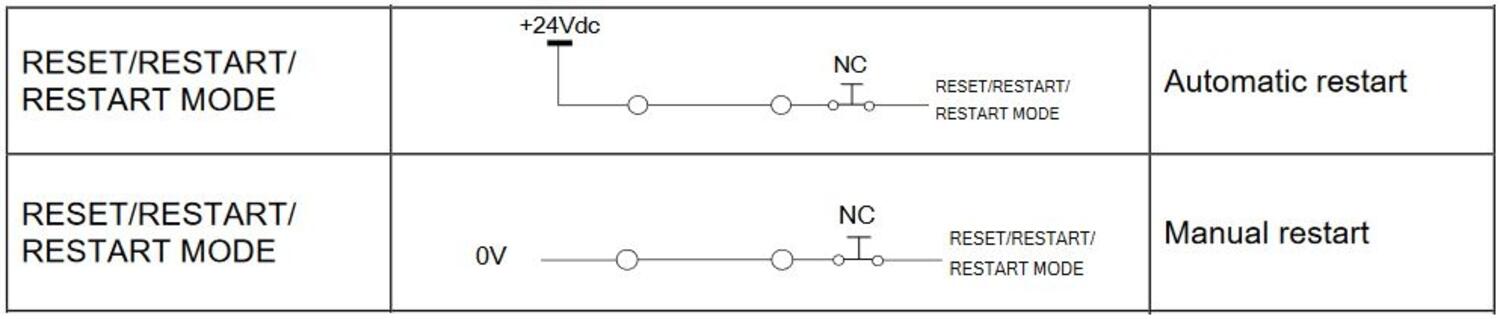

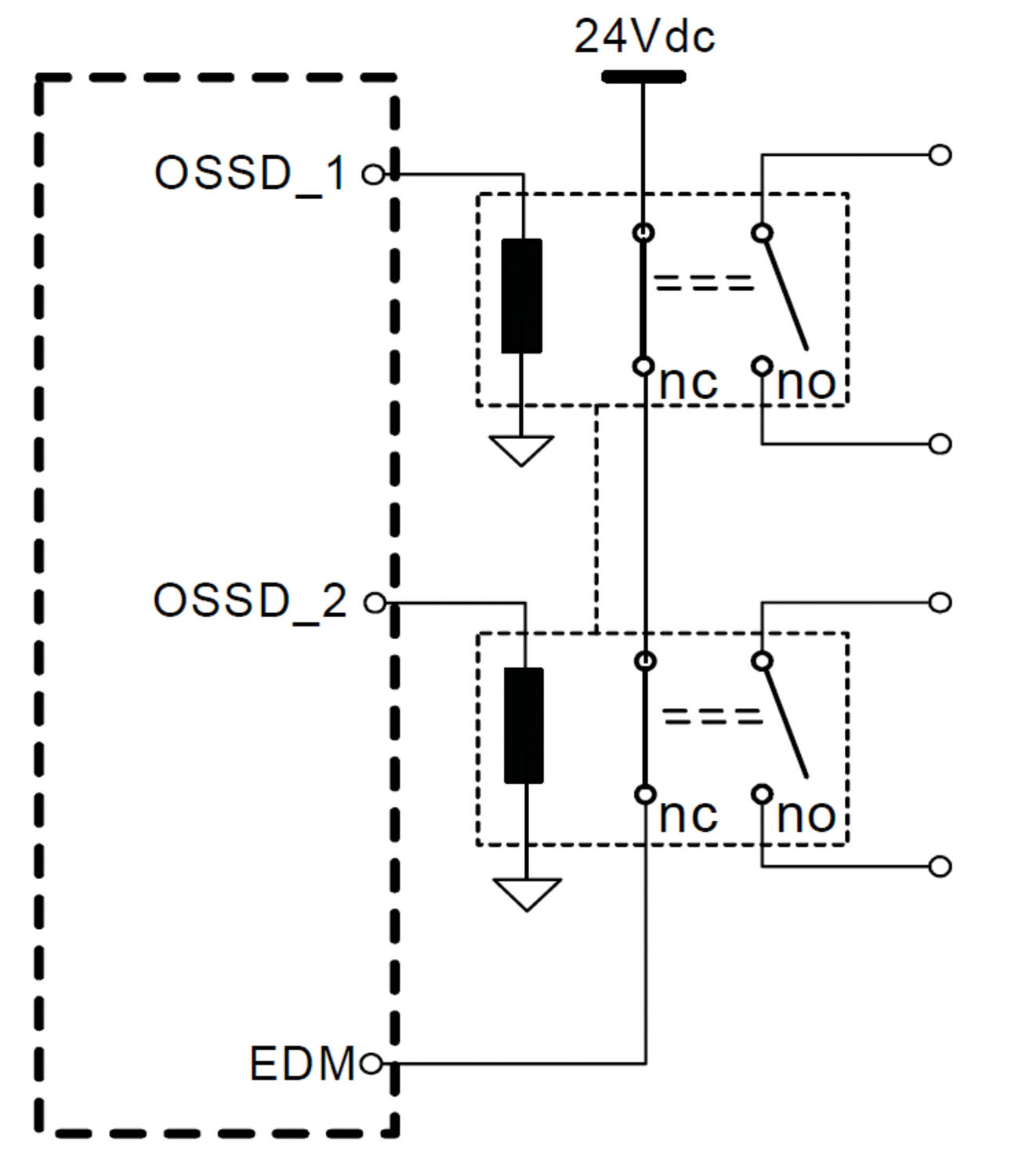

| Function | EDM, Manual/Automatic restart |
| IP Class | IP65 |
| Material of body | Aluminium |
| Number Of Beams | 2 |
| PL | e (EN ISO 13849-1) |
|---|---|

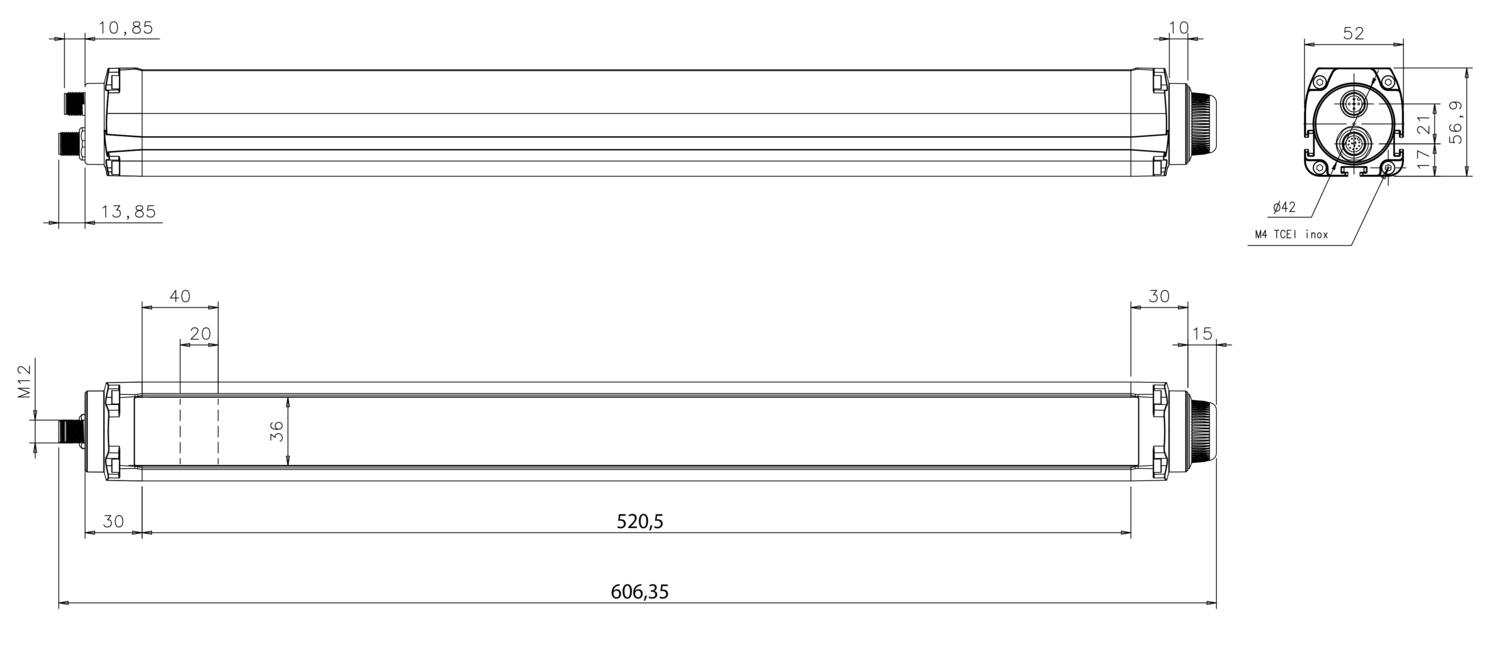

| Protection height | 500 mm |
| Scope | 6-60 m |
| SIL | 3 (EN IEC 61508) |
| Supply voltage | 24 V DC |
| Temperature range from | 0 °C |
| Temperature range to | 55 °C |
| Voltage Tolerance | ±20 % |
