Approvals | CE, cULus, TÜV |
---|---|
Cable Length Max | 50 m |
Conforming To | EMC, LVD, MD |
Contact Current Max | 0.5 A |
Distance Max | 50 m |
Function | Manual/Automatic restart, Override, Muting, EDM |
IP Class | IP65 |
Material of body | Aluminium |
Number Of Beams | 2 |
PL | e (EN ISO 13849-1) |
---|---|
Protection height | 500 mm |
Scope | 0,5-50 m |
SIL | 3 (EN IEC 61508) |
Supply voltage | 24 V DC |
Temperature range from | 0 °C |
Temperature range to | 55 °C |
Voltage Tolerance | ±20 % |
Inxpect safety radars detect access or presence of operators in dangerous areas and also have the ability to dynamically set the detection and warning zones.
With the help of our technical department, we can offer efficient and comprehensive delivery of safety edges, ready for plug-and-play installation.
Safety curtains and beams provide effective and reliable personal protection and monitoring in a wide range of industrial environments.
Hokuyo has small safety laserskanner that is very small in size. This versatile laserskanner fits in most systems. Read more!
Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.
Henkel has launched a new solvent-free circuit board protective lacquer developed to meet the stringent requirements of harsh conditions and increasing safety standards.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Function | Number Of Beams | Protection height | ||
---|---|---|---|---|---|
![]()
SG4-S2-050-PP-W 2 Beam Type 4
Art:
SG4-S2-050-PP-W
Copied
|
Manual/Automatic restart, Override, Muting, EDM
|
2
|
500 mm
|
| |
![]()
SG4-S3-080-PP-W 3 Beam Type 4
Art:
SG4-S3-080-PP-W
Copied
|
Manual/Automatic restart, Override, Muting, EDM
|
3
|
800 mm
|
| |
![]()
SG4-S4-090-PP-W 4 Beam Type 4
Art:
SG4-S4-090-PP-W
Copied
|
Manual/Automatic restart, Override, Muting, EDM
|
4
|
900 mm
|
| |
![]()
SG4 Body Compact, 4-beam, muting
Art:
SG4-S4-120-PP-W
Copied
|
Manual/Automatic restart, Override, Muting, EDM
|
4
|
1200 mm
|
| |
![]()

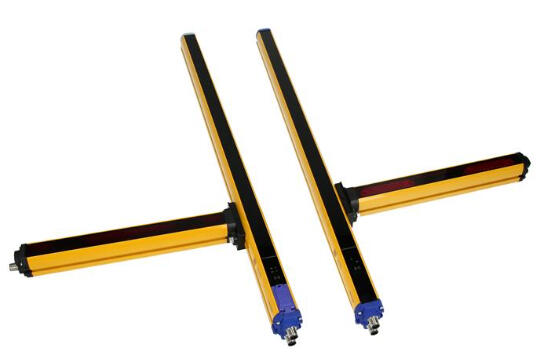

SG4 Body Compact, 2-beam, "L" muting
Art:
SG4-L2-050-PP-W
Copied
|
Manual/Automatic restart, Override, Muting, EDM
|
2
|
500 mm
|
| |
![]()
SG4-L3-080-PP-W 3 Beam Type 4
Art:
SG4-L3-080-PP-W
Copied
|
Manual/Automatic restart, Override, Muting, EDM
|
3
|
800 mm
|
| |
![]()
SG4-T2-050-PP-W 2 Beam Type 4
Art:
SG4-T2-050-PP-W
Copied
|
Manual/Automatic restart, EDM, Override, Muting
|
2
|
500 mm
|
| |
![]()
SG4-T3-080-PP-W 3 Beam Type 4
Art:
SG4-T3-080-PP-W
Copied
|
Manual/Automatic restart, EDM, Override, Muting
|
3
|
800 mm
|
|
Select a variant in the list
