Datalogic - Light curtains SG Body big

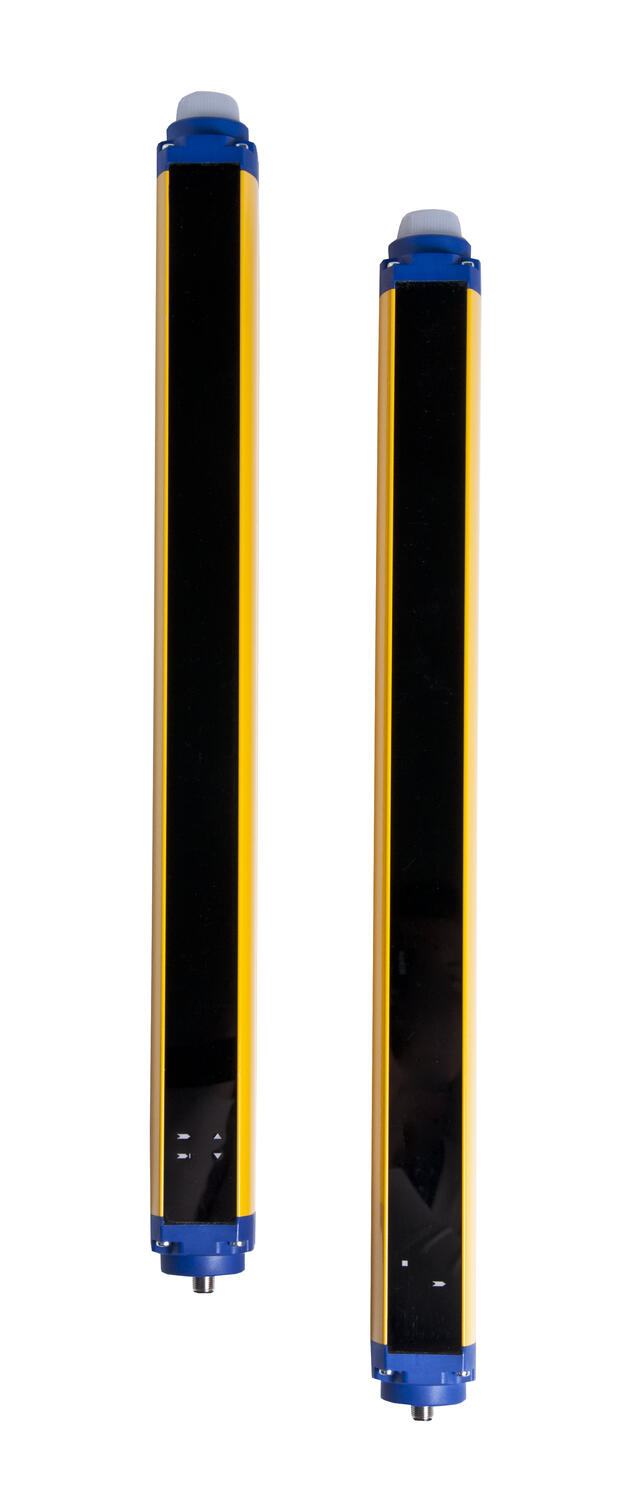

SG4-Body Big is a safety light curtain with a rubust profile and a range of up to 60 metres.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
SG4-Body Big light curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4- Body Big can work as a "standalone" unit if required and is not in need of any special control unit.
- Range up to 60m
- Resolution 40 mm
- Type 4 according to EN 61496-1

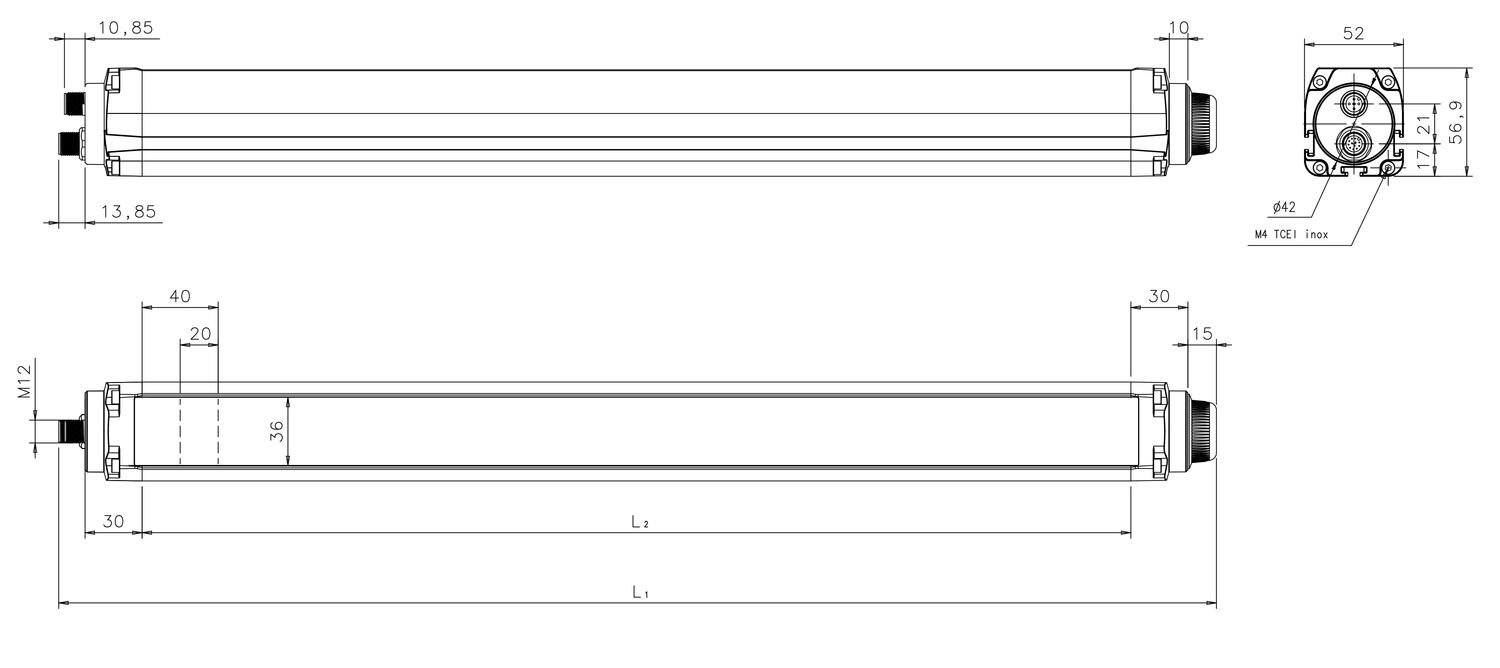

- Robust 52 x 56mm Profile
Selected variant
Specifications
| Approvals | CE, cULus, TÜV |
|---|---|
| Cable Length Max | 70 m |
| Conforming To | EMC, LVD, MD |
| Contact Current Max | 0.5 A |
| DC | 99 % |
| IP Class | IP65 |
| Material of body | Aluminium |
| Mttfd | 98 year |
| Number Of Beams | 33 |
| PL | e (EN ISO 13849-1) |
| Protection Field | 660 mm |
| Reaction time | 21 ms |
|---|---|
| Resolution | 40 mm |
| Scope | 6-60 m |
| SIL | 3 (EN IEC 62061) |
| T1 (Life Time In Years) | 20 |
| Temperature range bearing, from | -25 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -10 °C |
| Temperature range to | 55 °C |
| Voltage Tolerance | ±20 % |
Product description
SG4-Body Big is a safety light curtain with a rubust profile and a range of up to 60 metres.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
SG4-Body Big light curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4- Body Big can work as a "standalone" unit if required and is not in need of any special control unit.
