Datalogic - SG2-B 30 hand

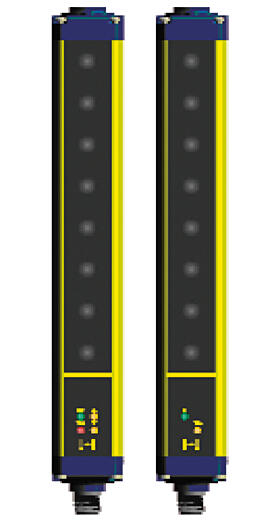

Datalogic safety light curtain SG2-B Hand is made for hand detection with a range of up to 19 metres. The safety light curtain is available as type 2, and maintains level PL d according to the latest safety standards, EN ISO 13849-1 and EN 62061. SG2-B Hand has basic functions as two safe electronic short-circuit detection outputs (PNP) + test input. If potential free contacts are needed we can offer for example Duelco NST-2004 safety relay. Safety light curtain supplied complete with standard bracket.
Datalogic has a 3 year warranty for safety light curtains.
Application
Hand protection (R ≤ 40 mm) |
|
|
|
Technical Data
|
|
Supply voltage | 24 V DC, stabilised |
Tolerance | ± 20 % |
Max. current consumption / transmitter | 2 W |
Max. current consumption / receiver | 3.5 W |
Safe outputs (OSSD) | Transistor 2 x PNP |
Max. current (OSSD) | 0.5 A/each PNP |
Response time | 8-24 ms (depending on model, refer table "Order number") |
Type of light | IR LED 950 nm |
Operating distance | 0.2-19 m |
Protective height | 150-1800 mm |
Extra functions | test input |
Status indication | 6 x LED |
Resolution R | 30 mm |
Cable connection | Transmitter M12, 4-pole |
Receiver M12, 5-pole | |
Max. cable length | 50 m |
Material housing | Aluminium profile (RAL 1003), end caps PC makrolon |
Weight | 1.0 kg/m |
Protection class | IP65 |
Operating temperature | 0 °C to +55 °C |
Storage temperature | -25 °C to +70 °C |
Safety category | 2 according to EN 954-1 |
PL | d according to EN ISO 13849-1 |
SIL | 2 according to EN IEC 62061 |
PFHd | 1.04E-08 |
T1 (Life time in years) | 20 |
MTTFd (years) | 273 |
DC | 97.50 % |
SFF | 98.40 % |
Approvals |
|
Connection
Connection of SG2-B safety light curtain
Receiver | Transmitter | ||||
|
| ||||
| |||||
Receiver (Rx), 5-pole, M12-connector | Transmitter (Tx), 4-pole, M12-connector | ||||

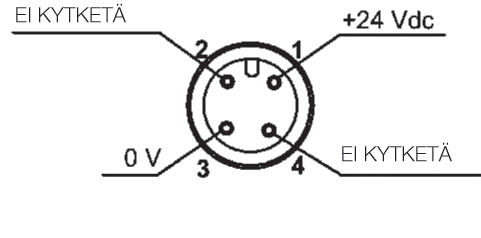

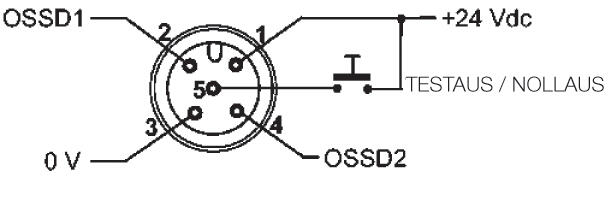

1 | = brown | = +24 V DC (power supply) | 1 | = brown | = 24 V DC (power supply) |
2 | = white | = OSSD1 (PNP) | 2 | = white | = not used |
3 | = blue | = 0 V (power supply) | 3 | = blue | = 0 V (power supply) |
4 | = black | = OSSD2 (PNP) | 4 | = black | = not used |
5 | = grey | = test |
|
|
|
Manual
SG2-B Hand
SG2-B & SG2-E, eng
Order Numbers & Dimensions
Dimensions
|
Order no. | Resolution | Protective height | Number of beams | Length housing | Response time | Range |
Standard version |
|
|
|
|
|
|
SG2-30-015-OO-X | 30 | 150 | 8 | 233.3 / 153.3 | 8 | 0.2 - 19 |
SG2-30-030-OO-X | 30 | 300 | 16 | 383.2 / 303.2 | 9 | 0.2 - 19 |
SG2-30-045-OO-X | 30 | 450 | 24 | 533.2 / 453.3 | 11 | 0.2 - 19 |
SG2-30-060-OO-X | 30 | 600 | 32 | 683.2 / 603.2 | 12 | 0.2 - 19 |
SG2-30-075-OO-X | 30 | 750 | 40 | 833.2 / 753.3 | 14 | 0.2 - 19 |
SG2-30-090-OO-X | 30 | 900 | 48 | 983.2 / 903.2 | 15 | 0.2 - 19 |
SG2-30-105-OO-X | 30 | 1050 | 56 | 1133.2 / 1053.2 | 17 | 0.2 - 19 |
SG2-30-120-OO-X | 30 | 1200 | 64 | 1283.3 / 1203.3 | 18 | 0.2 - 19 |
SG2-30-135-OO-X | 30 | 1350 | 72 | 1433.2 / 1353.2 | 20 | 0.2 - 19 |
SG2-30-150-OO-X | 30 | 1500 | 80 | 1583.3 / 1503.3 | 21 | 0.2 - 19 |
SG2-30-165-OO-X | 30 | 1650 | 88 | 1733.3 / 1653.3 | 22 | 0.2 - 19 |
SG2-30-180-OO-X | 30 | 1800 | 96 | 1883.3 / 1803.3 | 24 | 0.2 - 19 |
All SG2-B safety light curtains are supplied with brackets (ST-K4ROT).
Accessories
Mounting brackets | |
| |
| |
|
|
ST-K4ROT brackets. 1 kit (4 pcs.) supplied in the package | |
| |
|
|
ST-KSTD brackets | |
| |
| |
ST-K4AV antivibration support | |
| |
| |
SG-LP laser pointer | |
All SG2-B safety light curtains are supplied with brackets (ST-K4ROT) .
Order no. | Description |
Cables | |
CS-A1-02-U-05 | Cable, M12, straight, 5 metres, female, 4-pole |
CS-A1-02-U-10 | Cable, M12, straight, 10 metres, female, 4-pole |
CS-A1-02-U-15 | Cable, M12, straight, 15 metres, female, 4-pole |
CS-A1-02-U-25 | Cable, M12, straight, 25 metres, female, 4-pole |
| |
CS-A1-03-U-05 | Cable, M12, straight, 5 metres, female, 5-pole |
CS-A1-03-U-10 | Cable, M12, straight, 10 metres, female, 5-pole |
CS-A1-03-U-15 | Cable, M12, straight, 15 metres, female, 5-pole |
CS-A1-03-U-25 | Cable, M12, straight, 25 metres, female, 5-pole |
| |
Safety relays | |
42010204 | Safety relay Duelco NST-2004, 3 NO + 1 NC, 24 V DC |
| |
Brackets (extra). All SG2-B safety light curtains are supplied with standard brackets (ST-K4ROT) | |
ST-K4ROT | Mounting bracket, rotatable (4 pcs. / kit) |
ST-KSTD | Mounting bracket, standard (4 pcs. / kit) |
ST-K4OR | Angle adjustment kit ±5° (4 pcs. / kit), use with ST-KSTD |
ST-K6OR | Angle adjustment kit ±5° (6 pcs. / kit), use with ST-KSTD |
ST-K4AV | Antivibration support (4 pcs. / kit) |
ST-K6AV | Antivibration support (6 pcs. / kit) |
| |
SG-LP | Laser pointer |
- Hand protection (R 30), Type 2, PL d
- Range up to 19 m
- Protective height 150-1800 mm
Selected variant
Specifications
| Approvals | CE, cULus, TÜV |
|---|---|
| Cable Length Max | 50 m |
| Conforming To | EMC, LVD, MD |
| Contact Current Max | 0.5 A |
| DC | 97,50% |
| Function | Automatic restart |
| IP Class | IP65 |
| Material of body | Aluminium |
| Mttfd | 273 year |
| Number Of Beams | 8 |
| PL | c (EN ISO 13849-1) |
| Protection height | 150 mm |
| Reaction time | 8 ms |
|---|---|
| Resolution | 30 mm |
| Scope | 0,2-19 m |
| Sensing distance | 0,2-19 m |
| SIL | 1 (EN IEC 61508) |
| Supply voltage | 24 V DC |
| T1 (Life Time In Years) | 20 |
| Temperature range from | -10 °C |
| Temperature range to | 55 °C |
| Voltage Tolerance | ±20 % |
Product description
Datalogic safety light curtain SG2-B Hand is made for hand detection with a range of up to 19 metres. The safety light curtain is available as type 2, and maintains level PL d according to the latest safety standards, EN ISO 13849-1 and EN 62061. SG2-B Hand has basic functions as two safe electronic short-circuit detection outputs (PNP) + test input. If potential free contacts are needed we can offer for example Duelco NST-2004 safety relay. Safety light curtain supplied complete with standard bracket.
Datalogic has a 3 year warranty for safety light curtains.
Application
Hand protection (R ≤ 40 mm) |
|
|
|
Technical Data
|
|
Supply voltage | 24 V DC, stabilised |
Tolerance | ± 20 % |
Max. current consumption / transmitter | 2 W |
Max. current consumption / receiver | 3.5 W |
Safe outputs (OSSD) | Transistor 2 x PNP |
Max. current (OSSD) | 0.5 A/each PNP |
Response time | 8-24 ms (depending on model, refer table "Order number") |
Type of light | IR LED 950 nm |
Operating distance | 0.2-19 m |
Protective height | 150-1800 mm |
Extra functions | test input |
Status indication | 6 x LED |
Resolution R | 30 mm |
Cable connection | Transmitter M12, 4-pole |
Receiver M12, 5-pole | |
Max. cable length | 50 m |
Material housing | Aluminium profile (RAL 1003), end caps PC makrolon |
Weight | 1.0 kg/m |
Protection class | IP65 |
Operating temperature | 0 °C to +55 °C |
Storage temperature | -25 °C to +70 °C |
Safety category | 2 according to EN 954-1 |
PL | d according to EN ISO 13849-1 |
SIL | 2 according to EN IEC 62061 |
PFHd | 1.04E-08 |
T1 (Life time in years) | 20 |
MTTFd (years) | 273 |
DC | 97.50 % |
SFF | 98.40 % |
Approvals |
|
Connection
Connection of SG2-B safety light curtain
Receiver | Transmitter | ||||
|
| ||||
| |||||
Receiver (Rx), 5-pole, M12-connector | Transmitter (Tx), 4-pole, M12-connector | ||||
1 | = brown | = +24 V DC (power supply) | 1 | = brown | = 24 V DC (power supply) |
2 | = white | = OSSD1 (PNP) | 2 | = white | = not used |
3 | = blue | = 0 V (power supply) | 3 | = blue | = 0 V (power supply) |
4 | = black | = OSSD2 (PNP) | 4 | = black | = not used |
5 | = grey | = test |
|
|
|
Manual
SG2-B Hand
SG2-B & SG2-E, eng
Order Numbers & Dimensions
Dimensions
|
Order no. | Resolution | Protective height | Number of beams | Length housing | Response time | Range |
Standard version |
|
|
|
|
|
|
SG2-30-015-OO-X | 30 | 150 | 8 | 233.3 / 153.3 | 8 | 0.2 - 19 |
SG2-30-030-OO-X | 30 | 300 | 16 | 383.2 / 303.2 | 9 | 0.2 - 19 |
SG2-30-045-OO-X | 30 | 450 | 24 | 533.2 / 453.3 | 11 | 0.2 - 19 |
SG2-30-060-OO-X | 30 | 600 | 32 | 683.2 / 603.2 | 12 | 0.2 - 19 |
SG2-30-075-OO-X | 30 | 750 | 40 | 833.2 / 753.3 | 14 | 0.2 - 19 |
SG2-30-090-OO-X | 30 | 900 | 48 | 983.2 / 903.2 | 15 | 0.2 - 19 |
SG2-30-105-OO-X | 30 | 1050 | 56 | 1133.2 / 1053.2 | 17 | 0.2 - 19 |
SG2-30-120-OO-X | 30 | 1200 | 64 | 1283.3 / 1203.3 | 18 | 0.2 - 19 |
SG2-30-135-OO-X | 30 | 1350 | 72 | 1433.2 / 1353.2 | 20 | 0.2 - 19 |
SG2-30-150-OO-X | 30 | 1500 | 80 | 1583.3 / 1503.3 | 21 | 0.2 - 19 |
SG2-30-165-OO-X | 30 | 1650 | 88 | 1733.3 / 1653.3 | 22 | 0.2 - 19 |
SG2-30-180-OO-X | 30 | 1800 | 96 | 1883.3 / 1803.3 | 24 | 0.2 - 19 |
All SG2-B safety light curtains are supplied with brackets (ST-K4ROT).
Accessories
Mounting brackets | |
| |
| |
|
|
ST-K4ROT brackets. 1 kit (4 pcs.) supplied in the package | |
| |
|
|
ST-KSTD brackets | |
| |
| |
ST-K4AV antivibration support | |
| |
| |
SG-LP laser pointer | |
All SG2-B safety light curtains are supplied with brackets (ST-K4ROT) .
Order no. | Description |
Cables | |
CS-A1-02-U-05 | Cable, M12, straight, 5 metres, female, 4-pole |
CS-A1-02-U-10 | Cable, M12, straight, 10 metres, female, 4-pole |
CS-A1-02-U-15 | Cable, M12, straight, 15 metres, female, 4-pole |
CS-A1-02-U-25 | Cable, M12, straight, 25 metres, female, 4-pole |
| |
CS-A1-03-U-05 | Cable, M12, straight, 5 metres, female, 5-pole |
CS-A1-03-U-10 | Cable, M12, straight, 10 metres, female, 5-pole |
CS-A1-03-U-15 | Cable, M12, straight, 15 metres, female, 5-pole |
CS-A1-03-U-25 | Cable, M12, straight, 25 metres, female, 5-pole |
| |
Safety relays | |
42010204 | Safety relay Duelco NST-2004, 3 NO + 1 NC, 24 V DC |
| |
Brackets (extra). All SG2-B safety light curtains are supplied with standard brackets (ST-K4ROT) | |
ST-K4ROT | Mounting bracket, rotatable (4 pcs. / kit) |
ST-KSTD | Mounting bracket, standard (4 pcs. / kit) |
ST-K4OR | Angle adjustment kit ±5° (4 pcs. / kit), use with ST-KSTD |
ST-K6OR | Angle adjustment kit ±5° (6 pcs. / kit), use with ST-KSTD |
ST-K4AV | Antivibration support (4 pcs. / kit) |
ST-K6AV | Antivibration support (6 pcs. / kit) |
| |
SG-LP | Laser pointer |
