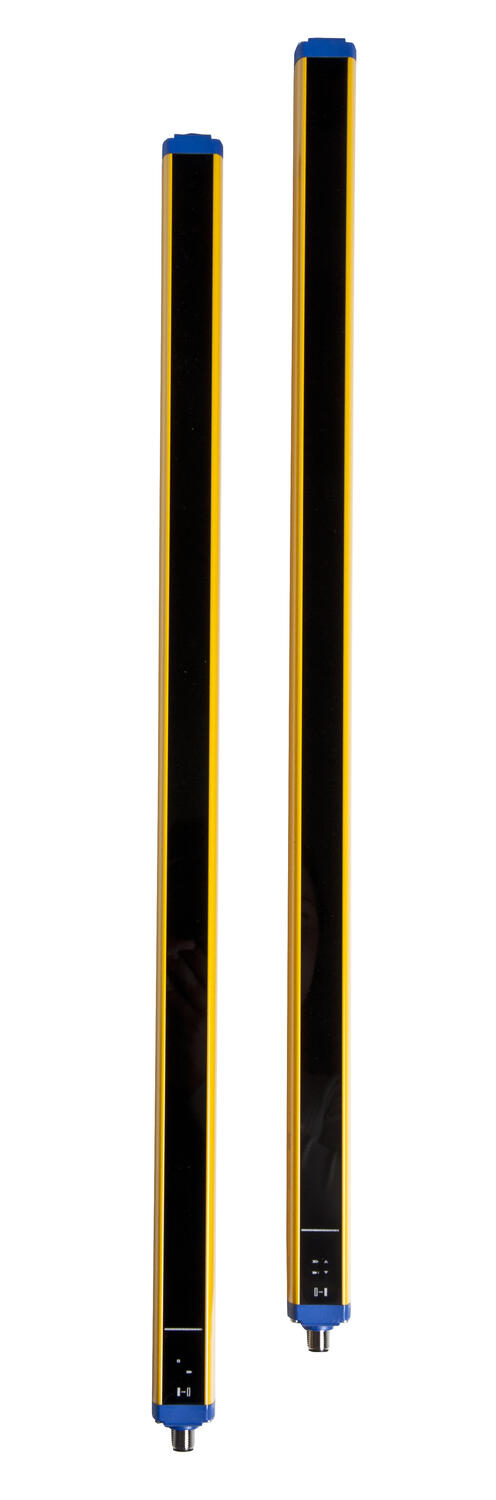

SG4-Hand is a safety light curtain with a range of up to 19 metres.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.

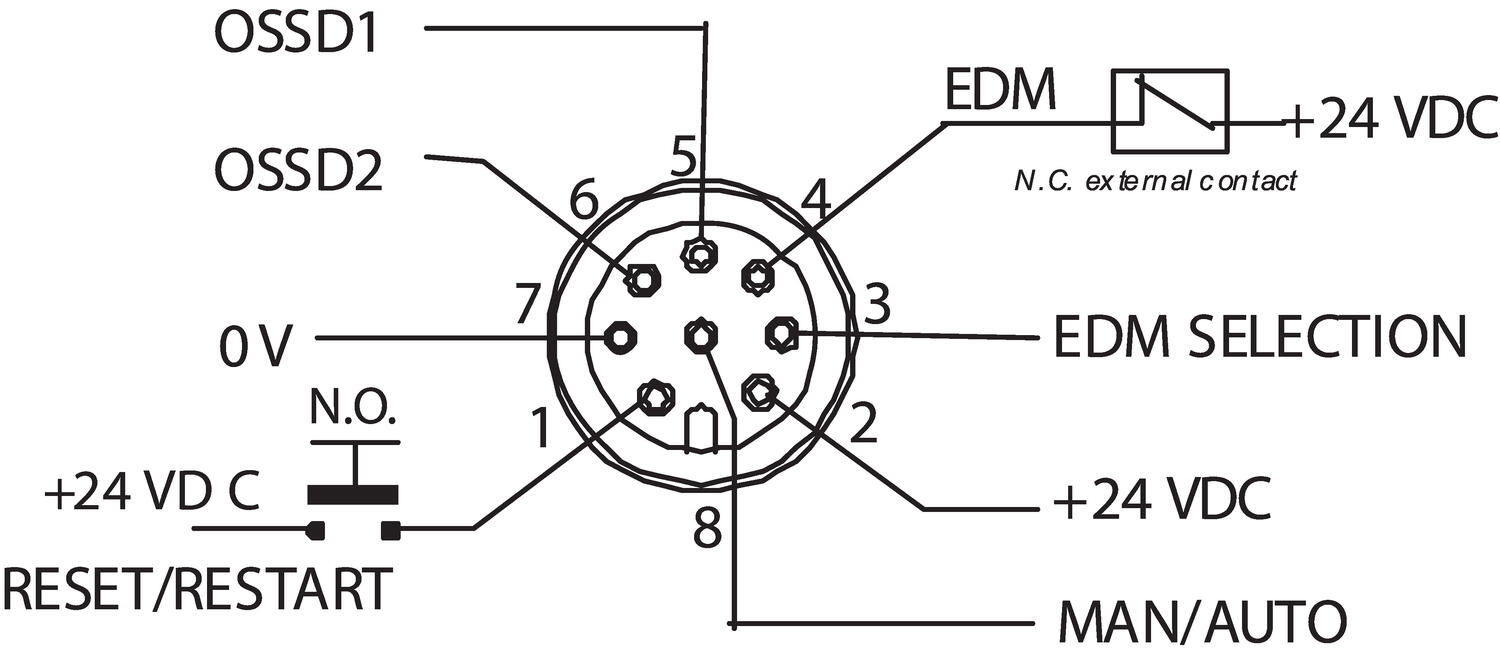

SG4-Hand curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4-Hand can work as a "standalone" unit if required and is not in need of any special control unit.
Approvals | CE, cULus, TÜV |
---|---|
Cable Length Max | 50 m |
Conforming To | EMC, LVD, MD |
Contact Current Max | 0.5 A |
DC | 99 % |
IP Class | IP65 |
Material of body | Aluminium |
Mttfd | 444 year |
Number Of Beams | 8 |
PL | e (EN ISO 13849-1) |
Protection height | 150 mm |
Reaction time | 9 ms |
---|---|
Resolution | 30 mm |
Scope | 0,2-19 m |
SIL | 3 (EN IEC 62061) |
T1 (Life Time In Years) | 20 |
Temperature range from | 0 °C |
Temperature range to | 55 °C |
Type | Finger and hand protection |
Voltage Tolerance | ±20 % |
SG4-Hand is a safety light curtain with a range of up to 19 metres.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
SG4-Hand curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4-Hand can work as a "standalone" unit if required and is not in need of any special control unit.
Safety curtains and beams provide effective and reliable personal protection and monitoring in a wide range of industrial environments.
Hokuyo has small safety laserskanner that is very small in size. This versatile laserskanner fits in most systems. Read more!
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
Henkel has launched a new solvent-free circuit board protective lacquer developed to meet the stringent requirements of harsh conditions and increasing safety standards.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
Since 2002, 2J Antennas has become a global supplier of antenna solutions, dedicated to developing innovative technologies for an increasingly networked world. Read more!
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Number Of Beams | Protection height | Reaction time | ||
---|---|---|---|---|---|
![]()
SG4-30-015-OO-E 30mm Res Type
Art:
SG4-30-015-OO-E
Copied
|
8
|
150 mm
|
9 ms
|
| |
![]()
SG4-30-030-OO-E 30mm Res Type
Art:
SG4-30-030-OO-E
Copied
|
16
|
300 mm
|
11 ms
|
| |
![]()
SG4-30-045-OO-E 30mm Res Type
Art:
SG4-30-045-OO-E
Copied
|
24
|
450 mm
|
9 ms
|
| |
![]()
SG4-30-060-OO-E 30mm Res Type
Art:
SG4-30-060-OO-E
Copied
|
32
|
600 mm
|
14 ms
|
| |
![]()
SG4-30-075-OO-E 30mm Res Type
Art:
SG4-30-075-OO-E
Copied
|
40
|
750 mm
|
16 ms
|
| |
![]()
SG4-30-090-OO-E 30mm Res Type
Art:
SG4-30-090-OO-E
Copied
|
48
|
900 mm
|
18 ms
|
| |
![]()
SG4-30-105-OO-E 30mm Res Type
Art:
SG4-30-105-OO-E
Copied
|
56
|
1050 mm
|
19 ms
|
| |
![]()
SG4-30-120-OO-E 30mm Res Type
Art:
SG4-30-120-OO-E
Copied
|
64
|
1200 mm
|
21 ms
|
| |
![]()
SG4-30-135-OO-E 30mm Res Type
Art:
SG4-30-135-OO-E
Copied
|
72
|
1350 mm
|
23 ms
|
| |
![]()
SG4-30-150-OO-E 30mm Res Type
Art:
SG4-30-150-OO-E
Copied
|
80
|
1500 mm
|
25 ms
|
| |
![]()
SG4-30-165-OO-E 30mm Res Type
Art:
SG4-30-165-OO-E
Copied
|
88
|
1650 mm
|
26 ms
|
| |
![]()
SG4-30-180-OO-E 30mm Res Type
Art:
SG4-30-180-OO-E
Copied
|
96
|
1800 mm
|
28 ms
|
|
Select a variant in the list
