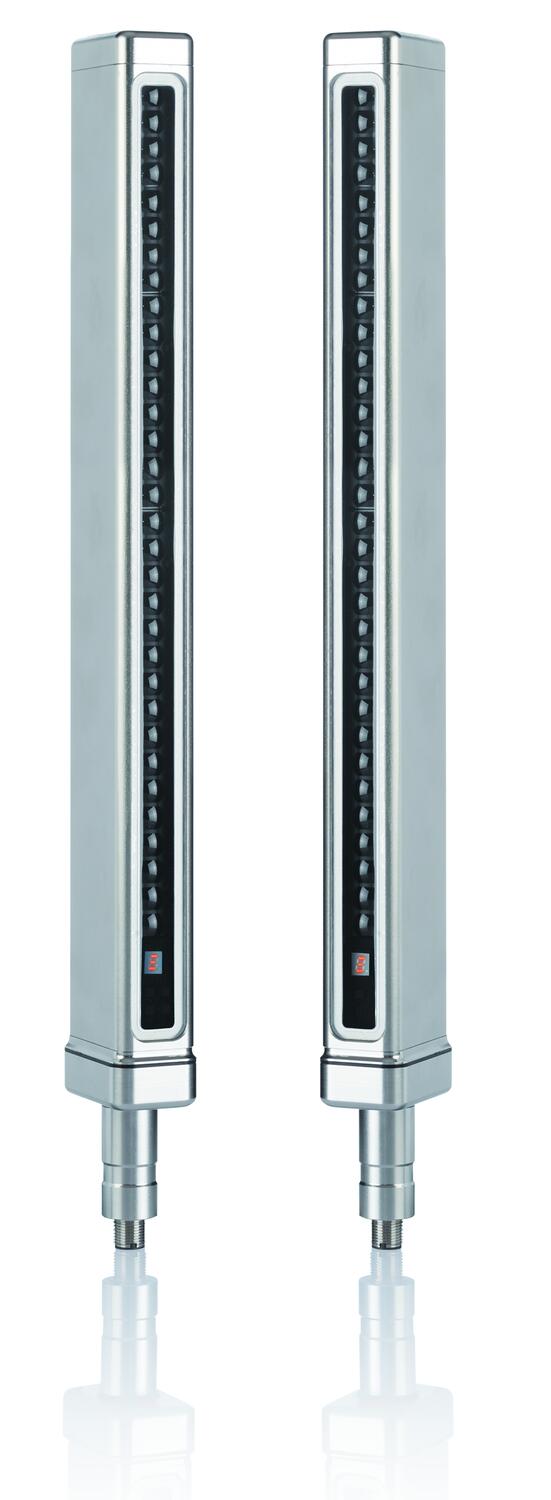

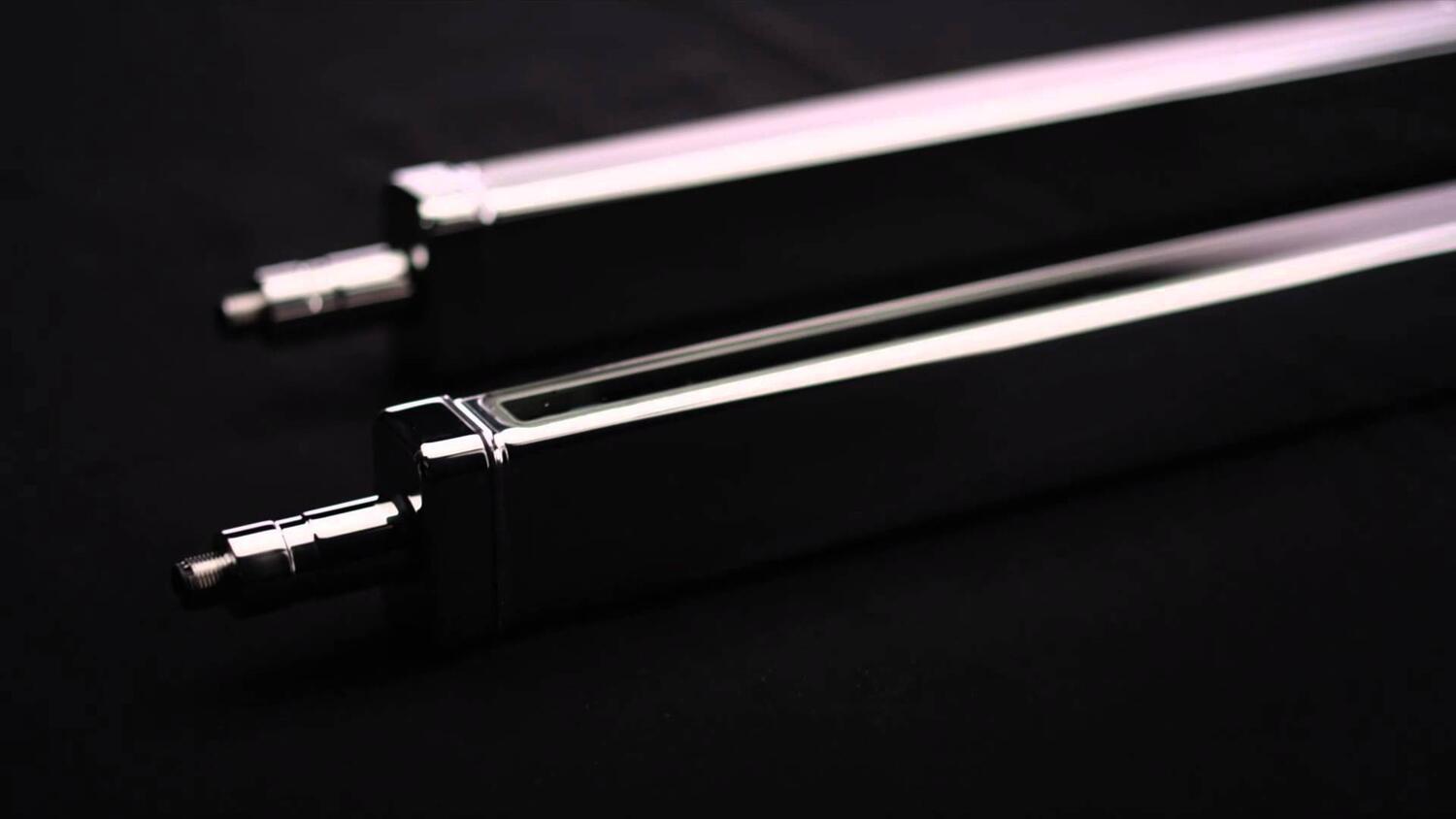

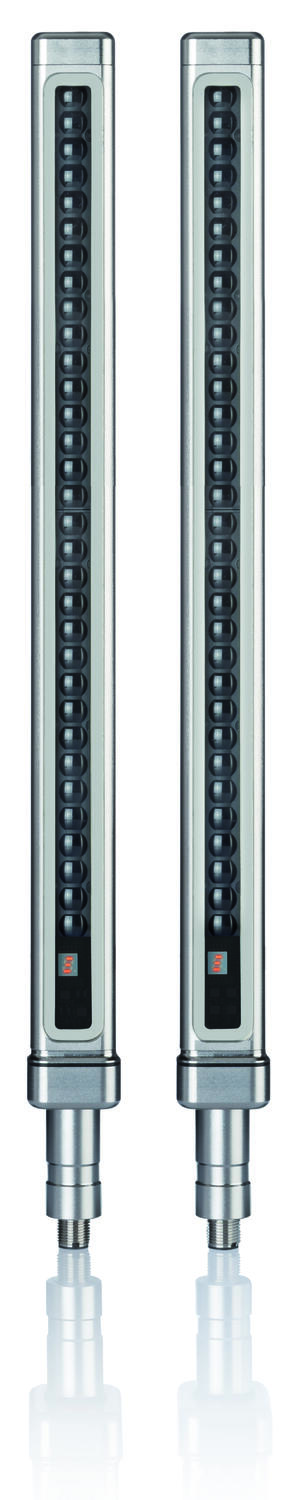

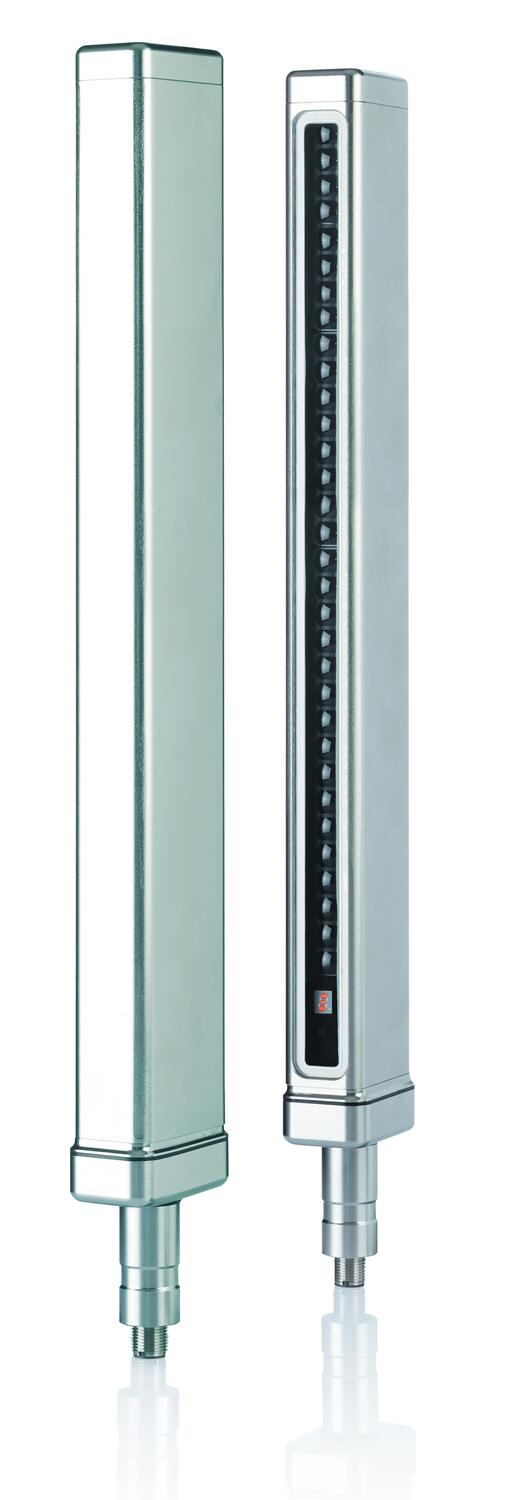

Datalogic - Stainless Steel light curtain SG4-H
SG4-H safety light curtain offers finger protection with an IP69K stainless steel housing designed for the Pharma industry and a 6 metre range.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.

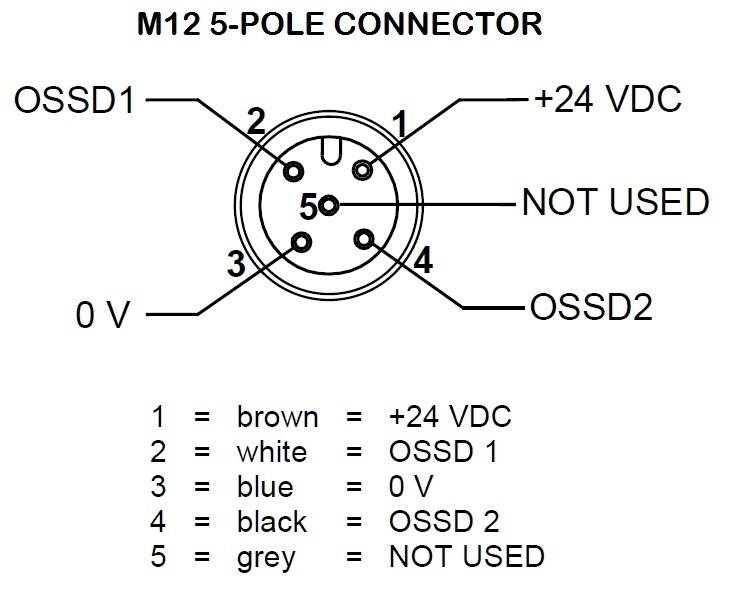

SG4-H light curtain has two solid state safety outputs which are electronically monitored.
- AISI 316L stainless steel with roughness under 0.8 micron
- IP69K full protection
- Type 4 according to EN 61496-1

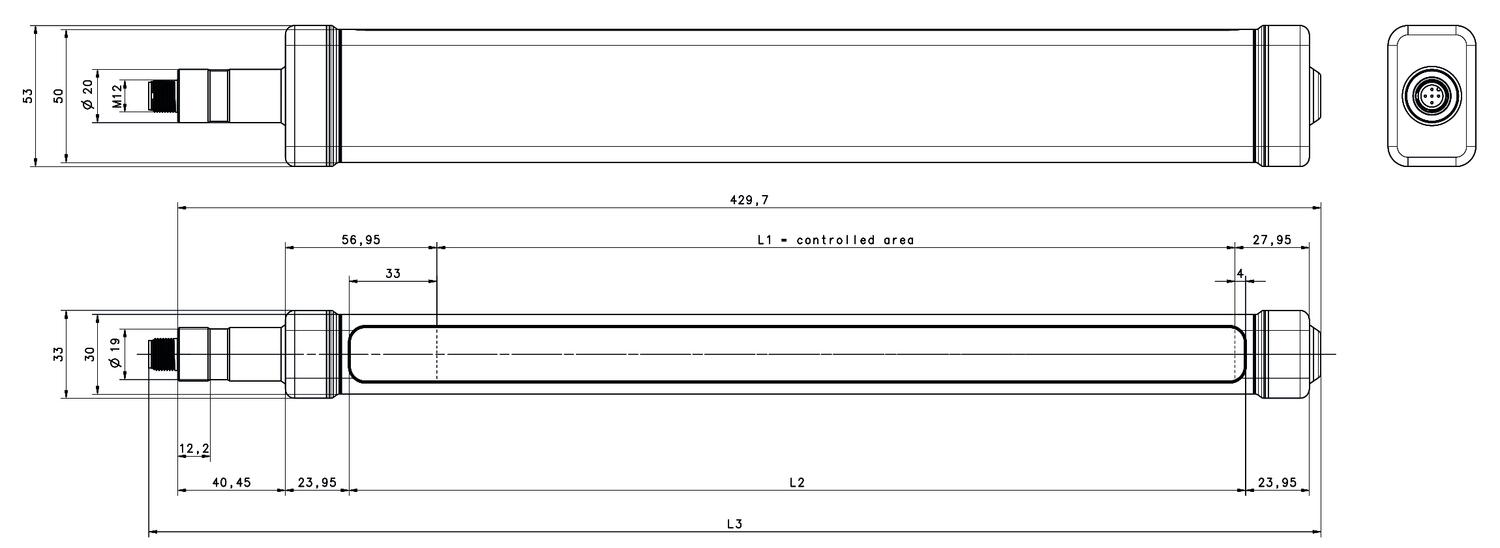

- Compact profile, 50x30 mm
- Rounded surfaces with no gaps or sharp edges
Selected variant
Specifications
| IP Class | IP65 |
|---|---|
| Reaction time | 11 ms |
| Material of body | Stainless steel 316L |
| Temperature range to | 55 °C |
| Temperature range from | -10 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range bearing, from | -25 °C |
| Approvals | CE, cULus, TÜV |
| Scope | 0,2-6 m |
| PL | e (EN ISO 13849-1) |
| SIL | 3 (EN IEC 62061) |
| Protection Field | 150 mm |
|---|---|
| Voltage Tolerance | ±20 % |
| T1 (Life Time In Years) | 20 |
| Cable Length Max | 50 m |
| Conforming To | EMC, LVD, MD |
| Contact Current Max | 0.5 A |
| DC | 99 % |
| Mttfd | 444 year |
| Number Of Beams | 16 |
Product description
SG4-H safety light curtain offers finger protection with an IP69K stainless steel housing designed for the Pharma industry and a 6 metre range.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
SG4-H light curtain has two solid state safety outputs which are electronically monitored.
