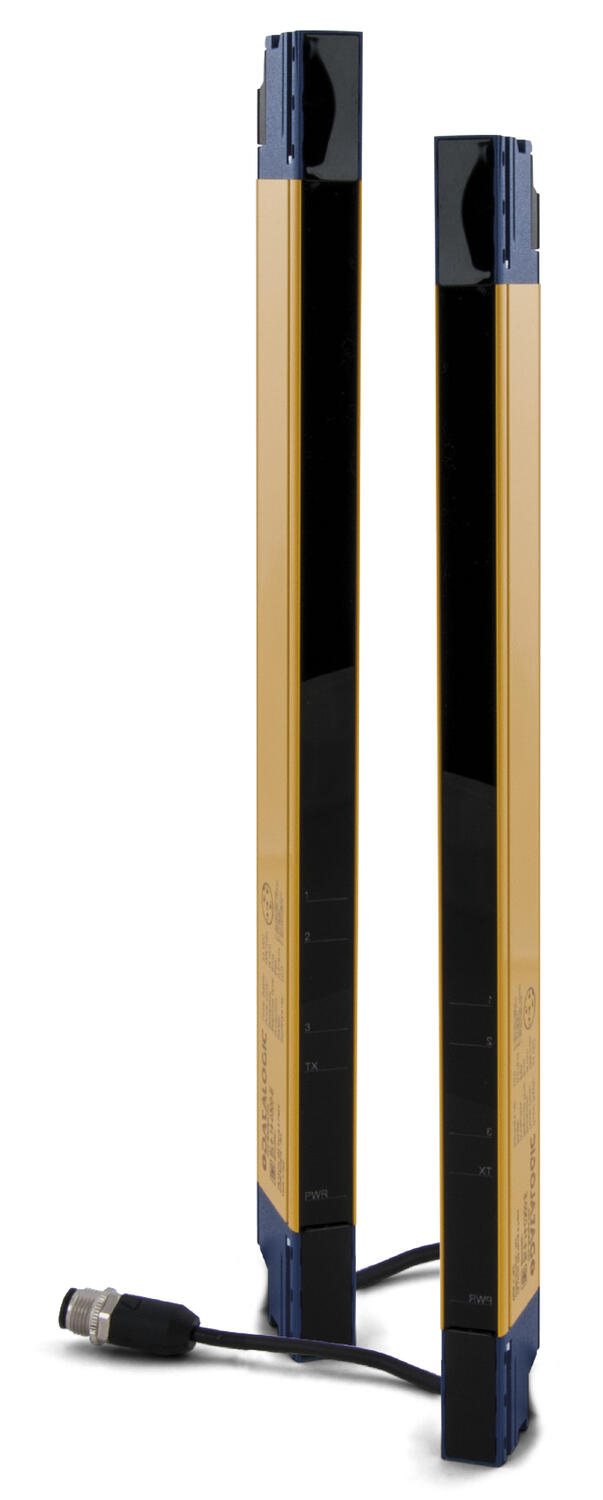

Datalogic - Light curtains SLIM

SLIM is a safety light curtain with a range of up to 6 metres designed to fit in the smallest spaces.



With 34 different protection heights at 30mm intervals it is one of the most flexible light curtains on the market.



This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.



Datalogic's SLIM light curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.



This means that the SG4-Finger can work as a "standalone" unit if required and is not in need of any special control unit.


Read more
  • Range up to 6 m
  • Slim profile 15x32 mm
  • No dead zones
  • Resolution 14, 24 and 34 mm
  • Cascadable up to 3 units with 34 different protection heights at 30mm intervals

Selected variant

DATASENSING_LOGO.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Supply voltage 24 V DC
Function Calibration mode, Manual/Automatic restart, EDM
IP Class IP65
Reaction time 7 ms
Material of body Aluminium
Temperature range to 55 °C
Temperature range from -10 °C
Approvals CE, cULus, TÜV
Scope 0,2-6 m
Protection height 150 mm
PL c (EN ISO 13849-1)
SIL 1 (EN IEC 62061)
Voltage Tolerance ±20 %
T1 (Life Time In Years) 20
Cable Length Max 20 m
Conforming To EMC, LVD, MD
Contact Current Max 0.3 A
DC 98,80 %
Distance Max 6 m
Mttfd 191 year
Number Of Beams 8

Downloads

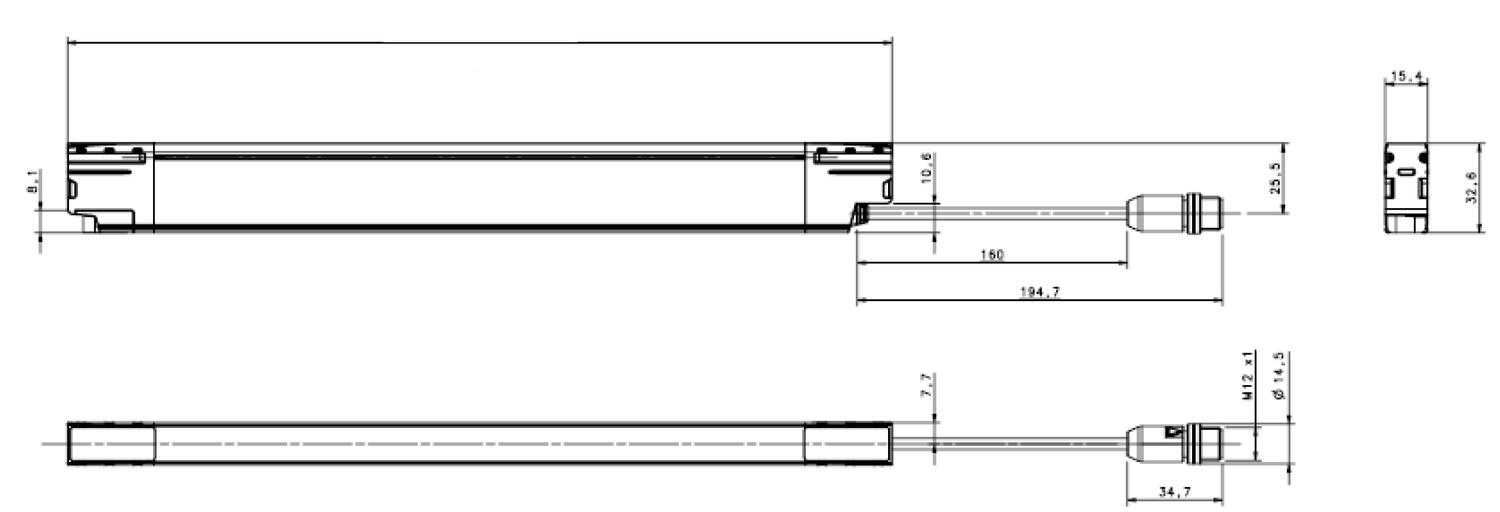

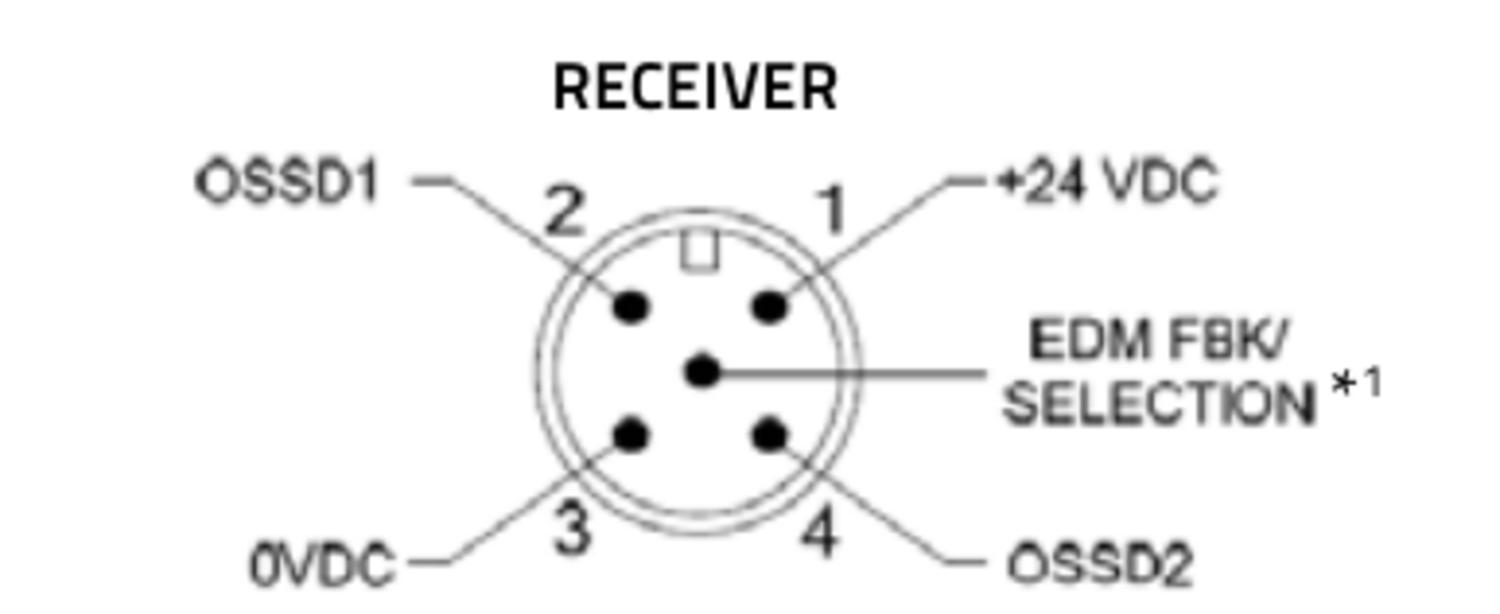

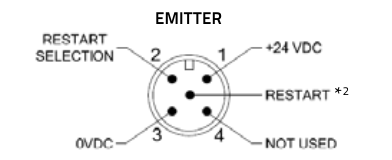

Measurements and connections

Product description

SLIM is a safety light curtain with a range of up to 6 metres designed to fit in the smallest spaces.



With 34 different protection heights at 30mm intervals it is one of the most flexible light curtains on the market.



This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.



Datalogic's SLIM light curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.



This means that the SG4-Finger can work as a "standalone" unit if required and is not in need of any special control unit.


Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

Turvareunat valmiiksi koottuina
Knowledge

Fully assembled safety edges

With the help of our technical department, we can offer efficient and comprehensive delivery of safety edges, ready for plug-and-play installation.

Inxpect turvatutka
Product news

Safety systems and intelligent detection

Inxpect safety radars detect access or presence of operators in dangerous areas and also have the ability to dynamically set the detection and warning zones.

SH4 safety curtain series
Product news

SH4 safety curtains

Safety curtains and beams provide effective and reliable personal protection and monitoring in a wide range of industrial environments.

Hokuyo laserskanner
Product news

Versatile properties in small size 80x80x95 mm

Hokuyo has small safety laserskanner that is very small in size. This versatile laserskanner fits in most systems. Read more!

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Wika hygienic applications
Product news

Products for hygienic applications

WIKA's hygienic products take into account the high hygiene, cleaning, and durability requirements of the food and pharmaceutical industries. Read more!

Articles Supply voltage Reaction time
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911360 Type 2 24mm Hand Res 150mm Prot Height SLIM
Art:
SL2-24-0150-E Copied
24 V DC
7 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911370 Type 2 24mm Hand Res 210mm Prot Height SLIM
Art:
SL2-24-0210-E Copied
24 V DC
7 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911380 Type 2 24mm Hand Res 270mm Prot Height SLIM
Art:
SL2-24-0270-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911390 Type 2 24mm Hand Res 300mm Prot Height SLIM
Art:
SL2-24-0300-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911400 Type 2 24mm Hand Res 330mm Prot Height SLIM
Art:
SL2-24-0330-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911410 Type 2 24mm Hand Res 360mm Prot Height SLIM
Art:
SL2-24-0360-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911420 Type 2 24mm Hand Res 390mm Prot Height SLIM
Art:
SL2-24-0390-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911430 Type 2 24mm Hand Res 420mm Prot Height SLIM
Art:
SL2-24-0420-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911440 Type 2 24mm Hand Res 450mm Prot Height SLIM
Art:
SL2-24-0450-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911450 Type 2 24mm Hand Res 480mm Prot Height SLIM
Art:
SL2-24-0480-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911460 Type 2 24mm Hand Res 510mm Prot Height SLIM
Art:
SL2-24-0510-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911470 Type 2 24mm Hand Res 540mm Prot Height SLIM
Art:
SL2-24-0540-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911480 Type 2 24mm Hand Res 570mm Prot Height SLIM
Art:
SL2-24-0570-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911490 Type 2 24mm Hand Res 600mm Prot Height SLIM
Art:
SL2-24-0600-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911500 Type 2 24mm Hand Res 630mm Prot Height SLIM
Art:
SL2-24-0630-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911510 Type 2 24mm Hand Res 660mm Prot Height SLIM
Art:
SL2-24-0660-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911520 Type 2 24mm Hand Res 690mm Prot Height SLIM
Art:
SL2-24-0690-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911530 Type 2 24mm Hand Res 720mm Prot Height SLIM
Art:
SL2-24-0720-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911540 Type 2 24mm Hand Res 750mm Prot Height SLIM
Art:
SL2-24-0750-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911550 Type 2 24mm Hand Res 780mm Prot Height SLIM
Art:
SL2-24-0780-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911560 Type 2 24mm Hand Res 810mm Prot Height SLIM
Art:
SL2-24-0810-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911570 Type 2 24mm Hand Res 840mm Prot Height SLIM
Art:
SL2-24-0840-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911580 Type 2 24mm Hand Res 870mm Prot Height SLIM
Art:
SL2-24-0870-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911590 Type 2 24mm Hand Res 900mm Prot Height SLIM
Art:
SL2-24-0900-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911600 Type 2 24mm Hand Res 930mm Prot Height SLIM
Art:
SL2-24-0930-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911610 Type 2 24mm Hand Res 960mm Prot Height SLIM
Art:
SL2-24-0960-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911620 Type 2 24mm Hand Res 990mm Prot Height SLIM
Art:
SL2-24-0990-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911630 Type 2 24mm Hand Res 1020mm Prot Height SLIM
Art:
SL2-24-1020-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911640 Type 2 24mm Hand Res 1050mm Prot Height SLIM
Art:
SL2-24-1050-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911650 Type 2 24mm Hand Res 1080mm Prot Height SLIM
Art:
SL2-24-1080-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911660 Type 2 24mm Hand Res 1110mm Prot Height SLIM
Art:
SL2-24-1110-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911670 Type 2 24mm Hand Res 1140mm Prot Height SLIM
Art:
SL2-24-1140-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911680 Type 2 24mm Hand Res 1170mm Prot Height SLIM
Art:
SL2-24-1170-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911690 Type 2 24mm Hand Res 1200mm Prot Height SLIM
Art:
SL2-24-1200-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911700 Type 4 14mm Finger Res 150mm Prot Height SLIM
Art:
SL2-34-0150-E Copied
24 V DC
7 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911710 Type 2 34mm Hand Res 210mm Prot Height SLIM
Art:
SL2-34-0210-E Copied
24 V DC
7 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911720 Type 2 34mm Hand Res 270mm Prot Height SLIM
Art:
SL2-34-0270-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911730 Type 2 34mm Hand Res 300mm Prot Height SLIM
Art:
SL2-34-0300-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911740 Type 2 34mm Hand Res 330mm Prot Height SLIM
Art:
SL2-34-0330-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911750 Type 2 34mm Hand Res 360mm Prot Height SLIM
Art:
SL2-34-0360-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911760 Type 2 34mm Hand Res 390mm Prot Height SLIM
Art:
SL2-34-0390-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911770 Type 2 34mm Hand Res 420mm Prot Height SLIM
Art:
SL2-34-0420-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911780 Type 2 34mm Hand Res 450mm Prot Height SLIM
Art:
SL2-34-0450-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911790 Type 2 34mm Hand Res 480mm Prot Height SLIM
Art:
SL2-34-0480-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911800 Type 2 34mm Hand Res 510mm Prot Height SLIM
Art:
SL2-34-0510-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911810 Type 2 34mm Hand Res 540mm Prot Height SLIM
Art:
SL2-34-0540-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911820 Type 2 34mm Hand Res 570mm Prot Height SLIM
Art:
SL2-34-0570-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911830 Type 2 34mm Hand Res 600mm Prot Height SLIM
Art:
SL2-34-0600-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911840 Type 2 34mm Hand Res 630mm Prot Height SLIM
Art:
SL2-34-0630-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911850 Type 2 34mm Hand Res 660mm Prot Height SLIM
Art:
SL2-34-0660-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911860 Type 2 34mm Hand Res 690mm Prot Height SLIM
Art:
SL2-34-0690-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911870 Type 2 34mm Hand Res 720mm Prot Height SLIM
Art:
SL2-34-0720-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911880 Type 2 34mm Hand Res 750mm Prot Height SLIM
Art:
SL2-34-0750-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911890 Type 2 34mm Hand Res 780mm Prot Height SLIM
Art:
SL2-34-0780-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911900 Type 2 34mm Hand Res 810mm Prot Height SLIM
Art:
SL2-34-0810-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911910 Type 2 34mm Hand Res 840mm Prot Height SLIM
Art:
SL2-34-0840-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911920 Type 2 34mm Hand Res 870mm Prot Height SLIM
Art:
SL2-34-0870-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911930 Type 2 34mm Hand Res 900mm Prot Height SLIM
Art:
SL2-34-0900-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911940 Type 2 34mm Hand Res 930mm Prot Height SLIM
Art:
SL2-34-0930-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911950 Type 2 34mm Hand Res 960mm Prot Height SLIM
Art:
SL2-34-0960-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911960 Type 2 34mm Hand Res 990mm Prot Height SLIM
Art:
SL2-34-0990-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911970 Type 2 34mm Hand Res 1020mm Prot Height SLIM
Art:
SL2-34-1020-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911980 Type 2 34mm Hand Res 1050mm Prot Height SLIM
Art:
SL2-34-1050-E Copied
24 V DC
14 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957911990 Type 2 34mm Hand Res 1080mm Prot Height SLIM
Art:
SL2-34-1080-E Copied
24 V DC
14 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957912000 Type 2 34mm Hand Res 1110mm Prot Height SLIM
Art:
SL2-34-1110-E Copied
24 V DC
14 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957912010 Type 2 34mm Hand Res 1140mm Prot Height SLIM
Art:
SL2-34-1140-E Copied
24 V DC
14 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957912020 Type 2 34mm Hand Res 1170mm Prot Height SLIM
Art:
SL2-34-1170-E Copied
24 V DC
15 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
957912030 Type 2 34mm Hand Res 1200mm Prot Height SLIM
Art:
SL2-34-1200-E Copied
24 V DC
15 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 150/24mm/0,2-6m, Type 4
Art:
SL4-24-0150-E Copied
24 V DC
7 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 210/14mm/0,2-6m, Type 4
Art:
SL4-24-0210-E Copied
24 V DC
7 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 270/14mm/0,2-6m, Type 4
Art:
SL4-24-0270-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 300/14mm/0,2-6m, Type 4
Art:
SL4-24-0300-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 330/14mm/0,2-6m, Type 4
Art:
SL4-24-0330-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 360/14mm/0,2-6m, Type 4
Art:
SL4-24-0360-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 390/14mm/0,2-6m, Type 4
Art:
SL4-24-0390-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 420/14mm/0,2-6m, Type 4
Art:
SL4-24-0420-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 450/14mm/0,2-6m, Type 4
Art:
SL4-24-0450-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 480/14mm/0,2-6m, Type 4
Art:
SL4-24-0480-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 510/14mm/0,2-6m, Type 4
Art:
SL4-24-0510-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 540/14mm/0,2-6m, Type 4
Art:
SL4-24-0540-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 570/14mm/0,2-6m, Type 4
Art:
SL4-24-0570-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 600/14mm/0,2-6m, Type 4
Art:
SL4-24-0600-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 630/14mm/0,2-6m, Type 4
Art:
SL4-24-0630-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 660/14mm/0,2-6m, Type 4
Art:
SL4-24-0660-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 690/14mm/0,2-6m, Type 4
Art:
SL4-24-0690-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 720/14mm/0,2-6m, Type 4
Art:
SL4-24-0720-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 750/14mm/0,2-6m, Type 4
Art:
SL4-24-0750-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 780/14mm/0,2-6m, Type 4
Art:
SL4-24-0780-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 810/14mm/0,2-6m, Type 4
Art:
SL4-24-0810-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 840/14mm/0,2-6m, Type 4
Art:
SL4-24-0840-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 870/14mm/0,2-6m, Type 4
Art:
SL4-24-0870-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 900/14mm/0,2-6m, Type 4
Art:
SL4-24-0900-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 930/14mm/0,2-6m, Type 4
Art:
SL4-24-0930-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 960/14mm/0,2-6m, Type 4
Art:
SL4-24-0960-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 990/14mm/0,2-6m, Type 4
Art:
SL4-24-0990-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1020/14mm/0,2-6m, Type 4
Art:
SL4-24-1020-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1050/14mm/0,2-6m, Type 4
Art:
SL4-24-1050-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1080/14mm/0,2-6m, Type 4
Art:
SL4-24-1080-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1110/14mm/0,2-6m, Type 4
Art:
SL4-24-1110-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1140/14mm/0,2-6m, Type 4
Art:
SL4-24-1140-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1170/14mm/0,2-6m, Type 4
Art:
SL4-24-1170-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1200/14mm/0,2-6m, Type 4
Art:
SL4-24-1200-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 150/34mm/0,2-6m, Type 4
Art:
SL4-34-0150-E Copied
24 V DC
7 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 210/14mm/0,2-6m, Type 4
Art:
SL4-34-0210-E Copied
24 V DC
7 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 270/14mm/0,2-6m, Type 4
Art:
SL4-34-0270-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 300/14mm/0,2-6m, Type 4
Art:
SL4-34-0300-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 330/14mm/0,2-6m, Type 4
Art:
SL4-34-0330-E Copied
24 V DC
8 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 360/14mm/0,2-6m, Type 4
Art:
SL4-34-0360-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 390/14mm/0,2-6m, Type 4
Art:
SL4-34-0390-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 420/14mm/0,2-6m, Type 4
Art:
SL4-34-0420-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 450/14mm/0,2-6m, Type 4
Art:
SL4-34-0450-E Copied
24 V DC
9 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 480/14mm/0,2-6m, Type 4
Art:
SL4-34-0480-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 510/14mm/0,2-6m, Type 4
Art:
SL4-34-0510-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 540/14mm/0,2-6m, Type 4
Art:
SL4-34-0540-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 570/14mm/0,2-6m, Type 4
Art:
SL4-34-0570-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 600/14mm/0,2-6m, Type 4
Art:
SL4-34-0600-E Copied
24 V DC
10 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 630/14mm/0,2-6m, Type 4
Art:
SL4-34-0630-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 660/14mm/0,2-6m, Type 4
Art:
SL4-34-0660-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 690/14mm/0,2-6m, Type 4
Art:
SL4-34-0690-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 720/14mm/0,2-6m, Type 4
Art:
SL4-34-0720-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 750/14mm/0,2-6m, Type 4
Art:
SL4-34-0750-E Copied
24 V DC
11 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 780/14mm/0,2-6m, Type 4
Art:
SL4-34-0780-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 810/14mm/0,2-6m, Type 4
Art:
SL4-34-0810-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 840/14mm/0,2-6m, Type 4
Art:
SL4-34-0840-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 870/14mm/0,2-6m, Type 4
Art:
SL4-34-0870-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 900/14mm/0,2-6m, Type 4
Art:
SL4-34-0900-E Copied
24 V DC
12 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 930/14mm/0,2-6m, Type 4
Art:
SL4-34-0930-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 960/14mm/0,2-6m, Type 4
Art:
SL4-34-0960-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 990/14mm/0,2-6m, Type 4
Art:
SL4-34-0990-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1020/14mm/0,2-6m, Type 4
Art:
SL4-34-1020-E Copied
24 V DC
13 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1050/14mm/0,2-6m, Type 4
Art:
SL4-34-1050-E Copied
24 V DC
14 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1080/14mm/0,2-6m, Type 4
Art:
SL4-34-1080-E Copied
24 V DC
14 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1110/14mm/0,2-6m, Type 4
Art:
SL4-34-1110-E Copied
24 V DC
14 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1140/14mm/0,2-6m, Type 4
Art:
SL4-34-1140-E Copied
24 V DC
14 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1170/14mm/0,2-6m, Type 4
Art:
SL4-34-1170-E Copied
24 V DC
15 ms
SLIM 011 safety switch with yellow and black design, intended for industrial use
SAFETY LC SLIM 1200/14mm/0,2-6m, Type 4
Art:
SL4-34-1200-E Copied
24 V DC
15 ms

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
