DATASENSING
Light curtain SG4-30, hand protection, 5-pole
Features:
- Hand protection, resolution 30 mm, operating distance 0,2-19 m
- Simple light curtain with basic functions
- Profile 32,3x36,9 mm
3 year warranty.
Applications

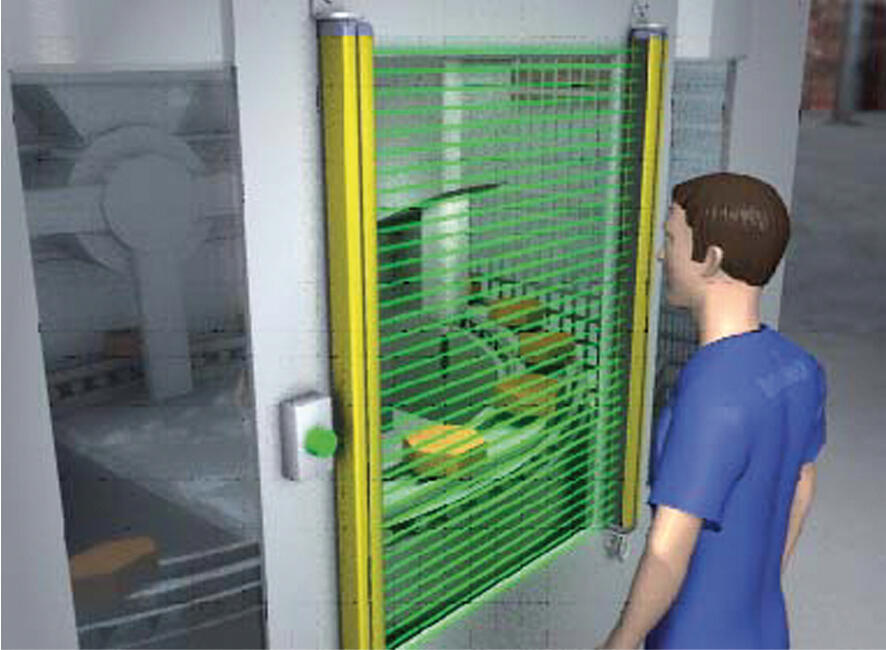

Hand protection (R ≤30 mm)
- Light curtain, type 4, PLe
- Hand protection (R30), operating distance 0,2m - 19m
- Basic functions
Selected variant
Specifications
| IP Class | IP65 |
|---|---|
| Reaction time | 9 ms |
| Material of body | Aluminium |
| Temperature range to | 55 °C |
| Temperature range from | 0 °C |
| Approvals | CE, cULus, TÜV |
| Scope | 0,2-19 m |
| Protection height | 150 mm |
| PL | e (EN ISO 13849-1) |
| SIL | 3 (EN IEC 61508) |
| Voltage Tolerance | ±20 % |
|---|---|
| T1 (Life Time In Years) | 20 |
| Cable Length Max | 50 m |
| Conforming To | EMC, LVD, MD |
| Contact Current Max | 0.5 A |
| DC | 98,80% |
| Mttfd | 444 year |
| Number Of Beams | 8 |
Product description
Features:
- Hand protection, resolution 30 mm, operating distance 0,2-19 m
- Simple light curtain with basic functions
- Profile 32,3x36,9 mm
3 year warranty.
Applications
Hand protection (R ≤30 mm)
