DATASENSING
Datalogic - SG2-B 50/90
SG2-B 50/90 is suitable for detection of personnel in a dangerous area (Ie. horizontal detection of a person standing in a dangerous area) with a range of up to 19 metres.
This Type 2 light curtain maintains level PLc according to the latest safety standards, EN ISO 13849-1 and EN 62061.

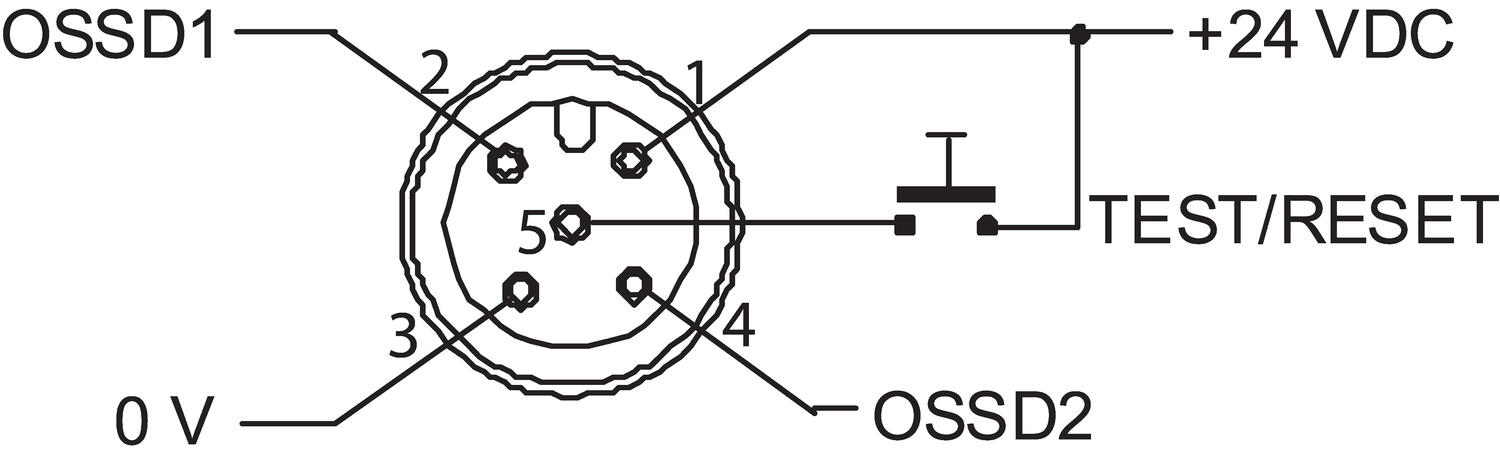

SG2-B 50/90 has basic functionality with two OSSD (PNP) safety outputs and manual reset.
- Range up to 19m
- Protection height 150-1800 mm
- Type 2 (PLc SIL 2)
- Suitable for detection or personnel in a dangerous area
Selected variant
Specifications
| IP Class | IP65 |
|---|---|
| Reaction time | 9 ms |
| Material of body | Aluminium |
| Temperature range to | 55 °C |
| Temperature range from | -10 °C |
| Approvals | CE, cULus, TÜV |
| Scope | 0,2-19 m |
| Protection height | 300 mm |
| PL | c (EN ISO 13849-1) |
| SIL | 1 (EN IEC 62061) |
| Voltage Tolerance | ±20 % |
|---|---|
| T1 (Life Time In Years) | 20 |
| Cable Length Max | 50 m |
| Conforming To | EMC, LVD, MD |
| Contact Current Max | 0.5 A |
| DC | 97,50 % |
| Mttfd | 273 year |
| Number Of Beams | 9 |
Product description
SG2-B 50/90 is suitable for detection of personnel in a dangerous area (Ie. horizontal detection of a person standing in a dangerous area) with a range of up to 19 metres.
This Type 2 light curtain maintains level PLc according to the latest safety standards, EN ISO 13849-1 and EN 62061.
SG2-B 50/90 has basic functionality with two OSSD (PNP) safety outputs and manual reset.
