Gelbau - Control unit 312.0
Gelbau IP65 control unit is spesifically suitable for door and gate systems. Monitoring is performed on the closed circuit current principle with an 8.2 kΩ resistor as the electrical termination. The switchgears possess three LEDs (green, yellow, red), which are used to indicate different states:
- Green: switching strip connected, system ready for operation, safety contacts closed
- Yellow: error message “Open sensor circuit”, safety contacts opened
- Red: switching strip actuated, safety contacts opened
Technical spesification
Supply voltage | 24 V DC or 230 V AC |
Tolerance | -15 %...+10 % |
Power consumption | 4 VA |
Functions output | 1 NO |
Signal output | 1 CO |
Max. voltage / output | 250 V AC / 24 V DC |
Max. current / output | 4 A (AC11/220 V), 2 A (DC11/24 V) |
Activation time | Max. 15 ms |
Max. safety edge length | 100 m |
State indication | 3 x LED |
Protection class | IP65 |
Temperature range | -20 °C...+55 °C |
Installation | IP65 enclosure |
Safety class | 1, conforms to EN954-1 |
Standard | EN1760-2 |
CE requirements | MD, LVD, EMC |
Approvals |
|
Features | LED indicator |
|
• IP65 |
| Switching strip actuated |
• 1 CO signal contact |
| Open sensor circuit, safety contacts opened |
• LED state indication |
| Switching strip connected |
Measurements
(mm)
|

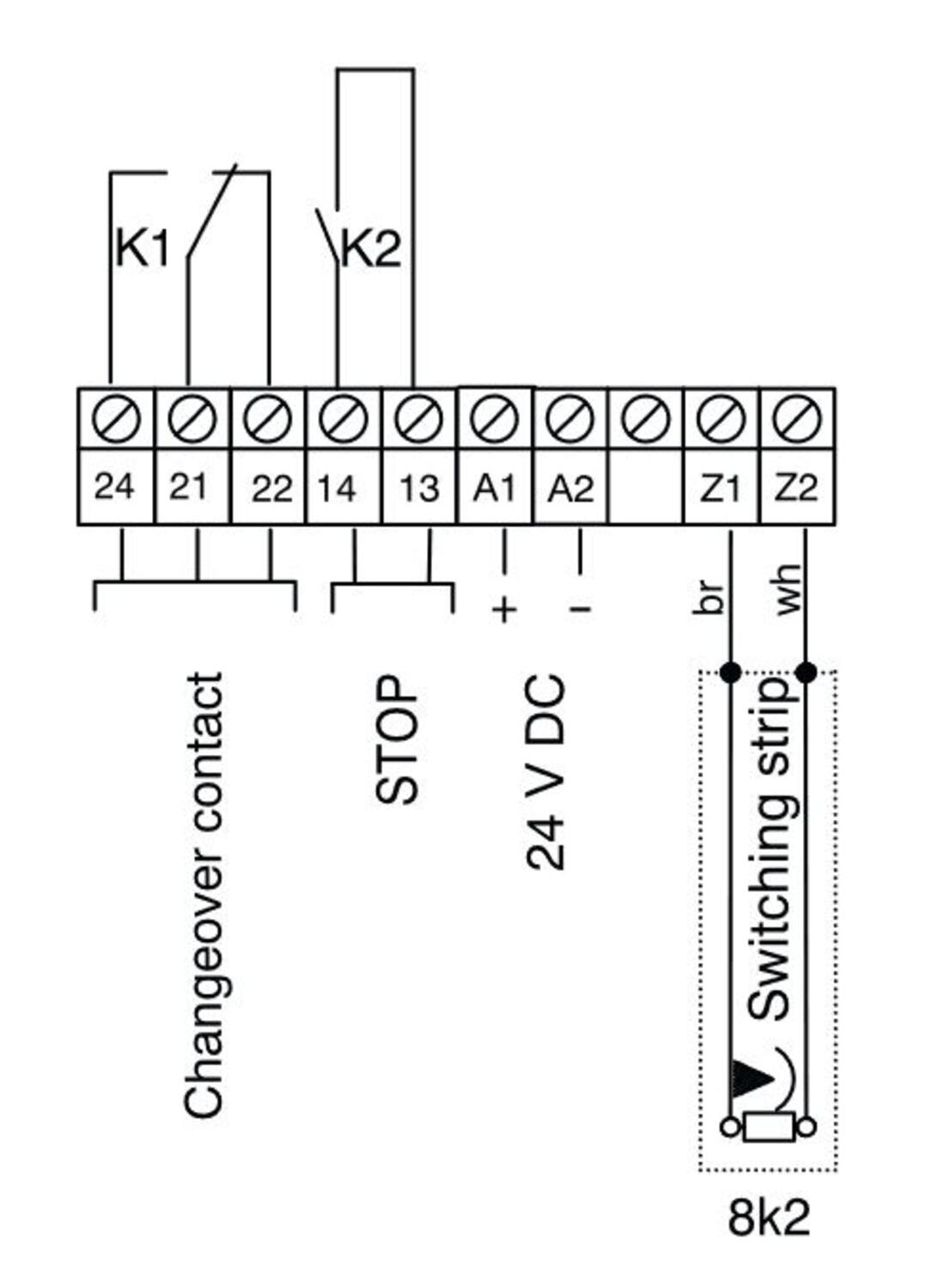

Wiring diagram
|
- IP65
- 1 NO + 1 CO signal output
- Conforms to 1 EN954-1
- Automatic reset
Selected variant
Specifications
| IP Class | IP65 |
|---|---|
| Number Of Terminal Strips Max | 1 |
| PL | c |
| Supply voltage | 24 V DC |
| Temperature range from | -20 °C |
| Temperature range to | 55 °C |
Product description
Gelbau IP65 control unit is spesifically suitable for door and gate systems. Monitoring is performed on the closed circuit current principle with an 8.2 kΩ resistor as the electrical termination. The switchgears possess three LEDs (green, yellow, red), which are used to indicate different states:
- Green: switching strip connected, system ready for operation, safety contacts closed
- Yellow: error message “Open sensor circuit”, safety contacts opened
- Red: switching strip actuated, safety contacts opened
Technical spesification
Supply voltage | 24 V DC or 230 V AC |
Tolerance | -15 %...+10 % |
Power consumption | 4 VA |
Functions output | 1 NO |
Signal output | 1 CO |
Max. voltage / output | 250 V AC / 24 V DC |
Max. current / output | 4 A (AC11/220 V), 2 A (DC11/24 V) |
Activation time | Max. 15 ms |
Max. safety edge length | 100 m |
State indication | 3 x LED |
Protection class | IP65 |
Temperature range | -20 °C...+55 °C |
Installation | IP65 enclosure |
Safety class | 1, conforms to EN954-1 |
Standard | EN1760-2 |
CE requirements | MD, LVD, EMC |
Approvals |
|
Features | LED indicator |
|
• IP65 |
| Switching strip actuated |
• 1 CO signal contact |
| Open sensor circuit, safety contacts opened |
• LED state indication |
| Switching strip connected |
Measurements
(mm)
|
Wiring diagram
|
