GELBAU
Quadro profiles

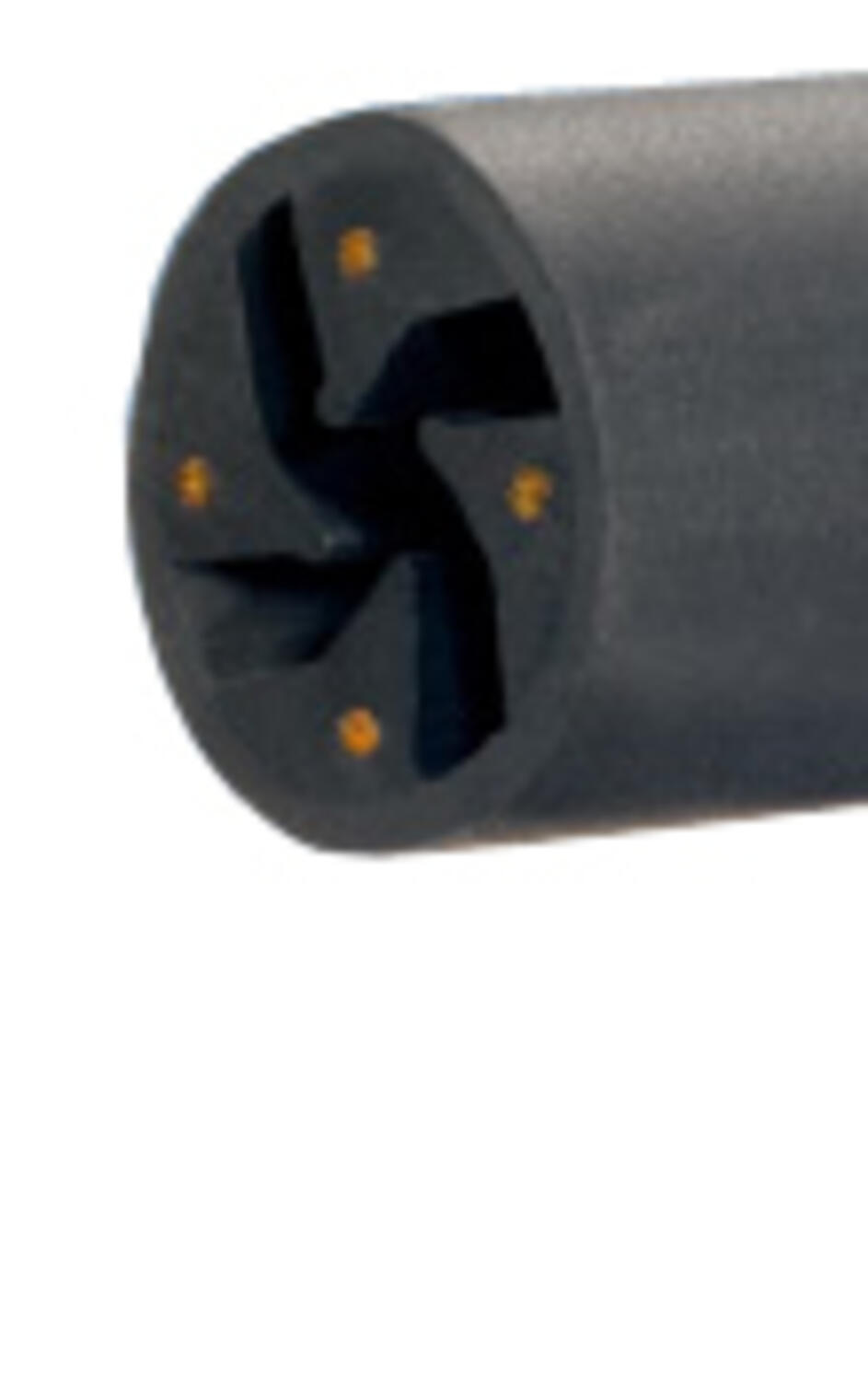

The Gelbau Quadro-Profile is used primarily in the field of local public transport, where it is installed as a safety feature for the closing edges of passenger doors in buses and trains. The EPDM profile can be used only in conjunction with a sealing profile. It is simply pushed into the hollow chamber of existing or newly developed sealing profiles. The profiles have a diameter of 18 mm or 22 mm, and require a sheath-profile with a hollow compartment minimum diameter of 21.5 mm or 25.5 mm. The profile is characterised by a high level of sensitivity.
|
|

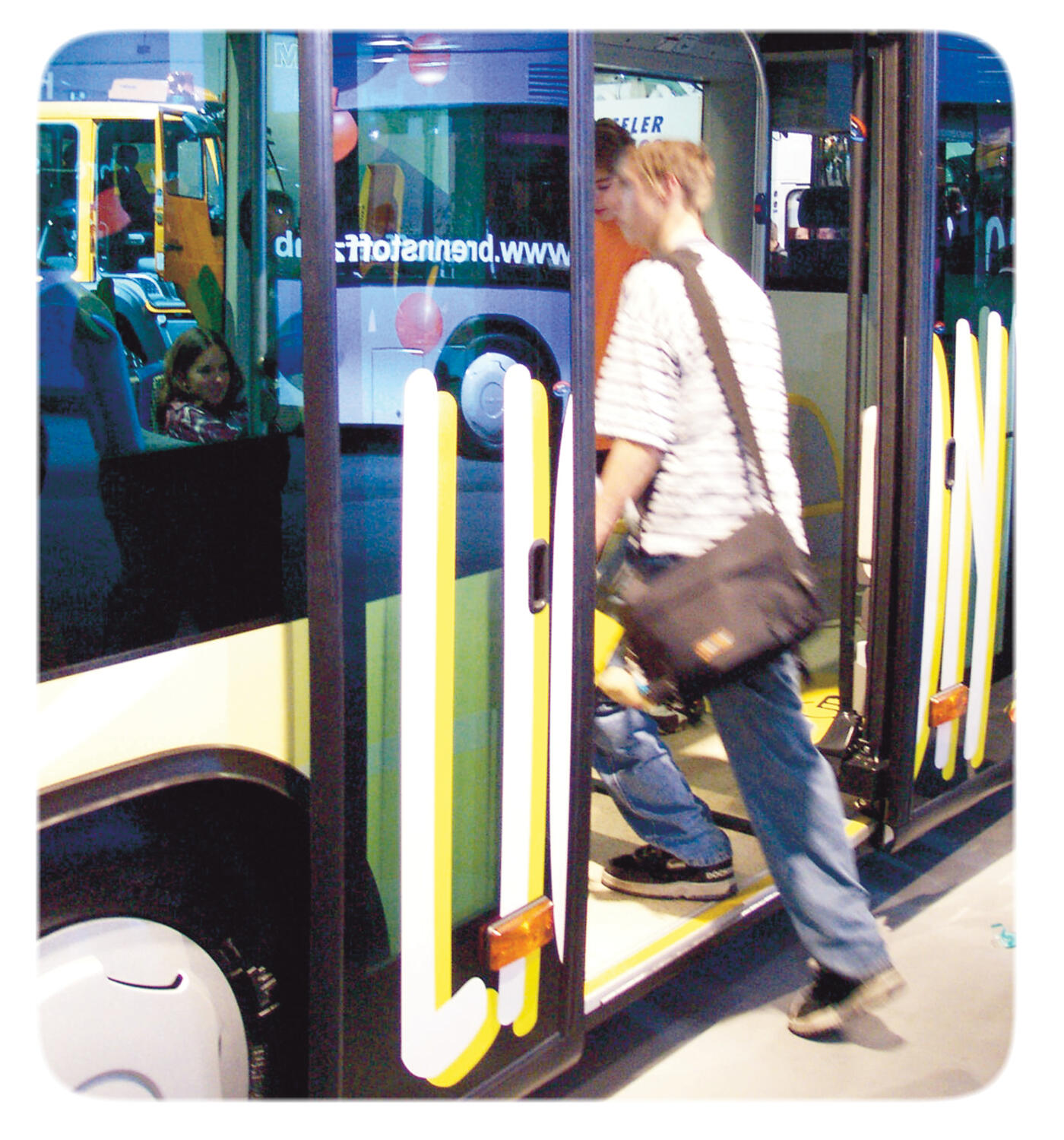

Applications | Features |
|
|
|

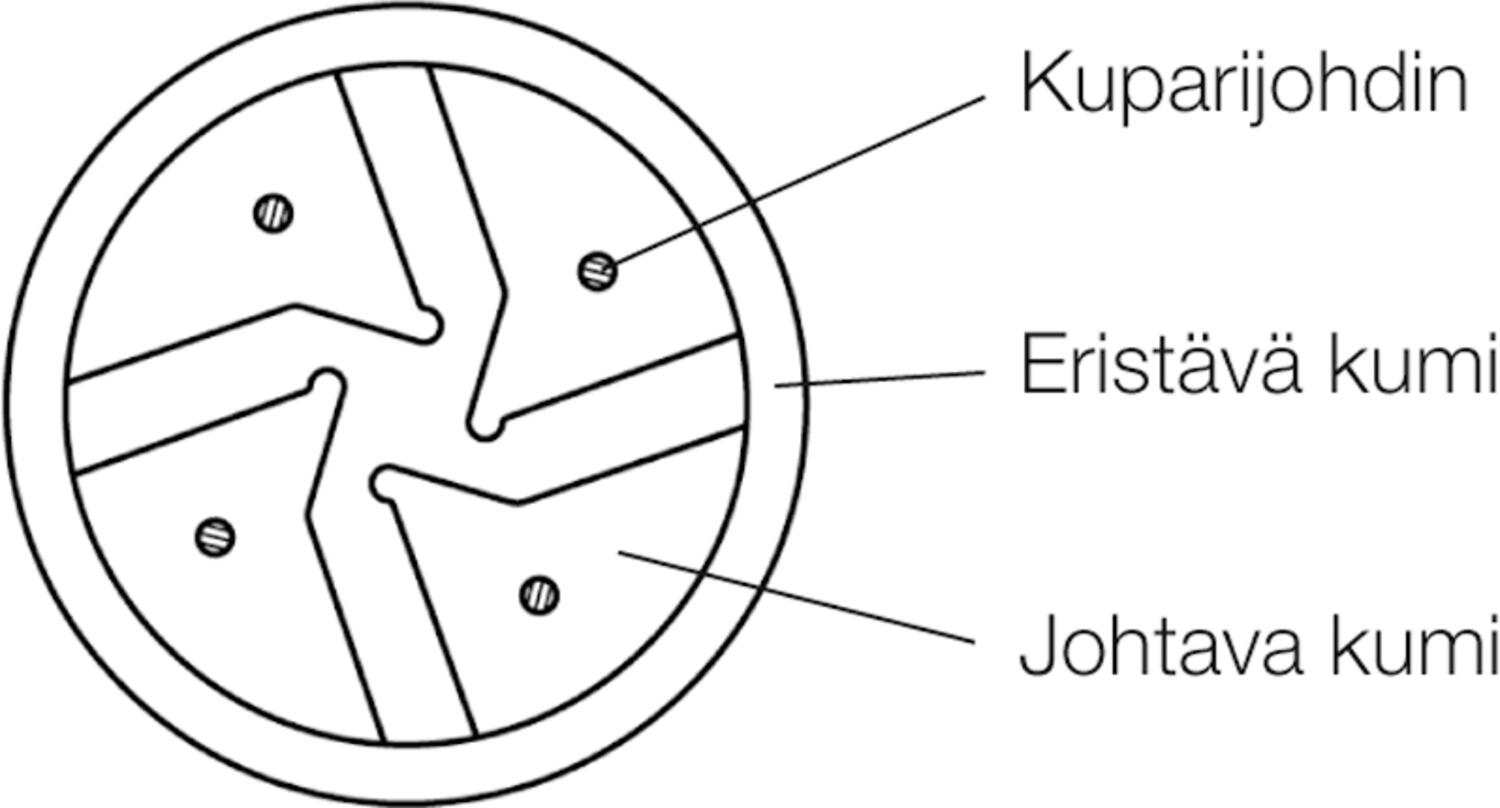

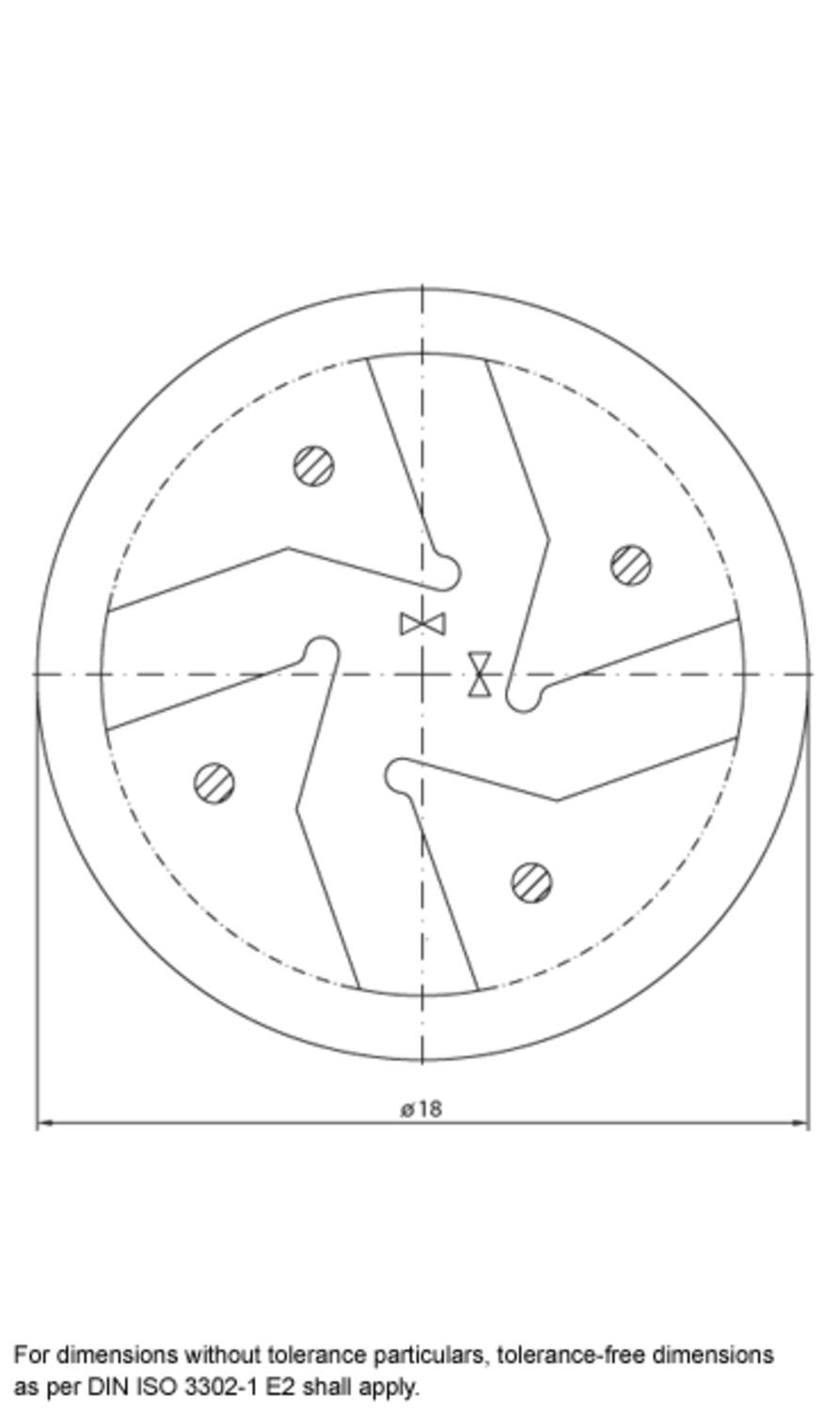

Cross-cut section |
|
|

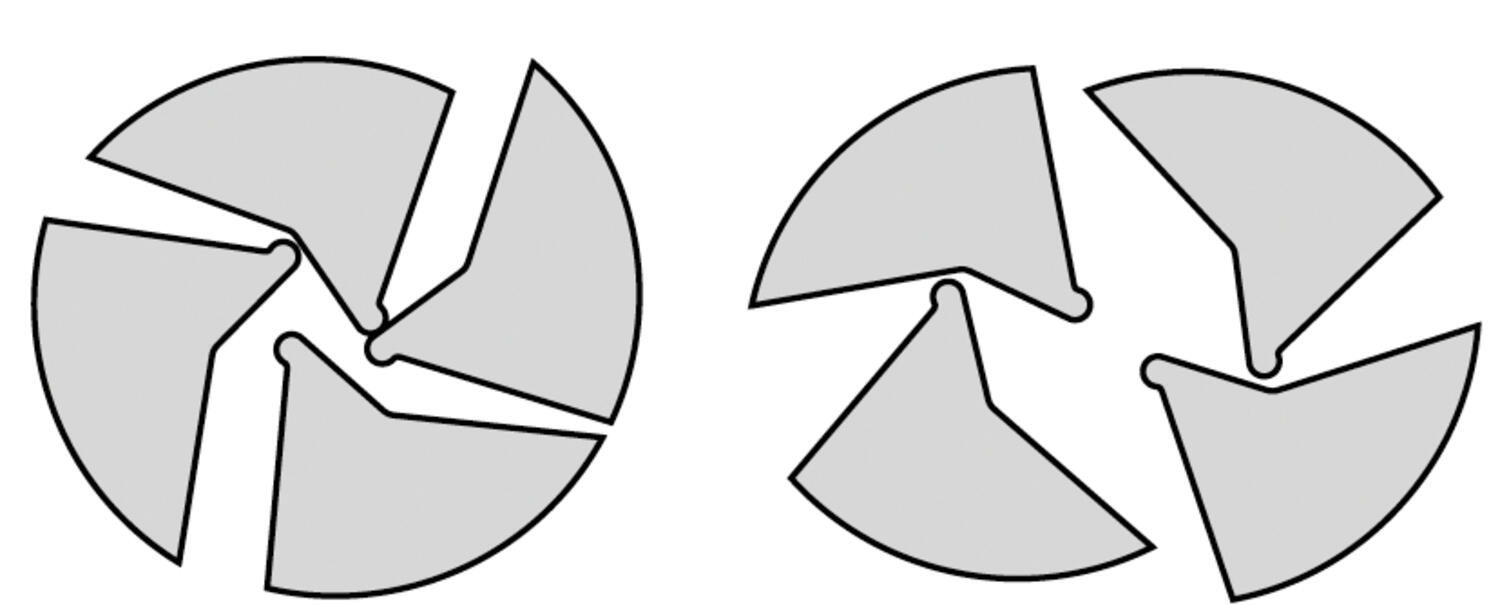

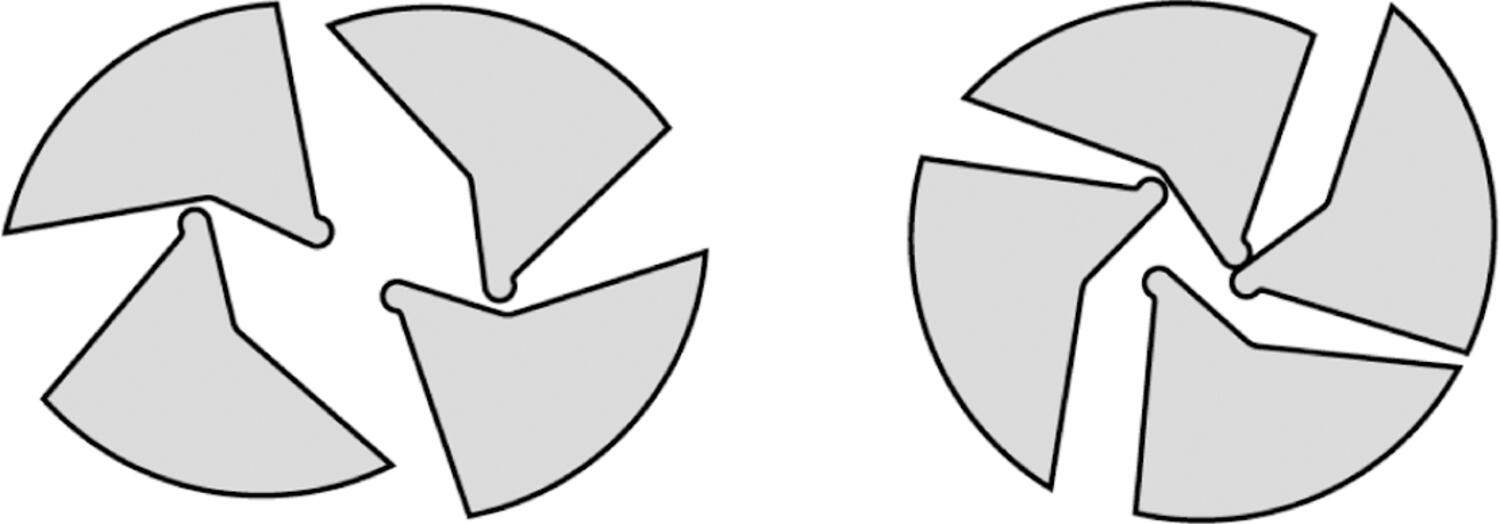

360° operating range |
|

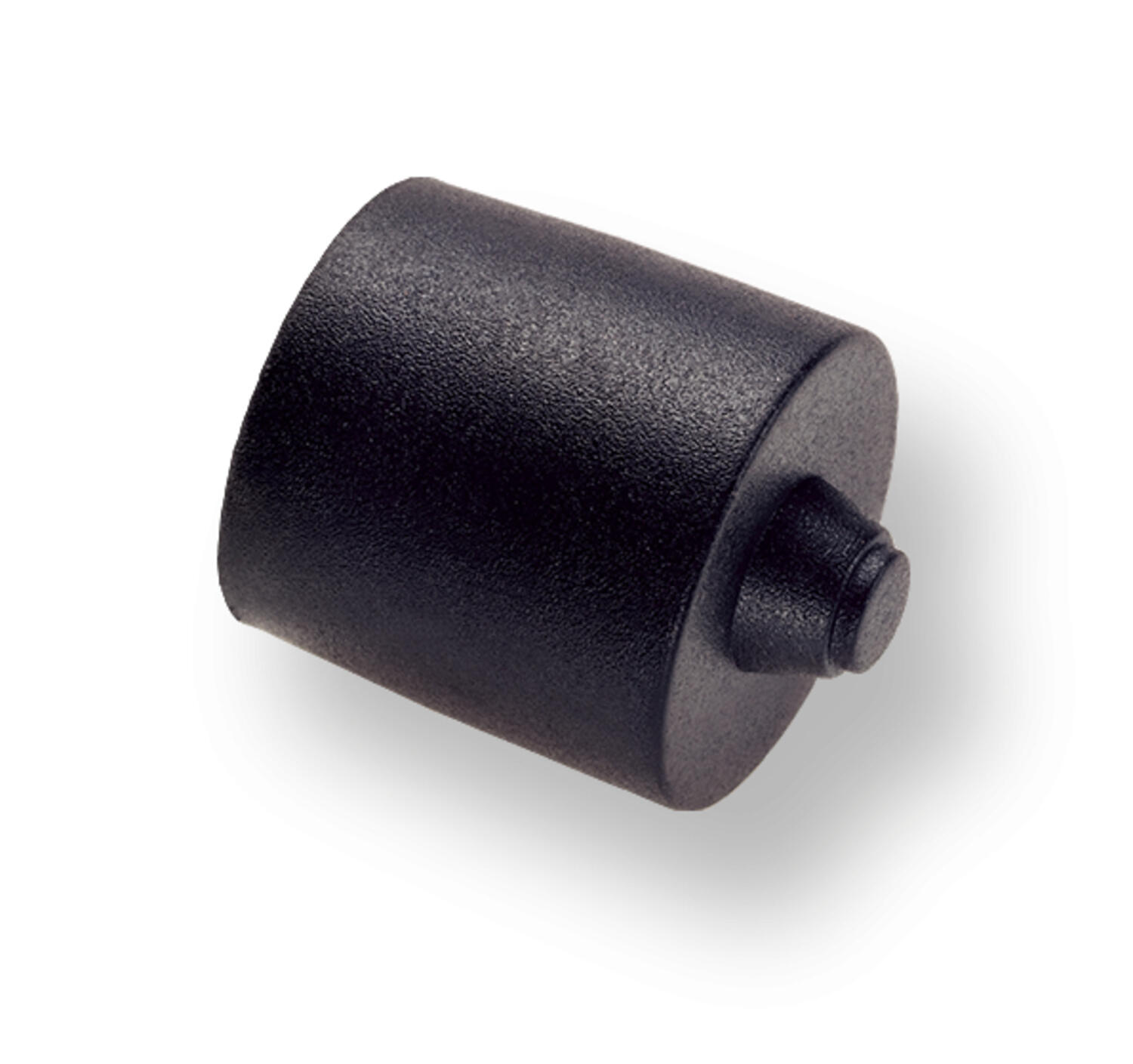

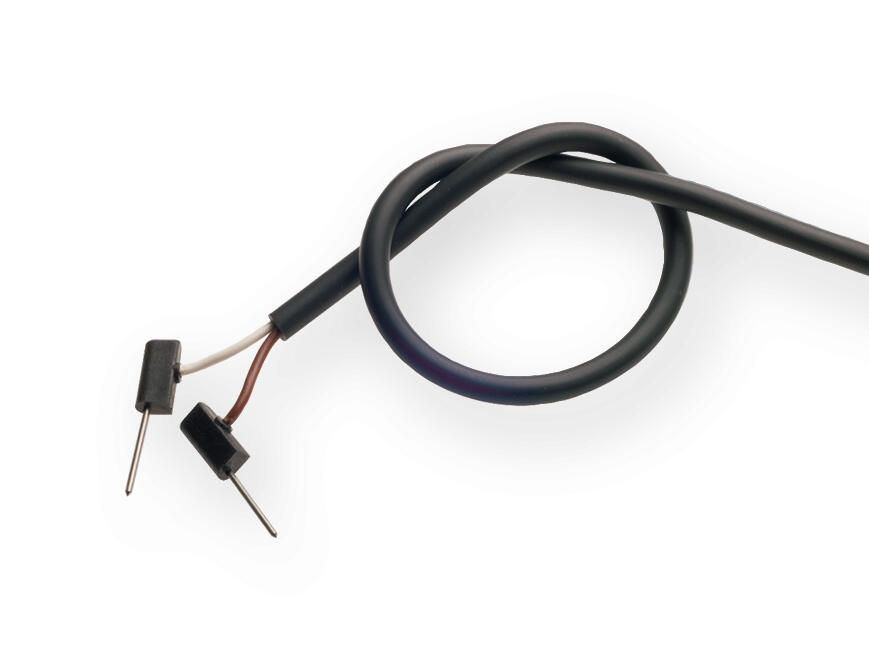

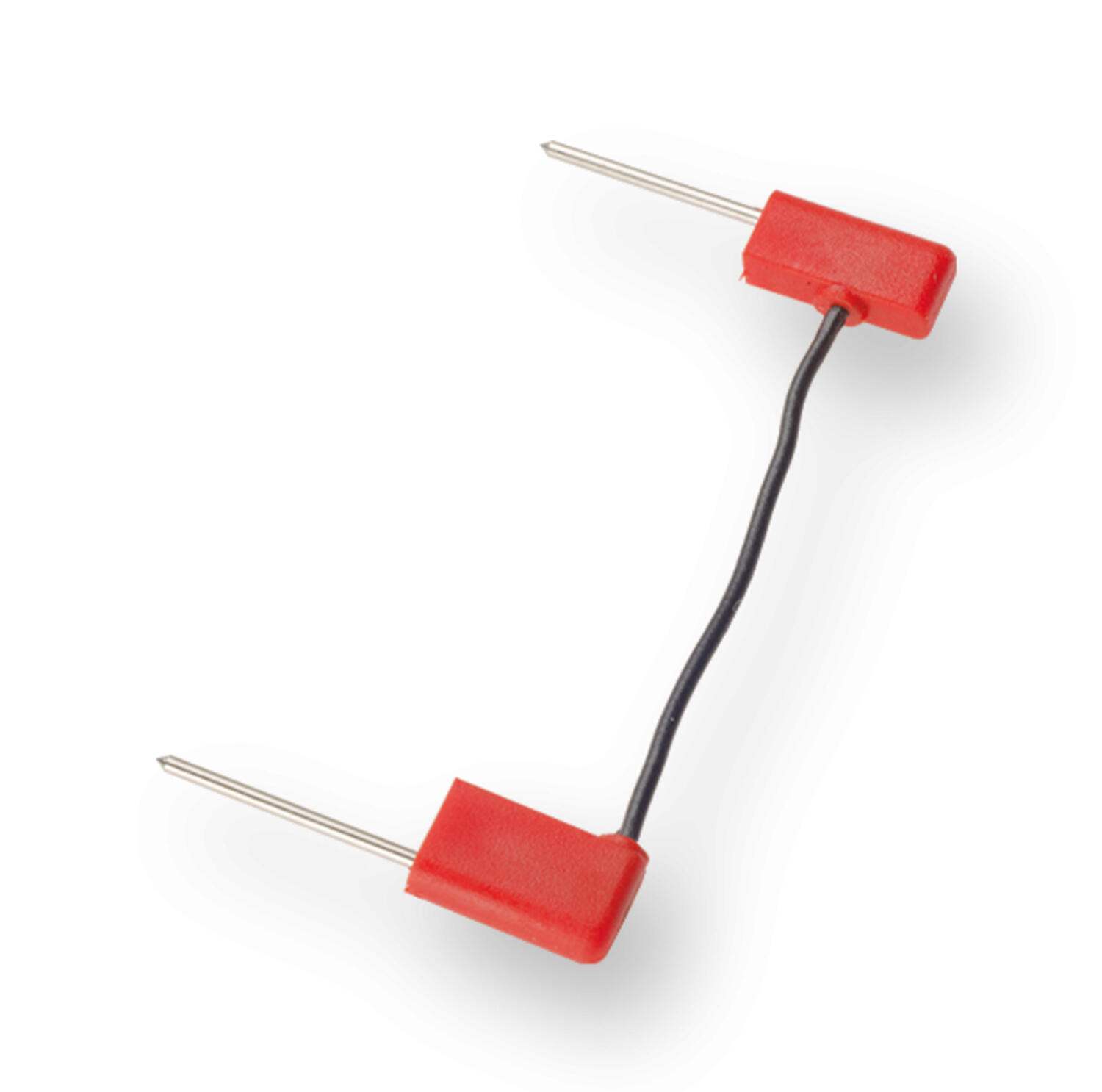

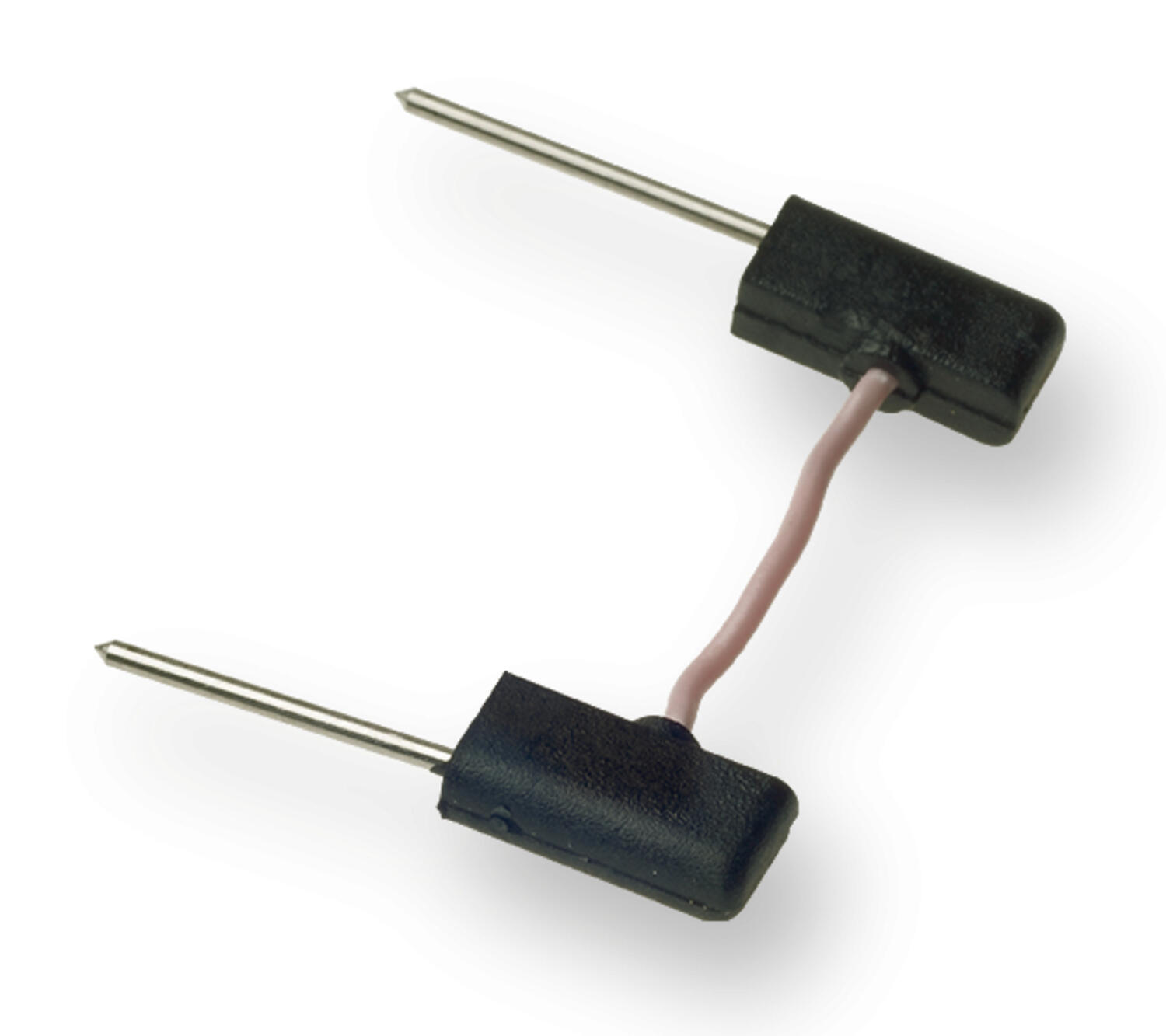

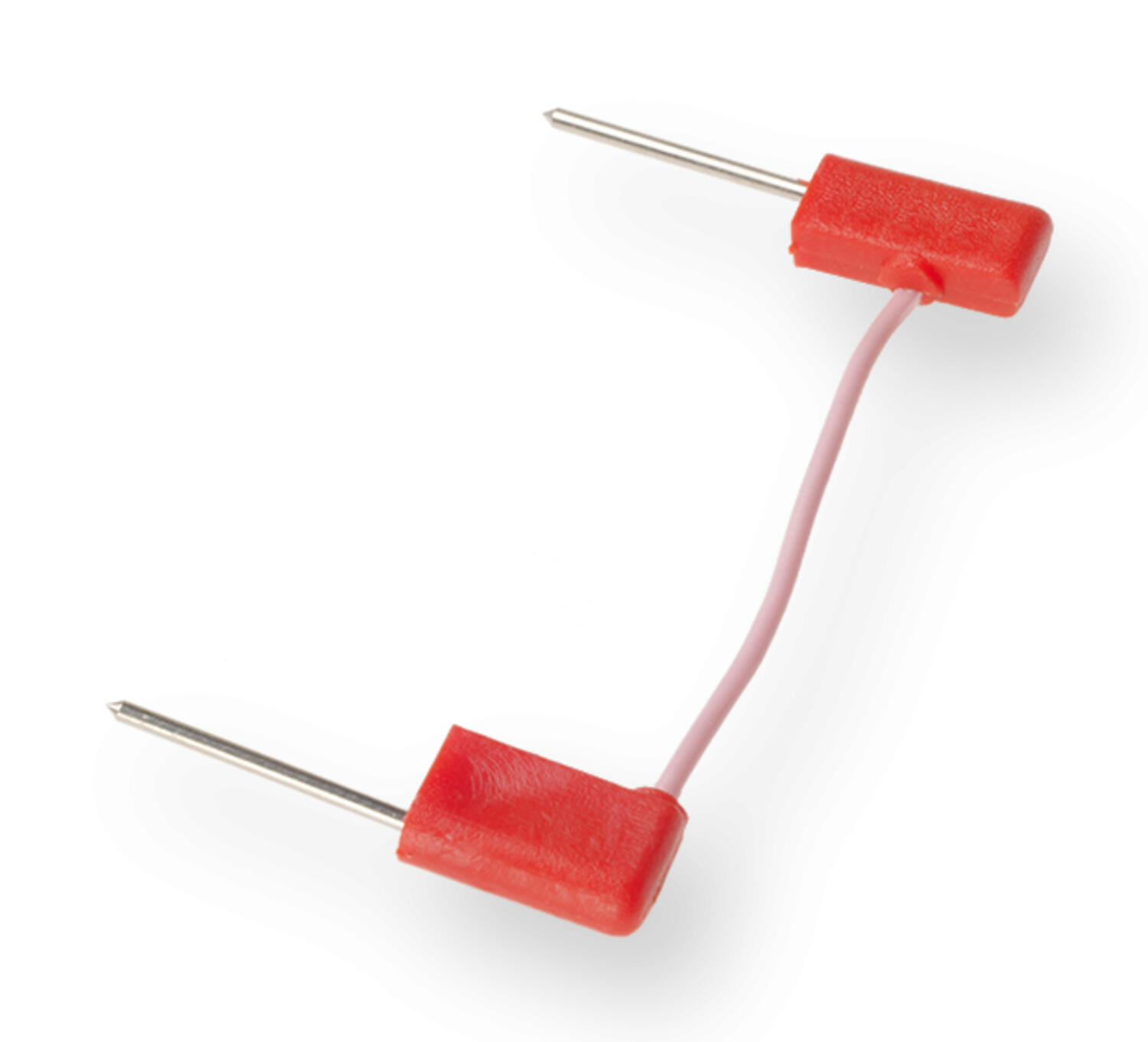

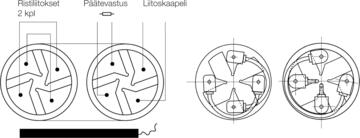

Coupling
- 360° operating area
- Ø18 mm and Ø22 mm
- High level of sensitivity
- Easy to install
Selected variant
Specifications
| Height | 18 mm |
|---|---|
| IP Class | IP67 |
| Material | EPDM |
| Temperature ambient from | -10 °C |
| Temperature ambient to | 55 °C |
| Terminal Strip Length Max | 100 m |
Product description
The Gelbau Quadro-Profile is used primarily in the field of local public transport, where it is installed as a safety feature for the closing edges of passenger doors in buses and trains. The EPDM profile can be used only in conjunction with a sealing profile. It is simply pushed into the hollow chamber of existing or newly developed sealing profiles. The profiles have a diameter of 18 mm or 22 mm, and require a sheath-profile with a hollow compartment minimum diameter of 21.5 mm or 25.5 mm. The profile is characterised by a high level of sensitivity.
|
|
Applications | Features |
|
|
|
Cross-cut section |
|
|
360° operating range |
|
Coupling
