Duelco - NST-2008 Safety Relay
The Duelcon NST-2008F is intended for monitoring HS buttons and safety limits.

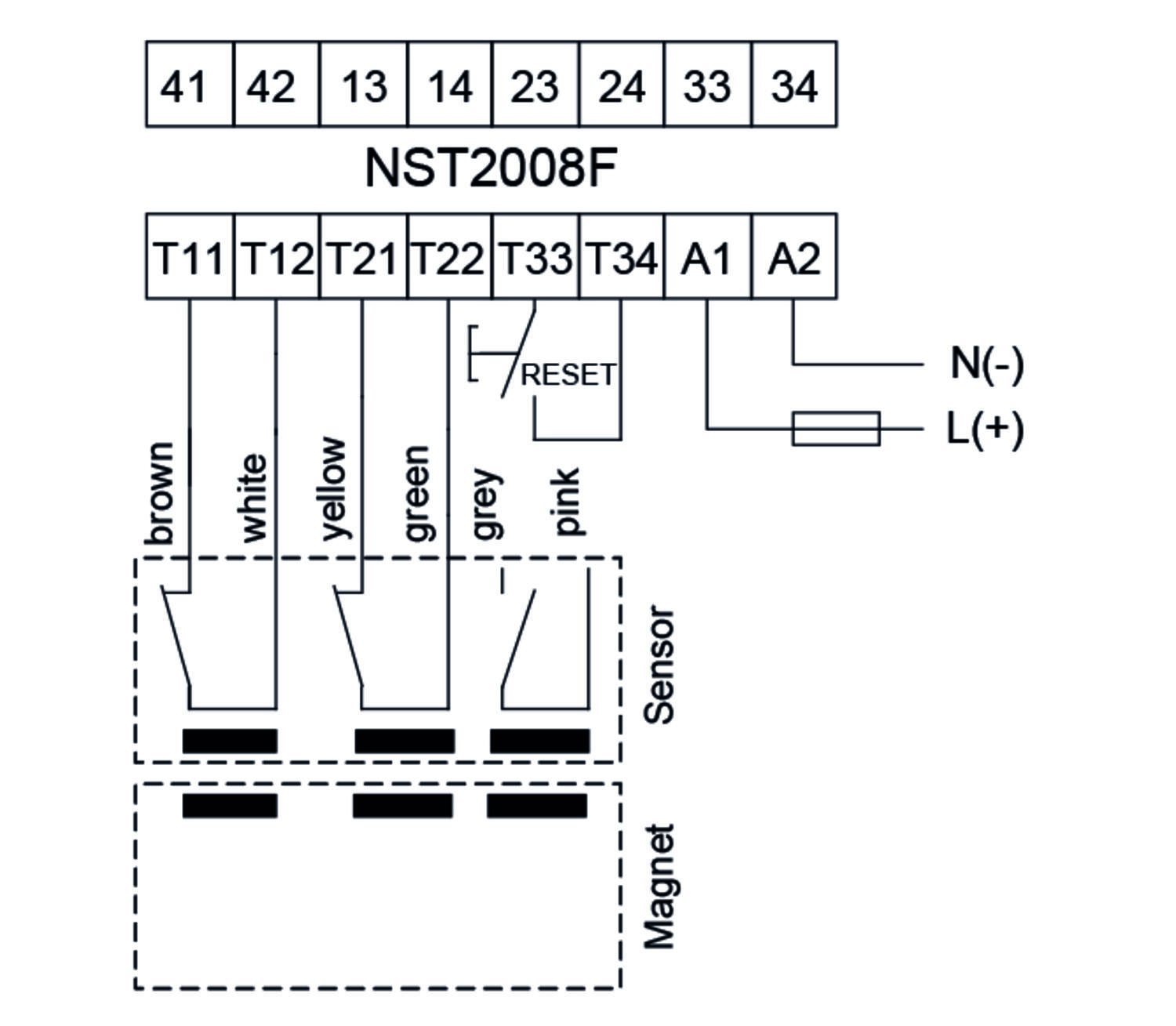

Thanks to the current limitation of the emergency stop circuit (max. 100mA), the NST-2008F is well suited for monitoring safety magnetic switches.
- Supply voltage 24 V DC
- 3 NO safety output+ 1 NC signal output
- Also suitable for use with non-contacting safety limit switches
Selected variant
Specifications
| Supply voltage | 24 V DC |
|---|---|
| Tolerance | ± 10 % |
| Power Consumption | 1.5 W |
| Safety outputs NO | 3 NO |
| Signal output NC | 1 NC |
| IP Class Housing | IP40 |
| IP Class Connection | IP20 |
| Temperature range from | -20 °C |
| Temperature range to | 50 °C |
| Safety category | 4 |
| PL | e |
Product description
The Duelcon NST-2008F is intended for monitoring HS buttons and safety limits.
Thanks to the current limitation of the emergency stop circuit (max. 100mA), the NST-2008F is well suited for monitoring safety magnetic switches.
