Duelco - NST-2009D Safety Relay with Timed Outputs
Flexible safety relay with time delayed outputs for the highest safety category.
- Safety Category 4 (PLe)
- 2 NO safety outputs + 1 NC signal output

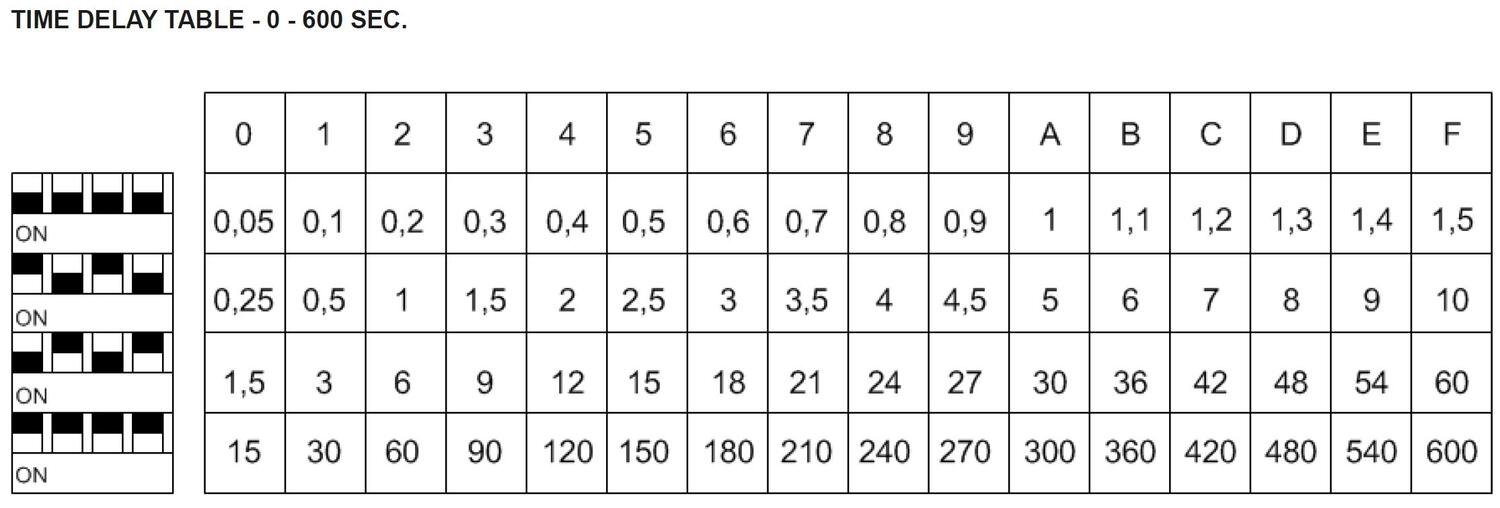

- 2 NO delayed outputs (0 - 600 sec)

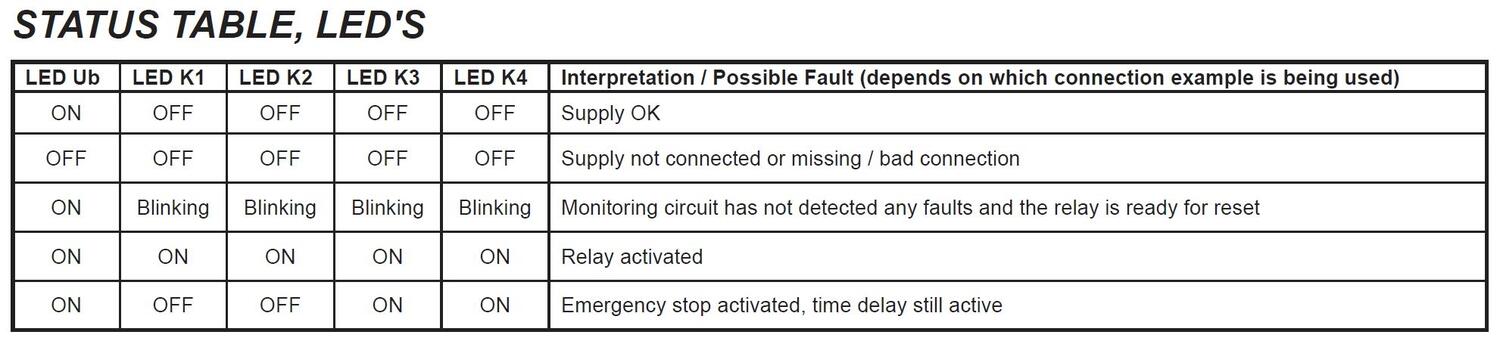

- Status-/fault indication via LEDs
- Short circuit monitoring
Selected variant
Specifications
| Supply voltage | 24V AC/DC |
|---|---|
| Tolerance | ±10% |
| Safety outputs NO | 4 |
| Signal output NC | 1 |
| IP Class Housing | IP40 |
| IP Class Connection | IP20 |
| Temperature range from | -25 °C |
| Temperature range to | 50 °C |
| Safety category | 4 |
| PL | e |
| Approvals | CE, cULus |
Product description
Flexible safety relay with time delayed outputs for the highest safety category.
