Duelco - NST-3.2 Safety Relay

Small emergency stop relay for monitoring of emergency stop and other safety components.



Read more
  • Safety Category 3 (PLd)
  • 3 NO safety outputs
  • 1 NC output
  • Status/fault indication via LEDs
  • Short circuit monitoring

Selected variant

DUELCO.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Supply voltage 12V DC
Tolerance ±10%
Reset type Automatic/Manual
Safety outputs NO 3
Signal output NC 1
Width 22.5 mm
IP Class Housing IP40
IP Class Connection IP20
Temperature range from -30 °C
Temperature range to 50 °C
Safety category 3
PL d (EN ISO 13849-1)
Approvals CE

Downloads

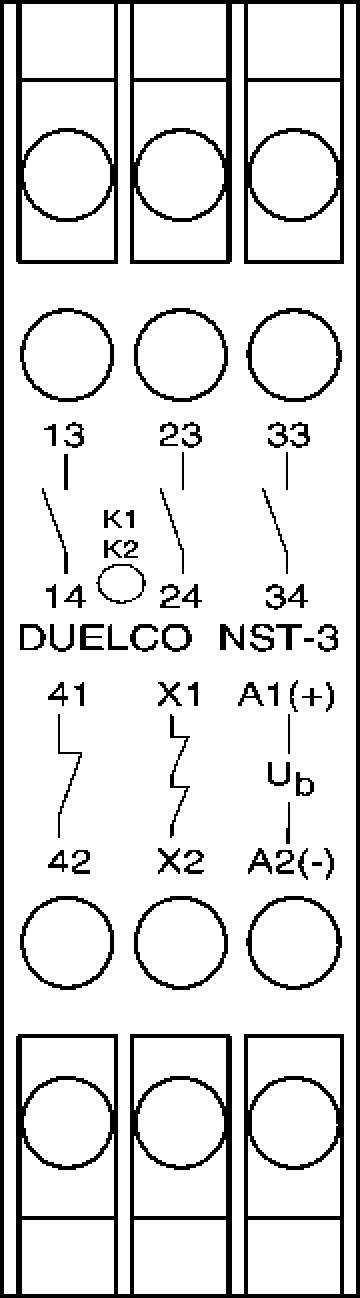

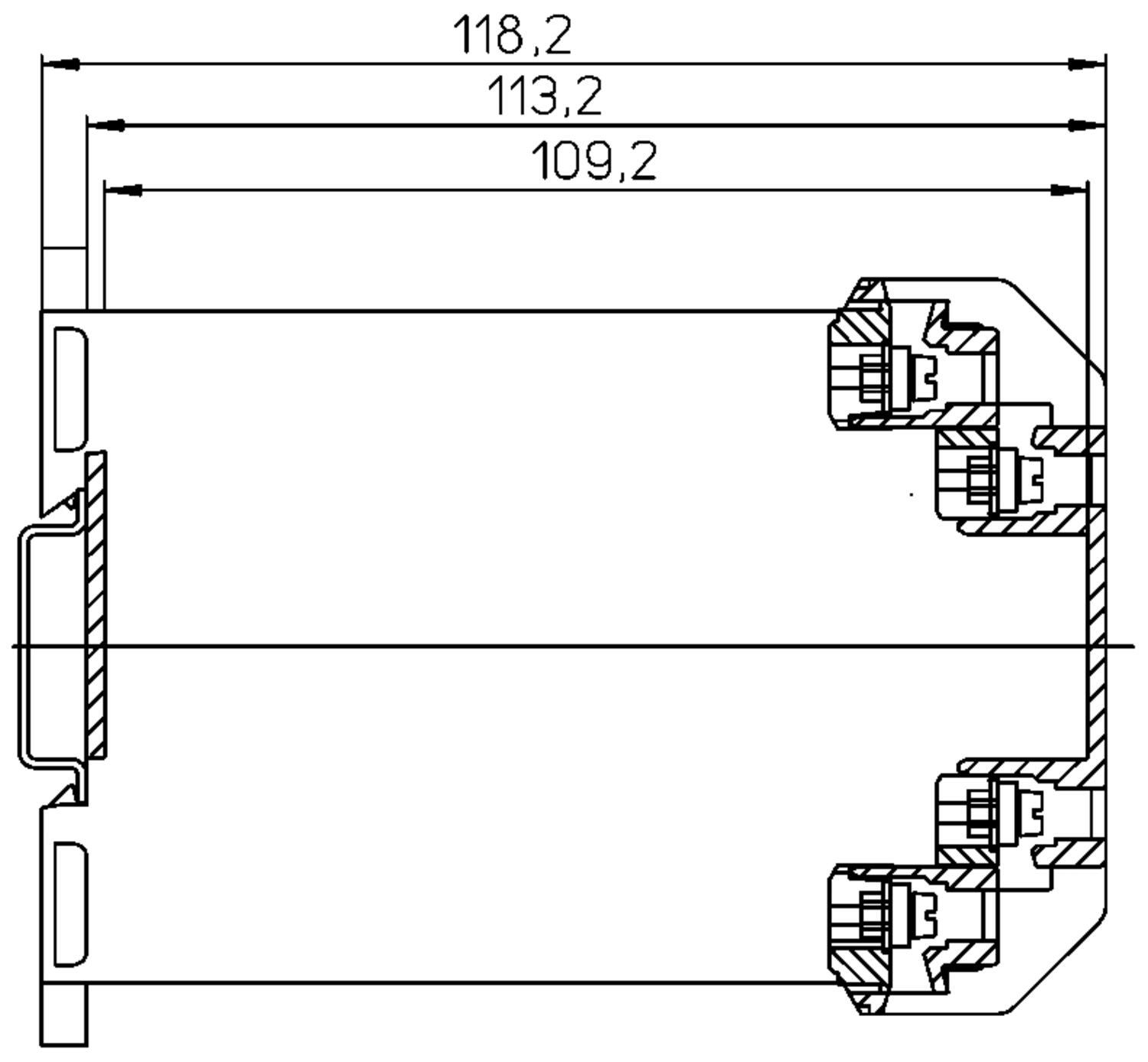

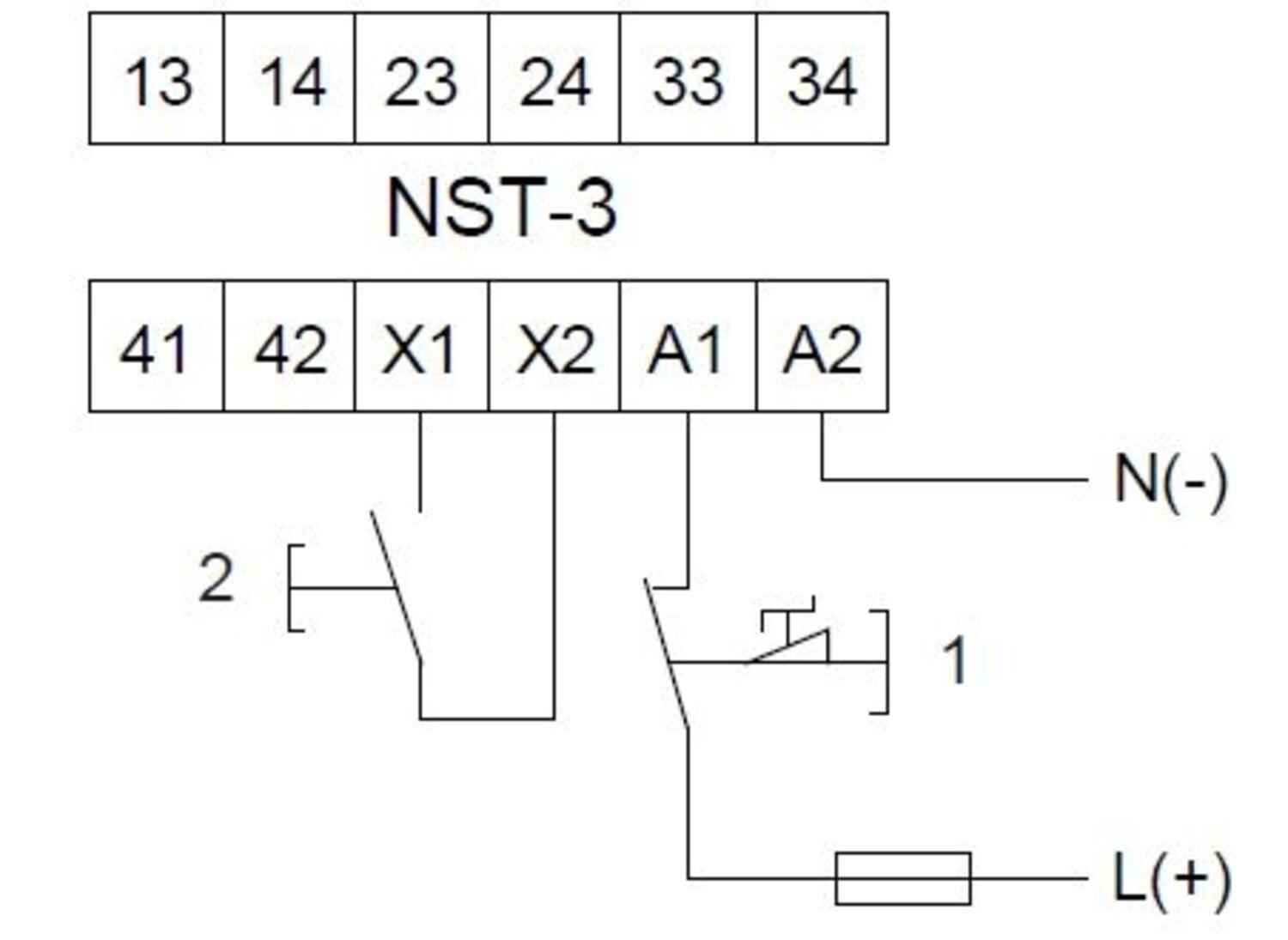

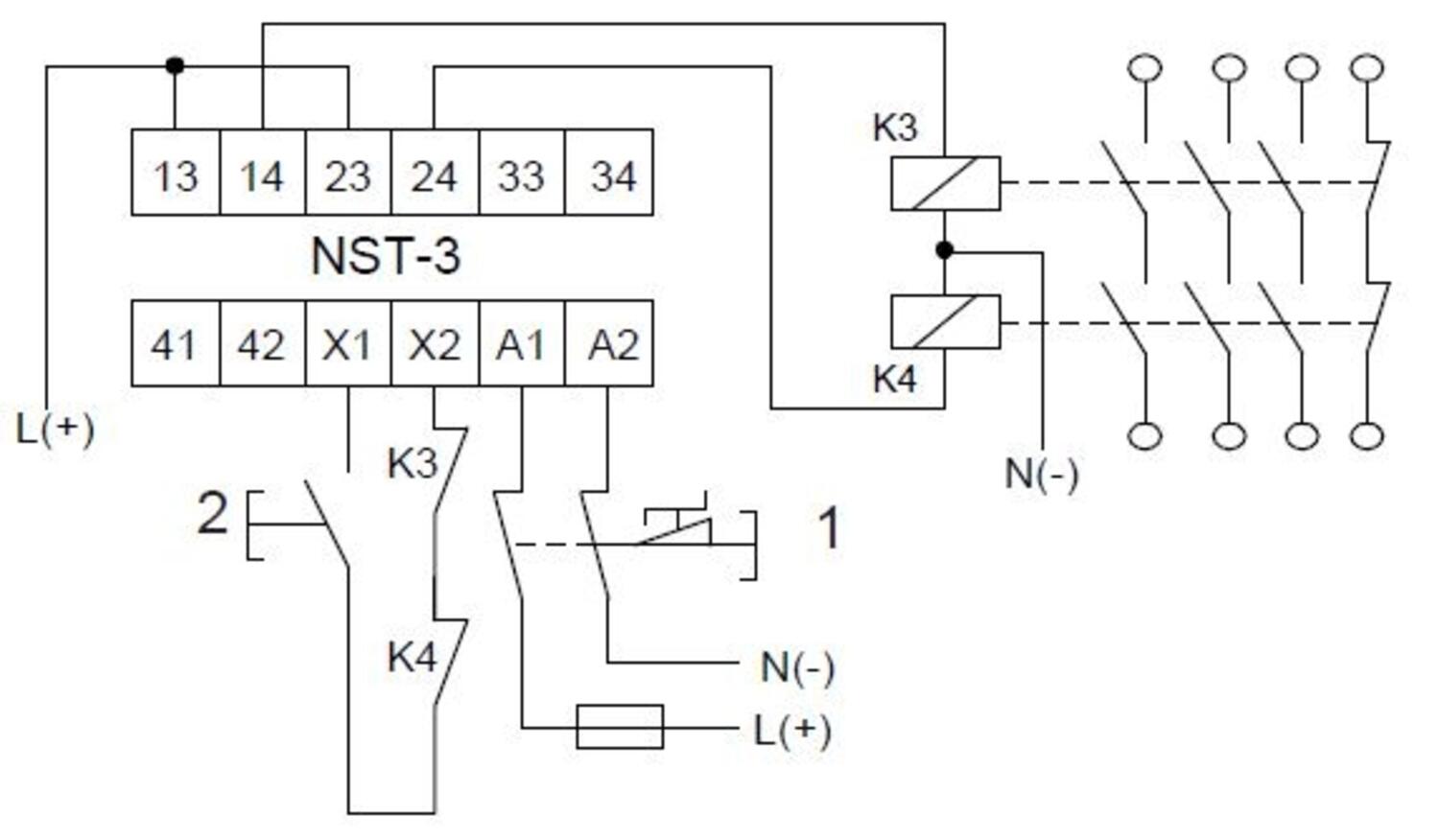

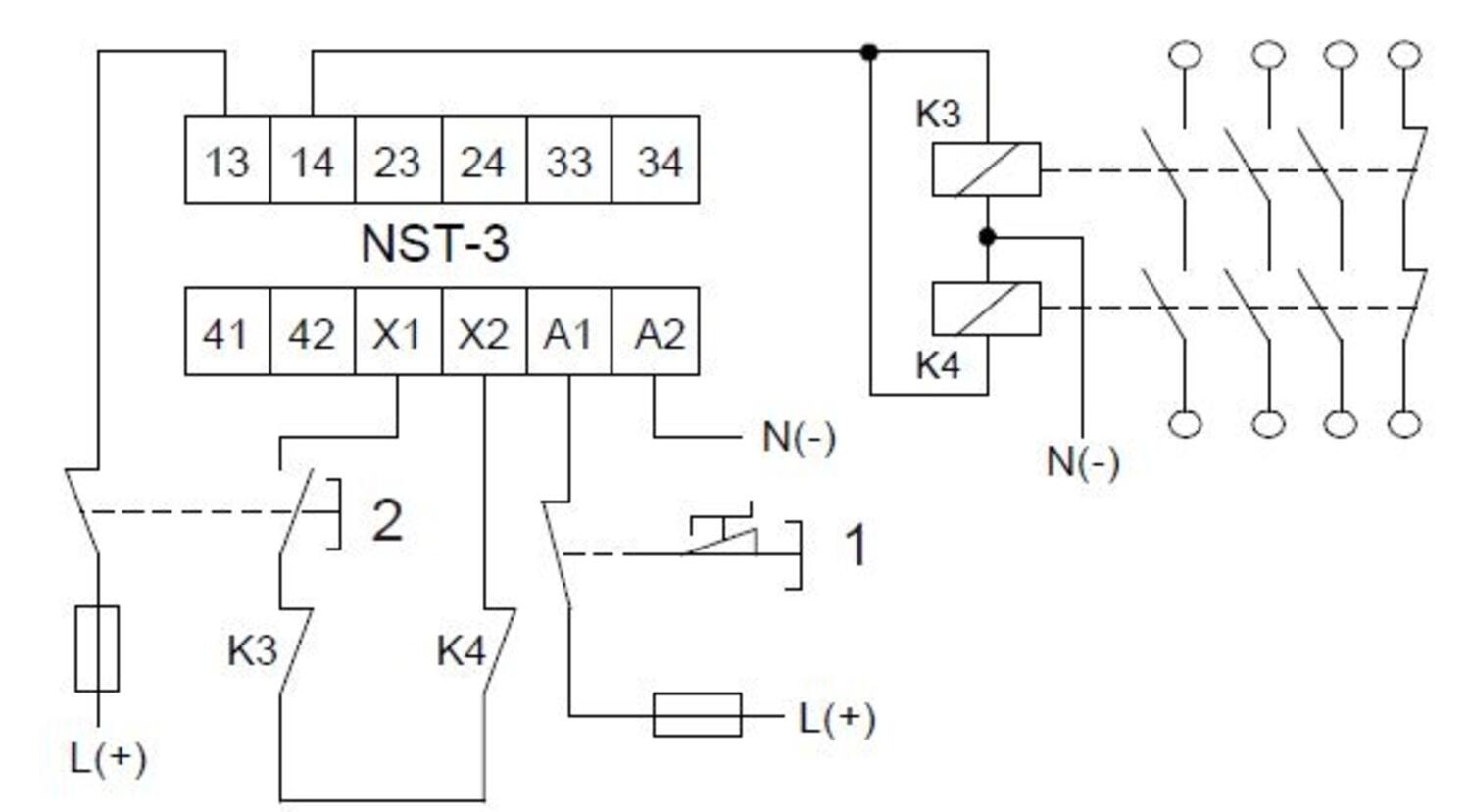

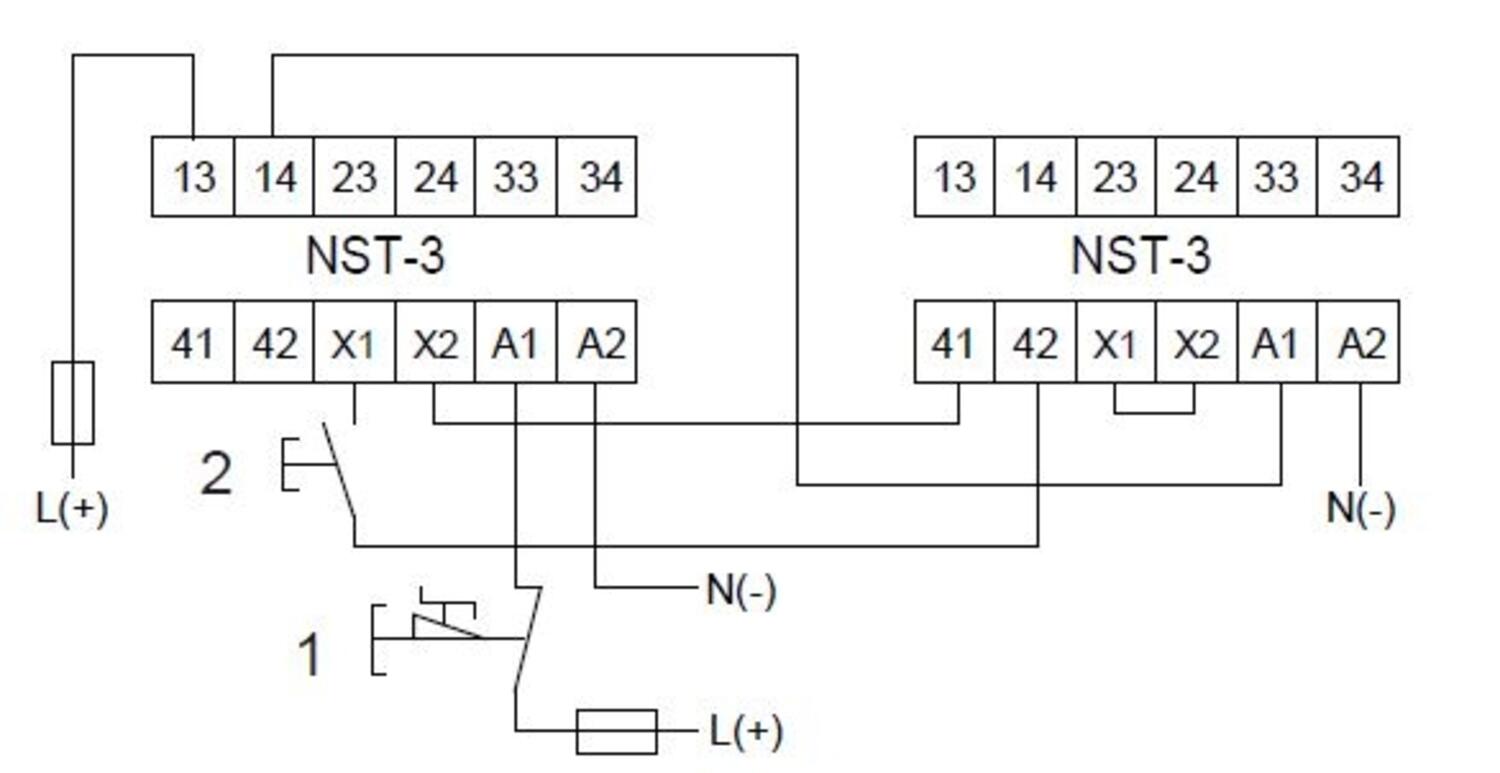

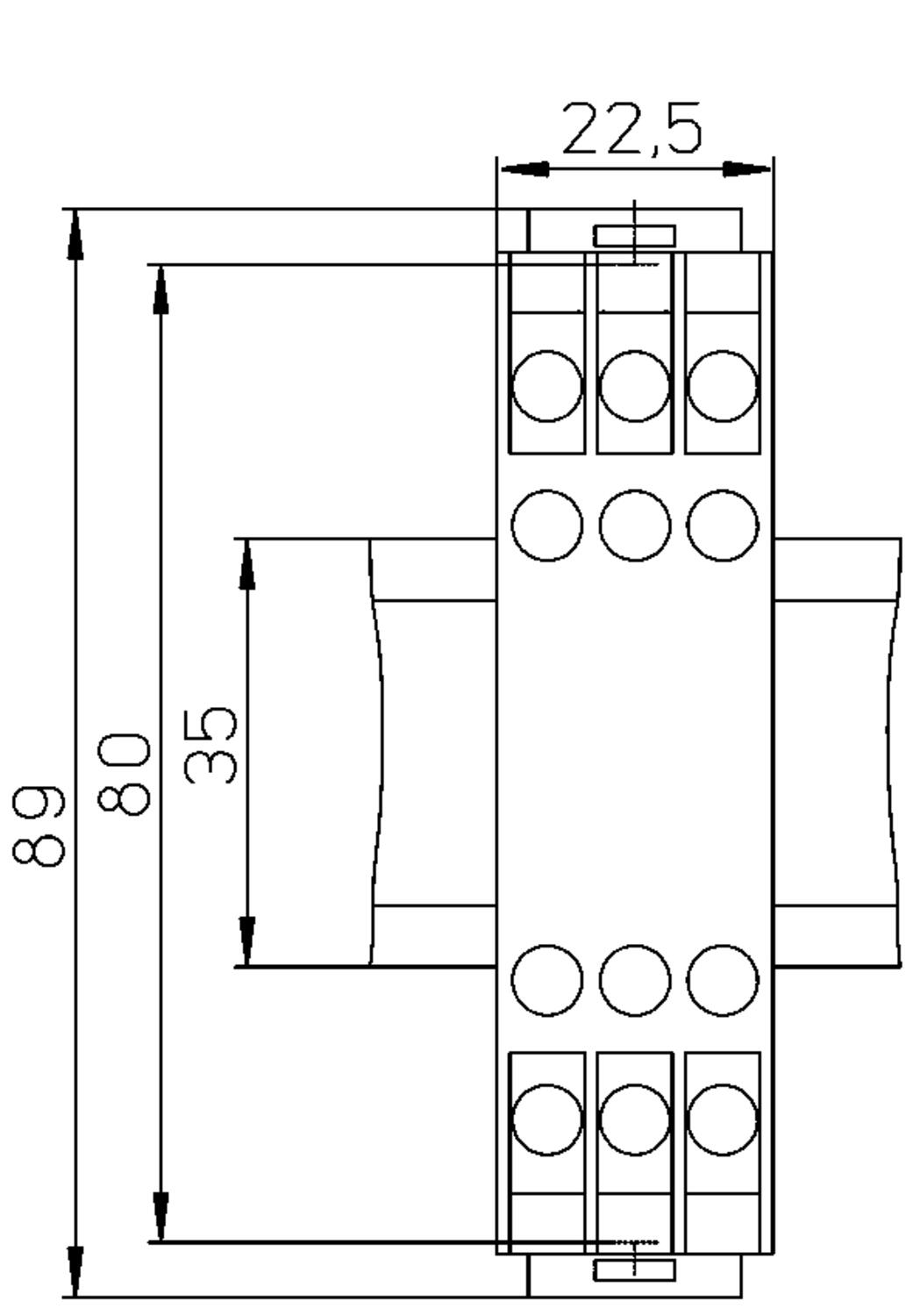

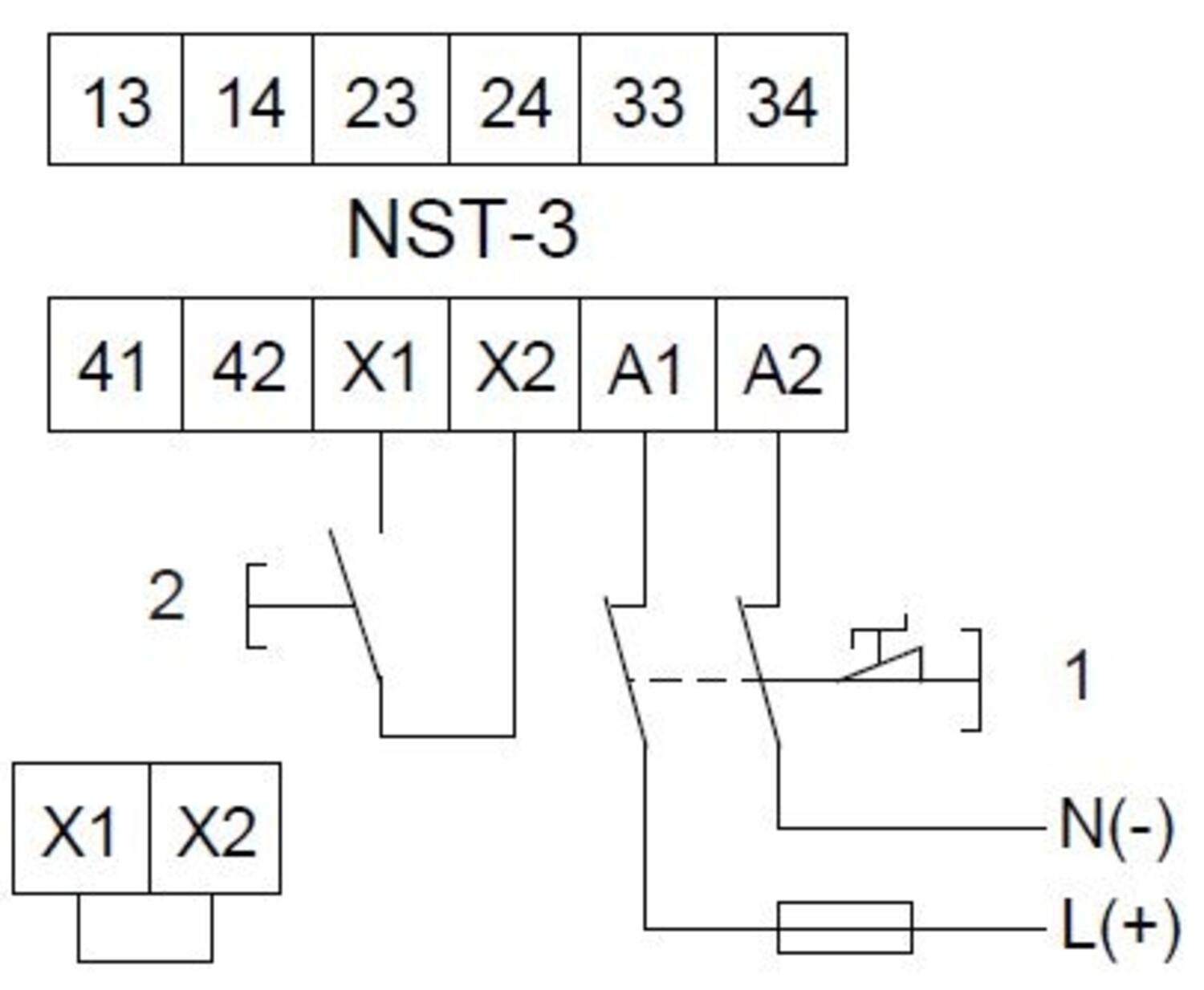

Measurements and connections

Product description

Small emergency stop relay for monitoring of emergency stop and other safety components.



Accessories

Related products

Articles Supply voltage Tolerance Operating Voltage AC Max Reset type Safety outputs NO Signal output NC Width IP Class Housing IP Class Connection Temperature range from Temperature range to Safety category PL Approvals
Duelco-NST-3_2.tif
NST3.2 12VDC ESTOP RELAY
Art:
42042228 Copied
12V DC
±10%
Automatic/Manual
3
1
22.5 mm
IP40
IP20
-30 °C
50 °C
3
d (EN ISO 13849-1)
CE
Duelco-NST-3_2.tif
NST3.2 24VAC/DC ESTOP RELAY
Art:
42042248 Copied
24-29V DC
±10%
24 V AC
Automatic/Manual
3
1
22.5 mm
IP40
IP20
-30 °C
50 °C
3
d (EN ISO 13849-1)
CE
Duelco-NST-3_2.tif
NST-3.2 8-36V DC
Art:
42042237 Copied
8-36V DC
±10%
Automatic/Manual
3
1
22.5 mm
IP40
IP20
-30 °C
50 °C
3
d (EN ISO 13849-1)
CE

Selected variant

Select a variant in the list
