DUELCO
Duelco - Two Hand Control Stations

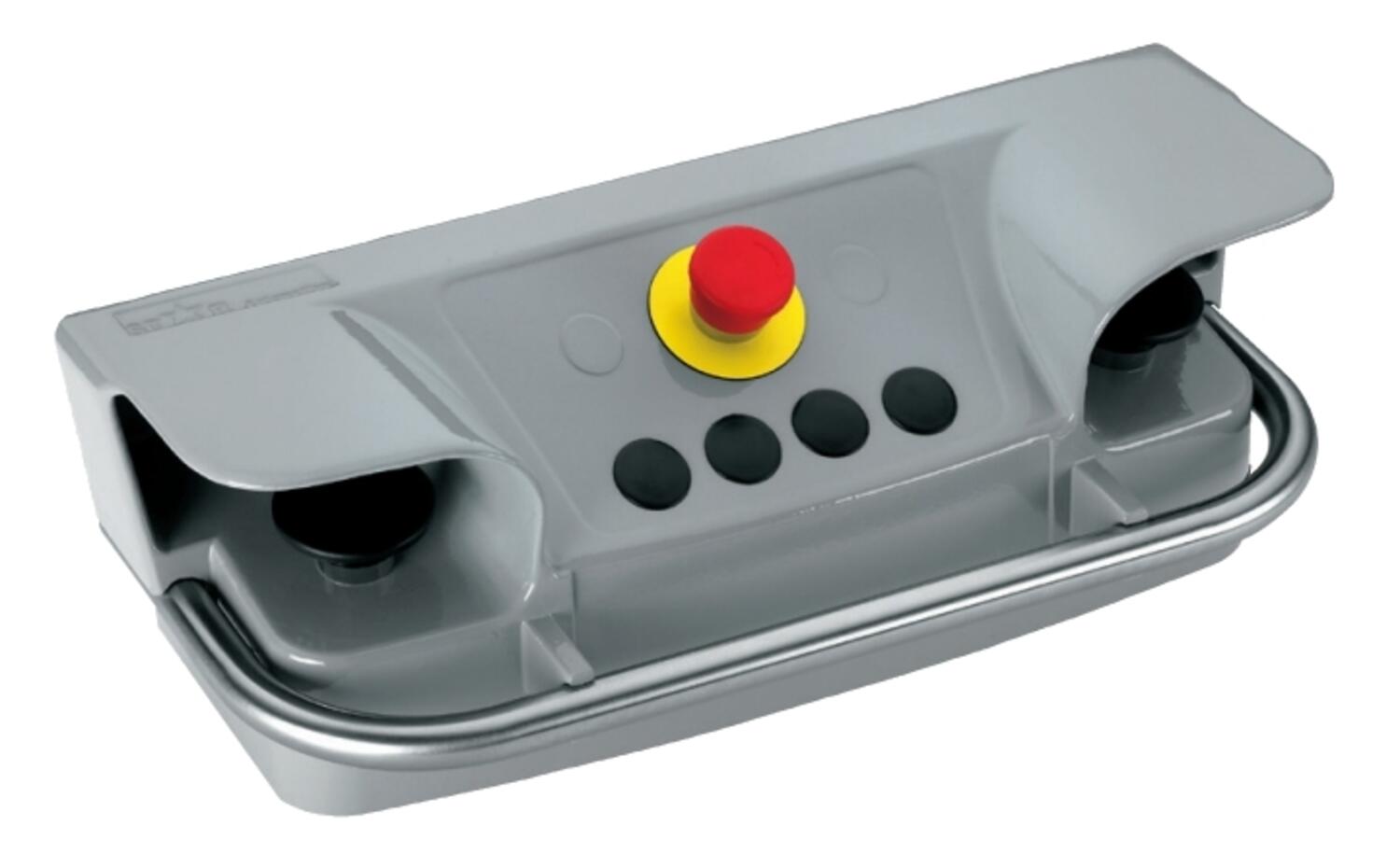

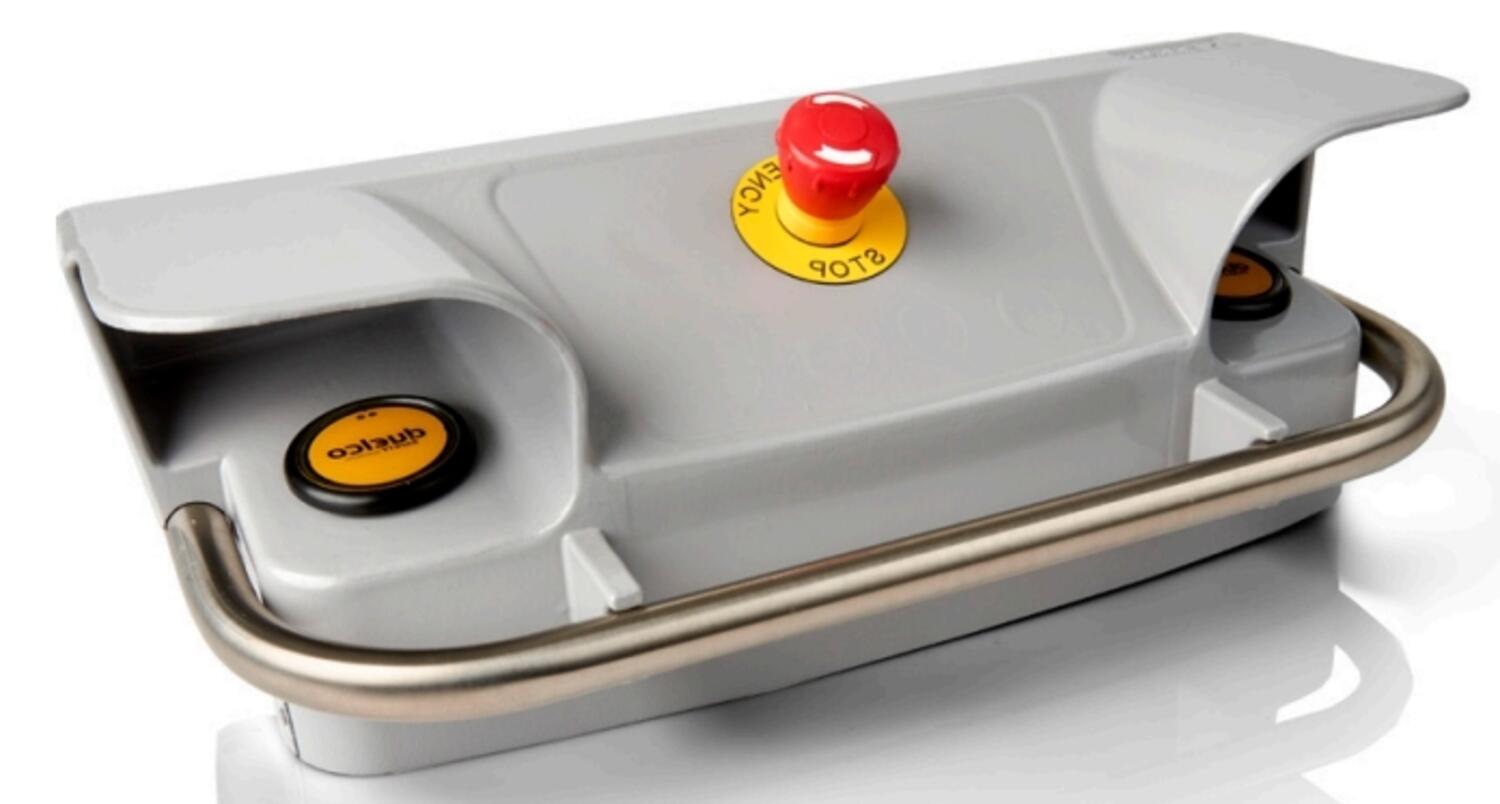

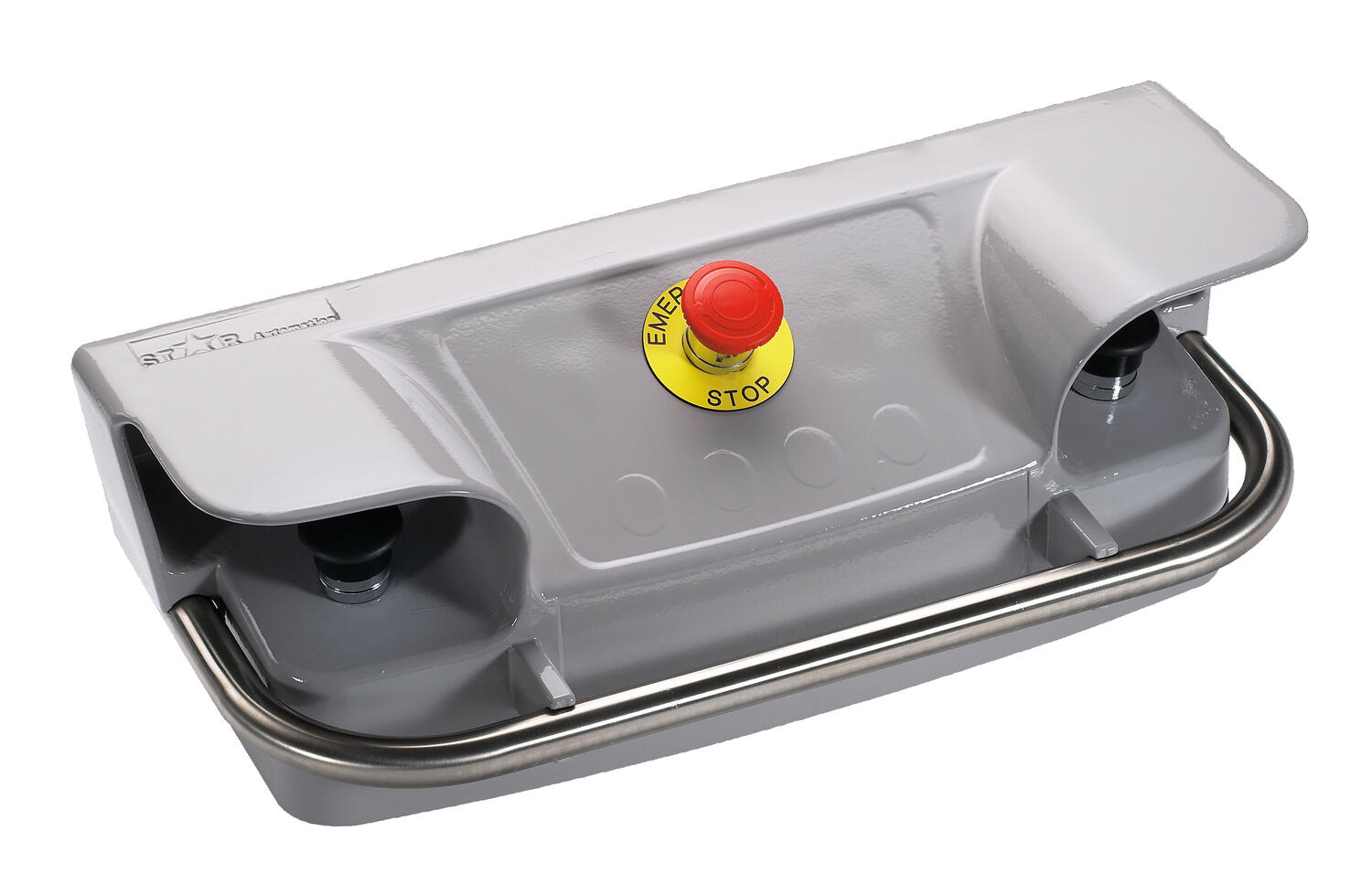

2-hand control station in smelted-aluminium designed for use 2-Hand Control Relay(Duelco Ref: HR2007F). Equipped with two push buttons and an emergency stop button. Fulfils the requirements in EN 574. Colour: Grey RAL 7004
- Smelted-aluminium cover-part with a protection lid over each pushbutton

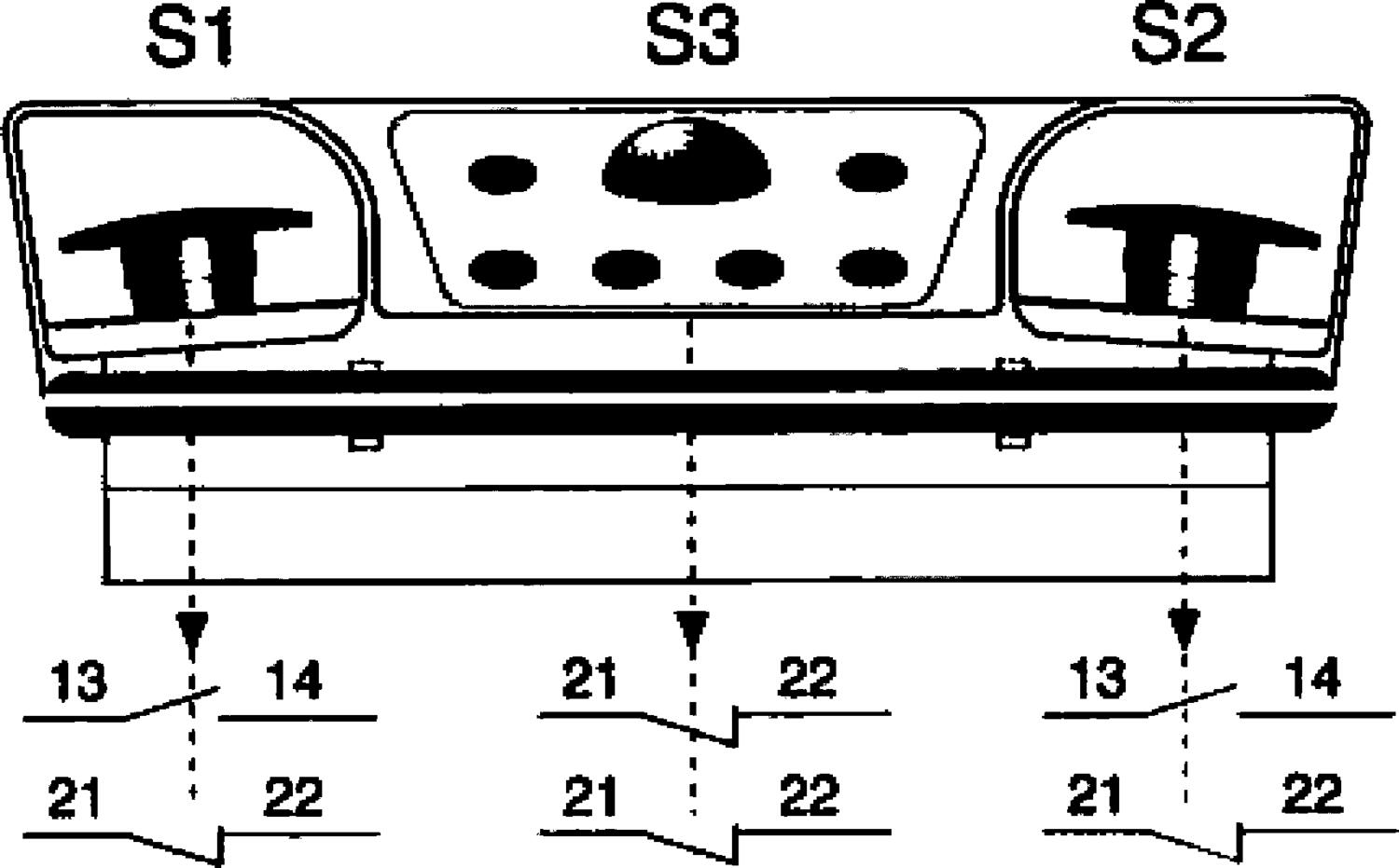

- Equipped with two black push buttons and emergency stop button
- Fulfils the requirements in EN 574
- 2 mm rubber seal to protect the terminals against dust, oil and water
- IP65 with supplied pushbuttons
Selected variant
Specifications
| IP Class Housing | IP65 |
|---|---|
| Weight | 5 kg |
| Color | Grey |
| Material screw | Aluminium alloy |
Downloads
Product description
2-hand control station in smelted-aluminium designed for use 2-Hand Control Relay(Duelco Ref: HR2007F). Equipped with two push buttons and an emergency stop button. Fulfils the requirements in EN 574. Colour: Grey RAL 7004
