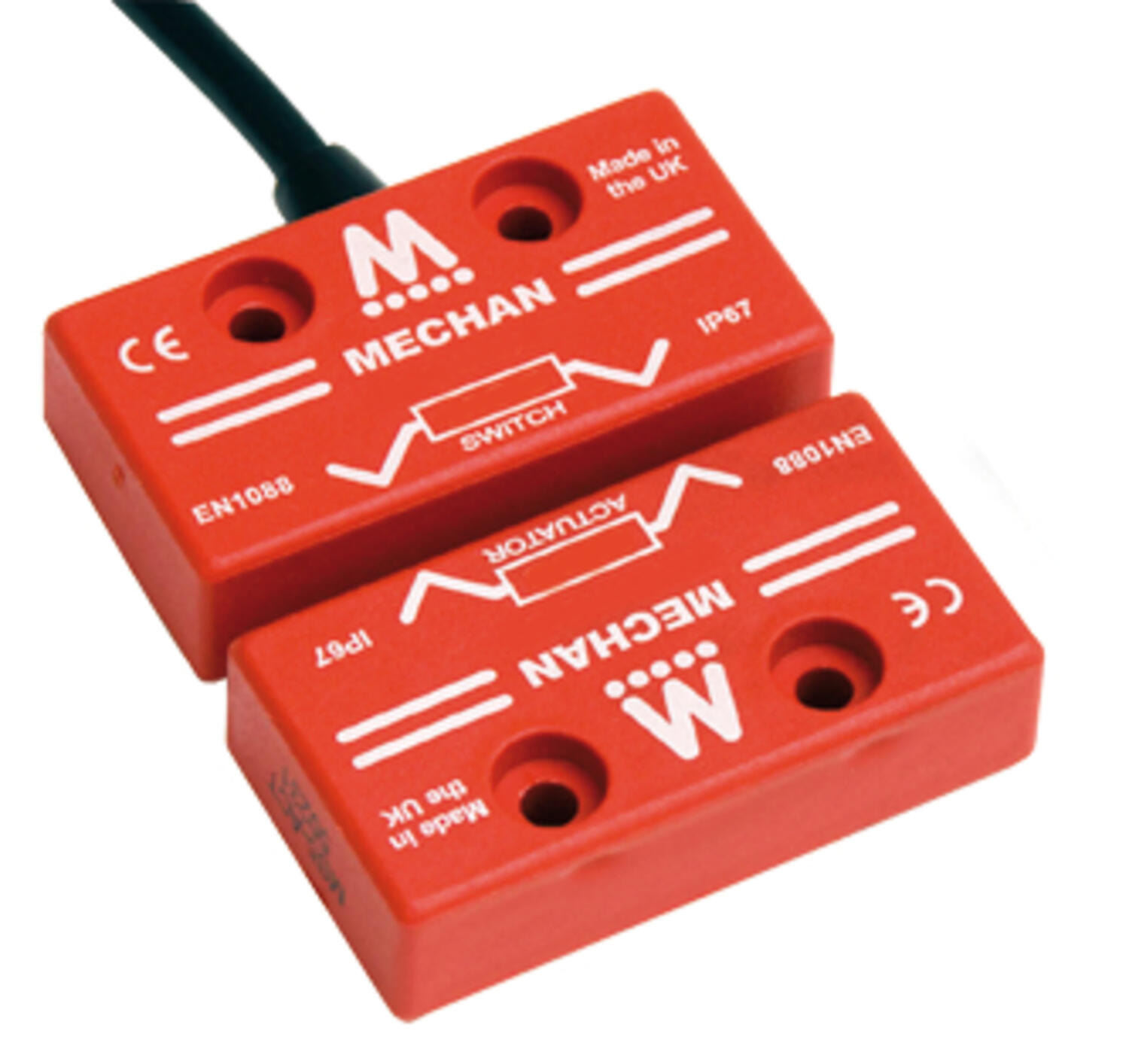

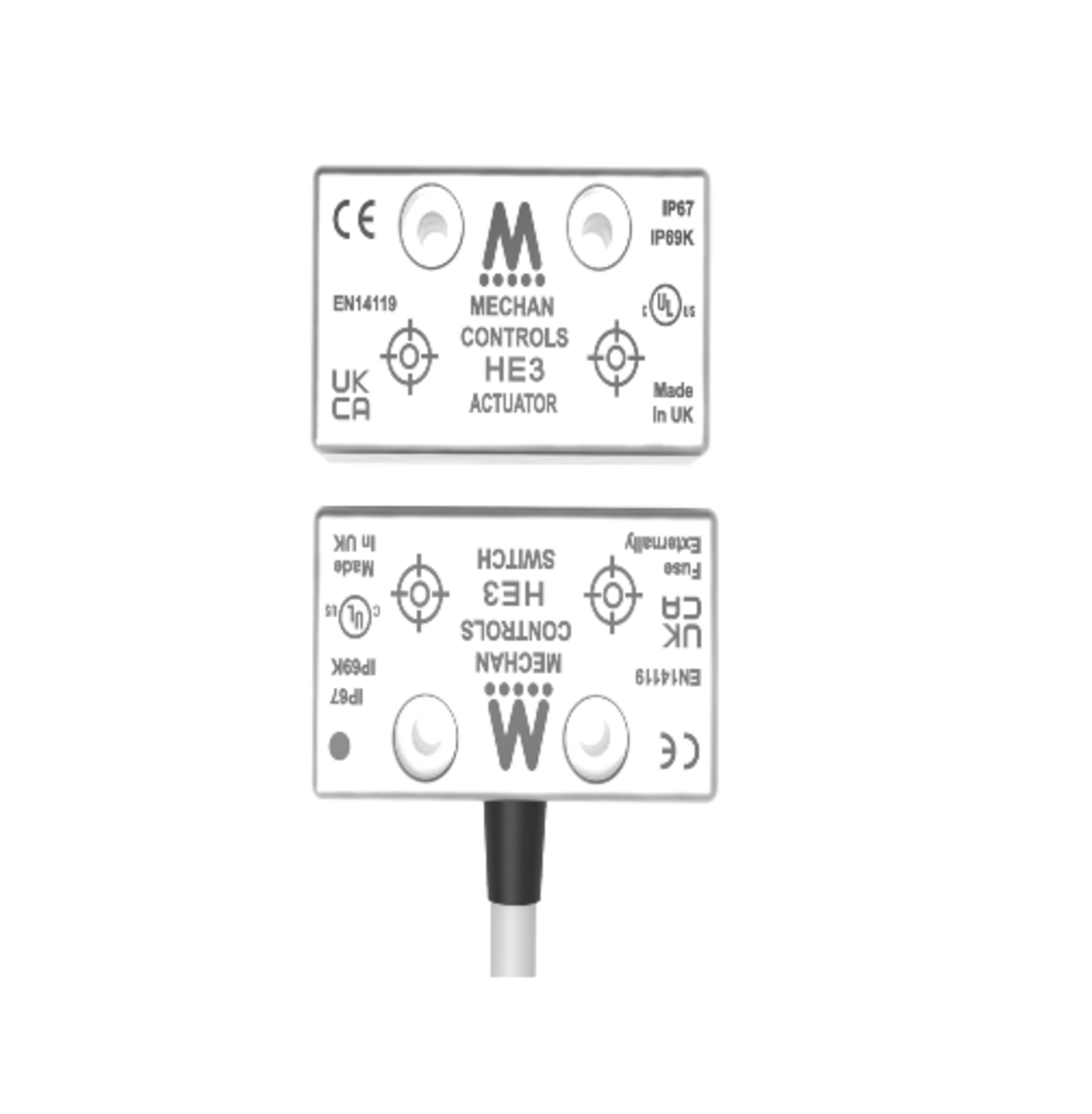

Mechan HE3 electronic Hall safety switch
The HE safety switches have up to 2 x N/O + 1 N/C bidirectional solid state outputs along with a built in LED(s) for indication. When installed on a machine guard, power is applied, and the switch and actuator are within the specified operating range, the N/O Outputs will be closed, the N/C Output will be open.
- 2 normally open + 1 normally closed output
- Solid state bi-directional outputs
- 24V dc operation
- LED indication
- Face to Face Operation

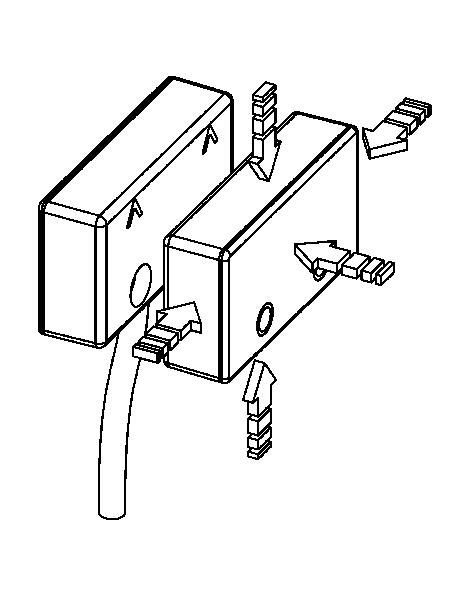

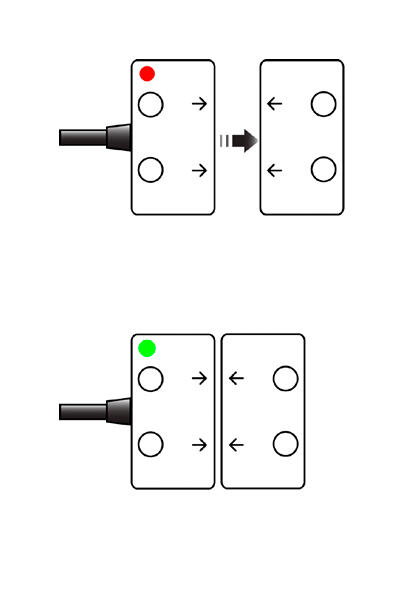

Illustration of HE3 face-to-face installation
- Electronic, utilizes Hall-technology
- Coded magnetic safety switch
- Seal made of ABS, IP67
- Switching distance 7mm
- LED indication
Selected variant
Specifications
| Safety contact NO | 2 |
|---|---|
| Signal contact NC | 1 |
| Contact Current Max | 400 mA |
| Activation Distance From | 7 mm |
| Activation Distances | 16 mm |
| Material Case | ABS plastic |
| IP Class | IP67 |
| Temperature range from | -25 °C |
| Temperature range to | 55 °C |
| B10d | 2,0 milj. |
Product description
The HE safety switches have up to 2 x N/O + 1 N/C bidirectional solid state outputs along with a built in LED(s) for indication. When installed on a machine guard, power is applied, and the switch and actuator are within the specified operating range, the N/O Outputs will be closed, the N/C Output will be open.
- 2 normally open + 1 normally closed output
- Solid state bi-directional outputs
- 24V dc operation
- LED indication
- Face to Face Operation
Illustration of HE3 face-to-face installation
