Mechan Magnasafe MS6

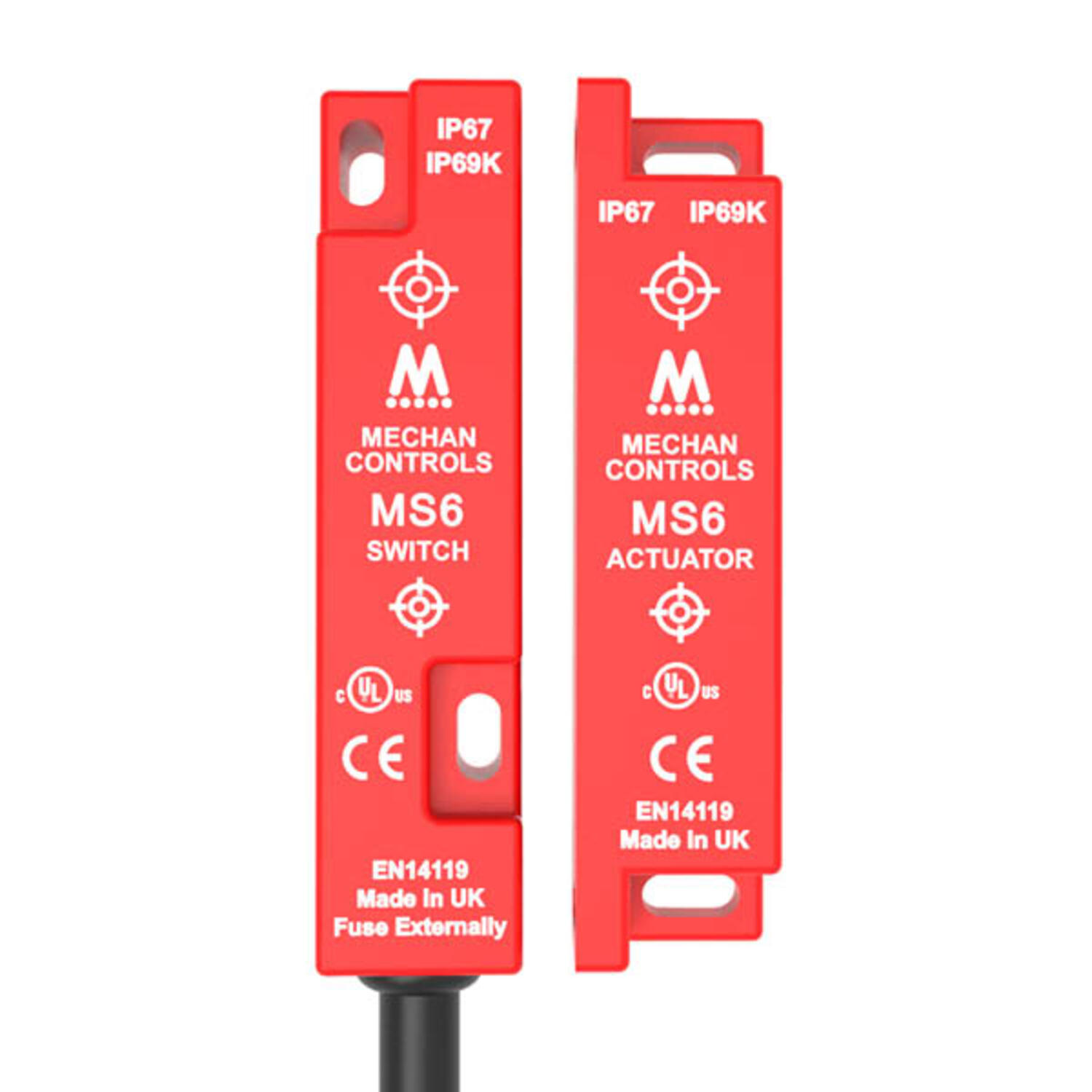

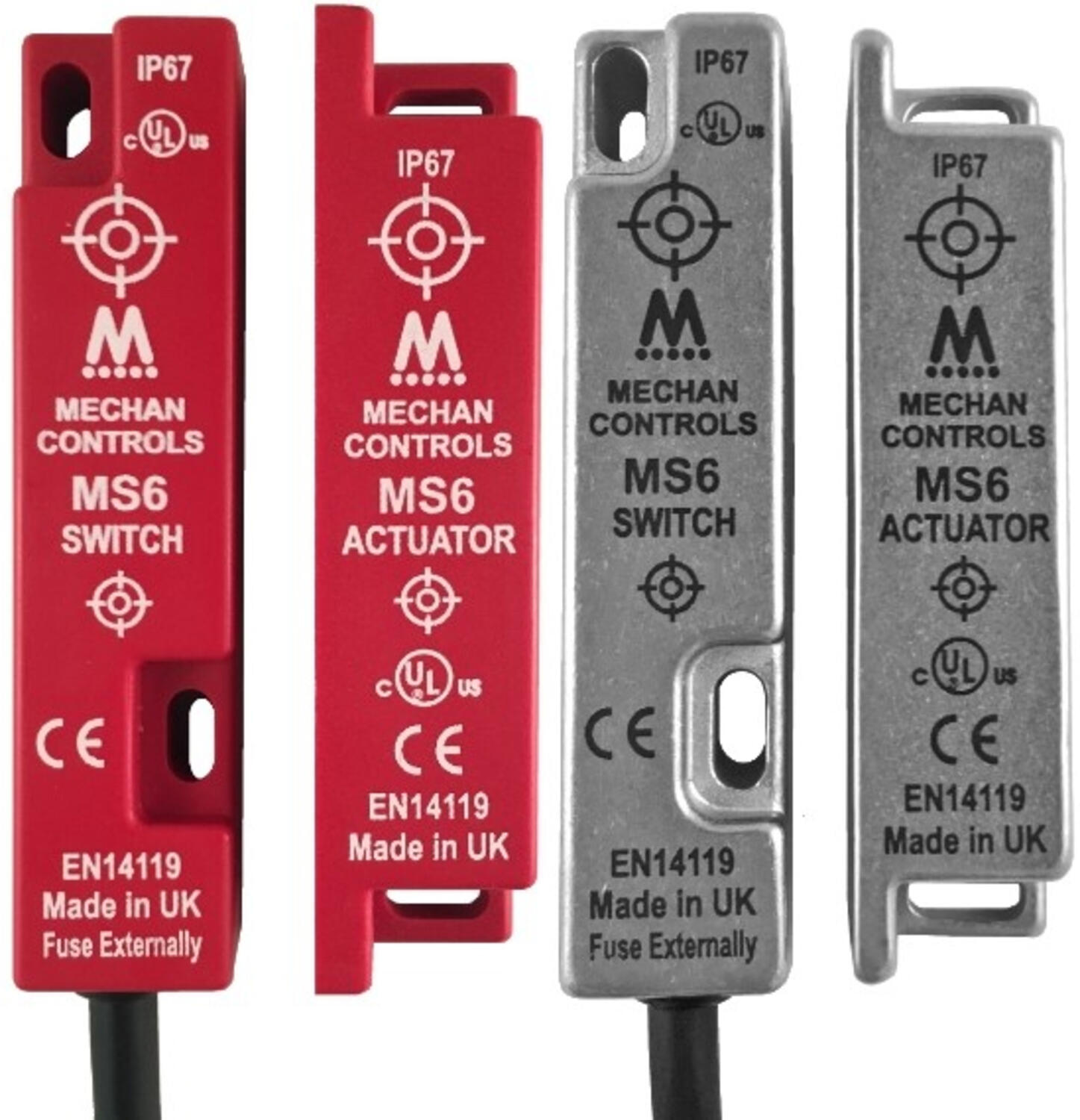

The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS stainless steel housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has a 10 mm switching distance helping to ensure a long and trouble free operating life.
- Max Contacts 2 Safety 1 Auxiliary
- Contact Rating 2Amp 230VAC / 1Amp 24VDC
- Pre-wired 3, 6 or 10 metre (Longer available to order)
- 10mm Switching
- Slim-line ABS Housing, Fully Sealed IP67
- Max. 2 NO safety contact and 1 NC signal contact
- IP67, made of ABS or stainless steel
- Max. current DC: 24 V DC/ 1 A and AC: 230 V AC/ 2 A

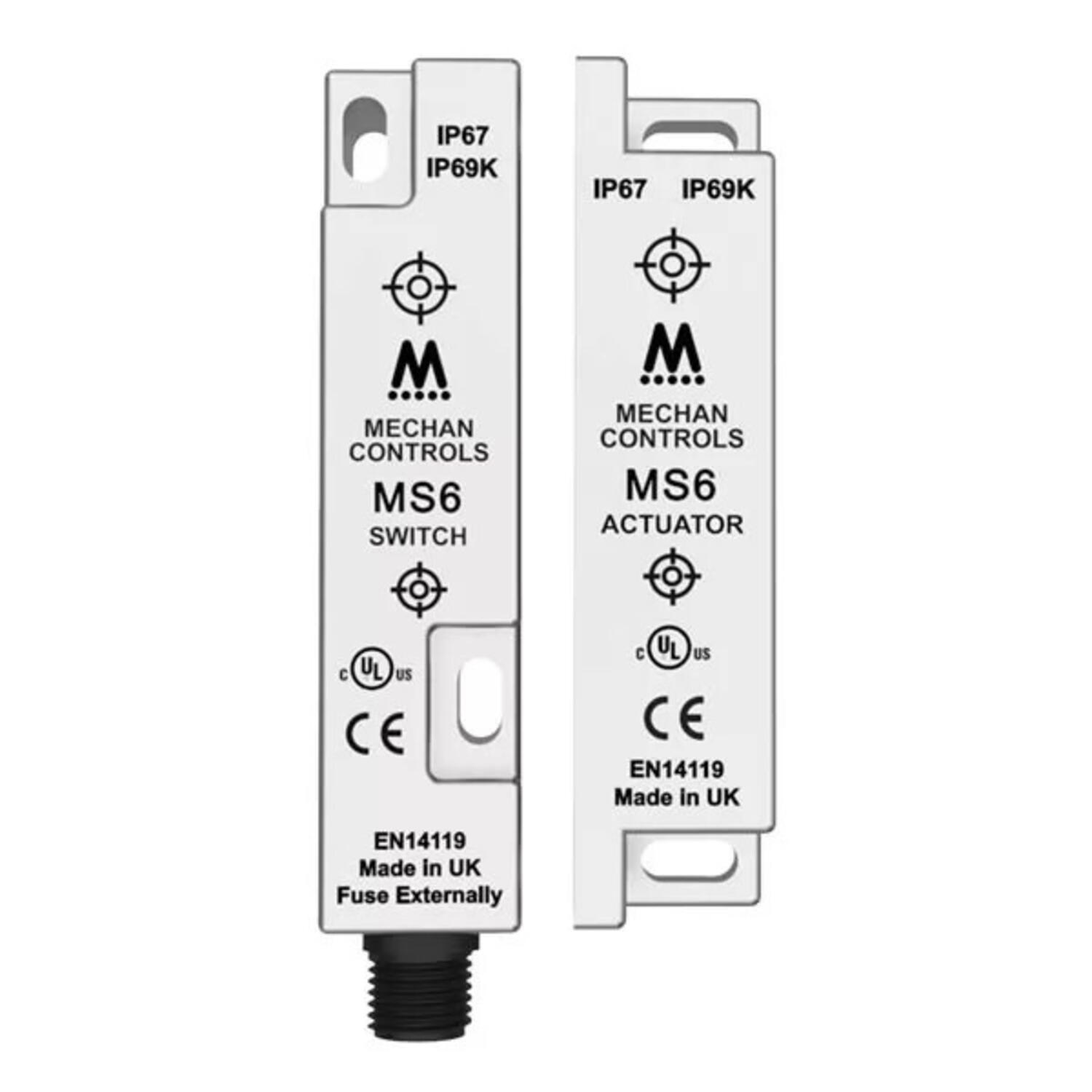

- Connecting cable or M12 connector
Selected variant
Specifications
| Safety contact NO | 1 |
|---|---|
| Signal contact NC | 1 |
| Contact Current Max | 1 A |
| Activation Distance From | 10 mm |
| Activation Distances | 28 mm |
| Material Case | ABS plastic |
| IP Class | IP67, IP69K |
| Temperature range from | -25 °C |
| Temperature range to | 55 °C |
| B10d | 2,0 milj. |
Product description
The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS stainless steel housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has a 10 mm switching distance helping to ensure a long and trouble free operating life.
- Max Contacts 2 Safety 1 Auxiliary
- Contact Rating 2Amp 230VAC / 1Amp 24VDC
- Pre-wired 3, 6 or 10 metre (Longer available to order)
- 10mm Switching
- Slim-line ABS Housing, Fully Sealed IP67
