BERNSTEIN

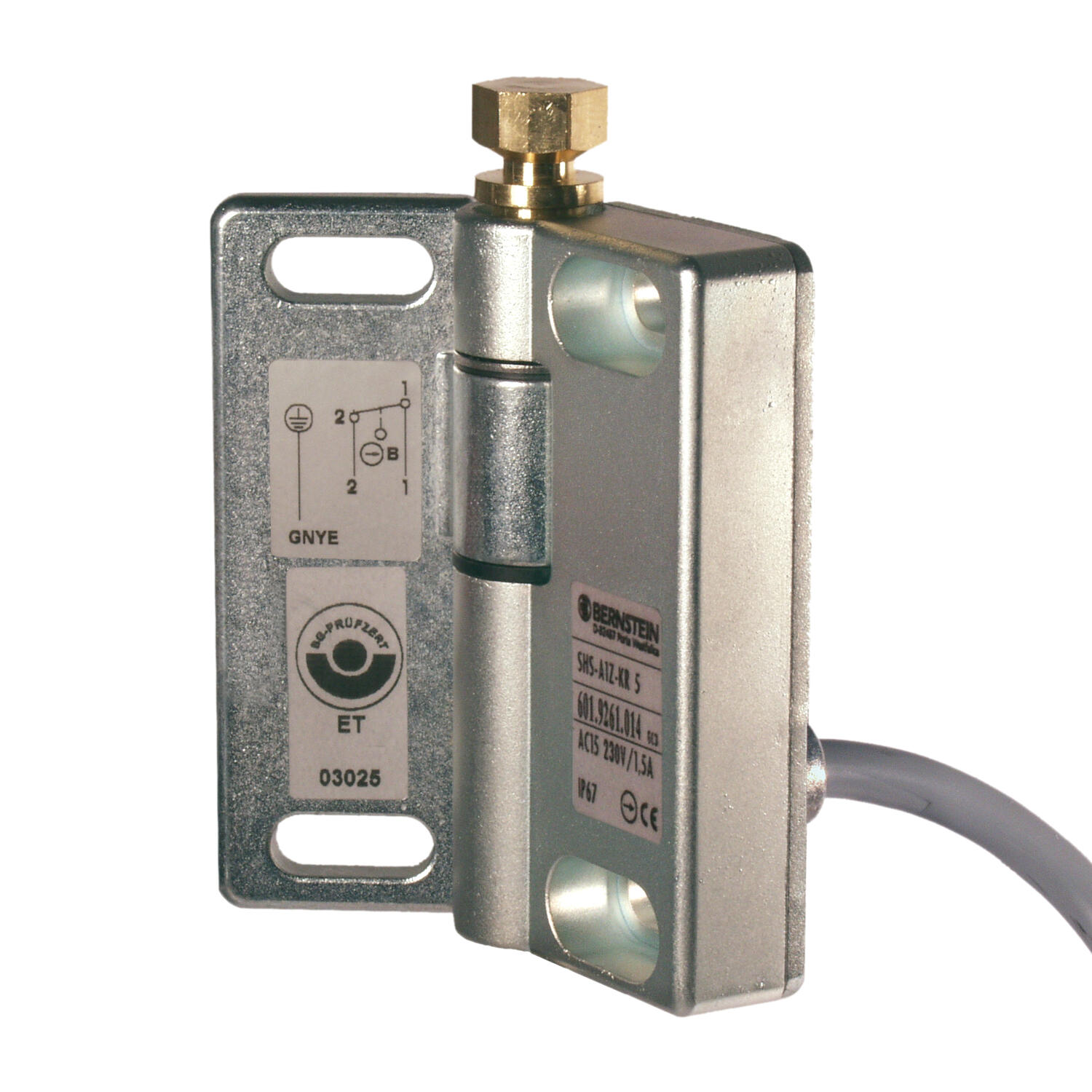

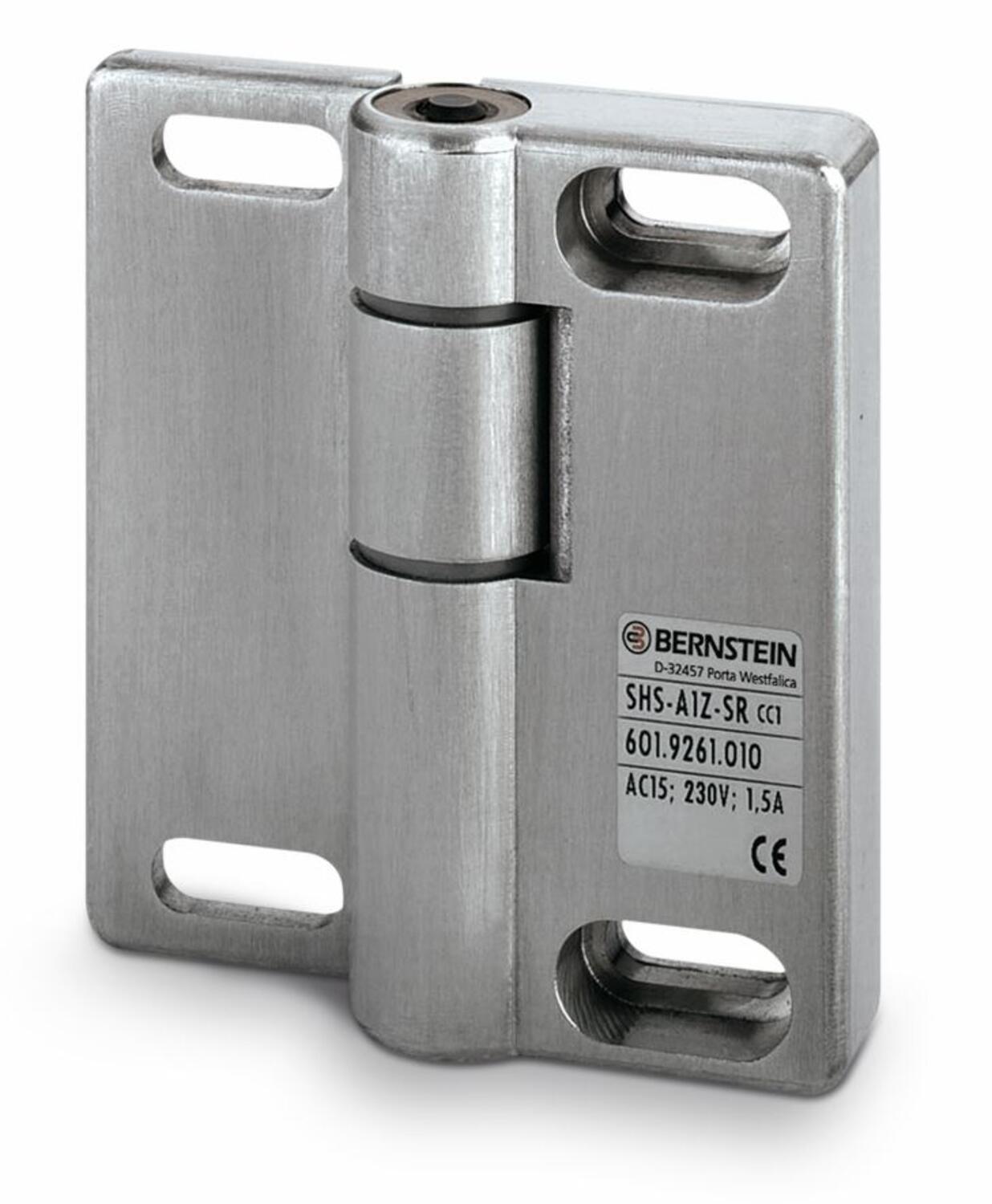

Safety hinge switch SHS
The design of the SHS safety hinge switch has been optimised to allow its effective use on aluminium section systems. Its shallow depth, even when fully opened, makes it ideally suited for use in constricted installation conditions on machines.
Safety switches with separate actuators are often subjected to high mechanical stresses, especially when they are mounted on closing edges. The SHS hinge switch sets new standards. The safety guard is monitored directly in the hinge.

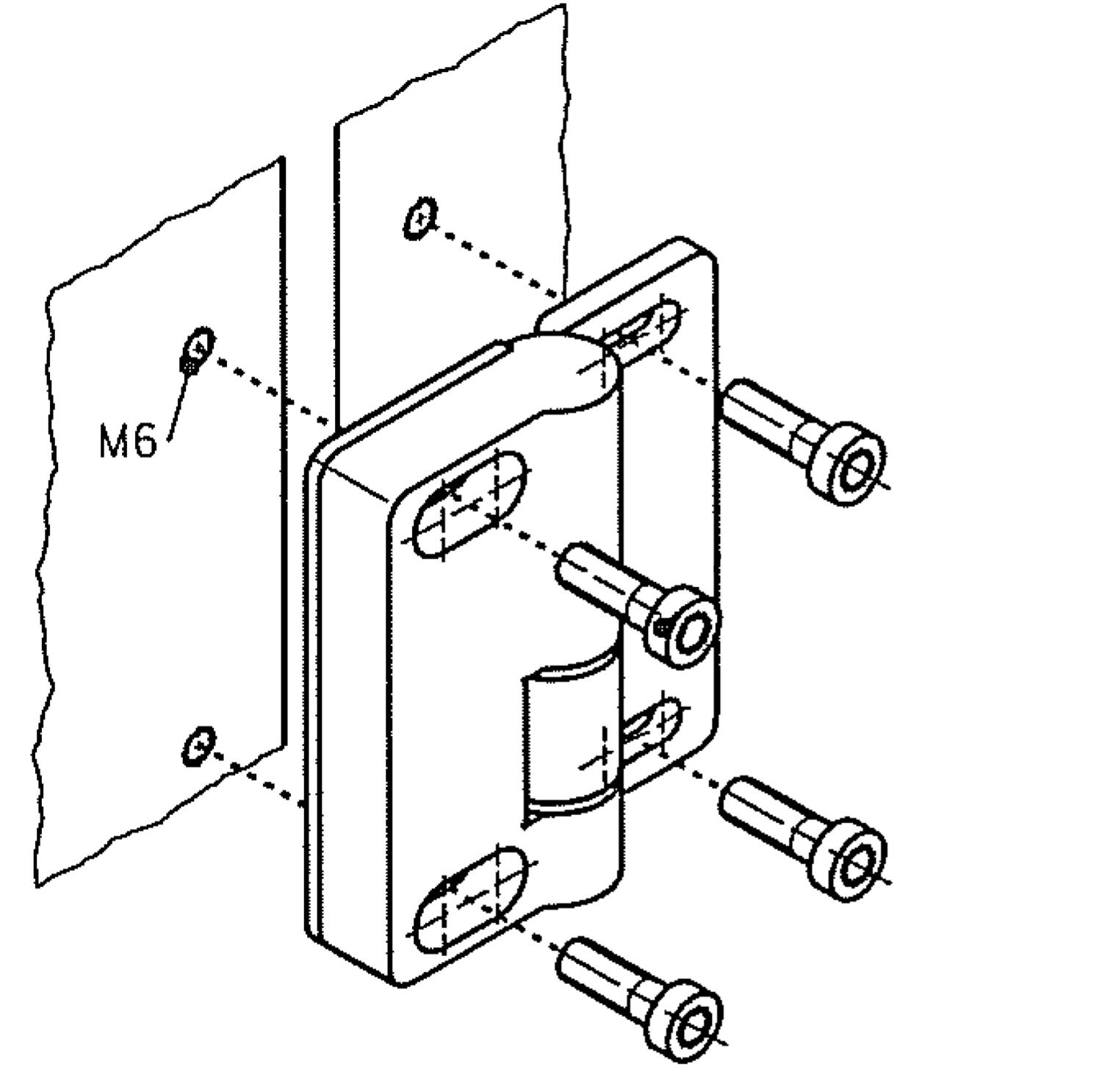

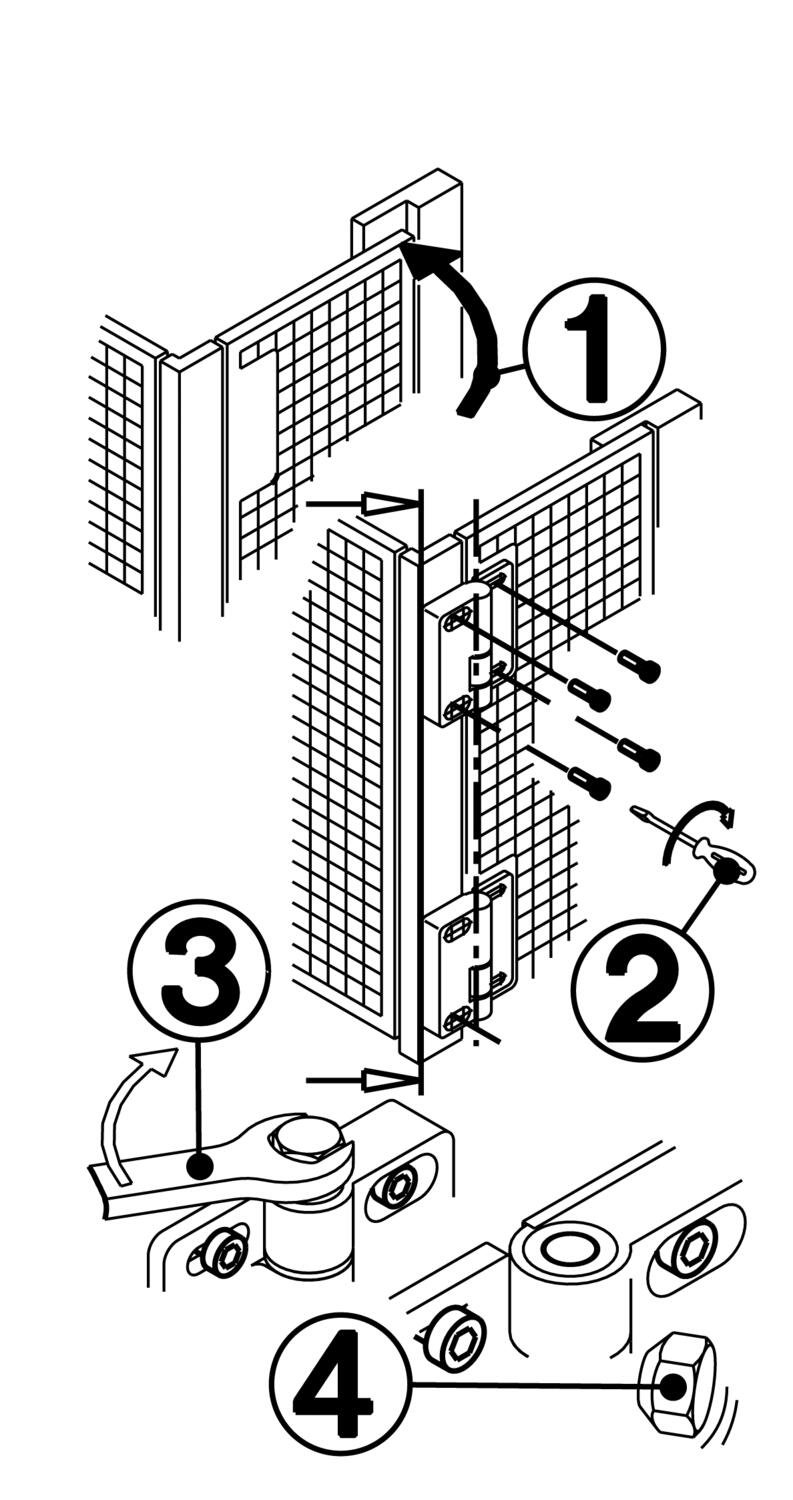

Installation
| Mechanical load bearing capabilities |

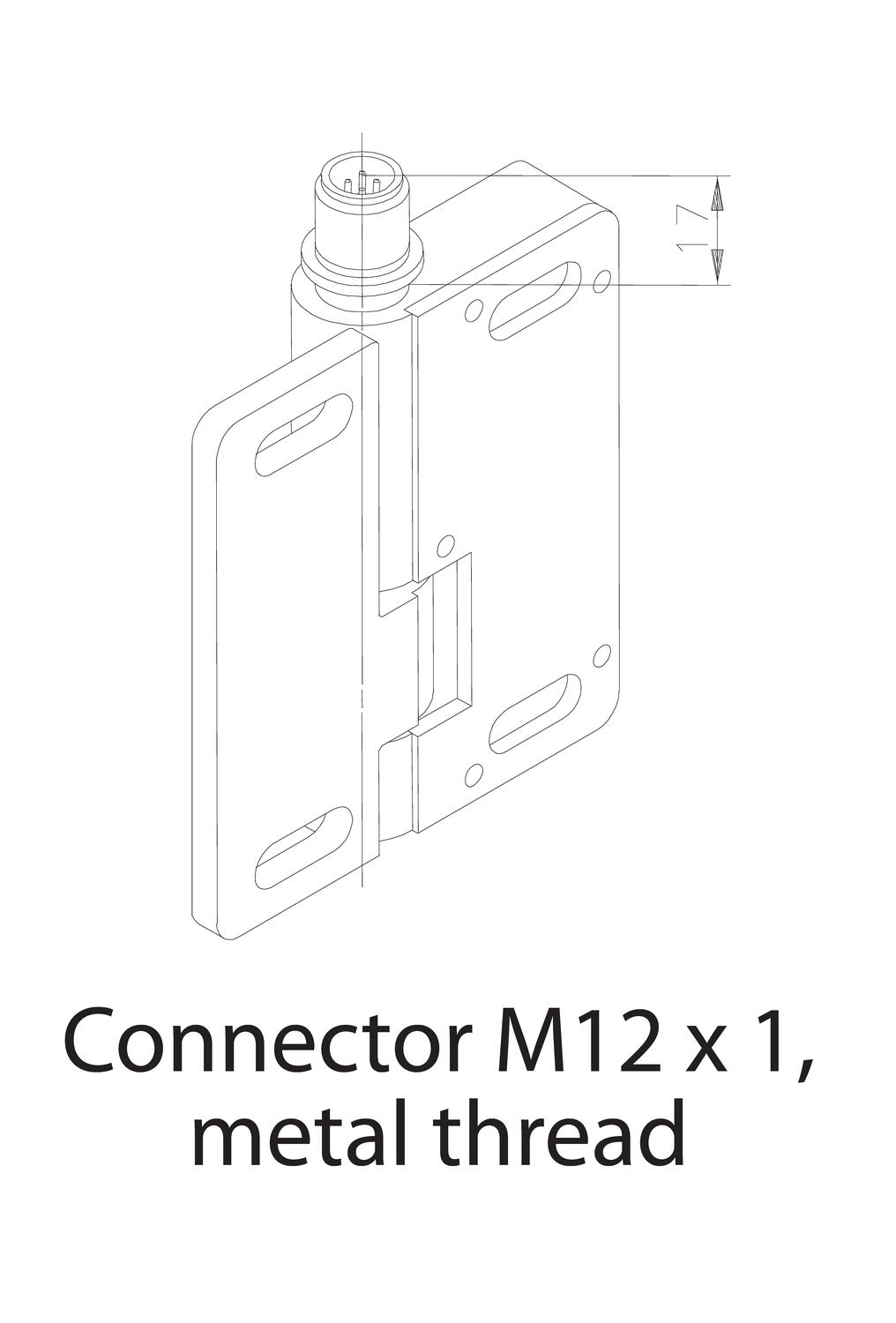

Connection
|
- Highly reliable, extremely difficult to bypass
- Switch integrated into the hinge mechanism
- Point of fixation 0-180°
Selected variant
Specifications

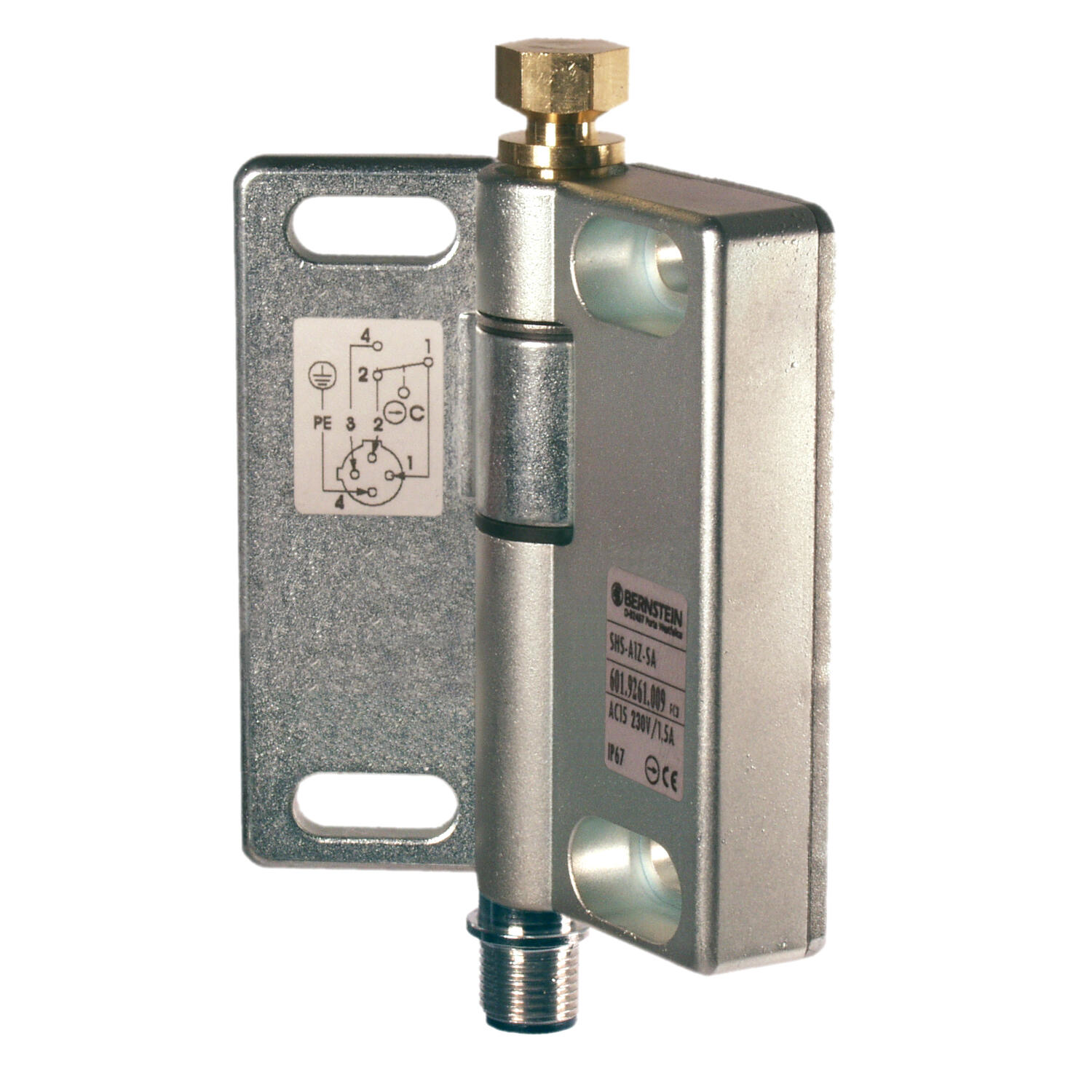

| Connector | M12 4 pole |
|---|---|
| Contact type | 1 CO |
| IP Class | IP67 |
| Port position | Down |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
Product description
The design of the SHS safety hinge switch has been optimised to allow its effective use on aluminium section systems. Its shallow depth, even when fully opened, makes it ideally suited for use in constricted installation conditions on machines.
Safety switches with separate actuators are often subjected to high mechanical stresses, especially when they are mounted on closing edges. The SHS hinge switch sets new standards. The safety guard is monitored directly in the hinge.
Installation
| Mechanical load bearing capabilities |
Connection
|
