With the SHS3 safety hinge switch Bernstein presents the logical further development of the SHS series and a solution that makes it unnecessary to replace the safety hinge switch when equipment such as safety gates are damaged as the result of mechanical stress, such as after being bumped by a forklift truck for instance. Even after the switching point has been set, if need be, the user can now correct the hinge setting with the aid of the integrated fine adjustment system. The SHS3 hinge switch is reusable even when the entire system needs to be converted: With the aid of a change kit, the user can redefine the switching point without using the high protection rating of IP67 / IP69 K.
Coupling example |
Swivel range 0-270° |
Configuration 1 | Configuration 2 |
| The hinge can also be installed between the door and the frame, in which case the hinge is mechanically protected. Installation width 20 mm, safety distance 120 mm. |

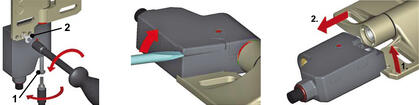

Point of fixation setup | |
1. Install the hinge | |
2. Select suitable point of fixation | |
3. Tighten the special bolt located in the switch unit. Special torx head required for the setup is included in the delivery. | |
4. The bolt is tightened until the red indication disk between the hinge and switch unit is replaced with a green indication disk. Secure with extra 2 Nm (+10 %). Safety hinge is now operational and the contacts open while the door is opened. | |
5. Fine adjustment screw is located in top of the switch unit. |
Compatible with both left- and right-handed applications, easy to interchange.
Cable length | 5000 mm |
---|---|
Contact type | 1NO, 2 NC |
IP Class | IP67 |
Material of body | Stainless steel |
Port position | Down |
Temperature range from | -25 °C |
Temperature range to | 70 °C |
With the SHS3 safety hinge switch Bernstein presents the logical further development of the SHS series and a solution that makes it unnecessary to replace the safety hinge switch when equipment such as safety gates are damaged as the result of mechanical stress, such as after being bumped by a forklift truck for instance. Even after the switching point has been set, if need be, the user can now correct the hinge setting with the aid of the integrated fine adjustment system. The SHS3 hinge switch is reusable even when the entire system needs to be converted: With the aid of a change kit, the user can redefine the switching point without using the high protection rating of IP67 / IP69 K.
Coupling example |
Swivel range 0-270° |
Configuration 1 | Configuration 2 |
| The hinge can also be installed between the door and the frame, in which case the hinge is mechanically protected. Installation width 20 mm, safety distance 120 mm. |
Point of fixation setup | |
1. Install the hinge | |
2. Select suitable point of fixation | |
3. Tighten the special bolt located in the switch unit. Special torx head required for the setup is included in the delivery. | |
4. The bolt is tightened until the red indication disk between the hinge and switch unit is replaced with a green indication disk. Secure with extra 2 Nm (+10 %). Safety hinge is now operational and the contacts open while the door is opened. | |
5. Fine adjustment screw is located in top of the switch unit. |
Compatible with both left- and right-handed applications, easy to interchange.
Safety curtains and beams provide effective and reliable personal protection and monitoring in a wide range of industrial environments.
Hokuyo has small safety laserskanner that is very small in size. This versatile laserskanner fits in most systems. Read more!
Since 2002, 2J Antennas has become a global supplier of antenna solutions, dedicated to developing innovative technologies for an increasingly networked world. Read more!
Our supplier Stemmann-Technik (Wabtec Corporation) offers customer-specific cable reels for various applications. The selection includes a wide range of spring and motor cable reels for different purposes. The reels are designed according to customer requirements.
You can save space and time during installation with BACO multi-function buttons! Read more.
The strategic partnership between OEM Automatic and KUKA Nordic is driving sales momentum. Read more!
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Cable length | Connector | Contact type | IP Class | Material of body | Port position | ||
---|---|---|---|---|---|---|---|---|
![]()
SHS3-U15Z-KA 5
Art:
601.9390.022
Copied
|
5000 mm
|
|
1NO, 2 NC
|
IP67
|
Stainless steel
|
Down
|
| |
![]()
Safetyhingeswitch
Art:
601.9390.023
Copied
|
5000 mm
|
|
1NO, 2 NC
|
IP67
|
Stainless steel
|
Down
|
| |
![]()
Safety hinge switch
Art:
601.9390.034
Copied
|
|
M12, 6-pole
|
1NO, 2 NC
|
IP67
|
Stainless steel
|
Down
|
| |
![]()
Safety hinge switch
Art:
601.9390.035
Copied
|
|
M12, 6-pole
|
1NO, 2 NC
|
IP67
|
Stainless steel
|
Down
|
| |
![]()
SHS3-A2Z-SA R, 2NC
Art:
601.9390.040
Copied
|
|
M12 4 pole
|
2 NC
|
IP67
|
Stainless steel
|
Down
|
| |
![]()
SHS3-Hinge (blank hinge)
Art:
601.9390.038
Copied
|
|
|
|
|
|
|
|
Select a variant in the list
