TECSIS
Low pressure and differential pressure transducer

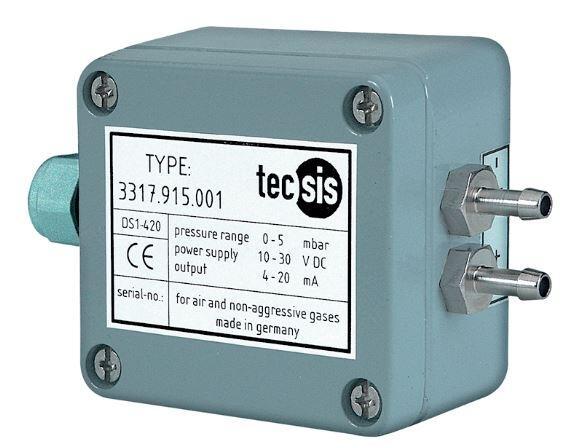

Model P3317 is intended for measuring low under- or overpressure, but also differential pressure. A typical application is ventilation-/heating plants or filter monitoring. The robust aluminium case guarantees both good mechanical protection and EMC values. Version with display has a simple zero point adjustment in the front. Enclosure in plastic.
- Pressure range 0...1 mbar up to 0...1,000 mbar
- For air and neutral gases
- Output signal 4-20 mA or 0-10 V
- Accuracy 1%
Selected variant
Specifications
| IP Class | IP65 |
|---|---|
| Response Time | 1 ms |
| Supply Voltage DC Max | 30 V DC |
| Supply Voltage DC Min | 15 V DC |
| Temperature ambient from | -20 °C |
| Temperature ambient to | 50 °C |
| Temperature compensated range from | 0 °C |
| Temperature compensated range to | 50 °C |
| Weight | 200 g |
Product description
Model P3317 is intended for measuring low under- or overpressure, but also differential pressure. A typical application is ventilation-/heating plants or filter monitoring. The robust aluminium case guarantees both good mechanical protection and EMC values. Version with display has a simple zero point adjustment in the front. Enclosure in plastic.
