TECSIS

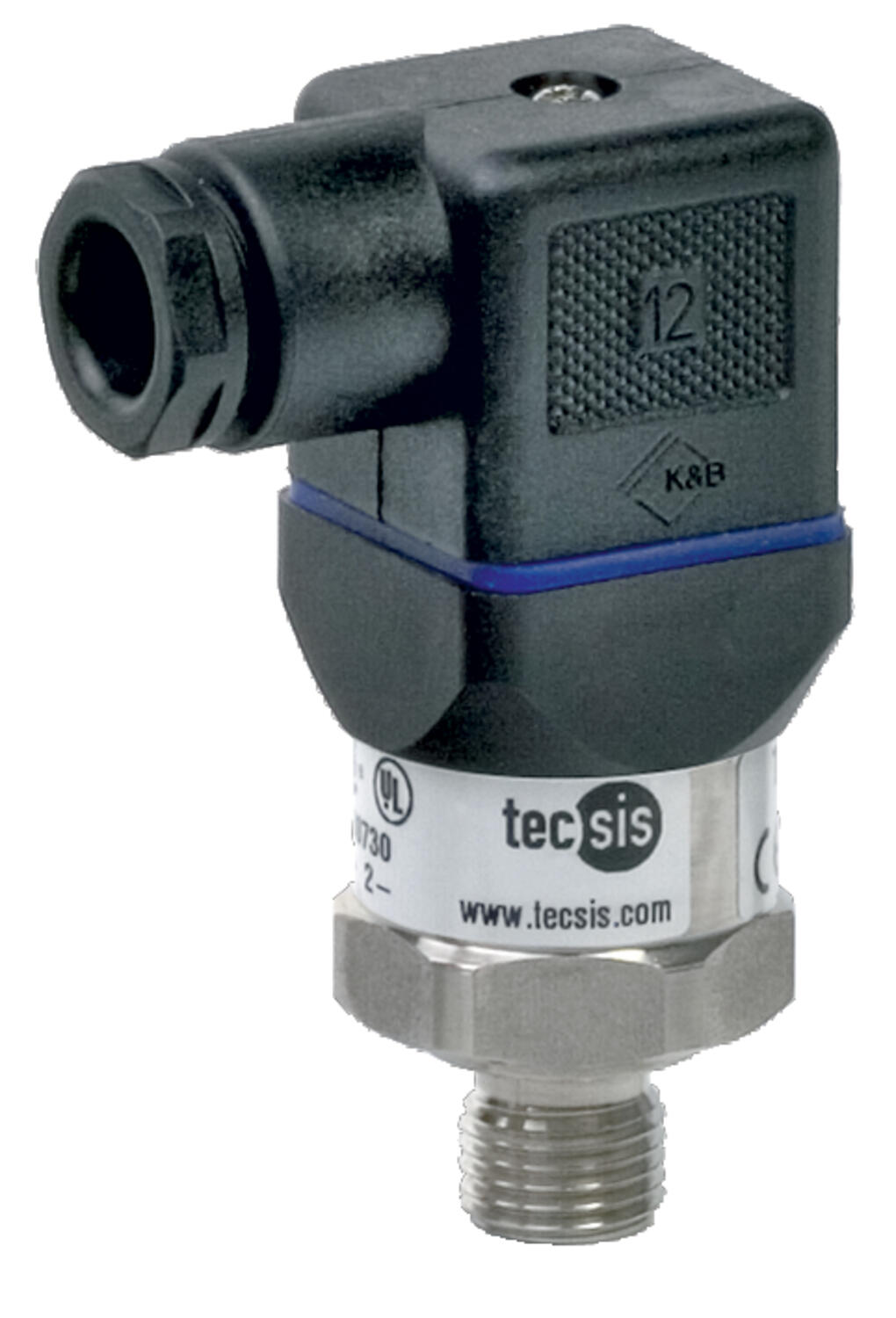

P3297-Sensors For Industrial Applications
Small compact sensor with both M12 and DIN connectors as standard versions. Resistant to vibrations and shocks. High resistance to electromagnetic disturbances (EMC).
- Compact
- Relative & absolute pressure
- Stainless steel
- 0-1 bar to 0-600 bar
Selected variant
Specifications
| Approvals | RoHS, UL |
|---|---|
| Connection | Male thread |

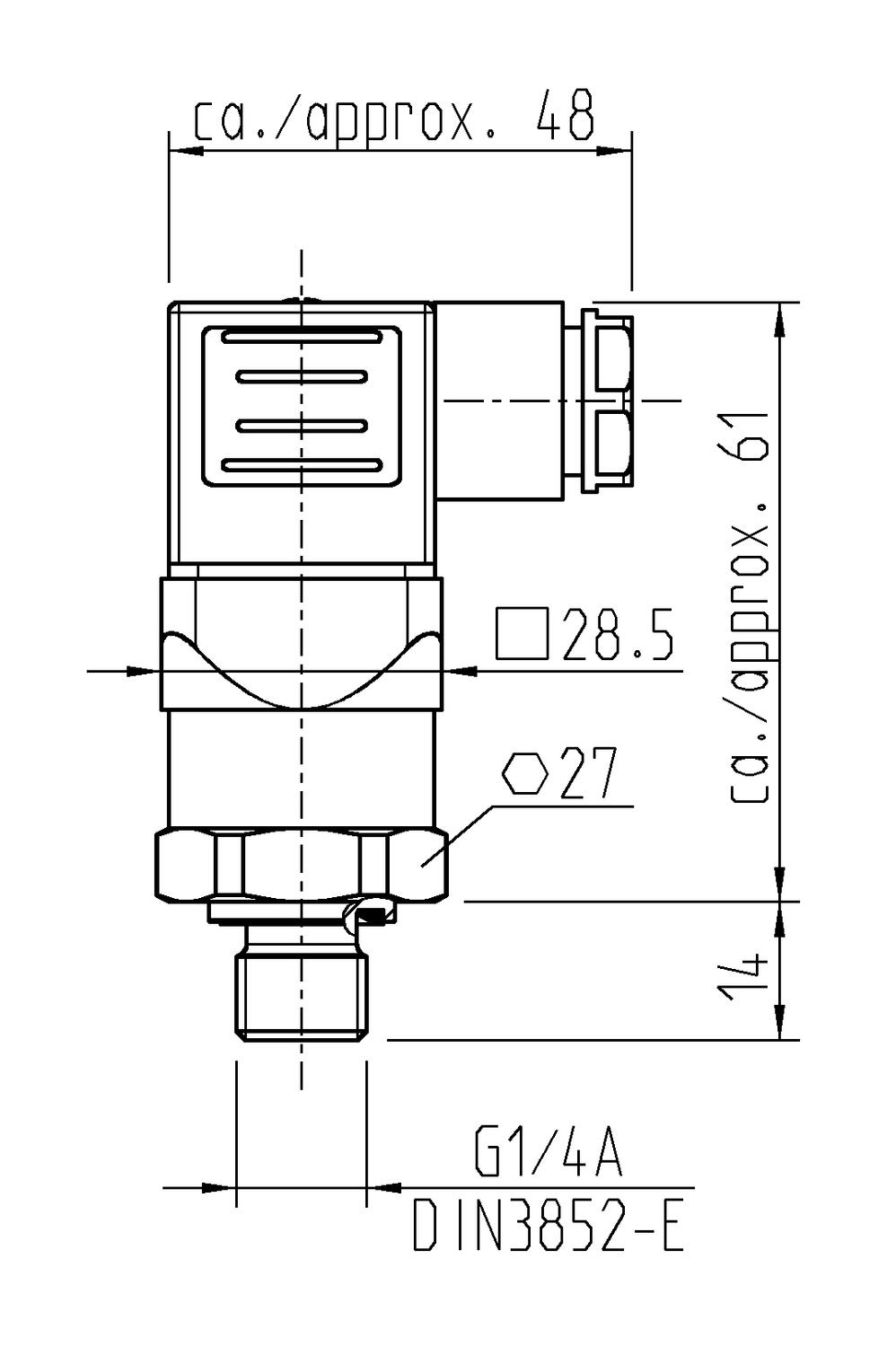

| Connection Thread | G1/4 |
| EMC | EN61326 |
| IP Class | IP65 |
| Material of sensor housing | Stainless steel SIS2350 (316) |
| Materials Wetted Parts | Stainless steel SIS2350 (316) |
| Pressure Range Max | 1 bar |
| Pressure Range Min | 0 bar |
| Response Time | 4 ms |
| Shock Resistance | 500 g according to IEC 60068-2-27 |

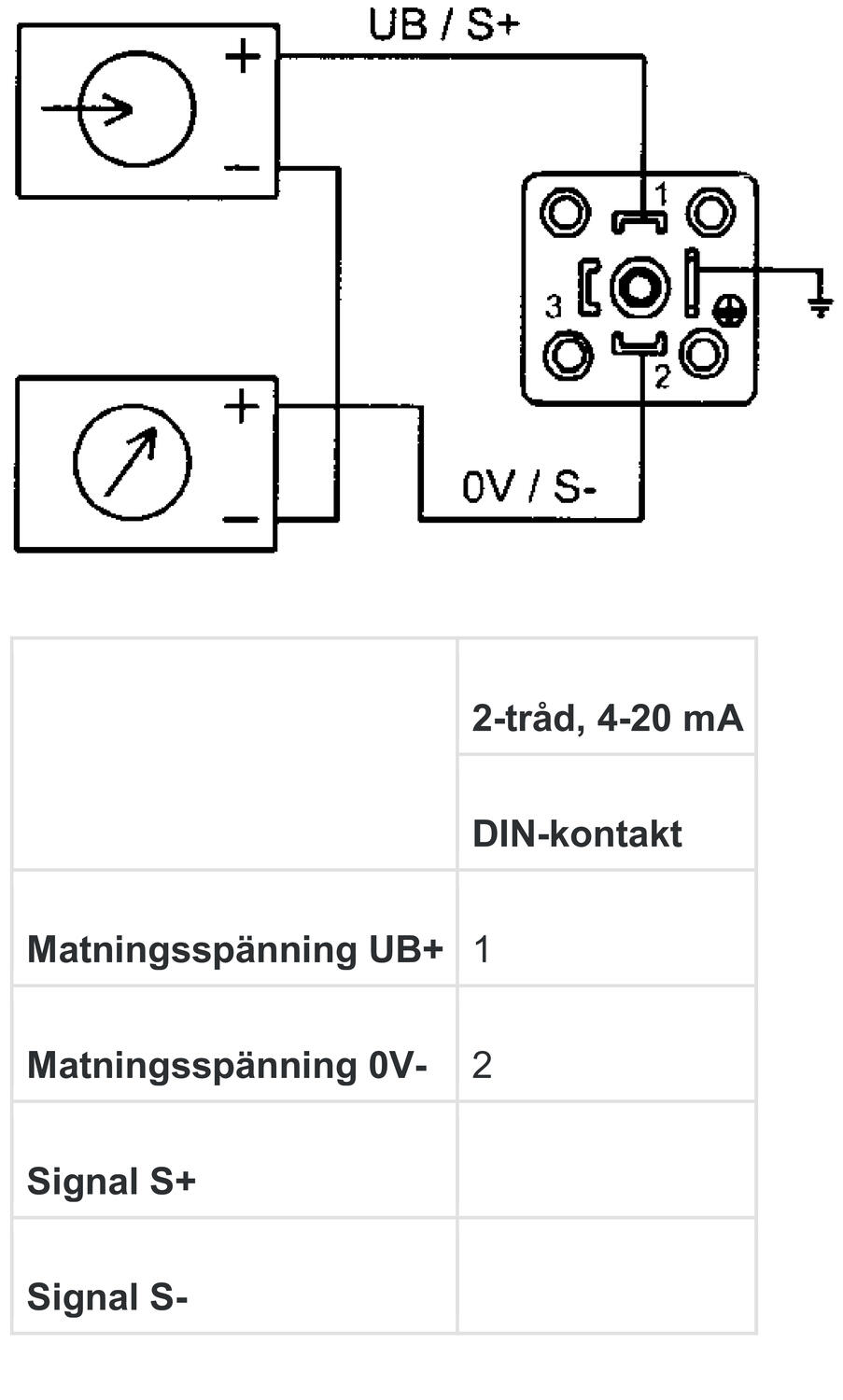

| Signal type | 4-20 mA |
| Supply Voltage DC Max | 30 V DC |
|---|---|
| Supply Voltage DC Min | 8 V DC |
| Temperature ambient from | -30 °C |
| Temperature ambient to | 100 °C |
| Temperature compensated range from | 0 °C |
| Temperature compensated range to | 80 °C |
| Temperature range of media from | -30 °C |
| Temperature range of media to | 100 °C |
| Weight | 0.08 kg |
| Vibration Resistance | 10 g according to IEC 60068-2-6 |
Downloads
Product description
Small compact sensor with both M12 and DIN connectors as standard versions. Resistant to vibrations and shocks. High resistance to electromagnetic disturbances (EMC).
