AUTOVIMATION

Orca enclosures

Enclosure Configurator

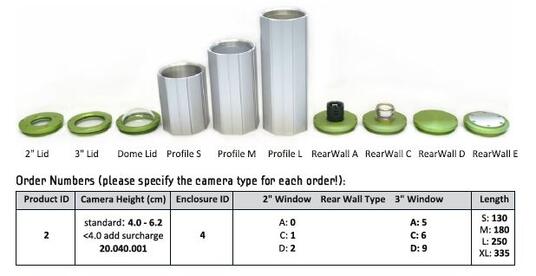

The IP67 Orca enclosure series offers protection for larger cameras of up to 62 x 62mm cross section (for instance Sick Ranger,  AVT Prosilica range, Basler Runner, Flir A300 etc.). Smaller cameras also fit into the Orca with special adapter plates, if a large ring light or lens requires more room. It is available in three standard length with different rear walls and front lids. Equipped with the larger 3” window and 65mm aperture diameter it is possible to use wide-angle lenses without obstruction. Even fish-eye lenses with more than 180° viewing angle can be used with the dome lid.



autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!.







Read more
  • Robust enclosure, max. camera size 62x62mm
  • Maximum lens diameter 85mm in profile, 78mm in front lid
  • Inner length 130mm (S), 180mm (M), 250mm (L) and 335mm (XL)
  • Excellent heat dissipation, IP67 rated
  • Wide selection of accessories available for mounting and maintenance

Selected variant

Selected variant

Specifications

Central Material Anodised aluminum
Height 96 mm
Inner length 180 mm
IP Class IP67
Length 194 mm
Max camera height 62 mm
Max camera width 62 mm
Max connector size 26,5 mm
Max lens diameter 85 mm
Weight 1200 g
Width 96 mm
Window seal EPDM

Measurements and connections

Technical illustrations

Product description

Enclosure Configurator



The IP67 Orca enclosure series offers protection for larger cameras of up to 62 x 62mm cross section (for instance Sick Ranger,  AVT Prosilica range, Basler Runner, Flir A300 etc.). Smaller cameras also fit into the Orca with special adapter plates, if a large ring light or lens requires more room. It is available in three standard length with different rear walls and front lids. Equipped with the larger 3” window and 65mm aperture diameter it is possible to use wide-angle lenses without obstruction. Even fish-eye lenses with more than 180° viewing angle can be used with the dome lid.



autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!.







Accessories

Articles Inner length Length Max connector size Weight
180 mm
194 mm
26,5 mm
1200 g
250 mm
264 mm
26,5 mm
1550 g
180 mm
194 mm
26,5 mm
1200 g
250 mm
264 mm
26,5 mm
1550 g
180 mm
194 mm
26,5 mm
1200 g
250 mm
264 mm
1550 g

Selected variant

Select a variant in the list
