AutoVimation enclosures

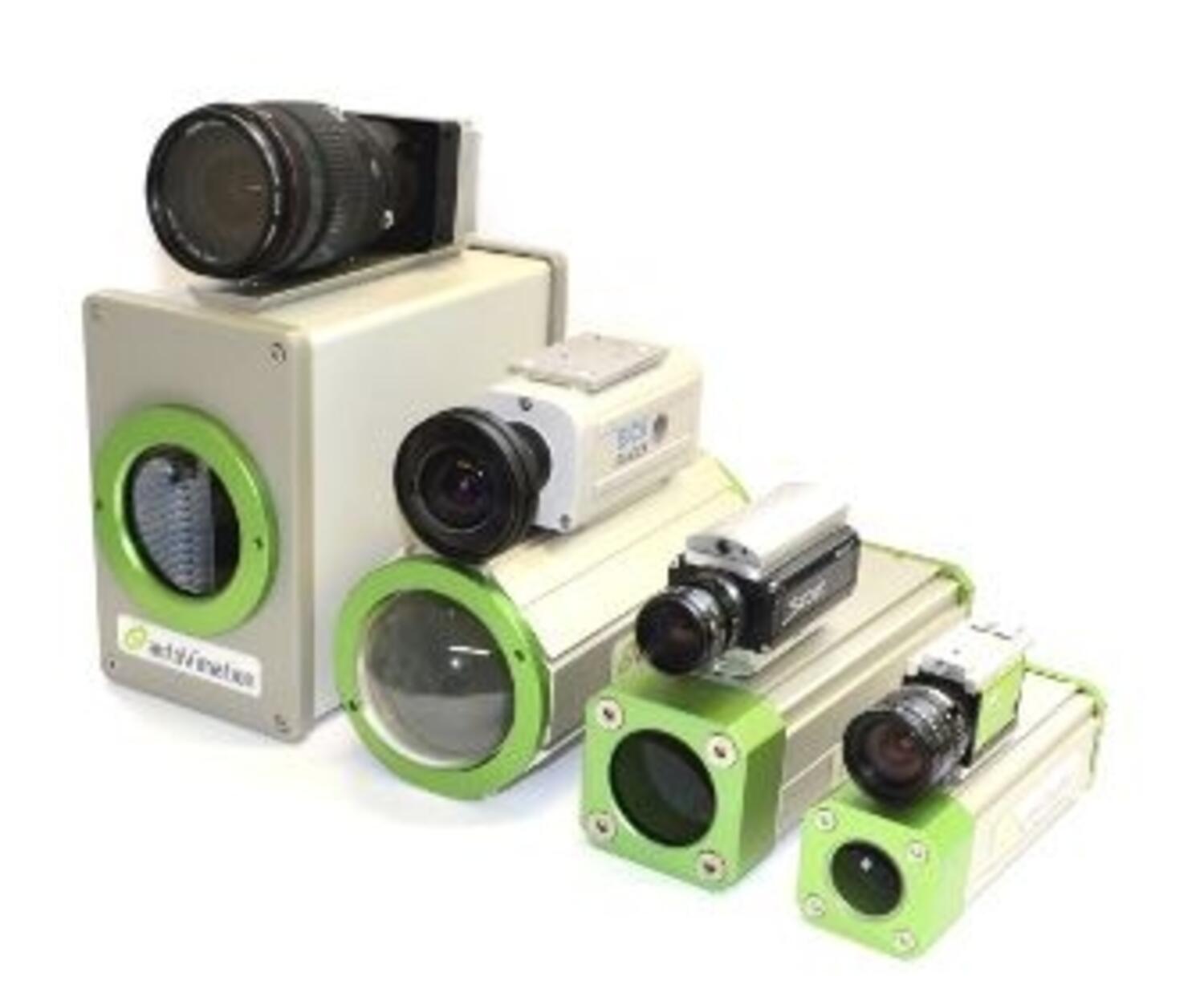

Camera housings from Autovimation, a set of various camera bodies with lenses in green and silver design.
Total number of hits :
Three cylindrical sensors from Autovimation with a silver-colored body and green details.
AUTOVIMATION

Colibri enclosures

  • Micro enclosure for cameras up to 30x30mm, such as Basler ACE
  • Maximum lens diameter 39mm
  • Inner length 146mm (S) and 176mm (M)
  • Excellent heat dissipation, IP66 rated
  • Wide selection of accessories available for mounting and maintenance
Product has 2 variants.
Read more Read more
Three products from Autovimation, with green and silver design, showcasing different models of sensors.
AUTOVIMATION

Salamander enclosures

  • Robust enclosure, max. camera size 40x40mm (29x47mm)
  • Maximum lens diameter 55mm in profile, 52mm in front lid
  • Inner length 94mm (XS), 136mm (S), 189mm (M) and 219mm (L)
  • Excellent heat dissipation, IP67 rated
  • Wide selection of accessories available for mounting and maintenance
Product has 6 variants.
Read more Read more
Gecko product image showing different models of cameras with metal housings and lenses.
AUTOVIMATION

Gecko enclosures

  • More spacious enclosure, max. camera size 39x53mm
  • Maximum lens diameter 55mm in profile, 52mm in front lid
  • Inner length 162mm (XSA), 174mm (XS), 233mm (S) and 268mm (M)
  • Good heat dissipation, IP66 rated
  • Wide selection of accessories available for mounting and maintenance
Product has 1 variant.
Read more Read more

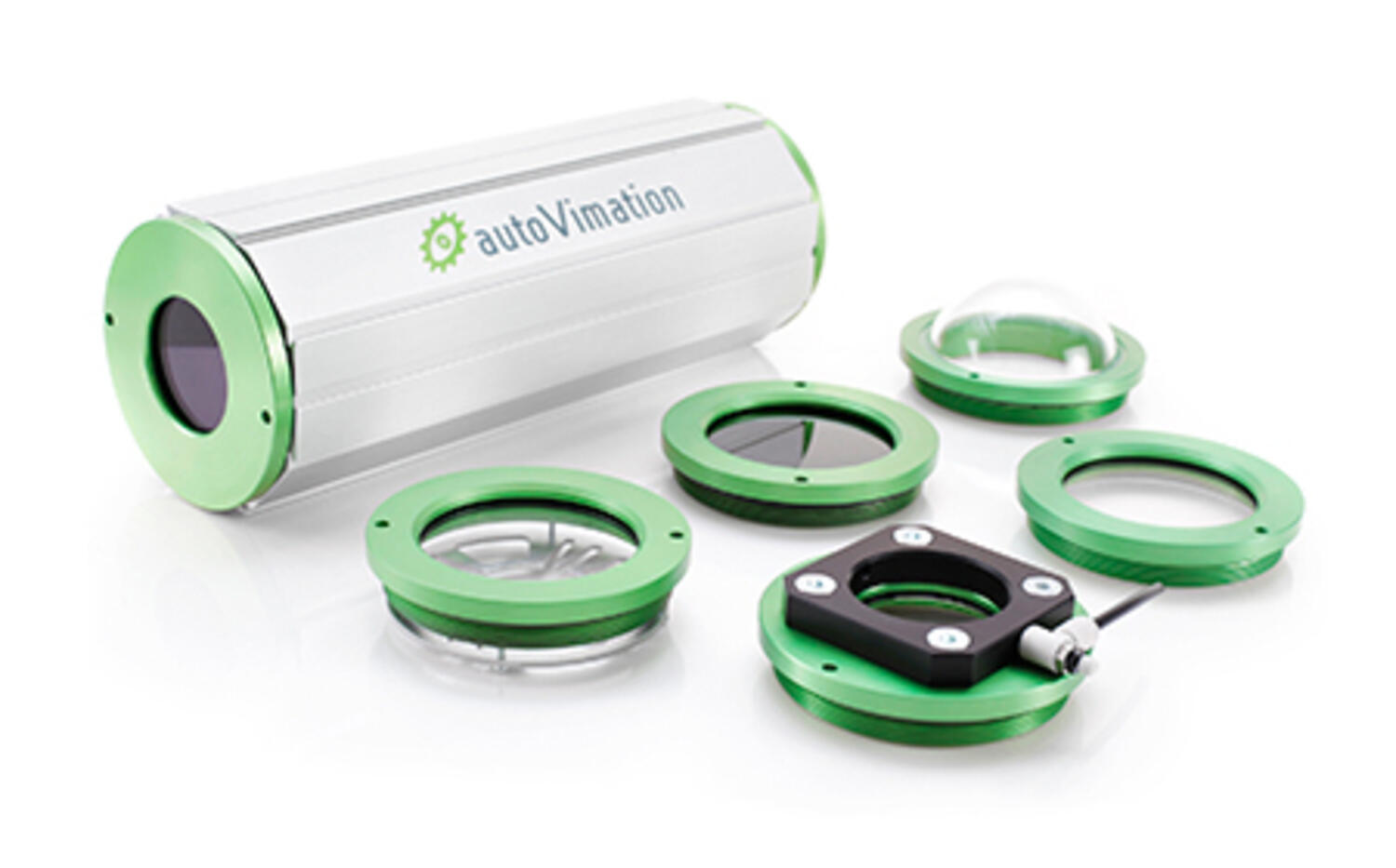

autovimation-Ocra.tif
AUTOVIMATION

Orca enclosures

  • Robust enclosure, max. camera size 62x62mm
  • Maximum lens diameter 85mm in profile, 78mm in front lid
  • Inner length 130mm (S), 180mm (M), 250mm (L) and 335mm (XL)
  • Excellent heat dissipation, IP67 rated
  • Wide selection of accessories available for mounting and maintenance
Product has 6 variants.
Read more Read more

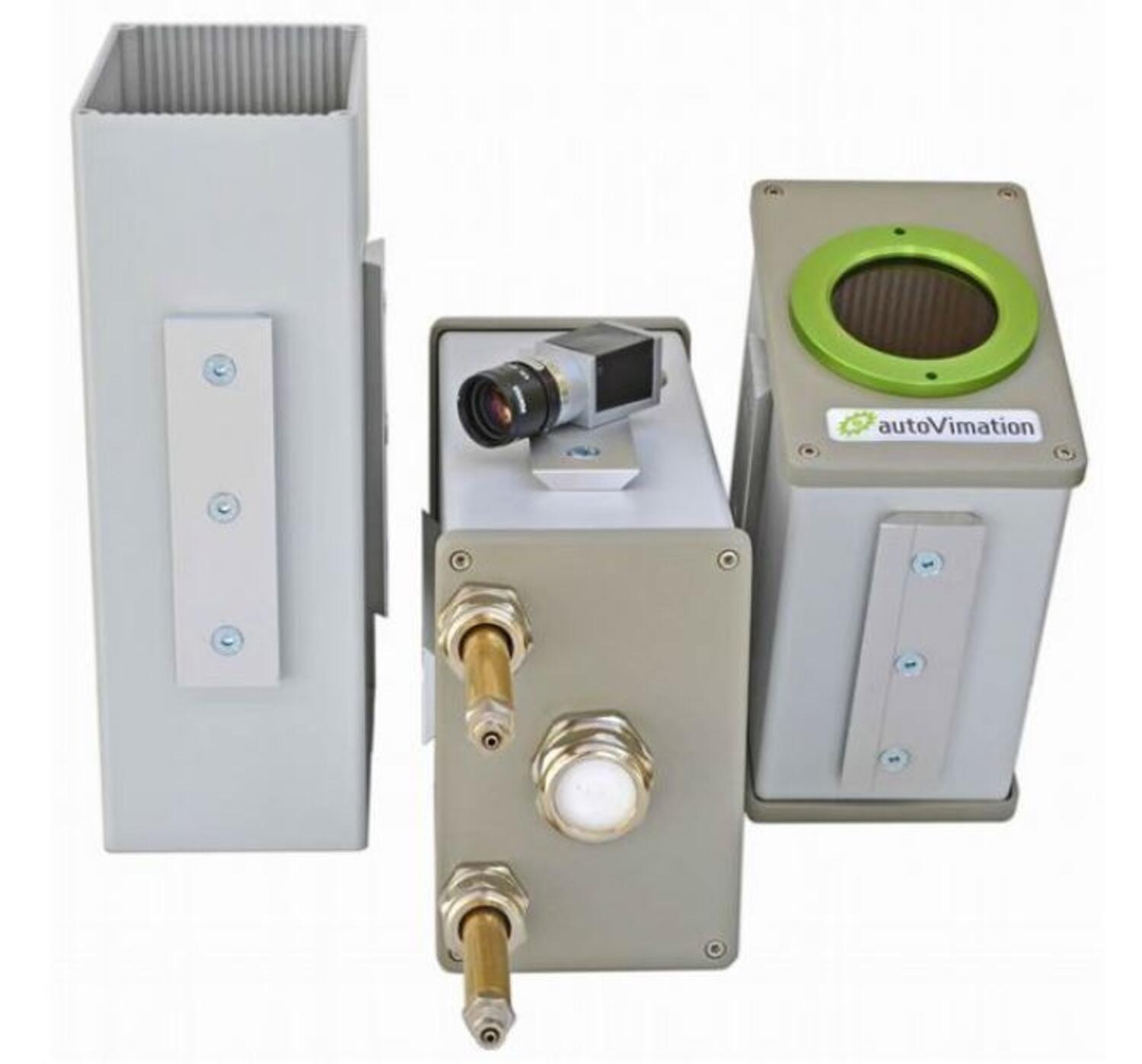

Automation equipment with camera module and connections for industrial use
AUTOVIMATION

Mammoth enclosures

  • Robust enclosure, max. camera size up to 90x150mm
  • Maximum lens diameter 90mm in profile, 78mm in front lid
  • Inner length 199mm (M), 259mm (L) and 309mm (XL)
  • Excellent heat dissipation, IP65 rated
  • Wide selection of accessories available for mounting and maintenance
Product has 2 variants.
Read more Read more

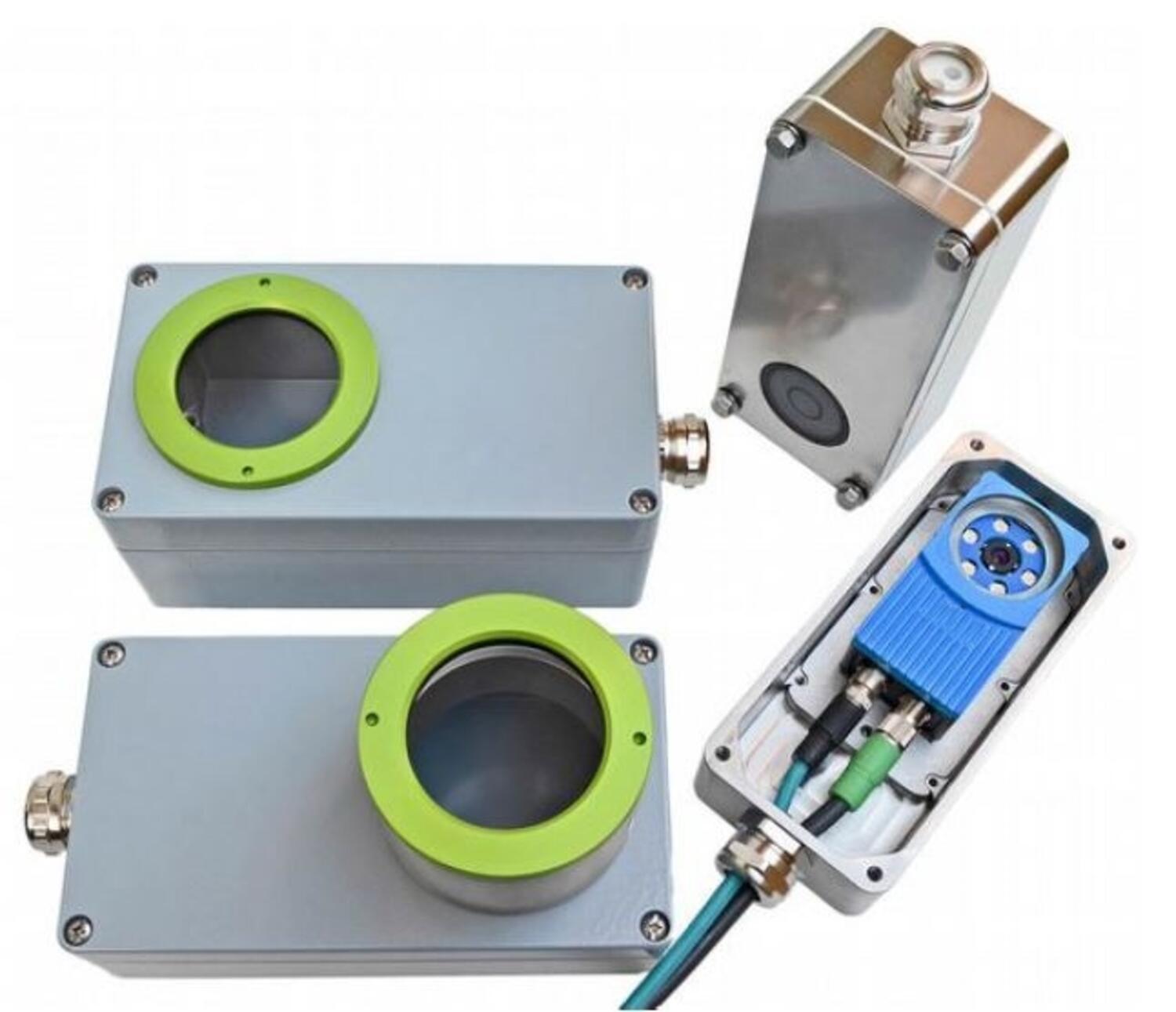

Gray electrical boxes with green rings and an open unit showing internal components
AUTOVIMATION

Chameleon enclosures

  • For cameras with a sideways viewing direction
  • Maximum camera height 0 - 73mm (incl. lens)
  • Made of aluminium or stainless steel
  • Wide selection of accessories available
Product has 1 variant.
Read more Read more

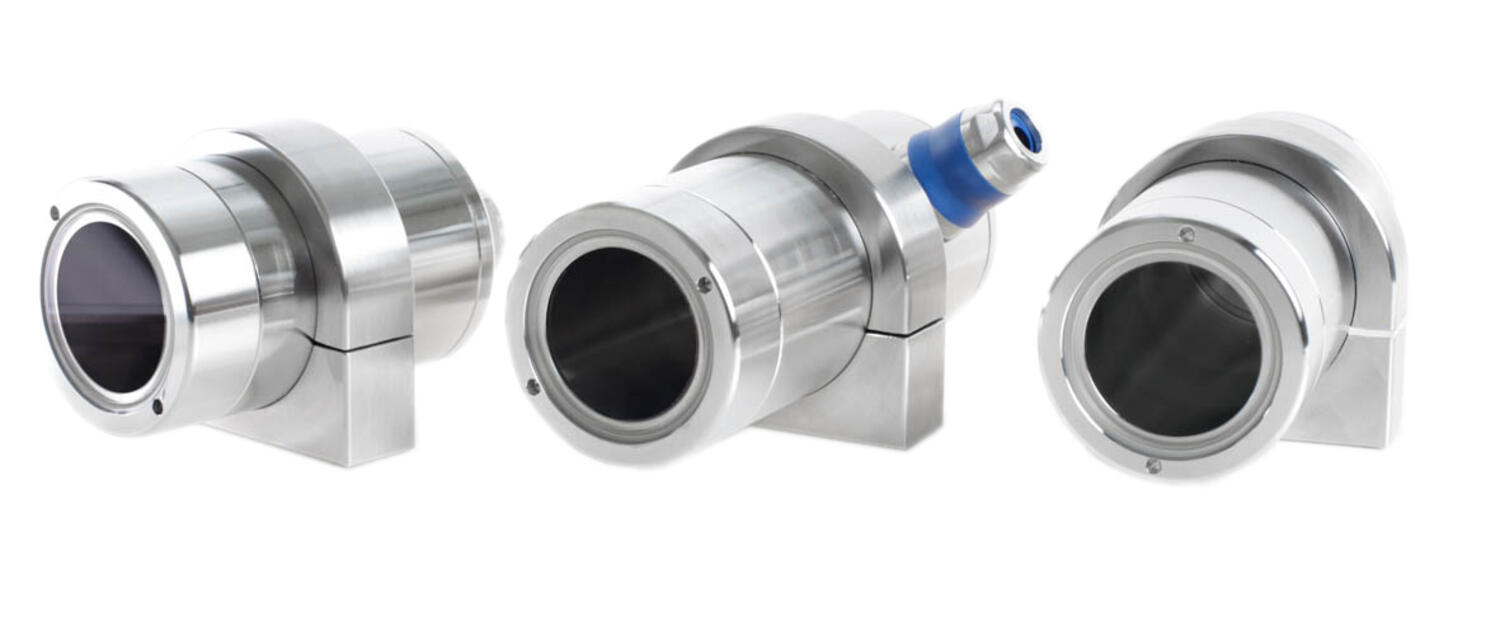

Industrial sensors in stainless steel with high precision and durability
AUTOVIMATION

Feuersalamander enclosures

  • For use in hygienically demanding applications, camera size max. 40x40mm
  • Maximum lens diameter 55mm in profile, 52mm in front lid
  • Inner length 101mm (S) and 151mm (M)
  • Made of stainless steel, IP67 rated
  • Hygienic design, chemical resistant
Product has 1 variant.
Read more Read more
Dolphin huvudproduktbild som visar en slank, metallisk cylindrisk enhet med en blå accent och en tunn tråd.
AUTOVIMATION

Dolphin&Shark enclosures

  • Enclosures made of stainless steel, camera size up to 62x62mm
  • Maximum lens diameter 55mm Dolphin, 85mm Shark
  • Dolphin inner length 138mm (S), 188mm (M) and 218mm (L). Shark inner length 130mm (S), 180mm (M) and 250mm (L)
  • Robust stainless steel housing (AISI316L), good heat dissipation, IP69K V4A
  • Wide selection of accessories available for mounting and maintenance
Product has 1 variant.
Read more Read more

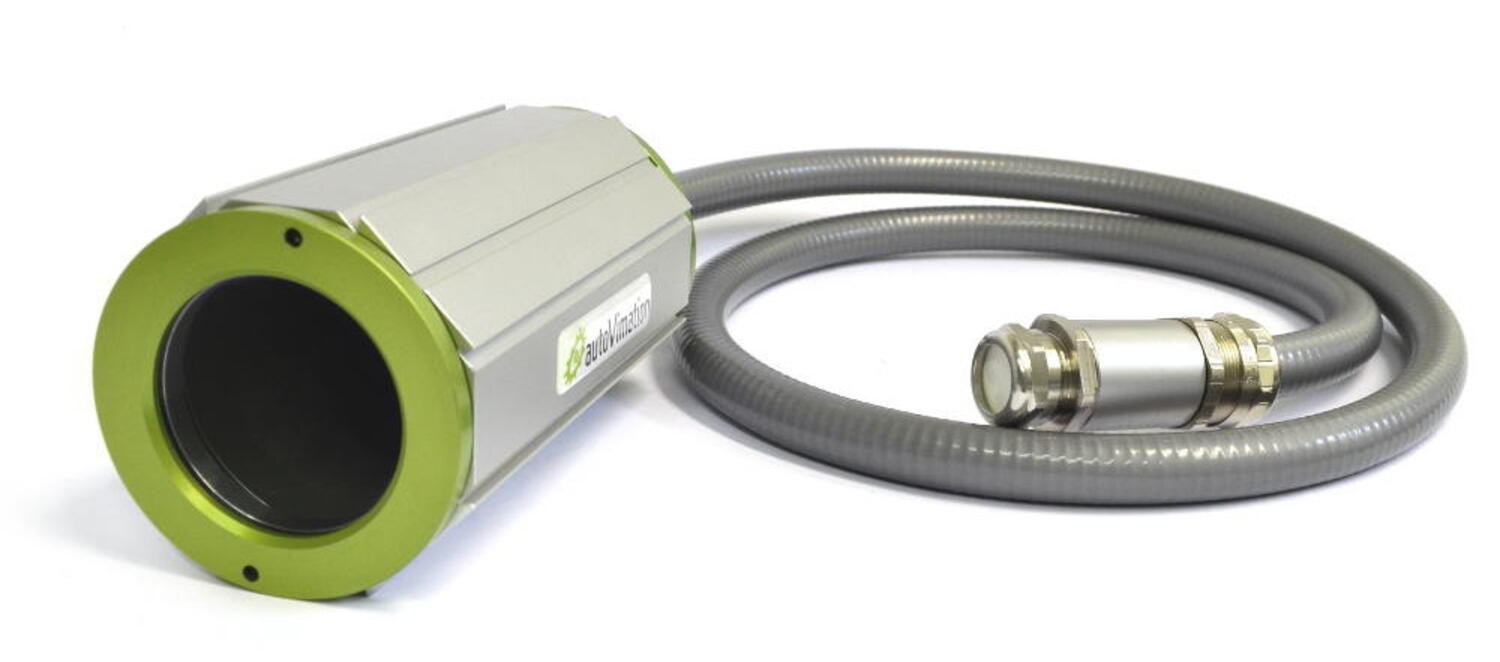

Nautilus product with a silver-colored body and green detail, connected to a flexible hose.
AUTOVIMATION

Nautilus enclosures

  • Waterproof and submersible enclosure, camera size up to 62x62mm
  • Maximum lens diameter 85mm in profile, 78mm in front lid
  • Inner length 172mm
  • IP68 rated, double sealed construct, tested 10h down to 10m of water
  • Wide selection of accessories available for mounting and maintenance
Product has 1 variant.
Read more Read more
