AUTOVIMATION
Chameleon enclosures

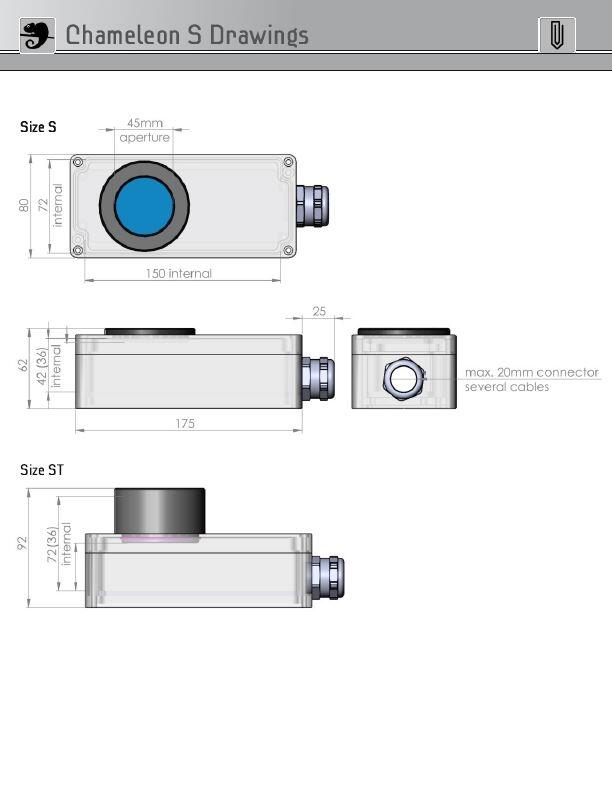

The housing series offers protection for cameras with a sideways viewing direction. The Chameleon S series is available with or without lens tube. This allows the use of cameras with compact C-mount lenses. Inbuilt LEDs can usually be used if the distance to the front window is not too large. The same counts for the Chameleon L, that adjusts to lens and camera height with help of 4 different heights and the use of a lens tube if necessary. Typical cameras used with the Chameleon L are the Cognex Insight 5000 or the Sick Inspector. autoVimation now also offers a version made of surgical stainless steel for increases hygiene and corrosion resistance.
autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!
- For cameras with a sideways viewing direction
- Maximum camera height 0 - 73mm (incl. lens)
- Made of aluminium or stainless steel
- Wide selection of accessories available
Selected variant
Specifications
| Central Material | Powder coated aluminium |
|---|---|
| Height | 90 mm |
| Inner length | 204 mm |
| IP Class | IP67 |
| Length | 220 mm |
| Max camera height | 73 mm |
| Max camera width | 111 mm |
| Max lens diameter | 76 mm |
| Weight | 1800 g |
| Width | 120 mm |
| Window seal | EPDM |
Product description
The housing series offers protection for cameras with a sideways viewing direction. The Chameleon S series is available with or without lens tube. This allows the use of cameras with compact C-mount lenses. Inbuilt LEDs can usually be used if the distance to the front window is not too large. The same counts for the Chameleon L, that adjusts to lens and camera height with help of 4 different heights and the use of a lens tube if necessary. Typical cameras used with the Chameleon L are the Cognex Insight 5000 or the Sick Inspector. autoVimation now also offers a version made of surgical stainless steel for increases hygiene and corrosion resistance.
autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!
