FLEXA

FR-P flat-sealing

FR-P flat-sealing for PG threads, provides protection against water and dust. Oil resistant.

Read more
  • Made from perbunan
  • Oil resistant

Selected variant

FLEXA.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Weight kg / 100 ± 10% 0,034
Thread PG 7
Color Black
Pack Size 50
Temperature range to 120 °C
Dimensional Inner 11,5 mm
Temperature range from -20 °C
Dimensional Outer 16 mm

Downloads

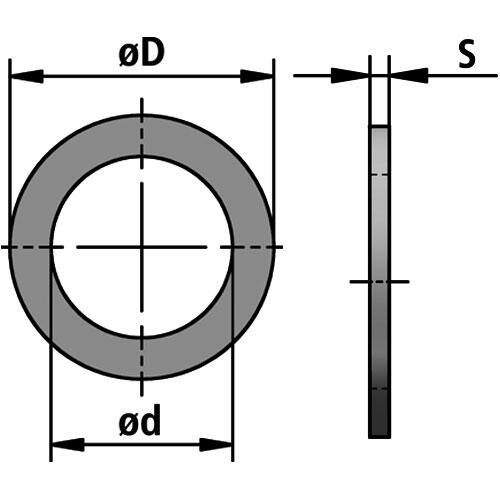

Measurements and connections

Product description

FR-P flat-sealing for PG threads, provides protection against water and dust. Oil resistant.

Accessories

Related products

Articles Weight kg / 100 ± 10% Thread Color Pack Size Temperature range to Dimensional Inner Temperature range from Dimensional Outer
Photo at FR-M/FR-P packing.
PACKNING FR-P PG 7
Art:
0331.000.007 Copied
0,034
PG 7
Black
50
120 °C
11,5 mm
-20 °C
16 mm
Photo at FR-M/FR-P packing.
PACKNING FR-P PG 9
Art:
0331.000.009 Copied
0,05
PG 9
Black
50
120 °C
14 mm
-20 °C
20 mm
Photo at FR-M/FR-P packing.
Sealing FR-P PG 11
Art:
0331.000.011 Copied
0,055
PG 11
Black
50
120 °C
18,5 mm
-20 °C
22,5 mm
Photo at FR-M/FR-P packing.
Sealing FR-P PG 13,5
Art:
0331.000.013 Copied
0,064
PG 13,5
Black
50
120 °C
19 mm
-20 °C
25 mm
Photo at FR-M/FR-P packing.
PACKNING FR-P PG 16
Art:
0331.000.016 Copied
0,066
PG 16
Black
50
120 °C
21 mm
-20 °C
27 mm
Photo at FR-M/FR-P packing.
Sealing FR-P PG 21
Art:
0331.000.021 Copied
0,144
PG 21
Black
25
120 °C
27 mm
-20 °C
34 mm
Photo at FR-M/FR-P packing.
Sealing FR-P PG 29
Art:
0331.000.029 Copied
0,24
PG 29
Black
25
120 °C
35 mm
-20 °C
43 mm
Photo at FR-M/FR-P packing.
Sealing FR-P PG 36
Art:
0331.000.036 Copied
0,32
PG 36
Black
25
120 °C
45 mm
-20 °C
54 mm
Photo at FR-M/FR-P packing.
FR-P PG48 flat-sealing
Art:
0331.000.048 Copied
0,6
PG 48
Black
10
120 °C
57,5 mm
-20 °C
68 mm
