EW 45 metal connector

EW 45 is a metal connector with 45° bend. Made of nickled brass. Waterproof construct, IP67 rated.

Available with metric or PG thread.

Suitable for LIQUID-TIGHT -EF, -HT, -OR, -UL and CSA conduits
Metric or PG thread

Selected variant

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Weight kg / 100 ± 10%	7,3
IP Class	IP67
Thread	M16x1,5
Hose dimension AD2	12,5x18
Pack Size	10
Material	Nickel-plated brass
Temperature range to	105 °C
Temperature range from	-45 °C

Downloads

EW 45.pdf

Measurements and connections

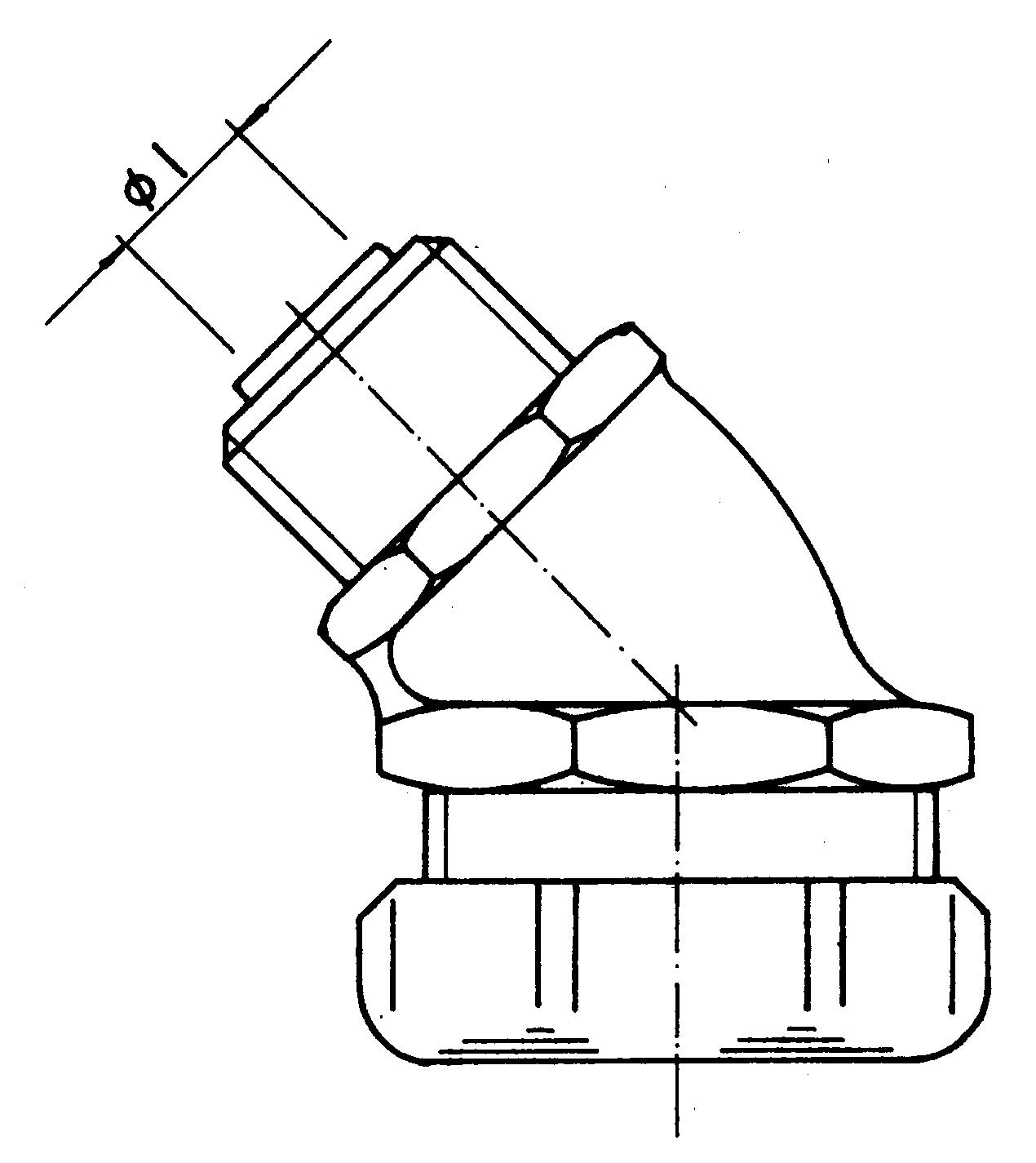

Technical illustrations

Product description

EW 45 is a metal connector with 45° bend. Made of nickled brass. Waterproof construct, IP67 rated.

Available with metric or PG thread.

Accessories

Related products

Articles	Weight kg / 100 ± 10%	IP Class	Thread	Hose dimension AD2	Pack Size	Material	Temperature range to	Temperature range from
EW 45-M AD3/8'' M16x1,5 connector 45° bend Art: 0609.000.016 Copied	7,3	IP67	M16x1,5	12,5x18	10	Nickel-plated brass	105 °C	-45 °C
EW 45-M AD3/8'' M20x1,5 connector 45° bend Art: 0609.000.020 Copied	7,4	IP67	M20x1,5	12,5x18	10	Nickel-plated brass	105 °C	-45 °C
EW 45-M AD1/2'' M20x1,5 connector 45° bend Art: 0609.000.021 Copied	10,5	IP67	M20x1,5	16x21	10	Nickel-plated brass	105 °C	-45 °C
EW 45-M AD3/4'' M25x1,5 connector 45° bend Art: 0609.000.025 Copied	13,6	IP67	M25x1,5	21x26,5	5	Nickel-plated brass	105 °C	-45 °C
EW 45-M AD1'' M32x1,5 connector 45° bend Art: 0609.000.032 Copied	26,5	IP67	M32x1,5	26,5x33	5	Nickel-plated brass	105 °C	-45 °C
EW 45-P AD3/8'' PG11 connector 45° bend Art: 0611.000.011 Copied	8,1	IP67	PG 11	12,5x18	10	Nickel-plated brass	105 °C	-45 °C
EW 45-P AD3/8'' PG13,5 connector 45° bend Art: 0611.000.013 Copied	8,1	IP67	PG 13,5	12,5x18	10	Nickel-plated brass	105 °C	-45 °C
EW 45-P AD1/2'' PG16 connector 45° bend Art: 0611.000.016 Copied	11,6	IP67	PG 16	16x21	10	Nickel-plated brass	105 °C	-45 °C
EW 45-P AD3/4'' PG21 connector 45° bend Art: 0611.000.021 Copied	15,3	IP67	PG 21	21x26,5	5	Nickel-plated brass	105 °C	-45 °C
EW 45-P AD1'' PG29 connector 45° bend Art: 0611.000.029 Copied	31,5	IP67	PG 29	26,5x33	5	Nickel-plated brass	105 °C	-45 °C
EW 45-P AD1 1/4'' PG36 connector 45° bend Art: 0611.000.036 Copied	53,2	IP67	PG 36	35,5x42	2	Nickel-plated brass	105 °C	-45 °C
EW 45-P AD2'' PG48 connector 45° bend Art: 0611.000.048 Copied	132	IP67	PG 48	51,5x60	2	Nickel-plated brass	105 °C	-45 °C
