ROHRflex® Multi PA6/PA12 protective conduit

ROHRflex MULTI is spesifically suitable for larger cable bundles. The conduit is halogen-free and resistant against UV-exposure. Both internally and externally corrugated.



Supplied in full packages. Also available in grey color.

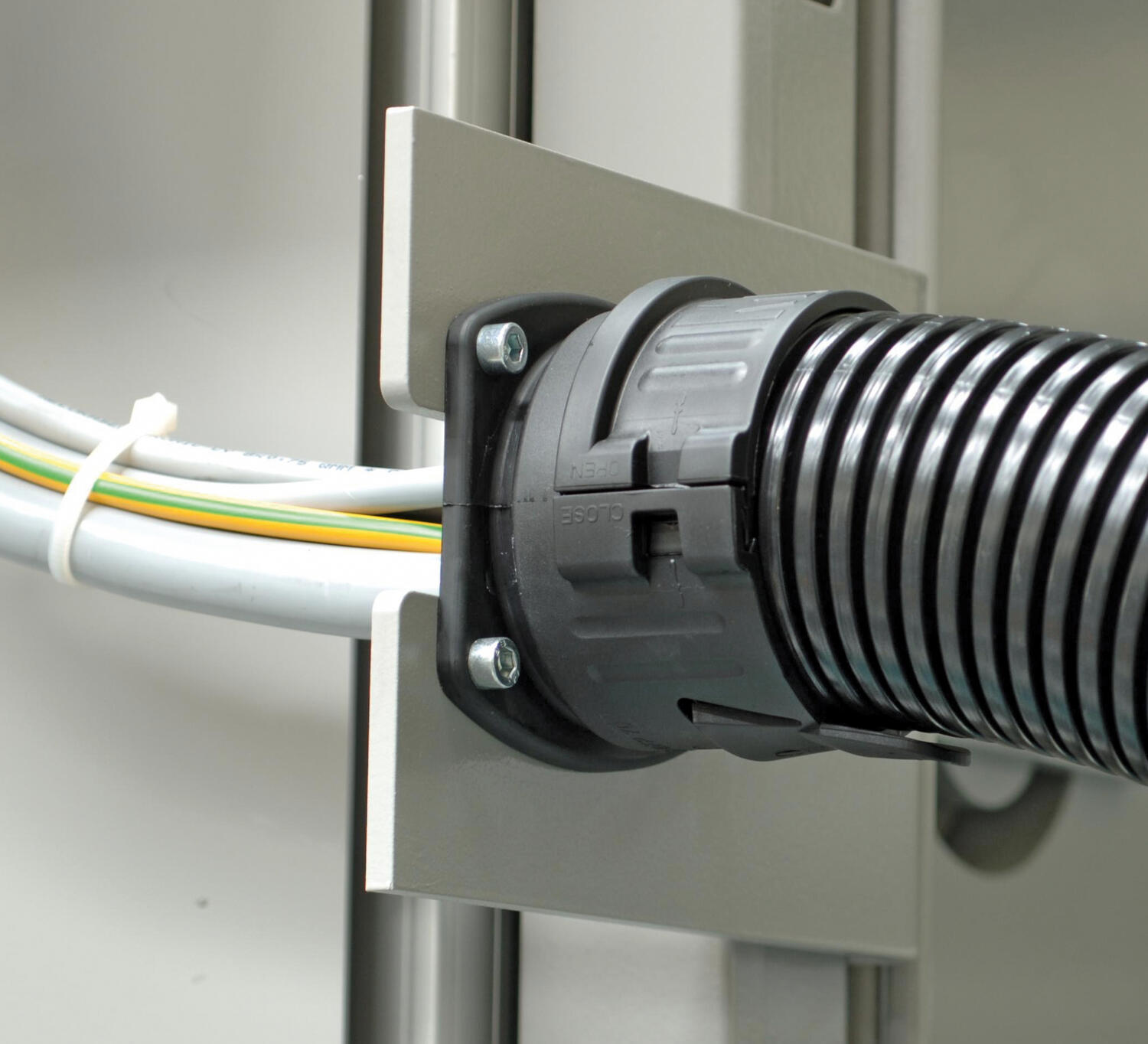

270470_812.tif







Read more
  • Conduit for cable bundles
  • Oil resistant polyamide
  • Inner diameter 56…95mm

Selected variant

FLEXA.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Hose Dimension AD 56
Dimensional Inner 56.3 mm
Dimensional Outer 67.2 mm
Pack size 10 m
Approvals CSA US, RU
Color Black
Bending Radius -10% Static 130
Bending Radius -10% Dynamic 270
Fire Rating UL94-HB
Temperature range from -40 °C
Temperature range to 120 °C
Weight / M 0.46
Material Polyamide
Type ROHRFLEX -MULTI

Downloads

Technical illustrations

Product description

ROHRflex MULTI is spesifically suitable for larger cable bundles. The conduit is halogen-free and resistant against UV-exposure. Both internally and externally corrugated.



Supplied in full packages. Also available in grey color.



270470_812.tif







Accessories

Articles Hose Dimension AD Dimensional Inner Dimensional Outer Pack size Approvals Color Bending Radius -10% Static Bending Radius -10% Dynamic Fire Rating Temperature range from Temperature range to Weight / M Material Type

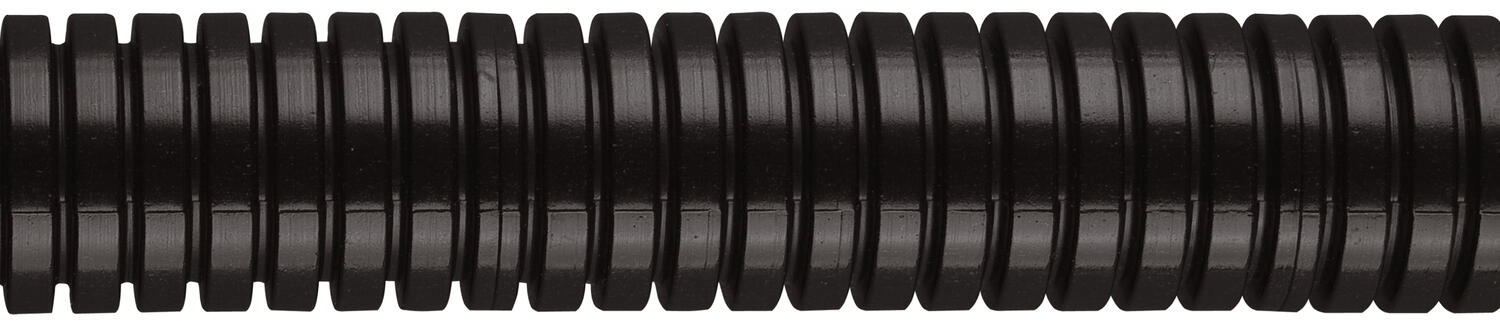

270473_812.tif
Plastic tube.PA-6 MULTI AD 56 black
Art:
0206.202.056 Copied
56
56.3 mm
67.2 mm
10 m
CSA US, RU
Black
130
270
UL94-HB
-40 °C
120 °C
0.46
Polyamide
ROHRFLEX -MULTI
270473_812.tif
Plastic tube.PA-6 MULTI AD 70 black
Art:
0206.202.070 Copied
70
66.5 mm
79.2 mm
10 m
CSA US, RU
Black
170
350
UL94-HB
-40 °C
120 °C
0.5
Polyamide
ROHRFLEX -MULTI
270473_812.tif
Plastic tube.PA-6 MULTI AD 95 black
Art:
0206.202.095 Copied
95
91 mm
106 mm
10 m
CSA US, RU
Black
225
450
UL94-HB
-40 °C
120 °C
0.95
Polyamide
ROHRFLEX -MULTI
270473_812.tif
ROHRflex Multi PA 12 AD56 black 56,3x67,2 mm
Art:
0207.202.056 Copied
56
56.3 mm
67.2 mm
10 m
CSA US, RU
Black
130
270
UL94-HB
-50 °C
100 °C
0.4
Polyamide
ROHRFLEX -MULTI
270473_812.tif
ROHRflex MULTI PA12 DN70 66x79
Art:
0207.202.070 Copied
70
66.5 mm
79.2 mm
10 m
CSA US, RU
Black
170
350
UL94-HB
-50 °C
100 °C
0.46
Polyamide
ROHRFLEX -MULTI
270473_812.tif
ROHRflex MULTI PA 12 AD95 black 91x106 mm
Art:
0207.202.095 Copied
95
91 mm
106 mm
10 m
CSA US, RU
Black
225
450
UL94-HB
-50 °C
100 °C
0.85
Polyamide
ROHRFLEX -MULTI
