ROHRflex® PA 12 protective conduit 0236.202.006 | OEM Automatic

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Fire Rating	UL94-V2
Hose Dimension AD	10
Color	Black
Bending Radius -10% Dynamic	35
Material	Polyamide
Weight / M	0,2
Temperature range to	100 °C
Bending Radius -10% Static	13

Dimensional Inner	6,5 mm
Type	ROHRFLEX -PA12
Temperature range from	-50 °C
Dimensional Outer	10 mm
Approvals	CE, VDE
Pack size	50 m

Downloads

Measurements and connections

Product description

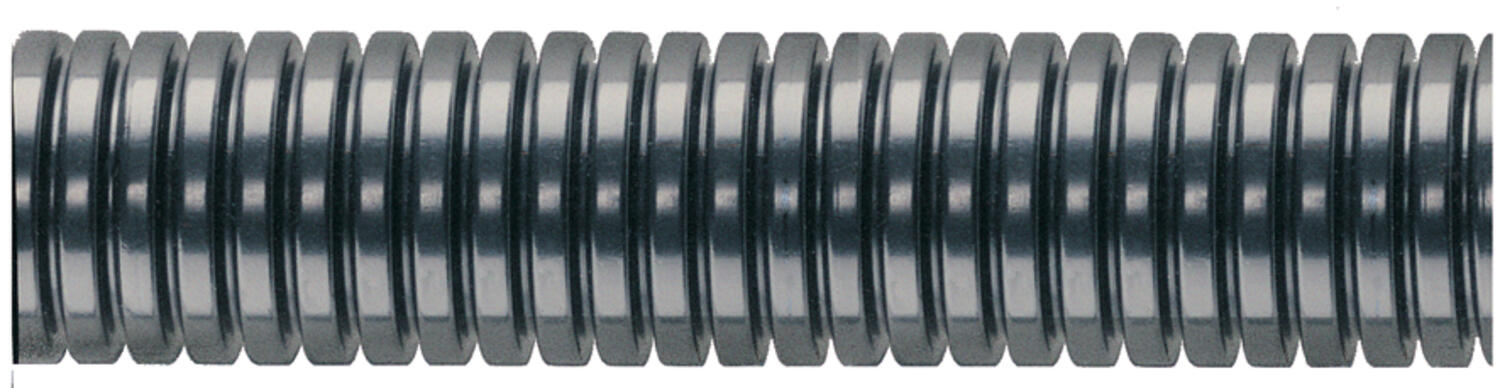

ROHRflex PA 12 provides high flexibility needed in applications such as robot installations in- and outdoors. Both internally and externally corrugated. Good oil resistance.

264596_566.tif

Supplied in full packages, also available in orange and grey colors.

Accessories

Related products

Articles	Fire Rating	Hose Dimension AD	Color	Bending Radius -10% Dynamic	Material	Weight / M	Temperature range to	Bending Radius -10% Static	Dimensional Inner	Type	Temperature range from	Dimensional Outer	Approvals	Pack size
Plastic tube-PA12 AD 10,0 Black Art: 0236.202.006 Copied	UL94-V2	10	Black	35	Polyamide	0,2	100 °C	13	6,5 mm	ROHRFLEX -PA12	-50 °C	10 mm	CE, VDE	50 m
Plastic tube-PA12 AD 13,0 Black Art: 0236.202.010 Copied	UL94-V2	13	Black	45	Polyamide	0,29	100 °C	15	10 mm	ROHRFLEX -PA12	-50 °C	13 mm	CE, DB, VDE	50 m
Plastic tube-PA12 AD 15,8 Black Art: 0236.202.012 Copied	UL94-V2	15,8	Black	55	Polyamide	0,35	100 °C	22	12 mm	ROHRFLEX -PA12	-50 °C	15,8 mm	CE, DB, VDE	50 m
ROHRflex PA 12, black OD 18.5, 14,3x18,5 Art: 0236.202.014 Copied	UL94-V2	18,5	Black	65	Polyamide	0,041	100 °C	27	14,3 mm	ROHRFLEX -PA12	-50 °C	18,5 mm	CE, DB, VDE	50 m
ROHRflex PA 12 black AD21.2, 16,5 x 21,2 Art: 0236.202.016 Copied	UL94-V2	21,2	Black	75	Polyamide	0,06	100 °C	35	16,5 mm	ROHRFLEX -PA12	-50 °C	21,2 mm	CE, DB, VDE	50 m
ROHRflex PA12 AD28,5 Black 23x28,5mm Art: 0236.202.023 Copied	UL94-V2	28,5	Black	100	Polyamide	0,1	100 °C	45	23 mm	ROHRFLEX -PA12	-50 °C	28,5 mm	CE, DB, VDE	50 m
Plastic tube-PA12 AD 34,5 Black Art: 0236.202.029 Copied	UL94-V2	34,5	Black	120	Polyamide	0,127	100 °C	50	29 mm	ROHRFLEX -PA12	-50 °C	34,5 mm	CE, DB, VDE	25 m
ROHRflex PA 12, black, OD 42.5, 36x 42,5 Art: 0236.202.036 Copied	UL94-V2	42,5	Black	150	Polyamide	0,158	100 °C	80	36 mm	ROHRFLEX -PA12	-50 °C	42,5 mm	CE, DB, VDE	25 m
Plastic tube-PA12 AD 54,5 Black Art: 0236.202.048 Copied	UL94-V2	54,5	Black	190	Polyamide	0,239	100 °C	100	48 mm	ROHRFLEX -PA12	-50 °C	54,5 mm	CE, DB, VDE	25 m

Selected variant

Select a variant in the list
