Molex - mPm DIN Form B Industrial / DIN Form B
IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the PG9 and PG11 internal thread connector cable range. Conforms to EN 175301-803.

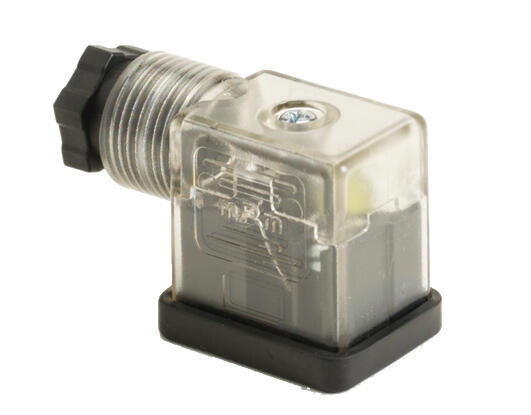

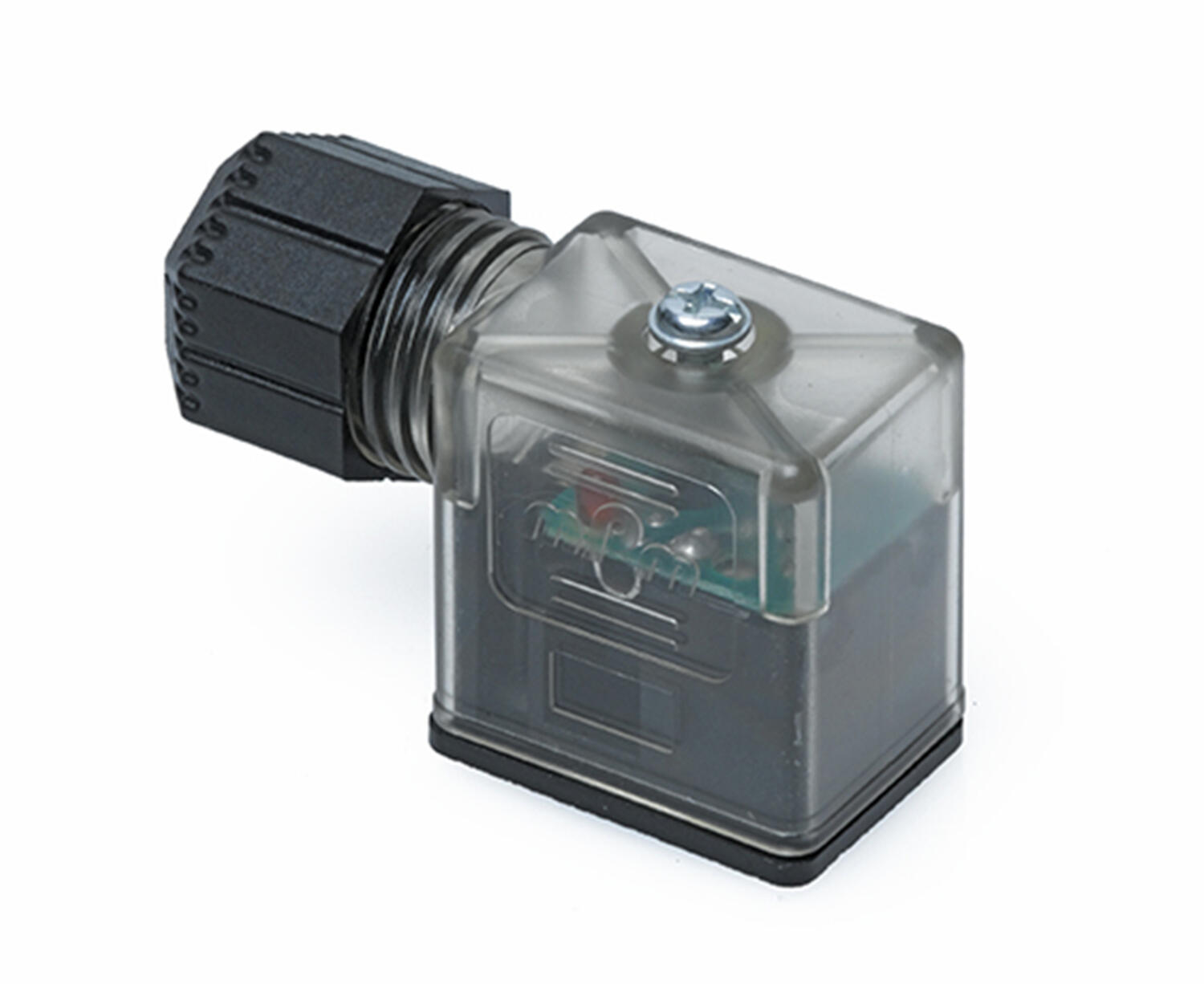

- With or without LED and transient protection
- Fibreglass-reinforced housing

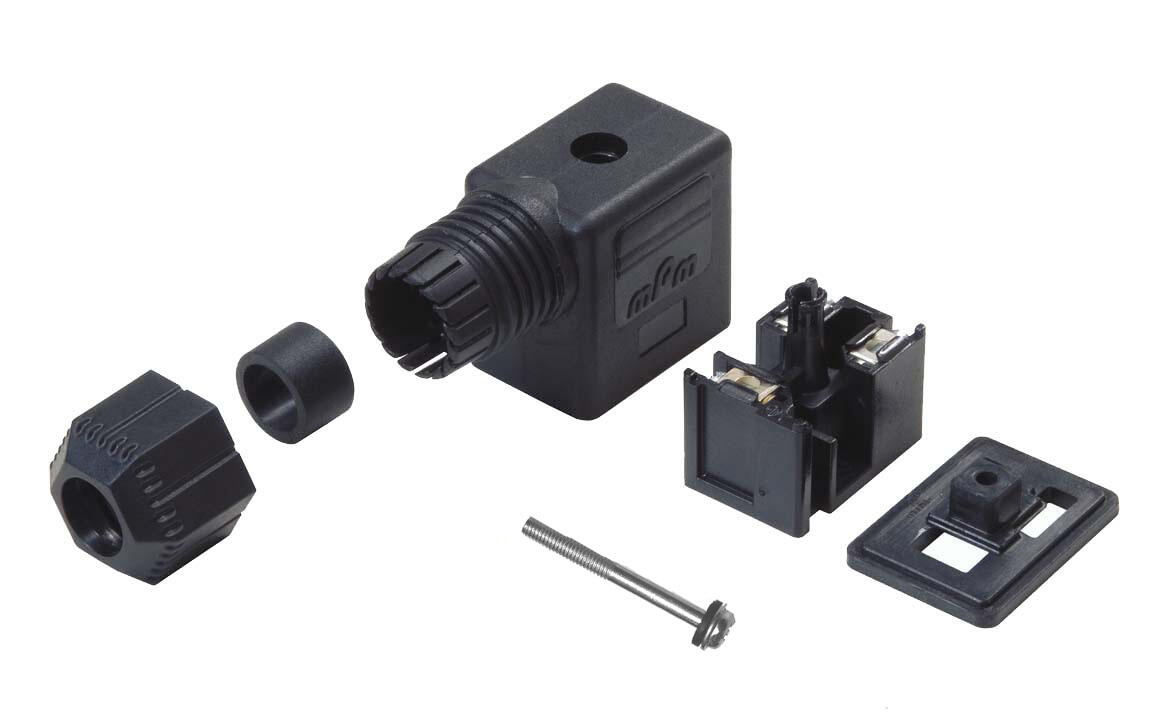

- Turnable insert

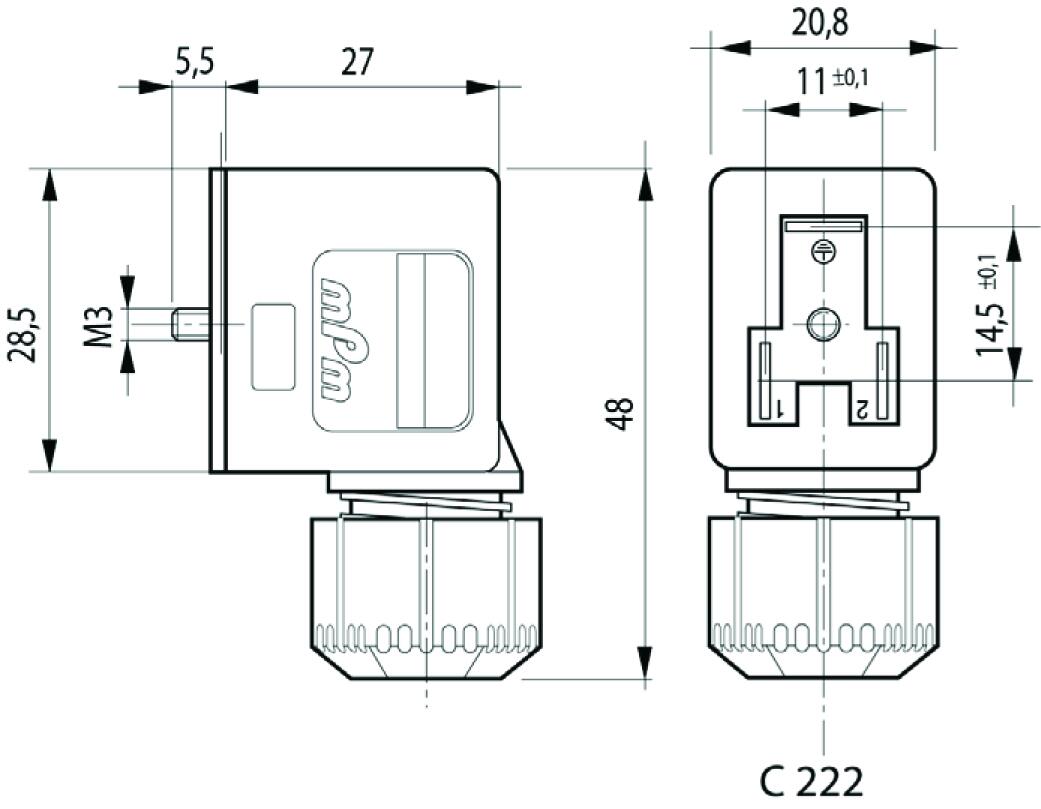

- 11 mm or 10 mm connector distance EN175301-803 (DIN43650-B Industrial/-B)
Selected variant
Specifications
| Circuit | No circuit |
|---|---|
| IP Class | IP67 |
| Cross-Section Max | 1.5 mm² |
| Cable Diameter Max | 9 mm |
| Cable Diameter Min | 4 mm |
| Color House | Black |
| Central Material | Polyamide |
| LED indicator | No |
| Temperature range to | 90 °C |
| Temperature range from | -40 °C |
|---|---|
| Current max | 16 A |
| Rated voltage | 250 V AC/300 V DC |
| Packing Materials | NBR |
| Colour LED | No LED |
| Screw and Gasket | Integrated NBR Gasket & IP67 screw |
| Manufacturer Part No | 1212020001 |
Product description
IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the PG9 and PG11 internal thread connector cable range. Conforms to EN 175301-803.
