STEGO

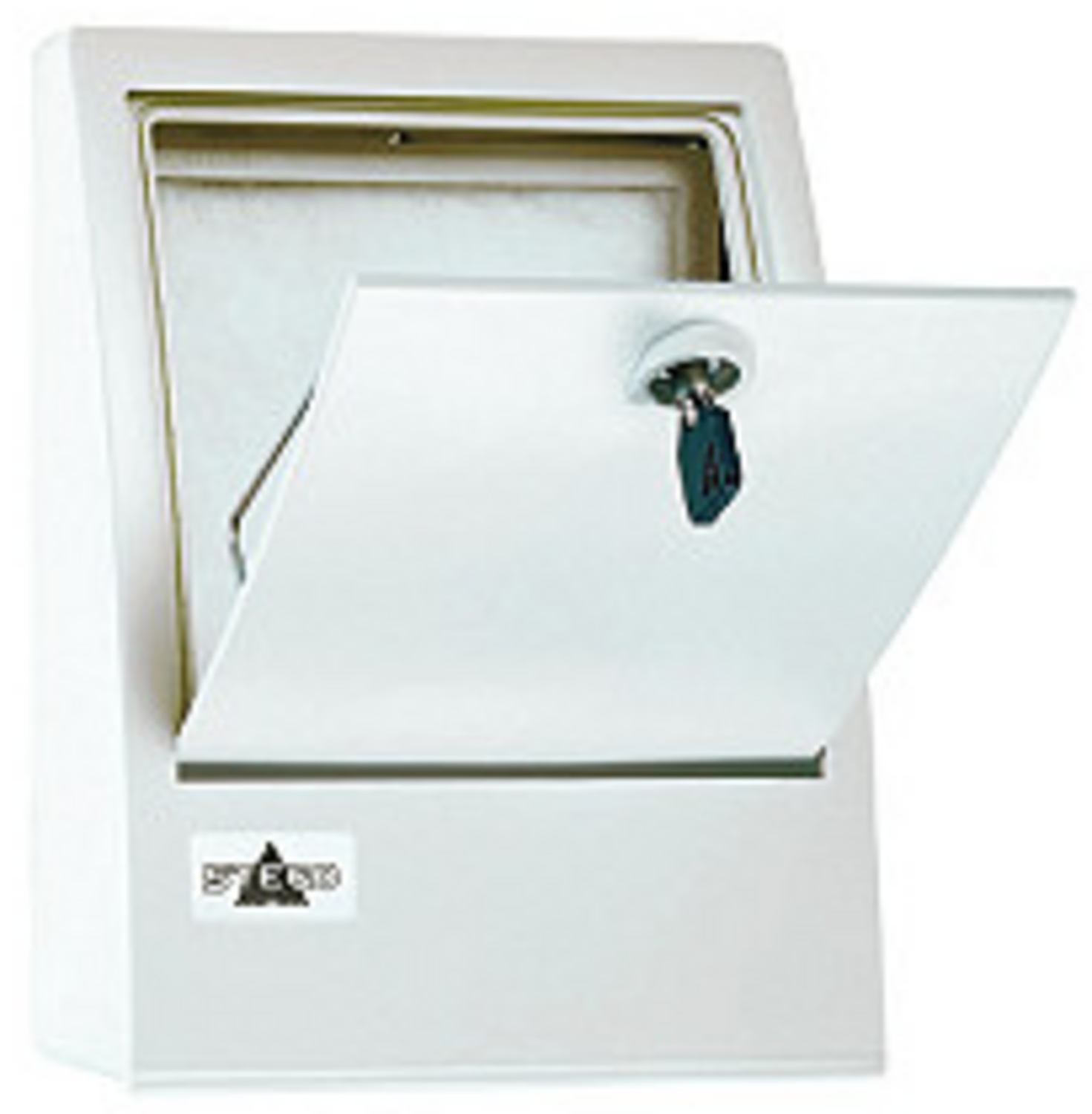

Lockable plastic cover
MA 086
The lockable door on the ventilated hood makes the equipment easily accessible while providing good protection against unauthorized persons. The cover is sealed against the wall with a rubber gasket and it is screwed firmly from the inside.

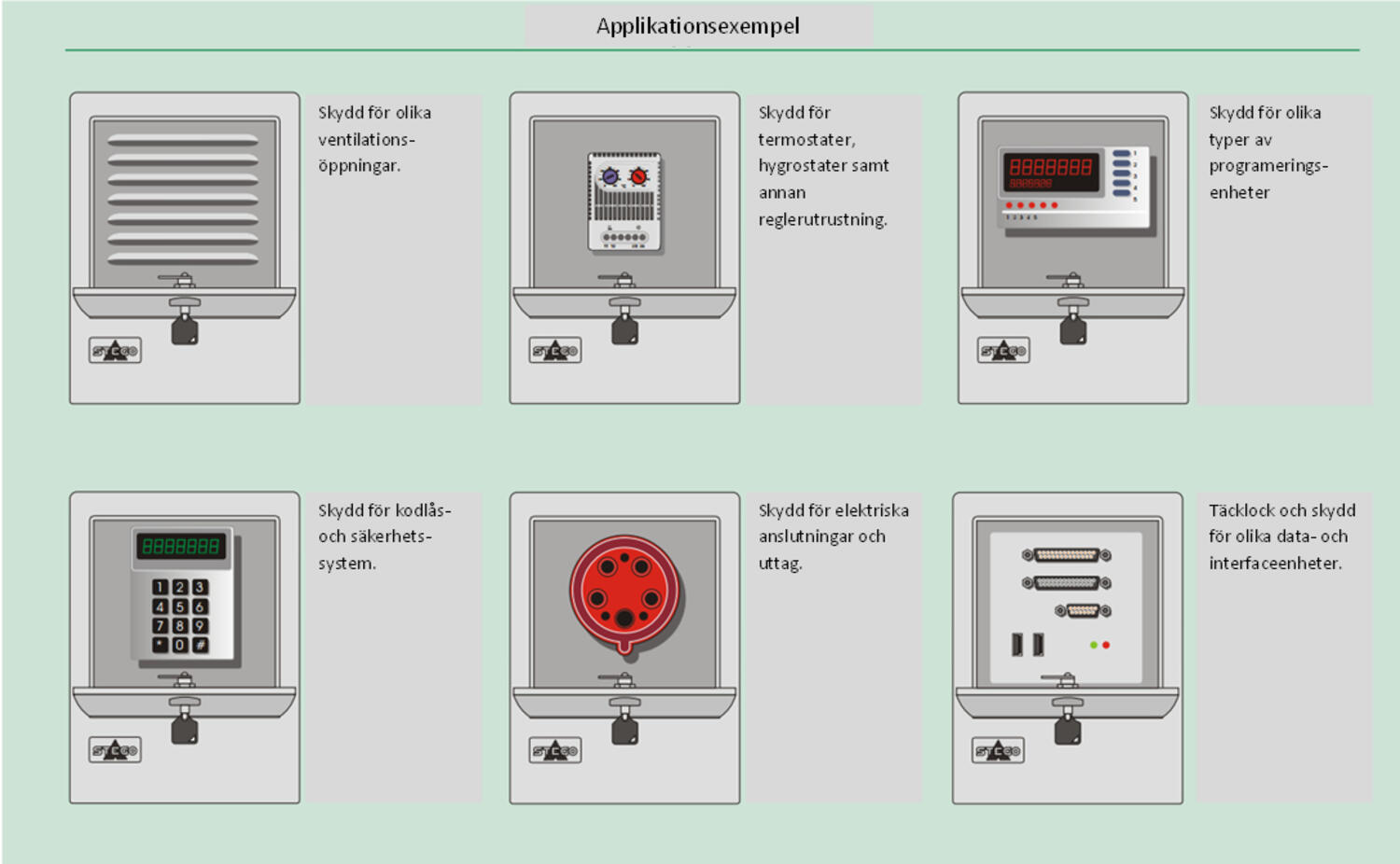

- Many applications
- Weatherproof
- Resistant to UV
Selected variant
Specifications
| Approvals | UV - UL746C (f1) |
|---|---|
| Color | Light Grey |

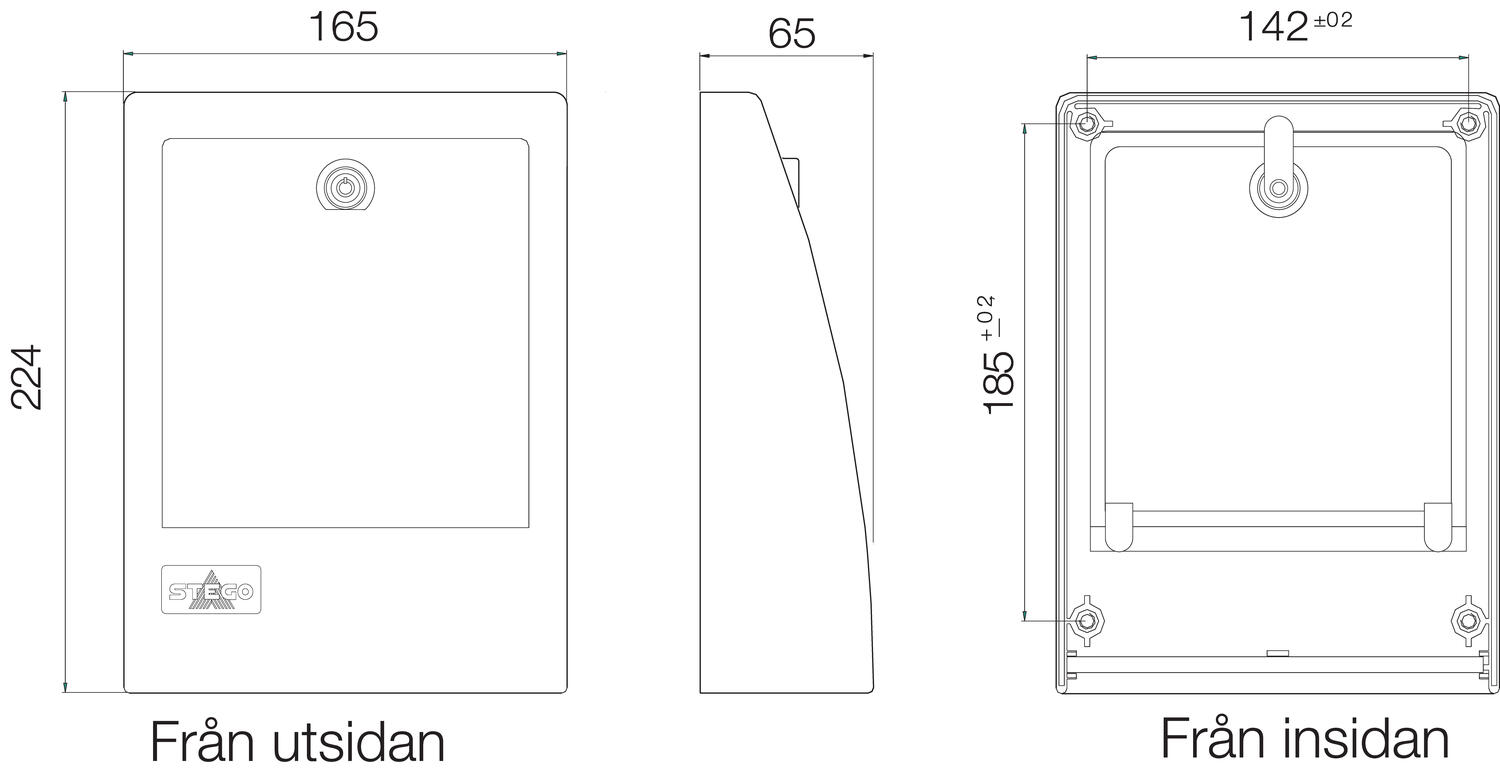

| Depth | 65 mm |
| Flamklass | UL94-HB |
| Height | 224 mm |
| IP Class | IP20 |
| Material Plastic Housing | Plastic |
| Operational Temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Weight | 0.4 kg |
| Width | 165 mm |
Product description
The lockable door on the ventilated hood makes the equipment easily accessible while providing good protection against unauthorized persons. The cover is sealed against the wall with a rubber gasket and it is screwed firmly from the inside.
