STEGO

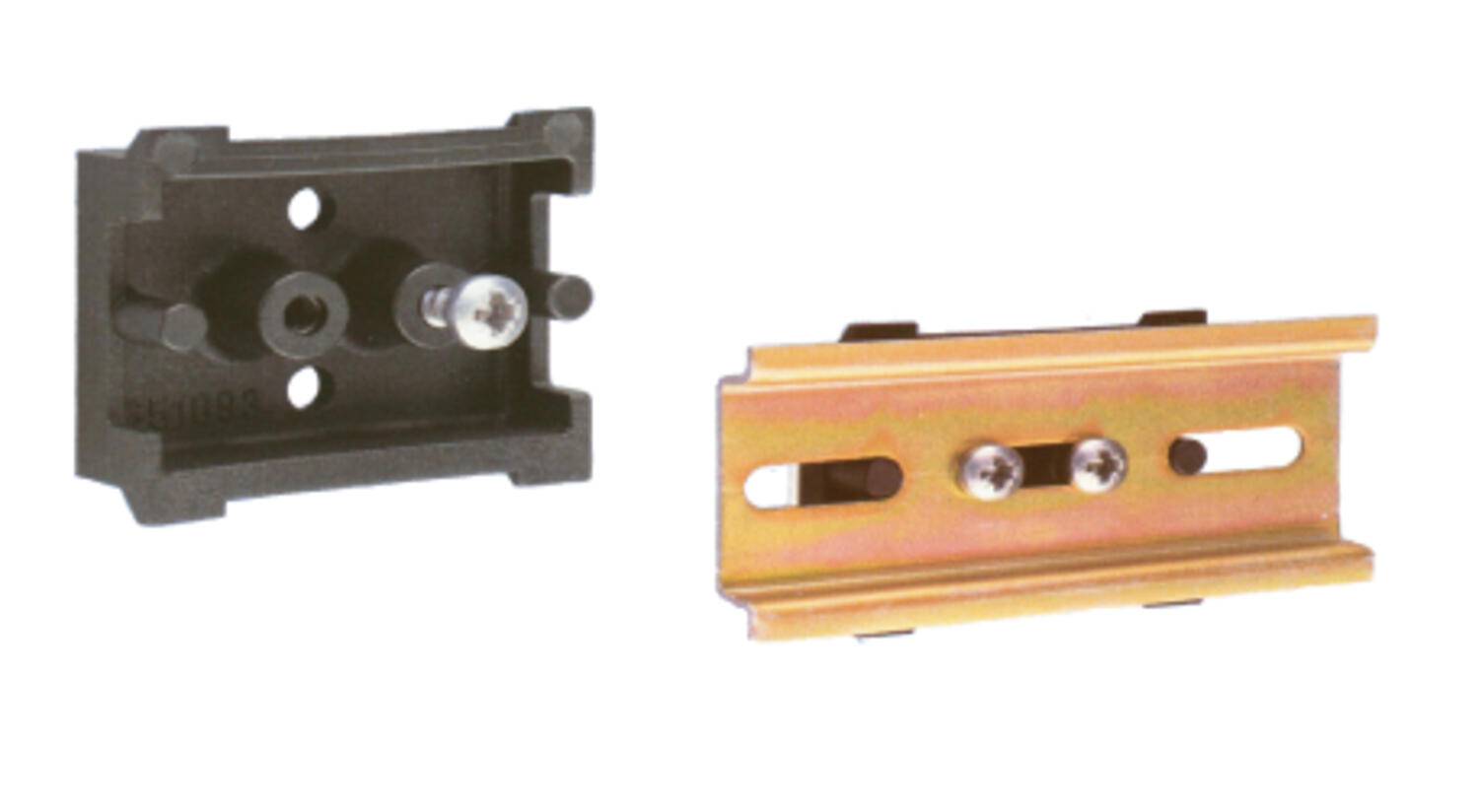

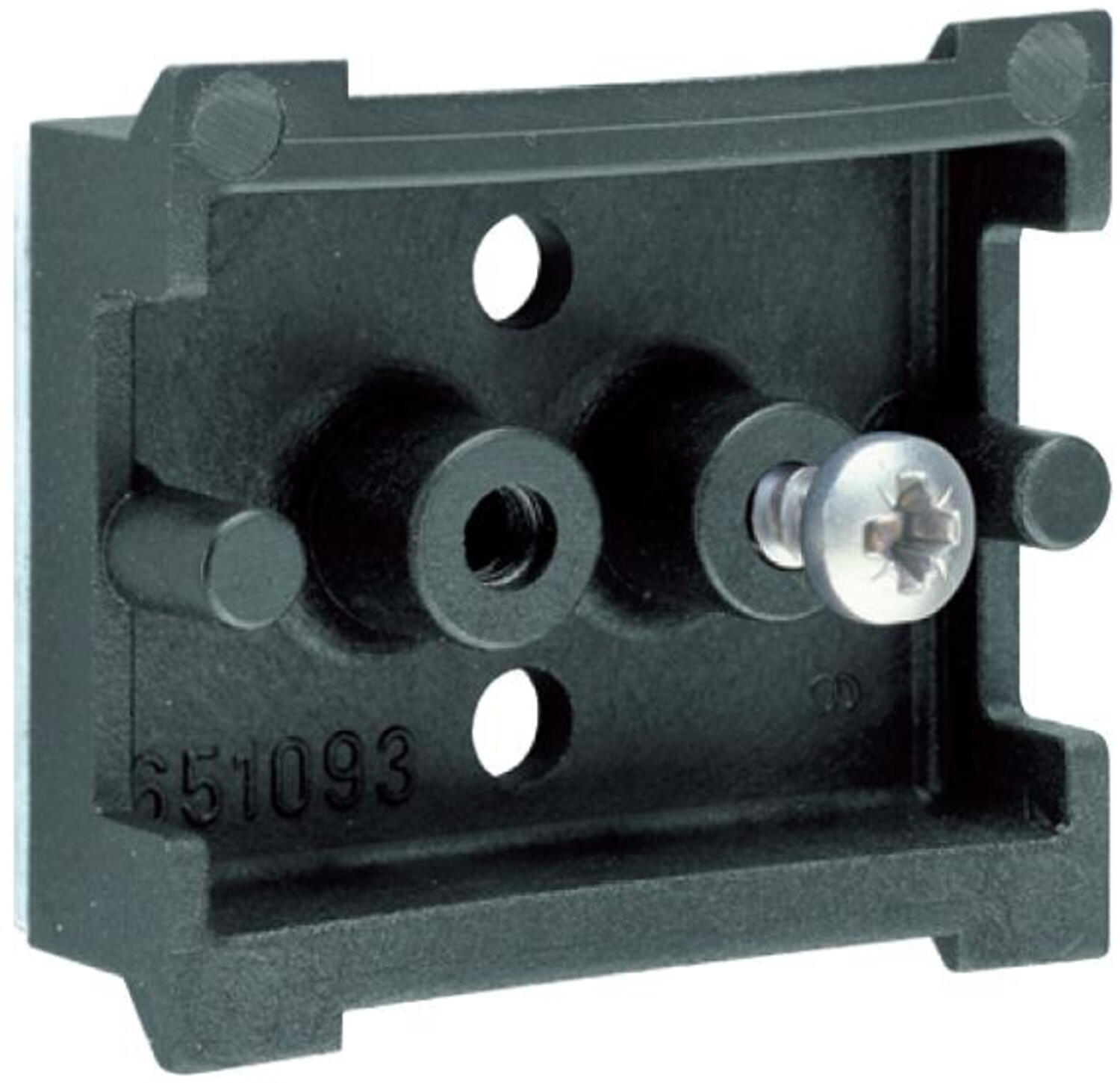

Universal bracket Stegofix
SF O95
STEGOFIX makes installation of smaller components in cabinets significantly quicker, simpler and cheaper than before. Changes and additions made afterwards can be easily conducted even in tight spaces. Because there are pre-drilled holes in STEGOFIX, mounting of DIN rails is much more convenient.
- Direct fixing of small appliances and DIN rail
- Simple to mount

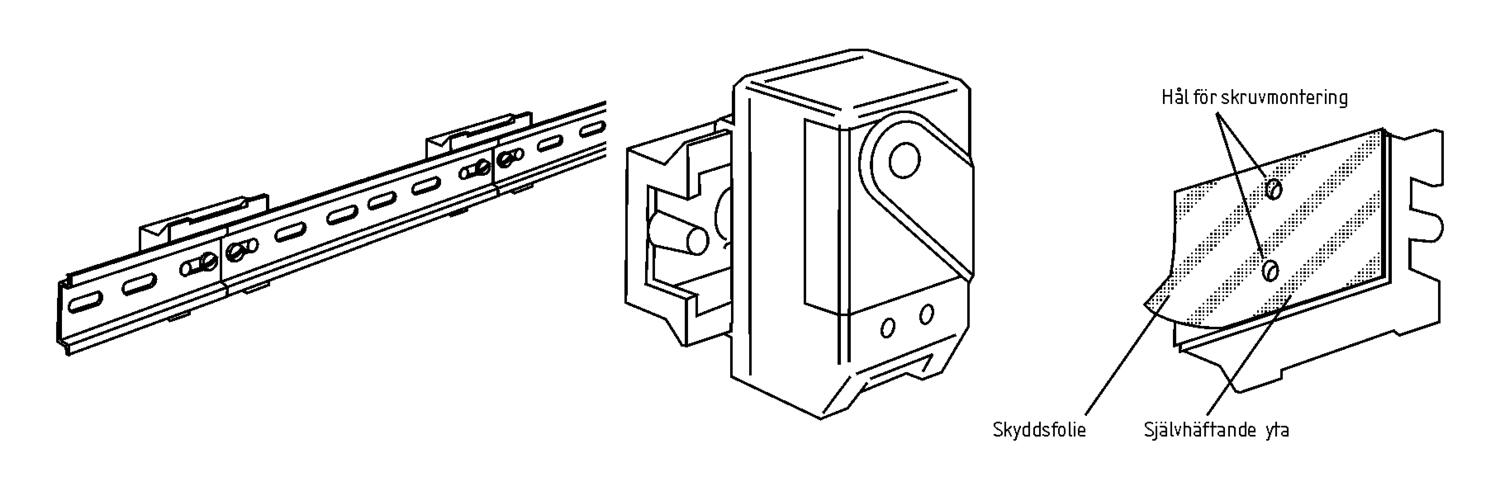

- Self-adhesive or screw mountable
- -30 °C to +55 °C
Selected variant
Specifications
| Approvals | EAC, RoHS |
|---|---|
| Color | Black |

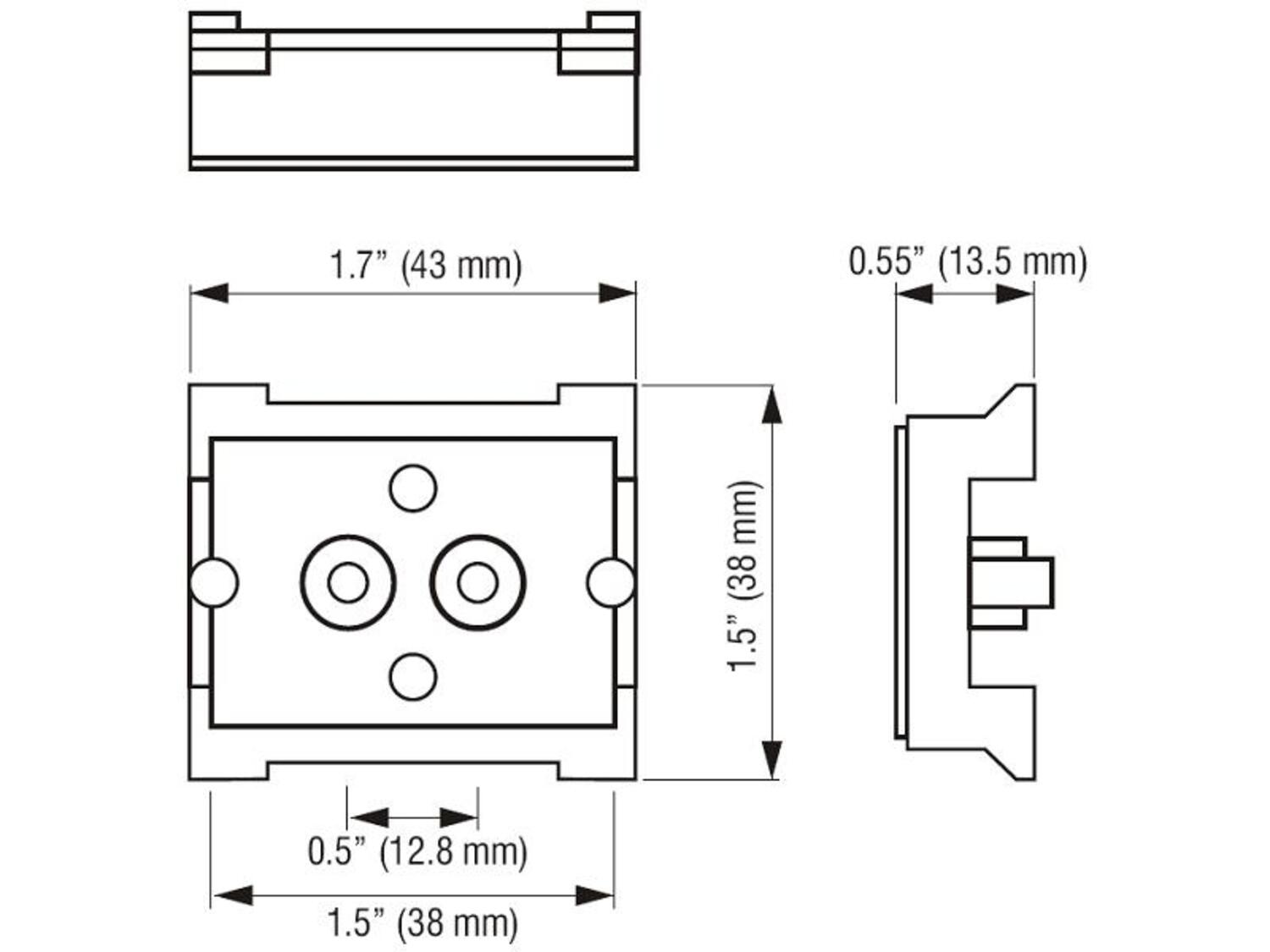

| Depth | 14 mm |
| Flamklass | UL94-V0 |
| Height | 38 mm |
| Material Plastic Housing | Polyamide |
| Operational Temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Width | 43 mm |
Product description
STEGOFIX makes installation of smaller components in cabinets significantly quicker, simpler and cheaper than before. Changes and additions made afterwards can be easily conducted even in tight spaces. Because there are pre-drilled holes in STEGOFIX, mounting of DIN rails is much more convenient.
