STEGO
The heat source in this Stego element consists of a PTC element – a semi-conductor that adapts its output to the ambient temperature.
The PTC element has a high starting current and provides full output almost immediately.
The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element.
The heating element is best installed in small enclosures so as avoid condensation or that the temperature falls beneath the minimum. These heaters are designed for permanent operation.
Approvals | CE, EAC, Gost R, RoHS, UL E150057, VDE |
---|---|
Cable length | 300 mm |

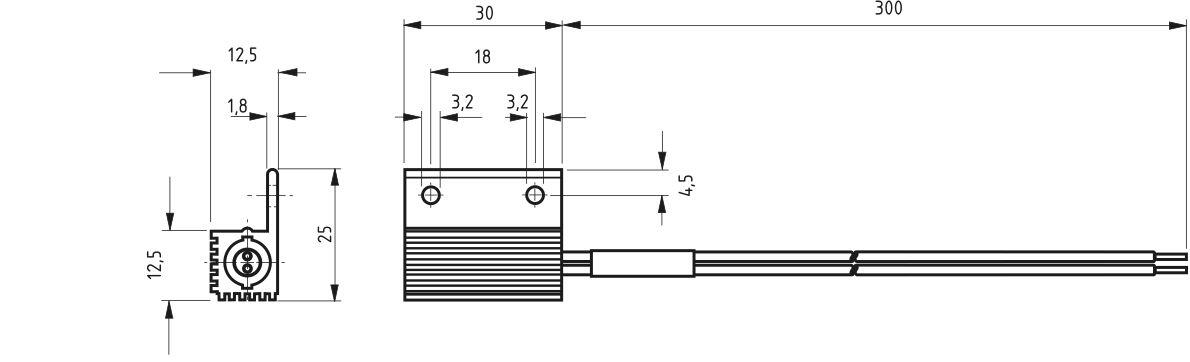

Depth | 12.5 mm |
Heat Output | 8 W |
Heater | Anodized aluminum |
Height | 30 mm |
Humidity Storage | <90 % RH |
IP Class | IP54 |
Nominal voltage | 24 V AC/DC |
Operating Humidity | < 90% RH |
Operational Temperature | -45°C ... +70°C |
---|---|
Pre fuse (slow) | 2 A |
Protection Class | II (double insulated) |
Starting Current Max | 4 A |
Storage temperature | -45°C ... +70°C |
Weight | 0.02 kg |
Width | 25 mm |
Voltage max | 36 V ac/dc |
Voltage min | 12 V ac/dc |
The heat source in this Stego element consists of a PTC element – a semi-conductor that adapts its output to the ambient temperature.
The PTC element has a high starting current and provides full output almost immediately.
The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element.
The heating element is best installed in small enclosures so as avoid condensation or that the temperature falls beneath the minimum. These heaters are designed for permanent operation.
Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.
The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success.
Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Approvals | Cable length | Heat Output | Height | Nominal voltage | Pre fuse (slow) | Starting Current Max | Weight | Voltage max | Voltage min | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
RC 016 8W Heater, 150°C, 12-36V ac/dc
Art:
01602.0-03
Copied
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
300 mm
|
8 W
|
30 mm
|
24 V AC/DC
|
2 A
|
4 A
|
0.02 kg
|
36 V ac/dc
|
12 V ac/dc
|
| |
![]()
RC 016 13W Heater, 170°C, 12-36V ac/dc
Art:
01610.0-01
Copied
|
CE, EAC, Gost R, RoHS, VDE
|
340 mm
|
13 W
|
60 mm
|
24 V AC/DC
|
4 A
|
11 A
|
0.04 kg
|
36 V ac/dc
|
12 V ac/dc
|
| |
![]()
RC 016 8W Heater, 150°C, 110-250V ac/dc
Art:
01602.0-00
Copied
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
300 mm
|
8 W
|
30 mm
|
120-240 V AC/DC
|
2 A
|
2 A
|
0.02 kg
|
265 V ac/dc
|
110 V ac/dc
|
| |
![]()
RC 016 10W Heater, 155°C, 110-250V ac/dc
Art:
01609.0-00
Copied
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
340 mm
|
10 W
|
50 mm
|
120-240 V AC/DC
|
4 A
|
2.5 A
|
0.03 kg
|
265 V ac/dc
|
110 V ac/dc
|
| |
![]()
RC 016 13W Heater, 170°C, 110-250V ac/dc
Art:
01610.0-00
Copied
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
340 mm
|
13 W
|
60 mm
|
120-240 V AC/DC
|
4 A
|
3 A
|
0.04 kg
|
265 V ac/dc
|
110 V ac/dc
|
|
Select a variant in the list
