STEGO
Heater 10-20W - CSK 060
CSK
A small, powerful 20 W heater. It is easily installed thanks to the mounting clips for DIN rails that are fitted on the back of the heaters.
Because the heater is dual isolated with a plastic casing, the side surfaces' temperature never exceeds 85 °C, so the heater can be mounted relatively close to other components in the same installation, and there is no risk for fire damage.
The dual isolation also means that the heater does not need to be earthed.
The heat source consists of a PTC element, which provides a long and reliable lifetime even if the heater is in constant operation.
- Dual isolated (does not require earthing)
- Innovative design and small size
- Low element surface temperature
- Quick installation, bracket for DIN rail
Selected variant
Specifications
| Heat Output | 10 W |
|---|---|
| Nominal voltage | 120-240 V AC/DC |
| Voltage max | 265 V ac/dc |
| Voltage min | 110 V ac/dc |
| Heater | Plastic |
| Starting Current Max | 1 A |
| Pre fuse (slow) | 2 A |

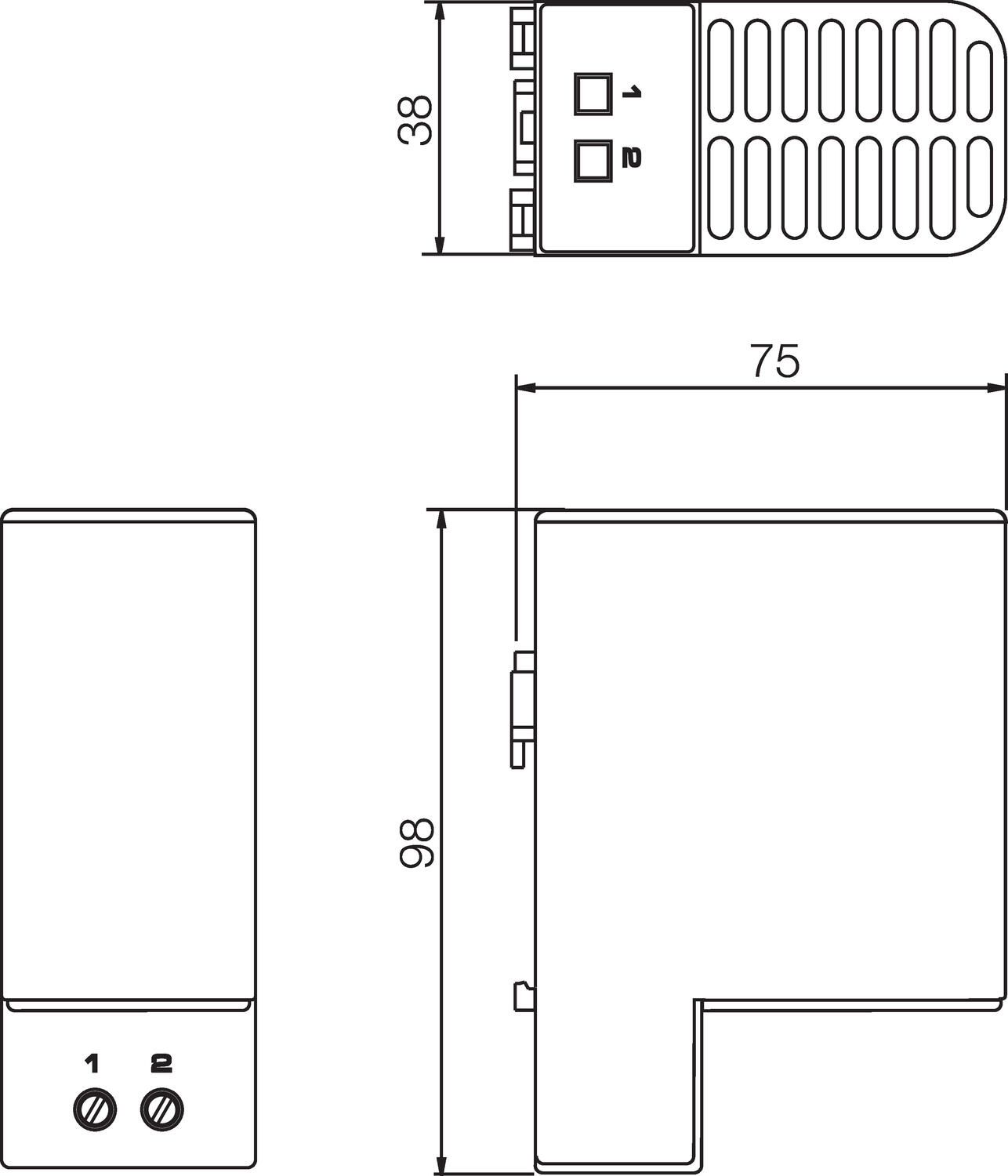

| Height | 98 mm |
| Width | 38 mm |
| Depth | 75 mm |
| Weight | 0.2 kg |
|---|---|
| Protection Class | II (double insulated) |
| IP Class | IP20 |
| Approvals | CE, EAC, Gost R, RoHS, UL E150057, VDE |
| Storage temperature | -45°C ... +70°C |
| Operating Humidity | < 90% RH |
| Humidity Storage | <90% RH |
| Operational Temperature | -45°C ... +70°C |
Product description
A small, powerful 20 W heater. It is easily installed thanks to the mounting clips for DIN rails that are fitted on the back of the heaters.
Because the heater is dual isolated with a plastic casing, the side surfaces' temperature never exceeds 85 °C, so the heater can be mounted relatively close to other components in the same installation, and there is no risk for fire damage.
The dual isolation also means that the heater does not need to be earthed.
The heat source consists of a PTC element, which provides a long and reliable lifetime even if the heater is in constant operation.
