STEGO

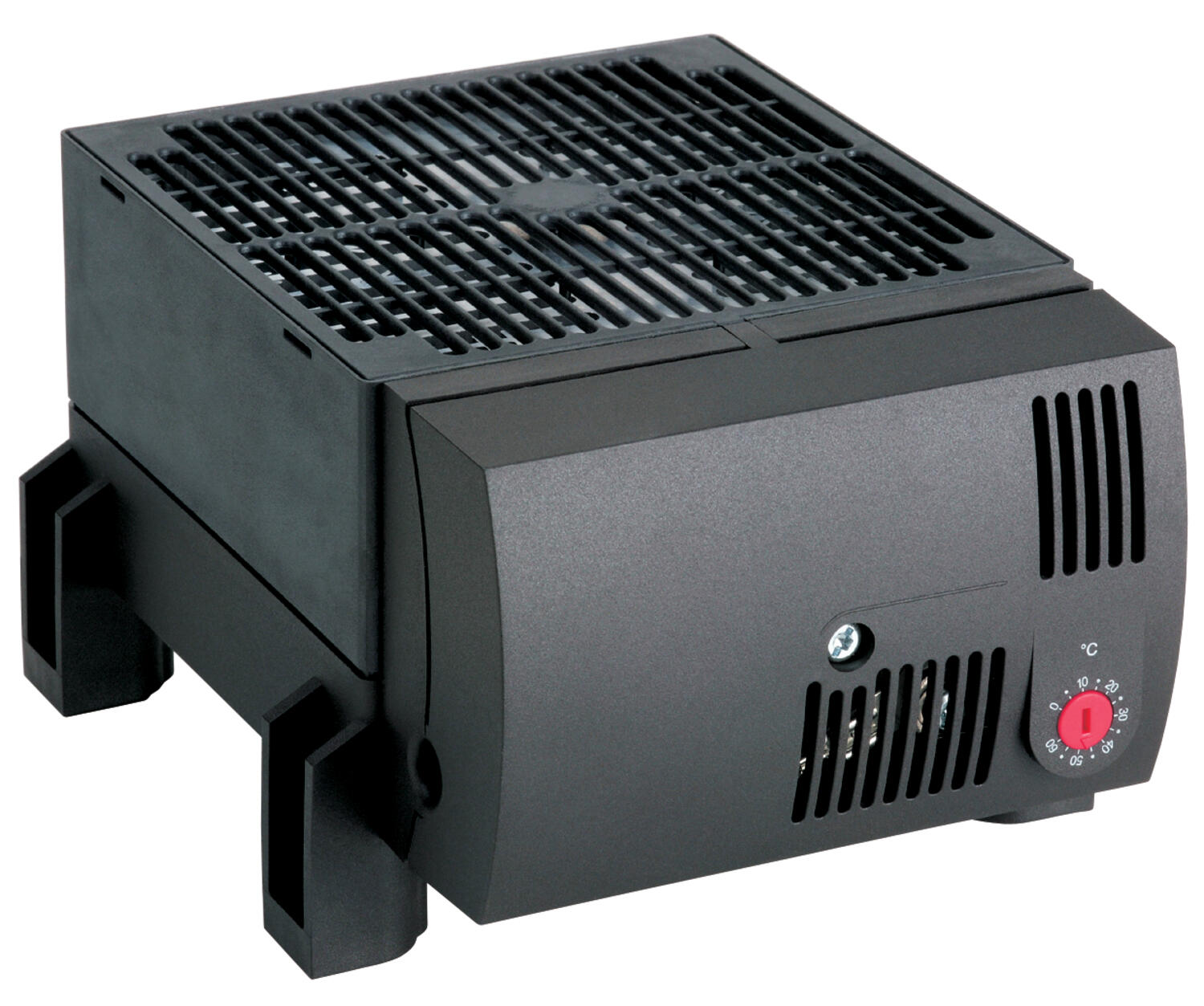

Fan Heater 950 W CR030
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature within the enclosure.
The plastic housing provides double insulation and acts as protection against contact the heating element. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control.
The CR 030 was designed as a stationary unit for the bottom of the enclosure.
For wall fixing the fan heater CR 130 is recommended
- Compact design
- Dual enclosure
- Integrated thermostat or hygrostat
- Free standing
Selected variant
Specifications
| Air Capacity | 160 m³/h |
|---|---|
| Approvals | CE, cULus, Gost R, RoHS, UL, UL E234324, VDE |
| Control range temperature from | 0 °C |
| Control range temperature to | 60 °C |

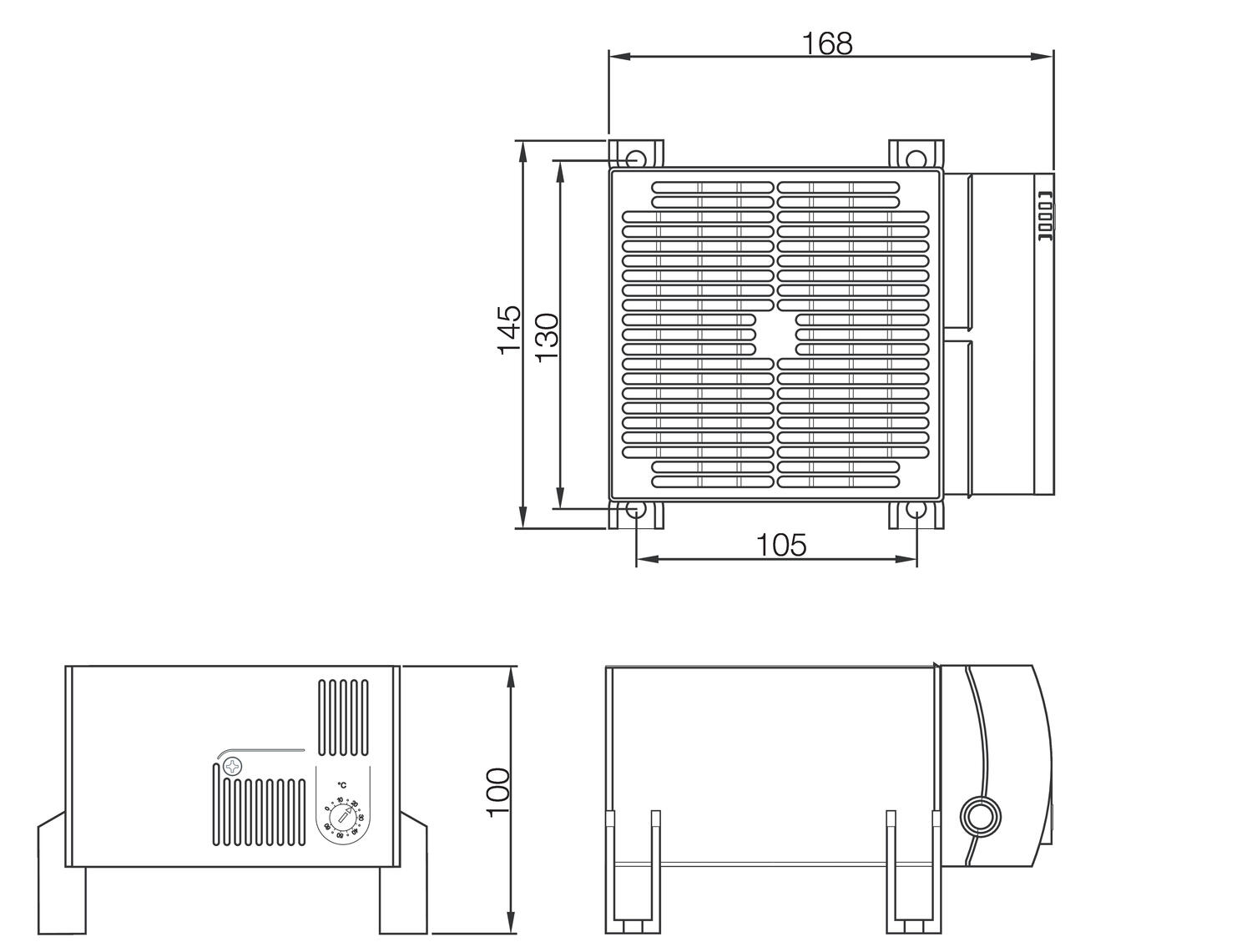

| Depth | 168 mm |
| Drag Torque For Cable | 0.8 |
| Flamklass | UL94-V0 |
| Frequenze | 50/60 Hz |
| Heat Output | 950 W |
| Heater | Aluminium, Plastic |
| Height | 100 mm |
| Humidity Storage | <90% RH |
| IP Class | IP20 |
| Life span | 50 000 h @ +25°C |
| Material of body | Aluminium |
|---|---|
| Mounting | Screw fixing |
| Nominal voltage | 230 V AC |
| Number of fans | 1 |
| Operating Humidity | < 90% RH |
| Operational Temperature | -45°C ... +70°C |
| Pre fuse (slow) | 6.3 A |
| Protection Class | II (double insulated) |
| Storage temperature | -45°C ... +70°C |
| Weight | 1.4 kg |
| Width | 145 mm |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
Product description
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature within the enclosure.
The plastic housing provides double insulation and acts as protection against contact the heating element. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control.
The CR 030 was designed as a stationary unit for the bottom of the enclosure.
For wall fixing the fan heater CR 130 is recommended
