STEGO

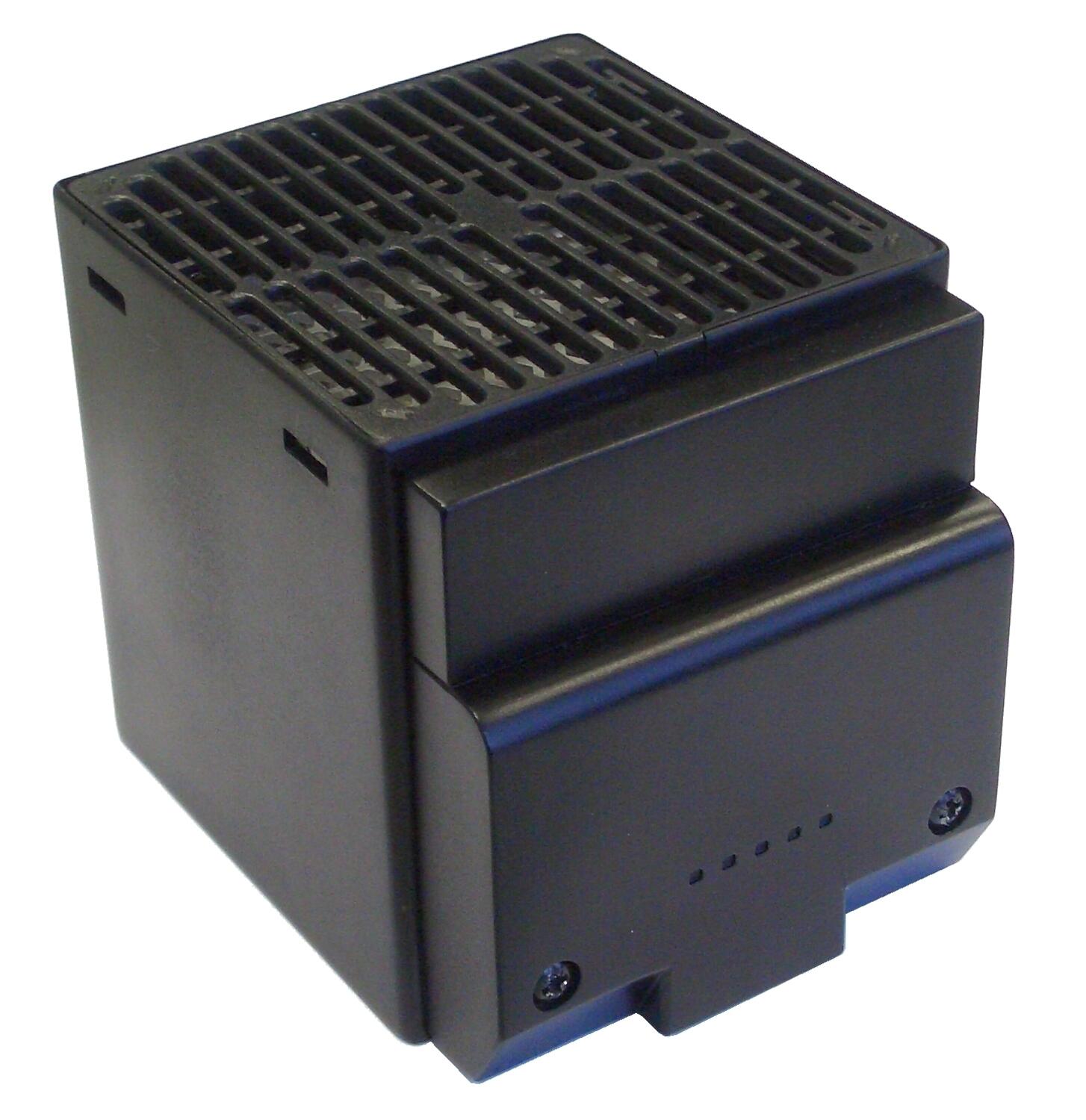

Fan Heater 150 - 400 W PTC CS028/CSL028
CS028/CSL028 range is a high performance PTC fan heater; it prevents the formation of condensation and provides an even temperature within the enclosure.
In has a very compact design and is well-suited for use in cabinets and enclosures where space is at a premium.
Because the heater is dual isolated with a plastic casing, the surface temperature never exceeds 50 °C on the 150/250W and 65 °C on the 400 W unit.
This means the heater can be mounted relatively close to other components in the same installation, and there is no risk for heat damage.

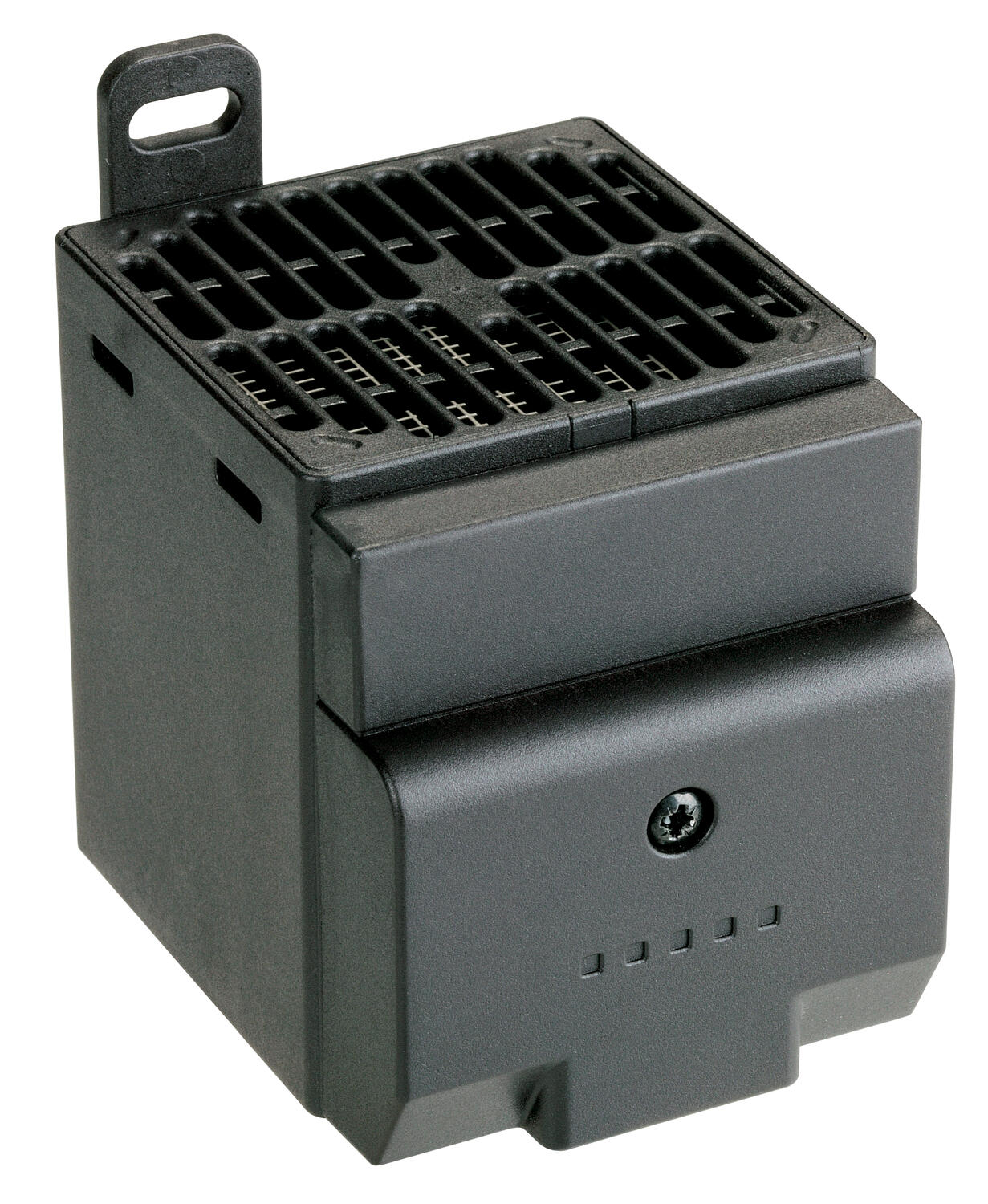

You can choose between brackets for DIN rails or screw assembly.
- Very compact design
- Quiet operation
- Dynamic heating
- Quick fastener for DIN rail or screw assembly
Selected variant
Specifications

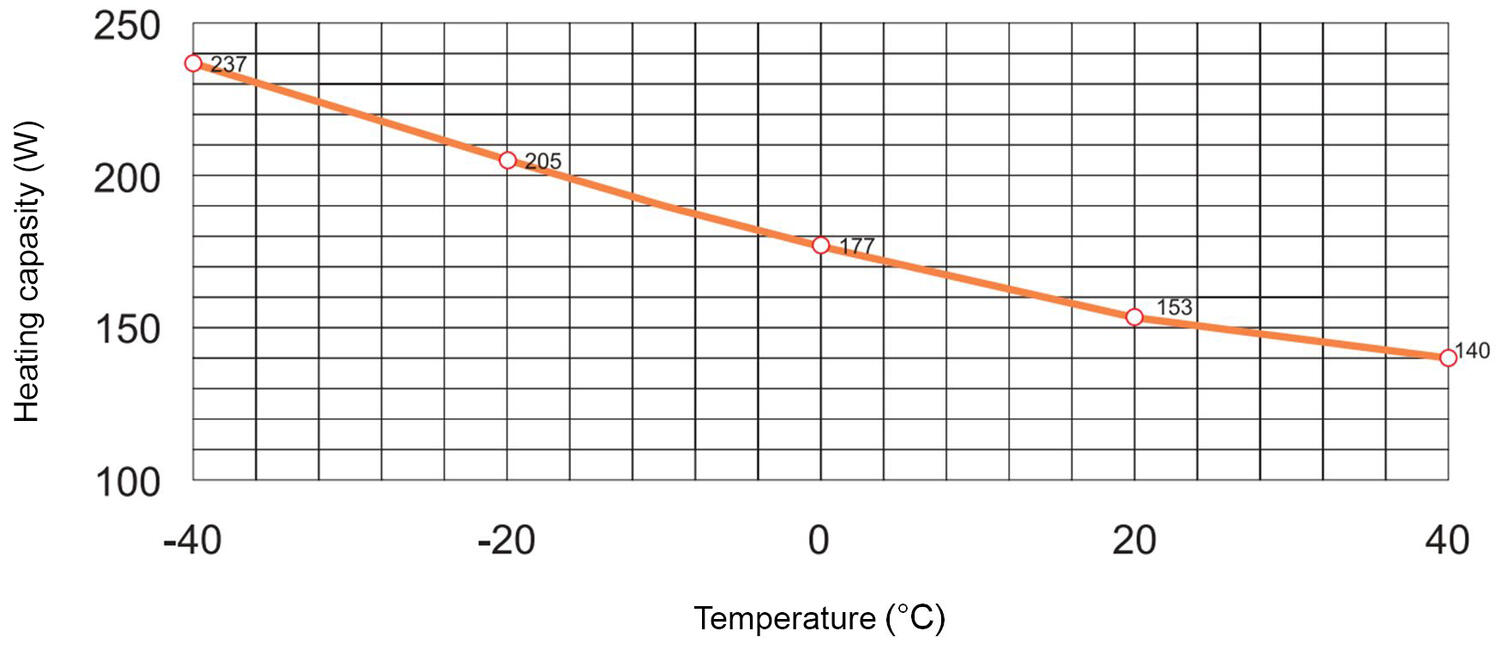

| Heat Output | 150 W |
|---|---|
| Nominal voltage | 230 V AC |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
| Heater | Plastic |
| Color | Black |
| Starting Current Max | 12 A |
| Pre fuse (slow) | 10 A |

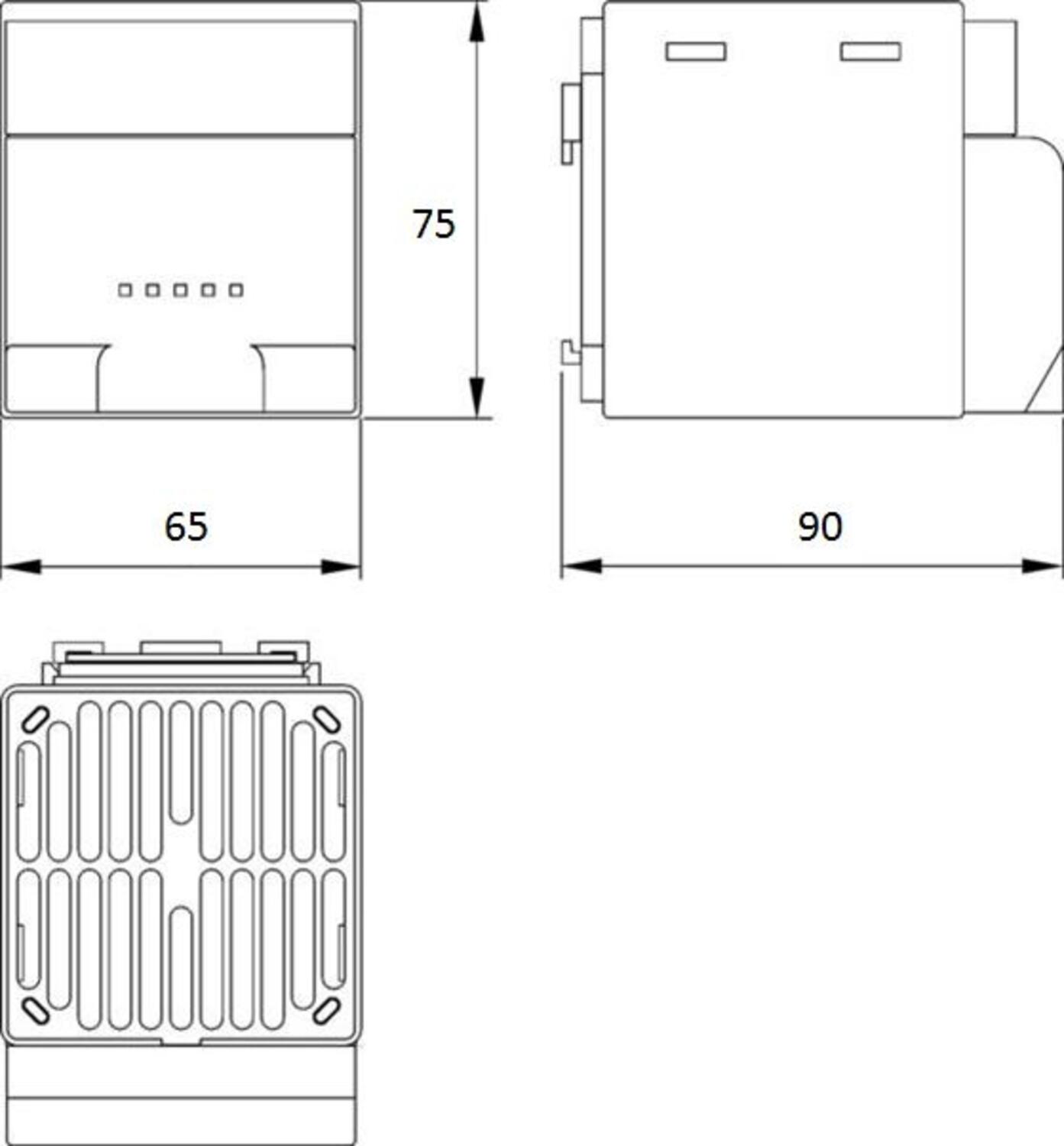

| Height | 75 mm |
| Width | 65 mm |
| Depth | 90 mm |
| Weight | 0.3 kg |
| Protection Class | II (double insulated) |
| IP Class | IP20 |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E150057, VDE |
|---|---|
| Flamklass | UL94-V0 |
| Storage temperature | -45°C ... +70°C |
| Number of fans | 1 |
| Operating Humidity | < 90% RH |
| Air Capacity | 13.8 m³/h |
| Drag Torque For Cable | 0.8 |
| Frequenze | 50/60 Hz |
| Humidity Storage | <90% RH |
| Life span | 40 000 h @ +40 °C (+104 °F) |
| Material of body | Plastic |
| Mounting | Clip on, DIN rail |
| Operational Temperature | -45°C ... +70°C |
Product description
CS028/CSL028 range is a high performance PTC fan heater; it prevents the formation of condensation and provides an even temperature within the enclosure.
In has a very compact design and is well-suited for use in cabinets and enclosures where space is at a premium.
Because the heater is dual isolated with a plastic casing, the surface temperature never exceeds 50 °C on the 150/250W and 65 °C on the 400 W unit.
This means the heater can be mounted relatively close to other components in the same installation, and there is no risk for heat damage.
You can choose between brackets for DIN rails or screw assembly.
