STEGO

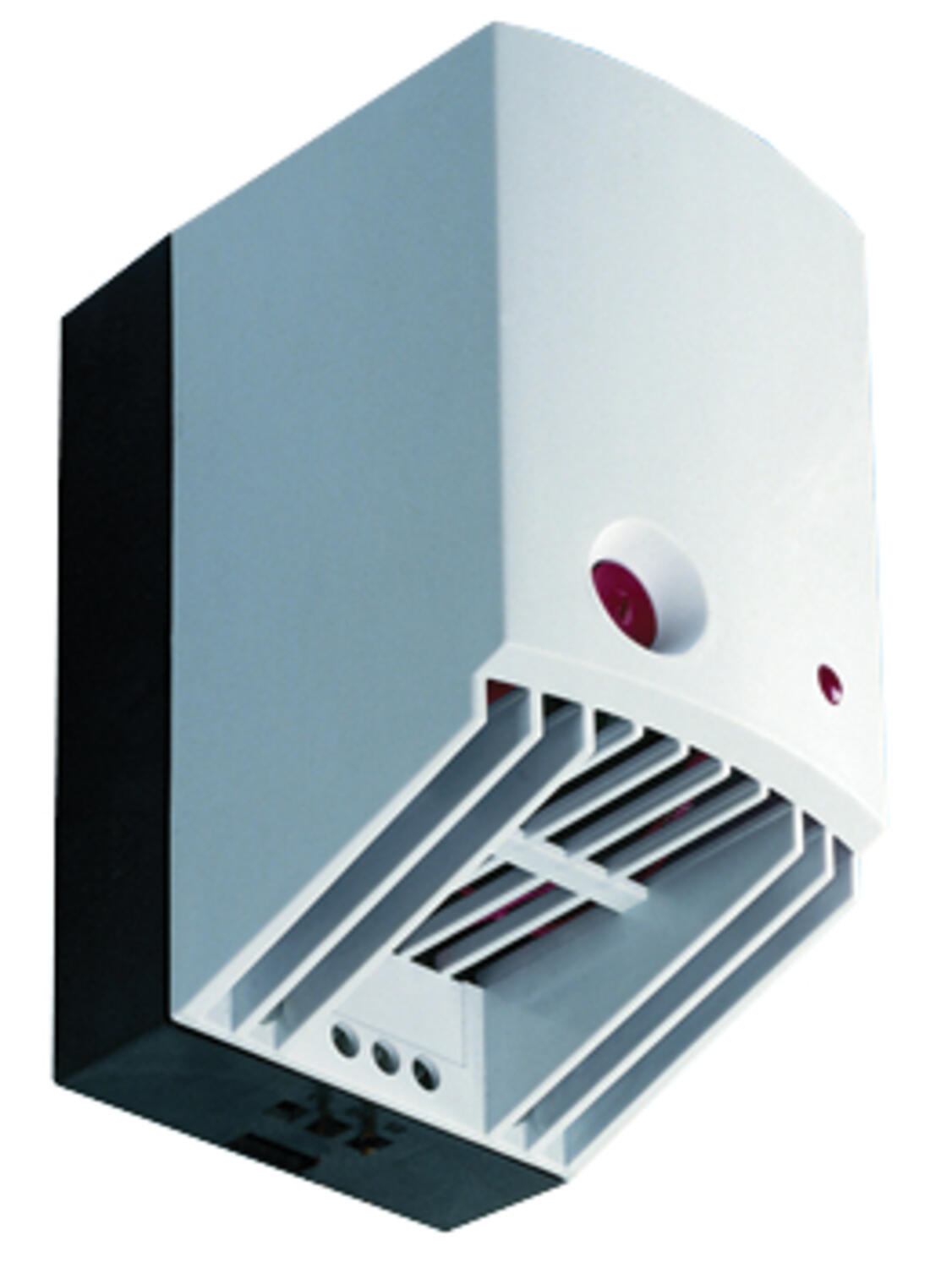

Fan Heater 400-550 W CR027
The heat source in this fan is a PTC element – a semiconductor that adapts its output to the ambient temperature. The colder it is, the more heat it produces. The PTC element has a high starting current and provides full output almost immediately.
The fan has an integrated adjustable thermostat, and can for example, be installed in enclosures indoors or outdoors to maintain an even temperature and thus avoid condensation, or it can be used to assure that the temperature is kept above a lowest permitted level.
The CR 027 is designed to be clip in to din rail
- Integrated thermostat
- Indication light on front
- Modern design
Selected variant
Specifications

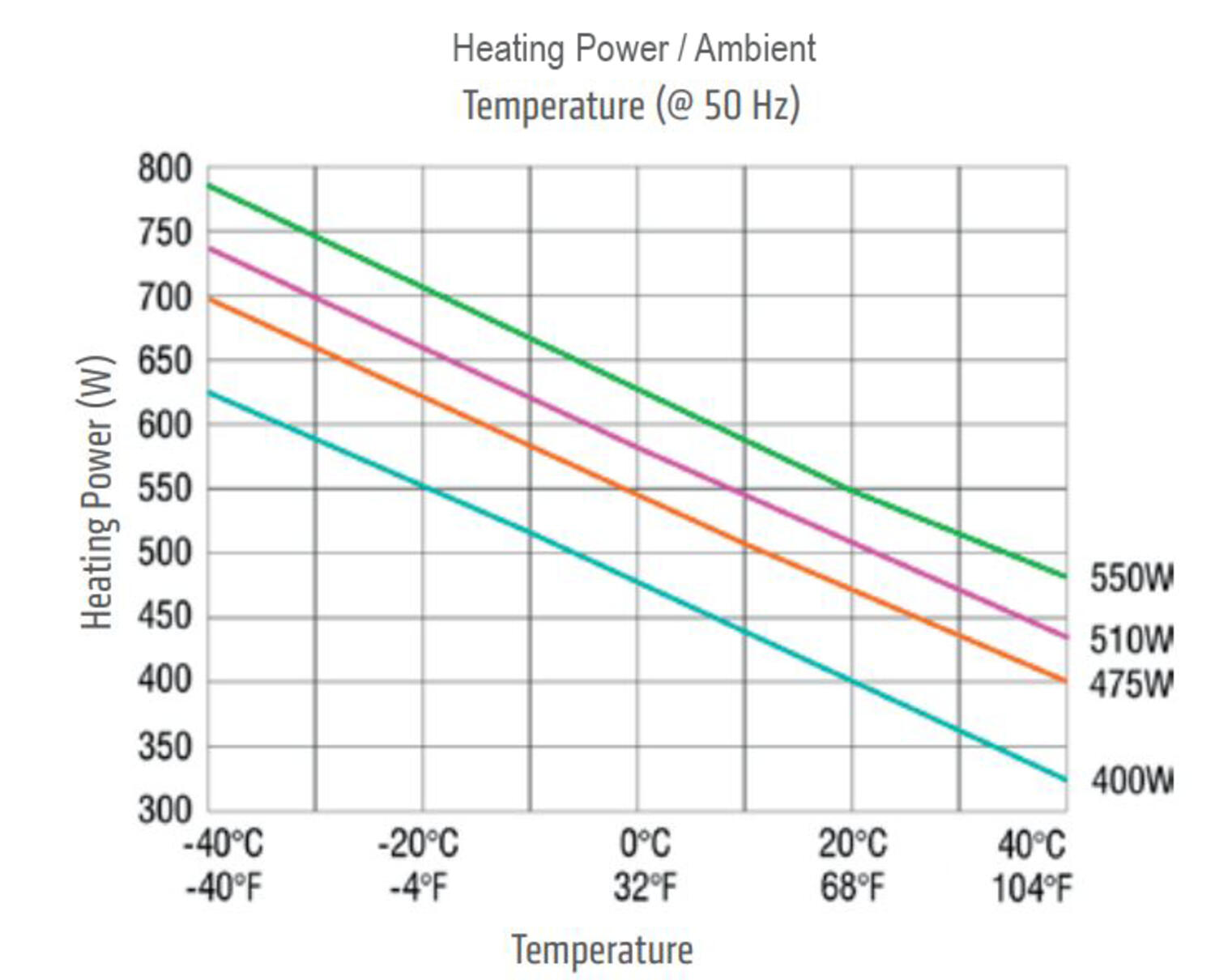

| Heat Output | 475 W |
|---|---|
| Nominal voltage | 230 V AC |
| Voltage max | 240 V ac |
| Voltage min | 220 V ac |
| Heater | Plastic |
| Color | Light Grey |
| Pre fuse (slow) | 10 A |

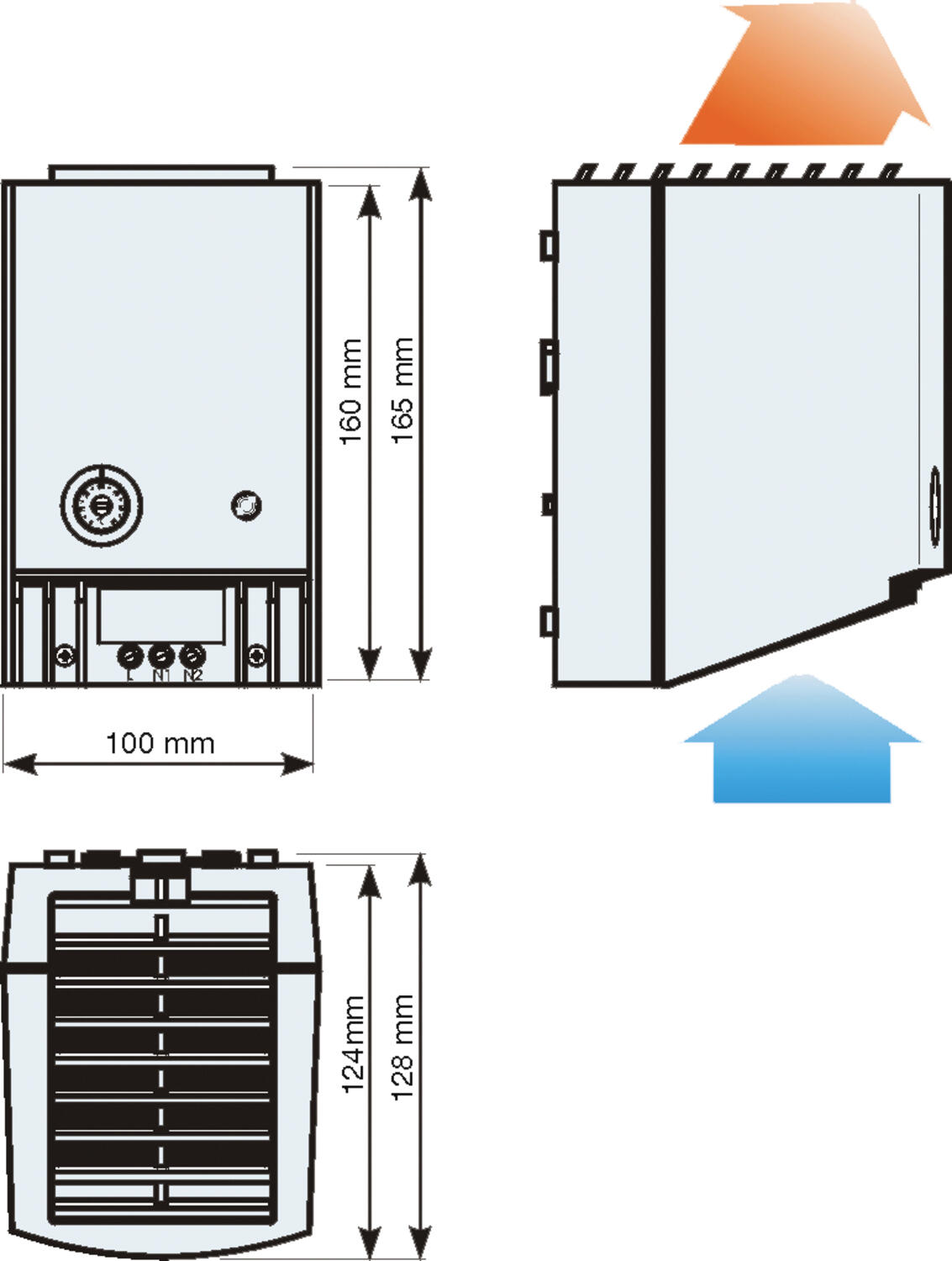

| Height | 165 mm |
| Width | 100 mm |
| Depth | 128 mm |
| Weight | 0.9 kg |
| Protection Class | II (double insulated) |
| IP Class | IP20 |
| Approvals | CE, cULus, EAC, RoHS, UL, VDE |
| Flamklass | UL94-V0 |
| Storage temperature | -45°C ... +70°C |
| Number of fans | 1 |
|---|---|
| Structural Depth | 128 mm |
| Operating Humidity | < 90% RH |
| Air Capacity | 35 m³/h |
| Control range temperature from | 0 °C |
| Control range temperature to | 60 °C |
| Frequenze | 50/60 Hz |
| Humidity Storage | <90% RH |
| Hysteresis Temperature | 7K |
| Inrush Max | 11 A |
| Life span | 50 000 h @ +25 °C |
| Material of body | Plastic |
| Material Plastic Housing | Plastic |
| Mounting | Clip on, DIN rail |
| Operational Temperature | -45°C ... +70°C |
Downloads
Product description
The heat source in this fan is a PTC element – a semiconductor that adapts its output to the ambient temperature. The colder it is, the more heat it produces. The PTC element has a high starting current and provides full output almost immediately.
The fan has an integrated adjustable thermostat, and can for example, be installed in enclosures indoors or outdoors to maintain an even temperature and thus avoid condensation, or it can be used to assure that the temperature is kept above a lowest permitted level.
The CR 027 is designed to be clip in to din rail
