STEGO
Fan Heater 950 W CR130
The CR130 is a compact and high performance heat fan.
The heat exchanger prevents condensation and frost, as well as providing evenly distributed internal air temperature in ex. cabinets with electrical / electronic components.
A very suitable application is different types of ticket machines or other service machines (coffee, food, etc.)
which may be placed in an environment where it is important to maintain a good climate.
Heat fan CR130 has a large fan with high air volume that quickly distributes airflow, thus drying the air efficiently.
It has two mounting options in the same device. Either it can be mounted on DIN rail or with screw mounting on the wall.
The design is modern and functional. It is double insulated with a plastic casing, which makes the side surfaces not so hot. Therefore, the heater can be mounted relatively close to other products in the same application and that you do not have to worry about burns. The double insulation also causes the ground heater to escape.
- Compact design
- Double casing
- Integrated thermostat or hygrostat
- Optional DIN mount or screw fixing
Selected variant
Specifications
| Heat Output | 950 W |
|---|---|
| Nominal voltage | 230 V AC |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
| Heater | Aluminium, Plastic |
| Pre fuse (slow) | 6.3 A |

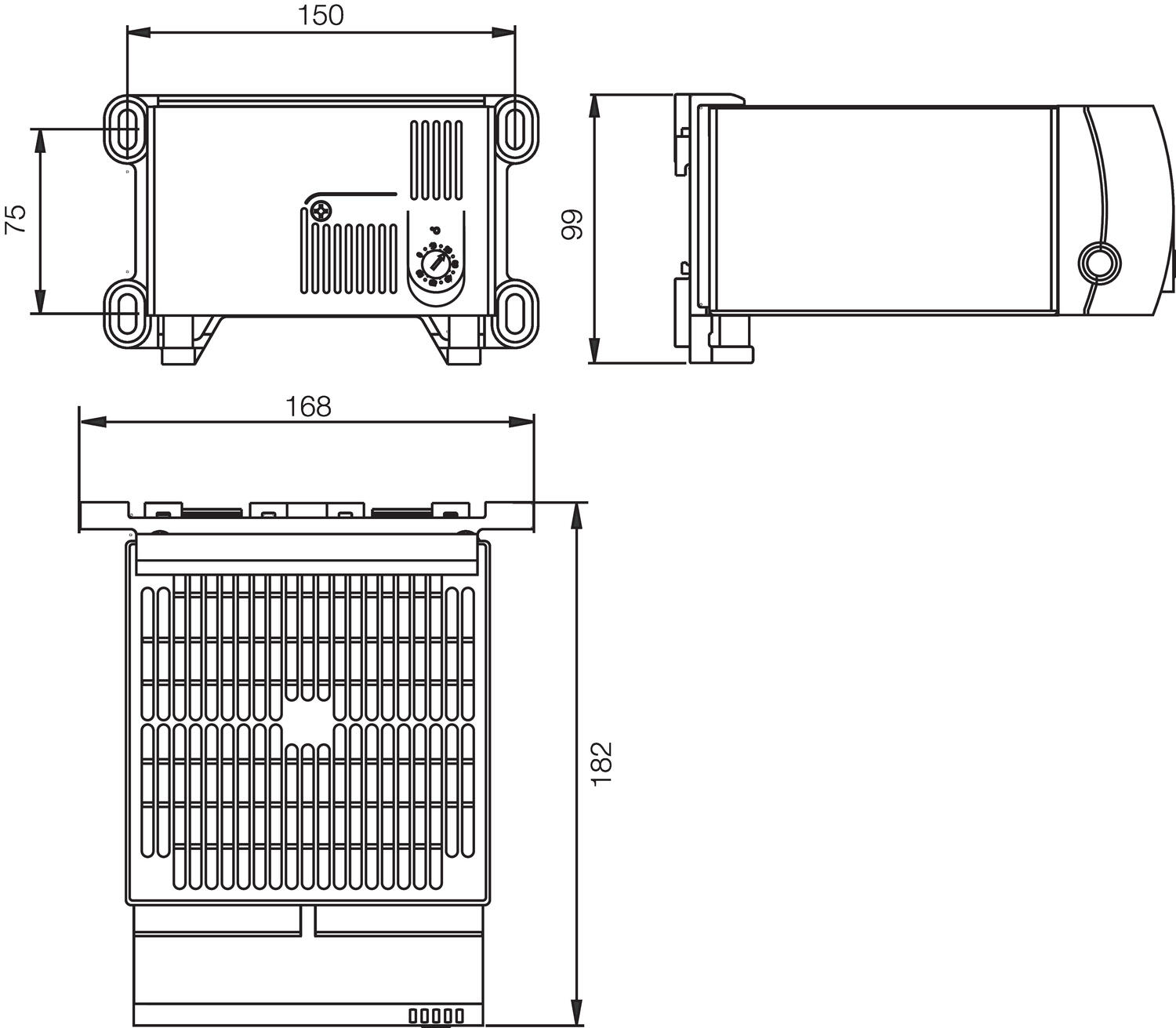

| Height | 99 mm |
| Width | 160 mm |
| Depth | 182 mm |
| Weight | 1.5 kg |
| Protection Class | II (double insulated) |
| IP Class | IP20 |
| Approvals | CE, cULus, Gost R, RoHS, UL, UL E234324, VDE |
| Flamklass | UL94-V0 |
| Storage temperature | -45°C ... +70°C |
|---|---|
| Number of fans | 1 |
| Operating Humidity | < 90% RH |
| Air Capacity | 160 m³/h |
| Control range temperature from | 0 °C |
| Control range temperature to | 60 °C |
| Drag Torque For Cable | 0.8 |
| Frequenze | 50/60 Hz |
| Humidity Storage | <90% RH |
| Life span | 50 000 h @ +25°C |
| Material of body | Aluminium |
| Operational Temperature | -45°C ... +70°C |
Product description
The CR130 is a compact and high performance heat fan.
The heat exchanger prevents condensation and frost, as well as providing evenly distributed internal air temperature in ex. cabinets with electrical / electronic components.
A very suitable application is different types of ticket machines or other service machines (coffee, food, etc.)
which may be placed in an environment where it is important to maintain a good climate.
Heat fan CR130 has a large fan with high air volume that quickly distributes airflow, thus drying the air efficiently.
It has two mounting options in the same device. Either it can be mounted on DIN rail or with screw mounting on the wall.
The design is modern and functional. It is double insulated with a plastic casing, which makes the side surfaces not so hot. Therefore, the heater can be mounted relatively close to other products in the same application and that you do not have to worry about burns. The double insulation also causes the ground heater to escape.
