STEGO
Tamper-proof Thermostat - FTO 011/FTS 011
FTO, FTS
Tamper-proof (Pre-set) Thermostat FTO 011: Normally closed - Contact breaks (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.
Tamper-proof (Pre-set) Thermostat FTS 011: Normally open - Contact makes(blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.
- Small size
- Preset values
- Simple installation
- Innovative design
Selected variant
Specifications
| Approvals | CE, CSA, cULus, EAC, EMC, RoHS, UL E164102, VDE |
|---|---|
| Contact resistance | <20 mΩ |
| Control range temperature from | 41 °F |
| Control range temperature to | 15 °C |

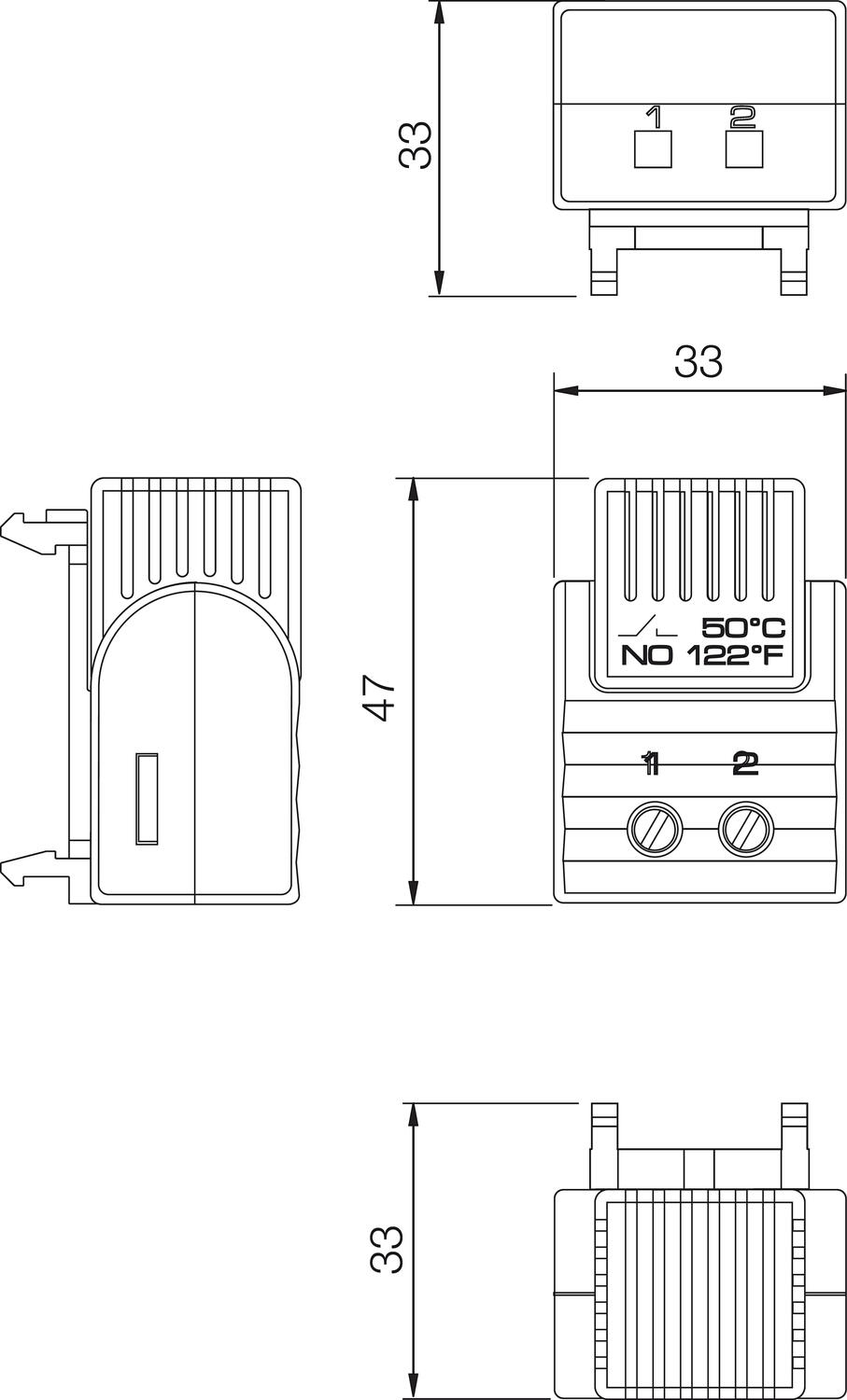

| Depth | 33 mm |
| Height | 47 mm |
| Inrush Max | 16 A |
| IP Class | IP20 |
| Material Plastic Housing | Plastic |
| Operational Temperature | -40°C ... +80°C |
| Storage temperature | -45°C ... +80°C |
|---|---|
| Switch off temperature NC | 15 °C |
| Switch on temperature NC | 5 °C |
| Tolerance for switch on | ±5K |
| Tolerance switch off | ±5K |
| Weight | 0.023 kg |
| Width | 33 mm |
| Voltage max | 250 V ac |
Product description
Tamper-proof (Pre-set) Thermostat FTO 011: Normally closed - Contact breaks (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.
Tamper-proof (Pre-set) Thermostat FTS 011: Normally open - Contact makes(blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.
