STEGO

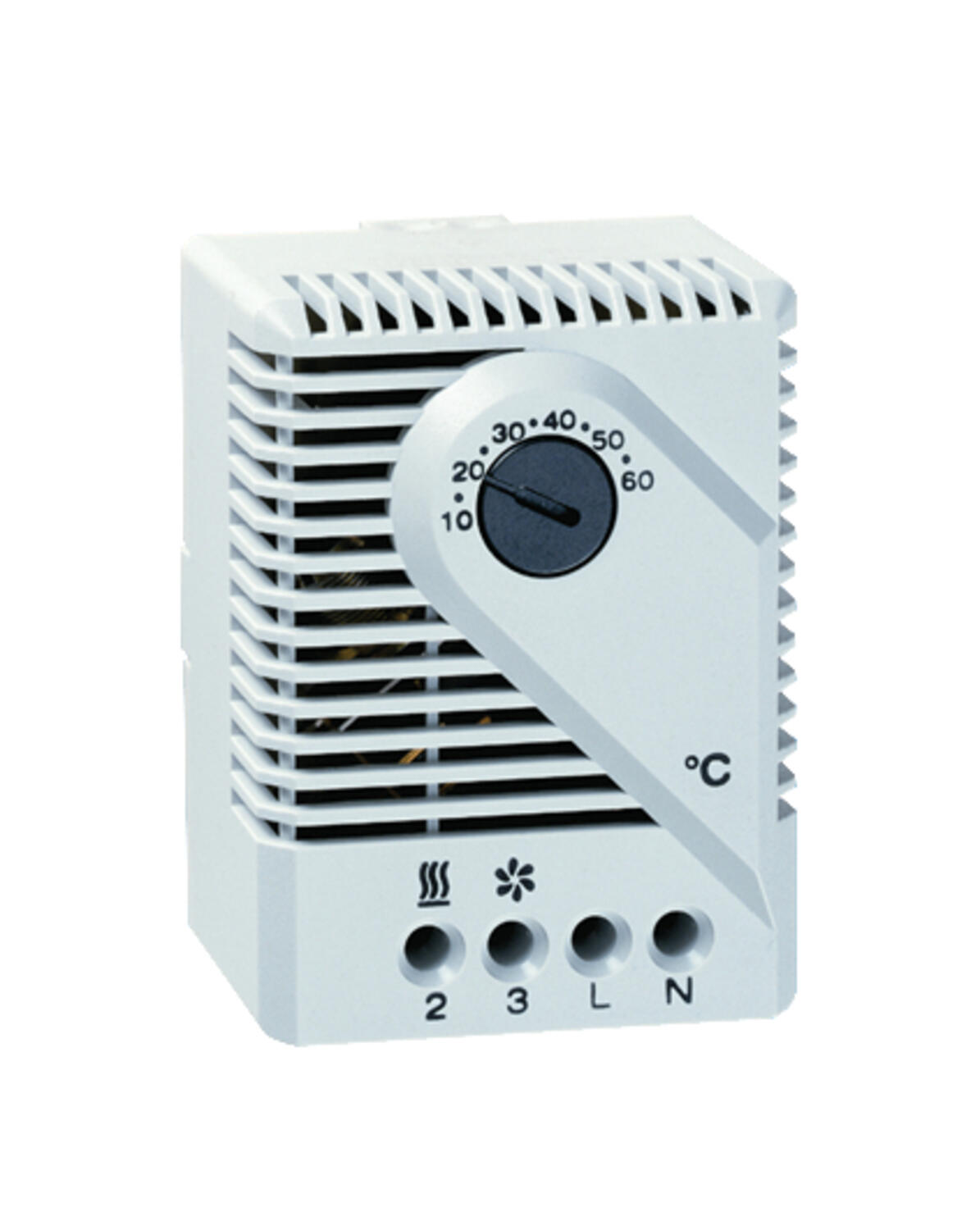

Thermostat - FZK 011
FZK

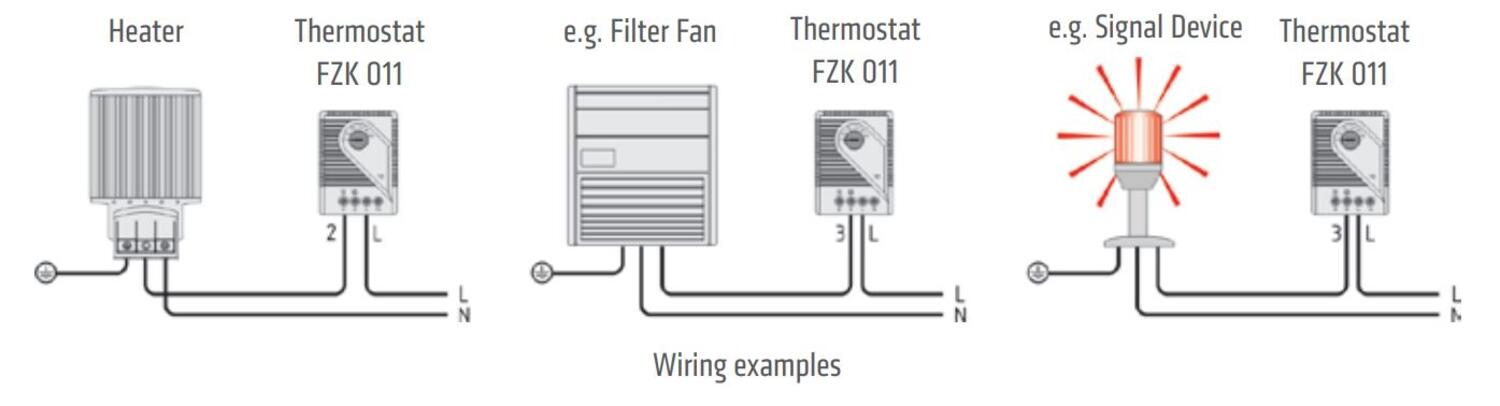

Thanks to having a change-over contact, FZK 011 can be used either to control heating elements when temperatures in cabinets are low, or when temperatures are high, to control fans or cooling systems.
- Small hysteresis
- Simple installation

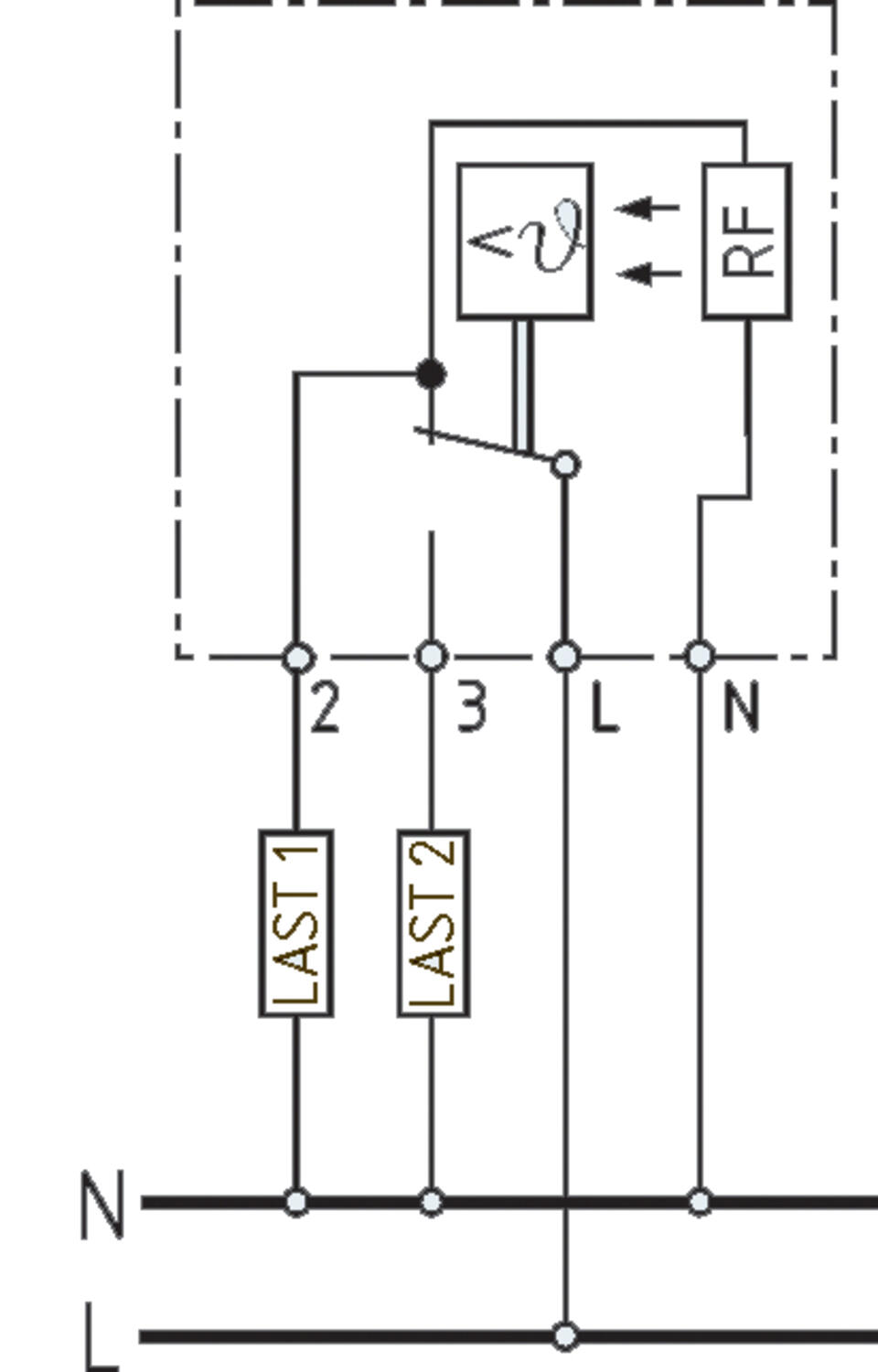

- Change-over contact
- High breaking capacity
Selected variant
Specifications
| Approvals | CE, cULus, EAC, EMC, RoHS, UL |
|---|---|
| Breaking capacity min | 10 mA |
| Contact resistance | <10 mΩ |
| Control range temperature from | 5 °C |
| Control range temperature to | 60 °C |

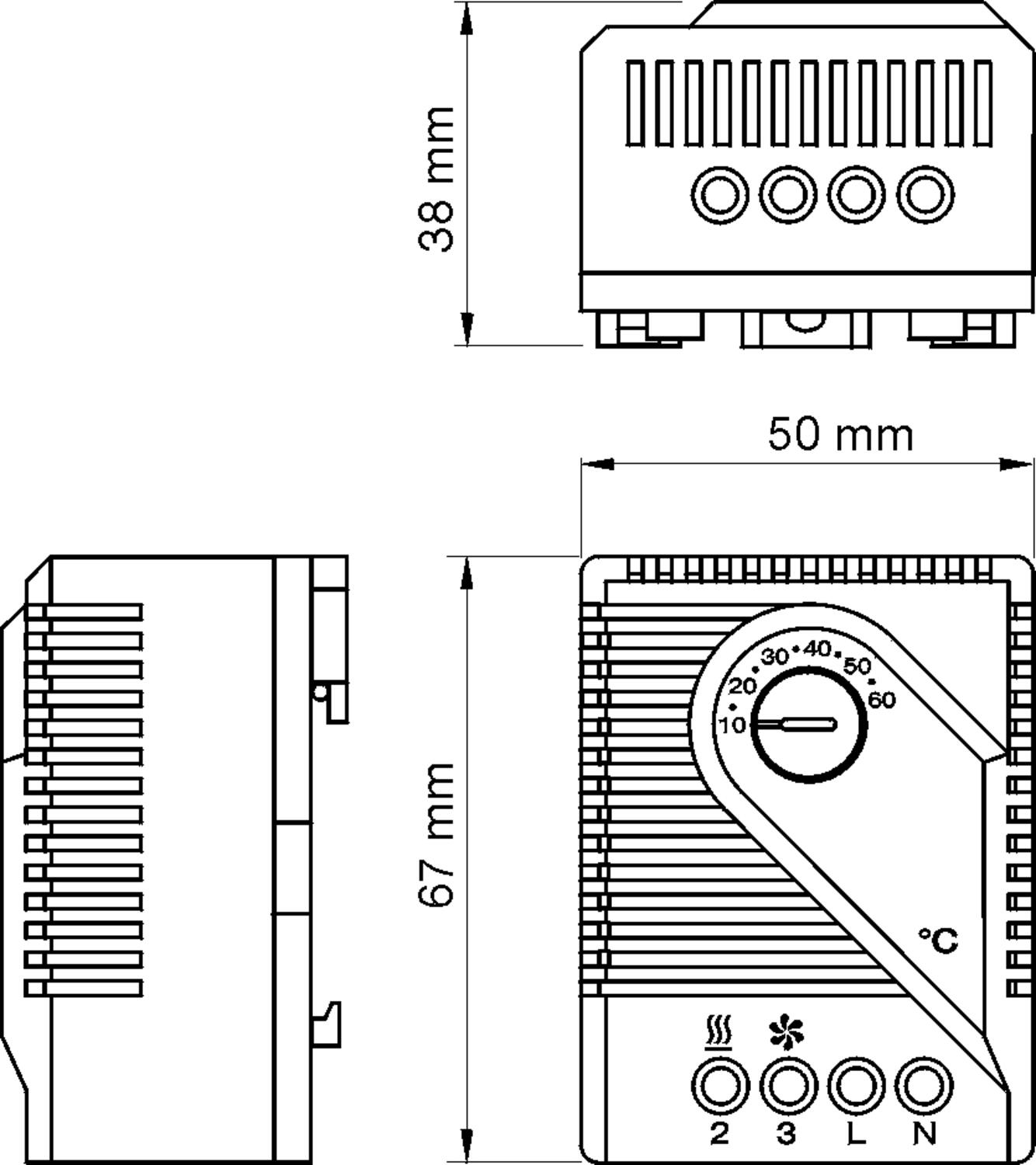

| Depth | 38 mm |
| Height | 67 mm |
| Hysteresis Temperature | 4° (±1,5 °) |
| IP Class | IP20 |
|---|---|
| Operational Temperature | -45°C ... +65°C |
| Storage temperature | -45°C ... +65°C |
| Weight | 0.1 kg |
| Width | 50 mm |
| Voltage max | 230 V ac |
| Voltage min | 230 v ac |
Product description
Thanks to having a change-over contact, FZK 011 can be used either to control heating elements when temperatures in cabinets are low, or when temperatures are high, to control fans or cooling systems.
