STEGO
Thermostat - KTO 011/KTS 011
KTO, KTS

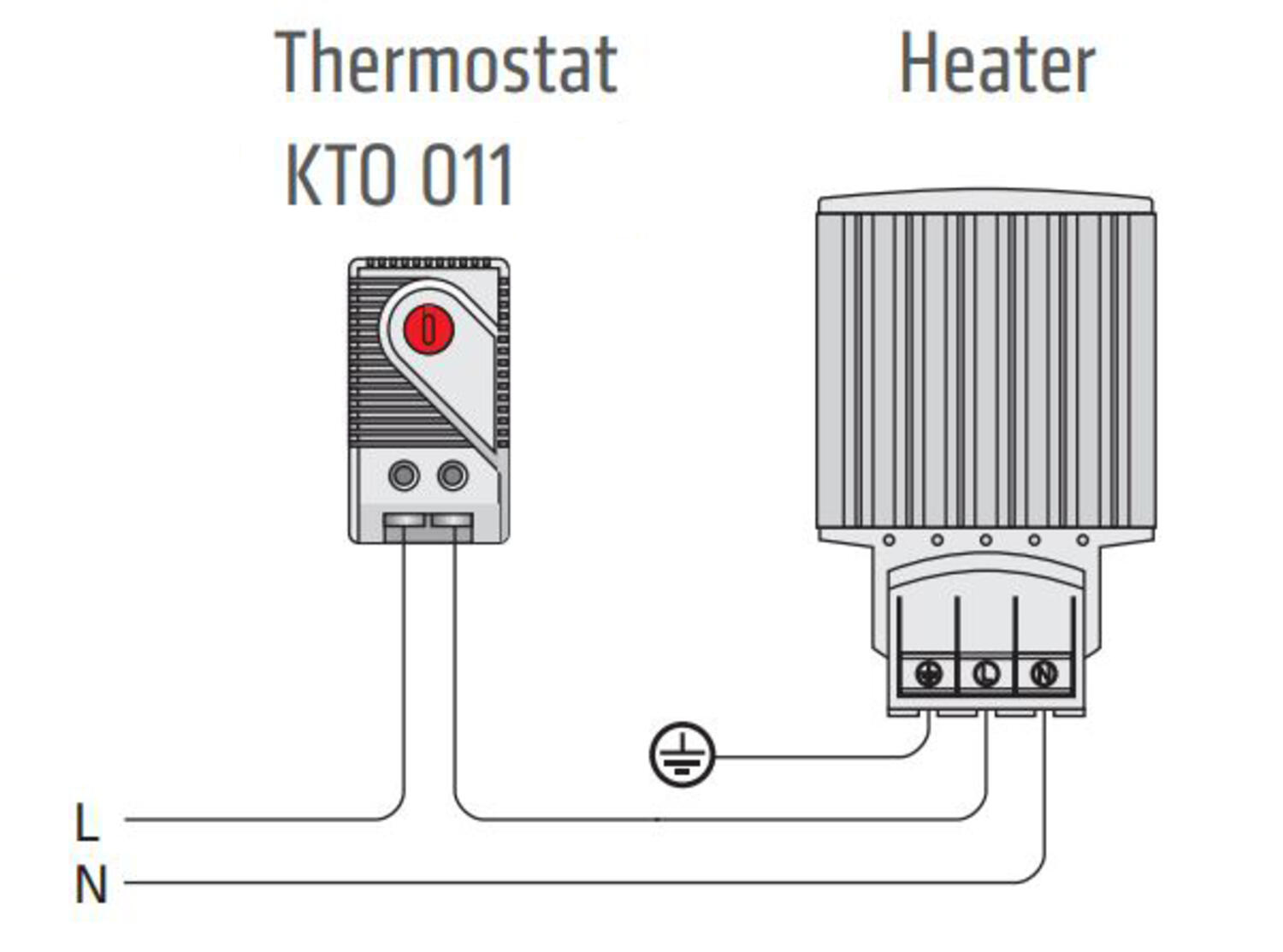

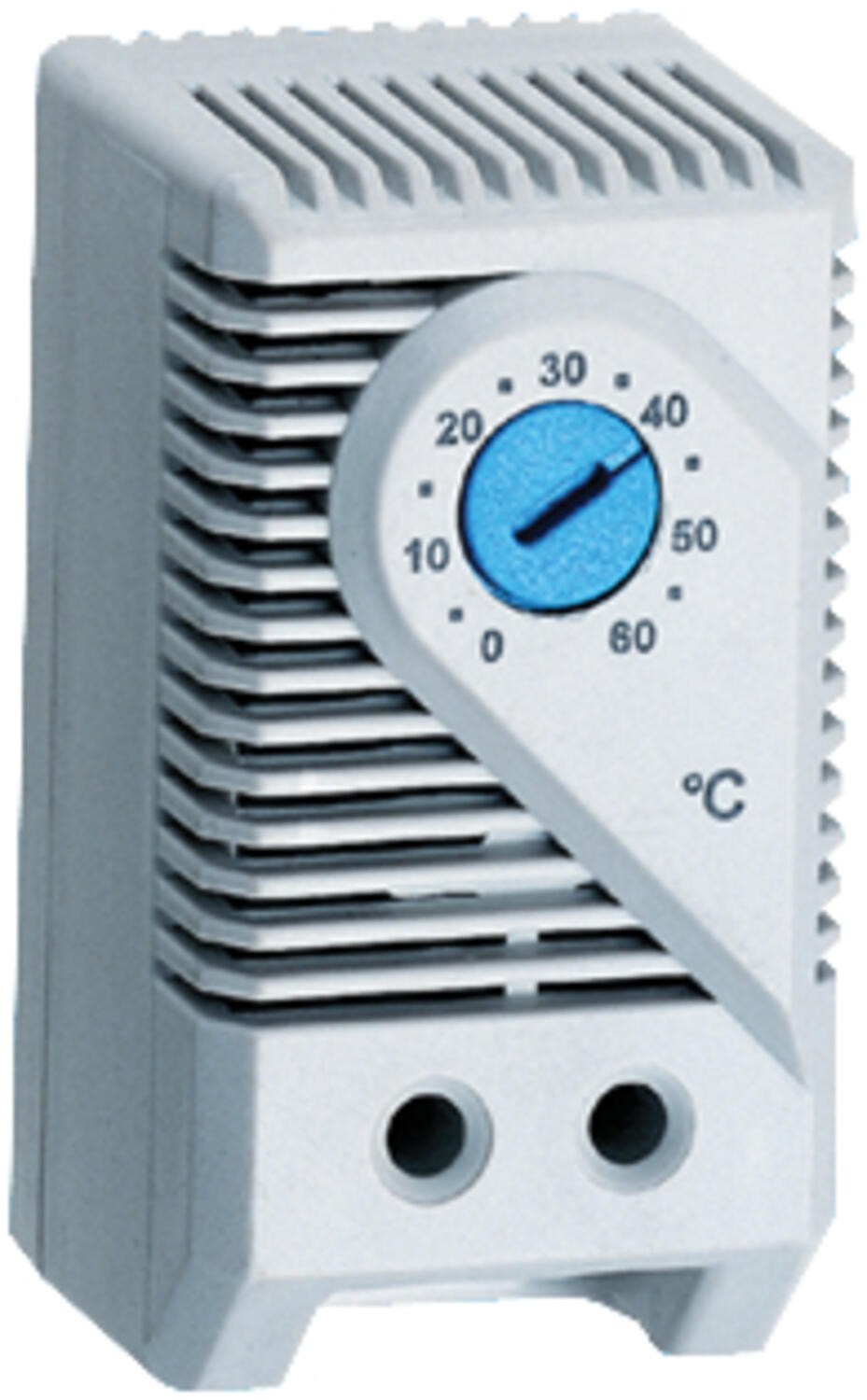

KTO 011 is an electro-magnetic thermostat with one NC contact for regulating, for example, heating elements. KTS 011 is an electro-magnetic thermostat with one NO contact for regulating, for example, filter fans or overheating alarms.
- Simple installation
- Wide regulation range -10 °C to +80 °C
- Cost effective
- UL-approved versions
- ** PHASE OUT PRODUCT 2023 - USE KTO 111/KTS 111
Selected variant
Specifications
| Approvals | CE, CSA, cULus, EAC, RoHS, UL E164102, VDE |
|---|---|
| Contact resistance | <20 mΩ |
| Control range temperature from | 0 °C |
| Control range temperature to | 60 °C |

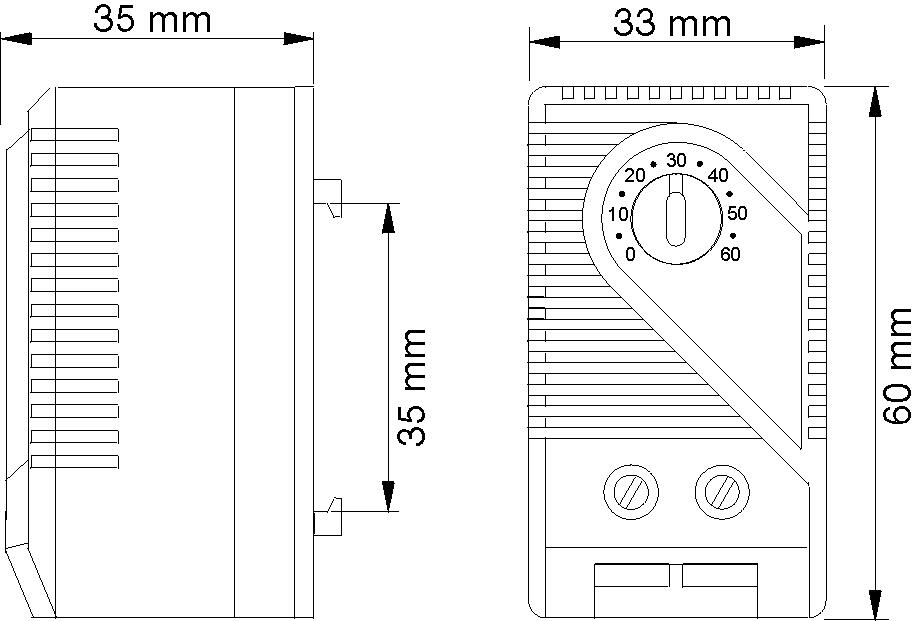

| Depth | 43 mm |
| Height | 60 mm |
| Hysteresis Temperature | 7K |
| Inrush Max | 16 A |
| IP Class | IP20 |
| Material Plastic Housing | Plastic |
|---|---|
| Operational Temperature | -45°C ... +80°C |
| Storage temperature | -45°C ... +80°C |
| Tolerance for switch on | ±4K |
| Tolerance switch off | ±4K |
| Weight | 0.04 kg |
| Width | 33 mm |
| Voltage max | 250 V ac |
Product description
KTO 011 is an electro-magnetic thermostat with one NC contact for regulating, for example, heating elements. KTS 011 is an electro-magnetic thermostat with one NO contact for regulating, for example, filter fans or overheating alarms.
