STEGO

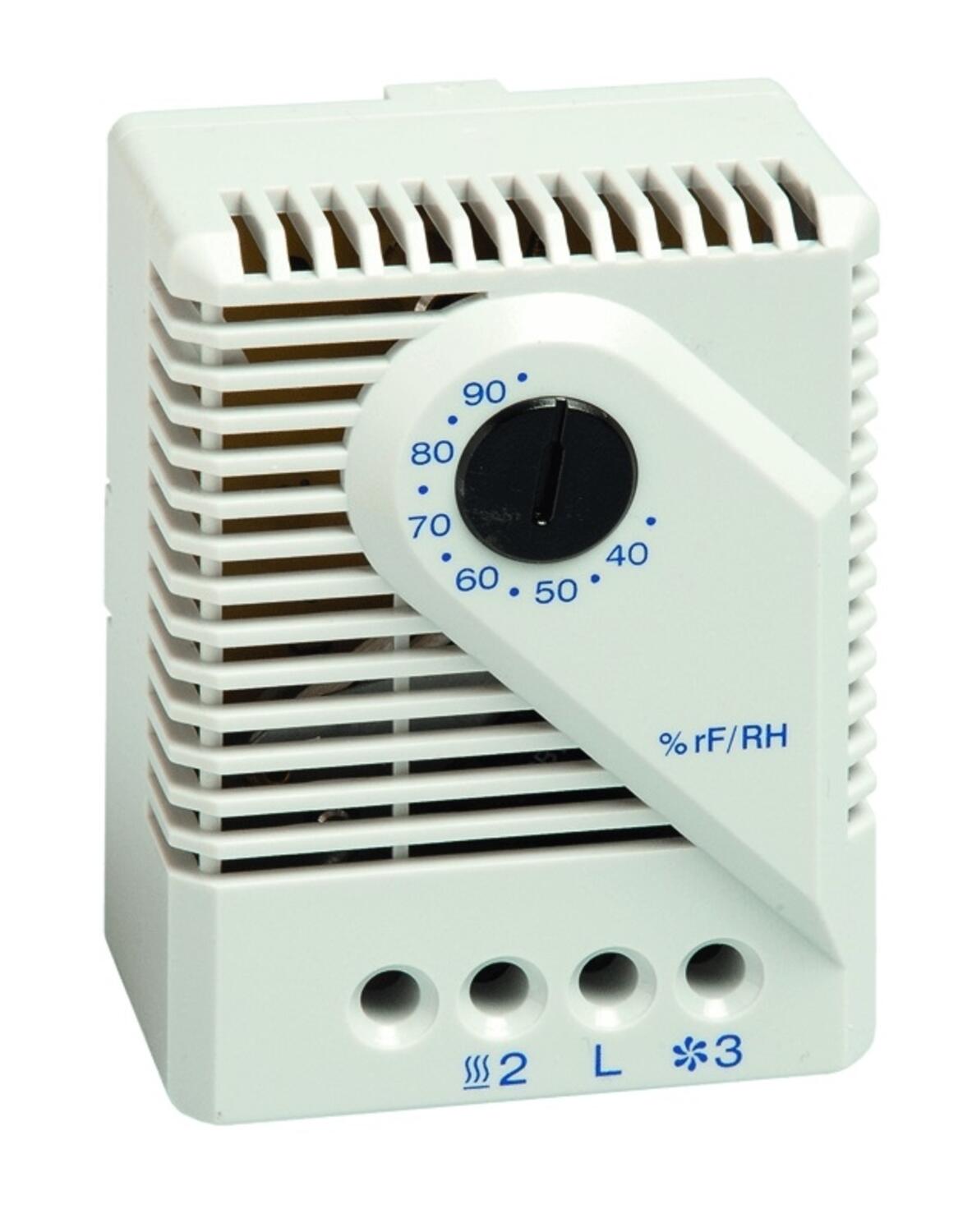

Mechanical hygrostat - MFR 012
MFR
High humidity in a cabinet produces condensation and corrosion, which often leads to creep currents, flash-over, contact problems, etc.
The difference in temperature between night and day can often be sufficient for condensation to form. To prevent this, besides a thermostat that starts a heater before the set minimum temperature is reached, a hygrostat should also be mounted that starts the heater/fan if the humidity exceeds a set value. MFR012 has a change-over contact and can even be used to control air humidifiers if the air becomes too dry.
- Simple installation
- Change-over contact
- High breaking capacity
Selected variant
Specifications
| Control range humidity from | 35 % RF |
|---|---|
| Control range humidity to | 95 % RF |
| Hysteresis Humidity | 4% RH |
| Contact type | Currentless open |
| Mounting | Clip on, DIN rail |
| Contact resistance | <10 mΩ |
| Operating Humidity | < 90% RH |
| Humidity Storage | <95% RH |
| IP Class | IP20 |
| Material of body | Plastic |
| Color | Light Grey |
| Flamklass | UL94-V0 |
|---|---|
| Operational Temperature | 0 °C ... +60°C |
| Storage temperature | -40°C ... +60°C |

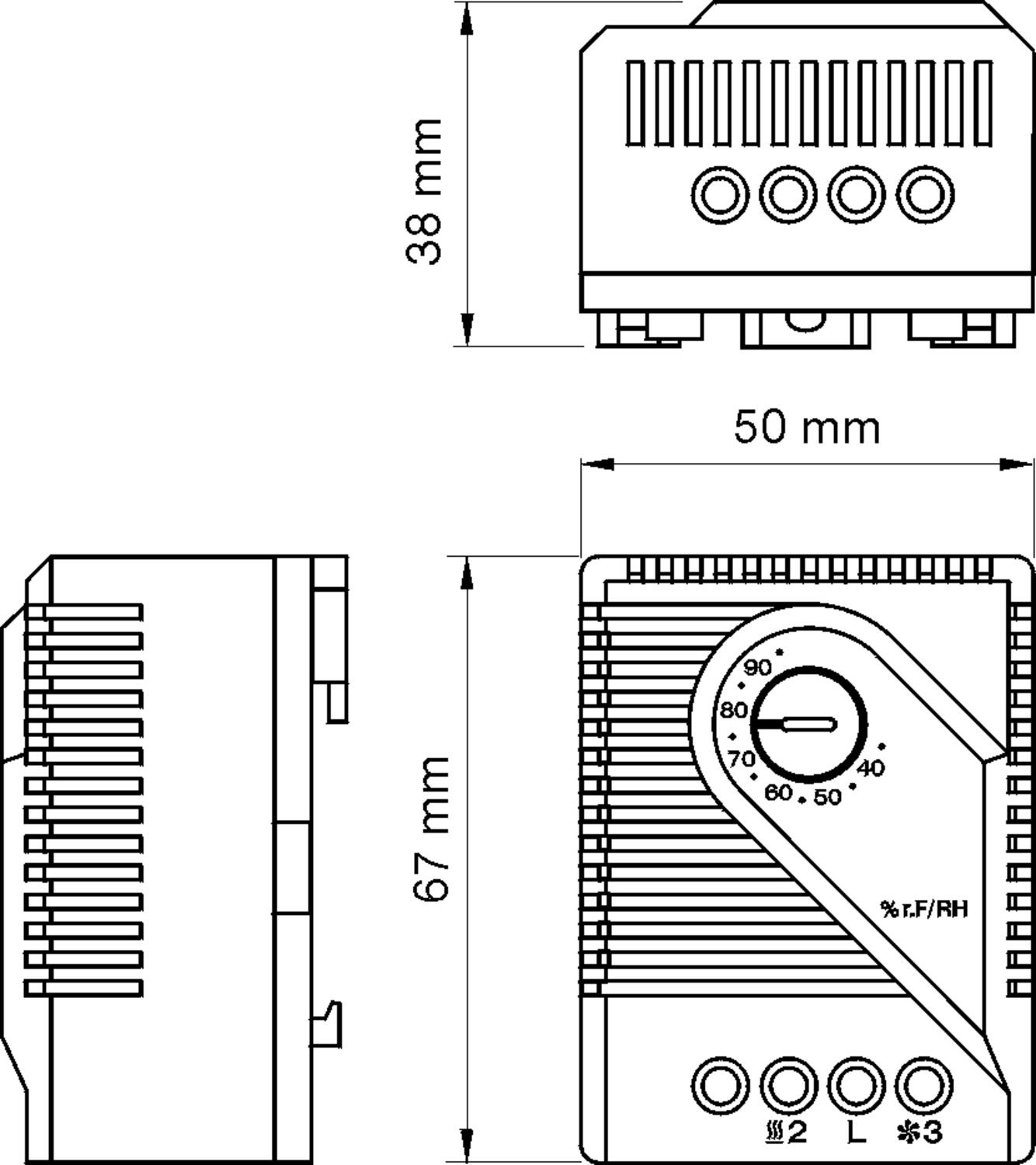

| Height | 67 mm |
| Width | 50 mm |
| Depth | 38 mm |
| Weight | 0.06 kg |
| EMC | EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Approvals | CE, cULus, EMC, RoHS, UL, UL E164102 |
Downloads
Product description
High humidity in a cabinet produces condensation and corrosion, which often leads to creep currents, flash-over, contact problems, etc.
The difference in temperature between night and day can often be sufficient for condensation to form. To prevent this, besides a thermostat that starts a heater before the set minimum temperature is reached, a hygrostat should also be mounted that starts the heater/fan if the humidity exceeds a set value. MFR012 has a change-over contact and can even be used to control air humidifiers if the air becomes too dry.
