CONTA-CLIP can now offer the KDS-KV split cable glands from M20 to M63 for cables with or without connectors. During servicing or retrofitting with pre-assembled cable harnesses, cables with diameters from 2 to 35 mm can quickly and safely be guided into the switchgear cabinet or housing, and then sealed to IP66.

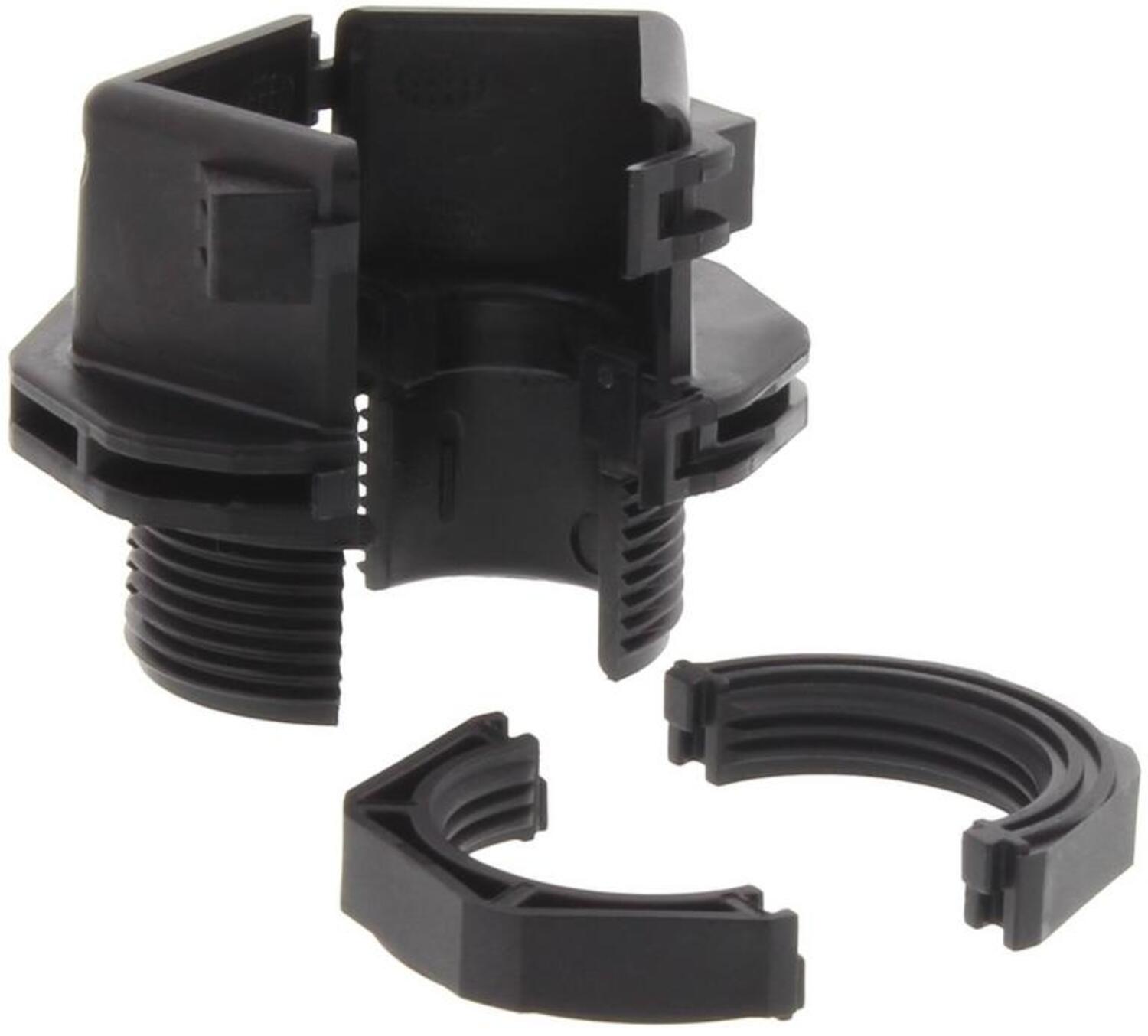

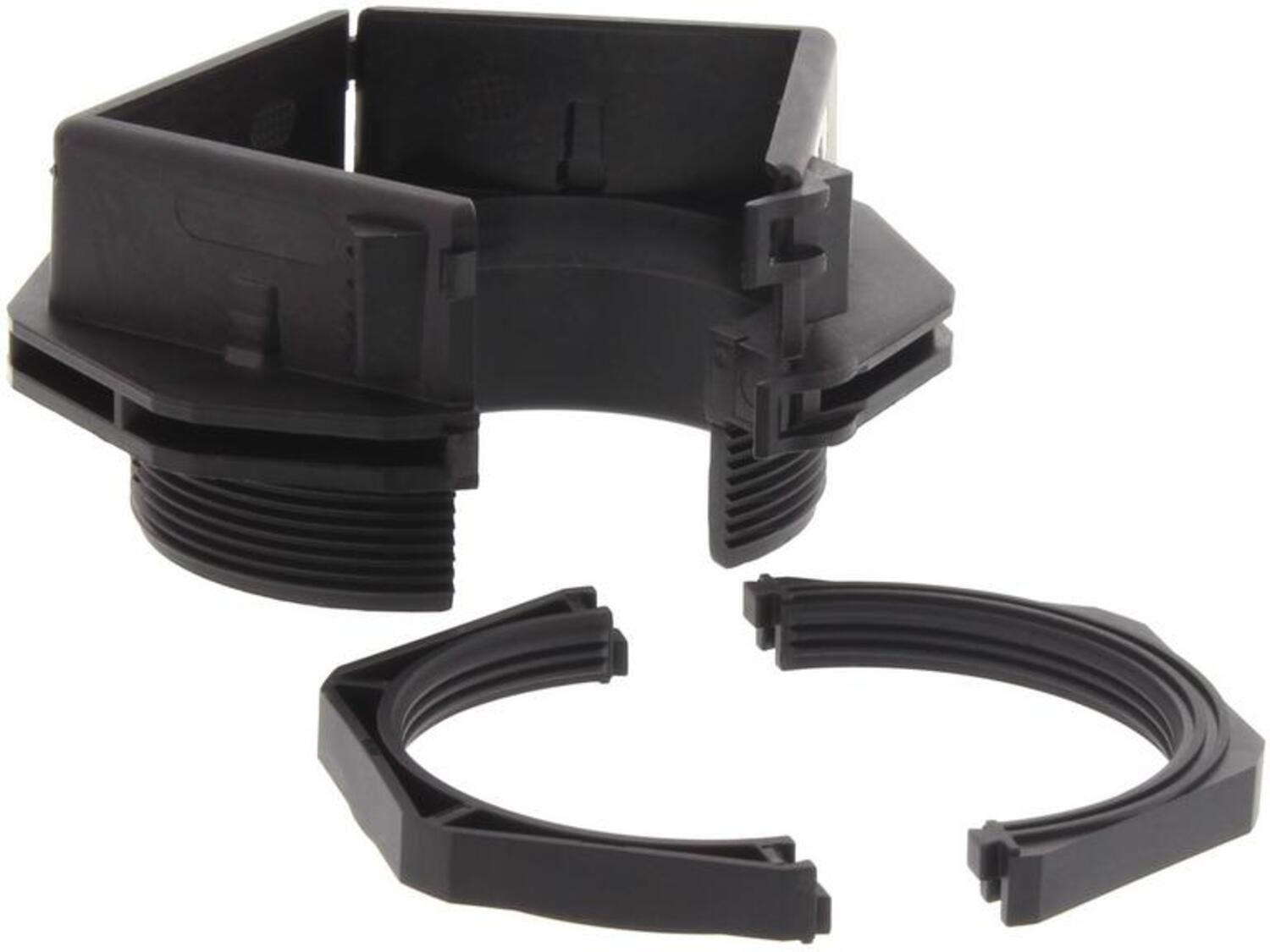

The split system ensures quick and simple assembly. The slotted seal has a wave-cut profile prevents lateral movement of the cable and ensures a reliable seal. The seal is first placed around the cable and then inserted in one of the two halves. Depending on the size of the cable gland, up to four seals can be inserted. After that, the two halves of the cable gland are easily snapped together without the use of any tools. A locknut (which can also be separated) on the inside of the cabinet ensures a safe and secure attachment.
The advantages
|

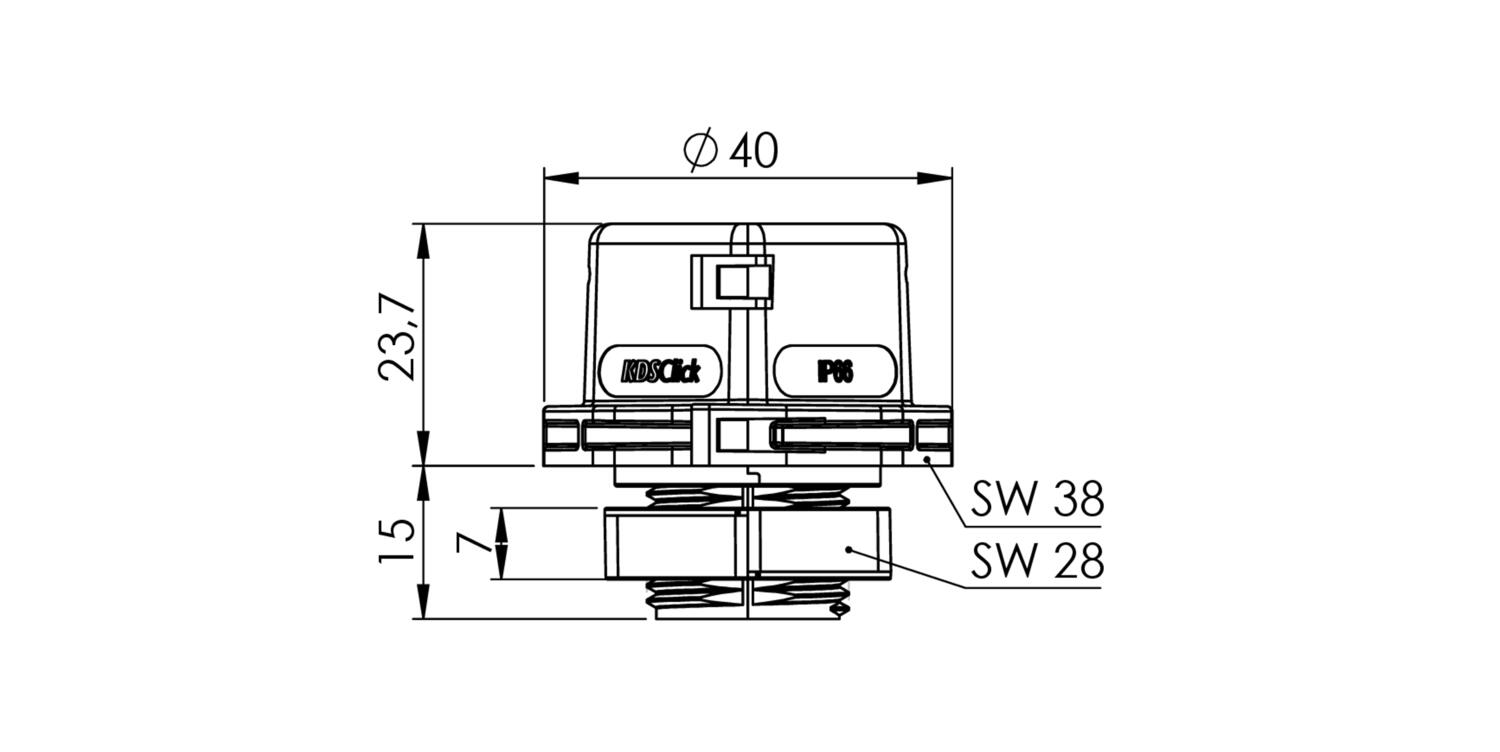

Color | Black |
---|---|
Country of origin | DE |
Diameter of screw head | 40 mm |
Flamklass | V-0 |
Glass-fibre reinforced | Yes |
Halogen free | Yes |
Height | 38.7 mm |
Including nut | Yes |
Installed height | 23.7 mm |
IP Class | IP66 |
Length | 40 mm |
Material | Polyamide |
Mounting | Screw |
Operating temperature from | -40 °C |
---|---|
Operating temperature to | 120 °C |
Pack Size | 10 |
Sealing material | TPE |
Silicone-free | Yes |
Spanner width (AF) | 38 mm |
Tariff code | 39269097 |
Thread Length | 15 mm |
Thread pitch | 1.5 mm |
Thread size | M20 |
Weight | 11.05 g |
Width | 40 mm |
CONTA-CLIP can now offer the KDS-KV split cable glands from M20 to M63 for cables with or without connectors. During servicing or retrofitting with pre-assembled cable harnesses, cables with diameters from 2 to 35 mm can quickly and safely be guided into the switchgear cabinet or housing, and then sealed to IP66.
The split system ensures quick and simple assembly. The slotted seal has a wave-cut profile prevents lateral movement of the cable and ensures a reliable seal. The seal is first placed around the cable and then inserted in one of the two halves. Depending on the size of the cable gland, up to four seals can be inserted. After that, the two halves of the cable gland are easily snapped together without the use of any tools. A locknut (which can also be separated) on the inside of the cabinet ensures a safe and secure attachment.
The advantages
|
The new WADI product family by Jacob features a completely redesigned gland rubber, which allows extensive sealing and tightening area.
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.
The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success.
Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Diameter of screw head | Height | Installed height | Length | Pack Size | Spanner width (AF) | Thread size | Weight | Width | ||
---|---|---|---|---|---|---|---|---|---|---|---|
![]()

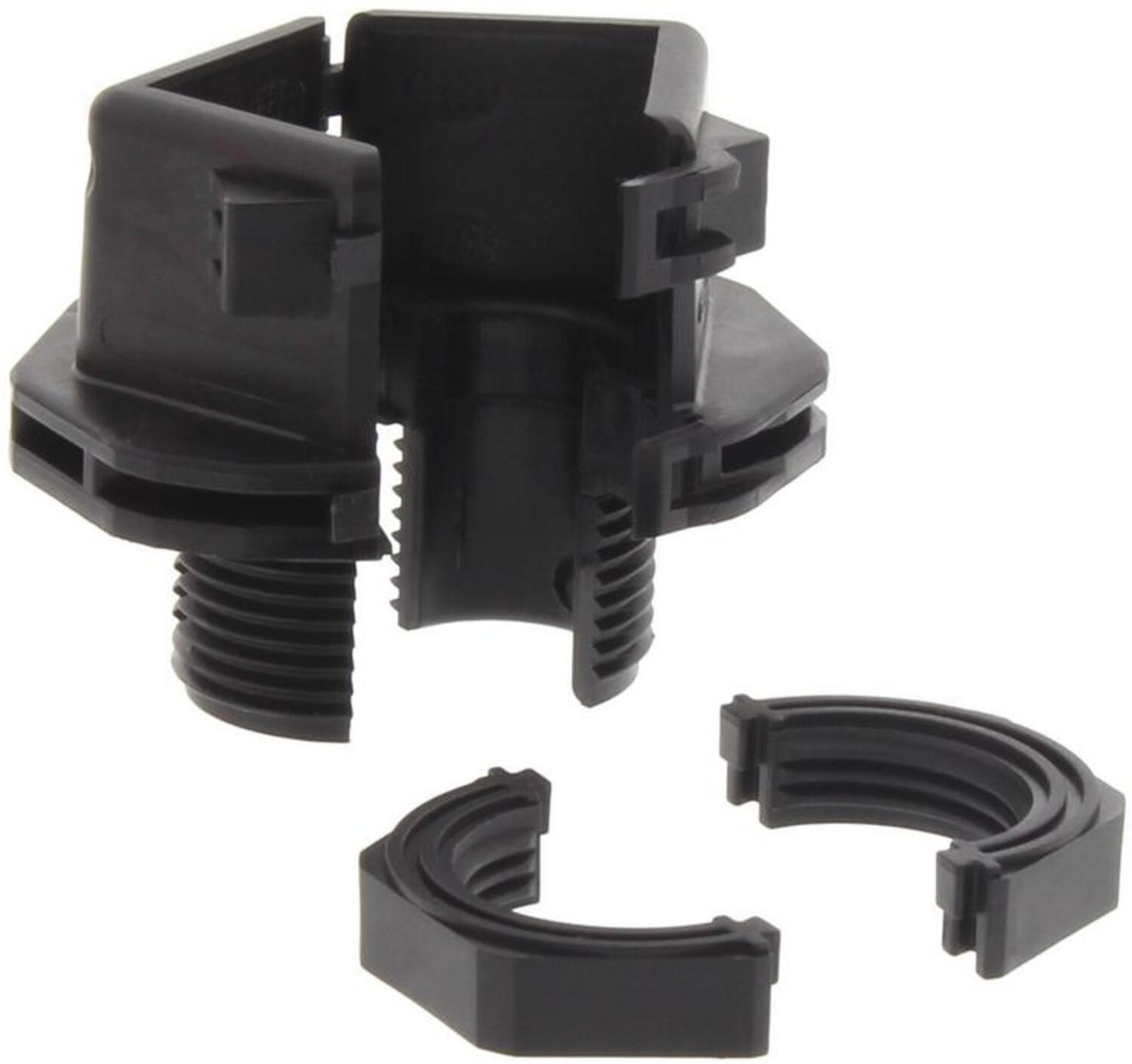

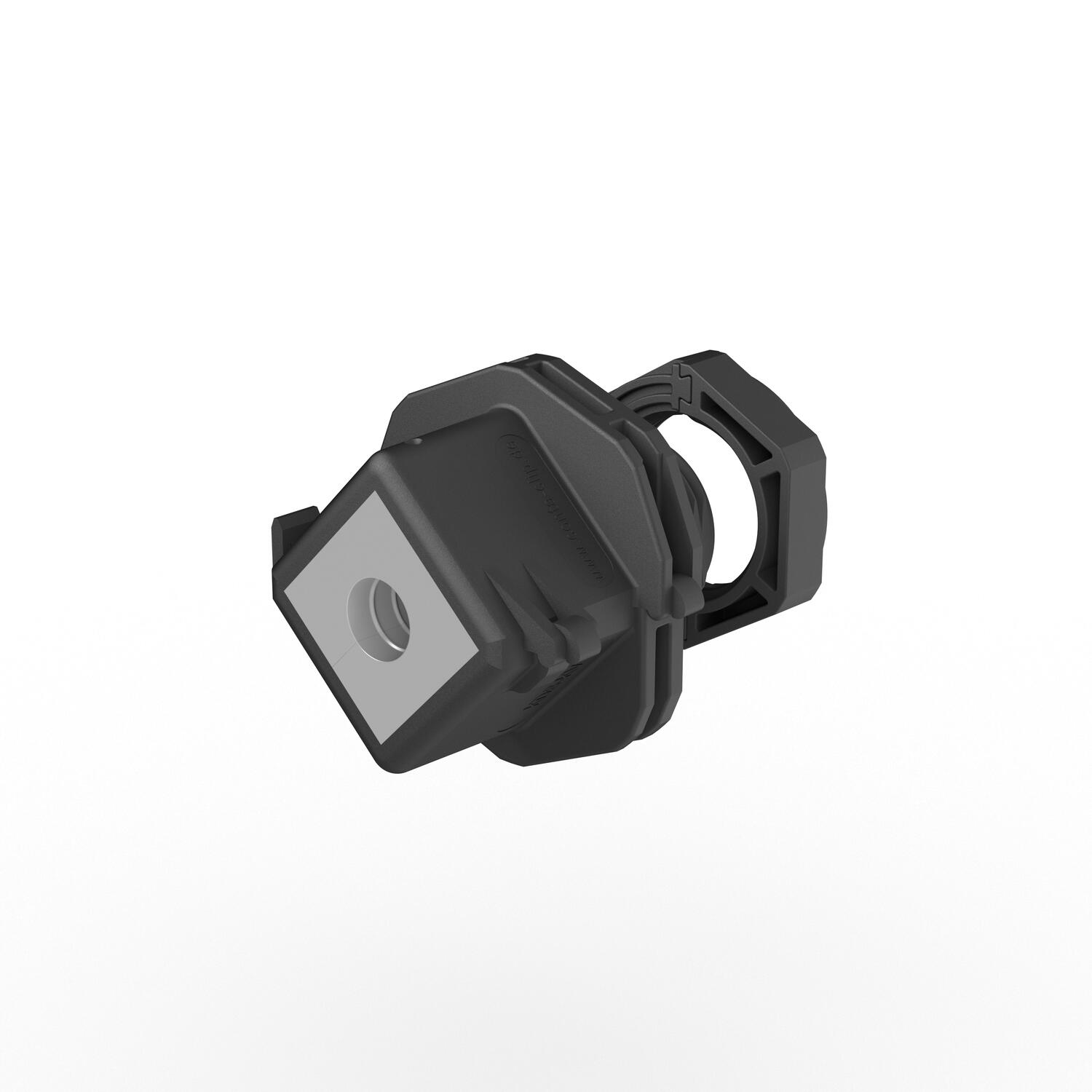

KDS-KV M20 Black, Separable cable gland
Art:
28610.4
Copied
|
40 mm
|
38.7 mm
|
23.7 mm
|
40 mm
|
10
|
38 mm
|
M20
|
11.05 g
|
40 mm
|
| |
![]()

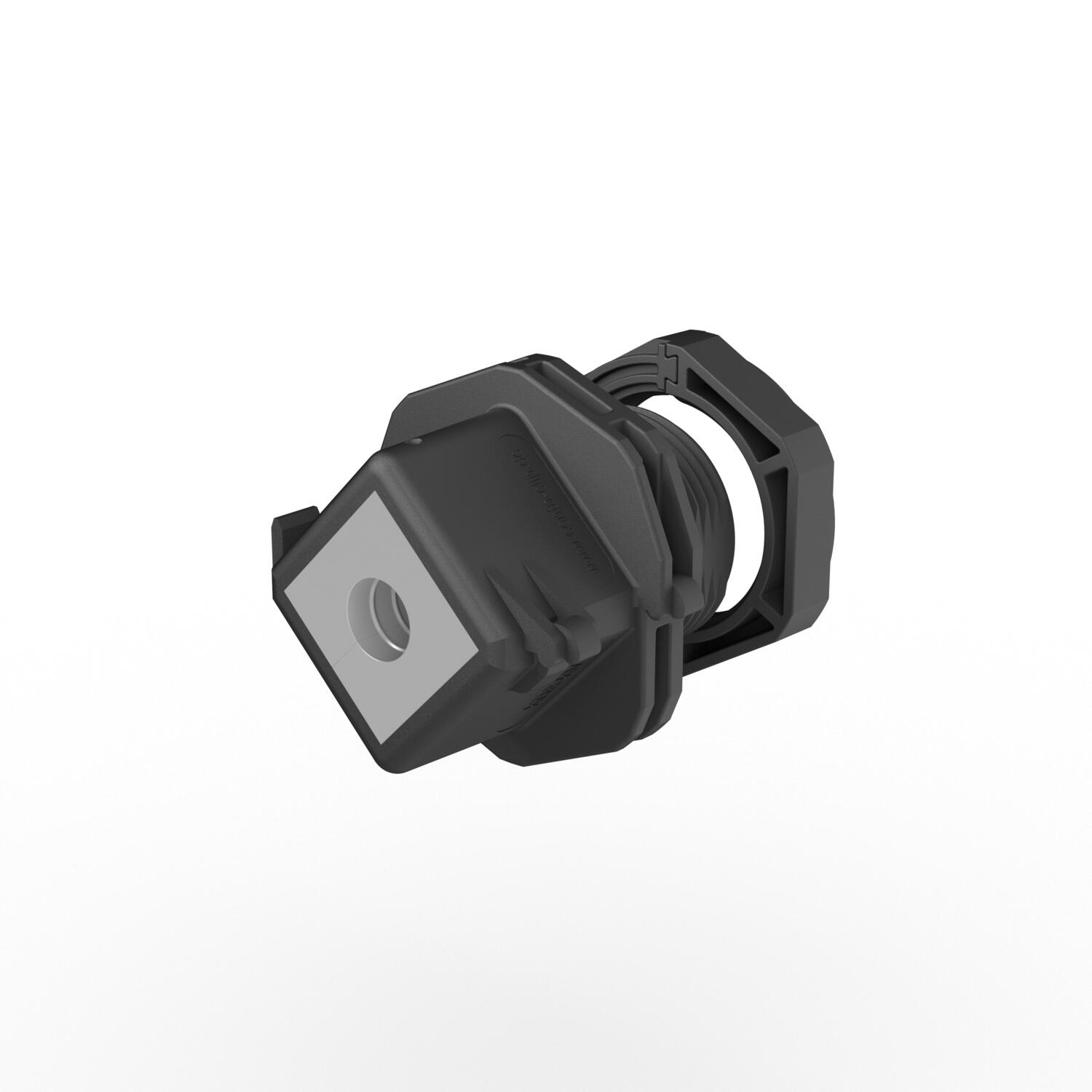

KDS-KV M25 Black, Separable cable gland
Art:
28611.4
Copied
|
40 mm
|
38.7 mm
|
23.7 mm
|
40 mm
|
10
|
38 mm
|
M25
|
16.3 g
|
40 mm
|
| |
![]()

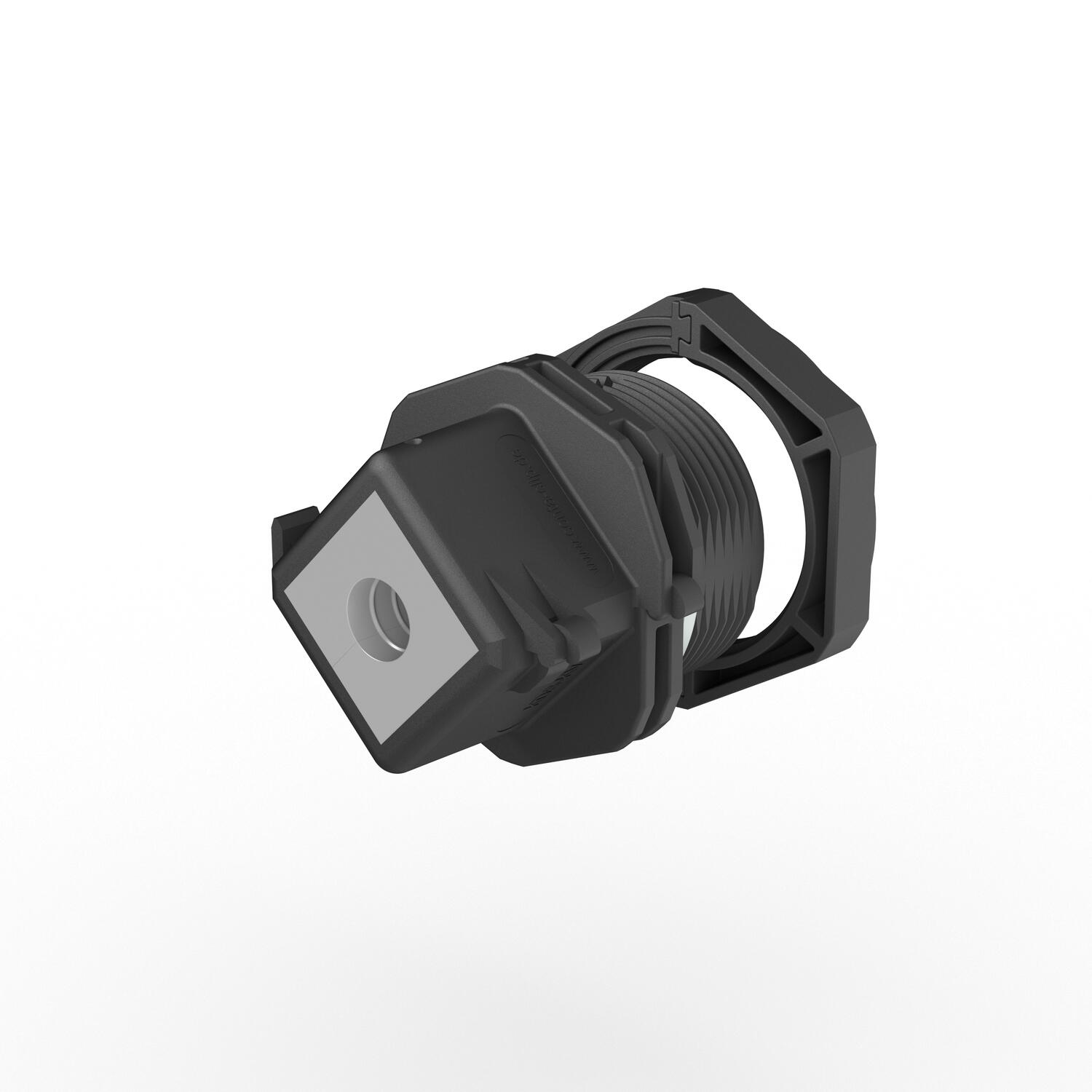

KDS-KV M32 Black, Separable cable gland
Art:
28612.4
Copied
|
40 mm
|
38.7 mm
|
23.7 mm
|
40 mm
|
10
|
38 mm
|
M32
|
17.6 g
|
40 mm
|
| |
![]()

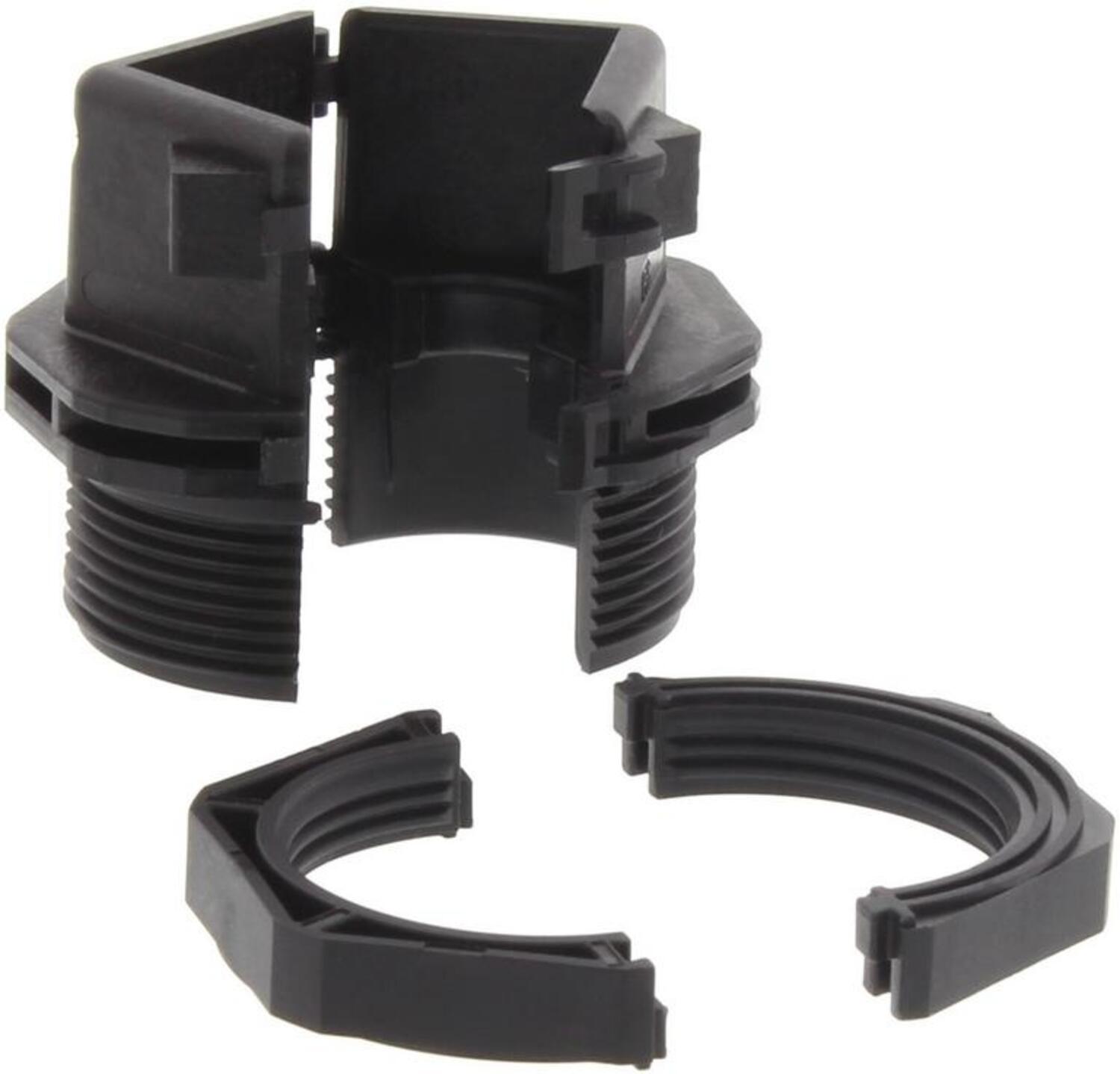

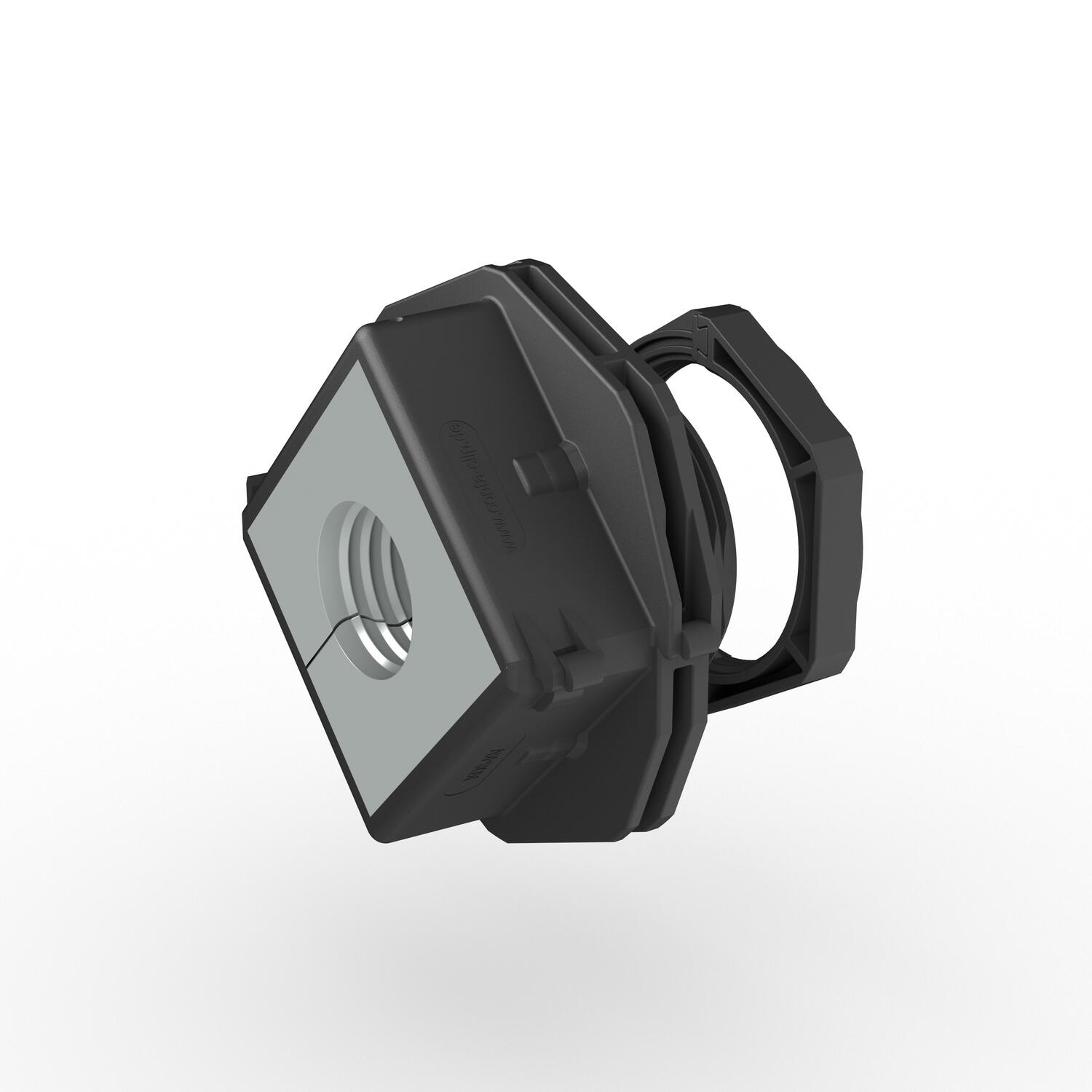

KDS-KV M40 Black, Separable cable gland
Art:
28613.4
Copied
|
72 mm
|
39.7 mm
|
24.7 mm
|
72 mm
|
5
|
68 mm
|
M40
|
37.2 g
|
72 mm
|
| |
![]()

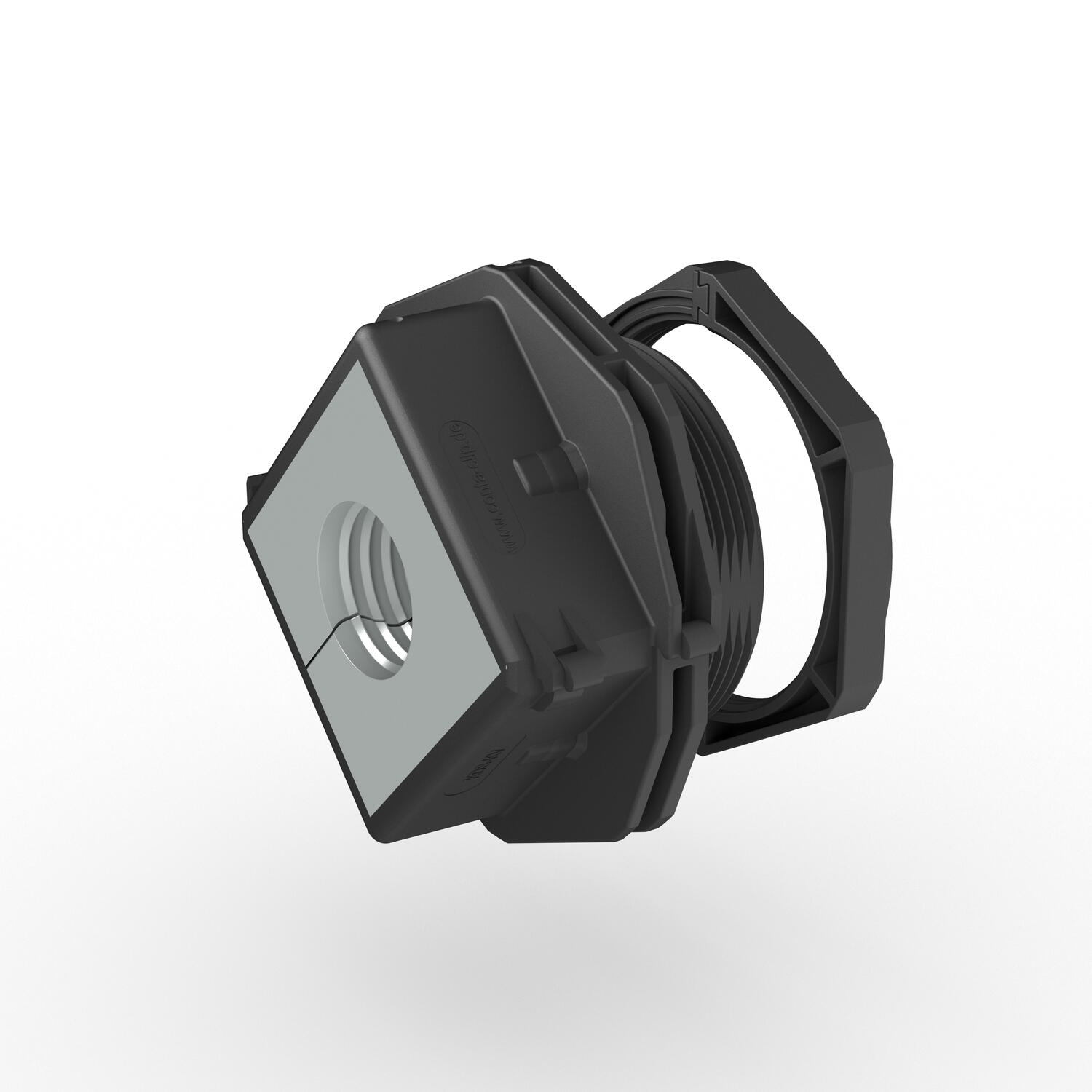

KDS-KV M50 Black, Separable cable gland
Art:
28614.4
Copied
|
72 mm
|
39.7 mm
|
24.7 mm
|
72 mm
|
5
|
68 mm
|
M50
|
36.9 g
|
72 mm
|
| |
![]()

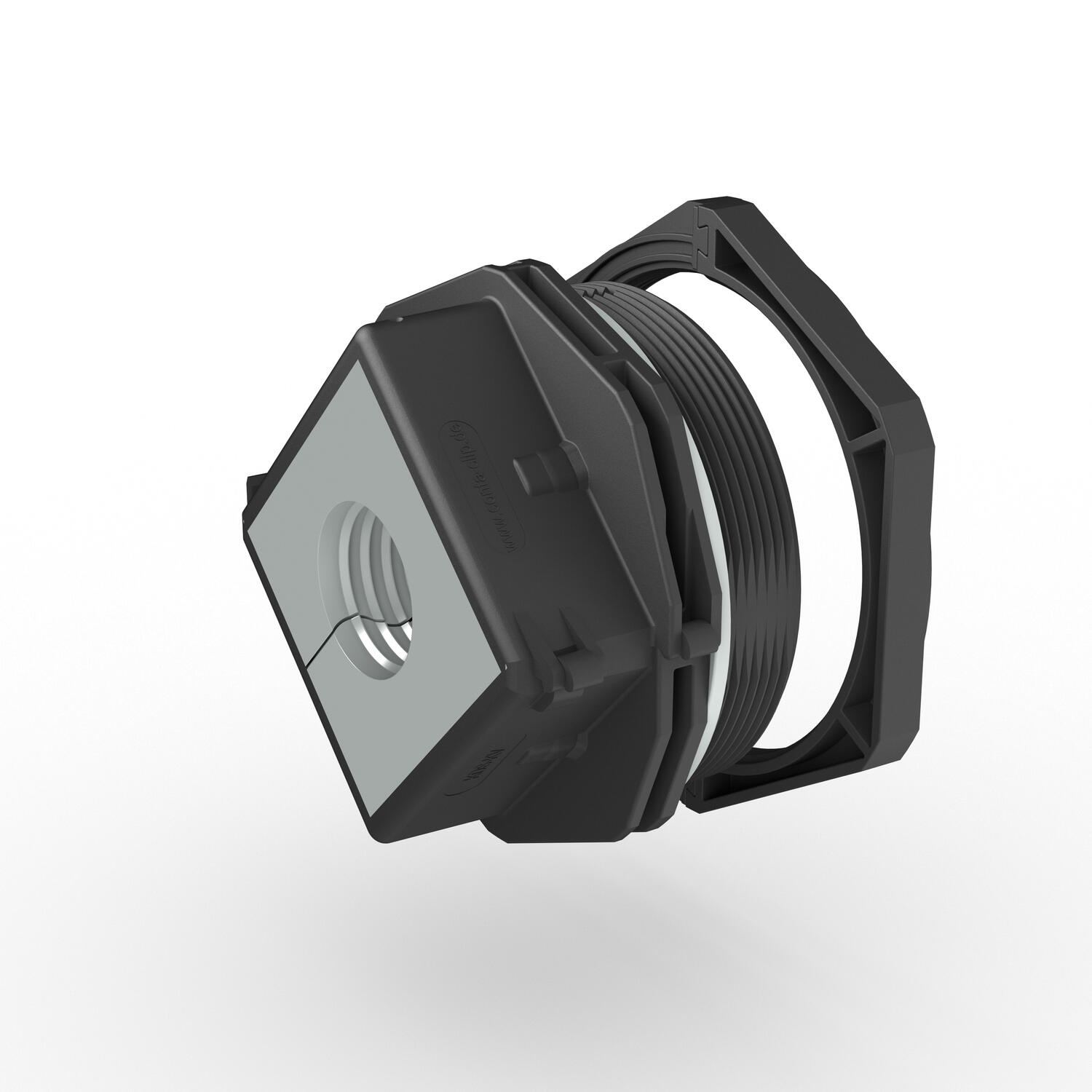

KDS-KV M63 Black, Separable cable gland
Art:
28615.4
Copied
|
72 mm
|
39.7 mm
|
24.7 mm
|
72 mm
|
5
|
68 mm
|
M63
|
43.9 g
|
72 mm
|
|
