CONTA-CLIP

KDS Seal Inserts

KDS-DE, KDE-DEG, KDS-DES, KDE-DE-FB

Conta-Clip offer a wide range of IP66 seals to suit all applications and cable sizes.

The seals are rated to IP66, NEMA12 & NEMA 4X and are ECOLAB® certified, they are available in the standard grey colour or black.

The black seals have an operating temperature from -40°C to 120°C, are UV-stabilised and have a high chemical resistance. These are available in the small & large square profile seals only.

Single hole inserts can accommodate cables diameters from 1.5mm up to 35mm and there is a selection of 2, 3 and 4 hole variants for cable diameters of 4.5mm to 8mm diameter.

The introduction of the compact KDS-FB frame now offers a wide range of rectangular inserts designed for flat cables commonly used in the elevator and lifting industry. These can be combined with the small KDS-DE inserts to provide a round & flat cable entry system.

Cone shape and seals for AS interface cables complete the range.

1.5mm to 35mm, cable diameters
Patented 'Wave Cut' technology

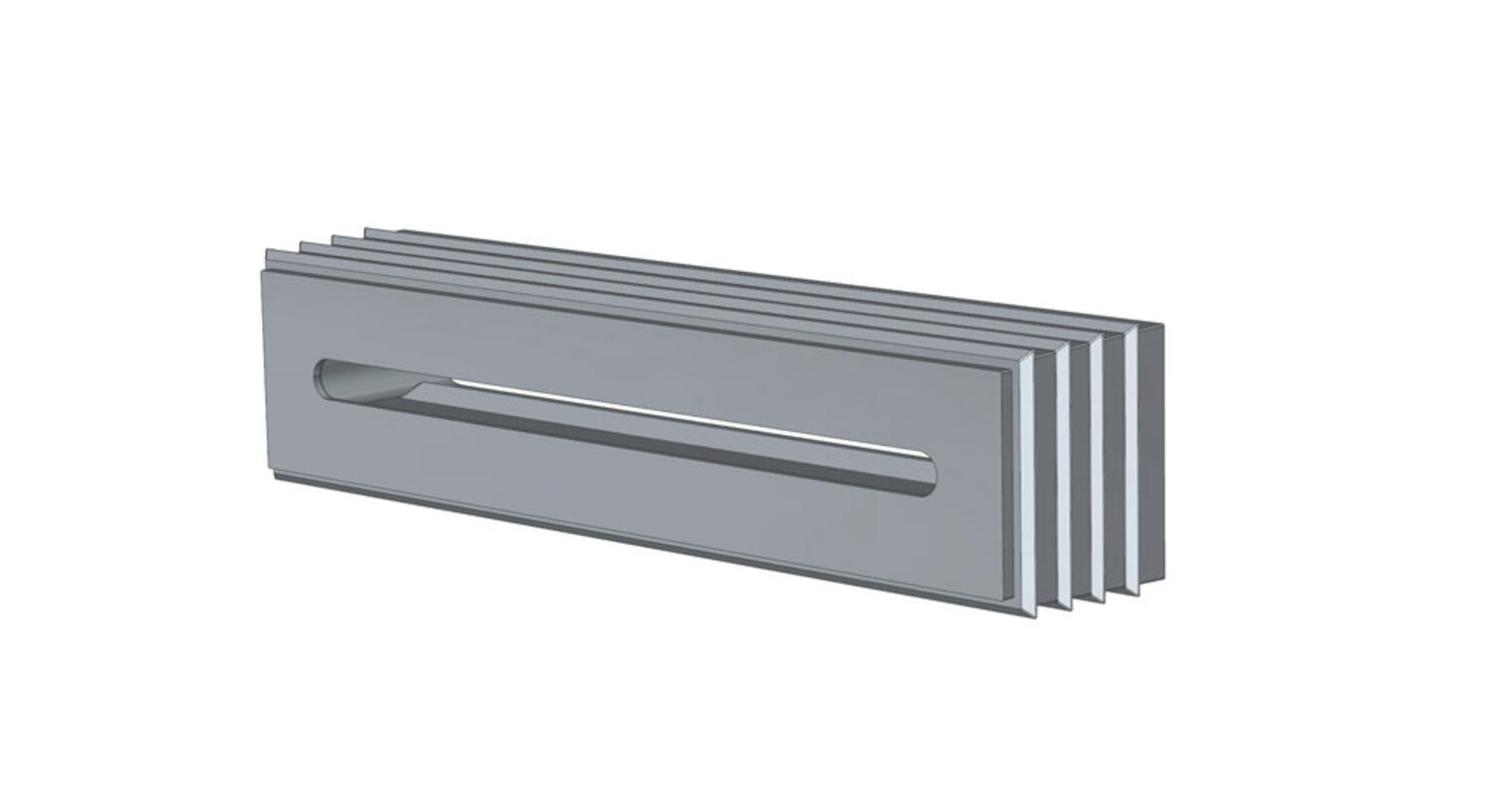

Flat cable versions for KDS-FB
-40°C to 120°C
IP66 - UL 94-V0 - Grey, UL 94HB- Black

Selected variant

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals	cUL, UL
Color	Grey
Country of origin	DE
cUL test standard	C22.2 No. 14-95
Flamklass	V-0
Glass-fibre reinforced	No
Halogen free	Yes
Height	17.7 mm
IP Class	IP66
Length	20.3 mm
Material	TPE
Mounting	Push in

NEMA class	4x
Number of cables	0
Operating temperature from	-40 °C
Operating temperature to	90 °C
Pack Size	10
Silicone-free	Yes
Tariff code	39259020
UL test standard	UL 508
UV-resistant	No
Weight	7.7 g
Width	20.3 mm

Downloads

Product description

Conta-Clip offer a wide range of IP66 seals to suit all applications and cable sizes.

The seals are rated to IP66, NEMA12 & NEMA 4X and are ECOLAB® certified, they are available in the standard grey colour or black.

The black seals have an operating temperature from -40°C to 120°C, are UV-stabilised and have a high chemical resistance. These are available in the small & large square profile seals only.

Single hole inserts can accommodate cables diameters from 1.5mm up to 35mm and there is a selection of 2, 3 and 4 hole variants for cable diameters of 4.5mm to 8mm diameter.

Cone shape and seals for AS interface cables complete the range.

Accessories

Related products

Product news

New WADI cable gland series from Jacob

The new WADI product family by Jacob features a completely redesigned gland rubber, which allows extensive sealing and tightening area.

Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Articles	Approvals	Cable Diameter Max	Cable Diameter Min	Color	cUL test standard	Dynamic Strain Relief	Flamklass	Glass-fibre reinforced	Height	Length	Material	Mounting	NEMA class	Number of cables	Operating temperature from	Operating temperature to	Pack Size	Slot height	Slot length	Static Strain Relief	UL test standard	UV-resistant	Weight	Width

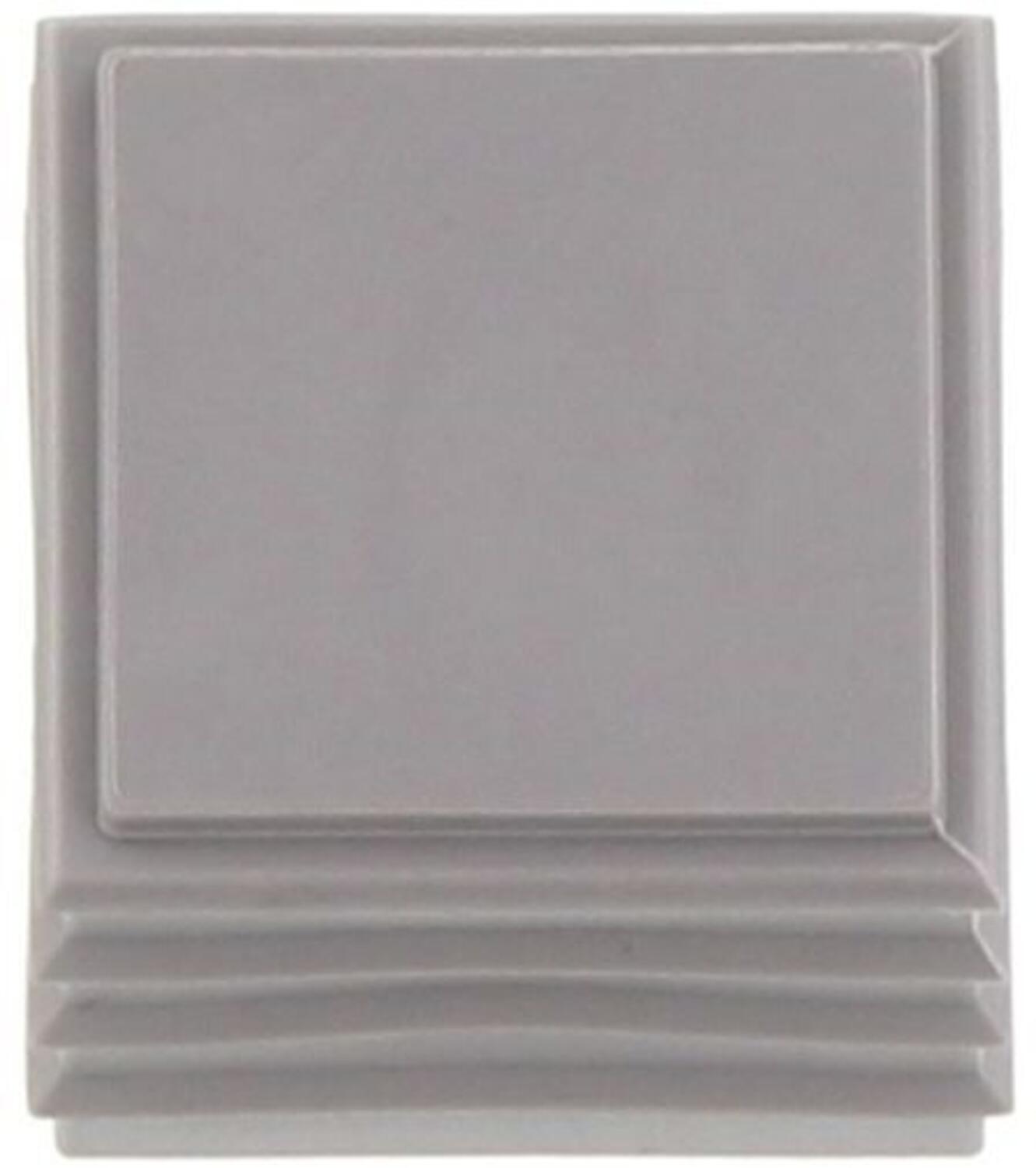

KDS-DE/B, Grey insert, Blind Art: 28561.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	0	-40 °C	90 °C	10				UL 508	No	7.7 g	20.3 mm

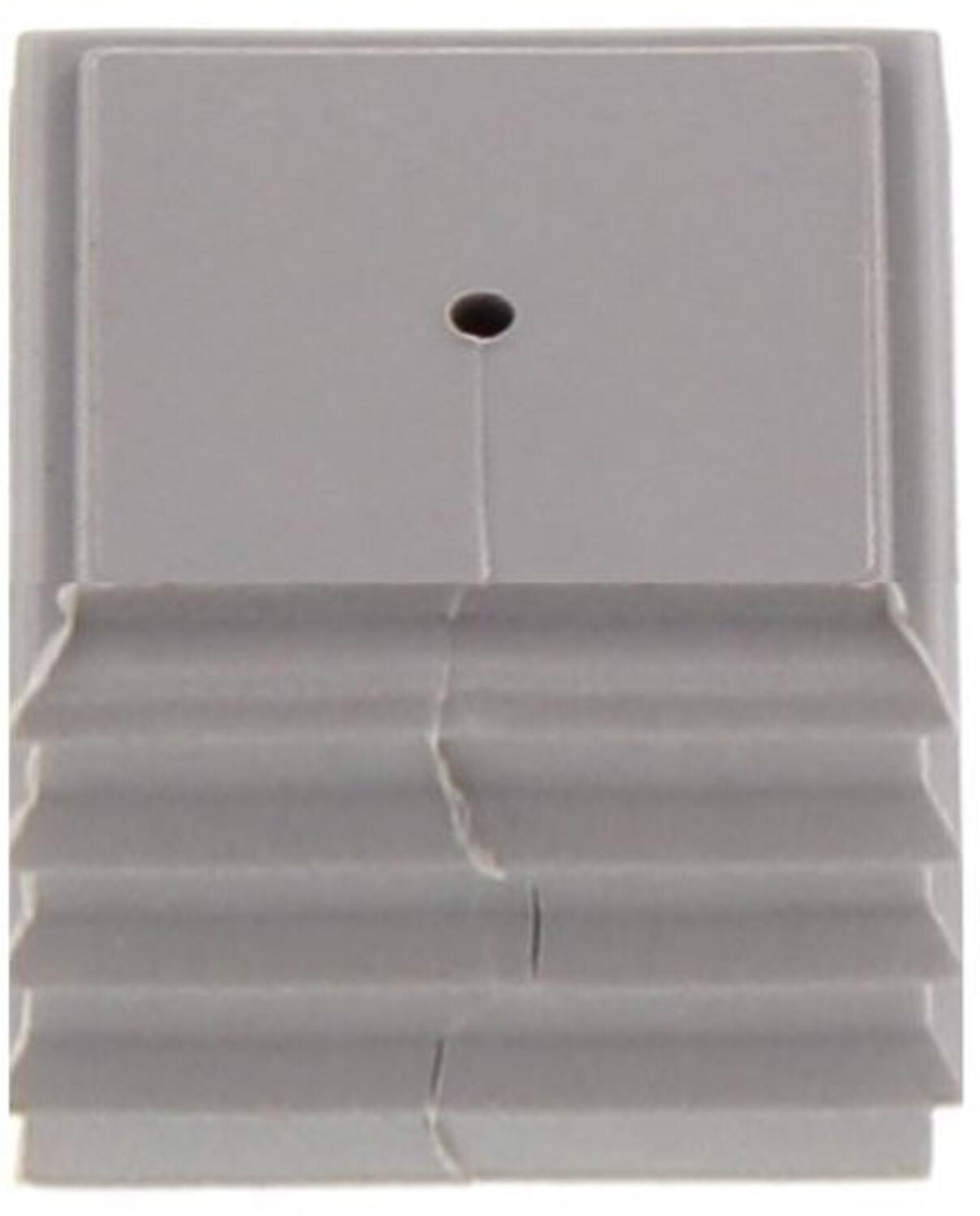

KDS-DE 1-2, Grey insert, Max 2mmø Art: 28562.6 Copied	cUL, UL	2 mm	1.5 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	7.6 g	20.3 mm
KDS-DE 2, Grey insert, Max 2mmø Art: 28696.6 Copied		2 mm	2 mm	Grey			V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10					No	7.7 g	20.3 mm

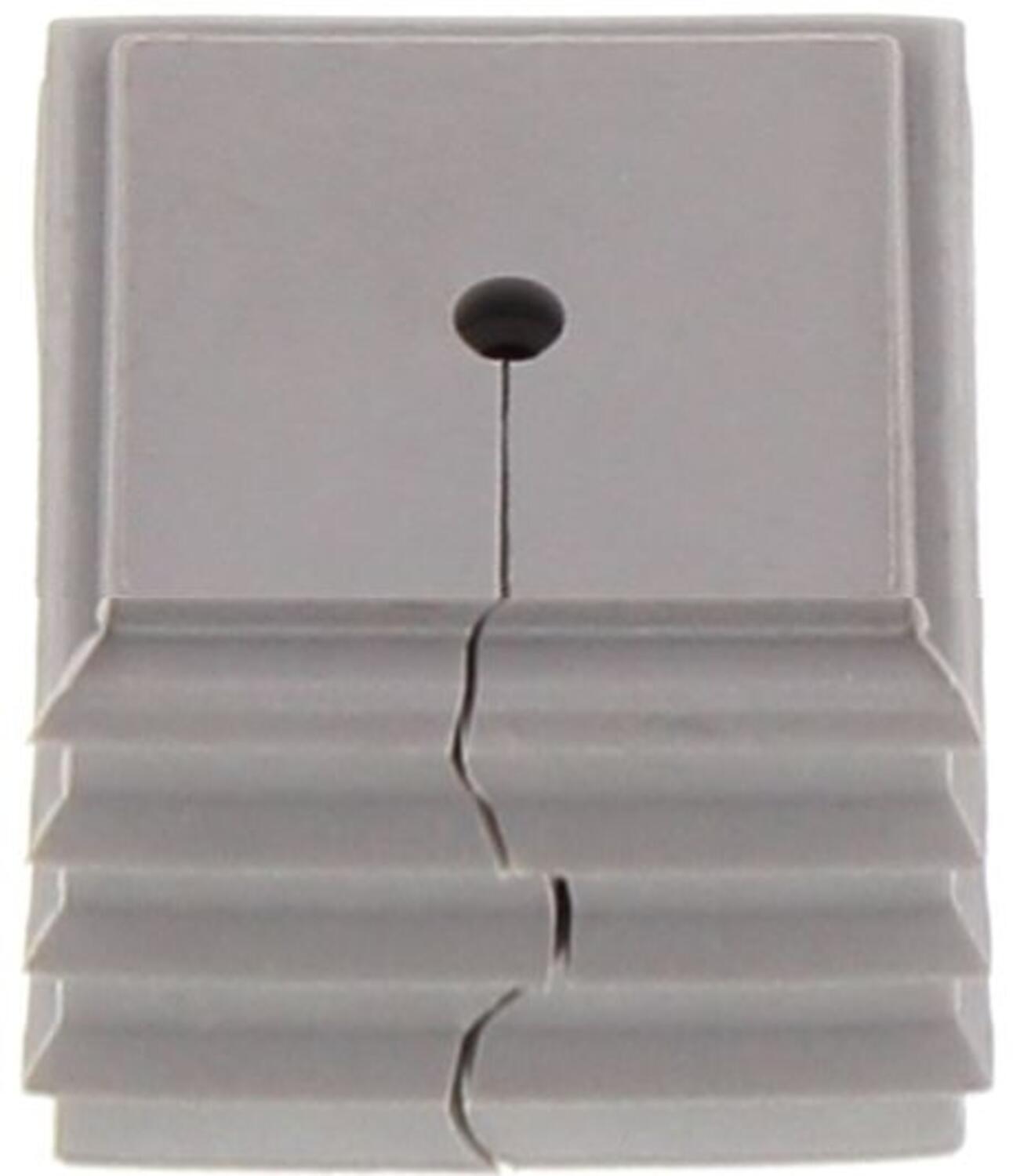

KDS-DE 2-3, Grey insert, Max 3mmø Art: 28563.6 Copied	cUL, UL	3 mm	2 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	7.4 g	20.3 mm
KDS-DE 3, Grey insert, Max 3mmø Art: 28698.6 Copied		3 mm	3 mm	Grey			V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10					No	7.6 g	20.3 mm

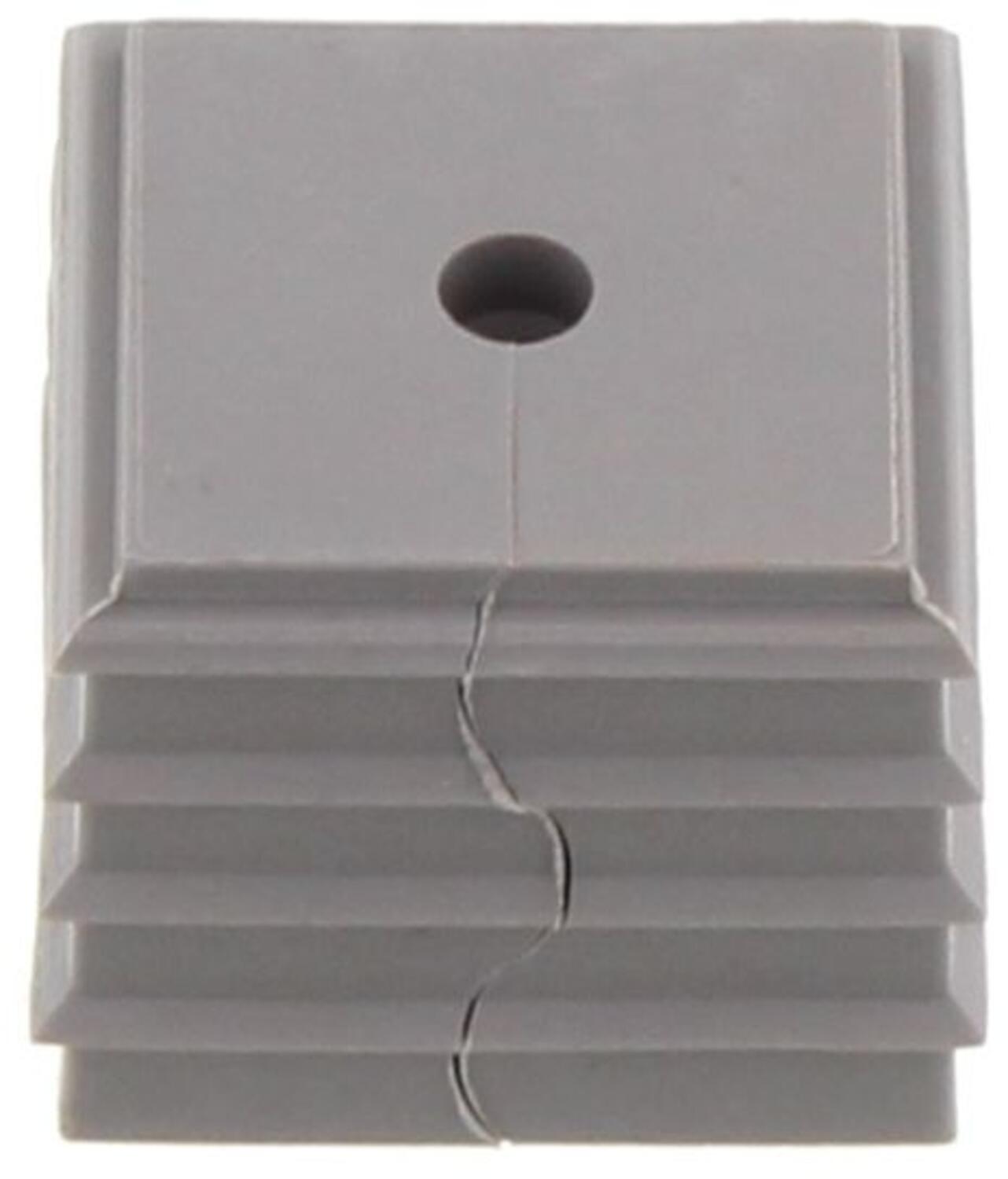

KDS-DE 3-4, Grey insert, Max 4mmø Art: 28564.6 Copied	cUL, UL	4 mm	3 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	7.7 g	20.3 mm

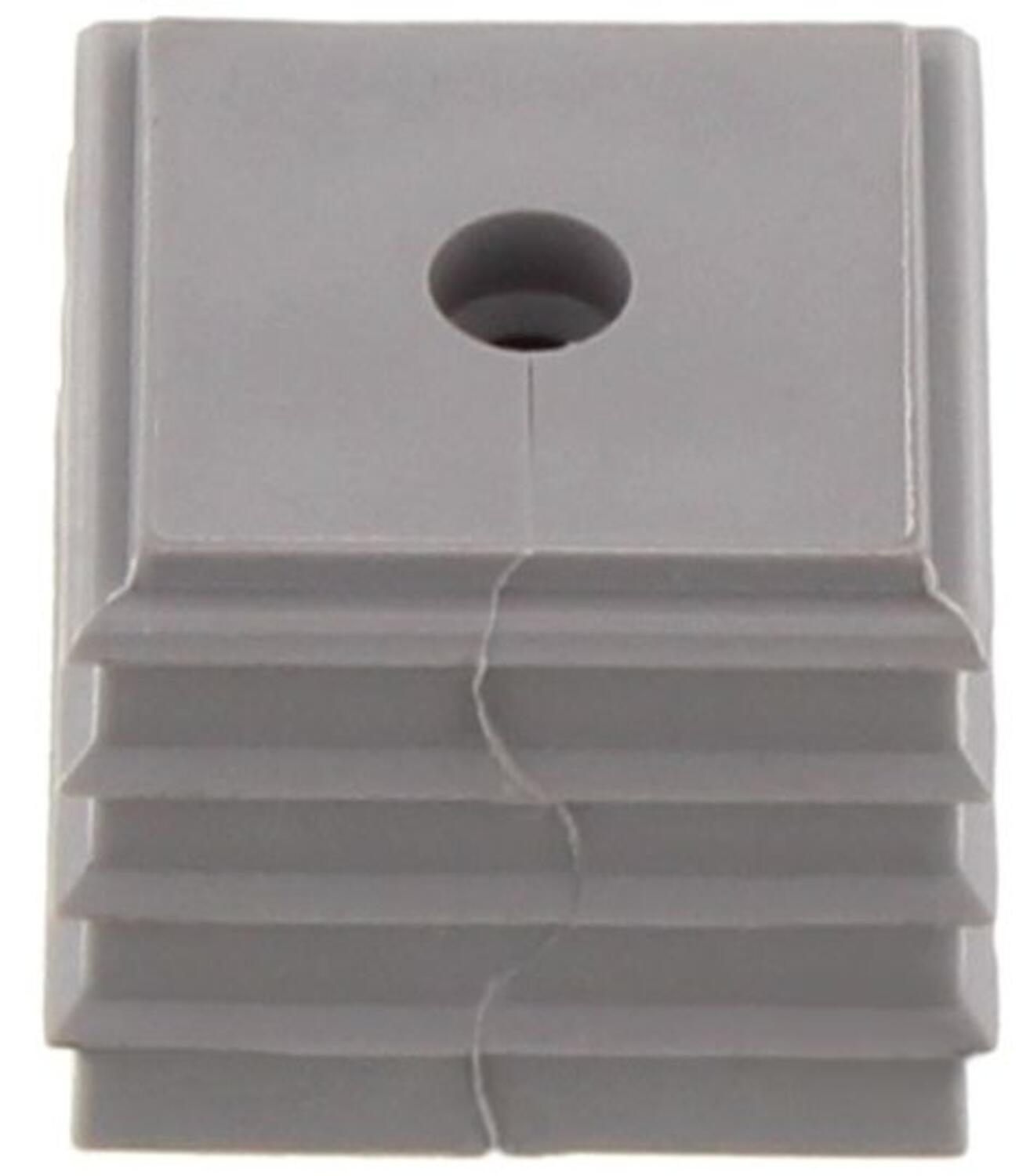

KDS-DE 4-5, Grey insert, Max 5mmø Art: 28565.6 Copied	cUL, UL	5 mm	4 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	7.2 g	20.3 mm

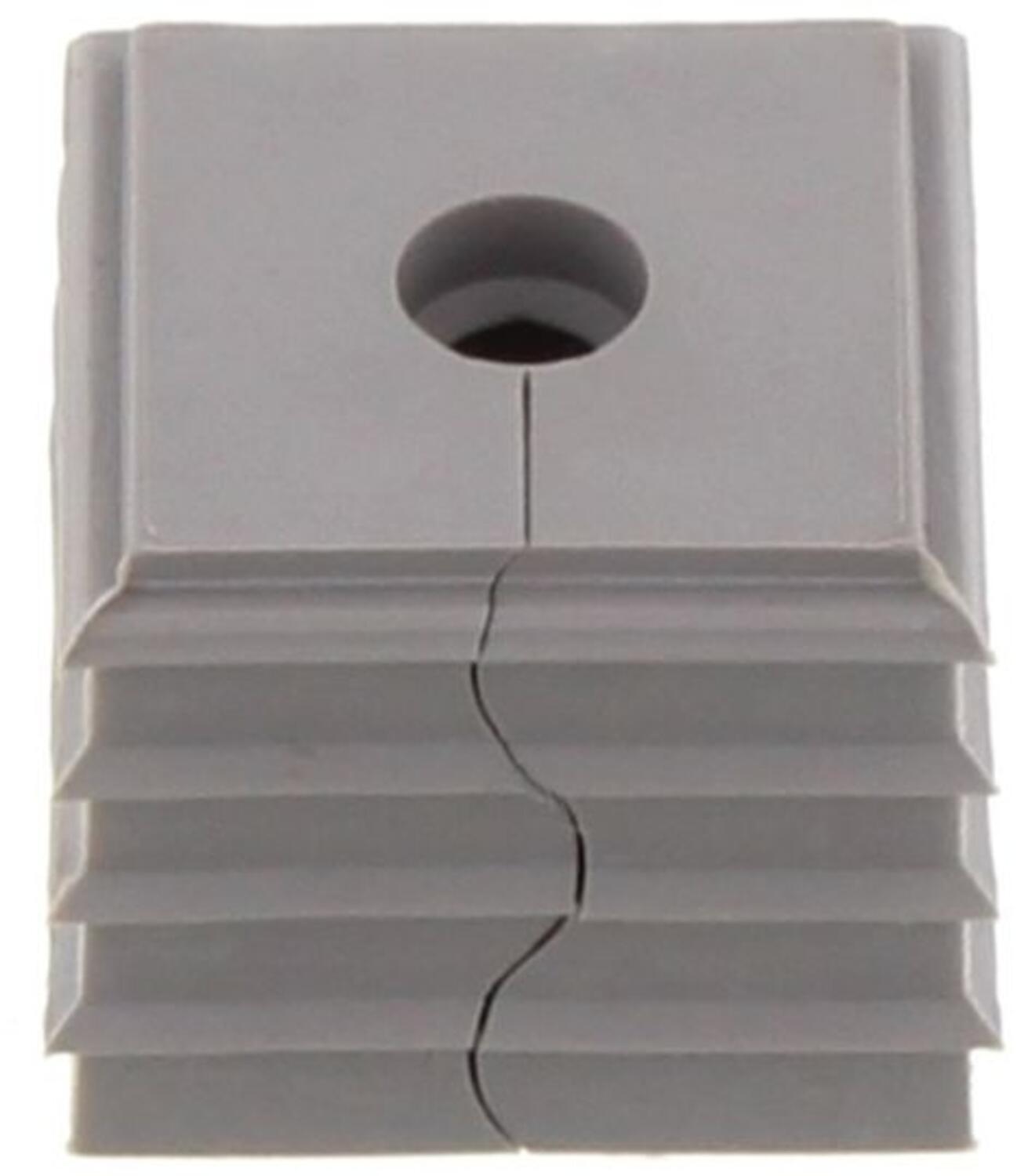

KDS-DE 5-6, Grey insert, Max 6mmø Art: 28566.6 Copied	cUL, UL	6 mm	5 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	7.2 g	20.3 mm

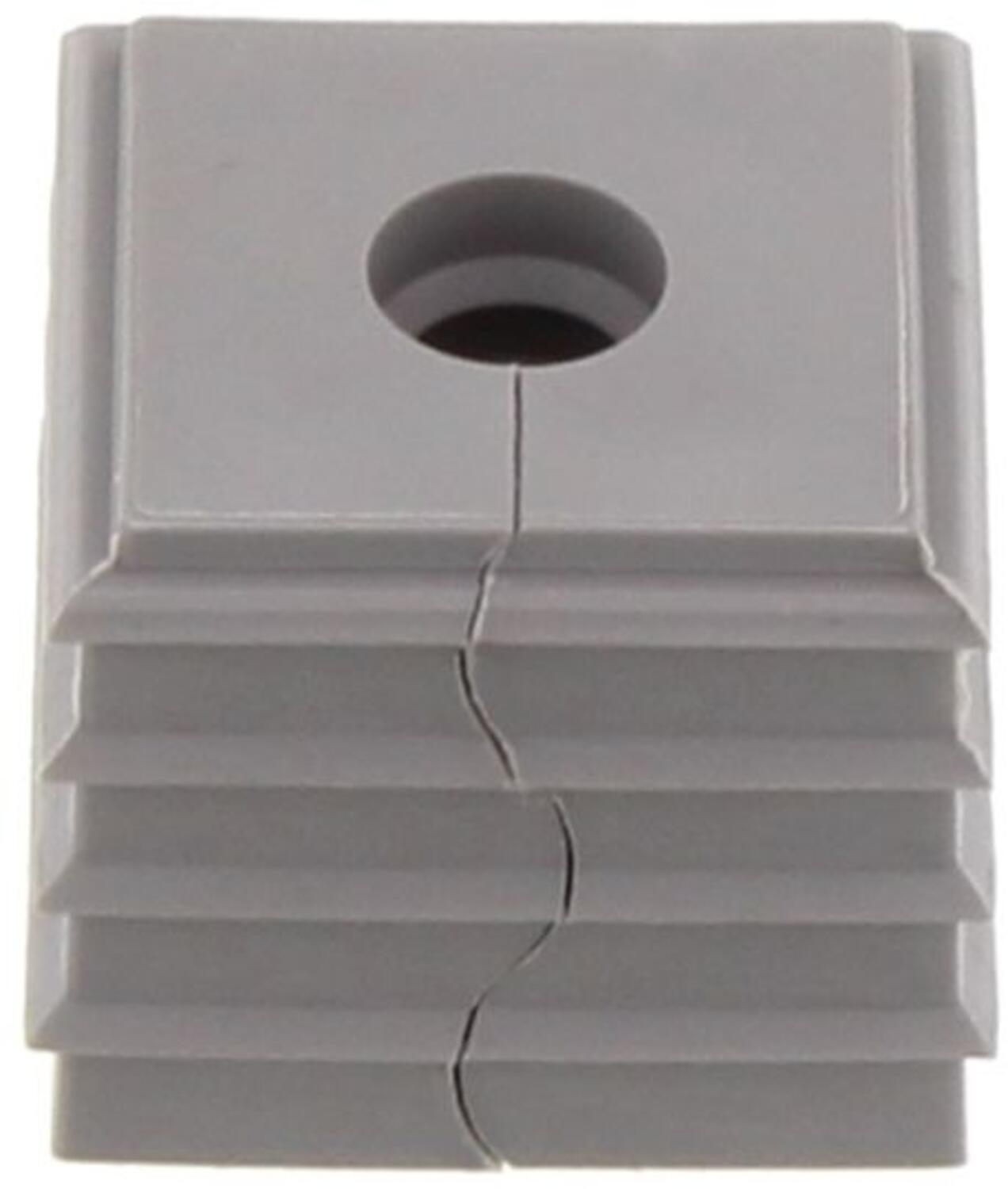

KDS-DE 6-7, Grey insert, Max 7mmø Art: 28567.6 Copied	cUL, UL	7 mm	6 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	6.8 g	20.3 mm

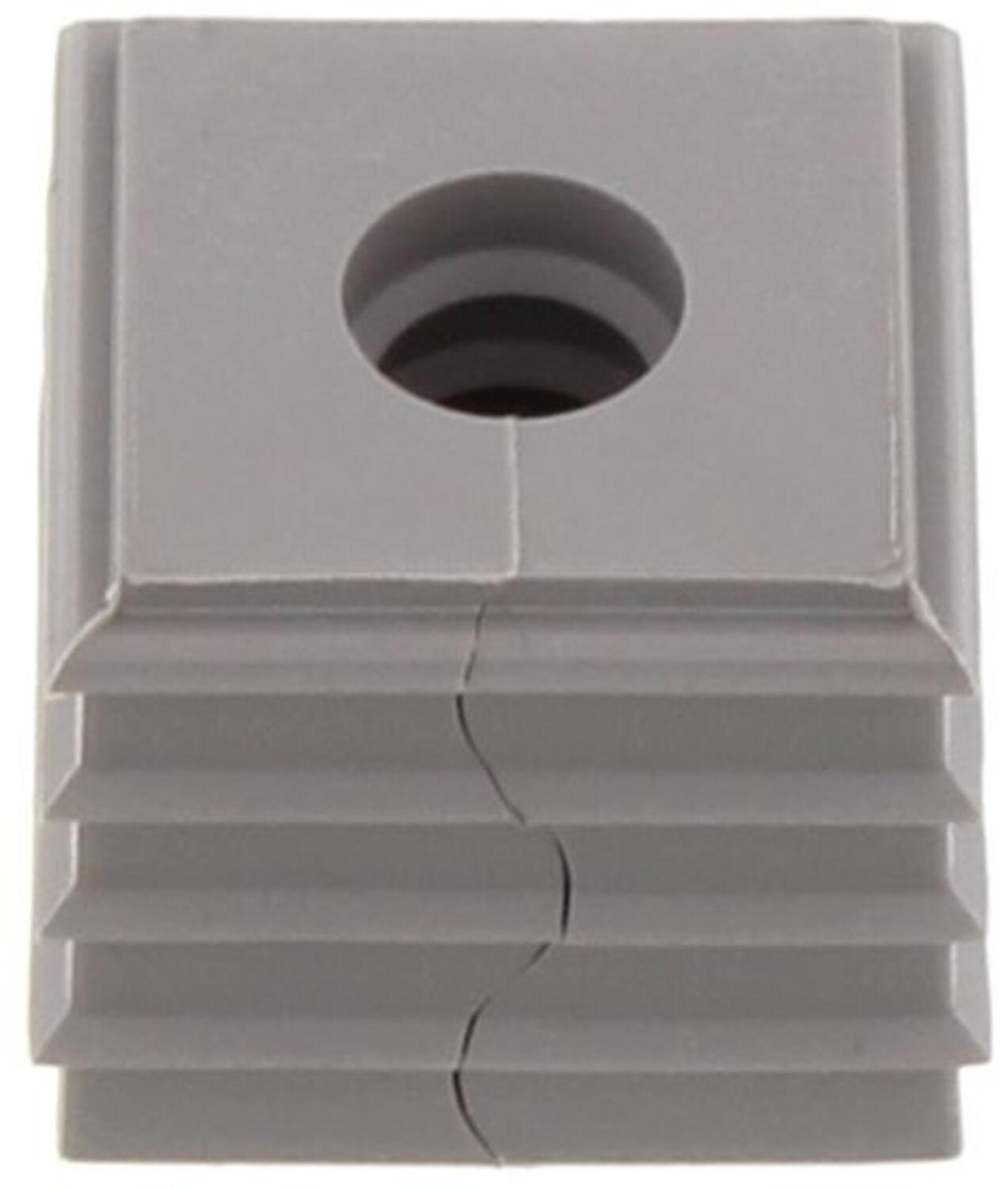

KDS-DE 7-8, Grey insert, Max 8mmø Art: 28568.6 Copied	cUL, UL	8 mm	7 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	6.6 g	20.3 mm

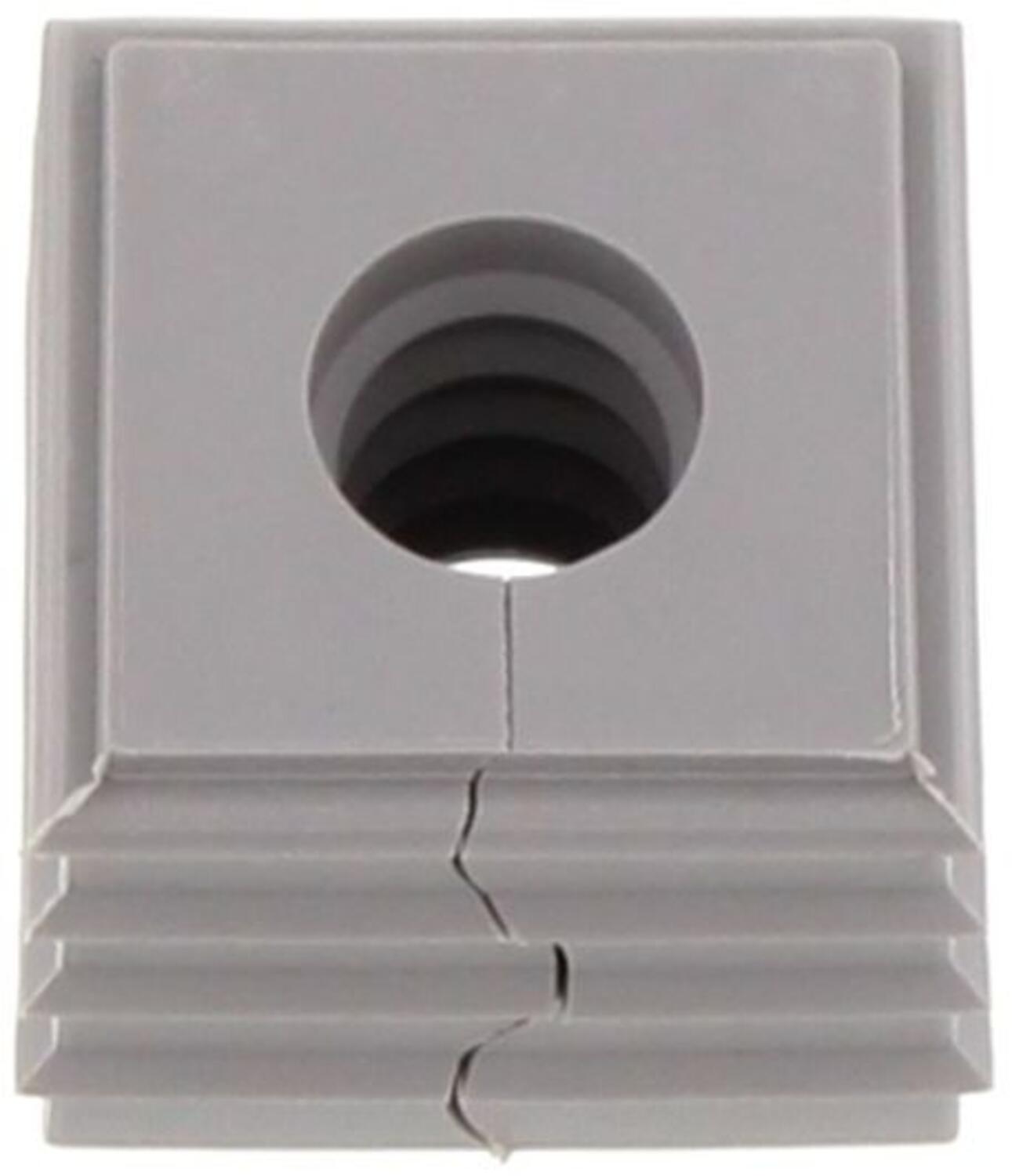

KDS-DE 8-9, Grey insert, Max 9mmø Art: 28569.6 Copied	cUL, UL	9 mm	8 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	6.4 g	20.3 mm
KDS-DE 9-10, Grey insert, Max 10mmø Art: 28570.6 Copied	cUL, UL	10 mm	9 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	6.3 g	20.3 mm
KDS-DE 10-11, Grey insert, Max 11mmø Art: 28571.6 Copied	cUL, UL	11 mm	10 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	6.1 g	20.3 mm

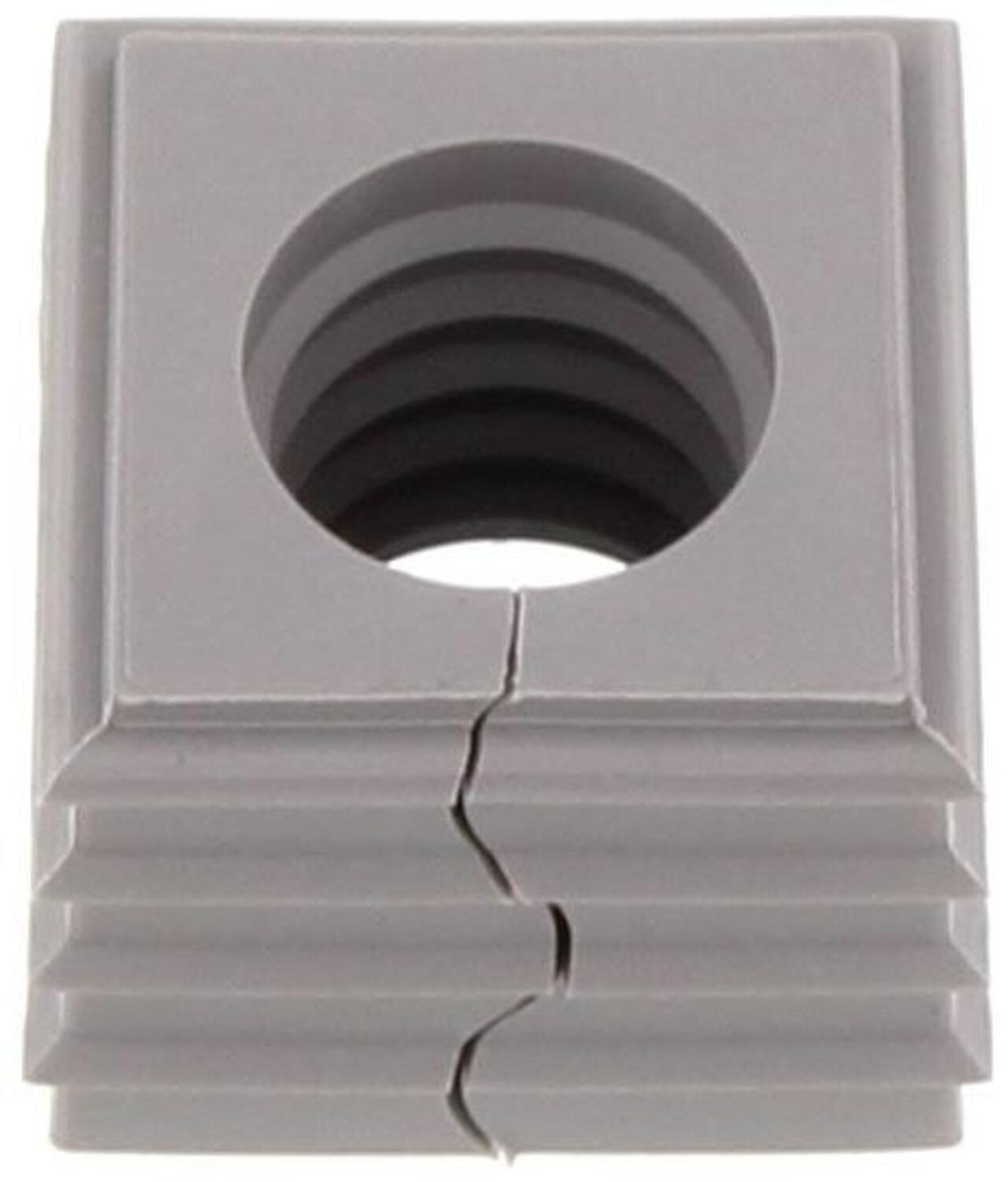

KDS-DE 11-12, Grey insert, Max 12mmø Art: 28572.6 Copied	cUL, UL	12 mm	11 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	5.8 g	20.3 mm

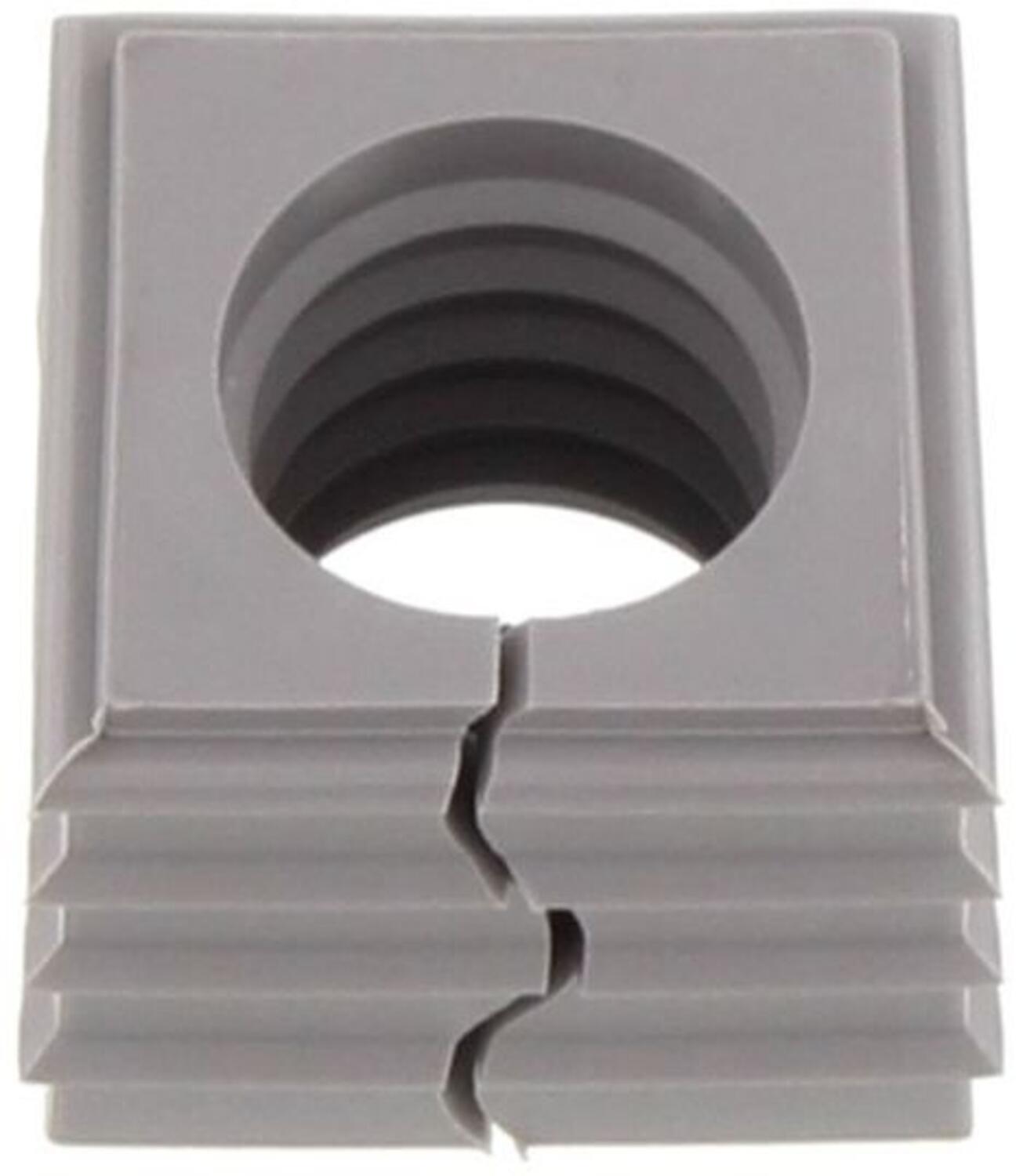

KDS-DE 12-13, Grey insert, Max 13mmø Art: 28573.6 Copied	cUL, UL	13 mm	12 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	5.1 g	20.3 mm

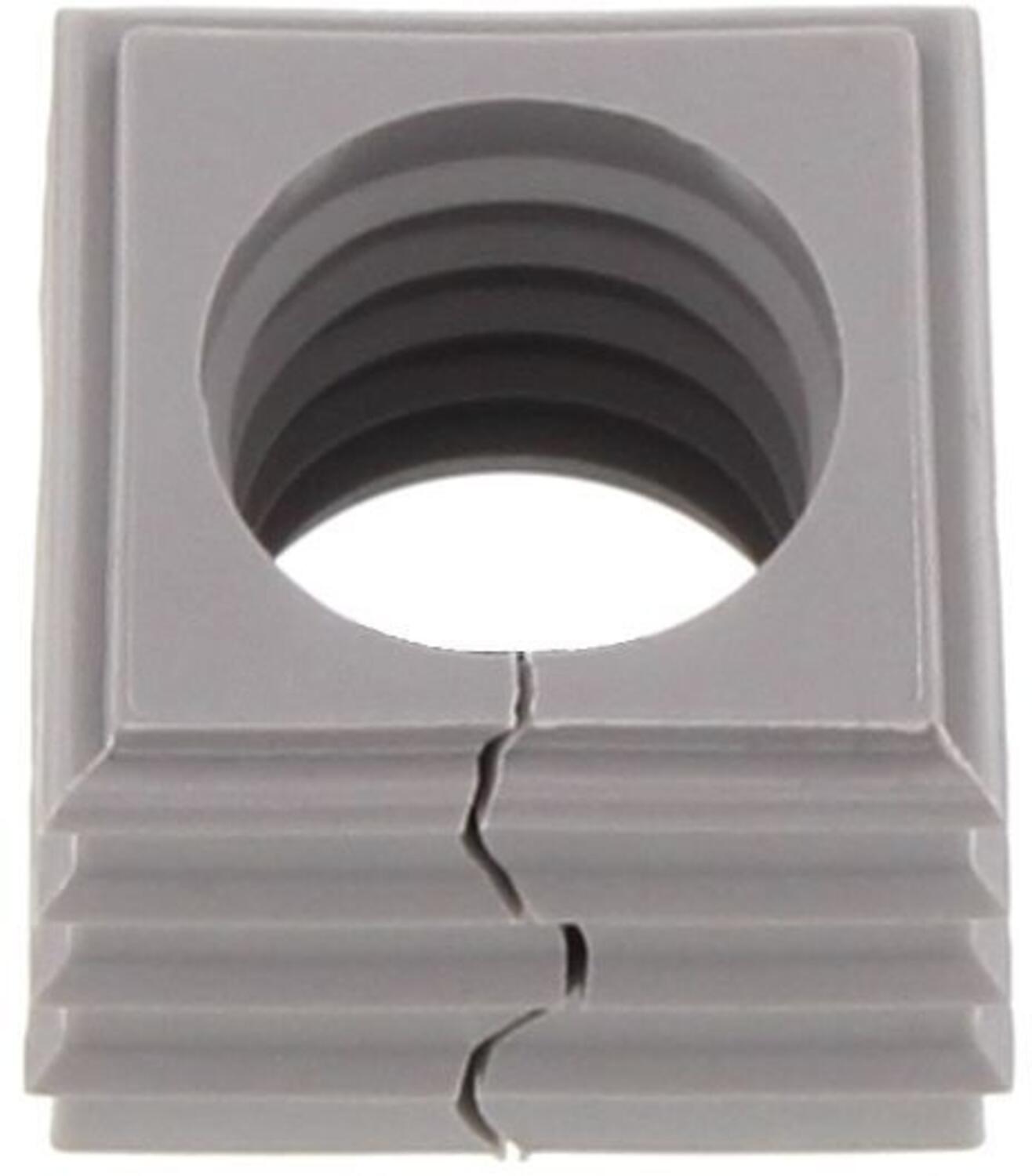

KDS-DE 13-14, Grey insert, Max 14mmø Art: 28574.6 Copied	cUL, UL	14 mm	13 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	4.9 g	20.3 mm

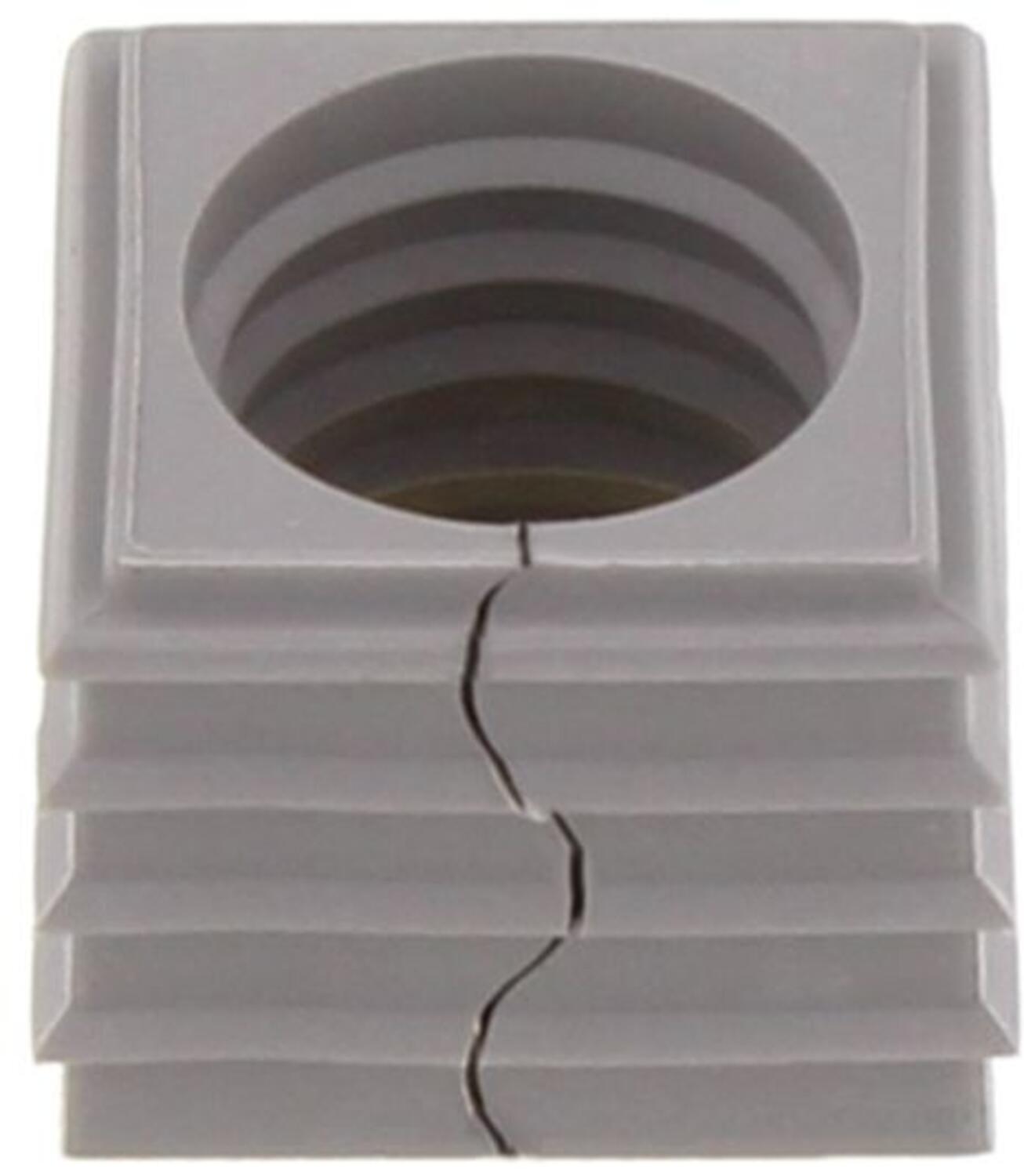

KDS-DE 14-15, Grey insert, Max 15mmø Art: 28609.6 Copied	cUL, UL	15 mm	14 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	4.7 g	20.3 mm
KDS-DE 15-16, Grey insert, Max 16mmø Art: 28671.6 Copied	cUL, UL	16 mm	15 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	4 g	20.3 mm
KDS-DE 2x 3-4 GR INSERT Max 4mmø Art: 28896.6 Copied	cUL, UL	4 mm	3 mm	Grey	C22.2 No. 14-95			No	17.7 mm	20.3 mm	TPE		4x	2	-40 °C	90 °C	10				UL 508	No	6.7 g	20.3 mm

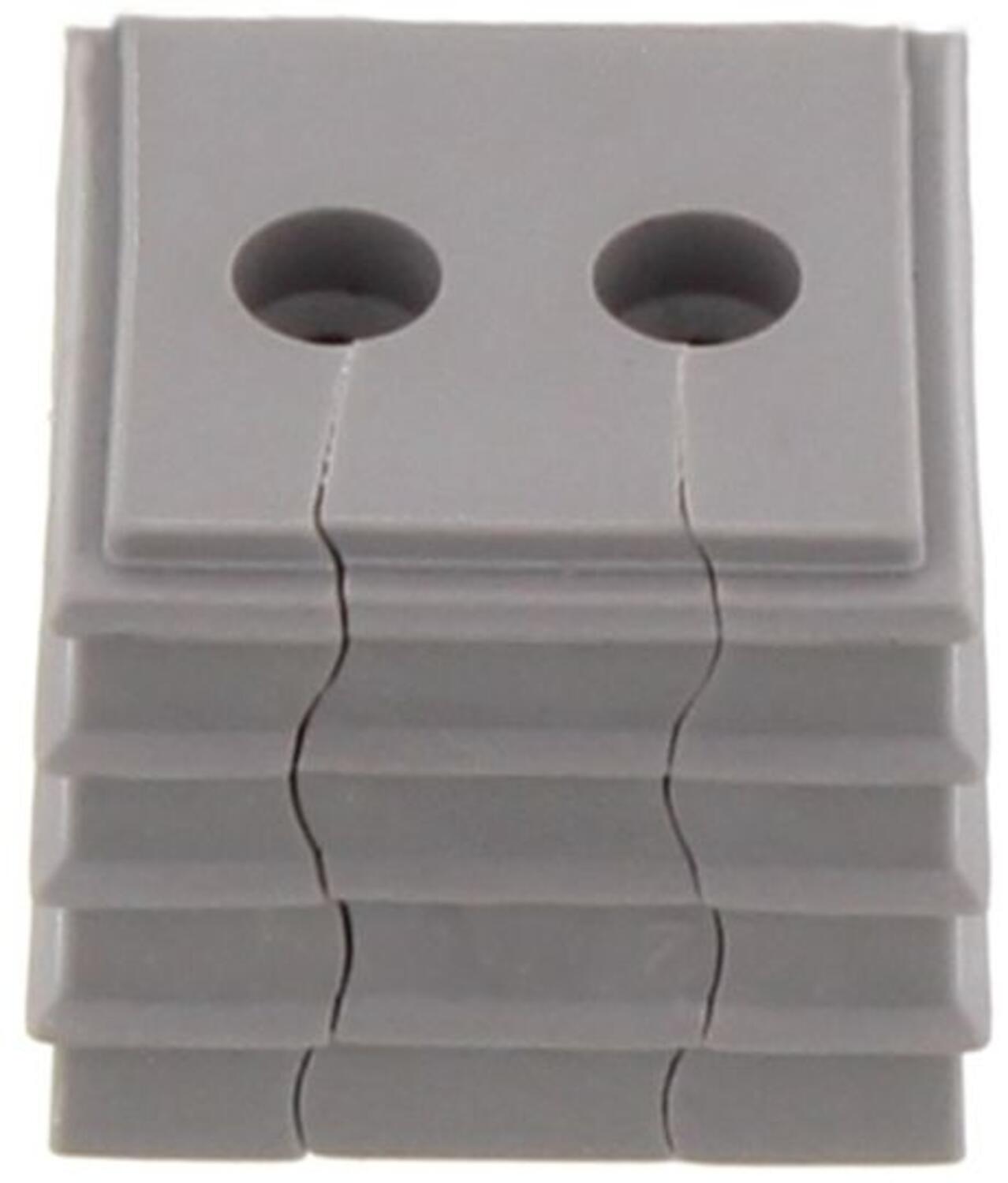

KDS-DE 2x 4-5, Grey insert, Max 5mmø Art: 28595.6 Copied	cUL, UL	5 mm	4 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	90 °C	10				UL 508	No	7.1 g	20.3 mm

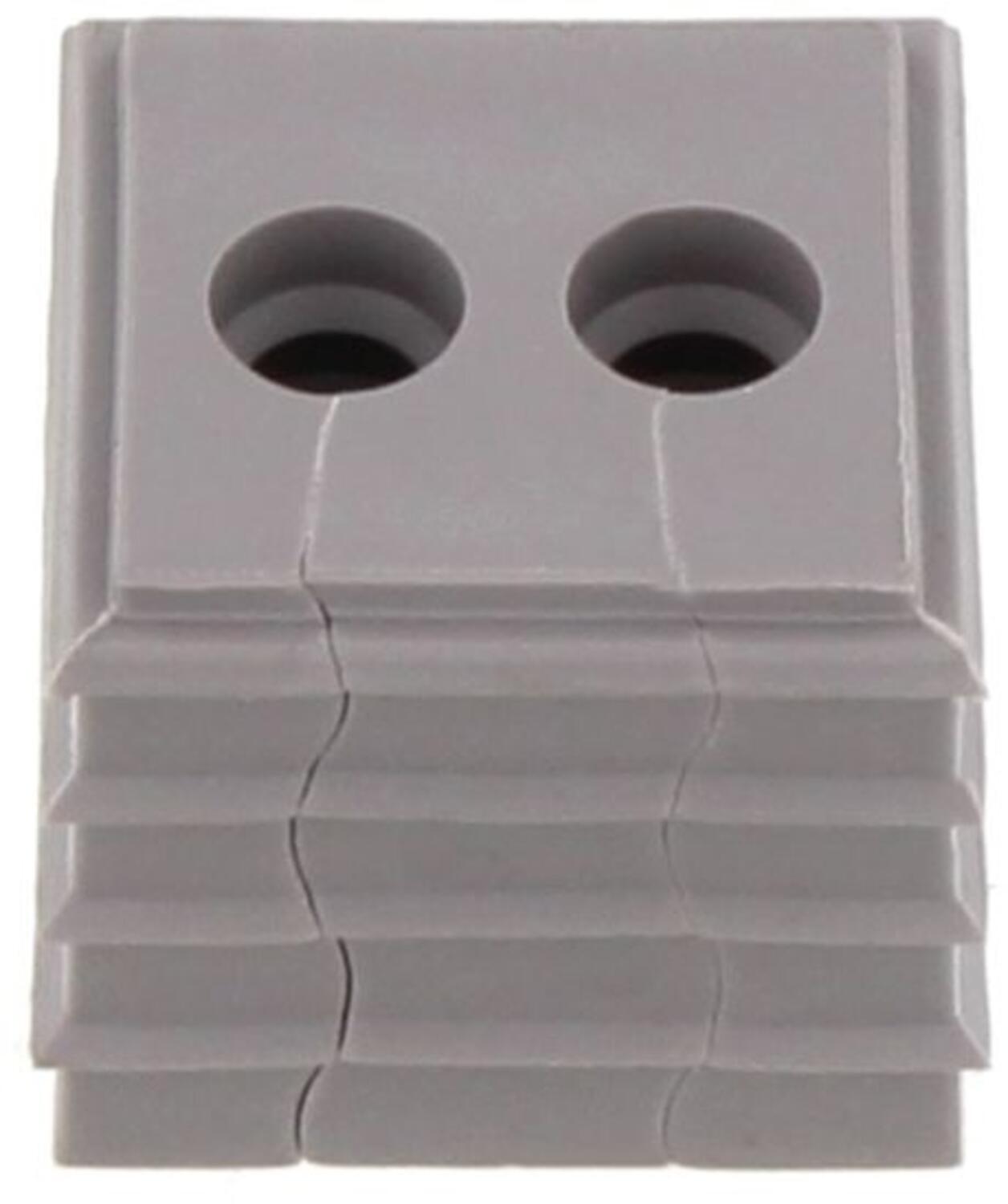

KDS-DE 2x 5-6, Grey insert, Max 6mmø Art: 28596.6 Copied	cUL, UL	6 mm	5 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	90 °C	10				UL 508	No	6.4 g	20.3 mm

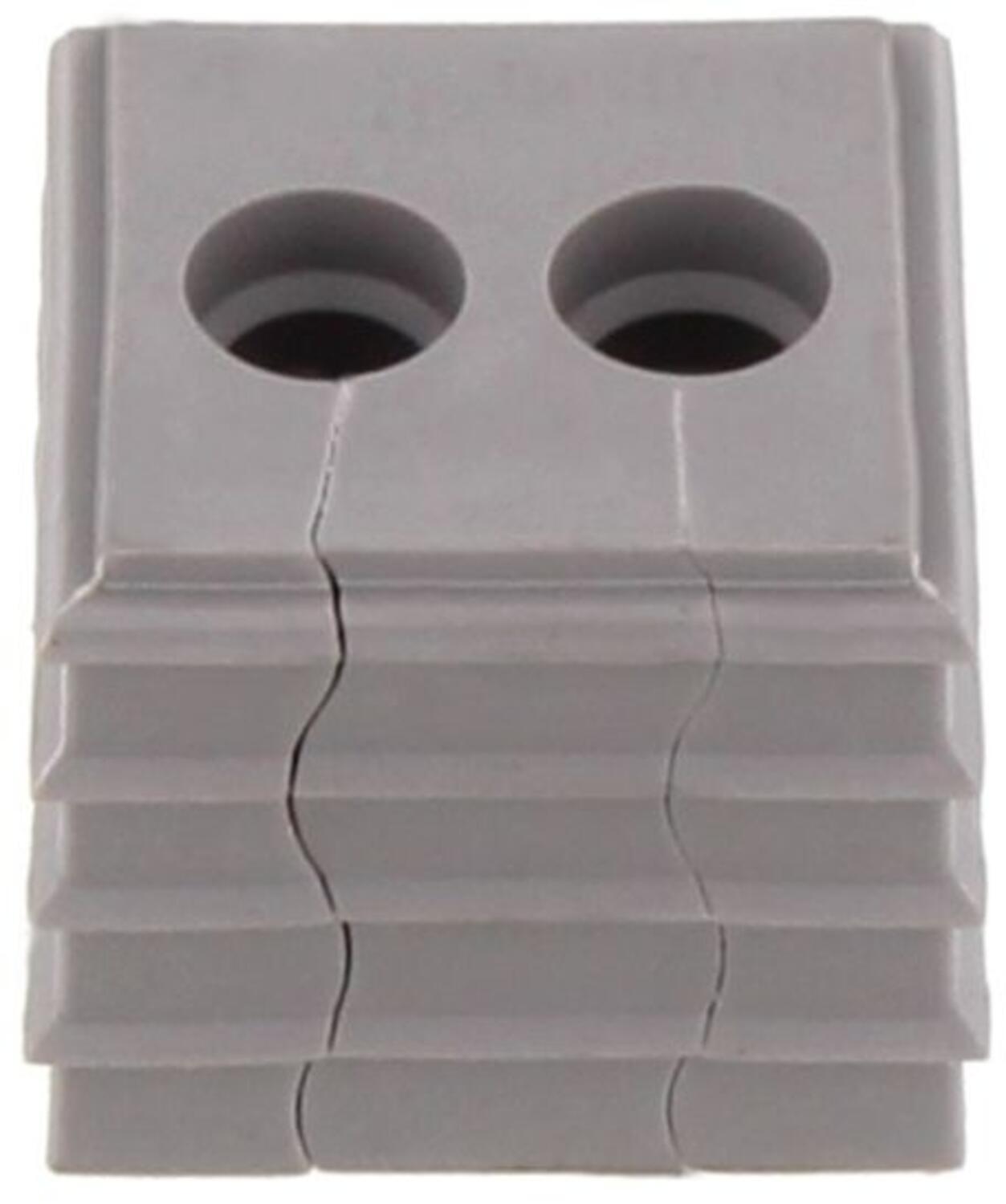

KDS-DE 2x 6.5, Grey insert, Max 6.8mmø Art: 28607.6 Copied	cUL, UL	6.6 mm	6.2 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	90 °C	10				UL 508	No	6.4 g	20.3 mm

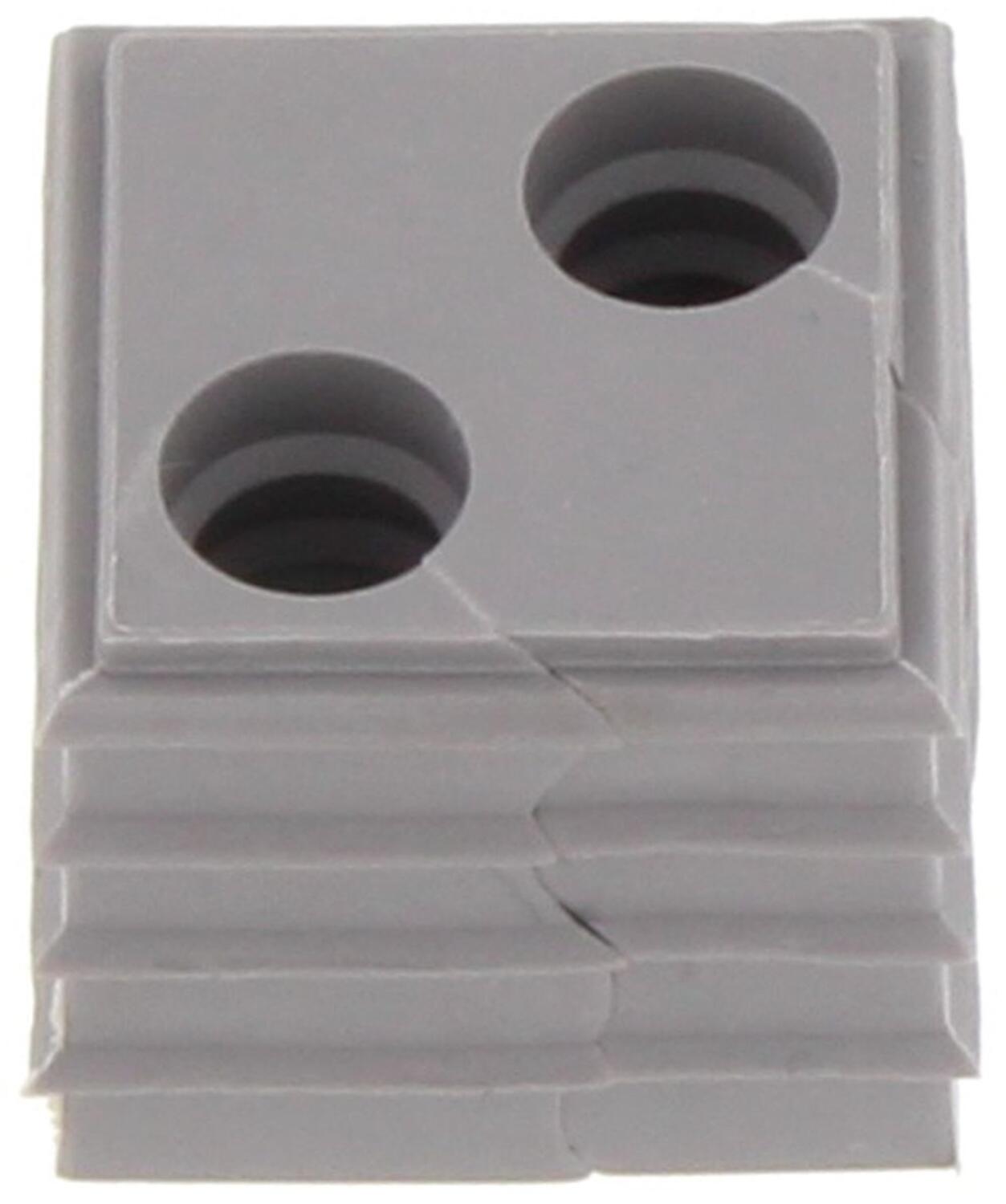

KDS-DE 2x7, Grey insert, Max 7mmø Art: 28690.6 Copied		7.1 mm	6.7 mm	Grey			V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	90 °C	10					No	6.3 g	20.3 mm
KDS-DE 2x8, Grey insert, Max 8mmø Art: 28692.6 Copied		8.1 mm	7.7 mm	Grey			V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	90 °C	10					No	5.9 g	20.3 mm

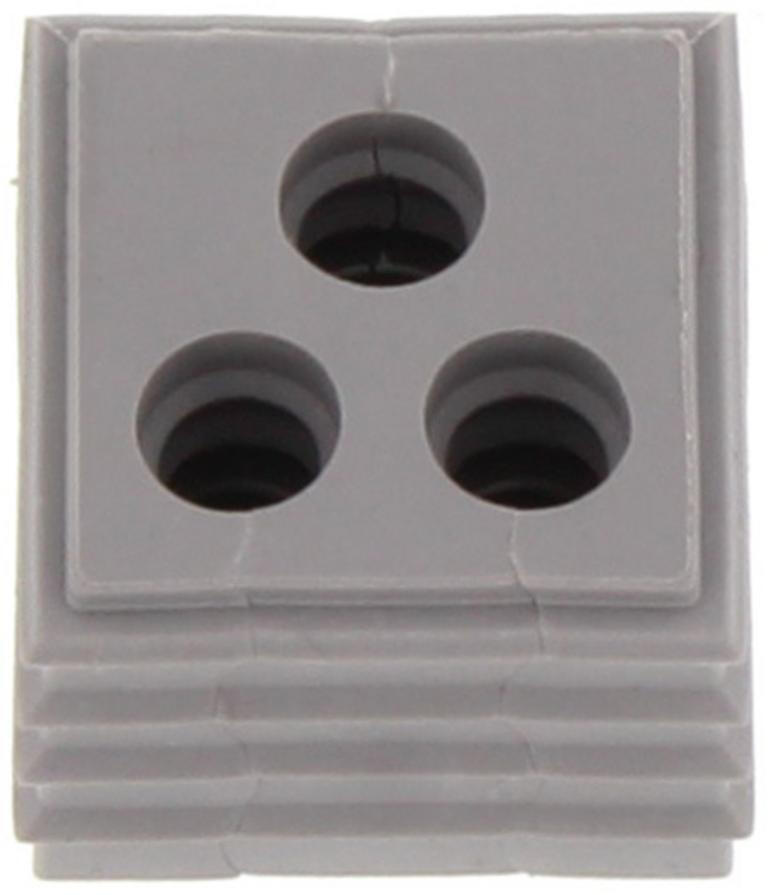

Art: 28769.6 Copied		5 mm	4 mm	Grey			V-0	No	17.7 mm	20.3 mm			4x	3	40 °C	90 °C	10					No	6.8 g	20.3 mm
KDS-DE 3x5-6, Grey insert, Max 6mmø Art: 28688.6 Copied		6 mm	5 mm	Grey			V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	3	-40 °C	90 °C	10					No	6.5 g	20.3 mm
KDS-DE 4x 2-3, Grey insert, Max 3mmø Art: 28597.6 Copied	cUL, UL	3 mm	2 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	4	-40 °C	90 °C	10				UL 508	No	7.3 g	20.3 mm

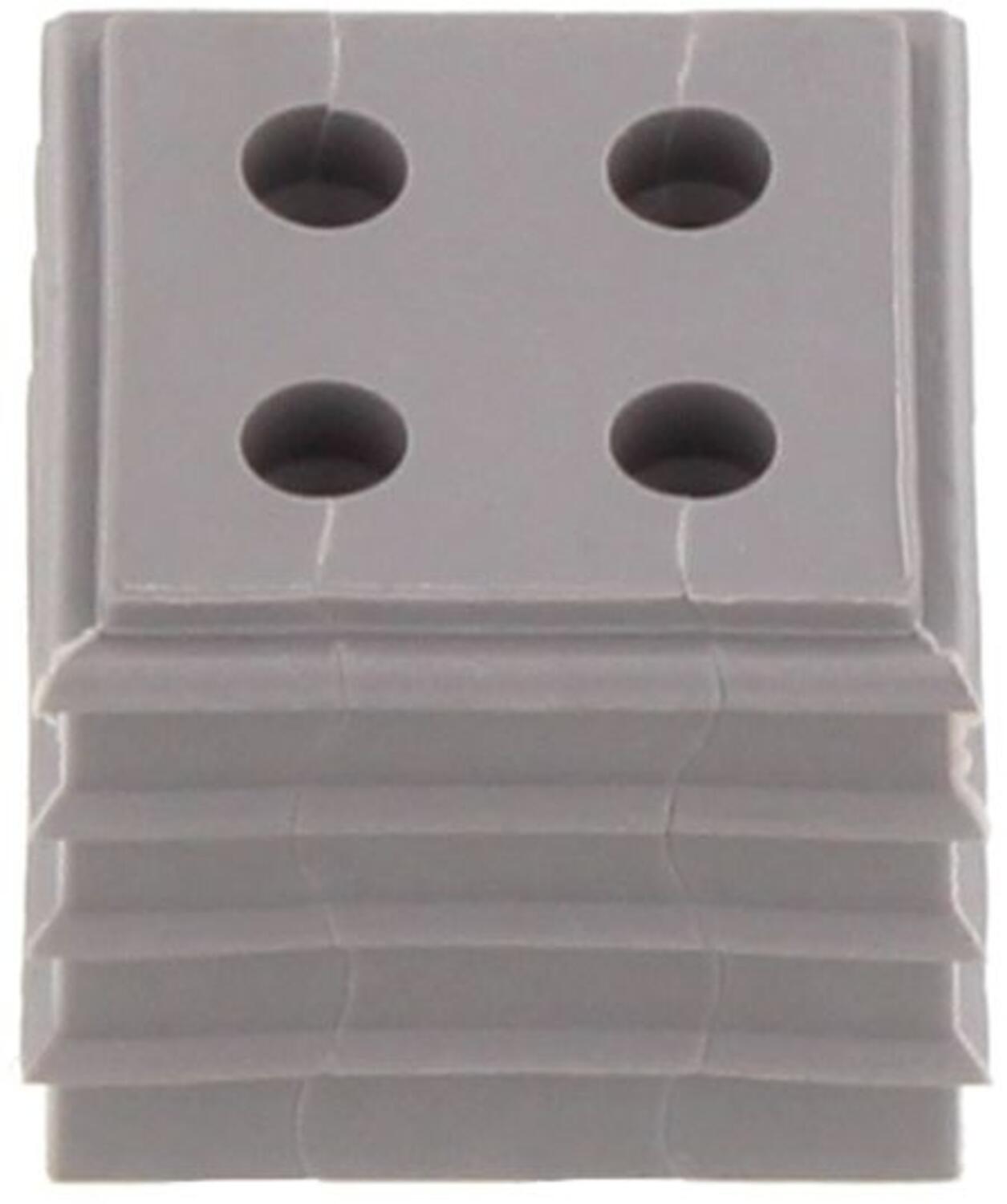

KDS-DE 4x 3-4, Grey insert, Max 4mmø Art: 28598.6 Copied	cUL, UL	4 mm	3 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	4	-40 °C	90 °C	10				UL 508	No	7 g	20.3 mm

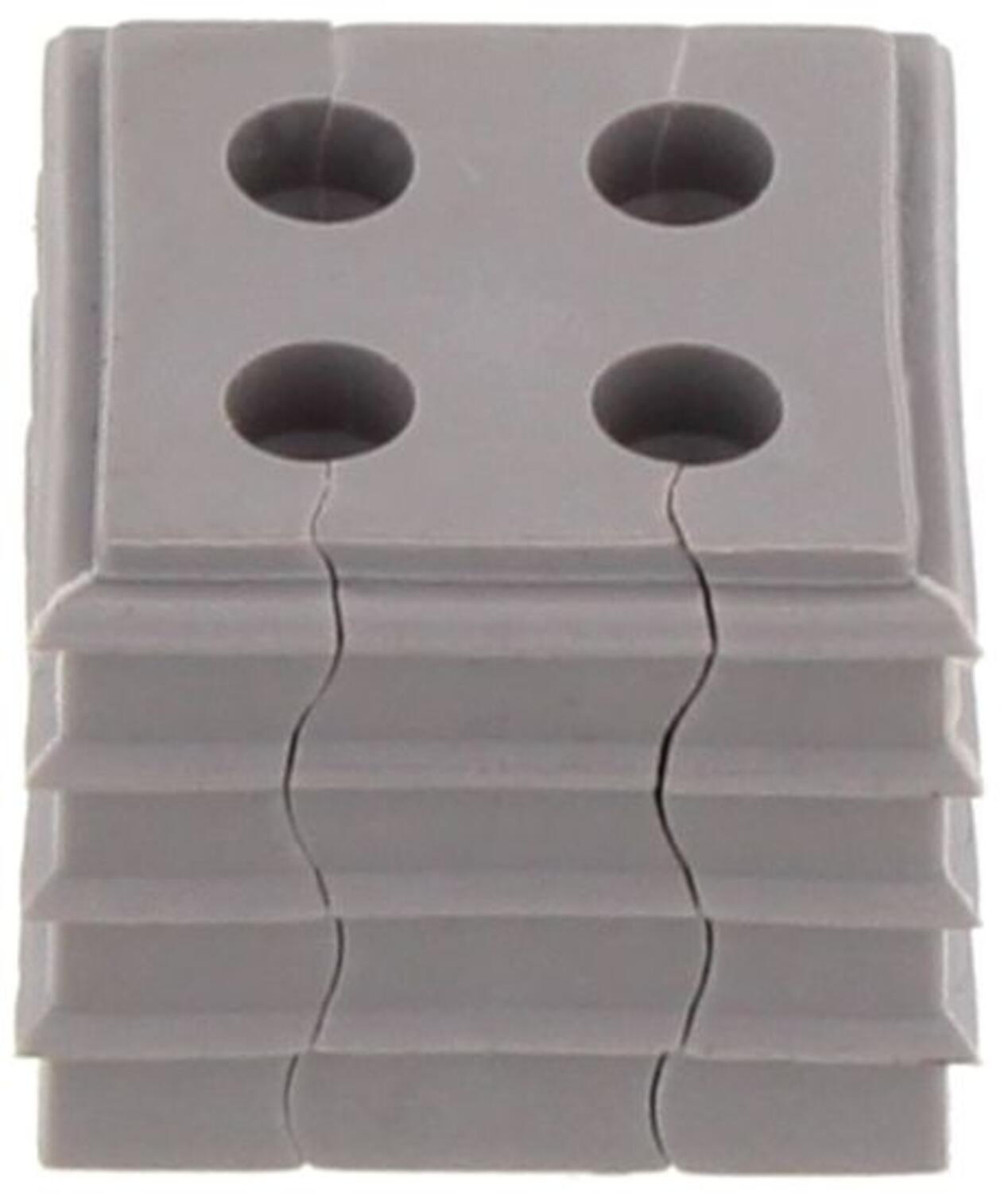

KDS-DE 4x 4.5, Grey insert, Max 4.8mmø Art: 28606.6 Copied	cUL, UL	4.5 mm	4.2 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	4	-40 °C	90 °C	10				UL 508	No	6.7 g	20.3 mm

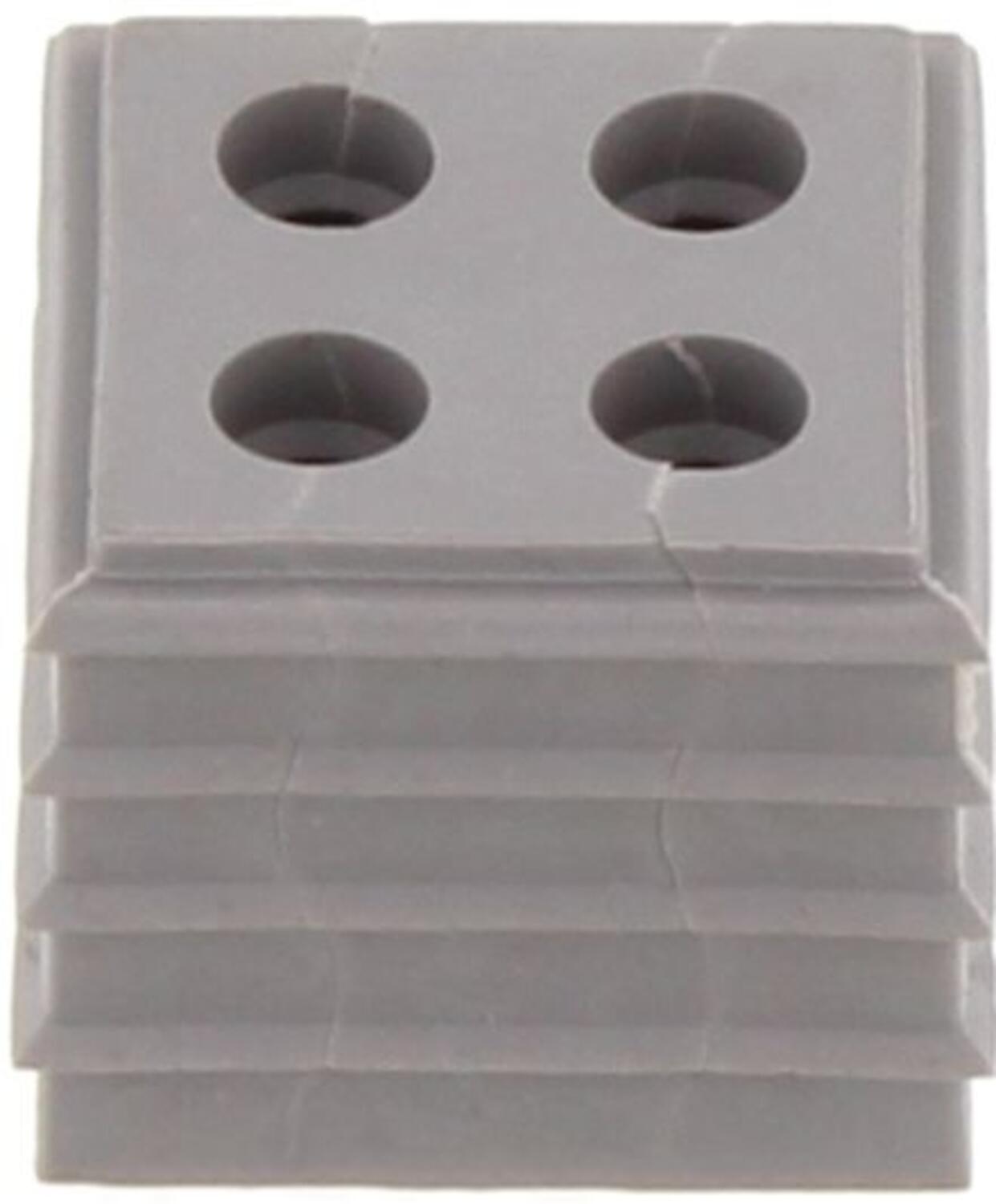

KDS-DE 4x 5, Grey insert, Max 5.3mmø Art: 28673.6 Copied	cUL, UL	5.1 mm	4.7 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in	4x	4	-40 °C	90 °C	10				UL 508	No	6.6 g	20.3 mm
KDS-DE 2x ASI, Grey ASI insert Art: 28600.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in		2	-40 °C	90 °C	10				UL 508	No	6.4 g	20.3 mm

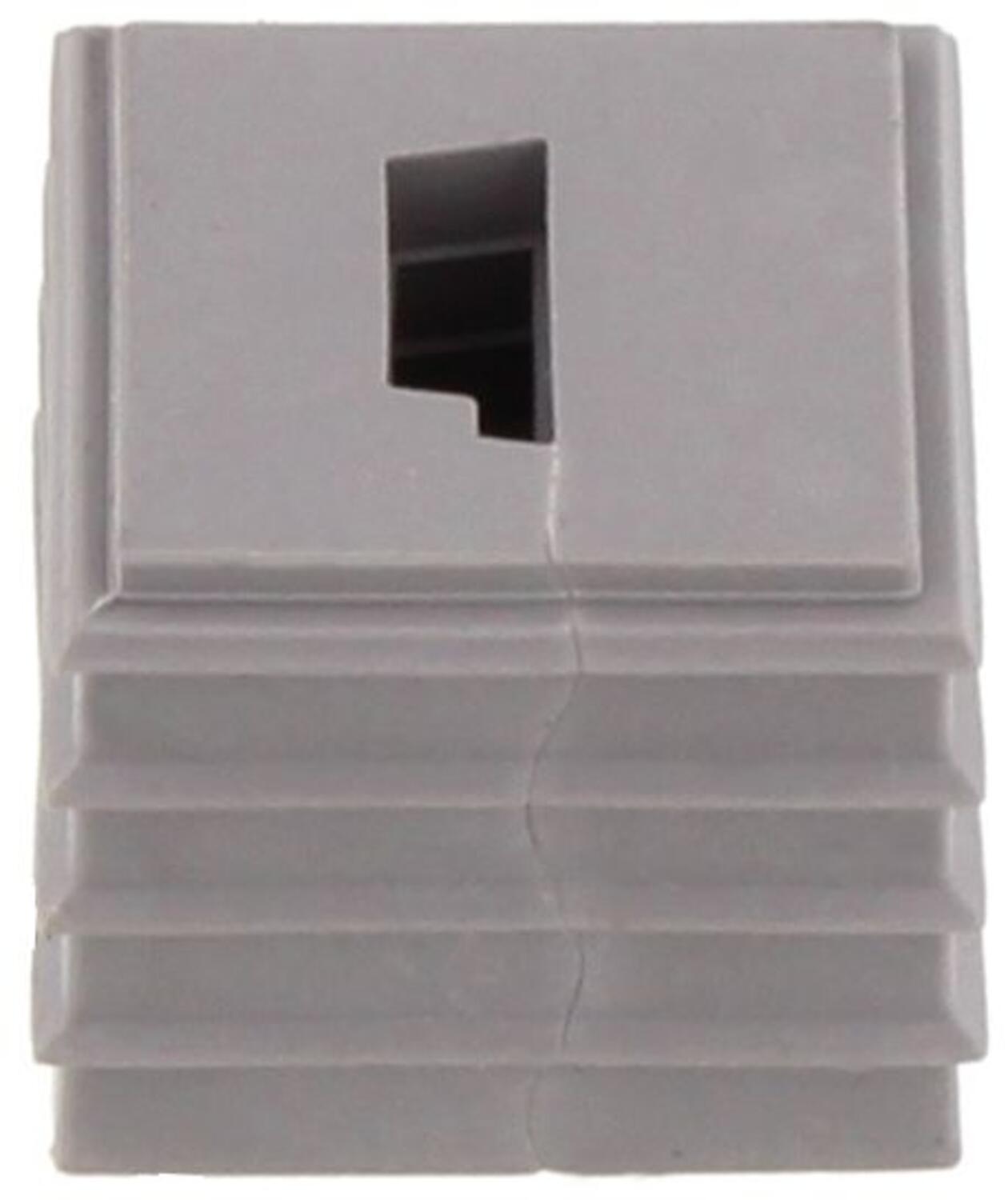

KDS-DE 1x ASI, Grey ASI insert Art: 28599.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No	17.7 mm	20.3 mm	TPE	Push in		1	-40 °C	90 °C	10				UL 508	No	7 g	20.3 mm

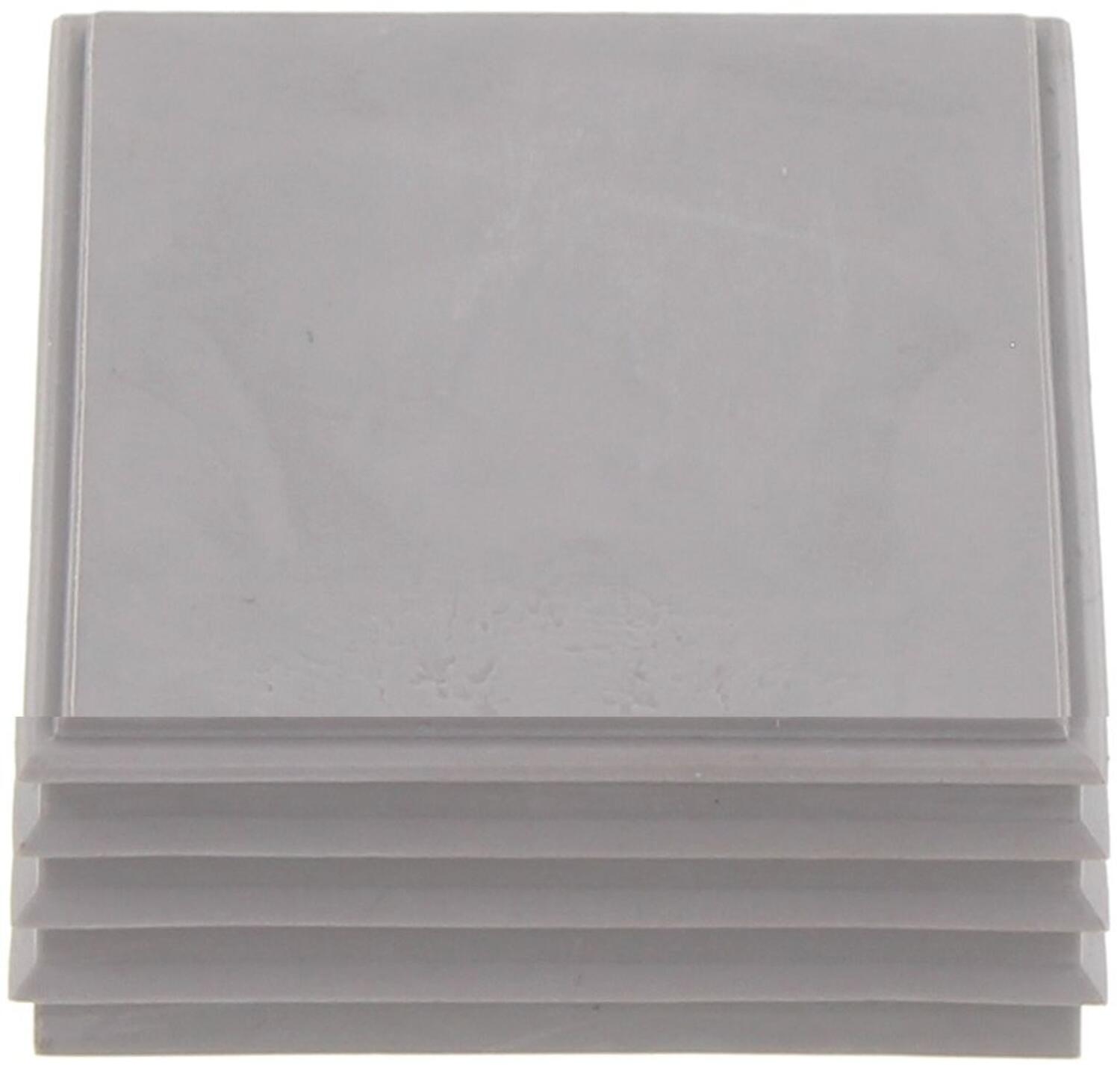

KDS-DEG/B, Grey Blind insert, Art: 28575.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	0	-40 °C	90 °C	10				UL 508	No	34.4 g	42.8 mm

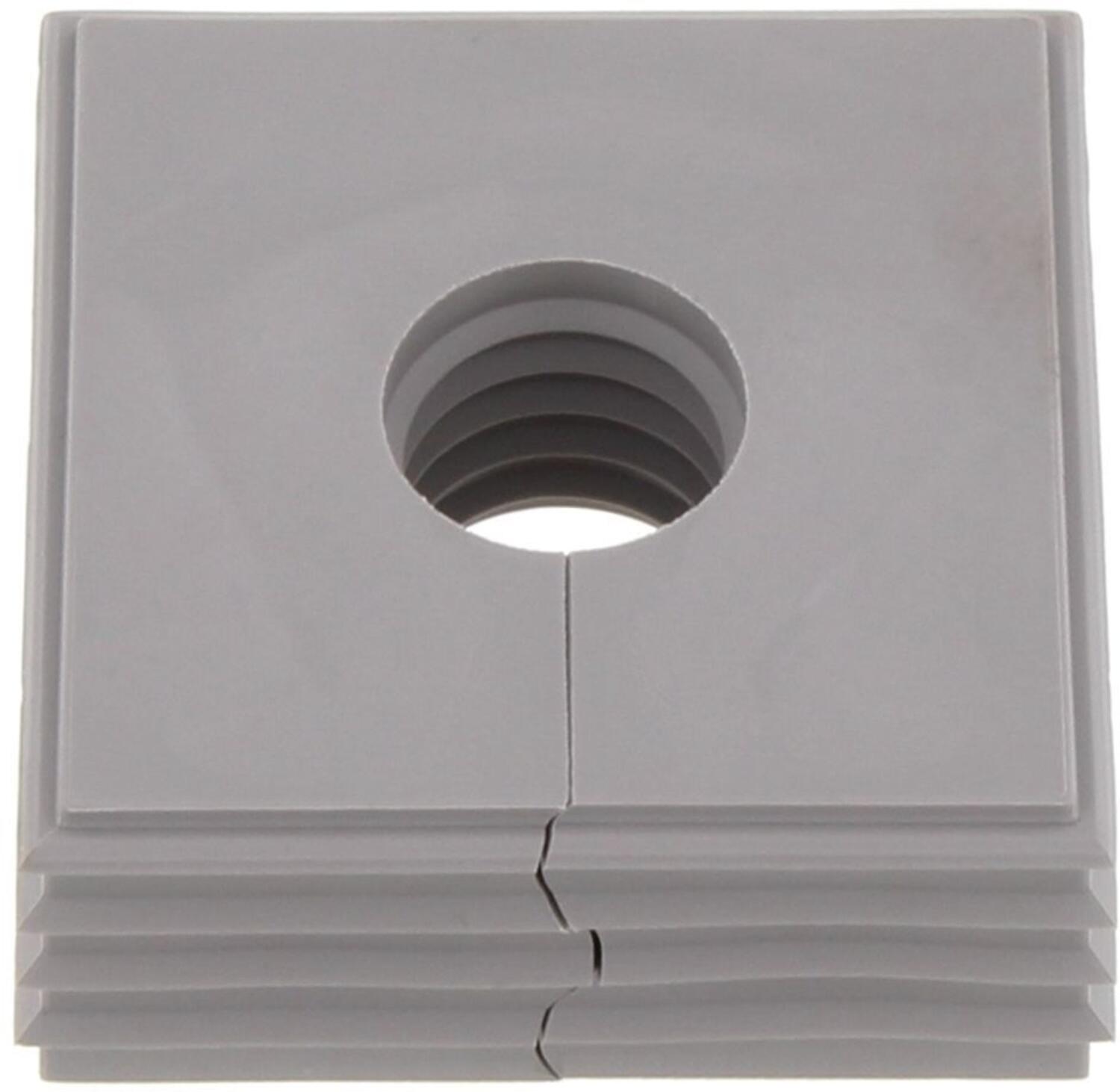

KDS-DEG 14-15, Grey insert, Max 15mmø Art: 28576.6 Copied	cUL, UL	15 mm	14 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	4.6 g	42.8 mm

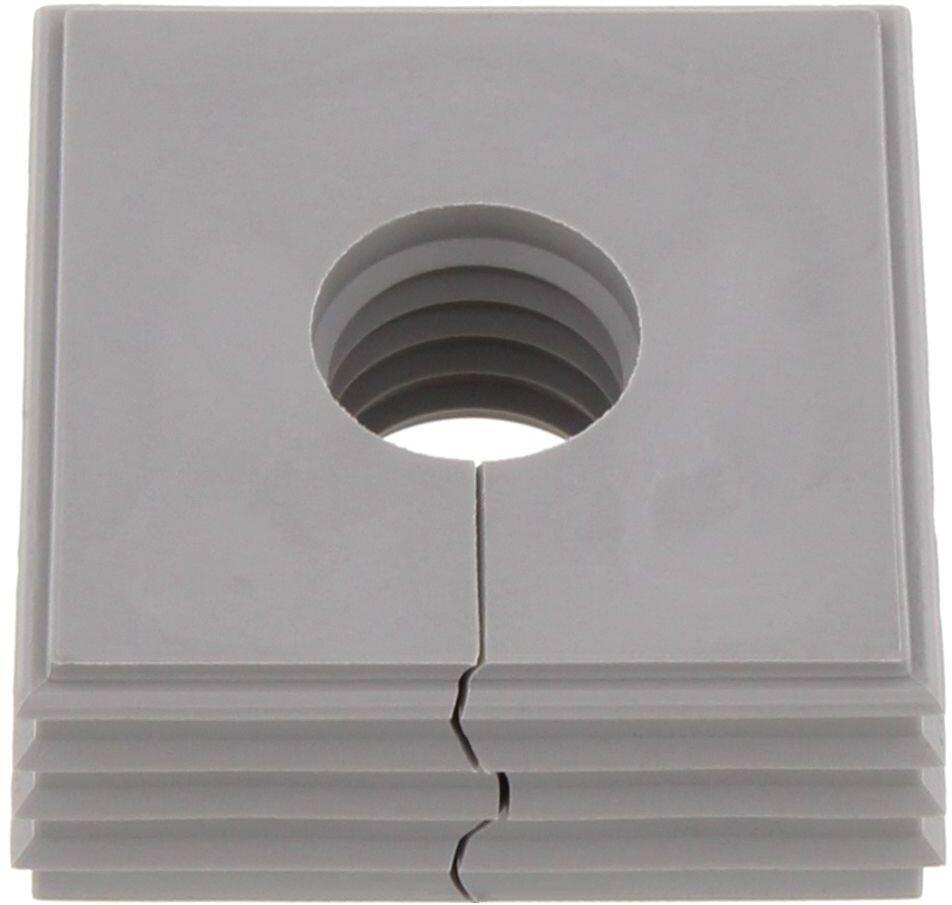

KDS-DEG 15-16, Grey insert, Max 16mmø Art: 28577.6 Copied	cUL, UL	16 mm	15 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	30.6 g	42.8 mm

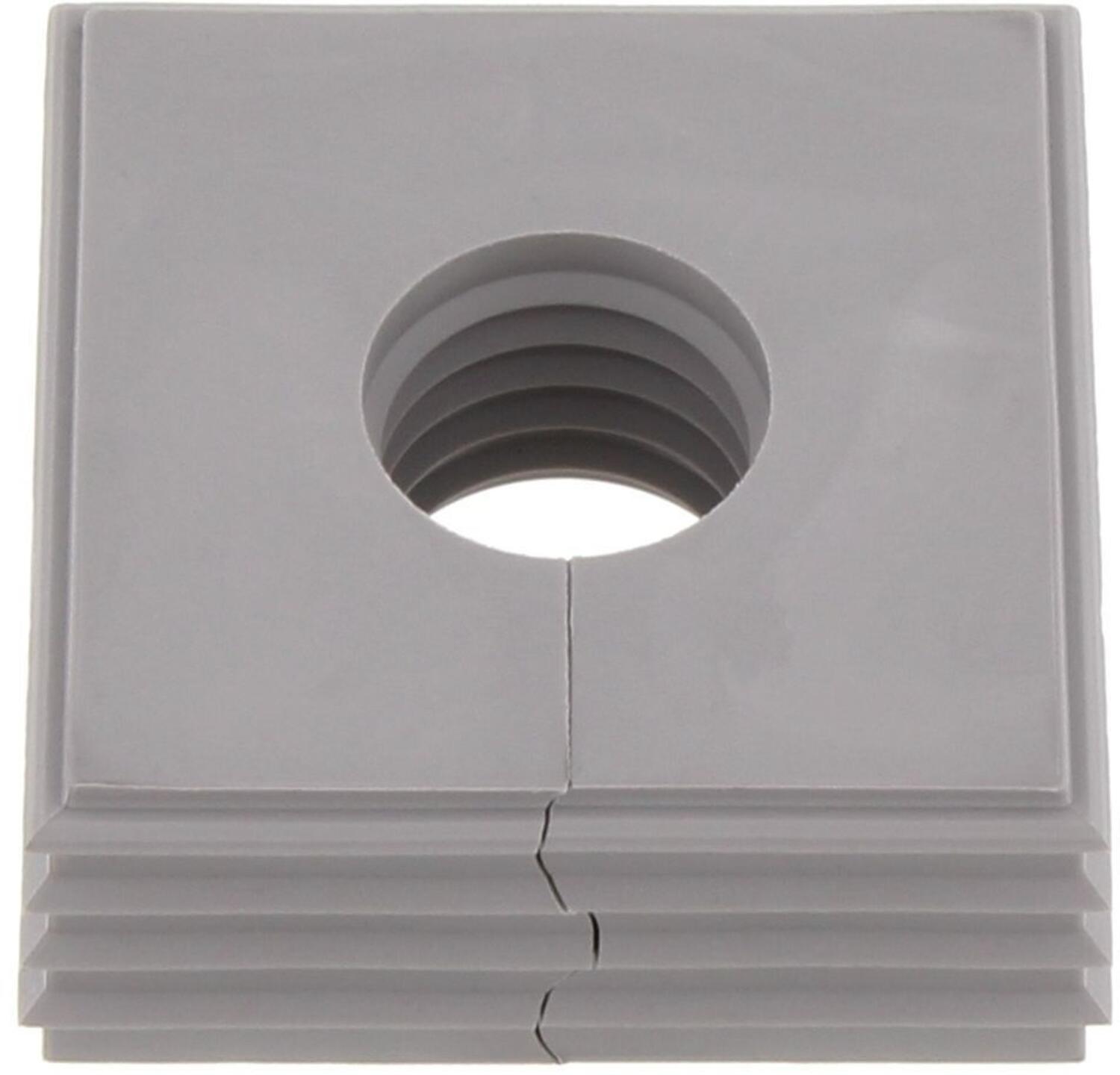

KDS-DEG 16-17, Grey insert, Max 17mmø Art: 28578.6 Copied	cUL, UL	17 mm	16 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	30.1 g	42.8 mm
KDS-DEG 17-18, Grey insert, Max 18mmø Art: 28579.6 Copied	cUL, UL	18 mm	17 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	29.5 g	42.8 mm

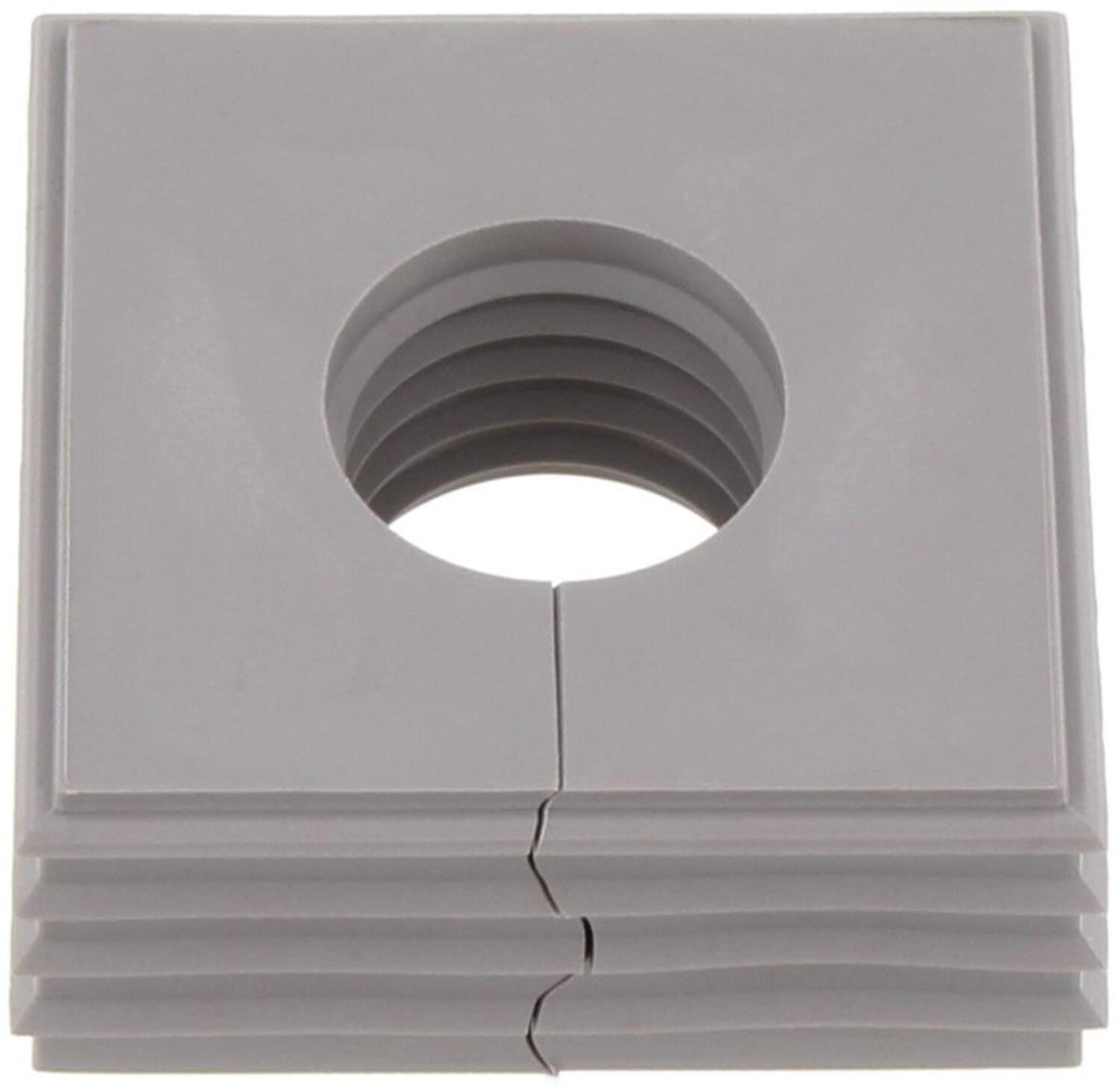

KDS-DEG 18-19, Grey insert, Max 19mmø Art: 28580.6 Copied	cUL, UL	19 mm	18 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	28.3 g	42.8 mm

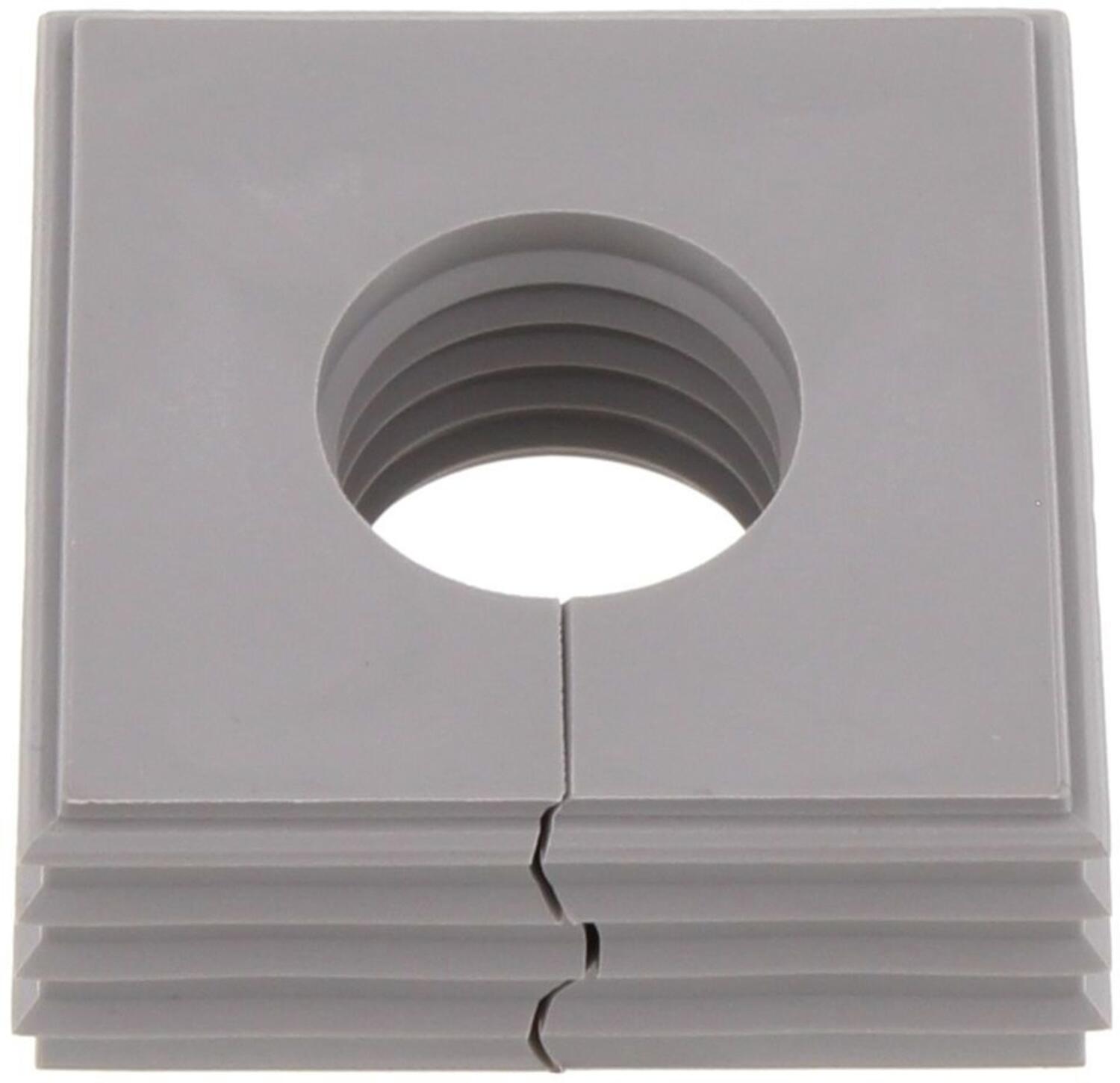

KDS-DEG 19-20, Grey insert, Max 20mmø Art: 28581.6 Copied	cUL, UL	20 mm	19 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	28.4 g	42.8 mm

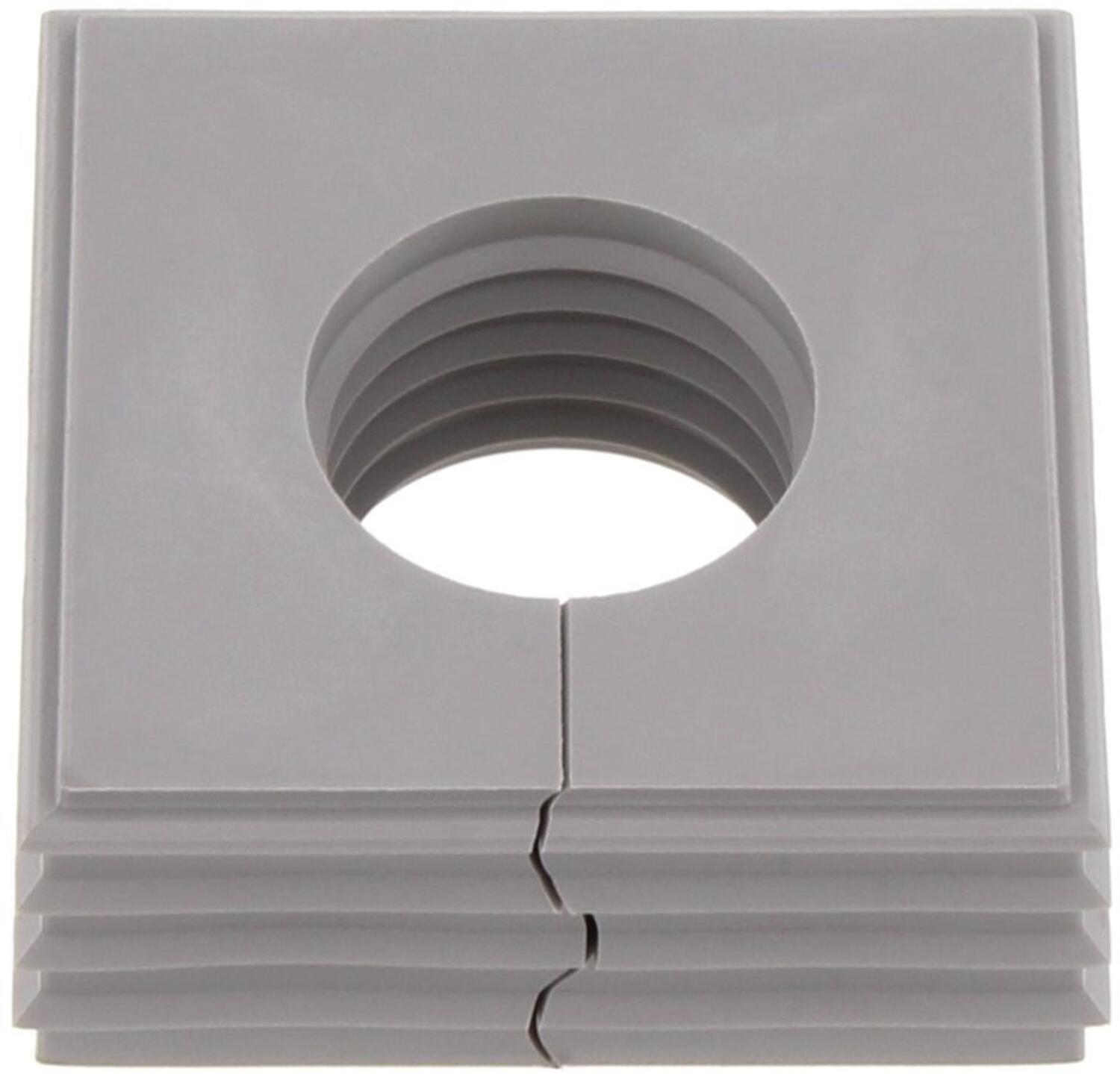

KDS-DEG 20-21, Grey insert, Max 21mmø Art: 28582.6 Copied	cUL, UL	21 mm	20 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	28.2 g	42.8 mm

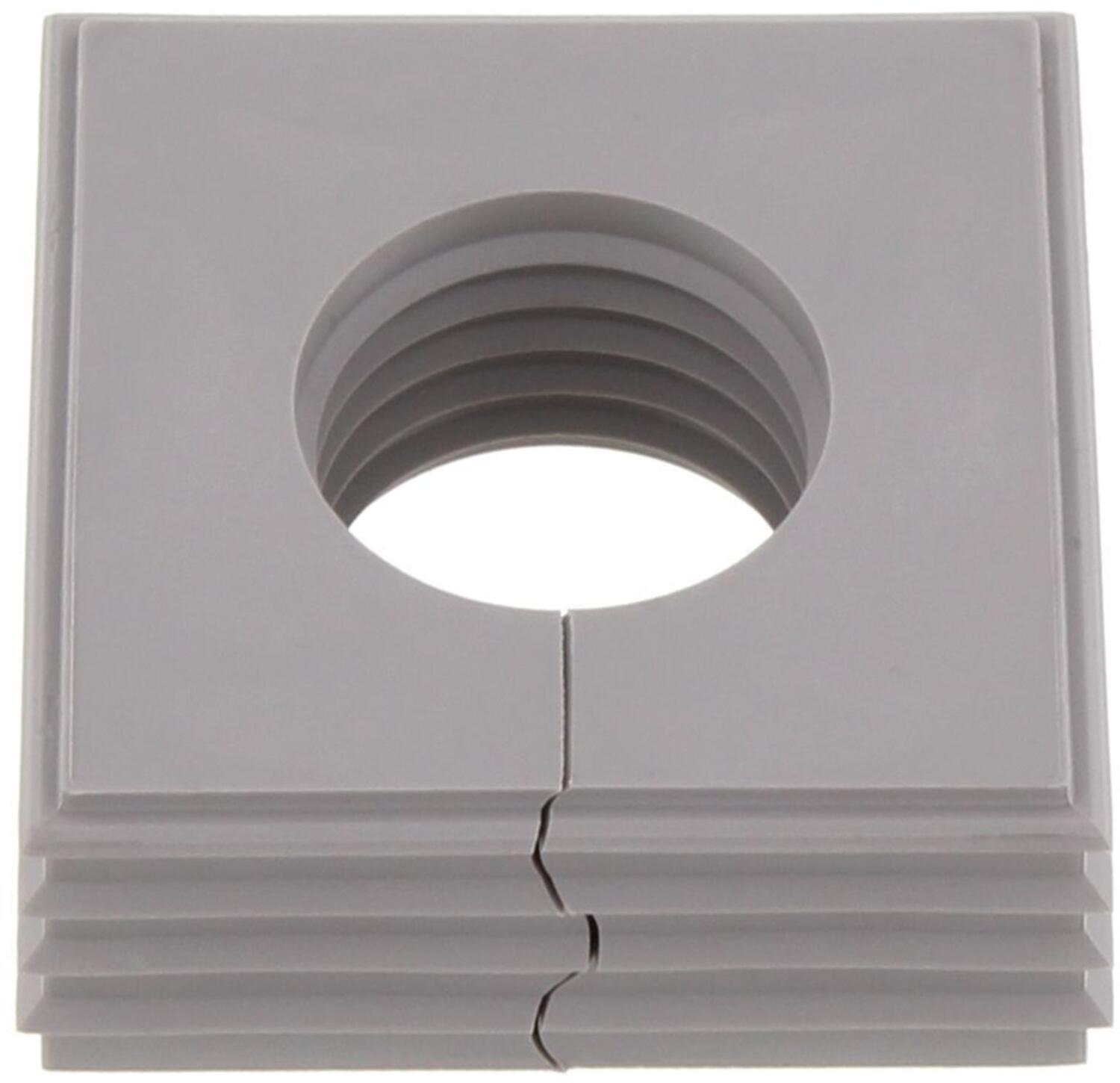

KDS-DEG 21-22, Grey insert, Max 22mmø Art: 28583.6 Copied	cUL, UL	22 mm	21 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	26.7 g	42.8 mm

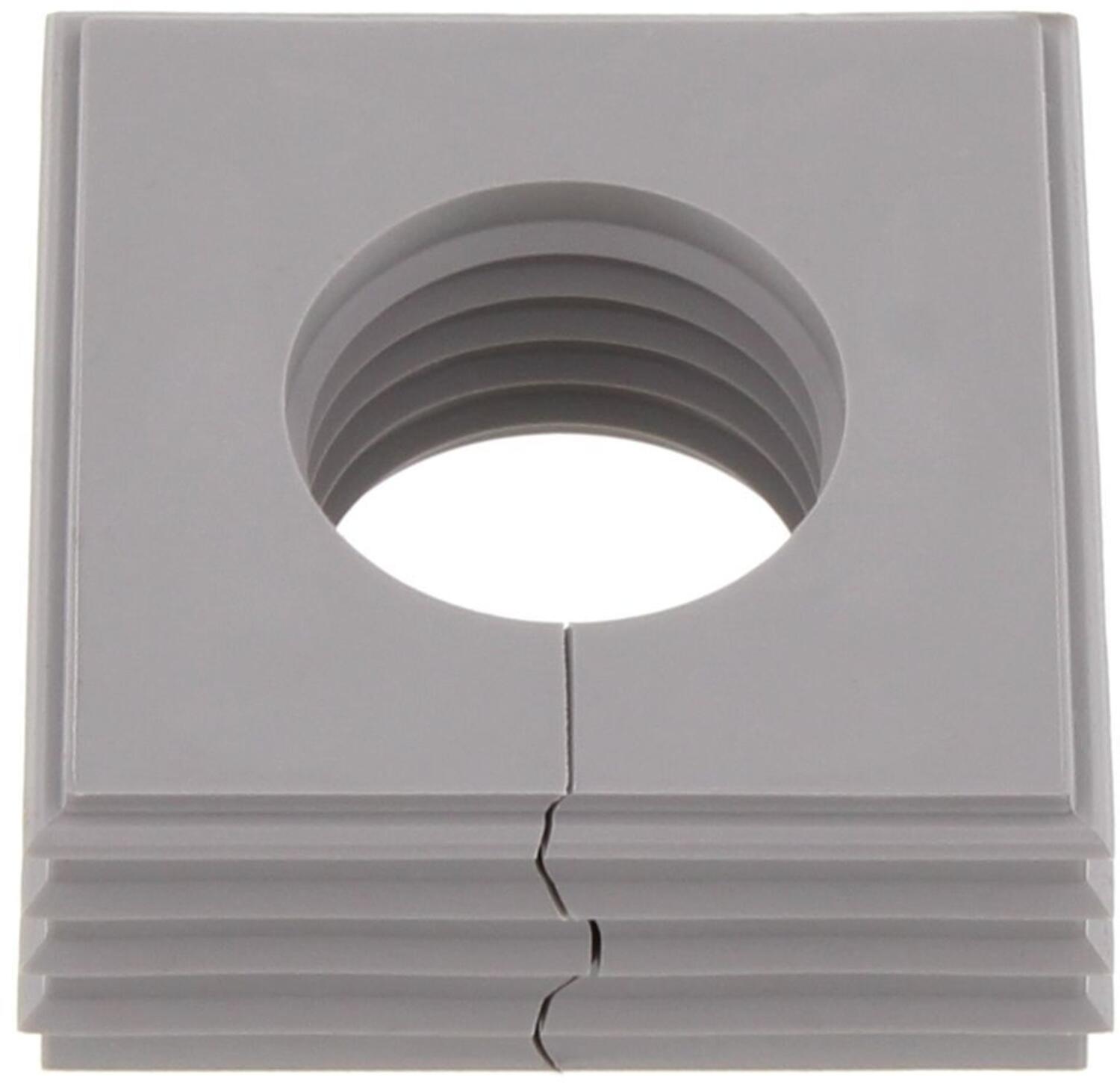

KDS-DEG 22-23, Grey insert, Max 23mmø Art: 28584.6 Copied	cUL, UL	23 mm	22 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	26 g	42.8 mm

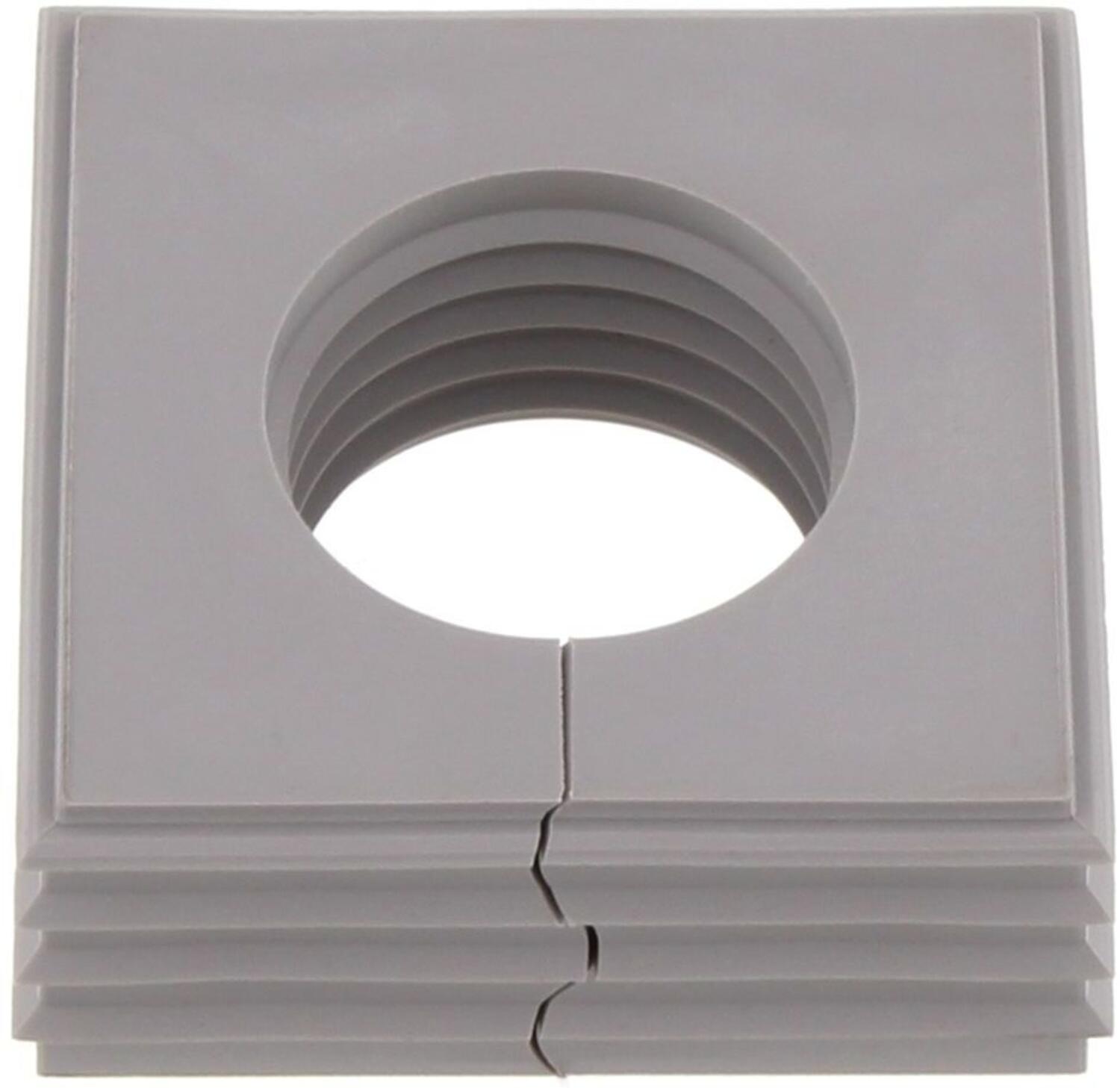

KDS-DEG 23-24, Grey insert, Max 24mmø Art: 28585.6 Copied	cUL, UL	24 mm	23 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	25.3 g	42.8 mm

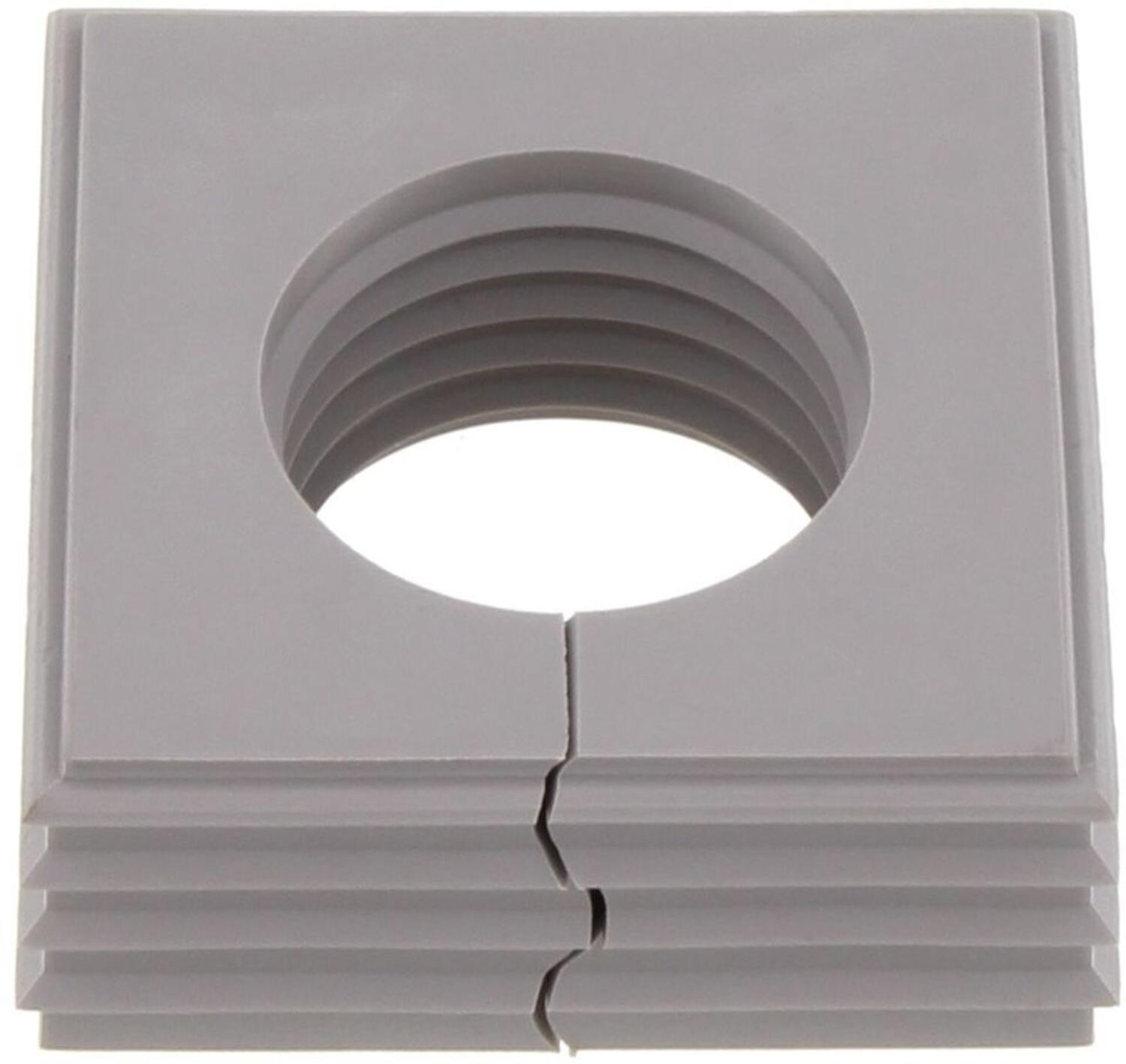

KDS-DEG 24-25, Grey insert, Max 25mmø Art: 28586.6 Copied	cUL, UL	25 mm	24 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	25.1 g	42.8 mm

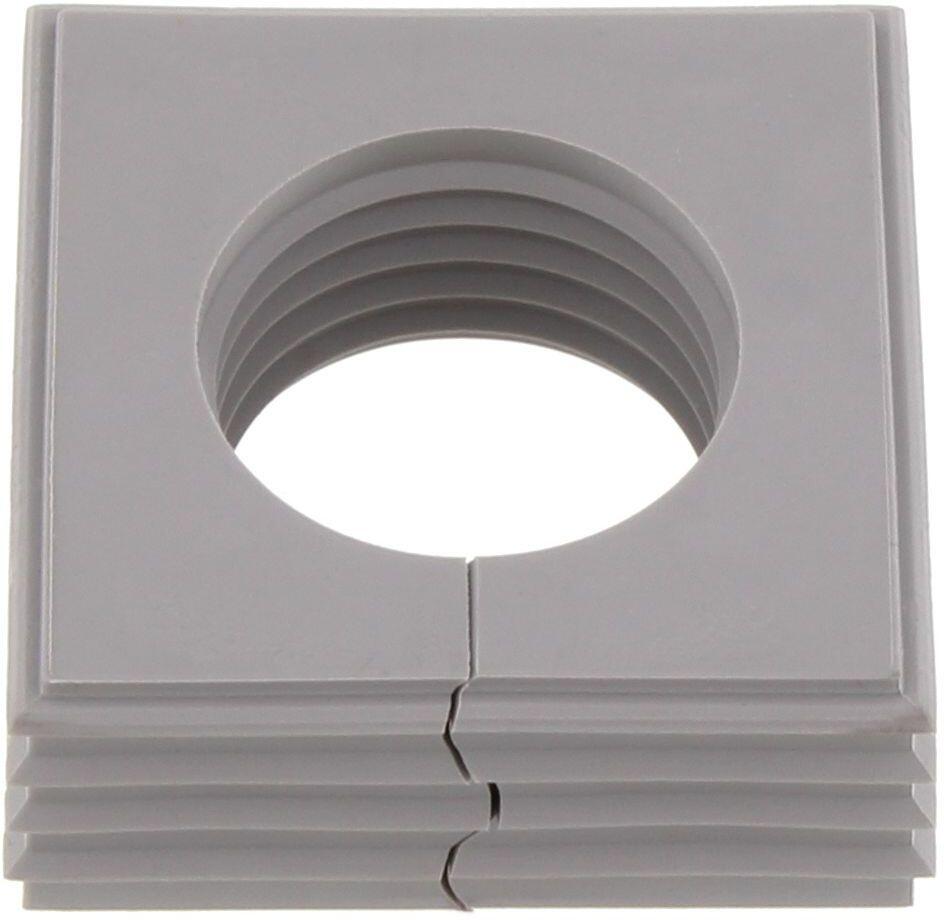

KDS-DEG 25-26, Grey insert, Max 26mmø Art: 28587.6 Copied	cUL, UL	26 mm	25 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	23.5 g	42.8 mm

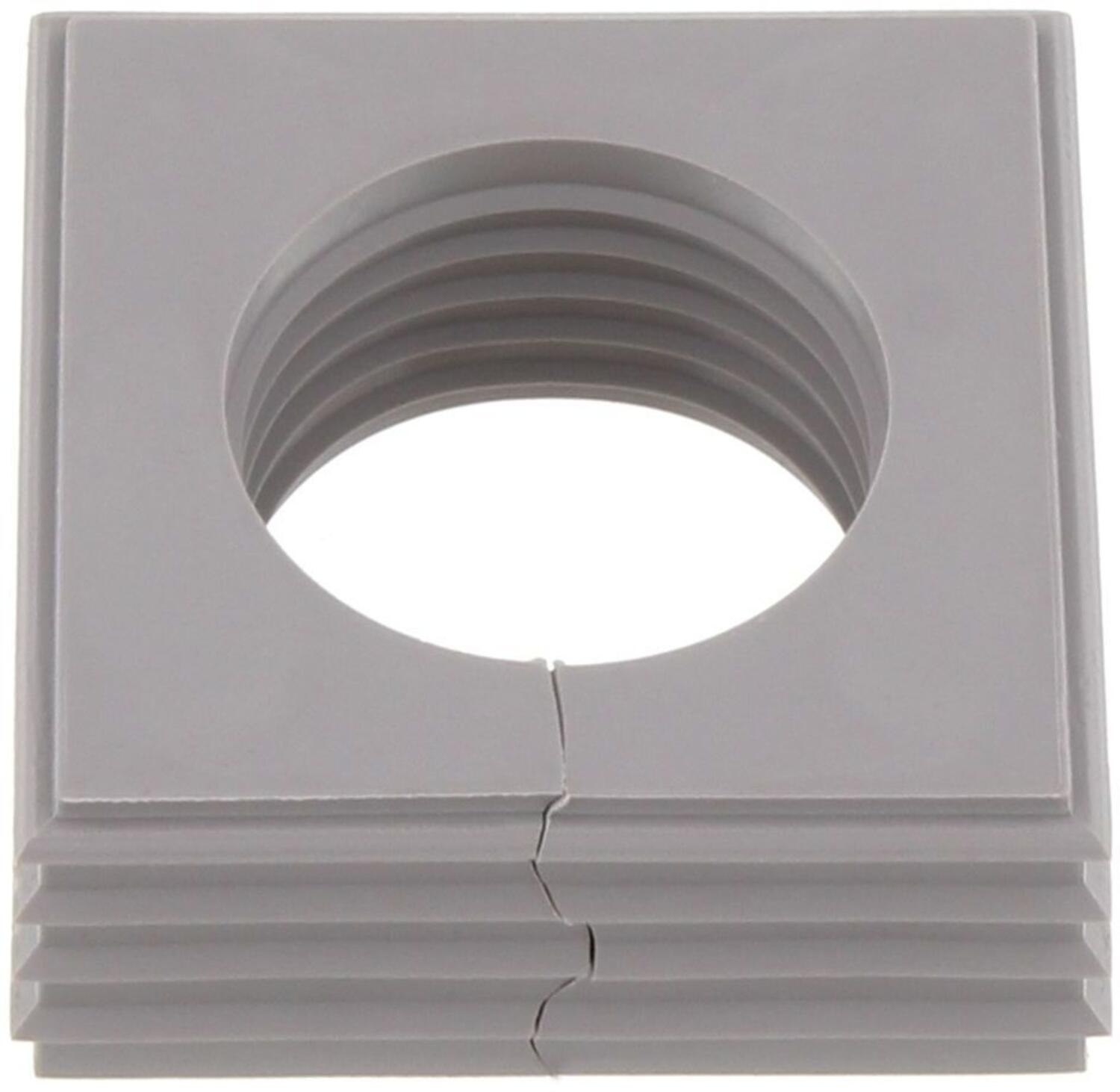

KDS-DEG 26-27, Grey insert, Max 27mmø Art: 28588.6 Copied	cUL, UL	27 mm	26 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	23.8 g	42.8 mm

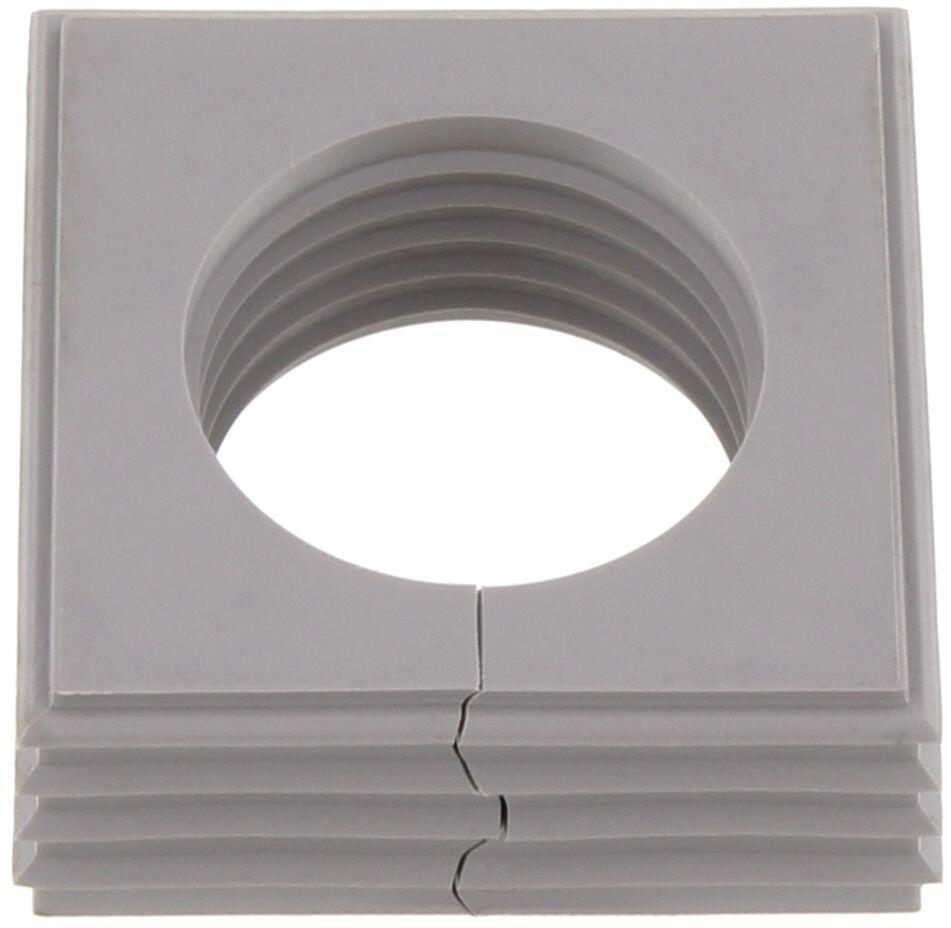

KDS-DEG 27-28, Grey insert, Max 28mmø Art: 28589.6 Copied	cUL, UL	28 mm	27 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	22.5 g	42.8 mm
KDS-DEG 28-29, Grey insert, Max 29mmø Art: 28590.6 Copied	cUL, UL	29 mm	28 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	21.8 g	42.8 mm

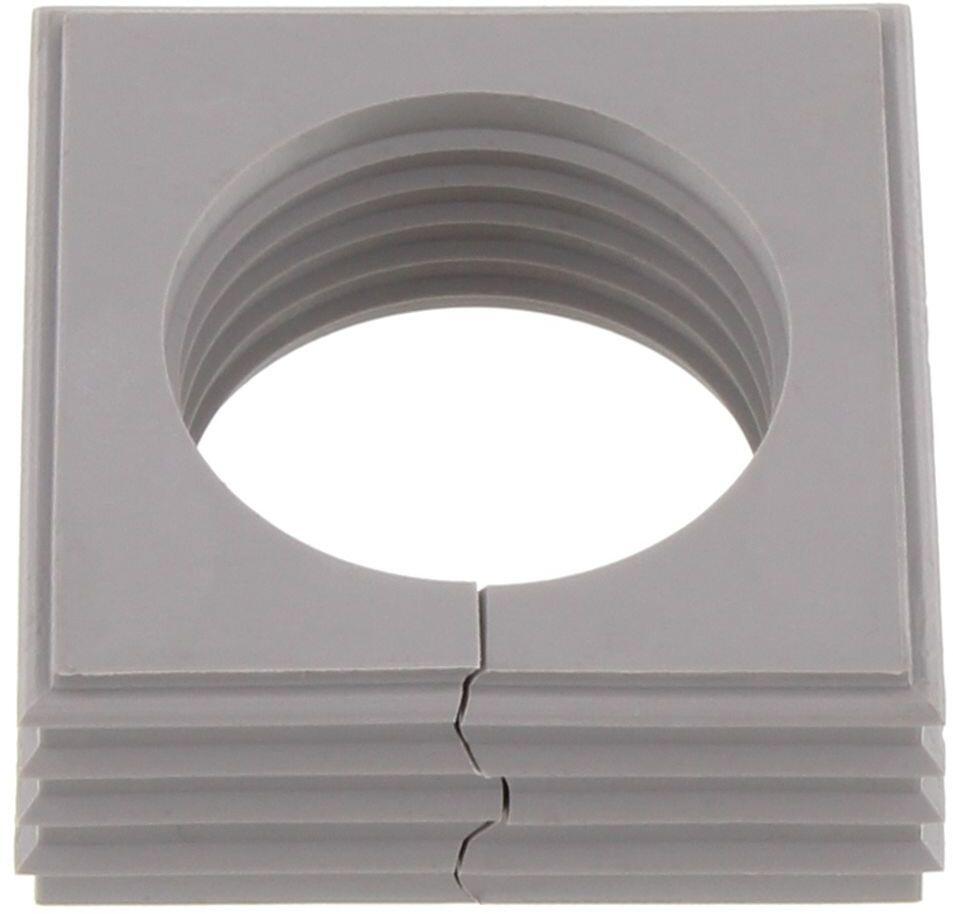

KDS-DEG 29-30, Grey insert, Max 30mmø Art: 28591.6 Copied	cUL, UL	30 mm	29 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	20.1 g	42.8 mm
KDS-DEG 30-31, Grey insert, Max 31mmø Art: 28592.6 Copied	cUL, UL	31 mm	30 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	19.4 g	42.8 mm

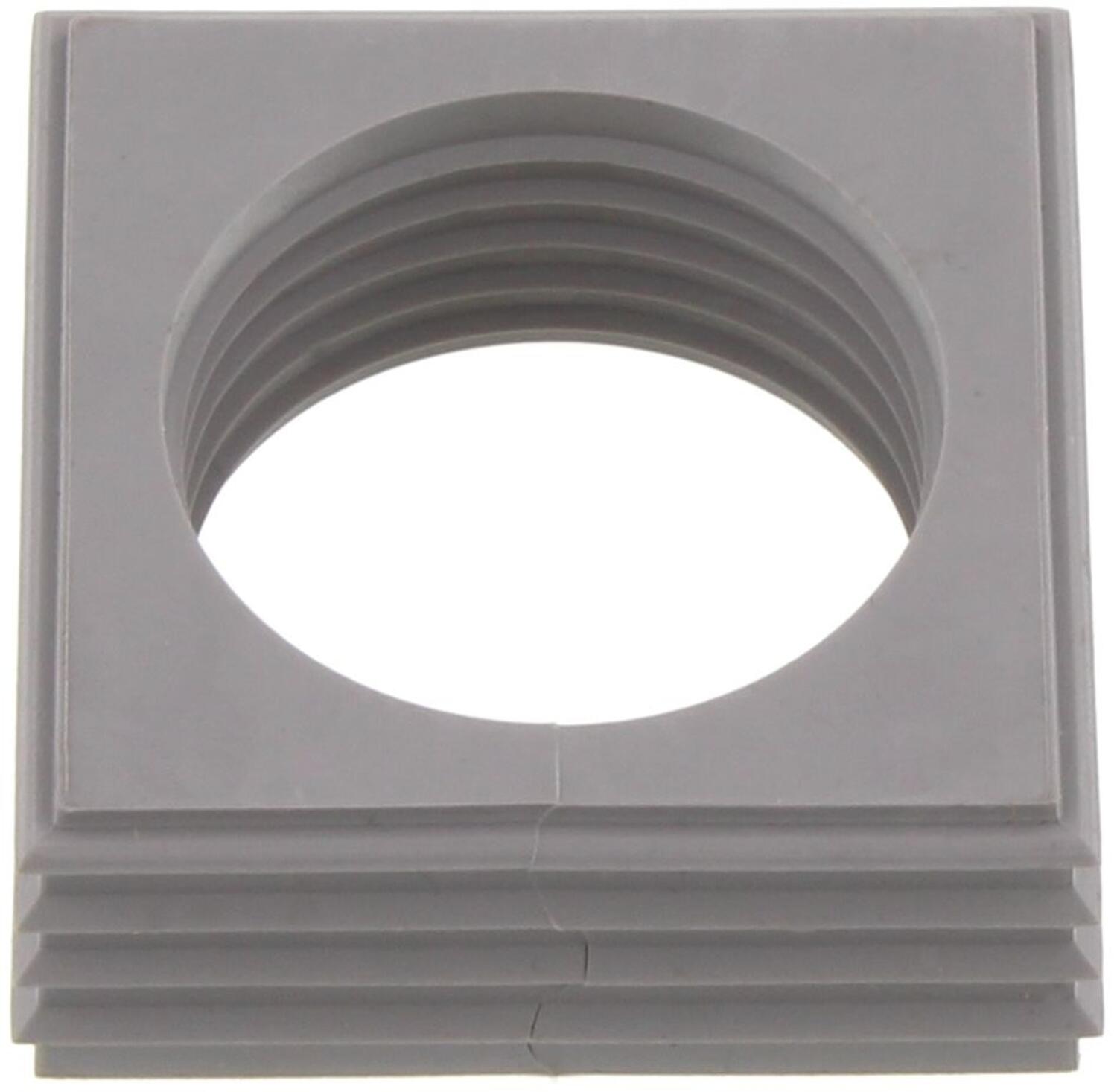

KDS-DEG 31-32, Grey insert, Max 32mmø Art: 28593.6 Copied	cUL, UL	32 mm	31 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	18.6 g	42.8 mm

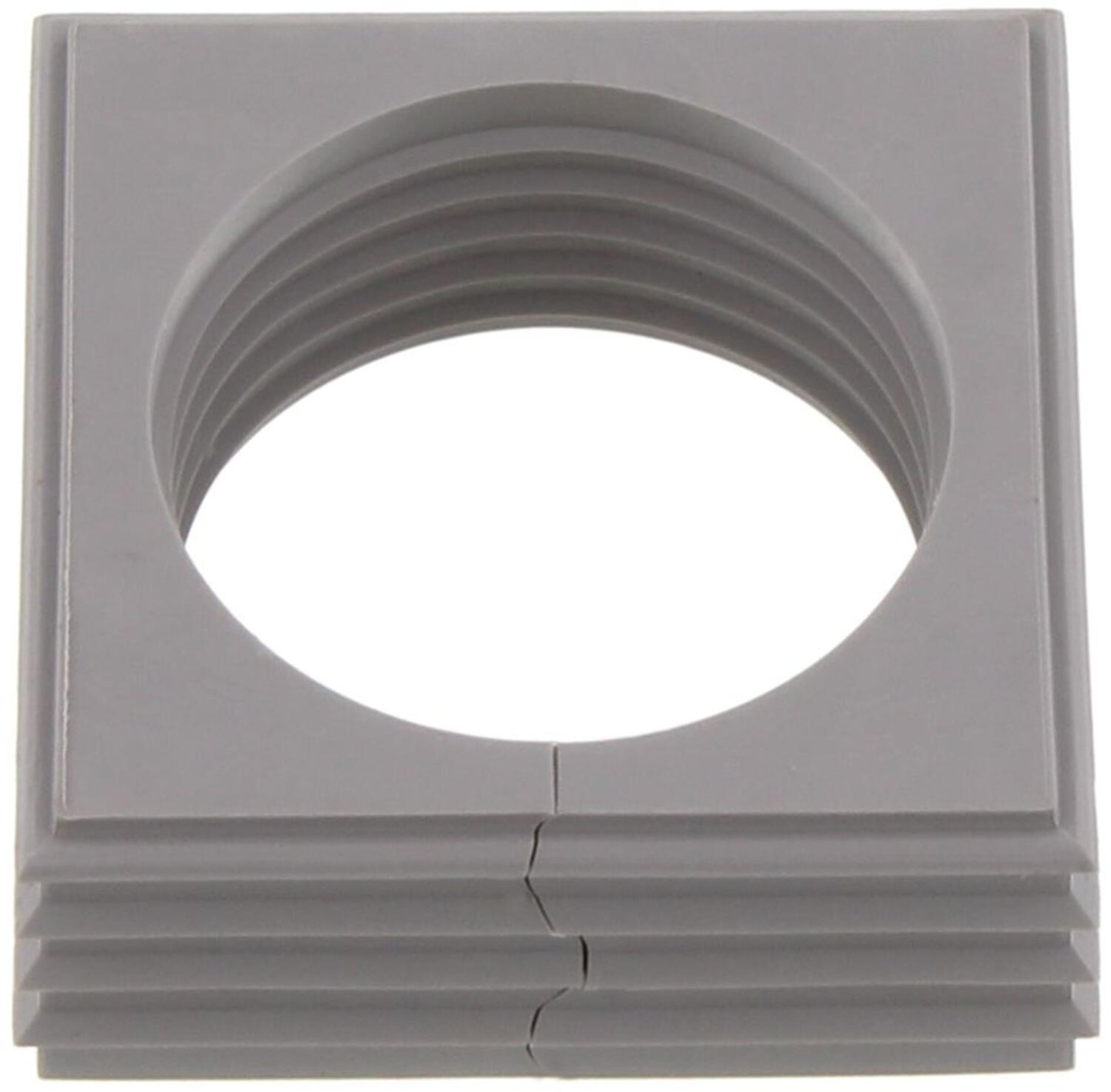

KDS-DEG 32-33, Grey insert, Max 33mmø Art: 28594.6 Copied	cUL, UL	33 mm	32 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	17.8 g	42.8 mm
KDS-DEG 33-34 Grey insert, Max 34mmø Art: 28731.6 Copied	cUL, UL	34 mm	33 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	17 g	42.8 mm
KDS-DEG 34-35 Grey insert, Max 35mmø Art: 28733.6 Copied	cUL, UL	35 mm	34 mm	Grey	C22.2 No. 14-95		V-0	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	90 °C	10				UL 508	No	15.9 g	42.8 mm

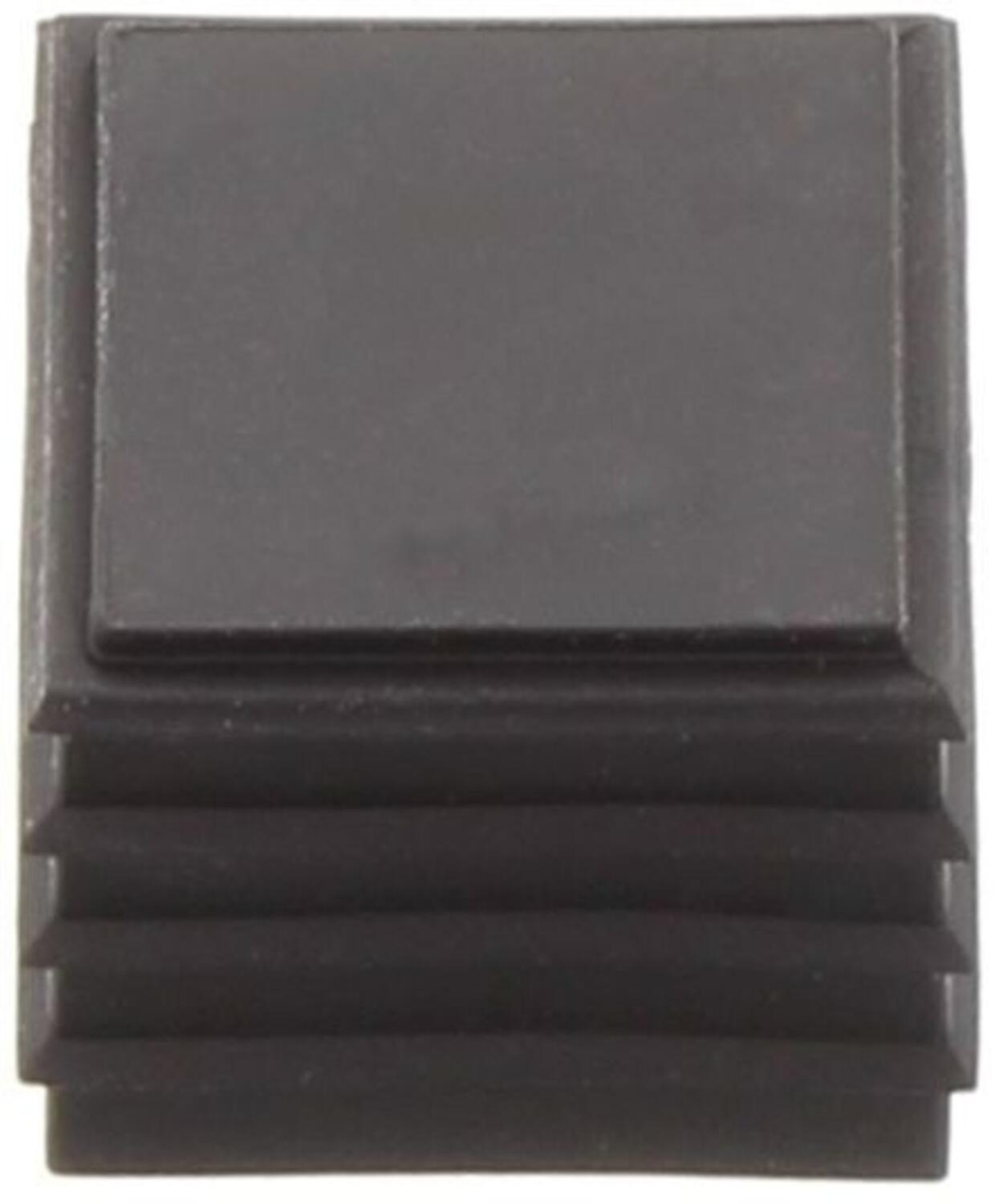

KDS-DE/B, Blind insert, Black Art: 28520.4 Copied	cUL, UL			Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	0	-40 °C	120 °C	10				UL 508	Yes	7.1 g	20.3 mm

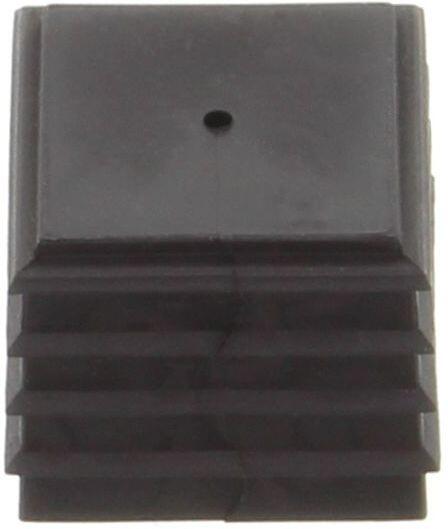

KDS-DE 1-2, Black insert, Max 2mmø Art: 28521.4 Copied	cUL, UL	2 mm	1.5 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	8.3 g	20.3 mm
KDS-DE 1.5, Black insert, Max 1.5mmø Art: 28693.4 Copied		1.5 mm	1.5 mm	Black			HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10					Yes	7.1 g	20.3 mm
KDS-DE 2, Black insert, Max 2mmø Art: 28695.4 Copied		2 mm	2 mm	Black			HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10					Yes	7 g	20.3 mm

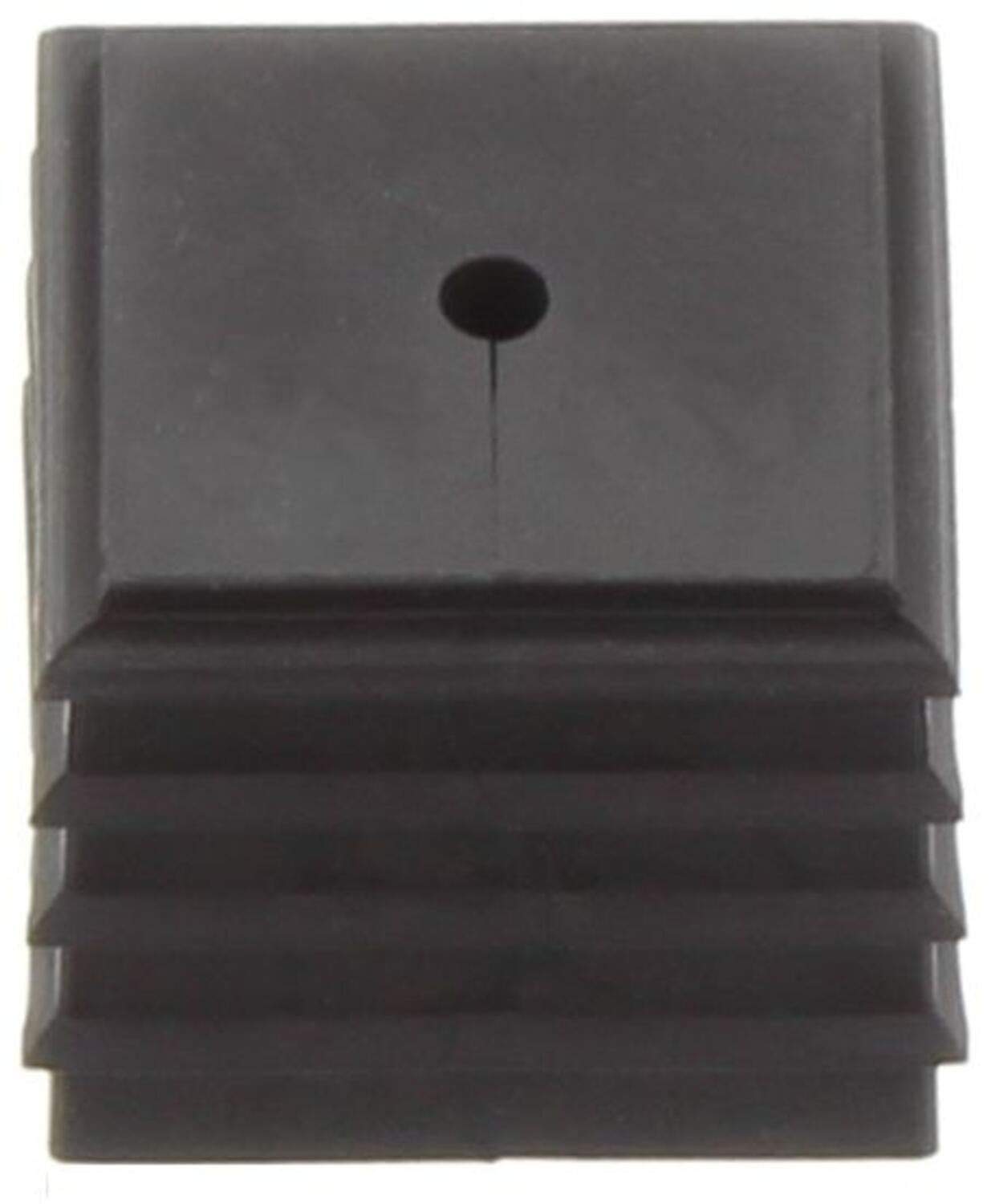

KDS-DE 2-3, Black insert, Max 3mmø Art: 28522.4 Copied	cUL, UL	3 mm	2 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	6.8 g	20.3 mm
KDS-DE 3, Black insert, Max 3mmø Art: 28697.4 Copied		3.1 mm	2.7 mm	Black			HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10					Yes	7.1 g	20.3 mm

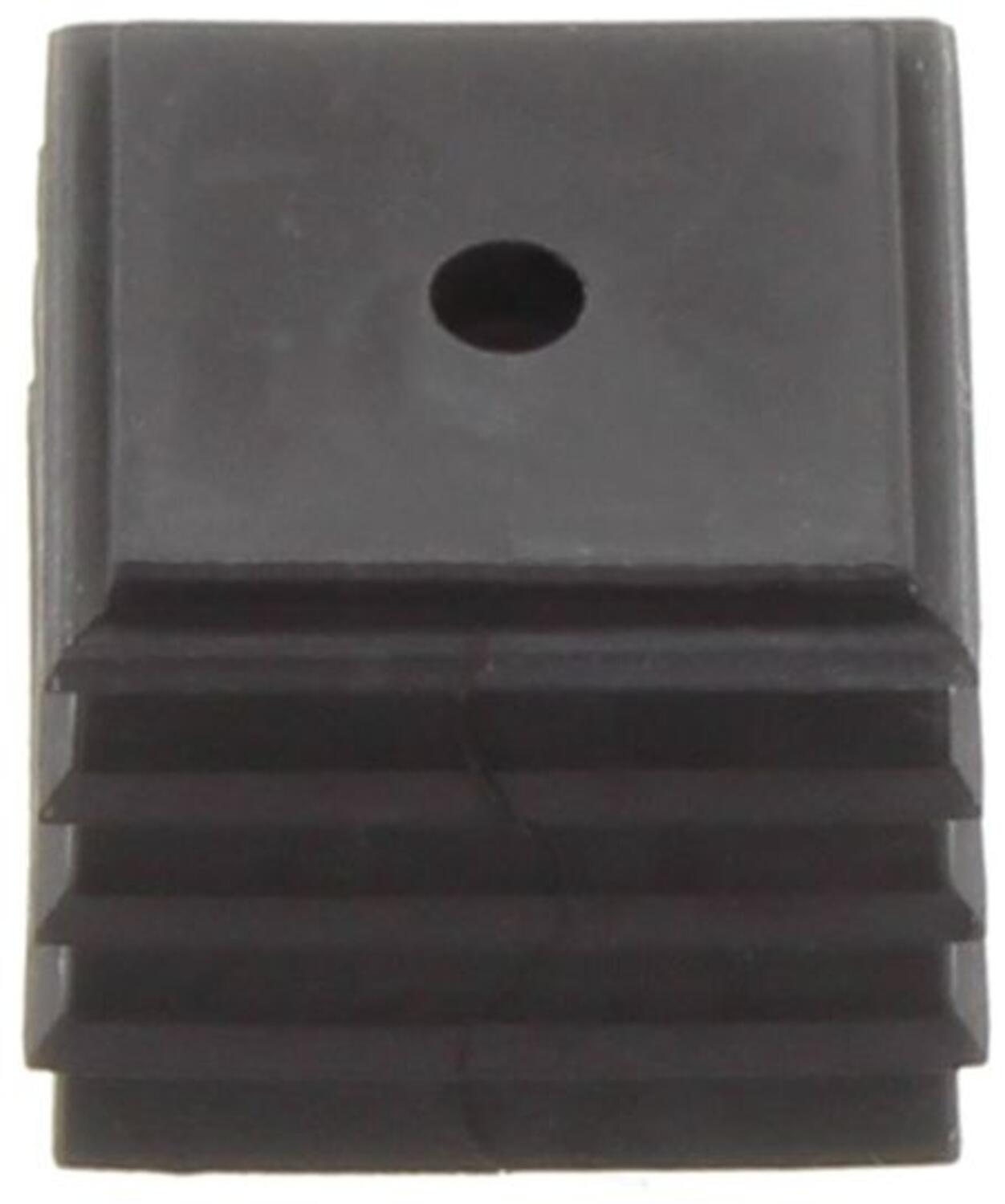

KDS-DE 3-4, Black insert, Max 4mmø Art: 28523.4 Copied	cUL, UL	4 mm	3 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	7.2 g	20.3 mm

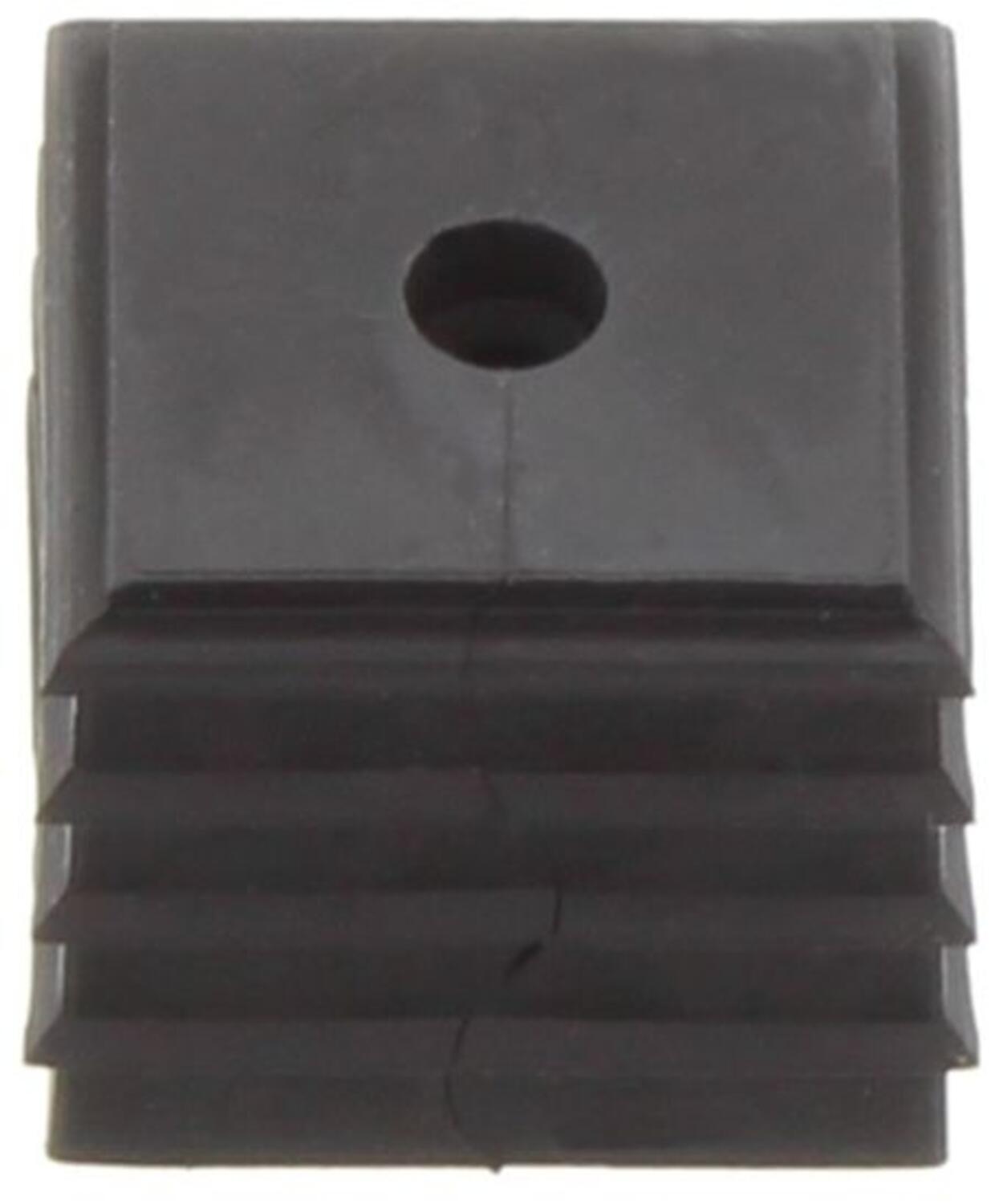

KDS-DE 4-5, Black insert, Max 5mmø Art: 28524.4 Copied	cUL, UL	5 mm	4 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	7.1 g	20.3 mm

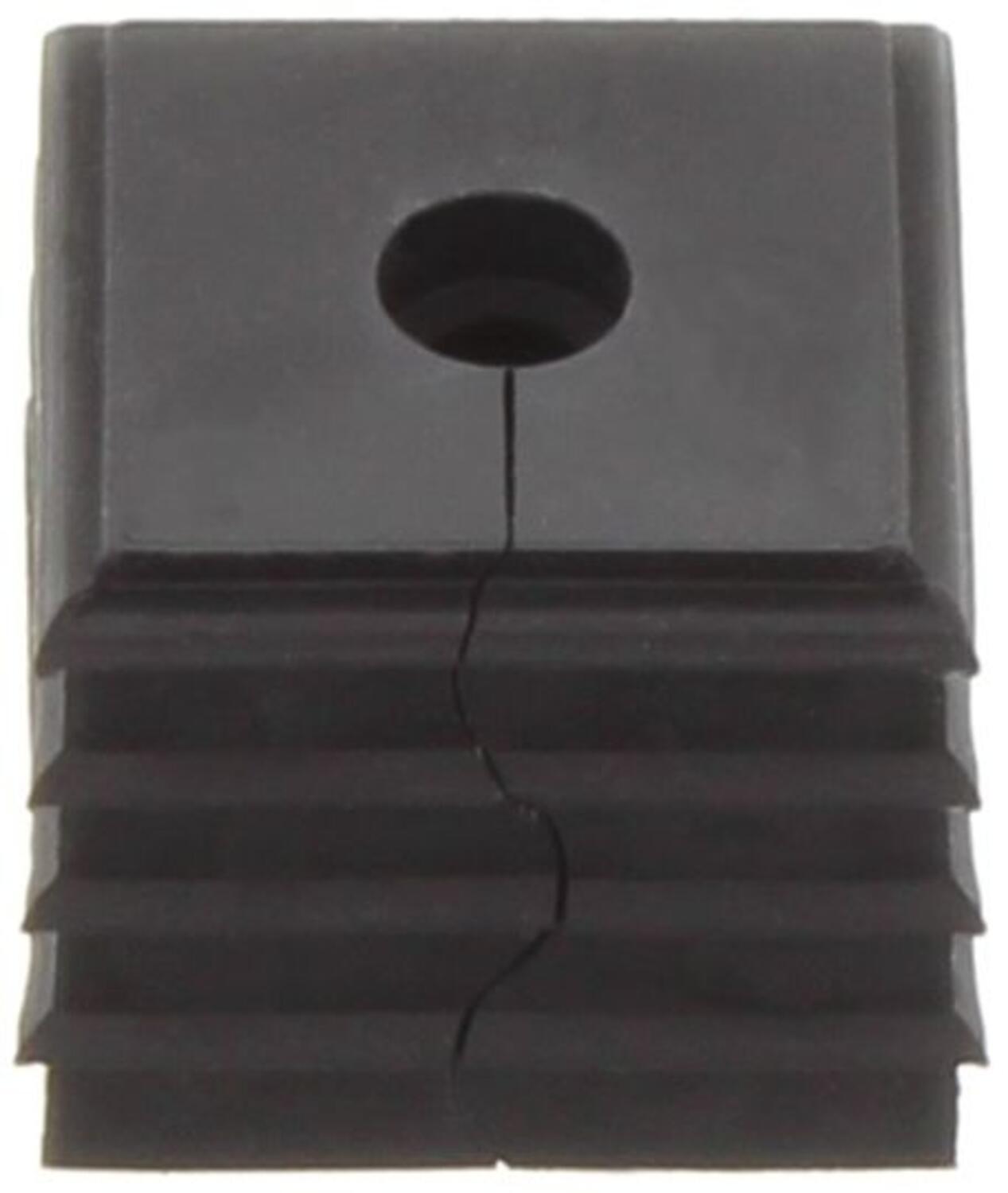

KDS-DE 5-6, Black insert, Max 6mmø Art: 28525.4 Copied	cUL, UL	6 mm	5 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	6.8 g	20.3 mm

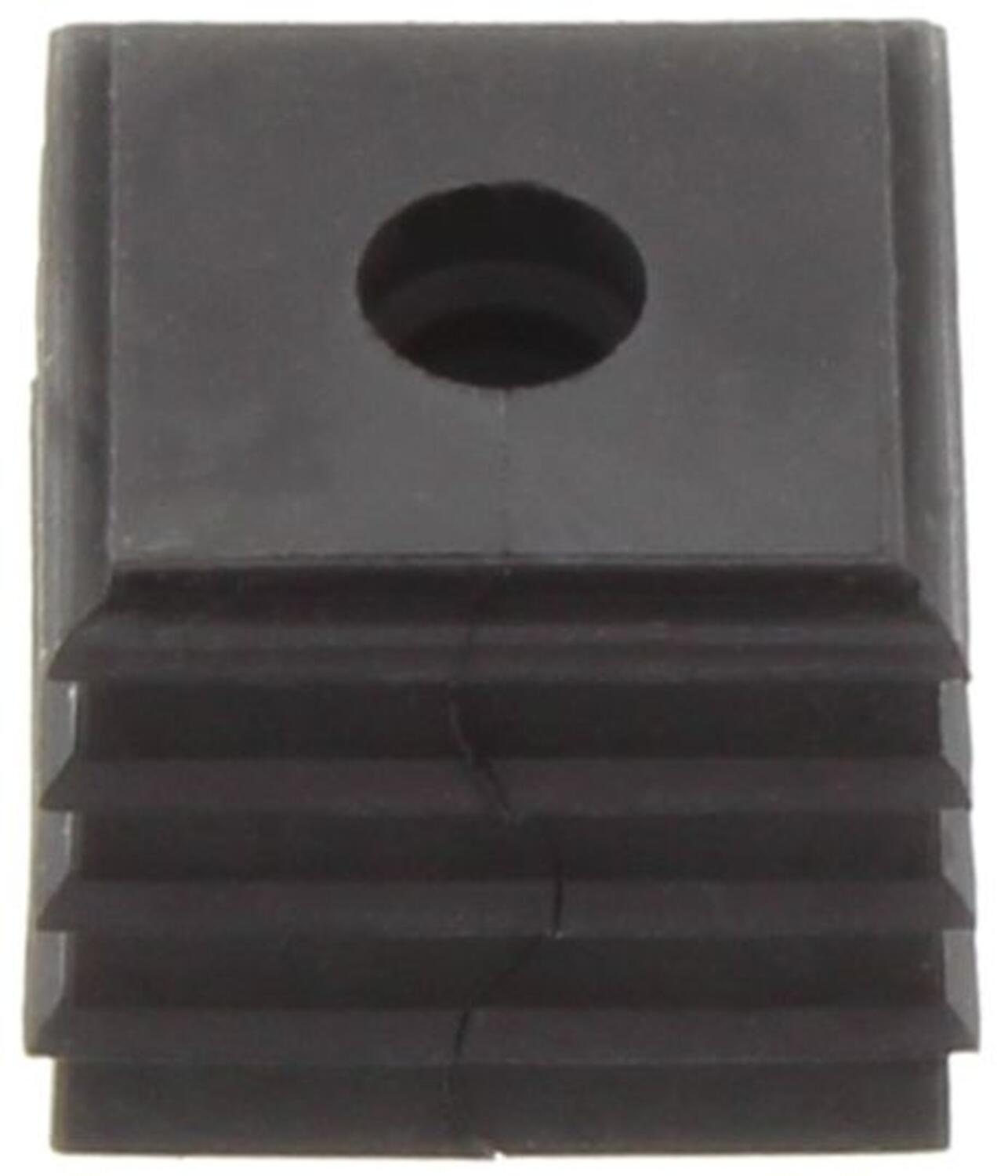

KDS-DE 6-7, Black insert, Max 7mmø Art: 28526.4 Copied	cUL, UL	7 mm	6 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	6.4 g	20.3 mm
KDS-DE 7-8, Black insert, Max 8mmø Art: 28527.4 Copied	cUL, UL	8 mm	7 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	6.2 g	20.3 mm
KDS-DE 8-9, Black insert, Max 9mmø Art: 28528.4 Copied	cUL, UL	9 mm	8 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	6 g	20.3 mm
KDS-DE 9-10, Black insert, Max 10mmø Art: 28529.4 Copied	cUL, UL	10 mm	9 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	5.7 g	20.3 mm

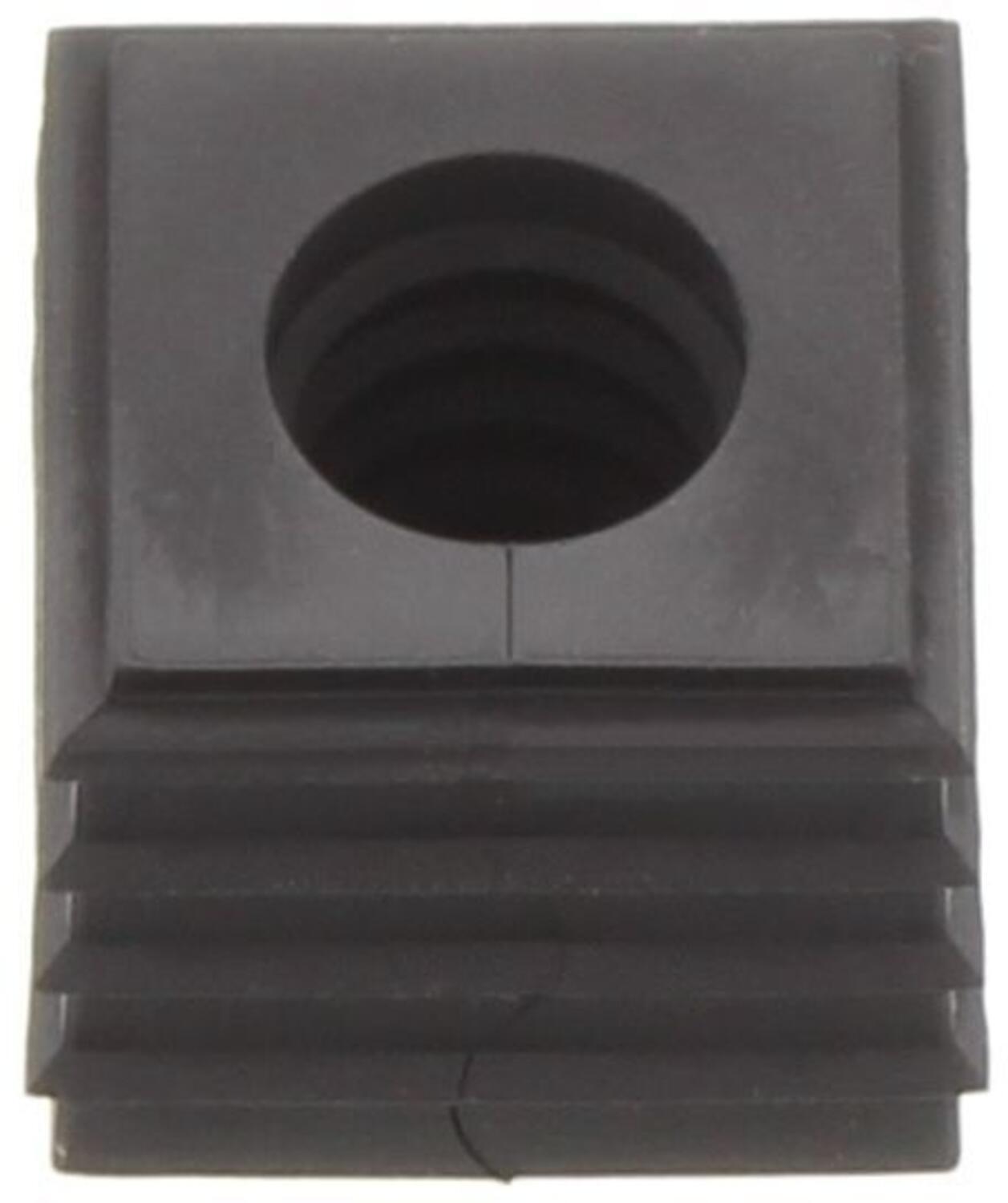

KDS-DE 10-11, Black insert, Max 11mmø Art: 28530.4 Copied	cUL, UL	11 mm	10 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	5.4 g	20.3 mm

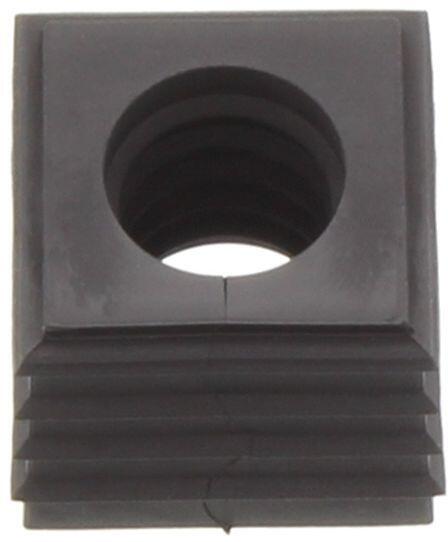

KDS-DE 11-12, Black insert, Max 12mmø Art: 28531.4 Copied	cUL, UL	12 mm	11 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	5.3 g	20.3 mm

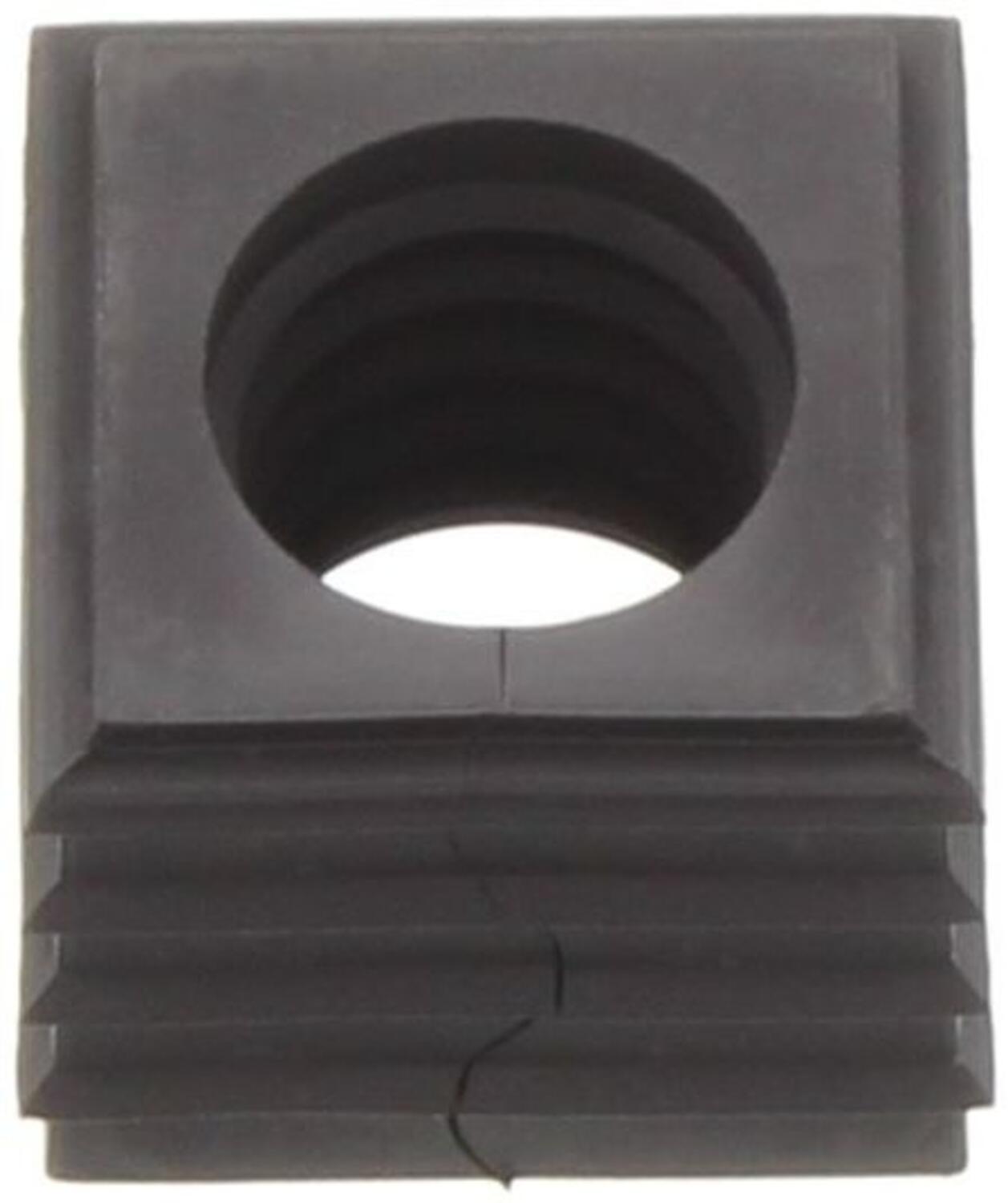

KDS-DE 12-13, Black insert, Max 13mmø Art: 28532.4 Copied	cUL, UL	13 mm	12 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	5.2 g	20.3 mm

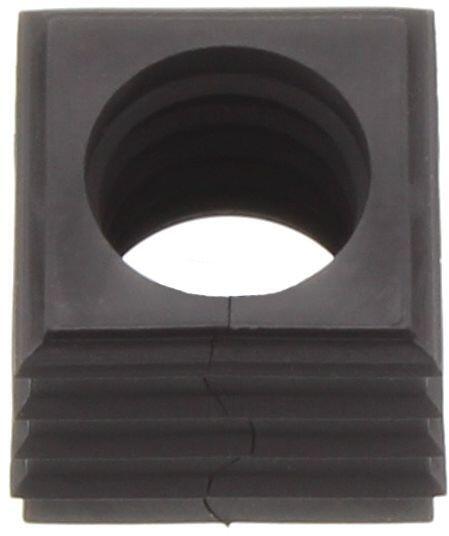

KDS-DE 13-14,Black insert, Max 14mmø Art: 28533.4 Copied	cUL, UL	14 mm	13 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	5.4 g	20.3 mm

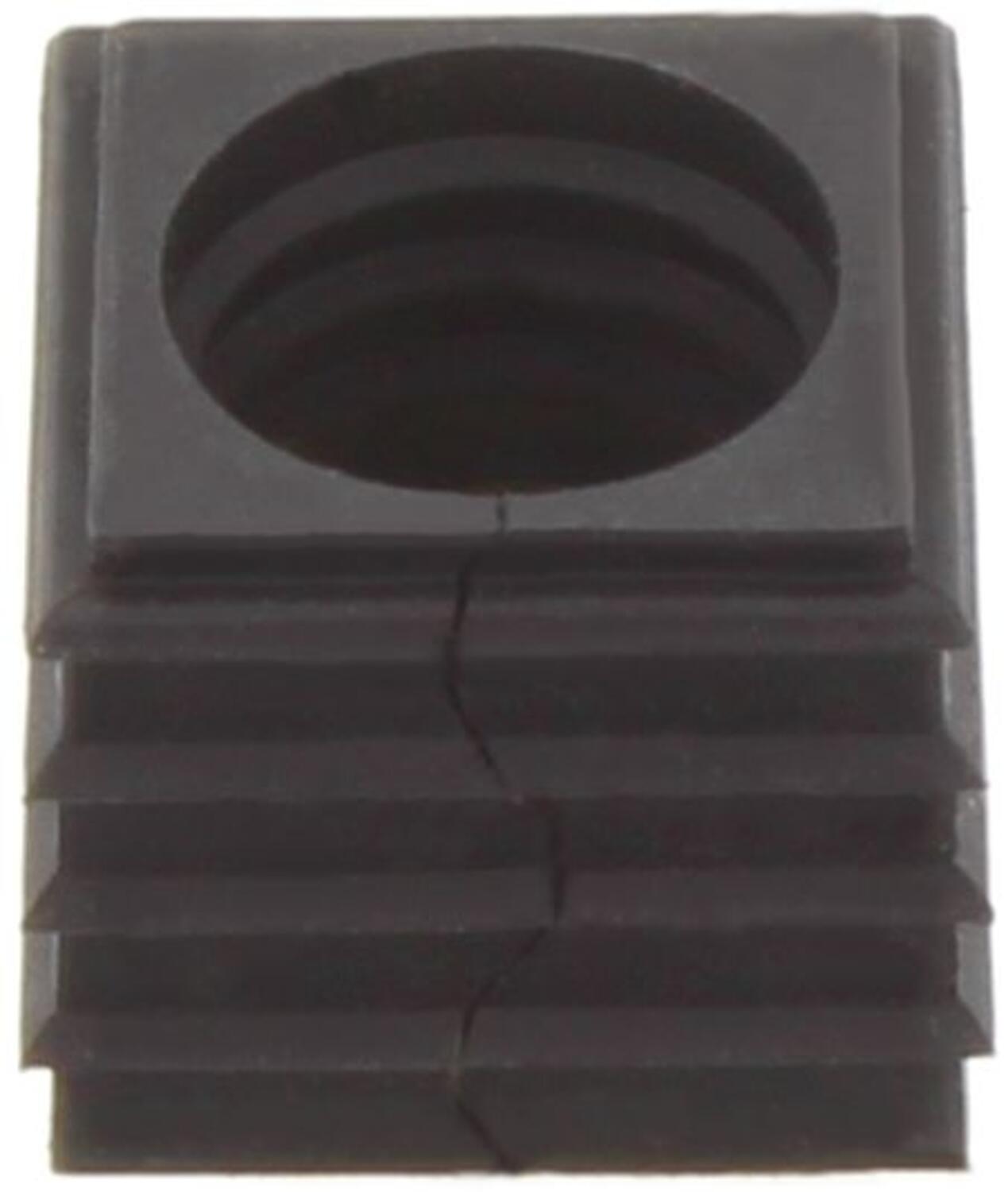

KDS-DE 14-15, Black insert, Max 15mmø Art: 28608.4 Copied	cUL, UL	15 mm	14 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	4.2 g	20.3 mm

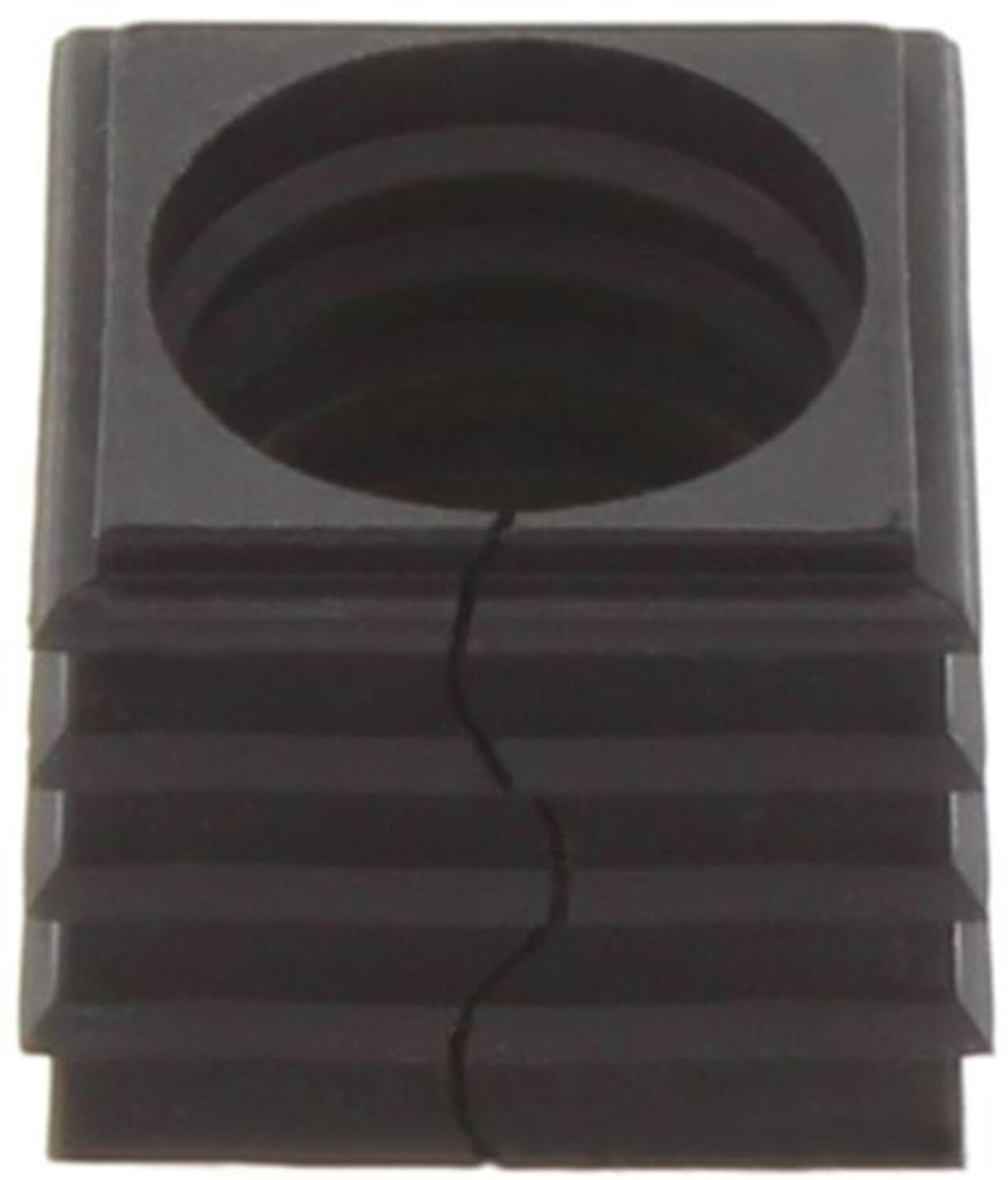

KDS-DE 15-16, Black insert, Max 16mmø Art: 28670.4 Copied	cUL, UL	16 mm	15 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	3.9 g	20.3 mm
KDS-DEG/B, Black Blind insert, Art: 28534.4 Copied	cUL, UL			Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	0	-40 °C	120 °C	10				UL 508	Yes	31.5 g	42.8 mm

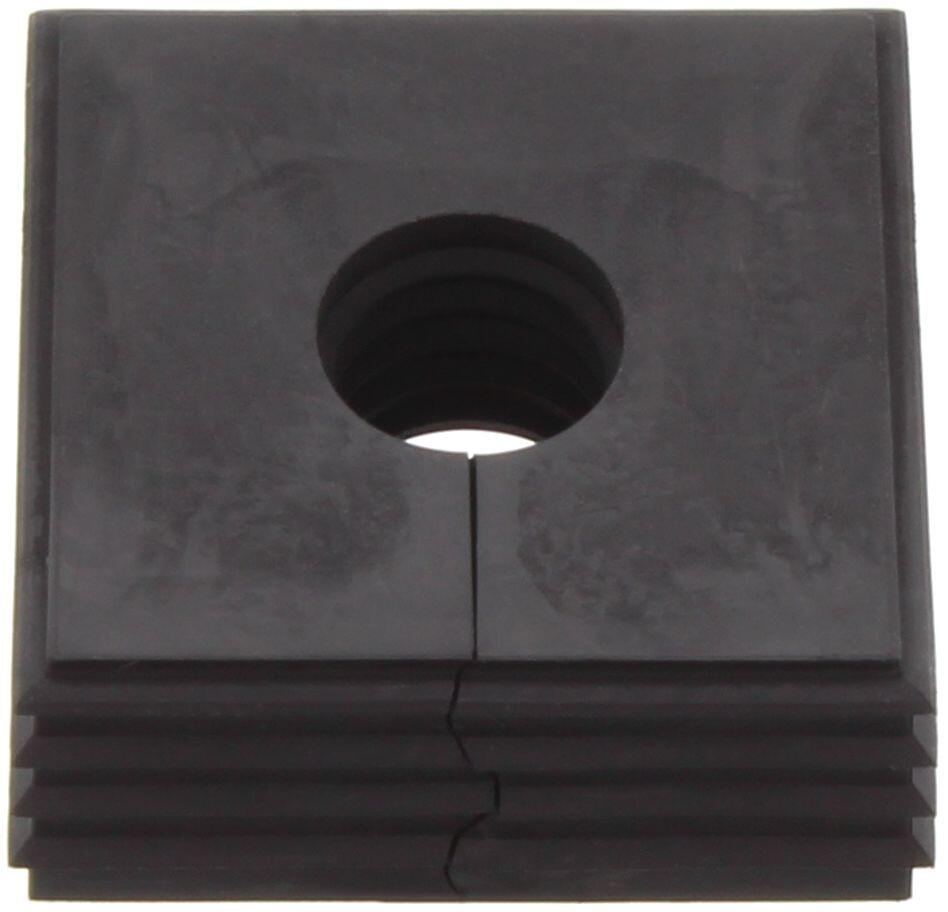

KDS-DEG 14-15, Black insert, Max 15mmø Art: 28535.4 Copied	cUL, UL	15 mm	14 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	28.7 g	42.8 mm

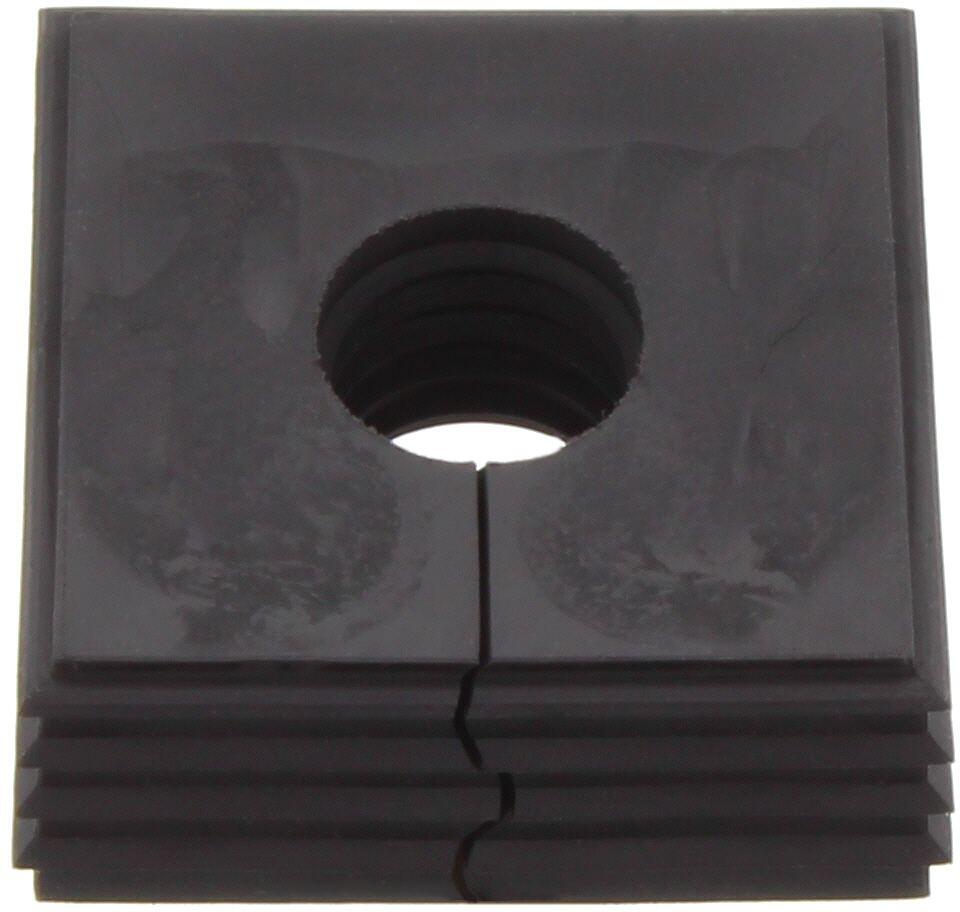

KDS-DEG 15-16, Black insert, Max 16mmø Art: 28536.4 Copied	cUL, UL	16 mm	15 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	29.8 g	42.8 mm

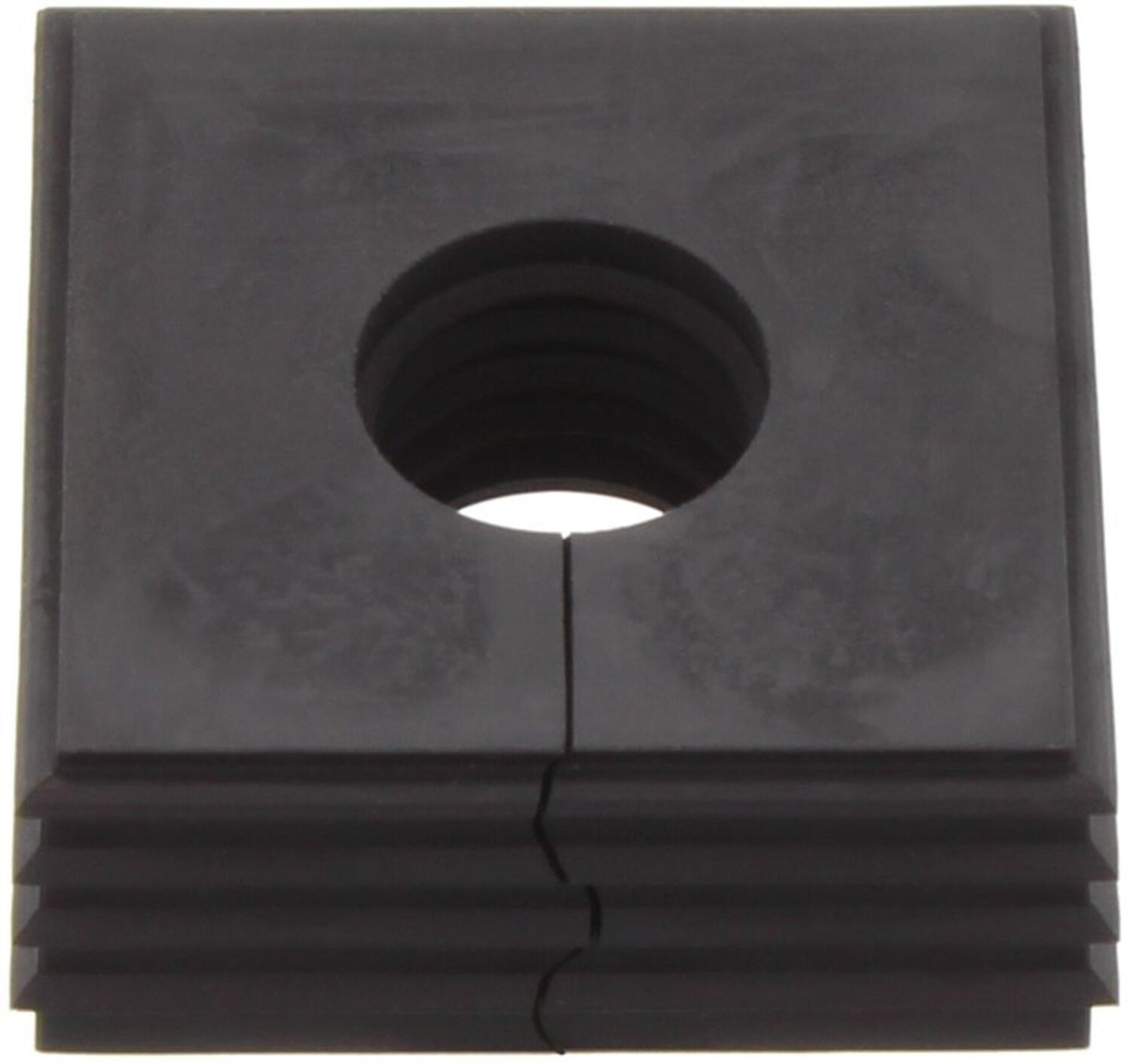

KDS-DEG 16-17, Black insert, Max 17mmø Art: 28537.4 Copied	cUL, UL	17 mm	16 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	27.7 g	42.8 mm

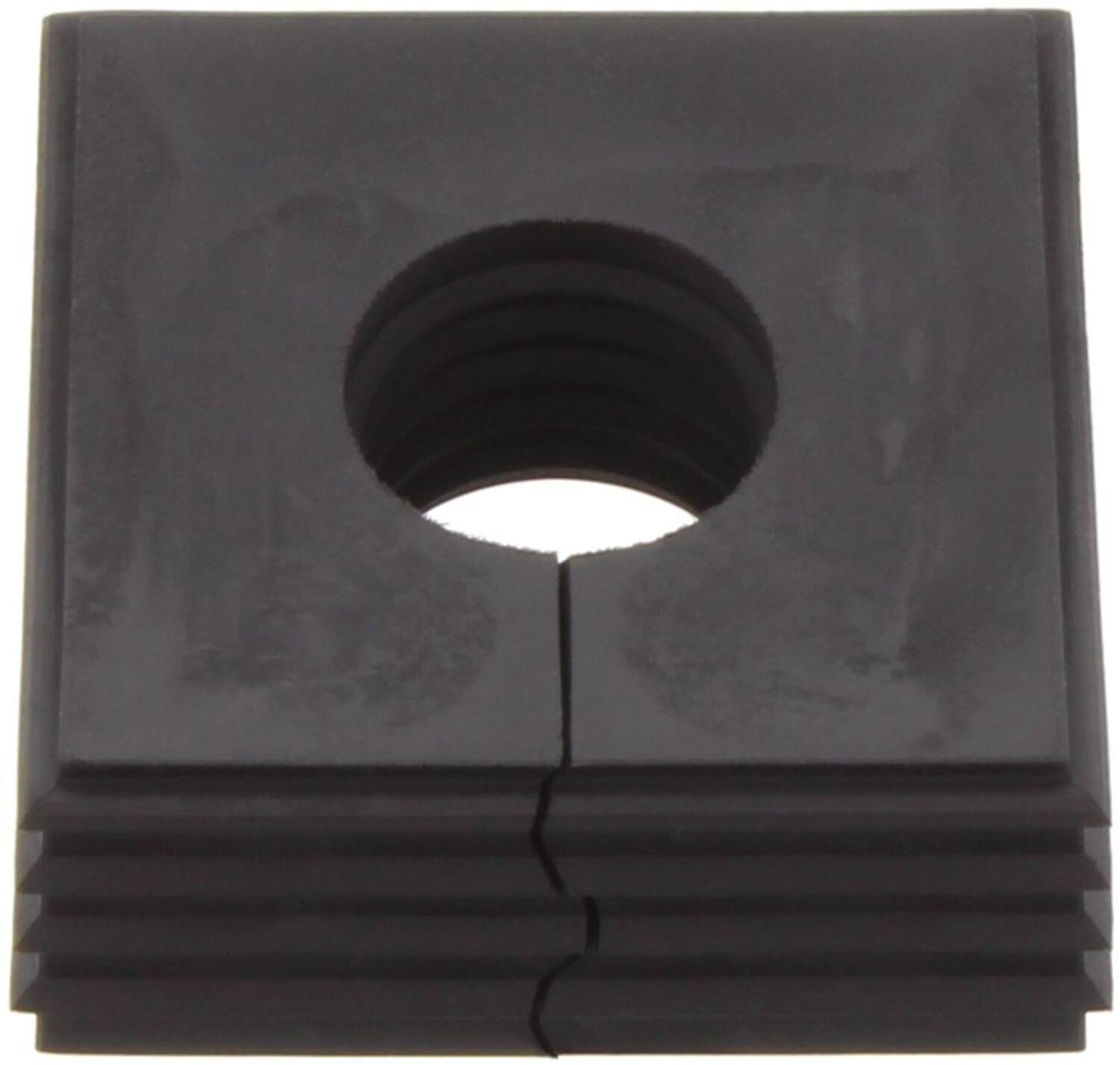

KDS-DEG 17-18, Black insert, Max 18mmø Art: 28538.4 Copied	cUL, UL	18 mm	17 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	27 g	42.8 mm

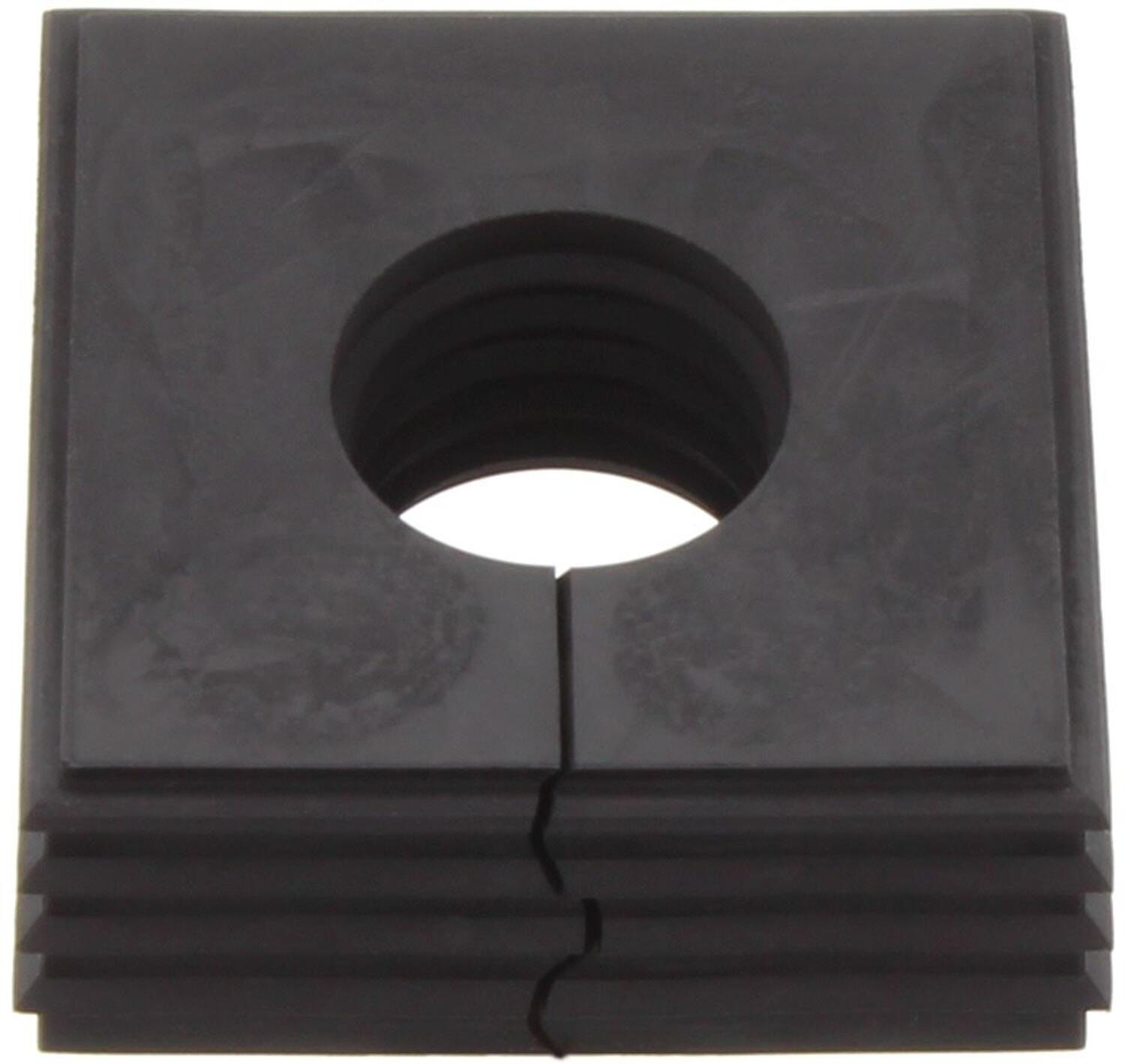

KDS-DEG 18-19, Black insert, Max 19mmø Art: 28539.4 Copied	cUL, UL	19 mm	18 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	27 g	42.8 mm

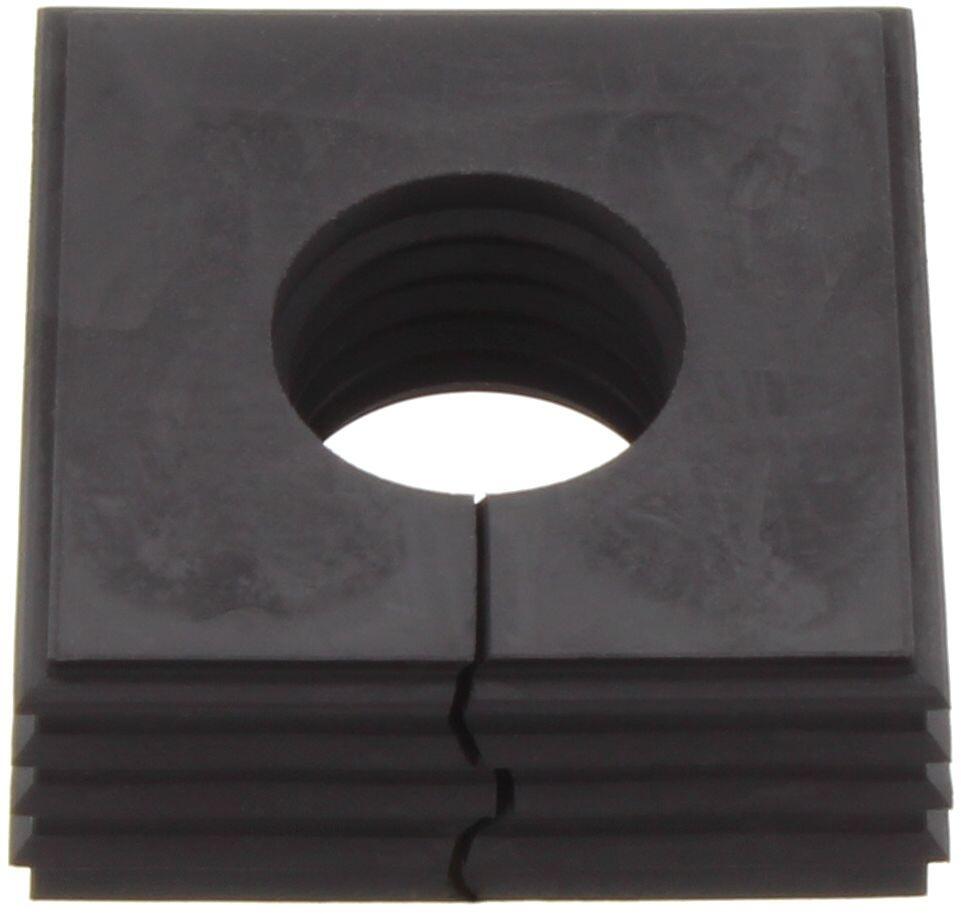

KDS-DEG 19-20, Black insert, Max 20mmø Art: 28540.4 Copied	cUL, UL	20 mm	19 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	27.8 g	42.8 mm

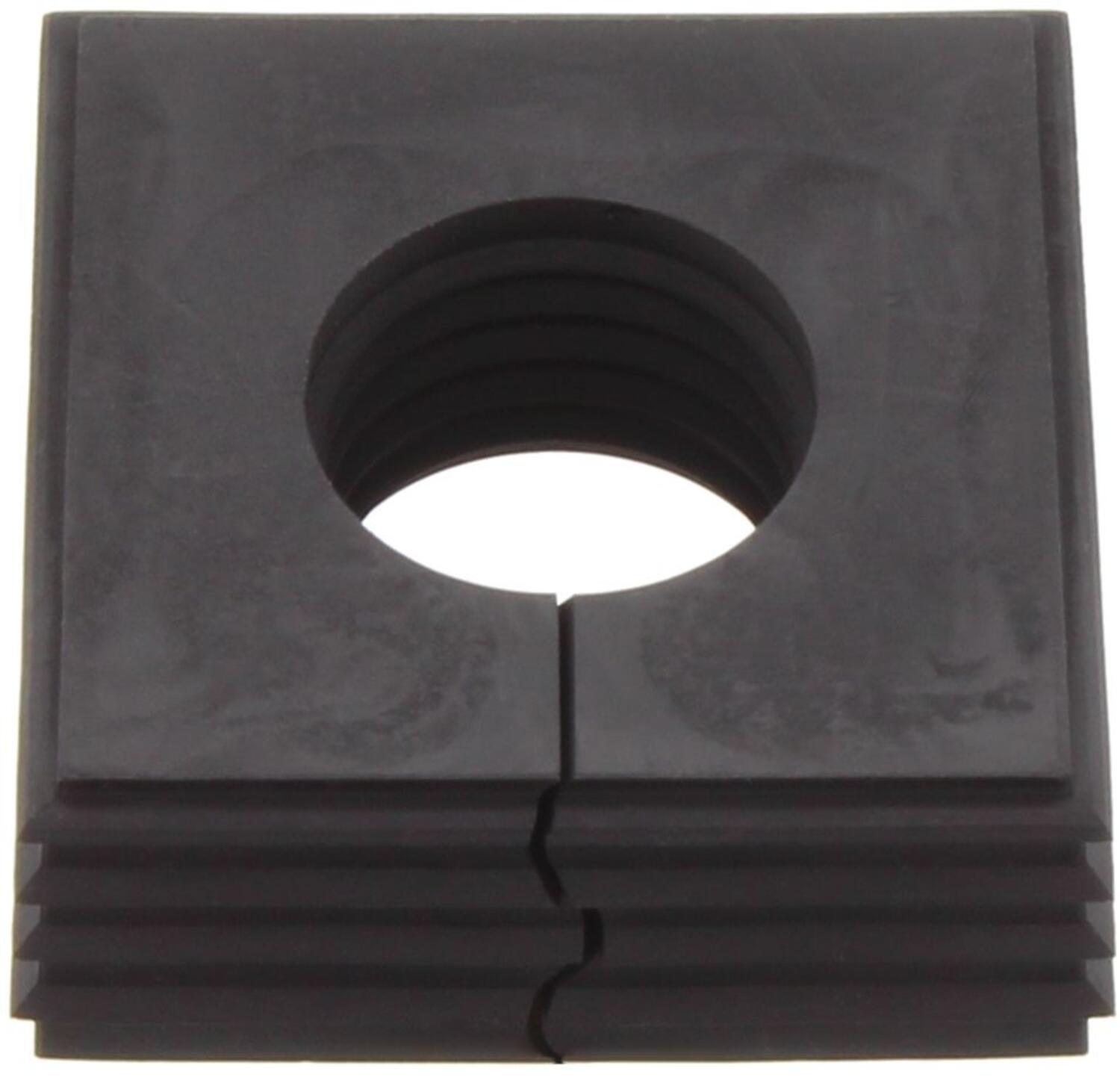

KDS-DEG 20-21, Black insert, Max 21mmø Art: 28541.4 Copied	cUL, UL	21 mm	20 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	27.3 g	42.8 mm

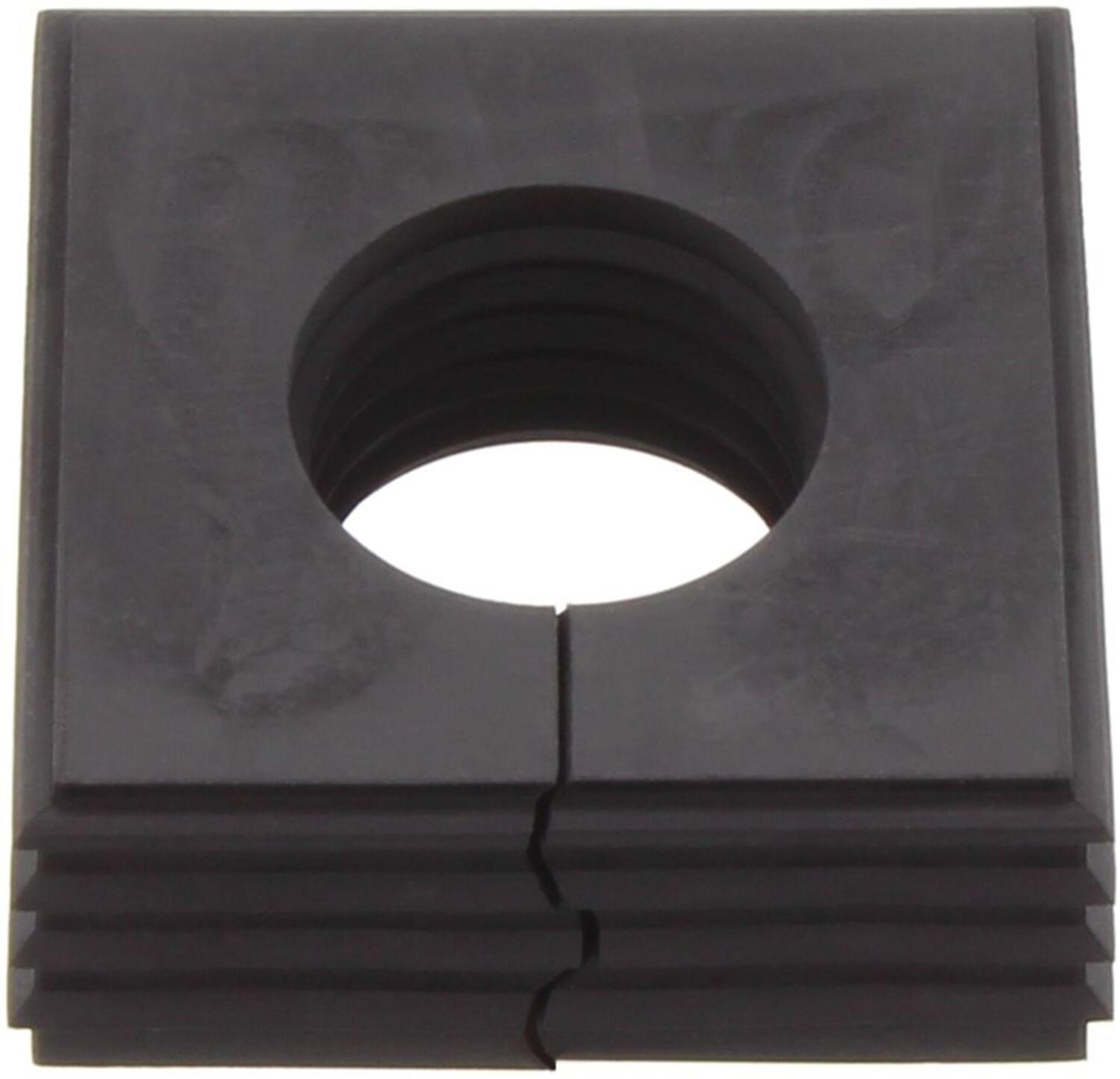

KDS-DEG 21-22, Black insert, Max 22mmø Art: 28542.4 Copied	cUL, UL	22 mm	21 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	26.7 g	42.8 mm

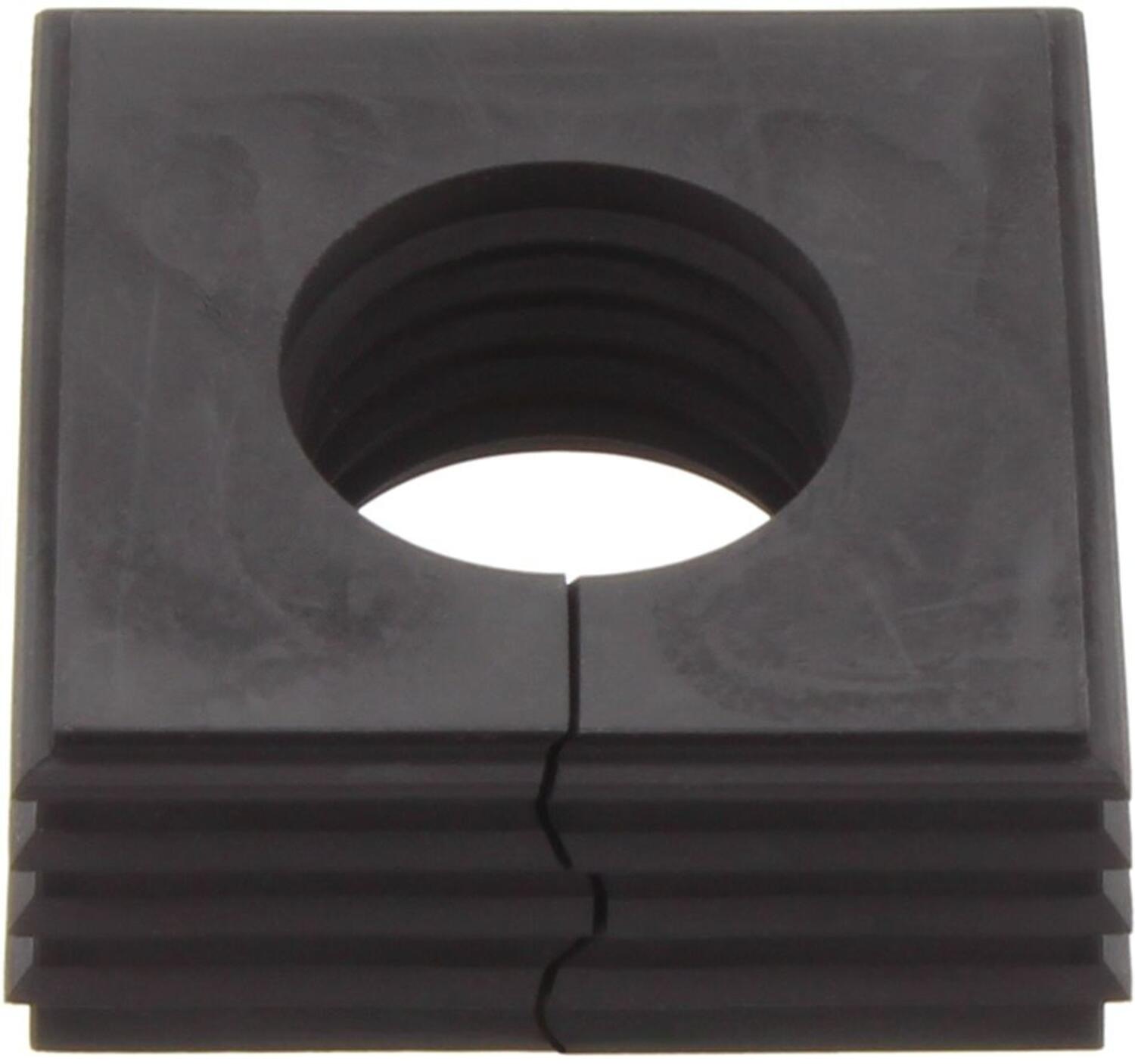

KDS-DEG 22-23, Black insert, Max 23mmø Art: 28543.4 Copied	cUL, UL	23 mm	22 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	24.76 g	42.8 mm

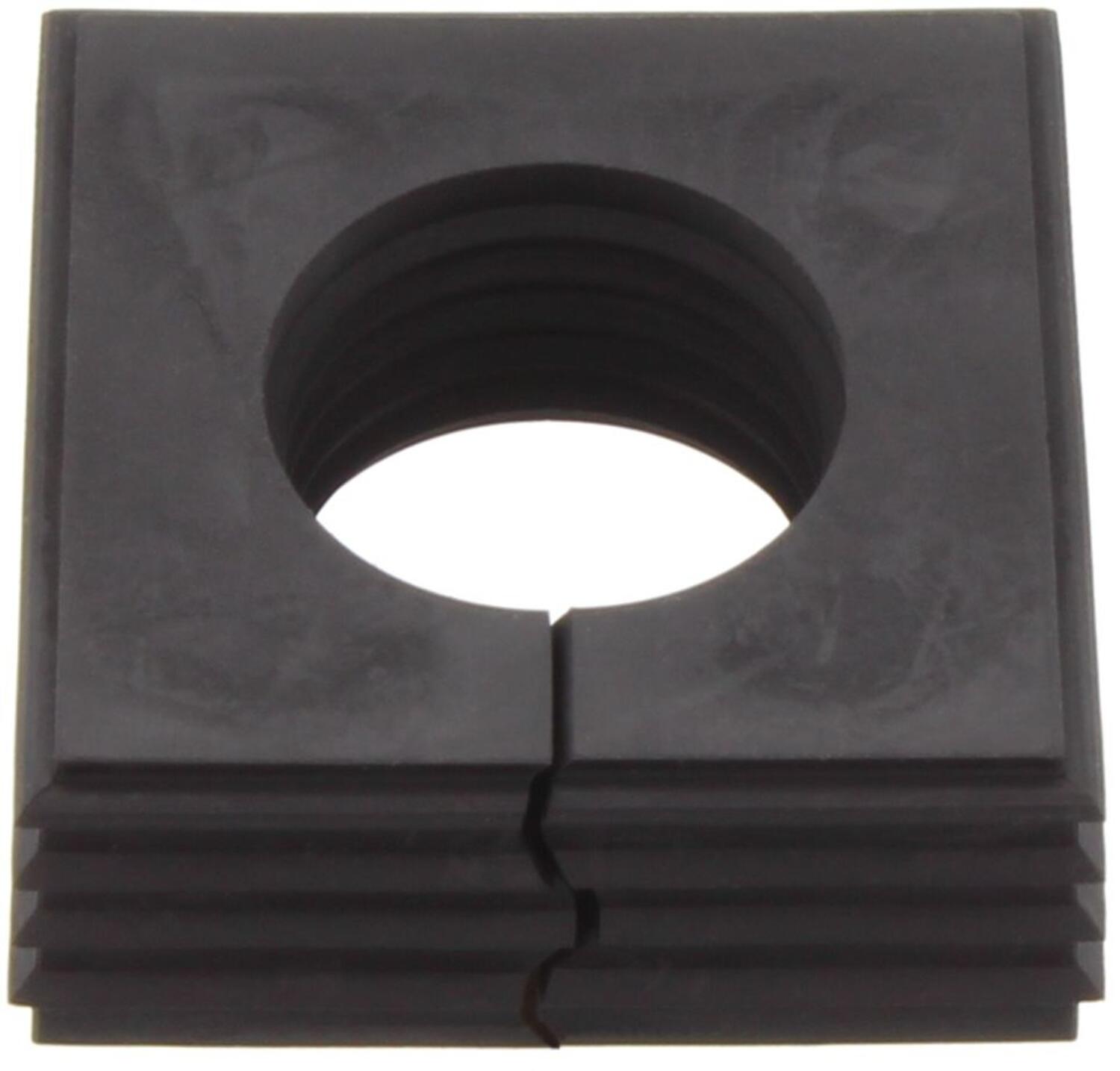

KDS-DEG 23-24, Black insert, Max 24mmø Art: 28544.4 Copied	cUL, UL	24 mm	23 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	25.3 g	42.8 mm

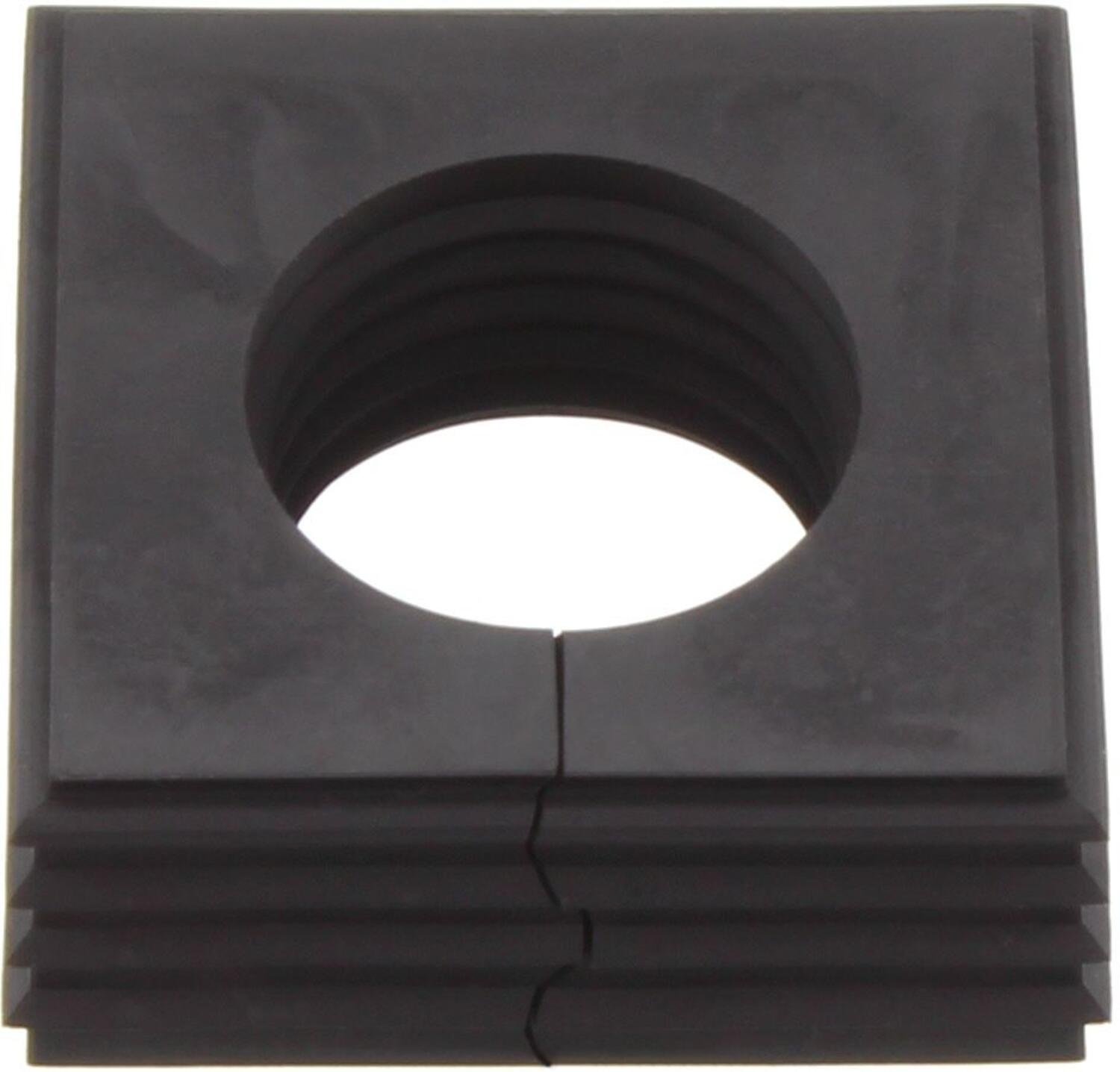

KDS-DEG 24-25, Black insert, Max 25mmø Art: 28545.4 Copied	cUL, UL	25 mm	24 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	24.6 g	42.8 mm

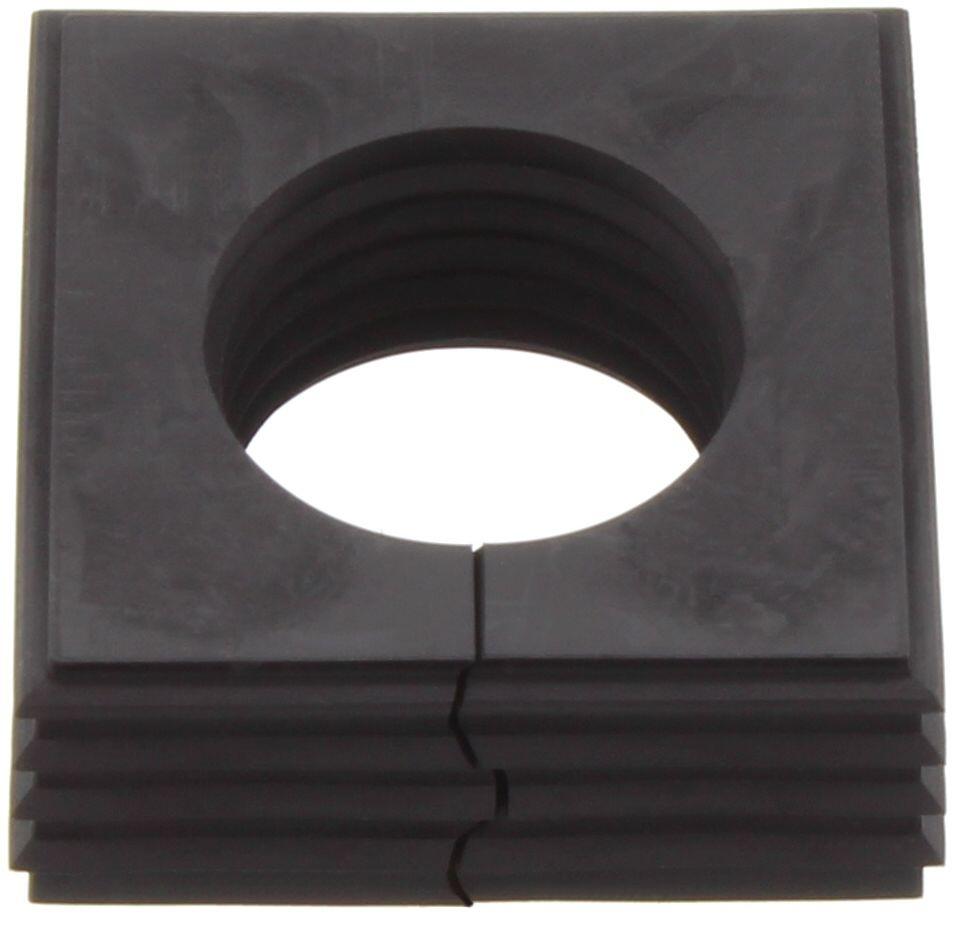

KDS-DEG 25-26, Black insert, Max 26mmø Art: 28546.4 Copied	cUL, UL	26 mm	25 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	23.9 g	42.8 mm

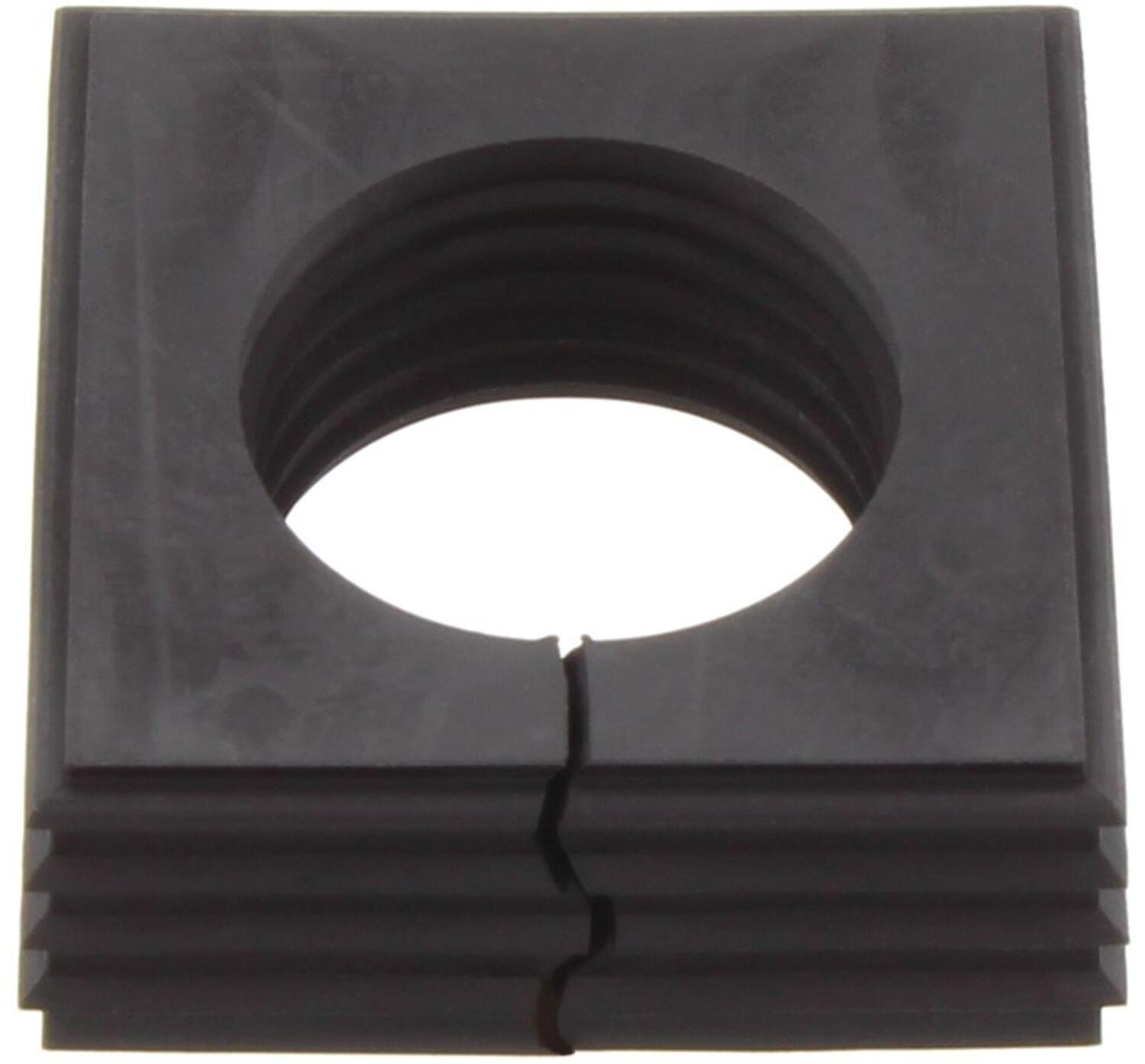

KDS-DEG 26-27, Black insert, Max 27mmø Art: 28547.4 Copied	cUL, UL	27 mm	26 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	23.2 g	42.8 mm

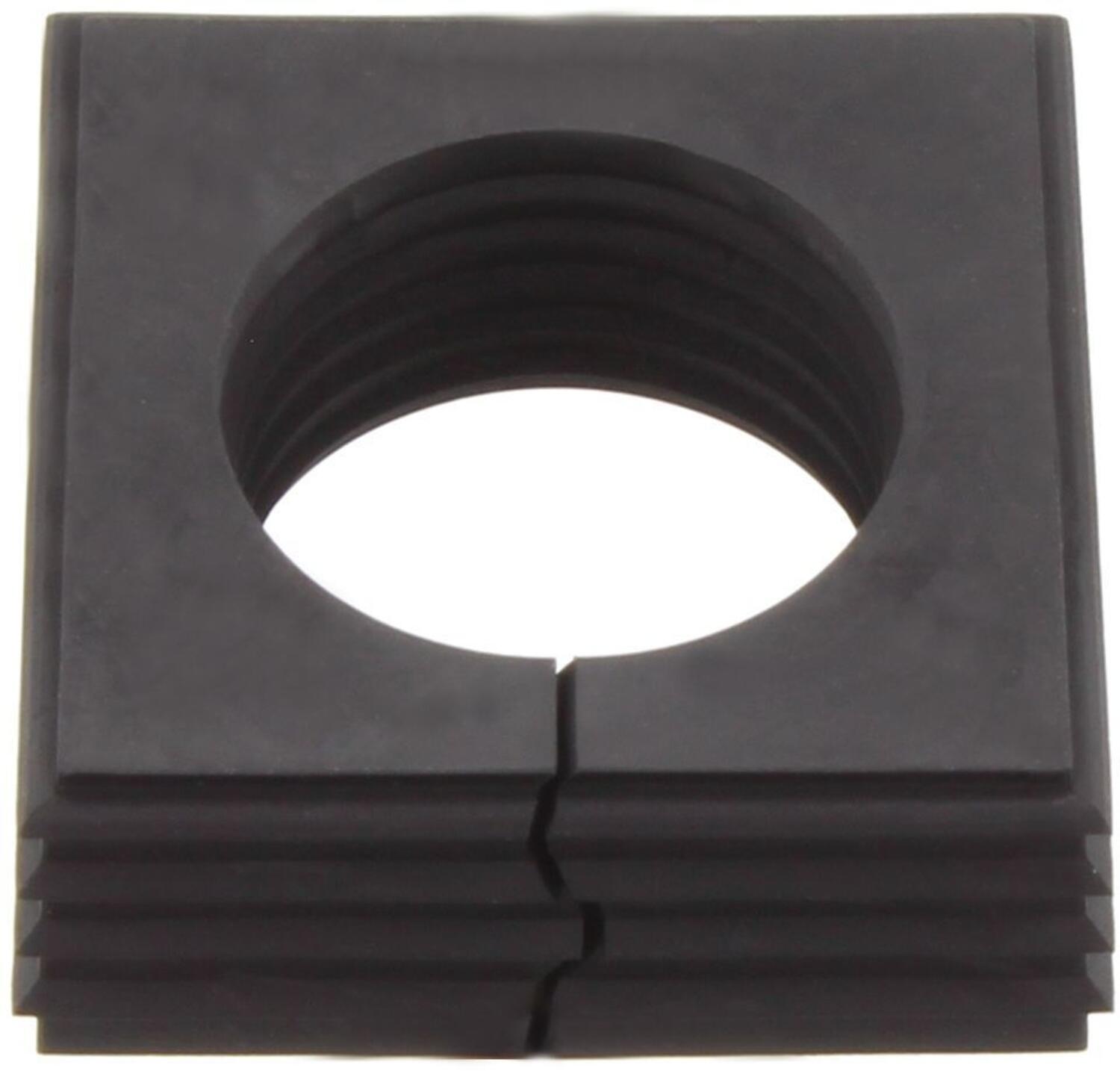

KDS-DEG 27-28, Black insert, Max 28mmø Art: 28548.4 Copied	cUL, UL	28 mm	27 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	22.5 g	42.8 mm

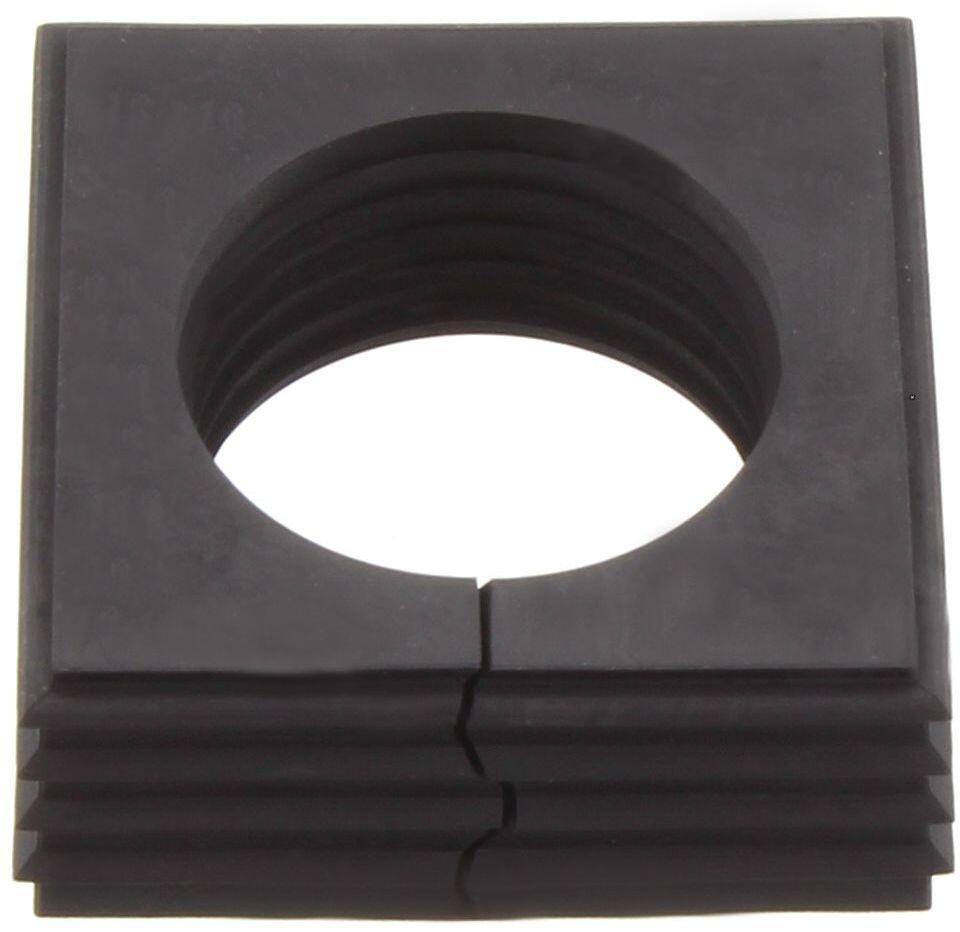

KDS-DEG 28-29, Black insert, Max 29mmø Art: 28549.4 Copied	cUL, UL	29 mm	28 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	21.8 g	42.8 mm
KDS-DEG 29-30, Black insert, Max 30mmø Art: 28550.4 Copied	cUL, UL	30 mm	29 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	20.1 g	42.8 mm

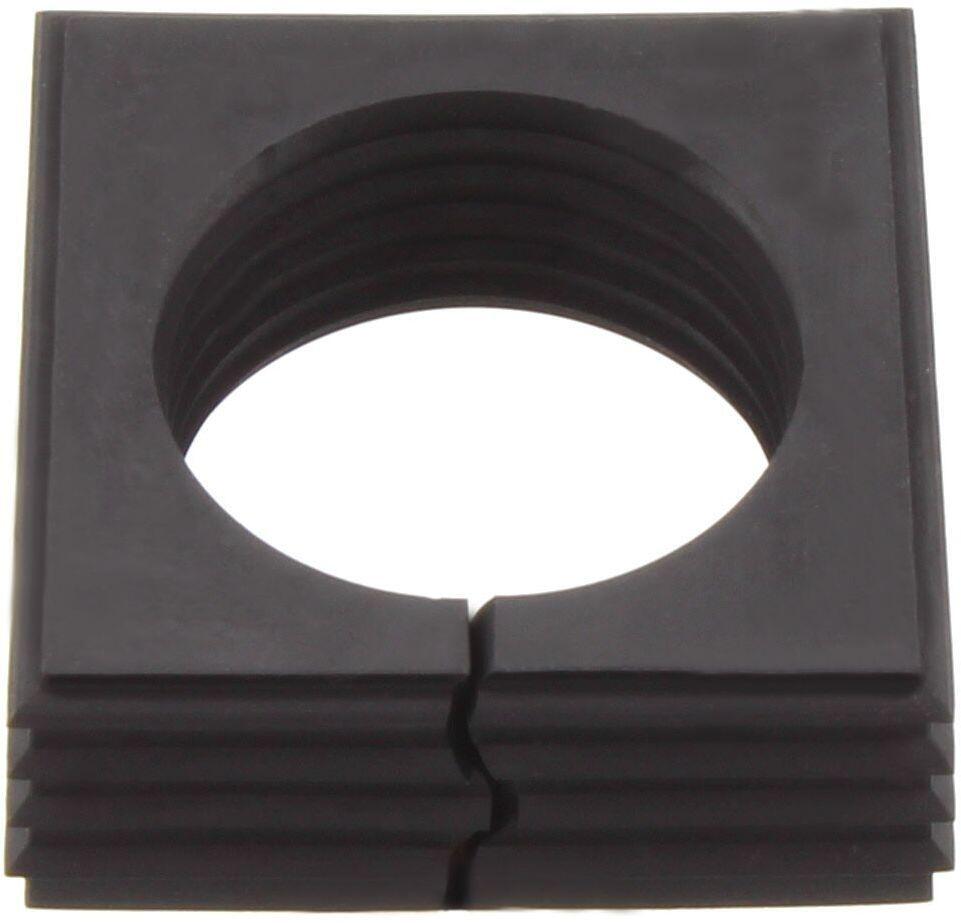

KDS-DEG 30-31, Black insert, Max 31mmø Art: 28551.4 Copied	cUL, UL	31 mm	30 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	19 g	42.8 mm

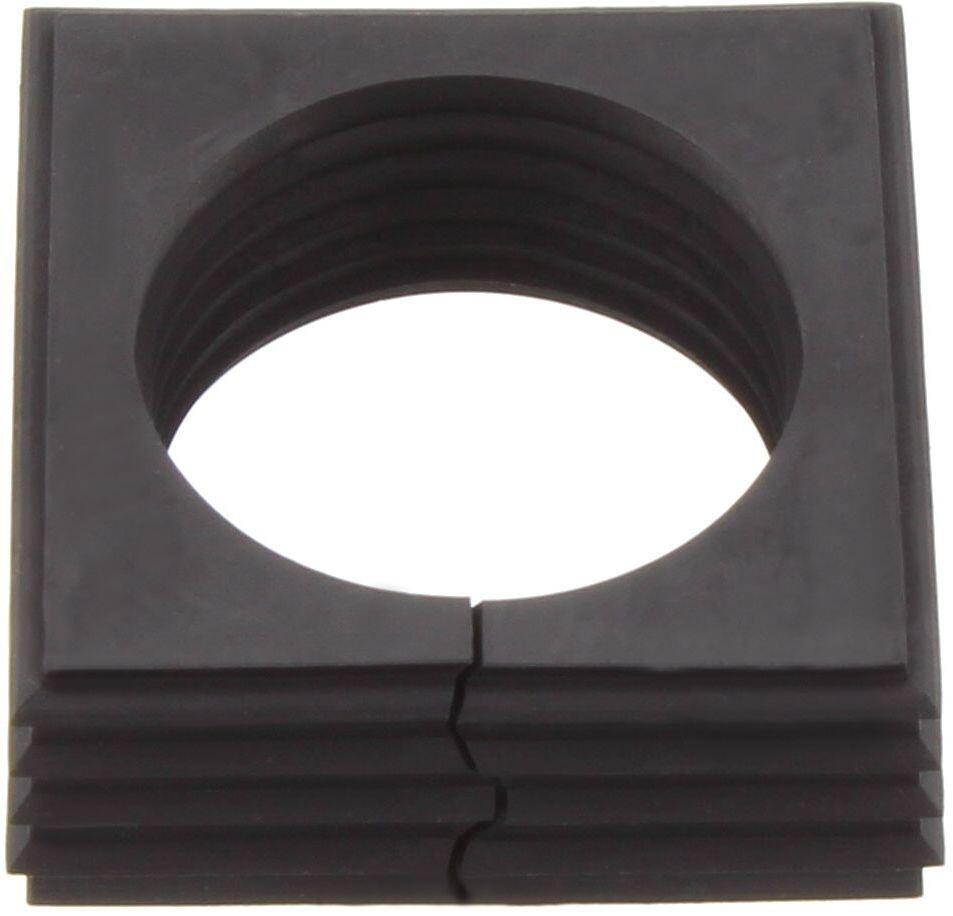

KDS-DEG 31-32, Black insert, Max 32mmø Art: 28552.4 Copied	cUL, UL	32 mm	31 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	18.6 g	42.8 mm

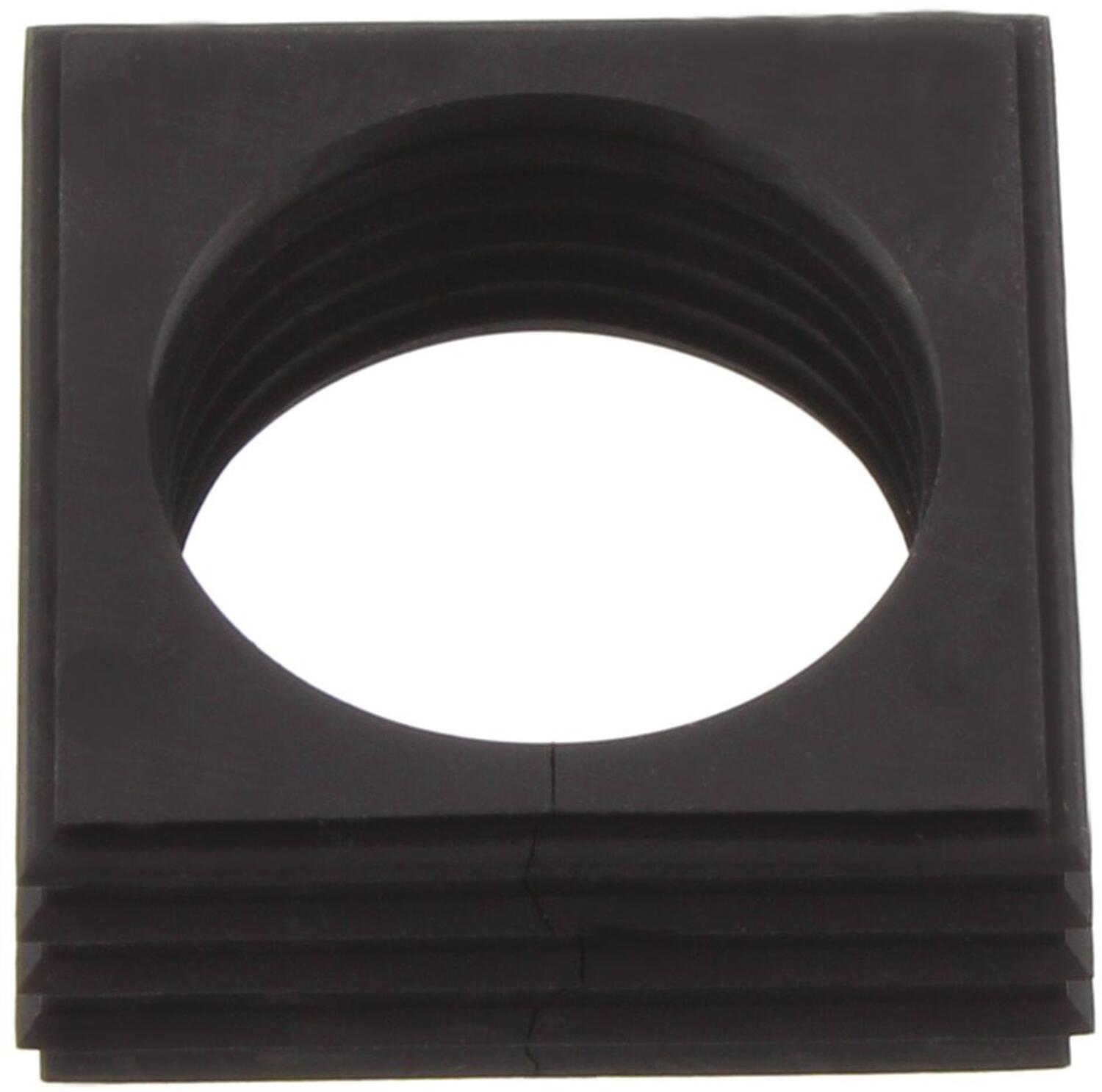

KDS-DEG 32-33, Black insert, Max 33mmø Art: 28601.4 Copied	cUL, UL	33 mm	32 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	17.3 g	42.8 mm
KDS-DEG 34-35, Black insert, Max 35mmø Art: 28732.4 Copied	cUL, UL	35 mm	34 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	14.8 g	42.8 mm

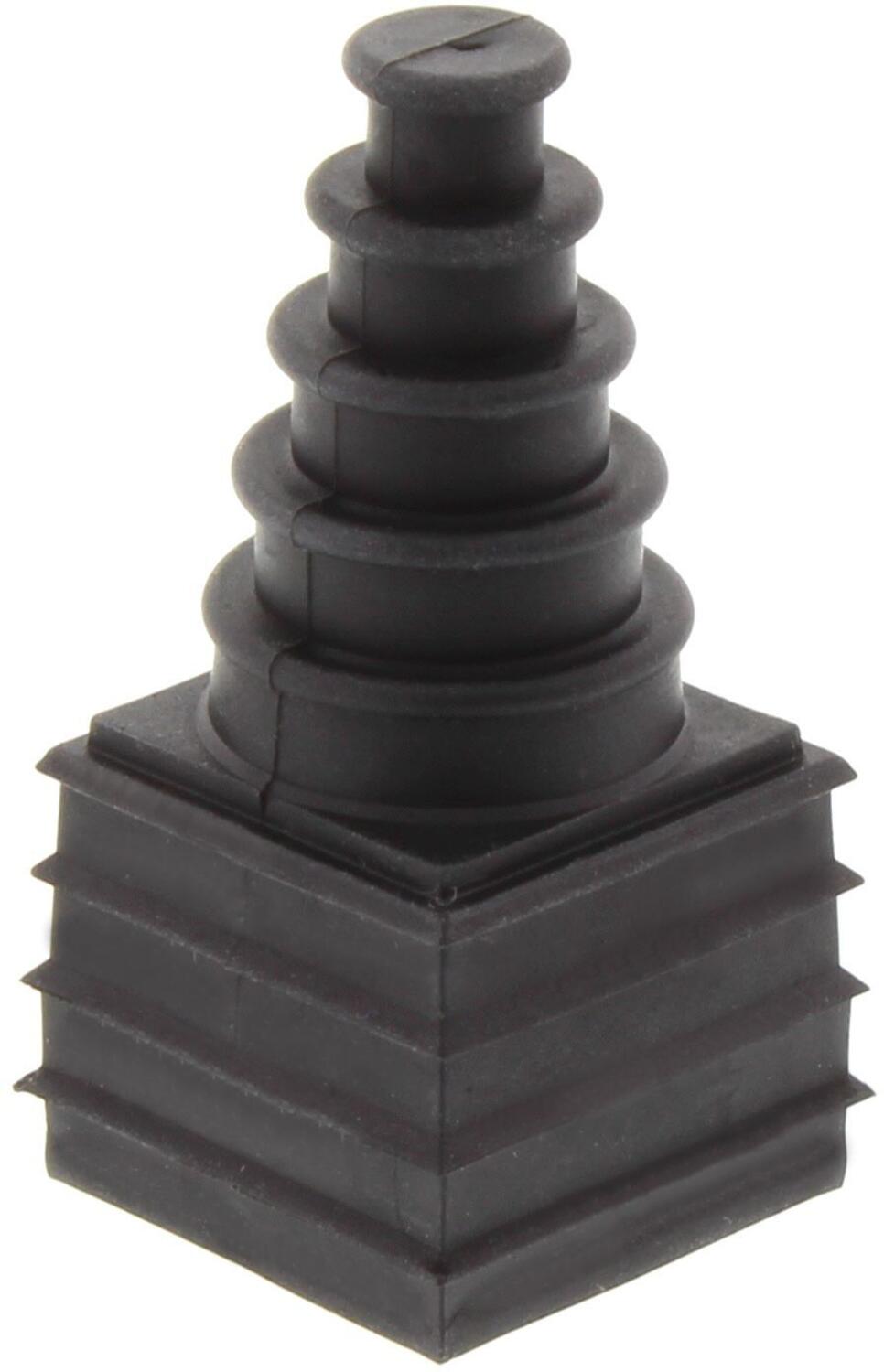

KDS-DE/K 2-11, Black Cone insert, Max 11mmø Art: 28553.4 Copied	cUL, UL	15 mm	2 mm	Black	C22.2 No. 14-95		HB	No	42.5 mm	20.3 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	7.2 g	20.3 mm

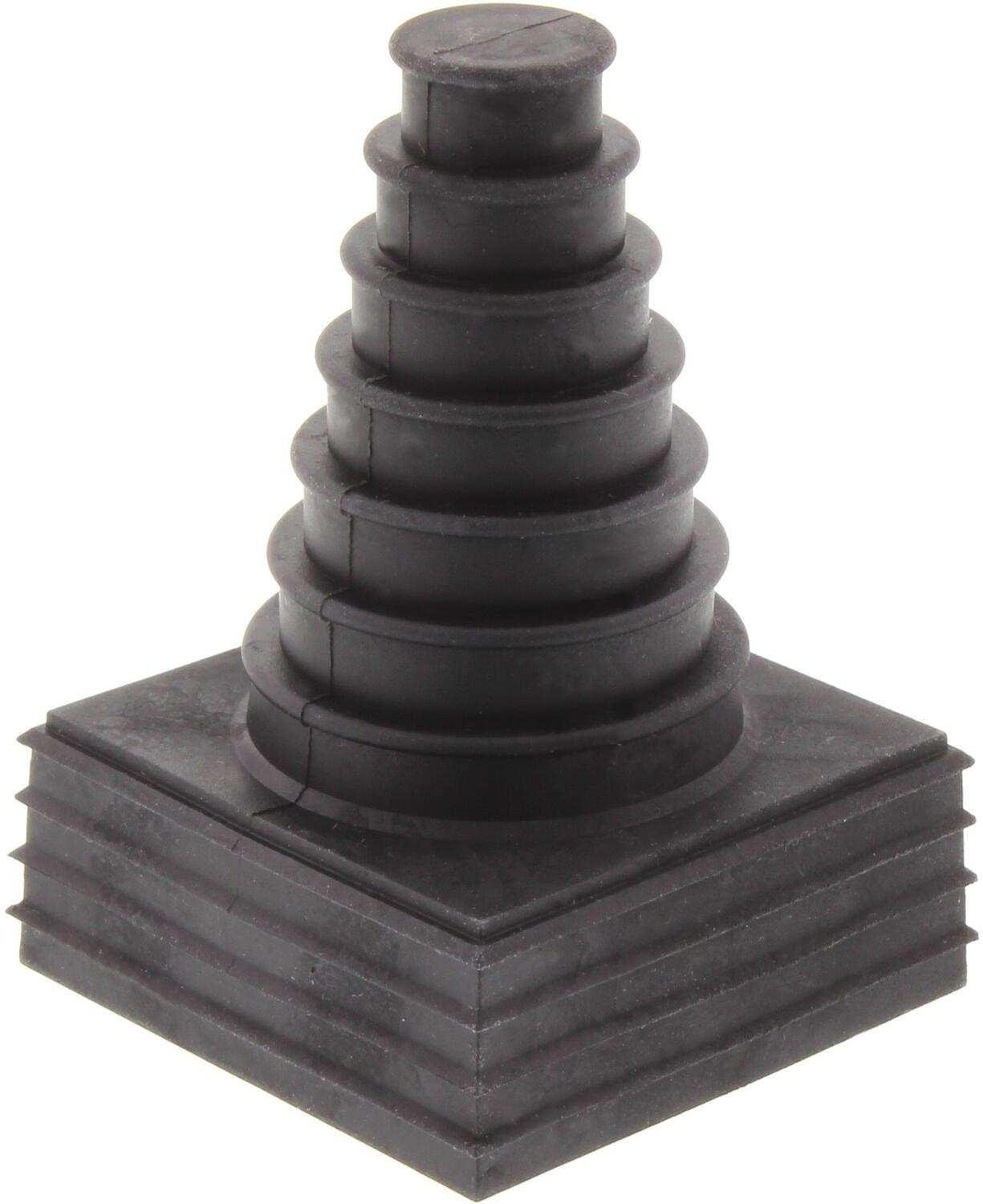

KDS-DEG/K 7-24, Black Cone insert, Max 34mmø Art: 28554.4 Copied	cUL, UL	34 mm	15 mm	Black	C22.2 No. 14-95		HB	No	62.7 mm	42.8 mm	TPE	Push in	4x	1	-40 °C	120 °C	10				UL 508	Yes	30.8 g	42.8 mm

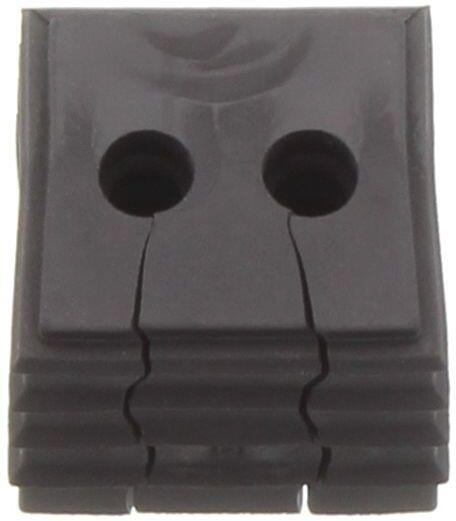

KDS-DE 2x 4-5, Black insert, Max 5mmø Art: 28555.4 Copied	cUL, UL	5 mm	4 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	120 °C	10				UL 508	Yes	6.6 g	20.3 mm

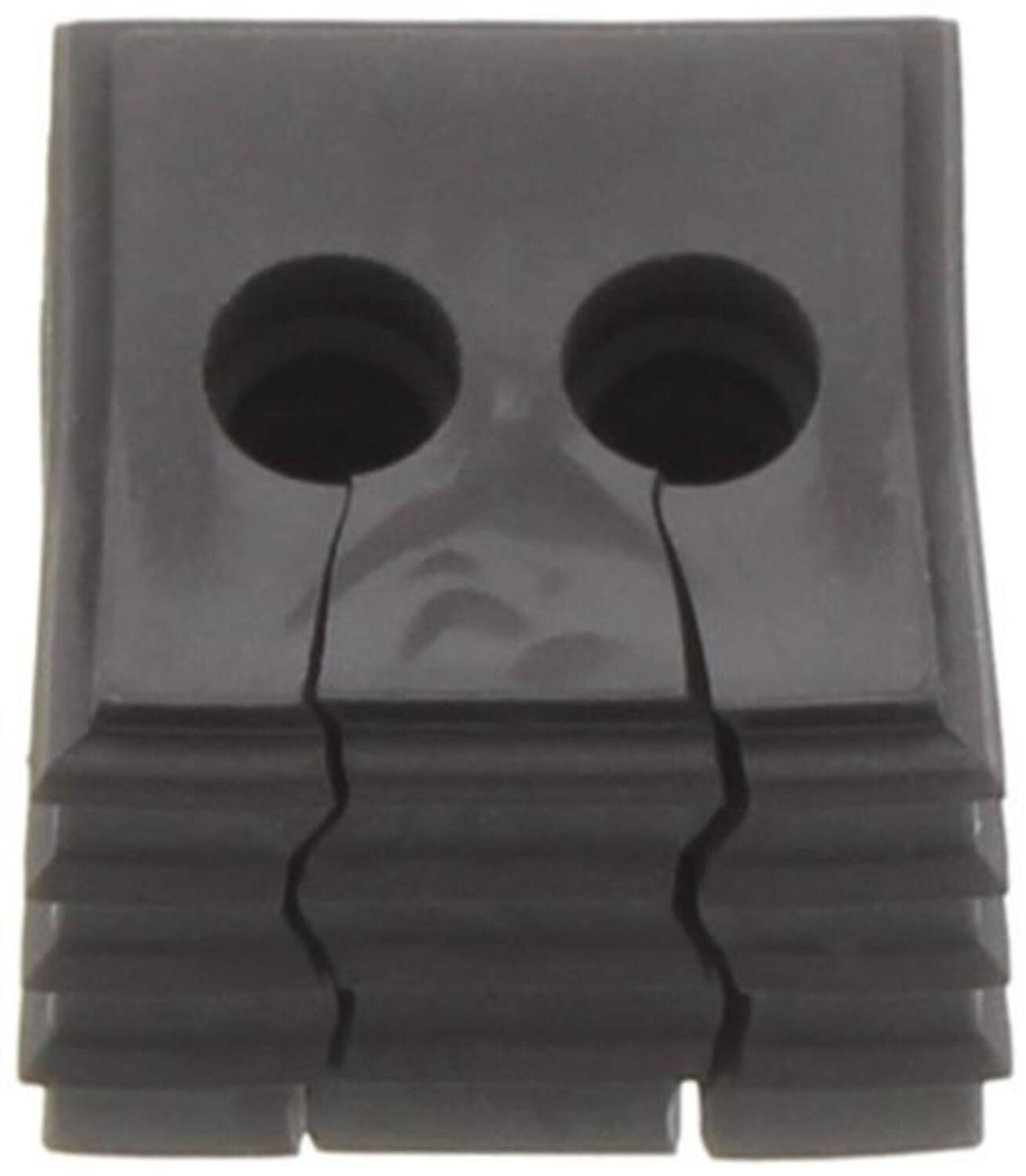

KDS-DE 2x 5-6, Black insert, Max 6mmø Art: 28556.4 Copied	cUL, UL	6 mm	5 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	120 °C	10				UL 508	Yes	6.3 g	20.3 mm

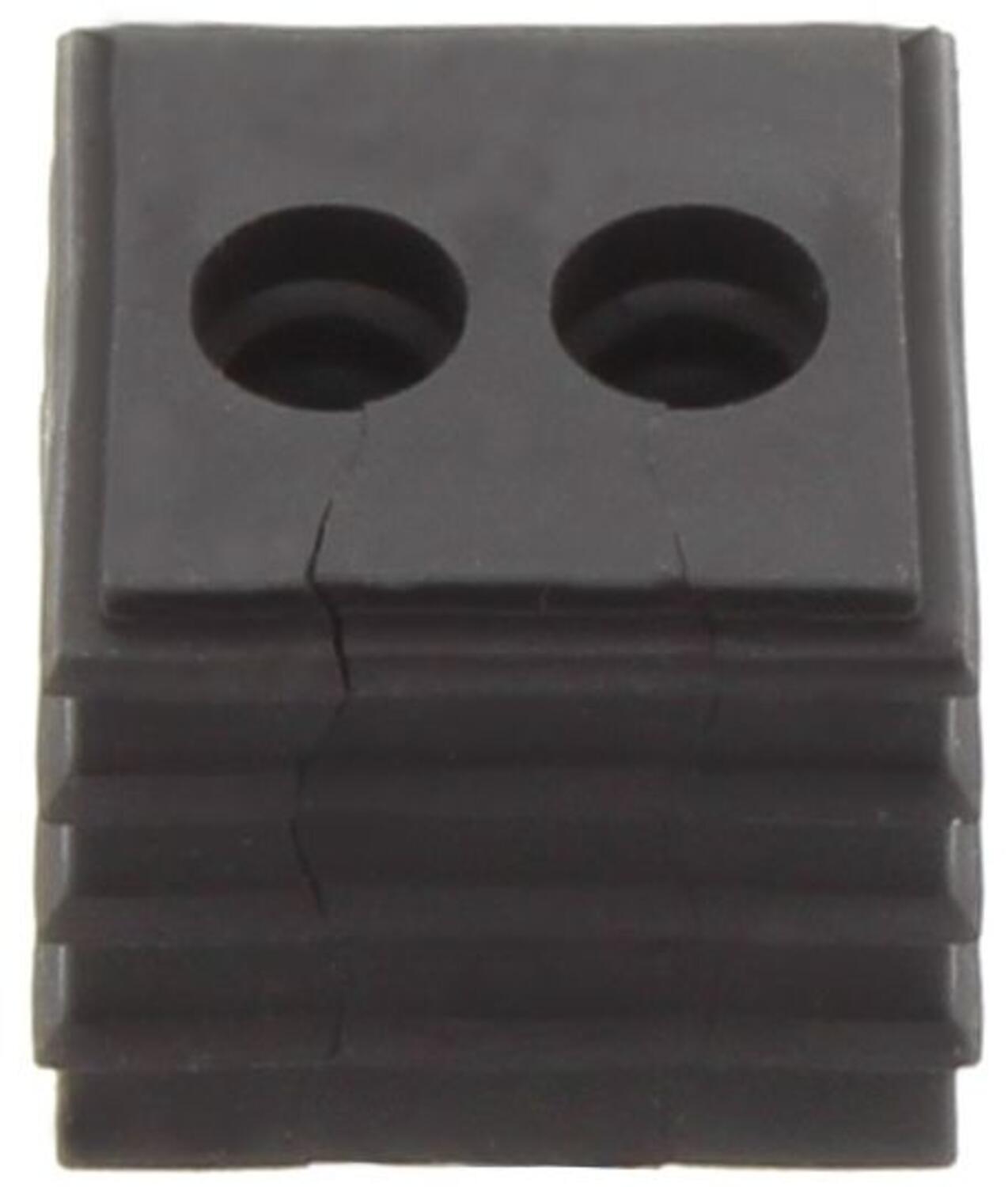

KDS-DE 2x 6.5, Black insert, Max 6.8mmø Art: 28682.4 Copied	cUL, UL	6.6 mm	6.2 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	120 °C	10				UL 508	Yes	6.2 g	20.3 mm

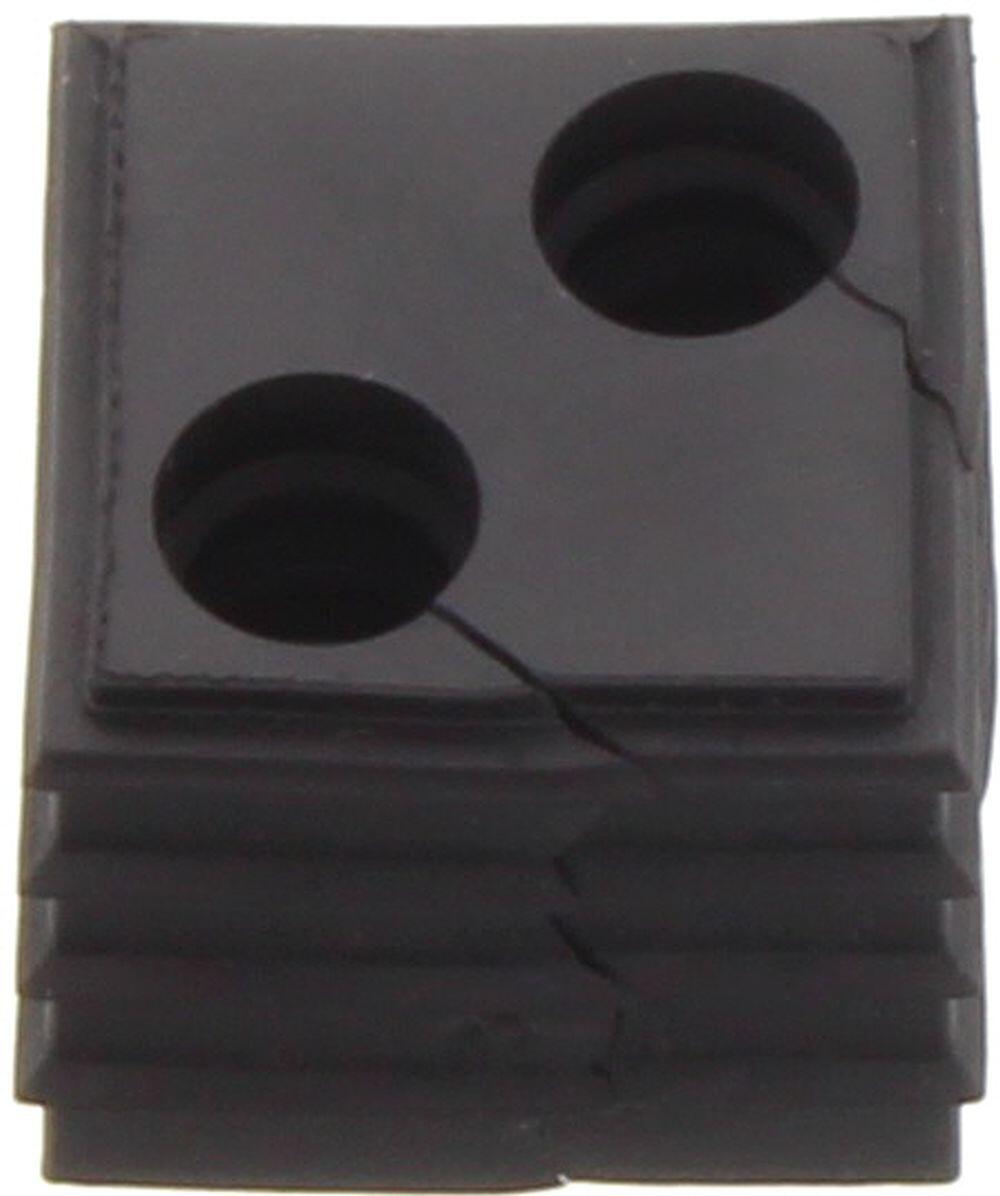

KDS-DE 2x7, Black insert, Max 7mmø Art: 28689.4 Copied		7.1 mm	6.7 mm	Black			HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	120 °C	10					Yes	6 g	20.3 mm
KDS-DE 2x8, Black insert, Max 8mmø Art: 28691.4 Copied		8 mm	8 mm	Black			HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	2	-40 °C	120 °C	10					Yes	5.6 g	20.3 mm

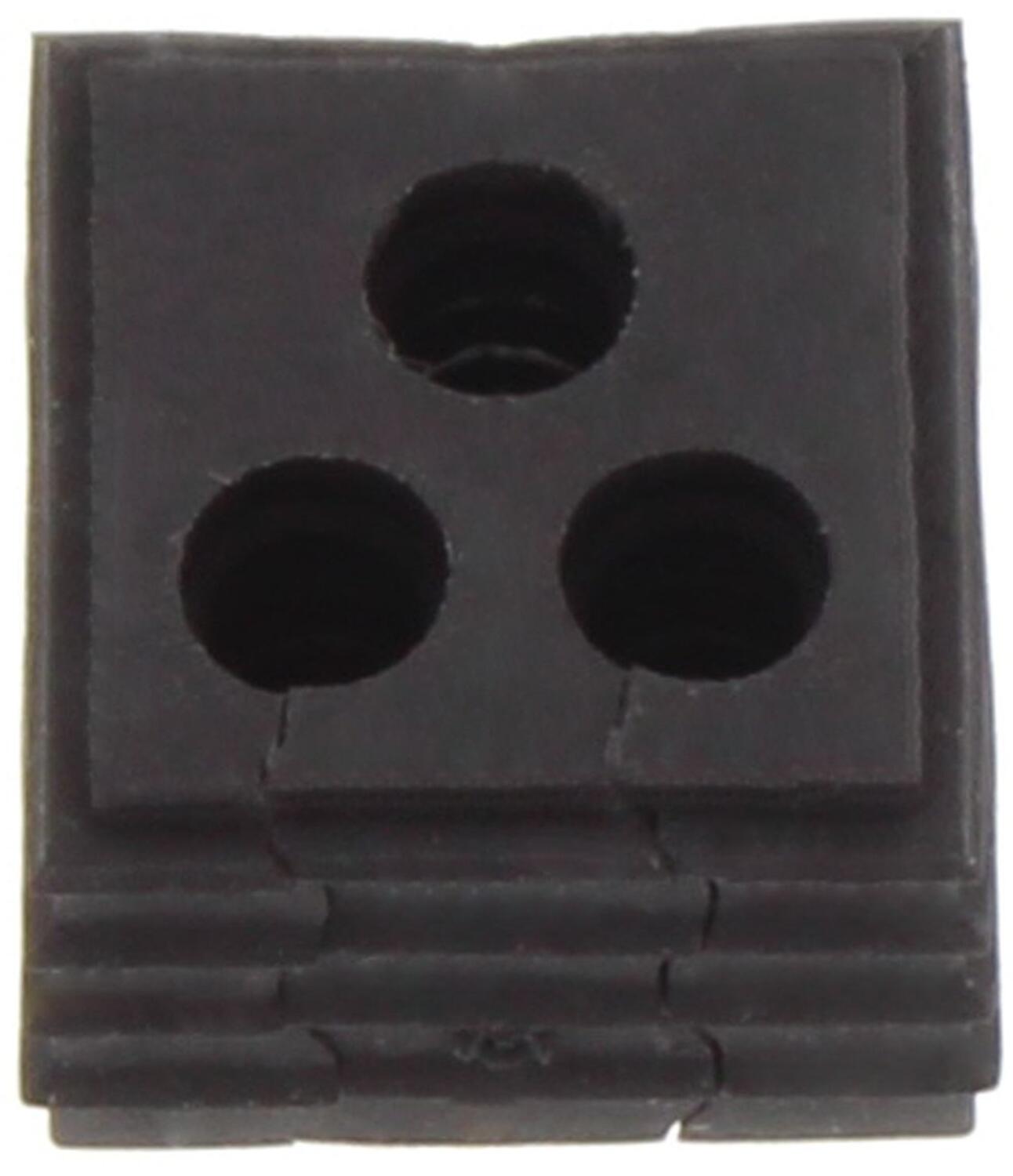

KDS-DE 3x5-6, Black insert, Max 6mmø Art: 28687.4 Copied		6 mm	5 mm	Black			HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	3	-40 °C	120 °C	10					Yes	6 g	20.3 mm

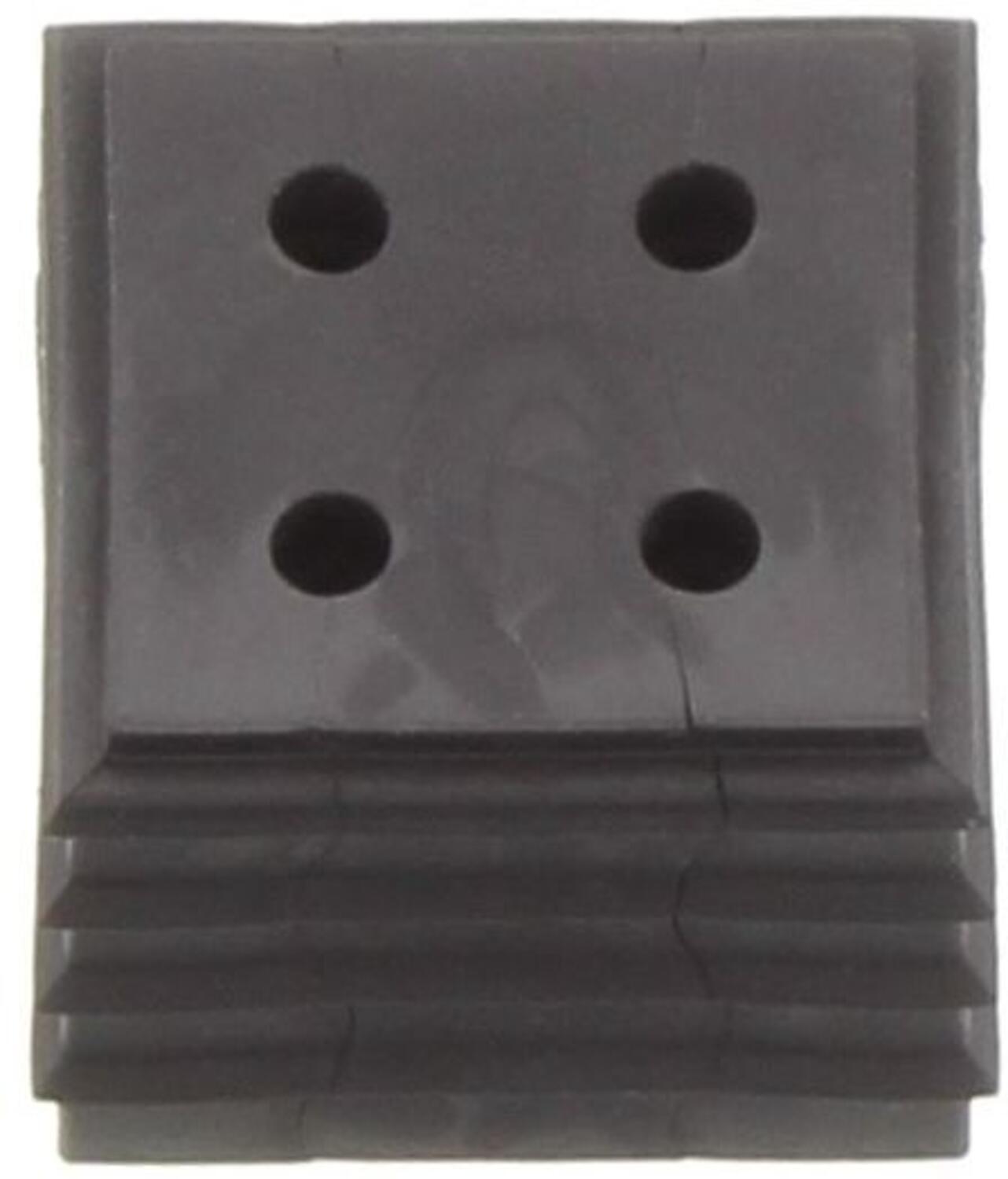

KDS-DE 4x 2-3, Black insert, Max 3mmø Art: 28557.4 Copied	cUL, UL	3 mm	2 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	4	-40 °C	120 °C	10				UL 508	Yes	6.8 g	20.3 mm

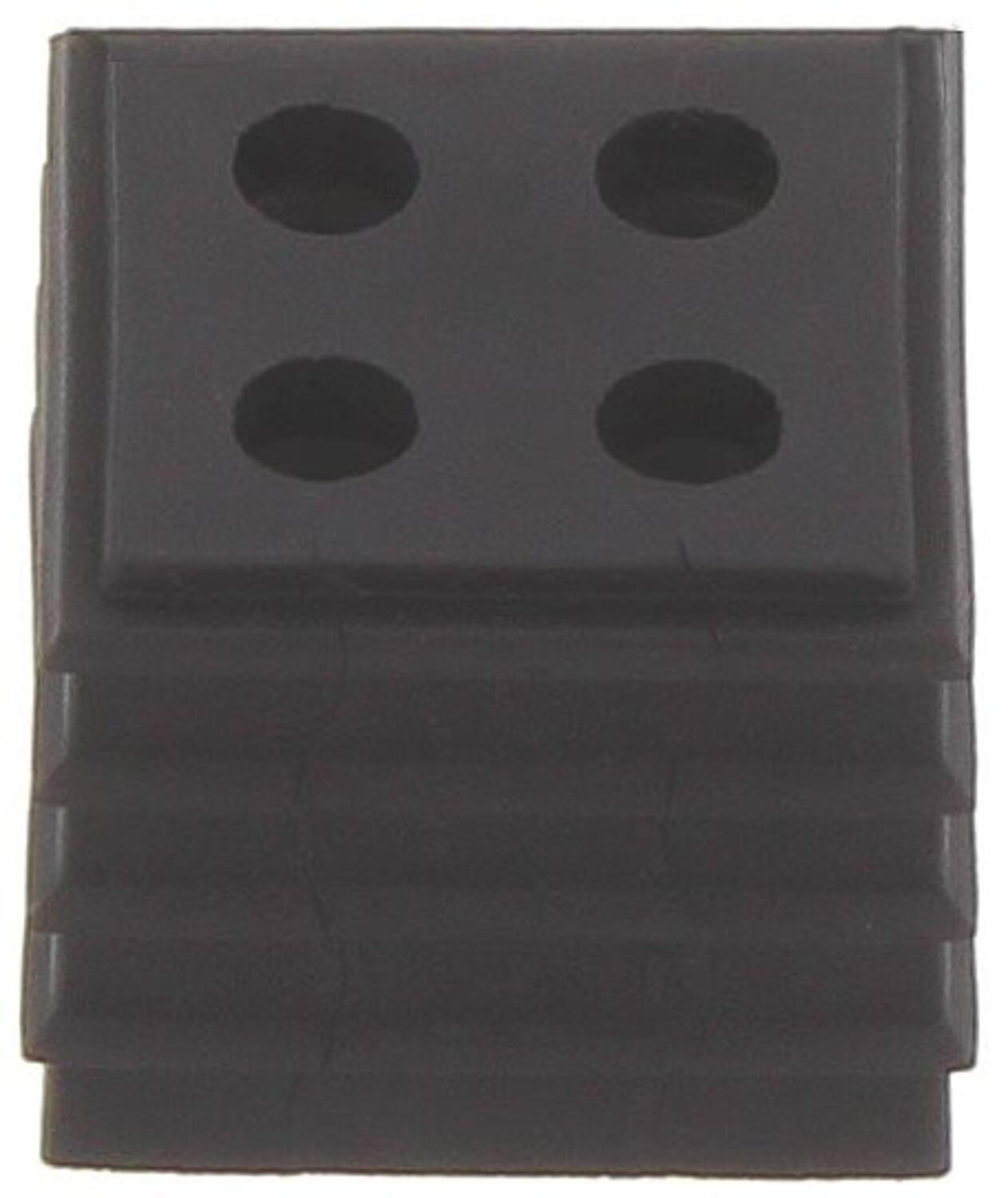

KDS-DE 4x 4.5, Black insert, Max 4.5mmø Art: 28681.4 Copied	cUL, UL	4.5 mm	4.2 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	4	-40 °C	120 °C	10				UL 508	Yes	6.3 g	20.3 mm

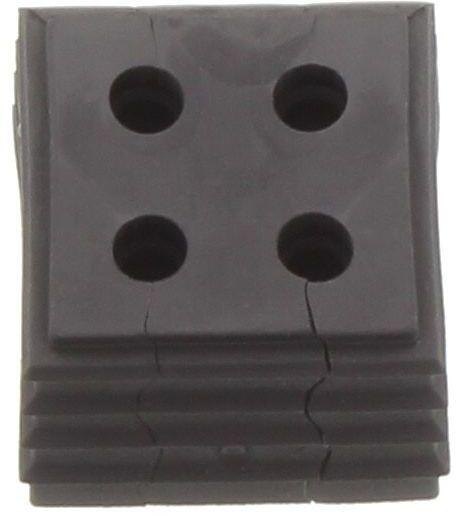

KDS-DE 4x 3-4, Black insert, Max 4mmø Art: 28558.4 Copied	cUL, UL	4 mm	3 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	4	-40 °C	120 °C	10				UL 508	Yes	6.6 g	20.3 mm

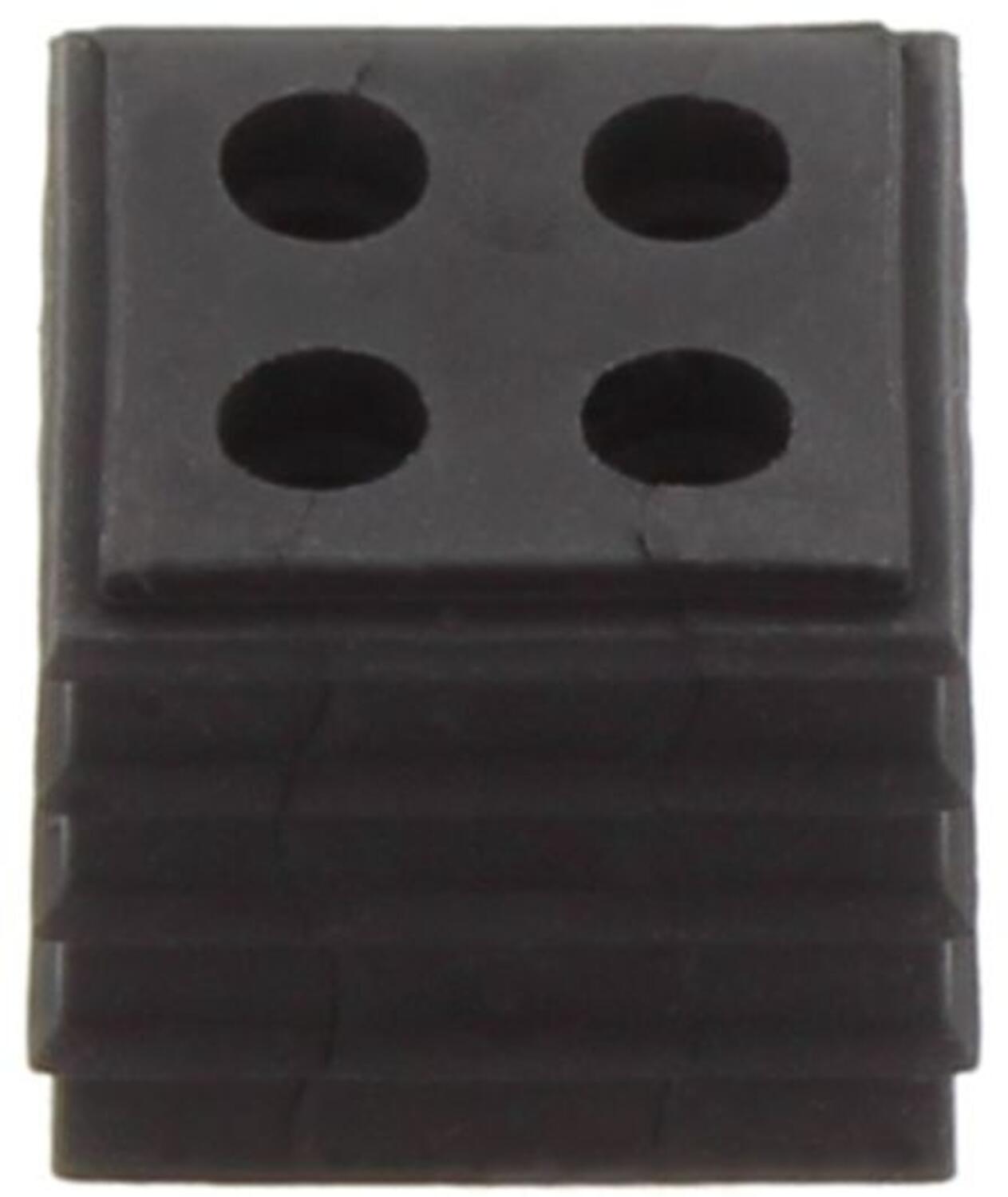

KDS-DE 4x 5, Black insert, Max 5.3mmø Art: 28672.4 Copied	cUL, UL	5.1 mm	4.7 mm	Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in	4x	4	-40 °C	120 °C	10				UL 508	Yes	6.1 g	20.3 mm

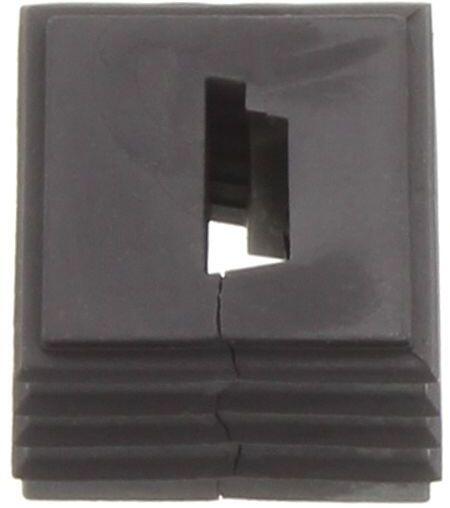

KDS-DE 1x ASI, Black ASI insert, Art: 28559.4 Copied	cUL, UL			Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in		1	-40 °C	120 °C	10				UL 508	Yes	6.5 g	20.3 mm

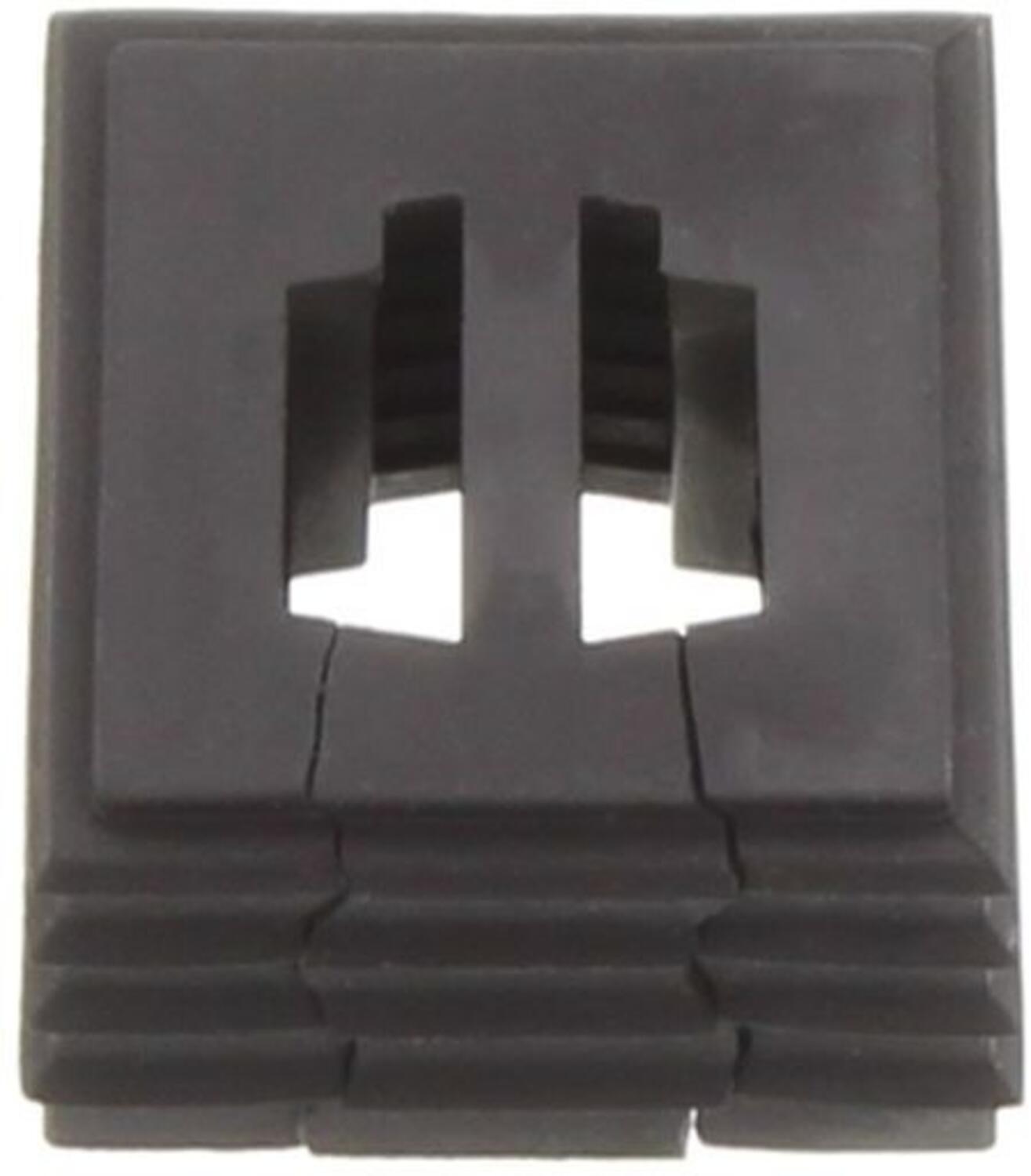

KDS-DE 2x ASI, Black ASI insert, Art: 28560.4 Copied	cUL, UL			Black	C22.2 No. 14-95		HB	No	17.7 mm	20.3 mm	TPE	Push in		2	-40 °C	120 °C	10				UL 508	Yes	5.9 g	20.3 mm

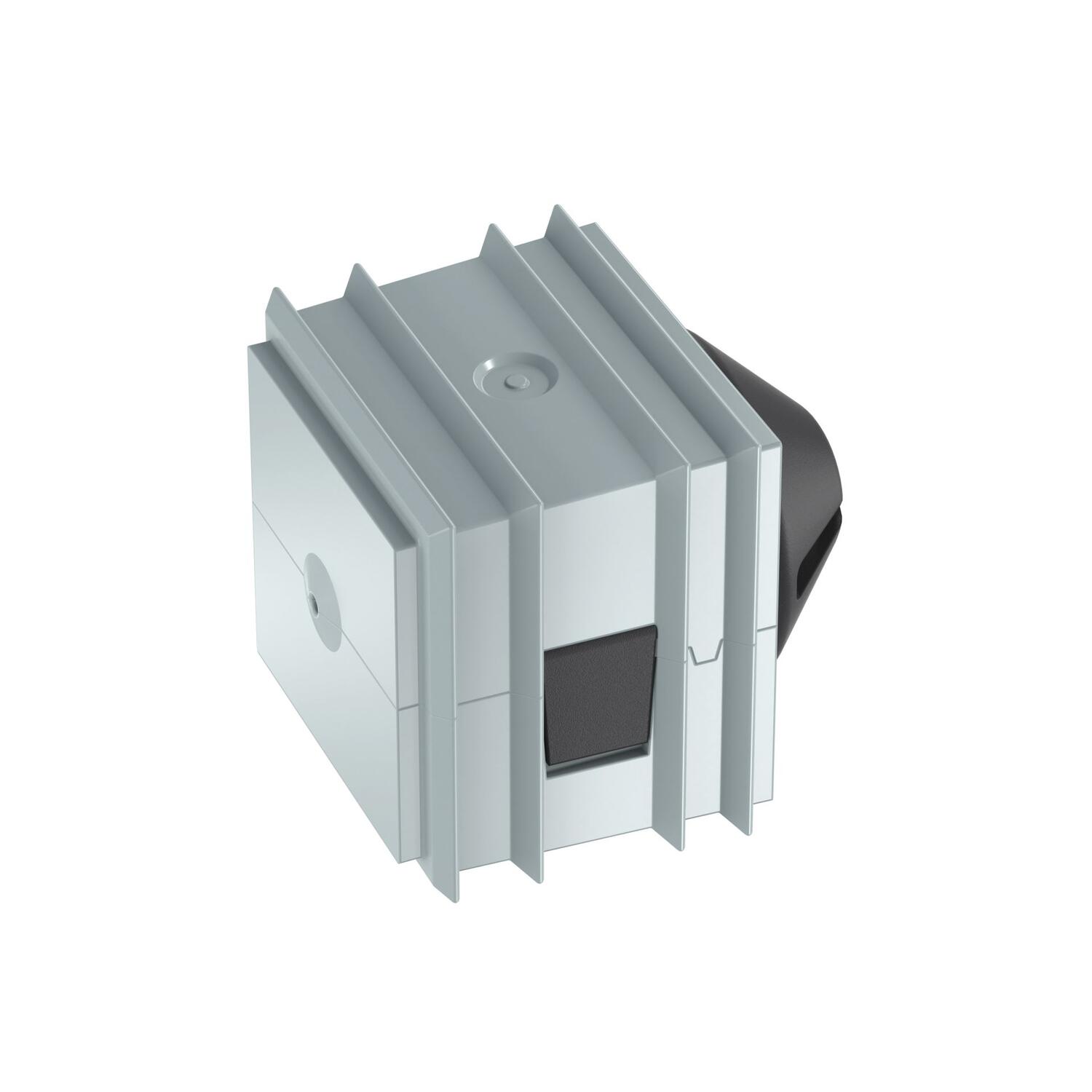

KDS-DE-Z2K 1.0-2.6, Hi Strain Relief insert, 1mm to 2.6mmø Art: 28980.6 Copied	cUL, UL	2.6 mm	1 mm	Grey		5 N	V-0	Yes	25 mm	20.3 mm		Push in		1	-40 °C	90 °C	10					No	7.8 g	20.3 mm

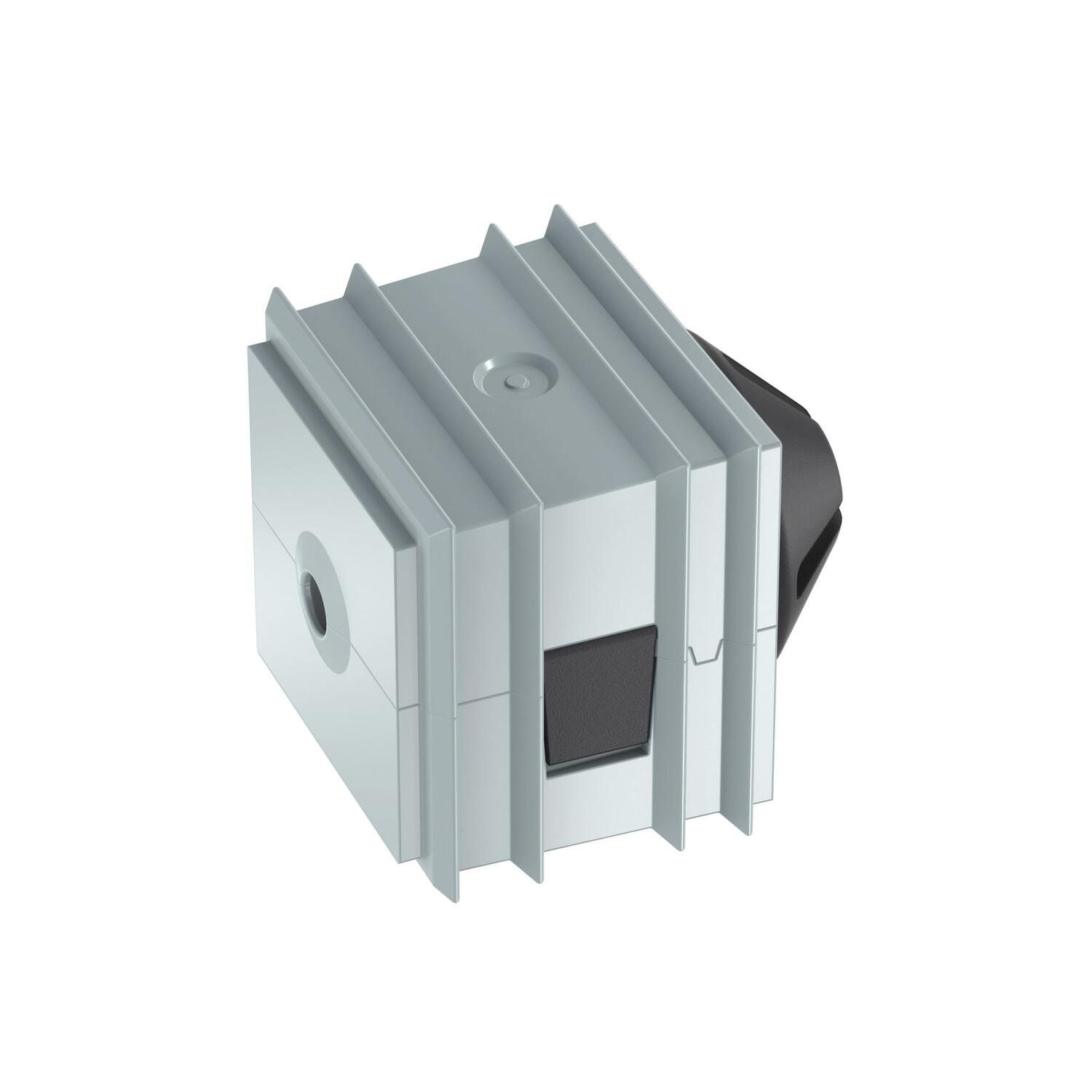

KDS-DE-Z2K 3.0-4.7, Hi Strain Relief insert, 3mm to 4.7mmø Art: 28981.6 Copied	cUL, UL	4.7 mm	3 mm	Grey		10 N	V-0	Yes	25 mm	20.3 mm		Push in		1	-40 °C	90 °C	10			30 N		No	7.2 g	20.3 mm

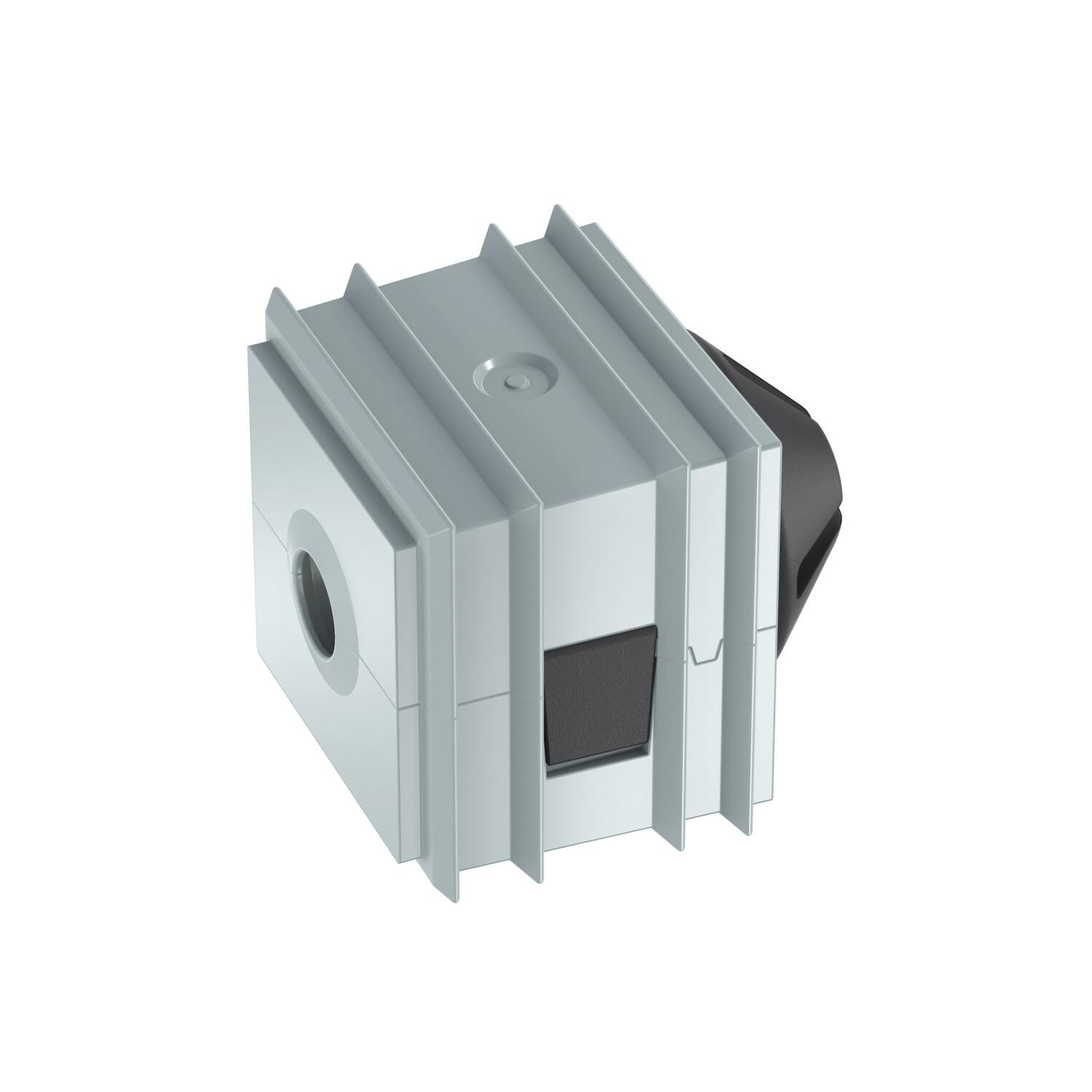

KDS-DE-Z2K 4.8-6.2, Hi Strain Relief insert, 4.8mm to 6.2mmø Art: 28982.6 Copied	cUL, UL	6.2 mm	4.8 mm	Grey		10 N	V-0	Yes	25 mm	20.3 mm		Push in		1	-40 °C	90 °C	10			30 N		No	6.8 g	20.3 mm

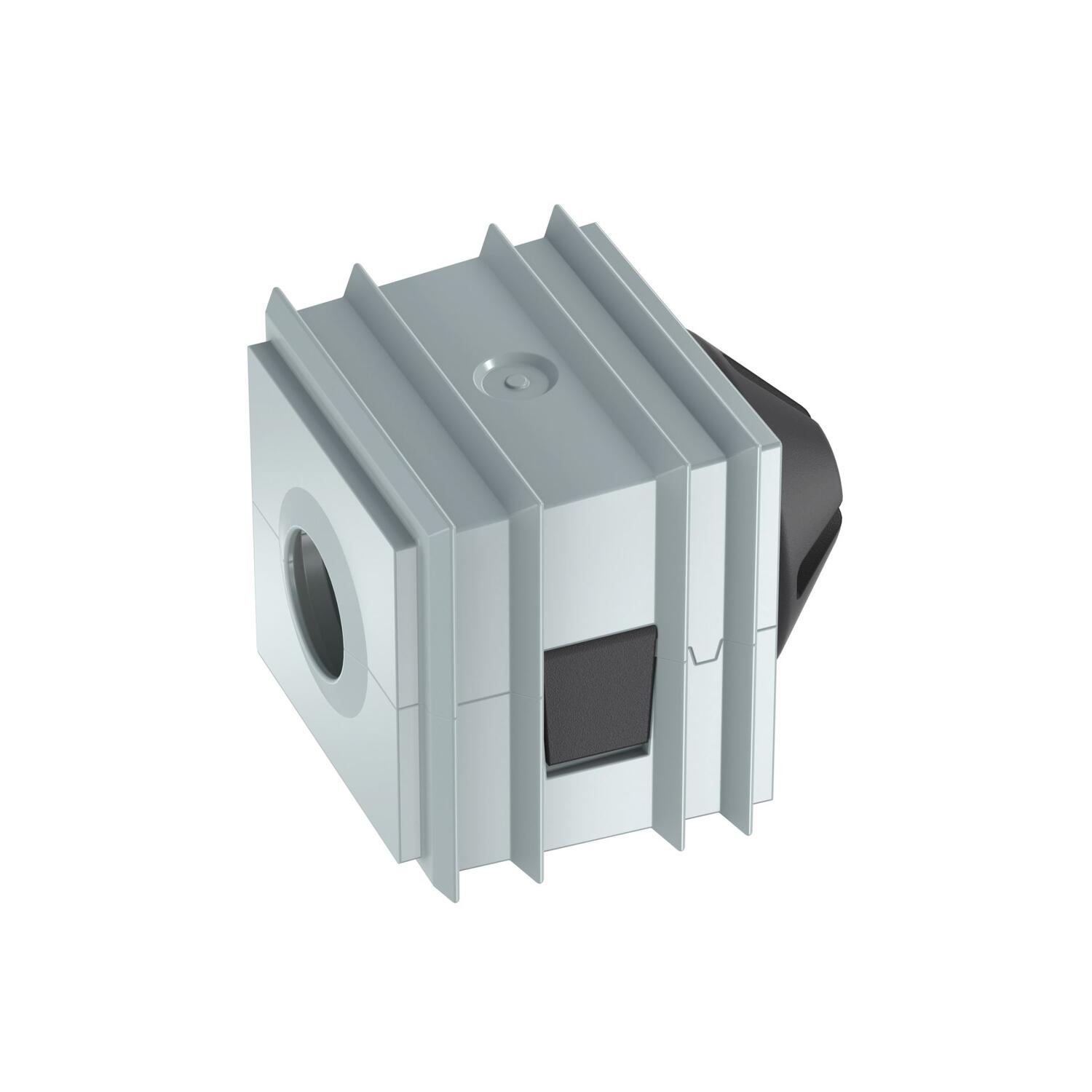

KDS-DE-Z2K 6.3-8.1, Hi Strain Relief insert, 6.3mm to 8.1mmø Art: 28983.6 Copied	cUL, UL	8.1 mm	6.3 mm	Grey		10 N	V-0	Yes	25 mm	20.3 mm		Push in		1	-40 °C	90 °C	10			30 N		No	6.4 g	20.3 mm

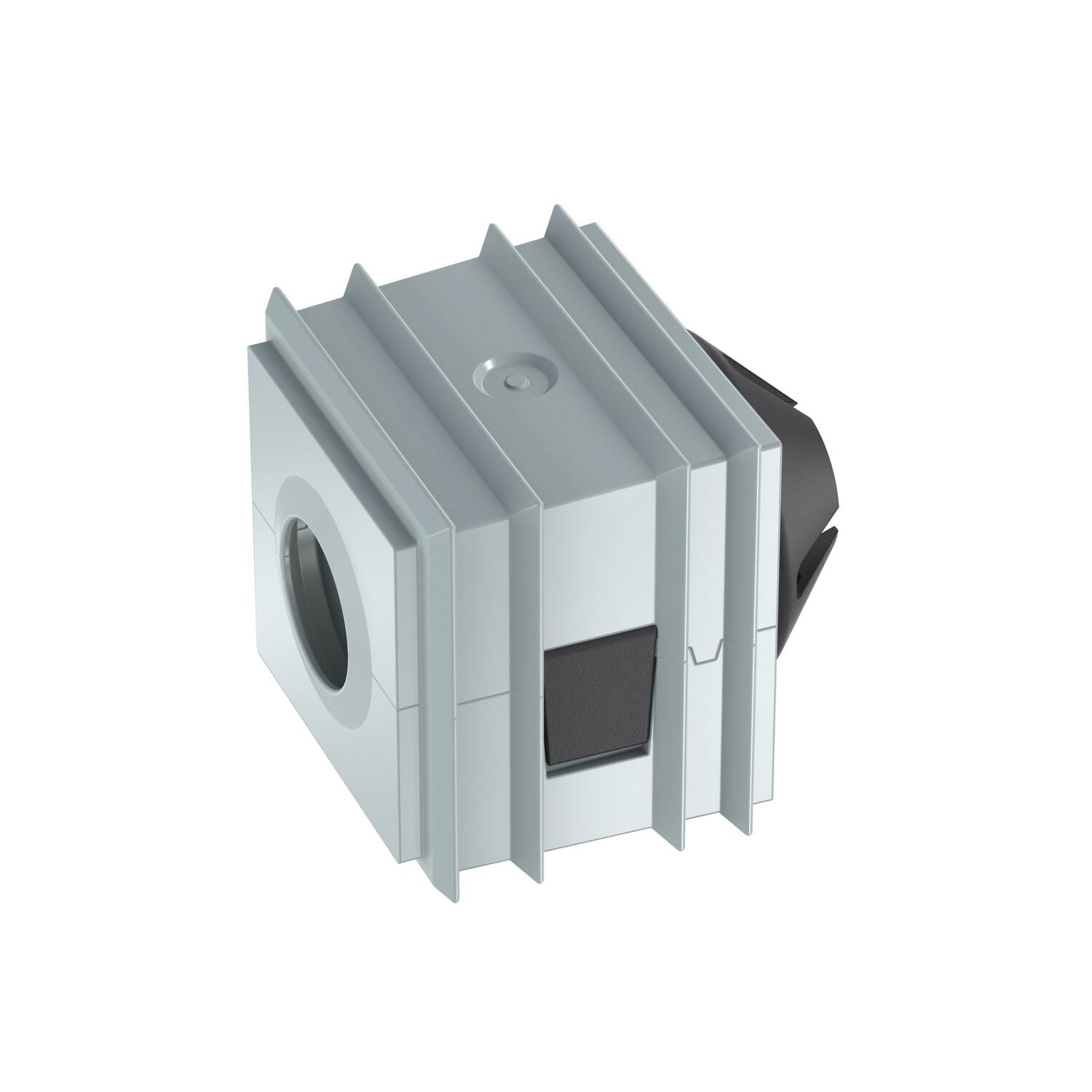

KDS-DE-Z2K 8.0-8.7, Hi Strain Relief insert, 8mm to 8.7mmø Art: 28984.6 Copied	cUL, UL	8.7 mm	8 mm	Grey		15 N	V-0	Yes	25 mm	20.3 mm		Push in		1	-40 °C	90 °C	10			42 N		No	6 g	20.3 mm
KDS-DE-FB1/A GR Bilnd Insert Art: 28713.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	0	-40 °C	90 °C	5				UL 508	No	15.7 g

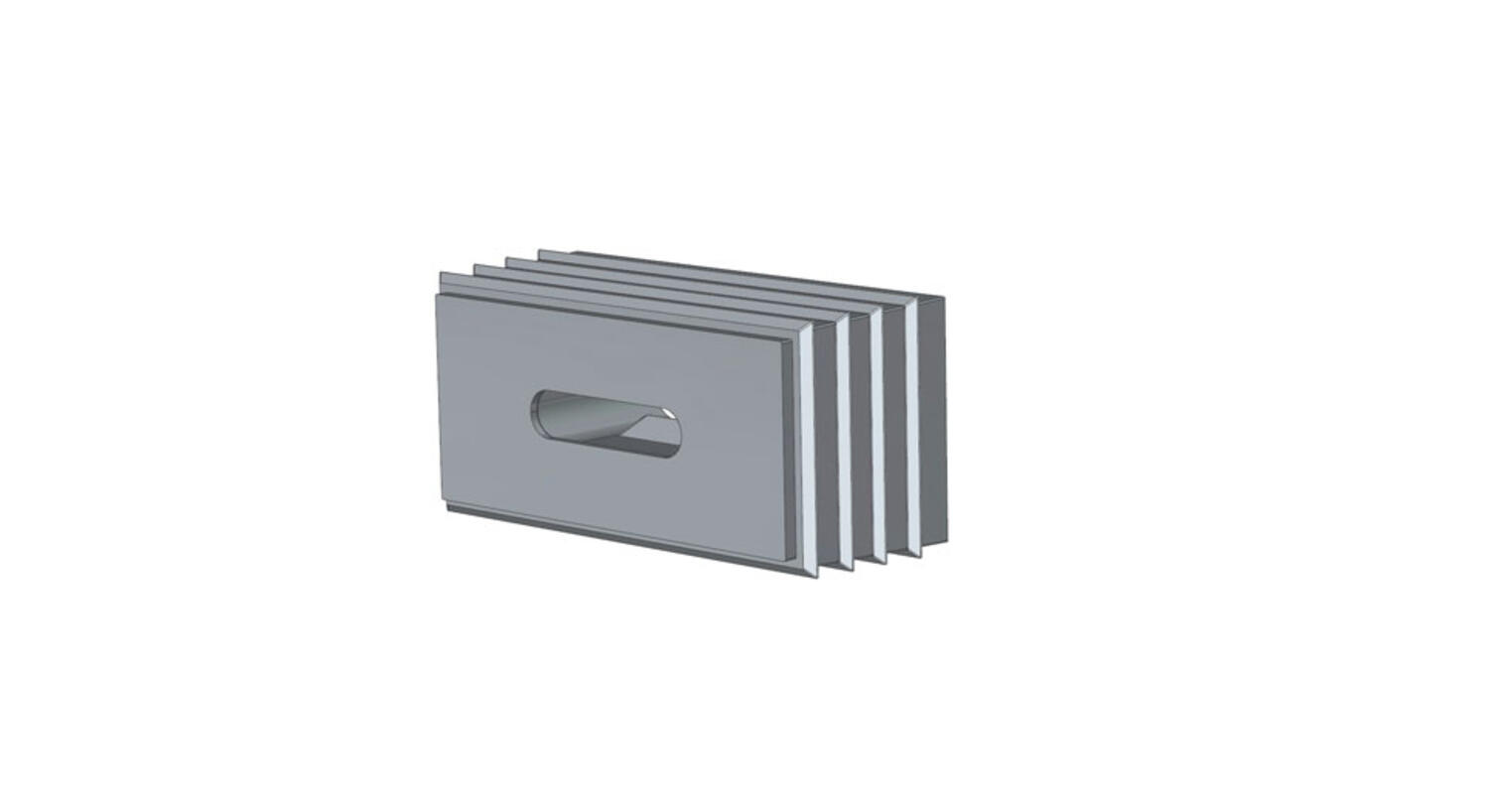

KDS-DE-FB1/B GR 23 x 6mm Max Insert Art: 28714.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	5.5…6mm	19…23mm		UL 508	No	13.7 g
KDS-DE-FB1/C GR 33 x 6mm Max Insert Art: 28715.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	10	5.5…6mm	28…33mm		UL 508	No	12.8 g	20.3 mm
KDS-DE-FB1/D GR 30 x 9mm Max Insert Art: 28716.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	8.5…9mm	24…30mm		UL 508	No	11.8 g
KDS-DE-FB1/E GR 24 x 7mm Max Insert Art: 28717.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	6.5…7mm	19…24mm		UL 508	No	13.2 g

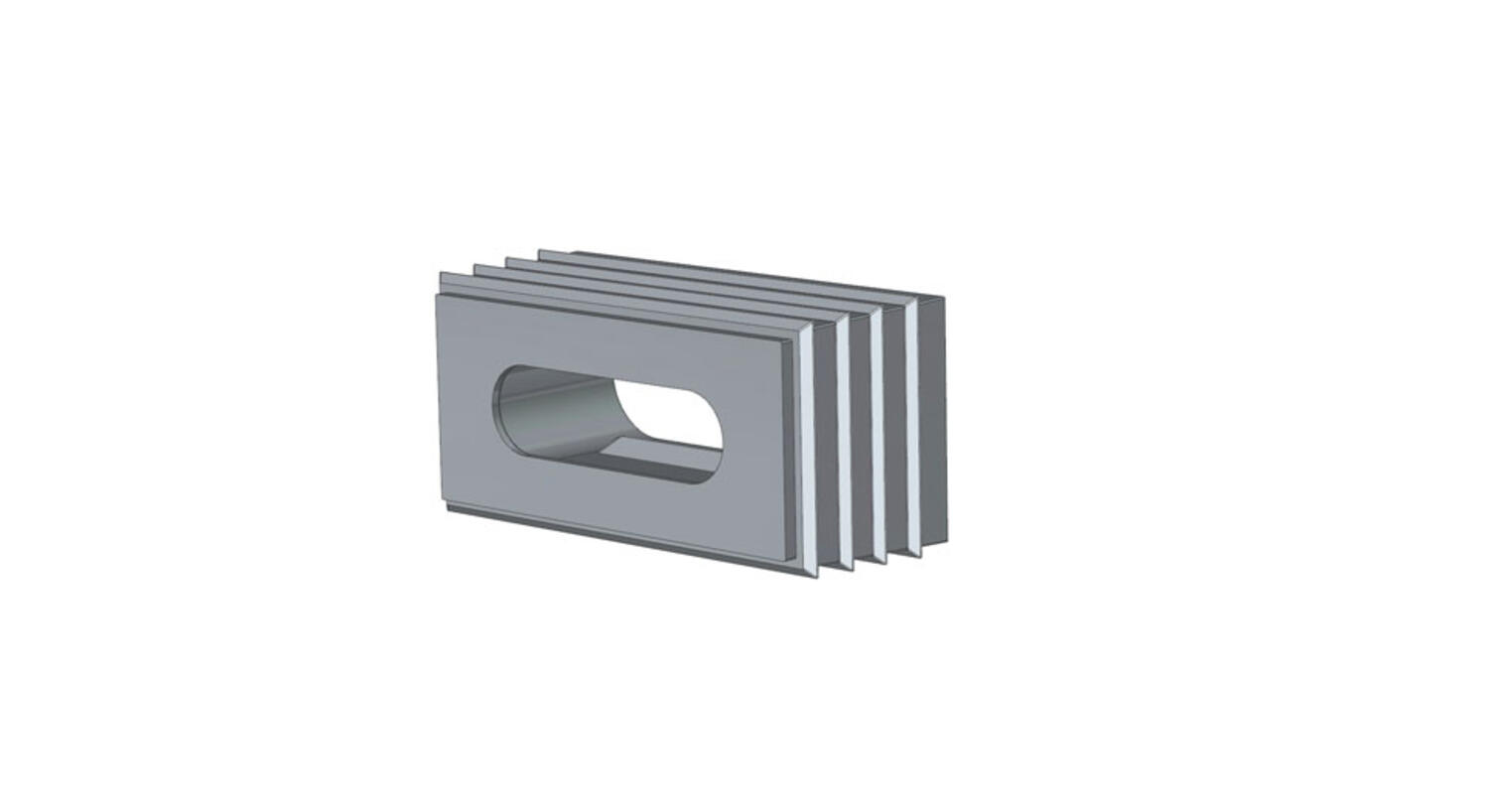

KDS-DE-FB1/F GR 33 x 9.5mm Max Insert Art: 28718.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	9…9.5mm	28…33mm		UL 508	No	10.8 g

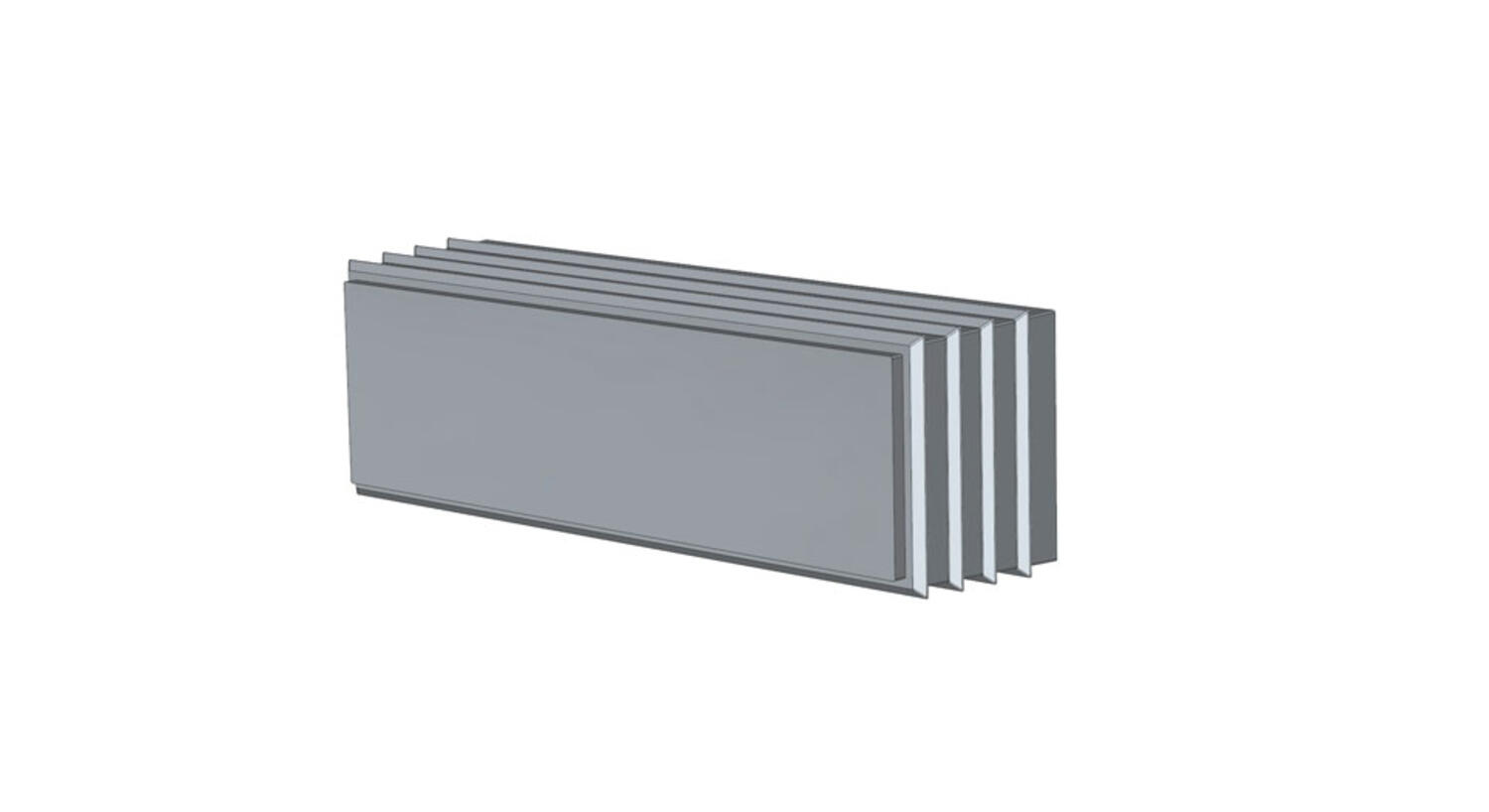

KDS-DE-FB2/A GR Blind Insert Art: 28719.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	0	-40 °C	90 °C	5				UL 508	No	23.6 g

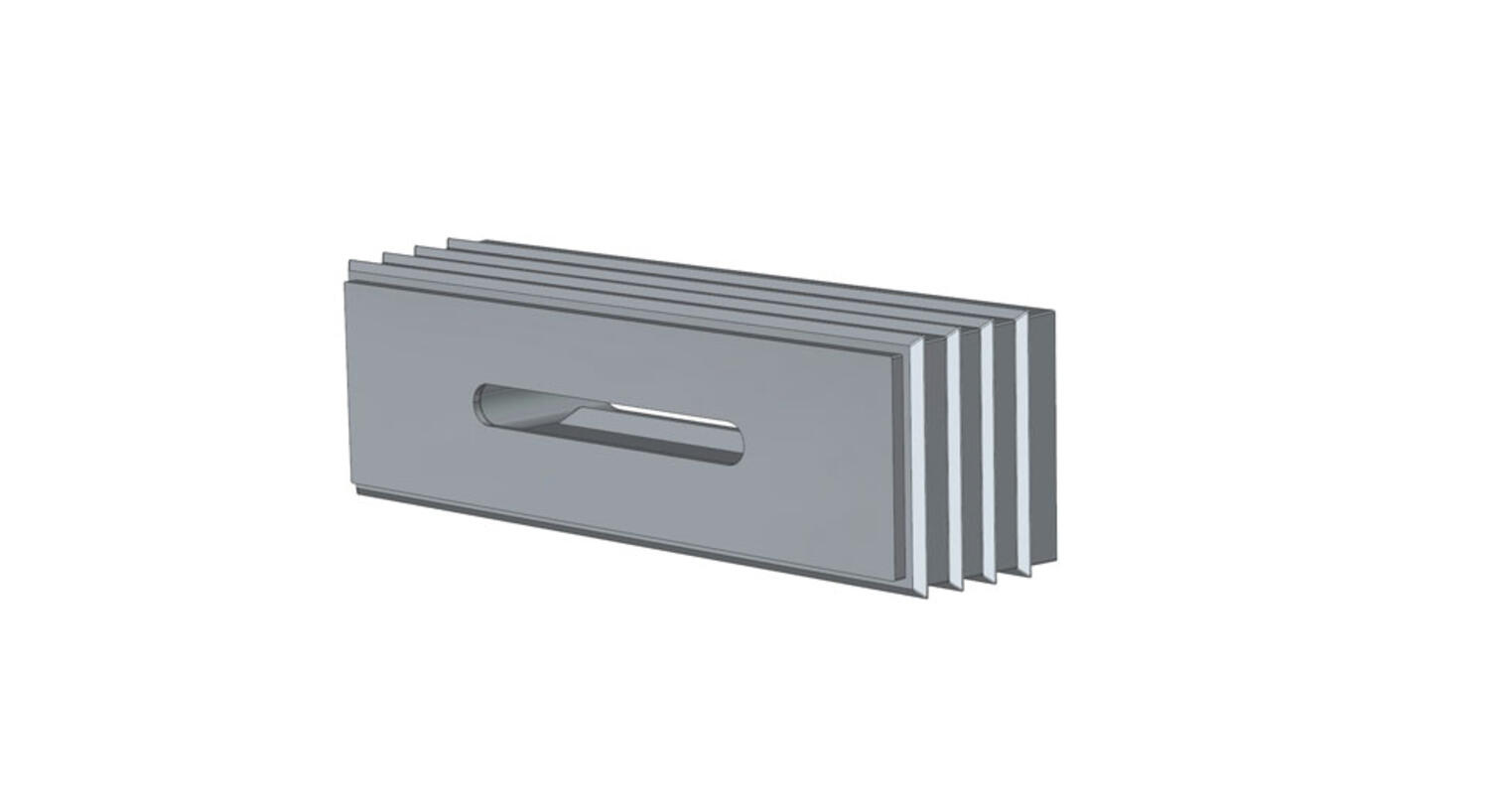

KDS-DE-FB2/B GR 38 x 5.5mm Max Insert Art: 28720.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	5…5.5mm	32.5…38mm		UL 508	No	24.45 g
KDS-DE-FB2/C GR 50.5 x 6.5mm Max Insert Art: 28721.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	6…6.5mm	45…50.5mm		UL 508	No	22.18 g

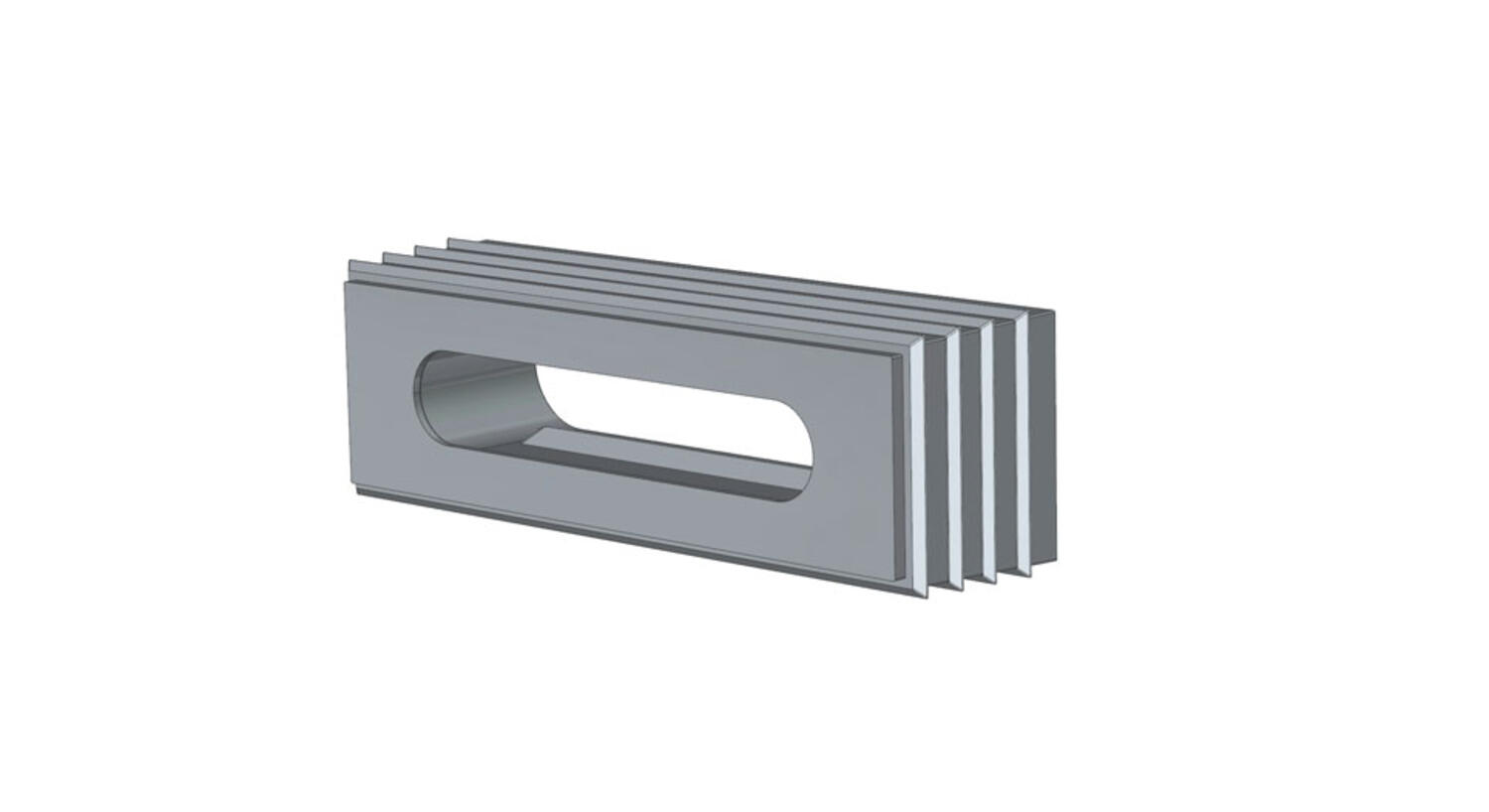

KDS-DE-FB2/D GR 52 x 6.5mm Max Insert Art: 28722.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	9.5…10mm	47…52mm		UL 508	No	17.47 g

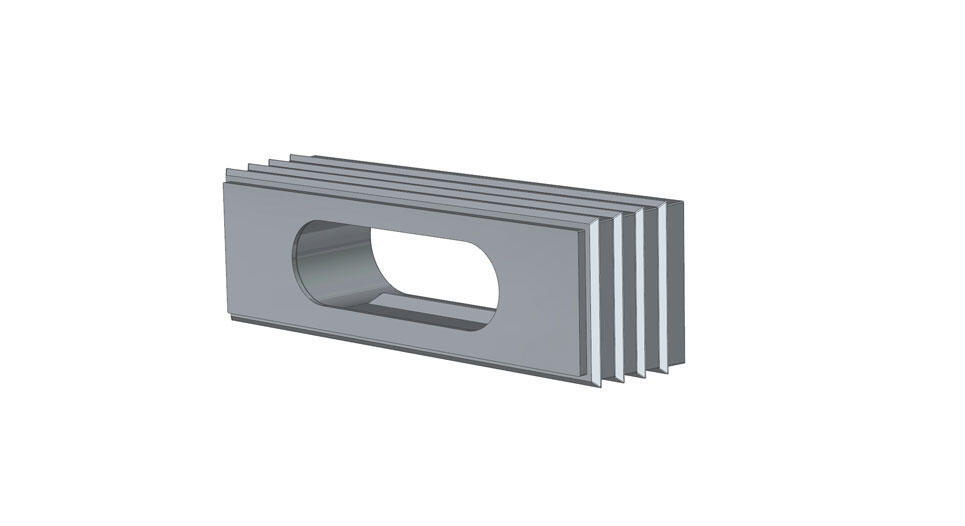

KDS-DE-FB2/E GR 43 x 13mm Max Insert Art: 28723.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	12.5…13mm	38…43mm		UL 508	No	17.07 g
KDS-DE-FB2/F GR 54 x 6mm Max Insert Art: 28724.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	5…6mm	49…54mm		UL 508	No	21.57 g
KDS-DE-FB3/A GR Blind Insert Art: 28725.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	0	-40 °C	90 °C	5				UL 508	No	31.7 g
KDS-DE-FB3/B GR 77 x 5.5mm Max Insert Art: 28726.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	5…5.5mm	72…77mm		UL 508	No	28.49 g
KDS-DE-FB4/A GR Blind Insert Art: 28727.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	0	-40 °C	90 °C	5				UL 508	No	39.7 g

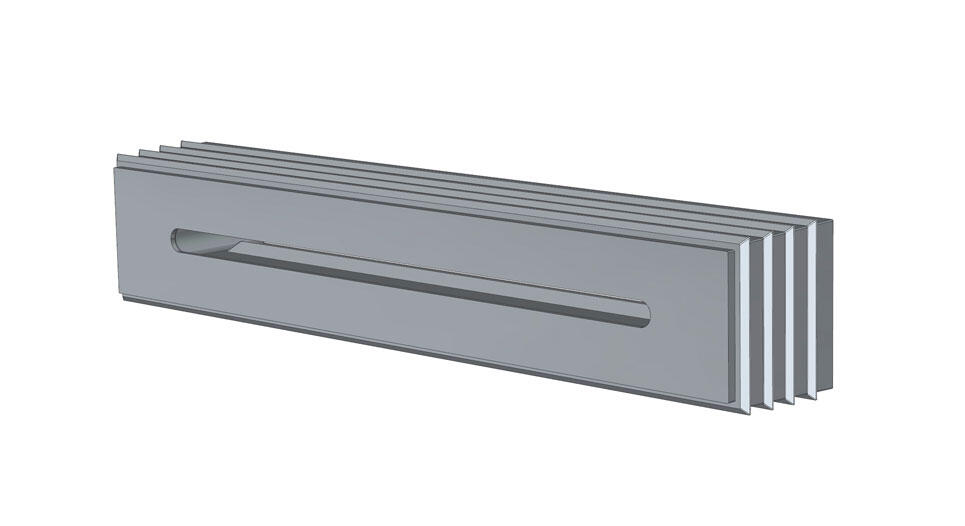

KDS-DE-FB4/B GR 99 x 5.2mm Max Insert Art: 28728.6 Copied	cUL, UL			Grey	C22.2 No. 14-95		V-0	No			TPE	Push in	4x	1	-40 °C	90 °C	5	4.2…5.2mm	85…99mm		UL 508	No	37.44 g

Selected variant

Select a variant in the list
