JACOB

EMC cable glands, PG thread

  • For cables with shielding
  • Integrated anchorage
  • Protection against twisting
  • Wide sealing and clamping range
Read more

Selected variant

JACOB.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cable Diameter Max 6.5 mm
Cable Diameter Min 3 mm
Hexagon 14 mm
IP Class IP68
Length Overall 24 mm
Material screw Nickel-plated brass
O-ring Yes
Pack Size 100
Packing Materials CR/NBR
Temperature range dynamic max. 100 °C
Temperature range dynamic min. -20 °C
Temperature range static short term min. -40 °C
Thread Length 5 mm
Thread size PG 7
Thread type PG

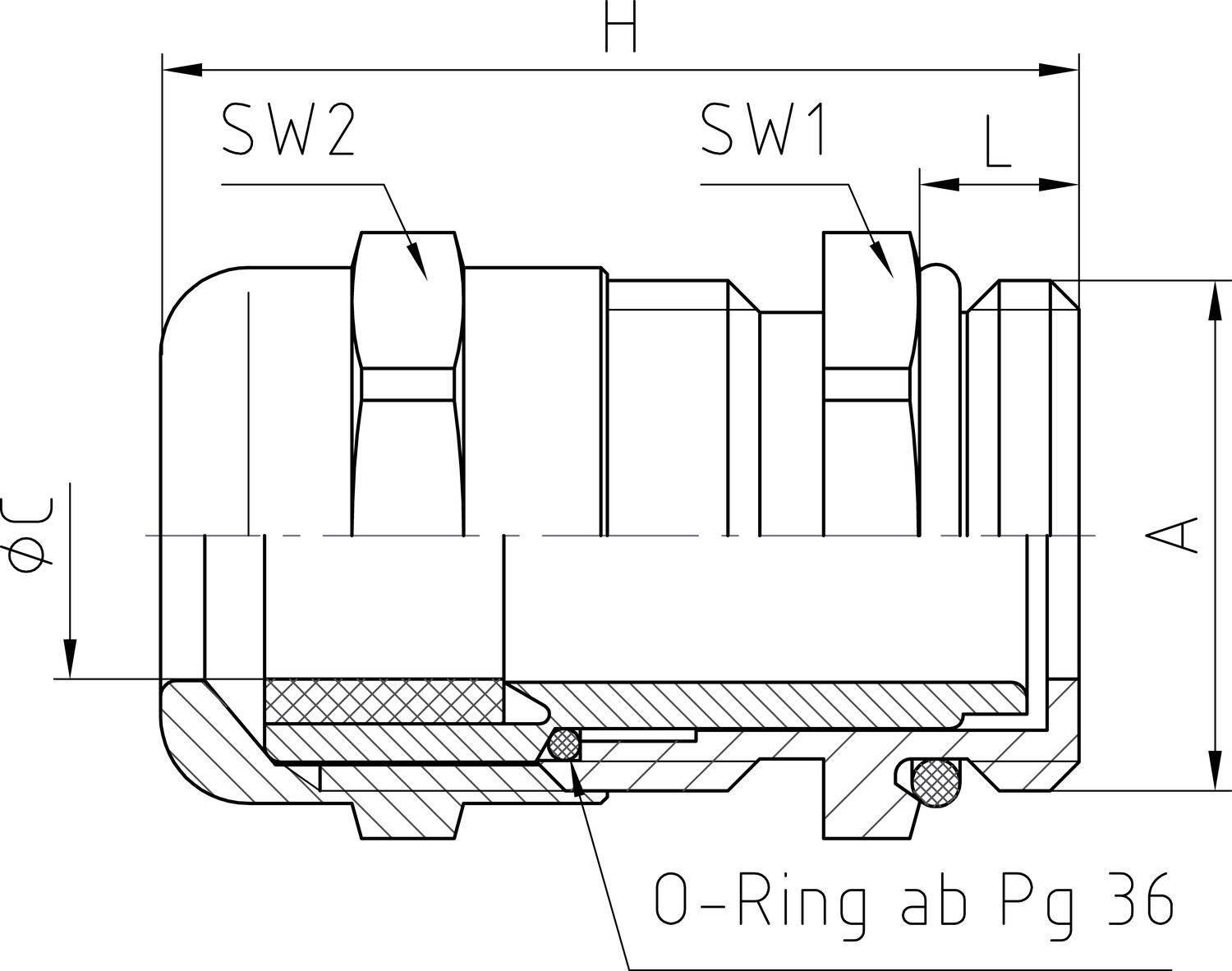

Measurements and connections

Product description

  • For cables with shielding
  • Integrated anchorage
  • Protection against twisting
  • Wide sealing and clamping range

Accessories

Articles Cable Diameter Max Cable Diameter Min Hexagon Length Overall Pack Size Thread Length Thread size

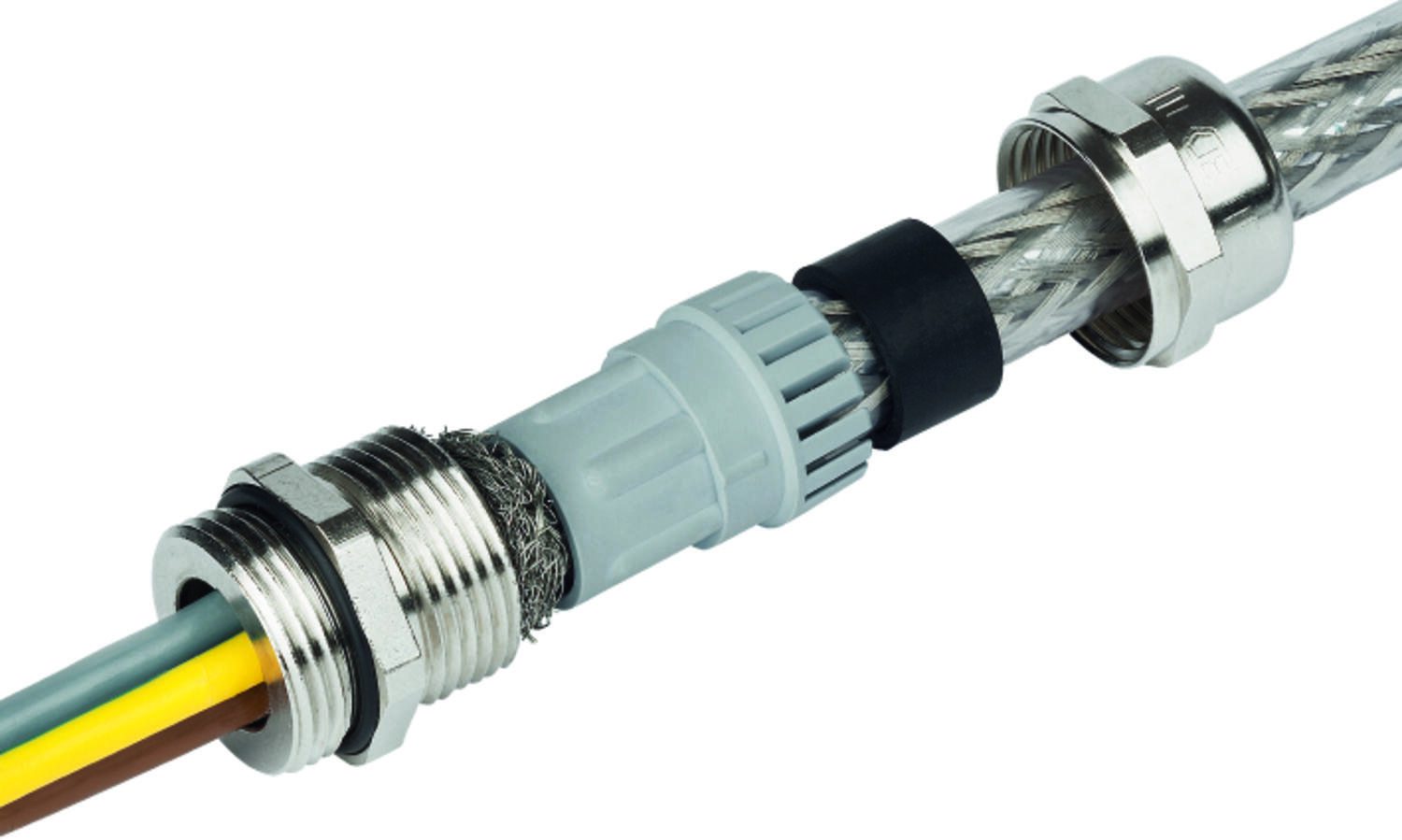

500xxEMV_03.tif
Cable gland, EMC, PG7, brass
Art:
50.007/EMV Copied
6.5 mm
3 mm
14 mm
24 mm
100
5 mm
PG 7
500xxEMV_03.tif
Cable gland, EMC, PG9, brass
Art:
50.009/EMV Copied
8 mm
4 mm
17 mm
29 mm
100
6 mm
PG 9
500xxEMV_03.tif
Cable gland, EMC, PG11, brass
Art:
50.011/EMV Copied
10 mm
5 mm
20 mm
29.5 mm
100
6 mm
PG 11
500xxEMV_03.tif
Cable gland, EMC, PG13,5, brass
Art:
50.013/EMV Copied
12 mm
6 mm
22 mm
31.5 mm
50
6.5 mm
PG 13,5
500xxEMV_03.tif
Cable gland, EMC, PG16, brass
Art:
50.016/EMV Copied
14 mm
10 mm
24 mm
31.5 mm
50
6.5 mm
PG 16
500xxEMV_03.tif
Cable gland, EMC, PG21, brass
Art:
50.021/EMV Copied
18 mm
13 mm
30 mm
34 mm
25
7 mm
PG 21
500xxEMV_03.tif
Cable gland, EMC, PG29, brass
Art:
50.029/EMV Copied
25 mm
18 mm
40 mm
39 mm
25
8 mm
PG 29
500xxEMV_03.tif
Cable gland, EMC, PG36, brass
Art:
50.036/EMV Copied
32 mm
24 mm
50 mm
45 mm
10
9 mm
PG 36
500xxEMV_03.tif
Cable gland, EMC, PG42, brass
Art:
50.042/EMV Copied
38 mm
30 mm
57 mm
49 mm
5
10 mm
PG 42
500xxEMV_03.tif
Cable gland, EMC, PG48, brass
Art:
50.048/EMV Copied
44 mm
34 mm
64 mm
52 mm
5
10 mm
PG 48
